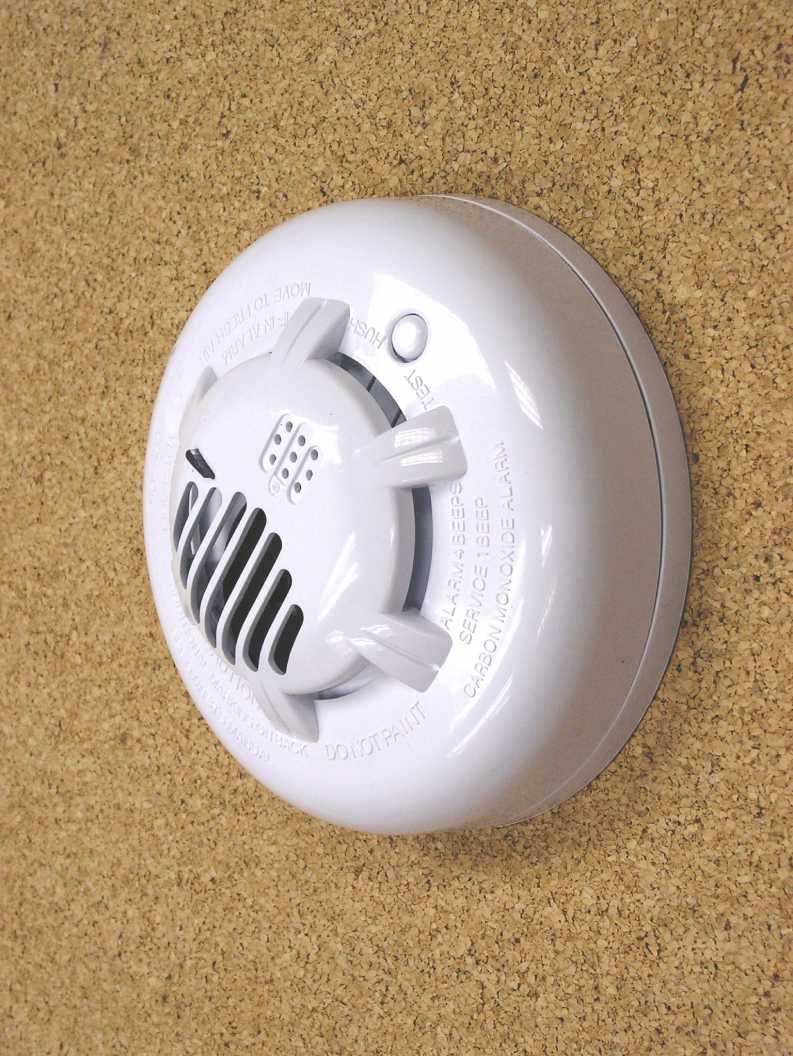

2ACE9-51000305AWireless Smoke and Carbon Monoxide Alarm

ATTENTIONVeuillez noter que l’installation, le fonctionnement, le test et l’entretien de ce détecteur de monoxyde de carbone sans fi l sont différents de ceux des détecteurs de fumée. Selon la section 5.3.7.2 de la norme NFPA 720, le détecteur ne doit pas être connecté à une zone pouvant émettre des signaux concernant un incendie (ex. des zones équipées de détecteurs de fumée). Ce détecteur de monoxyde de carbone sans fi l doit donc être programmé en tant que zone sans détection d’incendie. Reportez-vous aux instructions d’installation du contrôle pour connaître le type de zone devant être programmé pour le monoxyde de carbone.SPÉCIFICATIONSSource d’alimentation : 1 pile 3 volts CR123A Panasonic au lithium (incluse)Signal sonore (tonalité temp 4) : 85 dBA min. en alarme (à 10 pieds (3 m))Courant de fonctionnement : 10 μAPlage de température : 4,4°C (40°F) à 37,8°C (100°F)Plage d'humidité en fonctionnement : 15 % à 95 % d’humidité relative, sans condensationEn attente d'homologations : Normes UL 2075, UL 2034 et CSA 6.19-01 Apollo America 25 Corporate Drive Auburn Hills, MI 48326 248-332-3900 Phone 888-332-2241 Tech Support www.apollo-fi re.com 51000-305 / 51000-307 Wireless Carbon Mono xide Alarm Installation Guide Attention: This manual should be read prior to use and retained for further information. GENERAL INFORMATIONThe Wireless Carbon Monoxide Alarm is a 3V battery powered wireless detector intended for use with a compatible wireless alarm system. The detector consists of an electrochemical carbon monoxide sensor assembly coupled to a wireless transmitter. The Wireless Carbon Monoxide Alarm communicates with the control panel and can send alarm, tamper and battery condition messages to the system’s receiver. Refer to the wireless system’s instruction for the maximum number of transmitters that can be supported.IMPORTANT: This detector must be tested and maintained regularly following NFPA 720 requirements.This device is designed to protect individuals from the acute effects of carbon monoxide exposure. It will not fully safeguard individuals with specifi c medical conditions. If in doubt consult a medical practitioner. WARNING This product is intended for use in ordinary indoor residential areas. It is not designed to measure compliance with Occupational Safety & Health Administration (OSHA) commercial and industrial standards.Contents of box: • Wireless Carbon Monoxide Alarm with base• Installation guide• Pack of screws and anchors• Labels as appropriate• 1 CR123A Panasonic battery The Wireless Carbon Monoxide Alarm contains a sounder which generates the ANSI S3.41 temporal 4 pattern in an alarm condition (see Table 1 for temporal 4 pattern). In alarm, a message is also sent to the control panel and the detector’s ID is displayed at the console. During an alarm condition, pressing the detector’s hush button will silence the sounder for fi ve minutes. The mounting base installation is simplifi ed by the incorporation of features compatible for both drywall fasteners (not supplied) and other methods.Tricolored LED (green, yellow, red) and a sounder on the detector provide local visual and audible indication of the detector’s status as listed in Table 1. 2 APD0602 B 14 1212 During initial power-up the LED blinks alternately green, yellow then red. It takes about 60 seconds for the detector’s CO sensor to stabilize. After power-up has completed and the detector is functioning normally, the green LED blinks once every 12 seconds. Status LEDs Sounder (does not pulse the sounder and LED concurrently) Radio signalling Normal Green fl ash every 12 seconds Off Normal (None) Alarm/ Test Red fl ash every 12 seconds ANSI S3.41 temporal 4 (press button to hush for 5 minutes) Alarm Detector trouble Yellow fl ash every 6 seconds One 100ms chirp every 45 seconds Fault Low battery Yellow fl ash every 12 seconds One 100ms chirp every 45 seconds (press button to hush for 12 hours) Low Battery Detector end of life Yellow fl ash every 23 seconds One 100ms chirp every 45 seconds Fault Powerup Green, yellow, red fl ash sequence every 12 seconds One 100ms chirp at end of power-up sequence None Tamper Green, yellow, red fl ash sequence every 12 seconds Off Tamper Table 1. Detector status and indication Detector Trouble: When the sensor supervision is in trouble condition, the yellow LED blinks once every six seconds and there is a chirp every 45 seconds. After 12 hours the panel will display a loss of supervision message.Detector end of life feature: When the detector has reached the end of its life, the yellow LED blinks once every 23 seconds and there is a chirp every 45 seconds. After 12 hours the panel will display a loss of supervision message. This indicates that the CO sensor inside the detector has passed the end of its life and the detector must be replaced. The detector lifespan is fi ve years from the date of manufacture. Refer to DETECTOR REPLACEMENT section.Low Battery Detection: The Wireless Carbon Monoxide Alarm is powered by a single 3-volt CR123A Panasonic Lithium battery (included). The detector regularly checks for a low battery. If a low battery is detected, the transmitter sends a low battery message to the control panel, which displays the detector’s ID at low battery. In addition, the yellow LED of the detector will blink every 12 seconds. The detector’s sounder will chirp every 45 seconds (yellow LED continues to blink) until the battery is replaced. Pressing the hush button will silence the chirps for 12 hours, if no other trouble conditions exist. The battery should be replaced WHEN the chirps begin. Be sure to replace the battery with a fresh one. This device complies with Part 15 of the FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. APD0602 B 14…

Text truncated - open the document above for the full version.

A HALMACOMPANY Fax: (248)332-3900 (248)332-8807 Telephone: Apollo America, Inc. 25 Corporate Drive Auburn Hills,MI 48326USA On behalf of: Andrew [email protected]: Vice President, EngineeringTitle: (Print name) (Signature) Andrew Frost By: _1_9_thday ofDecember, 20 14 . Dated this Anti-Drug Abuse Certification: I further certify that no party (as defined in 1.2002 ofCFR47, 1992) to this application, including myself, is subject to a denial of federal benefits, that i ncludes FCC benefits, pursuant to Section 5301 of the Anti Drug Abuse Act of 1988,21 U.S.C. 853(a). Please be advised that Apollo America, Inc. authorizes Dr. ValdisV.Liepa of the University of Michigan, Department of Electrical Engineering and Computer Science, AnnArbor, Michigan, to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification. Re: Letter of Agency for FCC Compliance Testing Federal Communications Commission Applications Processing Branch 7435 Oakland Mills Road Colombia, MD 21046 ApolloAmerica 25Corporate DriveTel: +1 (248)332-3900Email:Sal [email protected] Auburn Hills, Michigan 48326USA Fax:+1 (248)332-8807 www.apollo-fire.com December 19,2014 A HALMACOMPANY Fax: (248) 3 32-3900 (248) 3 32-8807 Telephone: Apollo America, Inc. 25 Corporate Drive Auburn Hills, MI48326 USA On behalf o f: Andrew. [email protected]: Vice President, EngineeringTitle: (Print name) :;7'(Signatur~ AndrewFrost By: _1_9_thday ofDecember ,20~. Dated this (optional) Agency Agreement Expiration Date: For instances w here our authorized agent signs the a pplication for certificationon our b ehalf,I acknowledge that all responsibilityfor c omplying with the terms and conditions for Certification, as specified by American Certification Body, still re sides with Apollo America, Inc., 25 Corporate Drive, Auburn Hills, MI 48326 U SA I appoint Dr. ValdisV.Liepa to ac t as our agent in th e preparation ofthis a pplication for equipment certification.Icertify that submitted d ocuments properly describe the device o r system f or whichequipment certification is so ught. I also c ertify that ea ch unitmanufactured, imported o r ma rketed, as defined in Industry Canada's regulations will h ave af fixed to i t a label identical t o that submitted for a pproval with this application. Authority to Act as Agent Attn: Director of Certification Apollo America 25Corporate DriveTel: +1 (248)332-3900 Email:Sa [email protected] Auburn Hills, Michigan 48326USAFax:+ 1 (248)332-8807 www.apollo-fire.com December19, 2014

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Re: Certification for Apollo America, Inc. FCC ID: 2ACE9-51000305A IC: 12011A-51000305A REQUEST FOR CONFIDENTIALITY Pursuant to USA FCC 47 CFR 0.457(d) and 0.459 and Canada IC RSP-100, Section 10, Apollo America, Inc.requests that a part of the subject application be held confidential. Apollo America, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to ”competition” would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Exhibit Conf. TypeRational Exh 04 - Block DiagramPermanentIncludes proprietary internal oscillator frequency information. Exh 05 - SchematicsPermanentIncludes proprietary design information Exh 10 - BOM + PlacementPermanentIncludes proprietary design information Permanent Confidentiality:Apollo America, Inc. requests that any exhibits listed above as permanently confidential be permanently withheld from public review. Short-Term Confidentiality (FCC Only):Apollo America, Inc. requests that any exhibits selected above as short term confidential be withheld from public view for a period of days (noted above) from the date of the Grant of Equipment Authorization and prior to marketing. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 10

The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Certification and Engineering Bureau Industry Canada 3701 Carling Avenue, Bldg. 94 Ottawa, Ontario K2H 8S2 Re: Certification for Apollo America, Inc. 51000-305 IC: 12011A-51000305A Please find enclosed application materials for certification of Apollo America, Inc. 51000-305. We tested it and found it to comply with IC RSS-210/GENe. Current Variants: There is only a single variant of the EUT, as tested. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 12 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Attn.:Federal Communications Commission Equipment Approval Services P.O. Box 358315 Pittsburgh, PA 15251-5315 Re: Certification for Apollo America, Inc. 51000-305 FCC ID: 2ACE9-51000305A Please find enclosed application materials for certification of Apollo America, Inc. 51000-305. We tested it and found it to comply with CFR Title 47, Part 15.231. If there are any questions regarding the application or testing performed, please contact us at the above address or call (734) 483-4211, or e-mail [email protected]. Sincerely, Valdis V. Liepa The University of Michigan Radiation Laboratory 11

1 IMPRINT ART IS NOT FINAL Yellow field indicates custom label SHEET 2 OF 2 10/11/2013 10/12/2013 AF JRB UNLESS OTHERWISE SPECIFIED: SCALE: 1:1 DWG. NO. A TITLE: NAMEDATE COMMENTS: MFG APPR. ENG APPR. CHECKED DRAWN PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF APOLLO AMERICA, INC.. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF APOLLO AMERICA, INC. IS PROHIBITED. 5 4 3 2 1 SIZE REV DRAWING IS FOR REFERENCE ONLY...CAD IS MASTER WIRELESS CO DETECTOR AA 51000-305_AA_COLbl APDO613 A140725 WIRELESS CARBON MONOXIDE ALARM ALARME SANS FIL DE DÈTECTION DU MONOXYDE DE CARBONE INSTALL GUIDE SHOULD BE READ AND RETAINED / GUIDE D'INSTALLATION DOIT ÊTRE LU ET RETENU  WARNING CARBON MONOXIDE CANNOT BE SEEN OR SMELLED BUT CAN KILL YOU. IF ALARM SIGNAL SOUNDS: 1) OPERATE TEST/HUSH BUTTON. 2) CALL YOUR EMERGENCY SERVICES (FIRE DEPARTMENT OR 911). 3) IMMEDIATELY MOVE TO FRESH AIR - OUTDOORS OR BY AN OPEN DOOR/WINDOW. USE ONLY BATTERIES SPECIFIED IN MARKING. USE OF A DIFFERENT BATTERY WILL HAVE A DETRIMENTAL EFFECT ON DEVICE OPERATION.  AVERTISSEMENT LE MONOXYDE DE CARBONE EST INVISIBLE ET SANS ODEUR MAIS PEUT ÊTRE FATAL. EN CAS DE DÉCLENCHEMENT DE L ‘ALARME: 1) APPUYER SUR LE BOUTON DE REMISE A TEST/HUSH. 2) COMPOSEZ LE NUMÉRO D’URGENCE (POMPIERS DU 911). 3) PRENEZ IMMÉDIATEMENT L’ AIR - A L ‘EXTERIEUR OU A UNE FENÊTRE. UTILISEZ UNIQUEMENT LES PILES SPÉCIFIÉES. L’USAGE DE PILES DIFFÉRENTES PEUT AVOIR UN EFFET NUISIBLE SUR LE DÉTECTEUR DE FUMÉE. REPLACEMENT BATTERY TYPE / CHANGEMENT DE LA PILE: PANASONIC CR123A CONSTANT EXPOSURES TO HIGH OR LOW TEMPS OR HIGH HUMIDITY MAY REDUCE BATTERY LIFE / DES EXPOSITIONS CONSTANTES À DES TEMPÉRATURES ÉLEVÉES OU BASSES OU À UNE HUMIDITÉ ÉLEVÉE PEUVENT RÉDUIRE LA DURÉE DE VIE DES PILES. SENSITIVITY/SENSIBILITÉ: 400PPM, RESPONSE TIME/TEMPS DE REPONSE: 4-15 MINUTES CLEAN WITH DRY CLOTH TEST ONCE A WEEK BY PUSHING TEST/HUSH BUTTON NETTOYER AVEC UN CHIFFON EXAMINEZ UNE FOIS PARE SEMAINE EN POUSSANT LE BOUTON DE TEST/HUSH 3178931 APDO613 A140725 CONFORMS TO ANSI/UL STD 2034 CERTIFIED TO CSA STD 6.19-01 MADE IN USA MANUFACTURED BY/FABRIQUEE PAR APOLLO: 25 CORPORATE DRIVE AUBURN HILLS MI 48326 Apollo America, Inc. 25 Corporate DriveTel: +1 (248) 332-3900Email:[email protected] Auburn Hills, MI 48326 USA Fax: +1 (248) 332-8807Web: www.apollo-fire.com To whom it may concern, In regards to the labeling requirements found in CFR 47, Part 15.19, the project being filed with the FCC does not have sufficient room, due to the safety marking requirements of UL 217, CAN/ULC-S531, UL 2034, and CAN/CSA-6.19. A nearly identical filing has been performed in the past under Apollo Fire Detectors, LTD. FCC ID numbersZFH-CO3345 and ZFH-SMKT3345. I believe that the subpart (5) of part 15.19 (See excerpt below) was used with the original filing: (5) When the device is so small or for such use that it is not practicable to place the statement specified under paragraph (a) of this section on it, the information required by this paragraph shall be placed in a prominent location in the instruction manual or pamphlet supplied to the user or, alternatively, shall be placed on the container in which the device is marketed. However, the FCC identifier or the unique identifier, as appropriate, must be displayed on the device. If you have any other questionsor concerns regarding this, or any other matter, please do not hesitate in contacting me. Best regards, John Schertel Conformance Manager

Matthew Vernon 2014-04-25 Operation Description Wireless Smoke (51000-355) and Carbon Monoxide (51000-305) Alarms Wireless smoke and carbon monoxide (CO) alarms are designed for residential installation. The devices detect fire and CO, produce an audible alarm, and send radio notification to a control panel for monitoring and supervision. The two devices use the same radio and similar hardware except for the sensor circuitry. A processor regularly measures sensor input, battery status, and button input (for test/hush). The processor makes a calculation based on inputs and sets internal status flags to indicate normal, alarm, and trouble status. In alarm the piezo sounder is activated. Status is communicated from the main circuit board to the radio by means of digital logic signals. The radio monitors these signals for state changes. The radio transmits a frame of data when the state changes and at regular intervals depending on the detector state.

Date of Issue: January 18, 2015Prepared For: Apollo America, Inc.Test Report No.: 417124-150118-01 The University of Michigan Radiation Laboratory 3228 EECS Building Ann Arbor, Michigan 48109-2122 USA Tel: (734) 483-4211 Fax: (734) 647-2106 e-mail: [email protected] Testing of Electromagnetic Emissions per USA: CFR Title 47, Part 15.231 Canada: IC RSS-210/GENe are herein reported for Apollo America, Inc. 51000-305 Test Report No.: 417124-150118-01 Copyright c ©2014 Applicant/Provider: Apollo America, Inc. 25 Corporate Drive, Auburn Hills Michigan 48326 USA Phone: (248) 332-3900, Fax: 248) 332-8807 Contact Person: Andrew Frost; [email protected] Measured by: Report Approved by: Valdis V. Liepa, Ph.D.Valdis V. Liepa, Ph.D. Report by:Report Date of Issue:January 18, 2015 Valdis V. Liepa, Ph.D. Results of testing completed on (or before) December 16, 2014 are as follows. Emissions:The transmitter intentional emissionsCOMPLYwith the regulatory limit(s) by no less than 2.9 dB. Transmit chain spurious harmonic emissionsCOMPLYby no less than 2.9 dB. The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 1 of 16 Date of Issue: January 18, 2015Prepared For: Apollo America, Inc.Test Report No.: 417124-150118-01 Contents 1 Test Specifications, General Procedures, and Location4 1.1 Test Specification and General Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4 1.2 Test Location and Equipment Used . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5 2 Configuration and Identification of the Equipment Under Test6 2.1 Description and Declarations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.1EUT Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.2Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2.1.3Variants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.4Test Samples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.5Functional Exerciser . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.6Modifications Made . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.7Production Intent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 2.1.8Declared Exemptions and Additional Product Notes . . . . . . . . . . . . . . . . . . . . . . . .7 3 Emissions8 3.1 General Test Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.1Radiated Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 3.1.2Conducted Emissions Test Setup and Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.1.3Power Supply Variation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 3.2 Intentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.1Fundamental Emission Pulsed Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 3.2.2Fundamental Emission Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 3.2.3Fundamental Emission . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 3.3 Unintentional Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 3.3.1Transmit Chain Spurious Emissions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 2 of 16 Date of Issue: January 18, 2015Prepared For: Apollo America, Inc.Test Report No.: 417124-150118-01 List of Tables 1The University of Michigan Radiation Laboratory Equipment List.. . . . . . . . . . . . . . . . . . .5 2EUT Declarations. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 3Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 4Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 5Fundamental Radiated Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 6Transmit Chain Spurious Emissions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 List of Figures 1Photos of EUT.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6 2EUT Test Configuration Diagram. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7 3Radiated Emissions Diagram of the EUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8 4Radiated Emissions Test Setup Photograph(s). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 5Pulsed Emission Characteristics (Duty Cycle). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 6Intentional Emission Bandwidth.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 The University of Michigan Radiation Laboratory, 3228 EECS Building, Ann Arbor, Michigan 48109-2122 USAPage 3 of 16 Date of Issue: January 18, 2015Prepared For: Apollo America, Inc.Test Report No.: 417124-150118-01 1 Test Specifications, General Procedures, and Location 1.1 Test Specification and General Procedures The ultimate goal of Apollo America, Inc. is to demonstrate that the Equipment Under Test (EUT) complies with the Rules and/or Directives below. Detailed in this report are the results of testing the Apollo America, Inc. 51000- 305 for …
