2ACE9-51000355Wireless Smoke and Heat Alarm

ATTENTION: This manual should be read prior to use and retained for further information. GENERAL INFORMATION The Wireless Smoke Heat Alarm is a 3xAAA battery powered wireless detector intended for use with a compatible wireless alarm system. The detector has a built-in wireless transmitter, which communicates with the control panel. When smoke is detected, the alarm sounds a loud local alarm and the built-in transmitter sends a signal to the control panel. The Wireless Smoke Heat Alarm contains an integrated fixed 41°F temperature freeze sensor that will send a warning signal based on temperature detected. This detector is designed to provide protection with 70-foot spacing capability. The detector can send alarm, tamper and battery condition messages to the system’s receiver. Refer to the wireless system’s instruction for the maximum number of transmitters that can be supported. CONTENTS OF BOX: • Wireless Smoke Heat Alarm with base • Installation guide (APD0601) • Pack of screws and anchors • Labels or decals as appropriate • 3 AAA PC2400 Duracell Procell batteries (1.5V 1100mAh) or 3 AAA Energizer E92 batteries (1.5V 1100mAh) 51000-355 Wireless Smoke Heat Alarm Installation Guide 2 INST APD0601 A140513 Wireless Smoke Heat Alarm Install Guide StatusLEDs Sounder (do not pulse the sounder and LED concurrently) NormalGreen flash every 12 secondsOff Heat AlarmRed flash every 1 secondANSI S3.41 temporal 3 Heat TestRed flash every 1 secondANSI S3.41 temporal 3 Smoke AlarmRed flash every 1 secondANSI S3.41 temporal 3 (press button to hush for 5-10 minutes) Smoke TestRed flash every 1 secondANSI S3.41 temporal 3 (press button to hush for 5-10 minutes) Test AlarmRed flash every 1 secondANSI S3.41 temporal 3 Freeze Warning3 yellow flashes every 4 seconds Off Detector TroubleYellow flash every 4 secondsOne chirp every 48 seconds Low BatteryYellow flash every 12 secondsOne chirp every 48 seconds (press button to hush for 12 hours) Detector DirtyYellow flash every 8 secondsOne chirp every 48 seconds Power-upRed, yellow, green flash sequence One chirp at the end of power-up sequence TamperRed, yellow, green flash sequence every 12 seconds Off The Wireless Smoke Heat Alarm contains a sounder which generates the ANSI S3.41 temporal 3 pattern in an alarm condition. In alarm, a message is also sent to the control panel and the detector’s ID is displayed at the console. During an alarm condition, pressing the detector’s hush button will silence the sounder (see table below). The mounting base installation is simplifi ed by the incorporation of features compatible for both drywall fasteners (not supplied) and other methods. Tricolored LED (red, yellow, green) and a sounder on the detector provide local visual and audible indication of the detector’s status as listed in Table 1. During initial power-up the LED blinks alternately red, yellow then green. It takes about 8 seconds for the detector to stabilize. After power-up has completed and the detector is functioning normally, the green LED blinks once every 12 seconds. Detector Trouble: When the detector has a general fault, the yellow LED blinks once every four seconds and there is a chirp every 48 seconds. After 12 hours the panel will display a loss of supervision message. Table 1. Detector status and indication 3 INST APD0601 A140513 Wireless Smoke Heat Alarm Install Guide Detector Dirty Feature: When the detector has been contaminated, the yellow LED blinks once every 8 seconds and there is a chirp every 48 seconds. Refer to MAINTENANCE section for cleaning your alarm. After 12 hours the panel will display a loss of supervision message. Low Battery Detection: The Wireless Smoke Heat Alarm is powered by 3 AAA Duracell Procell or 3 AAA Energizer E92 batteries (included). The detector regularly checks for a low battery. If a low battery is detected, the transmitter sends a low battery message to the control panel, which displays the detector’s ID at low battery. In addition, the yellow LED of the detector will blink every 12 seconds. The detector’s sounder will chirp every 48 seconds (yellow LED continues to blink) until the batteries are replaced. Pressing the hush button will silence the chirps for 12 hours, if no other trouble conditions exist. The batteries should be replaced WHEN the chirps begin. Be sure to replace the batteries with fresh ones. BATTERY INSTALLATION AND REPLACEMENT To replace the batteries: 1. Remove the detector from its mounting base by twisting the detector counterclockwise. Remove and dispose of the batteries according to your local regulations. 2. To ensure proper power-down sequence, wait a minimum of 20 seconds before installing new batteries. 3. Install 3 new AAA batteries (available from your local Duracell or Energizer dealer) in the battery compartment. Follow the polarity diagram inside the compartment. If the batteries are incorrectly inserted please remove gently with a non-conductive tool and correctly reinsert. 51000-355 Wireless Smoke Heat Alarm Installation Guide AT TENTION: This manual should be read prior to use and retained for further information. GENERAL INFORMATION The Wireless Smoke Heat Alarm is a 3xAAA battery powered wireless detector intended for use with a compatible wireless alarm system. The detector has a built-in wireless transmitter, which communicates with the control panel. When smoke is detected, the alarm sounds a loud local alarm and the built-in transmitter sends a signal to the control panel. The Wireless Smoke Heat Alarm contains an integrated fi xed 41°F temperature freeze sensor that will send a warning signal based on temperature detected. This detector is designed to provide protection with 70-foot spacing capability. The detector can send alarm, tamper and battery condition messages to the system’s receiver. Refer to the wireless system’s instruction for the maximum number of transmitters that can be supported. CONTENTS OF BOX: -Wireless Smok e Heat Alarm with base - Installation gui…

Text truncated - open the document above for the full version.

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Request for Confidentiality Date: 2014 JULY 24 Subject: Confidentiality Request for: FCC ID: 2ACE9-51000355, IC:12011A-51000355 Pursuant to FCC 47 CRF 0.457(d) and 0.459 and IC RSP-100, Section 10, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Schematics Short Term Test Setup Photos Apollo America, Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 1 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, By: __________________________ ____Nic Johnson, NCEE Labs_________ (Signature/Title 2 ) (Print name) 1 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 2 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

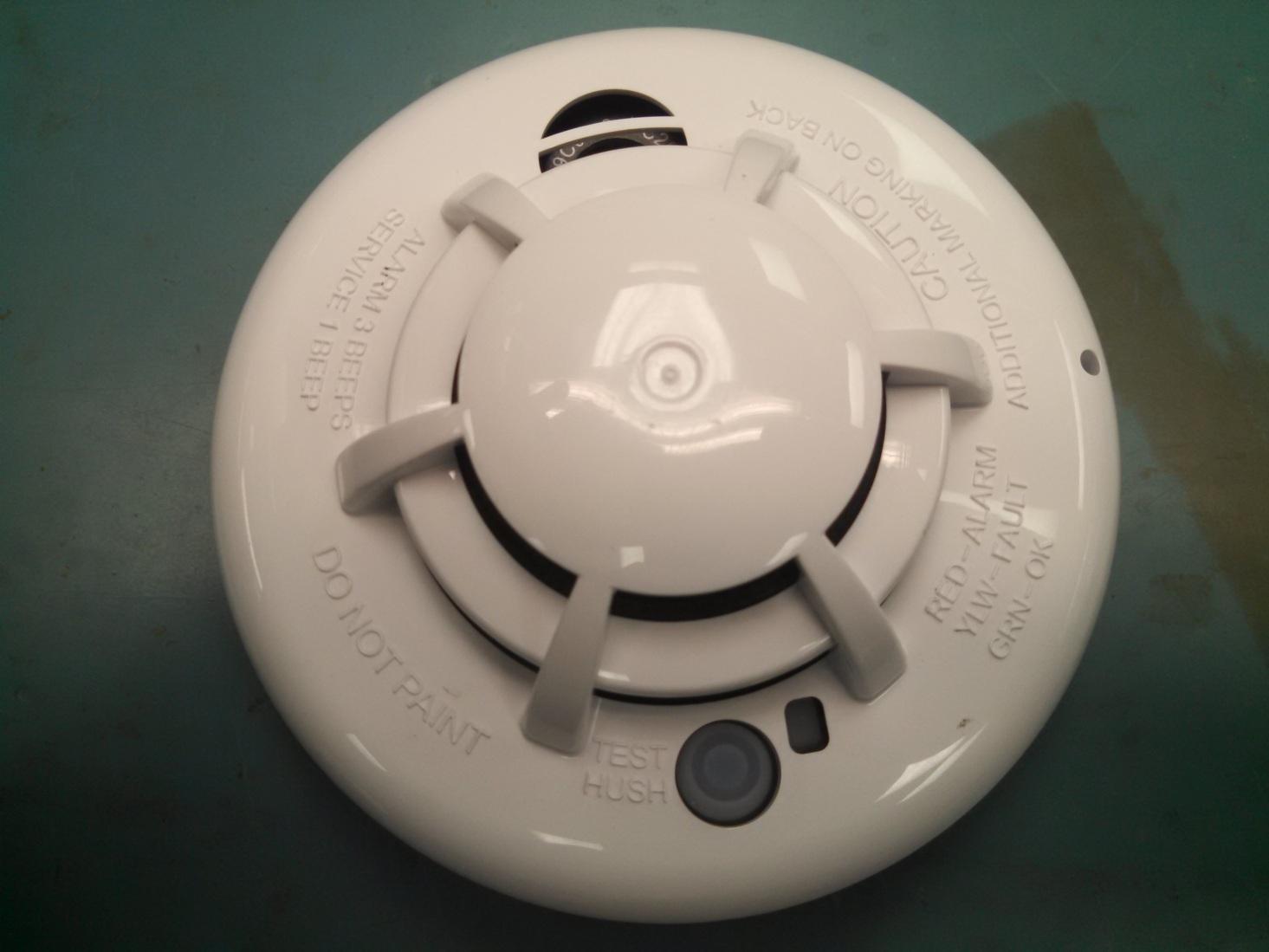

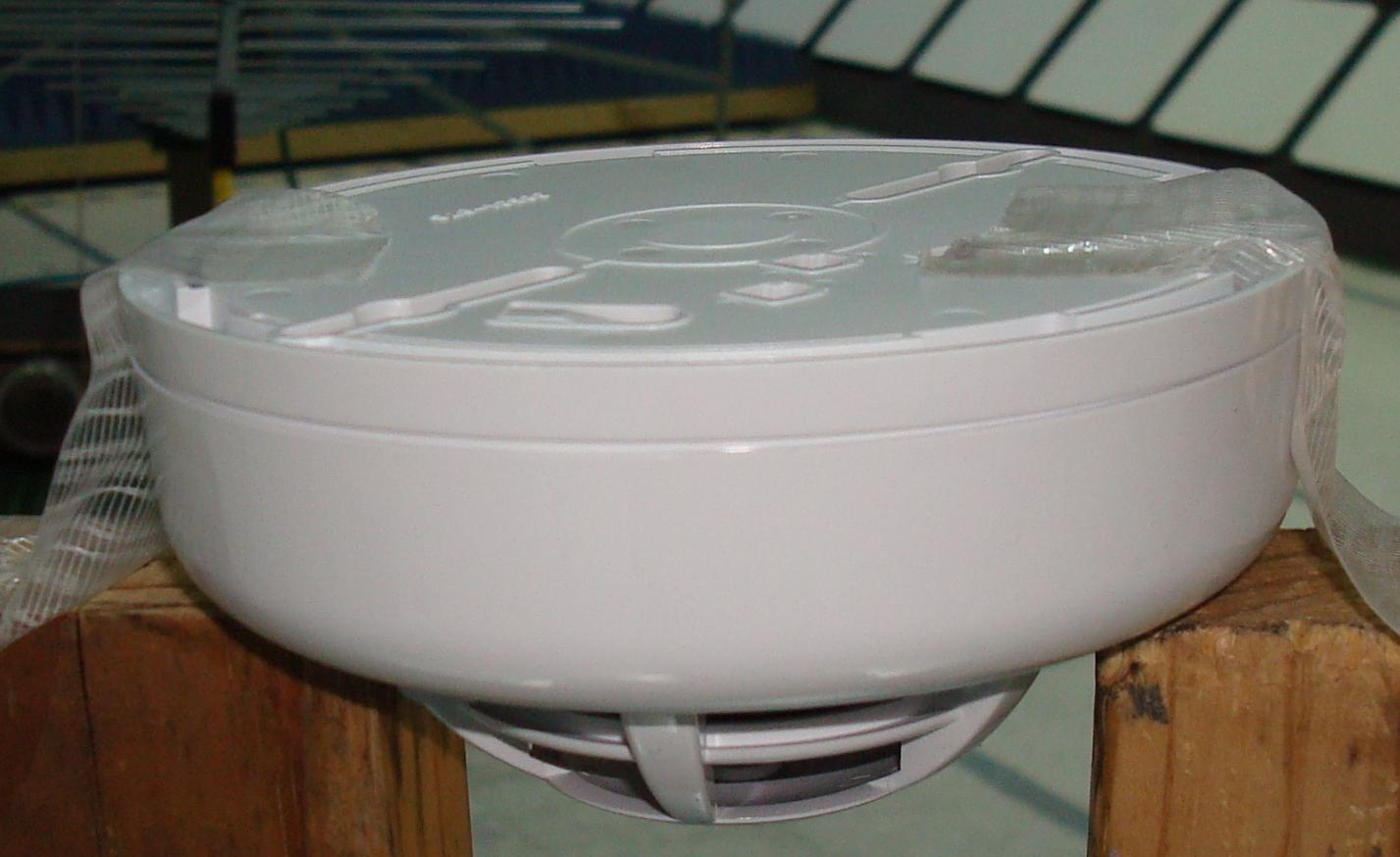

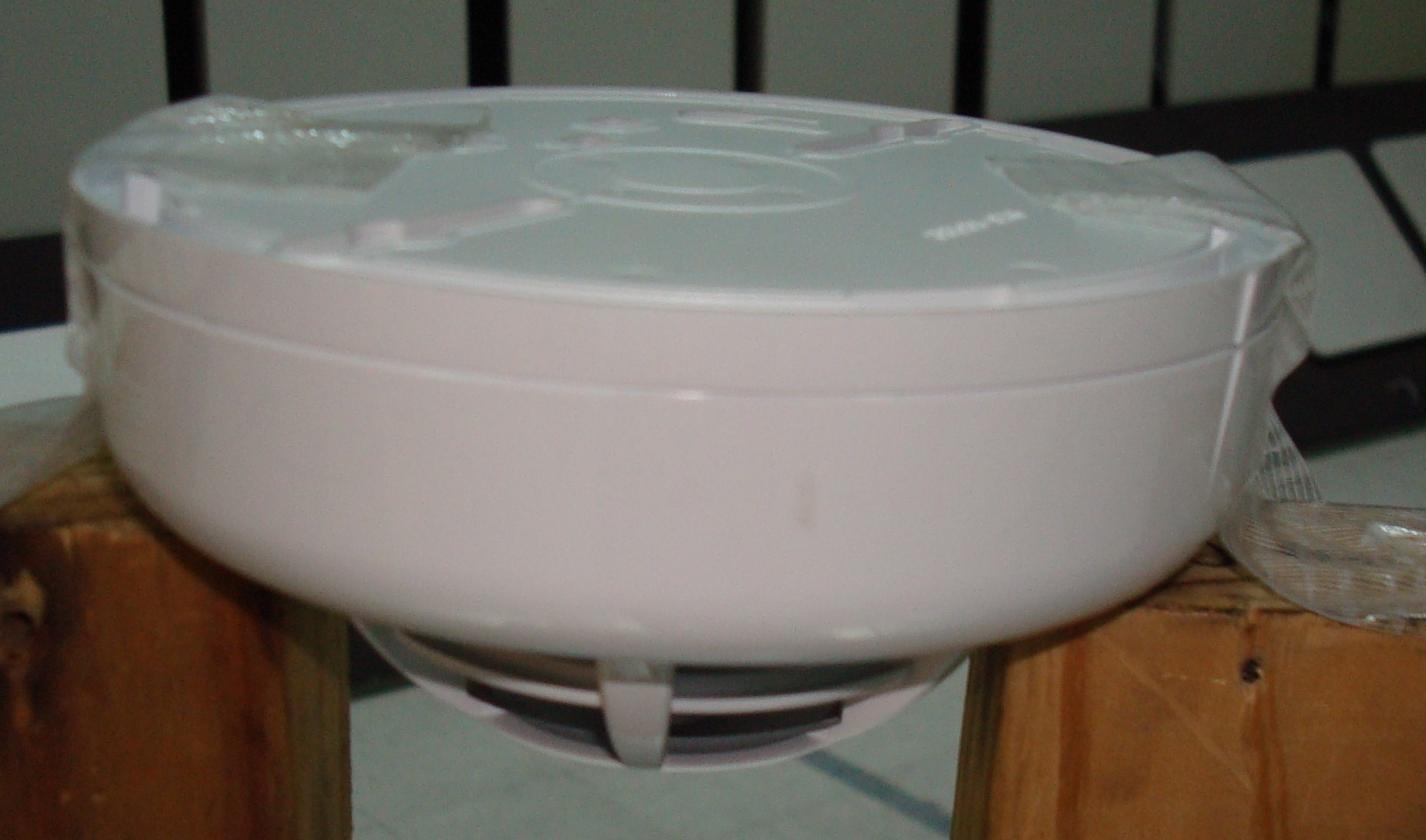

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 External Photos Manufacturer: Apollo America FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238

WIRELESS SMOKE HEAT DETECTOR AA 1 IMPRINT ART IS NOT FINAL 51000-355_AAsmokeLbl SHEET 1 OF 2 10/11/2013 10/12/2013 AF JRB UNLESS OTHERWISE SPECIFIED: SCALE: 1:1 DWG. NO. A TITLE: NAMEDATE COMMENTS: MFG APPR. ENG APPR. CHECKED DRAWN PROPRIETARY AND CONFIDENTIAL THE INFORMATION CONTAINED IN THIS DRAWING IS THE SOLE PROPERTY OF APOLLO AMERICA, INC.. ANY REPRODUCTION IN PART OR AS A WHOLE WITHOUT THE WRITTEN PERMISSION OF APOLLO AMERICA, INC. IS PROHIBITED. 5 4 3 2 1 SIZE REV DRAWING IS FOR REFERENCE ONLY...CAD IS MASTER APDO612 A140725 WIRELESS SMOKE & HEAT ALARM ALARME SANS FIL DE FUMÉE ET DE LA CHALEUR MODEL: 51000-355 PC2400 DURACELL PROCELL OR/OU ENGERGIZER E92 BATTERY ONLY/SEULEMENT BATTERIE SUPPLY/ALIMENTATION: 4.5VDC • SENSITIVITY/SENSIBILITÉ: 1.26-2.38% FOOT/PIED • MAX CURRENT/COURANT DE MAX: 50mA ALARM CURRENT/COURANT D'ALARME: 20mA • SUPERVISORY CURRENT/COURANT DE SURVEILLANCE: 25μA SUPPLEMENTARY HEAT RATING/ESTIMATION SUPPLÉMENTAIRE DE LA CHALEUR: 135 ̊F MANUFACTURED BY/FABRIQUEE PAR APOLLO: 25 CORPORATE DRIVE, AUBURN HILLS MI 48326 TEST ONCE A WEEK BY PUSHING TEST/HUSH BUTTON / DO NOT INSTALL IN AMBIENT OVER 100 ̊F / CLEAN WITH DRY CLOTH SITE ONE DETECTOR EVERY 70’ • EXAMINEZ UNE FOIS PARE SEMAINE EN POUSSANT LE BOUTON DE TEST/HUSH N'INSTALLEZ PAS DANS 100 ̊F FINI AMBIANT / NETTOYER AVEC UN CHIFFON / SEC DÉTECTEUR DE L’ EMPLACEMENT UN TOUS LES 70 ́FCC ID: 2ACE9-51000355 IC: 12011A-51000355 FREQUENCY 345MHz APDO612 A140725 MADE IN USA RETURN TO APOLLO FOR SERVICING/REVENEZ A APOLLO POUR L'ENTRETIEN REFER TO INSTALL GUIDE/SE RÉFERER A GUIDE D'INSTALLATION: APD0601 WARNING +++ --- XXXXXXX USE ONLY BATTERIES SPECIFIED IN MARKING. USE OF A DIFFERENT BATTERY WILL HAVE A DETRIMENTAL EFFECT ON SMOKE HEAT ALARM OPERATION. CONSTANT EXPOSURES TO HIGH OR LOW TEMPS OR HIGH HUMIDITY MAY REDUCE BATTERY LIFE. BATTERIES D'AVERTISSEMENT D' UTILISATION SEULEMENT SPÉCIFIQUES DANS L'INSCRIPTION L'UTILISATION D'UNE BATTERIE DIFFÉRENTE EXERCERA UN EFFET NÉFASTE SUR L'OPERATION D' ALARME DE LA CHALEUR DE FUMÉE. DES EXPOSITIONS CONSTANTES A DES TEMPERATURES ELEVES OU BASSES OU A UNE HUMIDITE ELEVEE PEUVENT REDUIRE L'AUTONOMIE DES PILES

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Internal Photos Manufacturer: Apollo America FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238

Nebraska Center for Excellence in Electronics 4740 Discovery Drive Lincoln, NE 68521 Phone: 402.323.6233 Fax: 402.323.6238 The Nebraska Center for Excellence in Electronics (NCEE) authorizes the above named company to reproduce this report provided it is reproduced in its entirety for use by the company’s employees only. Any use that a third party makes of this report, or any reliance on or decisions made based on it, are the responsibility of such third parties. NCEE accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. NCEE is a FCC and Industry Canada registered lab. FCC #100875, IC #4294 Amended Test Report Includes NCEE Labs report R20140409-21-02D and its amendment in full Company: Apollo America 25 Corporate Dr. Auburn Hills, MI 48326 Product: Wireless Smoke Detector M/N 51000-355 Test Report No: R20140409-21-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Approved by: _______________________ Nic S. Johnson, NCE EMC Test Engineering Manager/Technical Manager iNARTE Certified EMC Engineer #EMC-003337-NE Date: 20 August 2014 Total Pages: 21 NCEE Labs R20140409-21-01D FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 2 of 21 1.0 Summary of test results 2.0 Description 2.1 Equipment under test 2.2 Laboratory description 2.3 Description of test modes 2.4 Applied standards 2.5 Description of support units 2.6 Configuration of system under test 3.0 Test equipment used 4.0 Detailed Results 4.1 Unique antenna requirement 4.2 Radiated Emissions 4.3 Bandwidth 4.4 Maximum peak output power Appendix A – Test photos Appendix B – Sample calculation Table of Figures Figure 1 - Radiated Emissions Test Setup ........................................................................... 9 Figure 2 - Radiated Emissions Plot ................................................................................... 13 Figure 3 – Duty Cycle Plot ................................................................................................ 10 Figure 4 - 99% Occupied Bandwidth ................................................................................ 16 Figure 5 – Power Measurement Test Setup ....................................................................... 17 Figure 6 - Radiated Emissions Test Setup ......................................................................... 19 Figure 7 - Radiated Emissions Test Setup ......................................................................... 19 NCEE Labs R20140409-22-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 3 of 21 1.0 Summary of test results The EUT has been tested according to the following specifications: APPLIED STANDARDS: FCC Part 15, Subpart C Standard Section Test Type and Limit Result Remark FCC Part 15.203 Unique Antenna Requirement N/A N/A FCC Part 15.209 RSS-210 Sec 2.5 Radiated Emissions Pass Meets the requirement of the limit. FCC Part 15.231 RSS-210 Annex I Minimum Bandwidth, Limit: 862.5 kHz Pass Meets the requirement of the limit. FCC Part 15.231 RSS-210 Sec 2.5 Transmitter Radiated Emissions, Limit: Table 15.209 Pass Meets the requirement of the limit. NCEE Labs R20140409-22-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 4 of 21 2.0 Description 2.1 Equipment under test The Equipment Under Test (EUT) was a Smoke Detector manufactured by Apollo America. It is used to remotely communicate with fire stations in a state of emergency. EUT Received Date: 7 May 2014 EUT Tested Date: 7 May 2014 NOTE: 1. For more detailed features description, please refer to the manufacturer's specifications or User's Manual. 2.2 Laboratory description All testing was performed at the NCEE Lincoln facility, which is a FCC and IC registered lab. This site has been fully described in previously submitted reports. Laboratory environmental conditions varied slightly throughout the tests: Relative humidity of 44  4% Temperature of 24  3 Celsius 2.3 Description of test modes The EUT transmits on only one frequency; Channel Frequency 1 345.00 MHz PRODUCT Smoke Detector MODEL 51000-355 POWER INPUT 4.5 VDC (3*1.5 VDC AAA) MODULATION TYPE ASK-OOK FREQUENCY RANGE 345 MHz NUMBER OF CHANNELS 1 MAXIMUM OUTPUT POWER -7.30 dBm ANTENNA TYPE Trace Antenna SERIAL NUMBER OF TEST UNIT 0020122 NCEE Labs R20140409-22-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 5 of 21 2.4 Applied standards The EUT is a digital transmission device operating at 345 MHz. According to the specifications of the manufacturer, it must comply with the requirements of the following standards: FCC Part 15, Subpart a (15.231) using; ANSI/IEEE C63.4: 2009 ANSI/IEEE C63.10:2009 Industry Canada, RSS 210, Issue 8, Category I Equipment All test items have been performed and recorded as per the above standards. 2.5 Description of support units None 2.6 Configuration of system under test The EUT was powered by 4.5 VDC (3*1.5 VDC AAA batteries) for all the tests and had no auxiliary devices. It was tested by itself. The EUT was programmed by the manufacturer to transmit continually for testing purposes only. The EUT was modified by the manufacturer to test with the device continuously transmitting a series of 1’s and 0’s, for testing purposes. The EUT was tested in the orientation that is specified in the user’s manual. NCEE Labs R20140409-22-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 6 of 21 3.0 Test equipment used DESCRIPTION AND MANUFACTURER MODEL NO. SERIAL NO. LAST CALIBRATION DATE Rohde & Schwarz Test Receiver ESIB26 100037 21 Jan 2014 EMCO Biconilog Antenna 3142B 1647 07 Aug 2013 EMCO Horn Antenna 3115 6416 14 Jan 2014 NCEE Labs R20140409-22-01E FCC ID: 2ACE9-51000355 IC: 12011A-51000355 Page 7 of 21 4.0 Detailed results 4.1 Unique antenna requirement 4.1.1 Standard applicable For intentional device, according to FCC 47 CFR Section 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible par…
