2ACEVF2NEOF30Mobile phone

User Manual -I- Contents 1.Getting to know your phone ........................... 1 1.1 Your Phone................................................. 1 1.2 Installing SIM card and battery .................... 1 1.3 Installing Storage card ................................ 1 1.4 Battery charging ......................................... 1 1.5 Power on/ off .............................................. 1 1.5.1 Power on ............................................. 1 1.5.2 Power off ............................................. 1 2.Using Call Function ........................................ 1 2.1 Making a call .............................................. 1 2.2 Answering or rejecting a call ....................... 2 2.2.1 Answer a call ........................................ 2 2.2.2 Reject a call ......................................... 2 2.3 Adjusting call volume .................................. 2 2.4 Ending a call ............................................... 2 3. Settings ........................................................... 2 3.1 Dual SIm Settings ....................................... 2 3.1.1 Standby SIM card Setting ..................... 2 3.1.2 Data connection Setting ....................... 2 3.1.3 Voice settings ....................................... 2 3.1.4 Mms settings ........................................ 2 3.2 W ireless & networks .................................. 2 3.2.1 Airplane mode ...................................... 2 3.2.2 W LAN .................................................. 2 3.2.3 W LAN settings ..................................... 2 3.2.4 Bluetooth ............................................. 2 3.2.5 Bluetooth settings ................................ 2 3.2.6 VPN settings ........................................ 2 3.2.7 Mobile networks ................................... 2 3.3 Call settings ................................................ 2 3.3.1 SIM1 .................................................... 2 3.3.2 SIM2 .................................................... 3 3.3.3 IP dialing .............................................. 3 3.3.4 Vibration............................................... 3 3.4 Sound ......................................................... 3 3.4.1 General ................................................ 3 3.4.2 Incoming calls ...................................... 3 3.4.3 Notifications ......................................... 3 3.4.4 Feedback ............................................. 3 3.5 Display ....................................................... 3 3.6 Location & security ..................................... 3 3.7 Applications ................................................ 3 3.8 Accounts & sync ......................................... 3 3.9 Privacy ....................................................... 3 3.10 Storage..................................................... 3 3.11 Language & keyboard ............................... 3 3.12 Voice input & output .................................. 3 3.13 Accessibility .............................................. 3 3.14 Date & time............................................... 3 3.15 About phone ............................................. 3 4.Messaging ....................................................... 3 4.1 Create new ................................................. 3 5.Browser ........................................................... 3 6.Call log ............................................................ 4 7.Contacts .......................................................... 4 7.1 Adding a new contact .................................. 4 -II- 8.Tools................................................................. 4 8.1 Calendar ..................................................... 4 8.2 Clock........................................................... 4 8.3 Calculator.................................................... 4 8.4 Label ........................................................... 4 9.Multimedia ....................................................... 4 9.1 Music .......................................................... 4 9.2 Movies ........................................................ 4 9.3 Camera ....................................................... 5 9.4 FM Radio .................................................... 5 9.5 Sound Recorder .......................................... 5 9.6 Gallery ........................................................ 5 10.Audio Profiles ................................................ 5 11.Applications ................................................... 5 12.Safety Precaution .......................................... 6 12.1 Usage environment ................................... 6 12.2 Medical devices......................................... 6 12.2.1 Pacemaker ......................................... 6 12.2.2 Hearing aids ....................................... 7 12.2.3 Emergency calls ................................. 7 12.3 Password access ...................................... 7 12.3.1 Phone password ................................. 7 12.3.2 PIN code............................................. 7 12.3.3 PIN2 code ........................................... 8 12.3.4 PUK code ........................................... 8 12.3.5 PUK2 code ......................................... 8 12.4 Cautions for battery charging ..................... 8 12.5 Cautions for battery usage......................... 9 12.6 Cautions for spare parts usage .................. 9 12.7 Other safety information .......................... 10 -1- 1. Getting to know your phone 1.1 Your Phone 1.2 Installing SIM card and battery (1) Hold on 【Power on/off Key】 for about three seconds to switch off the phone. (2) Remove the battery cover. (3) Remove the battery. (4) Follow the sign for SIM1 and SIM2 on the phone to install SIM1 and SIM2. Please make sure that the golden contacts of the card face upwards, then push the card gently u…

Text truncated - open the document above for the full version.

IED CONEXION VIRTUAL S.A. DE C.V. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for (FCC ID: 2ACEVF2NEOF30) To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. We understand that devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm Select the "accredited" option to search for FCC recognized accredited test firms. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. Regards, Signatory ----------------------------- Client’s signature Client’s name / title : Federico Duran Camargo / Manger Contact information / address : lztacalco MZ 146 LT 4 D Col. La Florida de Ciudad Azteca C.P. 55120. Municipio, Ecatepec de Morelos, Edo. De Mexico

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 (IED CONEXION VIRTUAL S.A. DE C.V.) 2014-05-14 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, __ IED CONEXION VIRTUAL S.A. DE C.V. _hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): Product: Mobile phone Trade name: F2 mobile Model name: NEO F30 Serial model: N/A FCC ID: 2ACEVF2NEOF30 We affirm that between SIEMIC and ____ IED CONEXION VIRTUAL S.A. DE C.V. __, any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, Client’s signature Client’s name / title : Federico Duran Camargo /Manger Contact information / address : lztacalco MZ 146 LT 4 D Col. La Florida de Ciudad Azteca C.P. 55120. Municipio, Ecatepec de Morelos, Edo. De Mexico

IED CONEXION VIRTUAL S.A. DE C.V. SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 IED CONEXION VIRTUAL S.A. DE C.V. SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 2014/05/14 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACEVF2NEOF30 We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Bom and tune up The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, ----------------------------- Client’s signature Client’s name / title : Federico Duran Camargo / Manger Contact information / address : lztacalco MZ 146 LT 4 D Col. La Florida de Ciudad Azteca C.P. 55120. Municipio, Ecatepec de Morelos, Edo. De Mexico

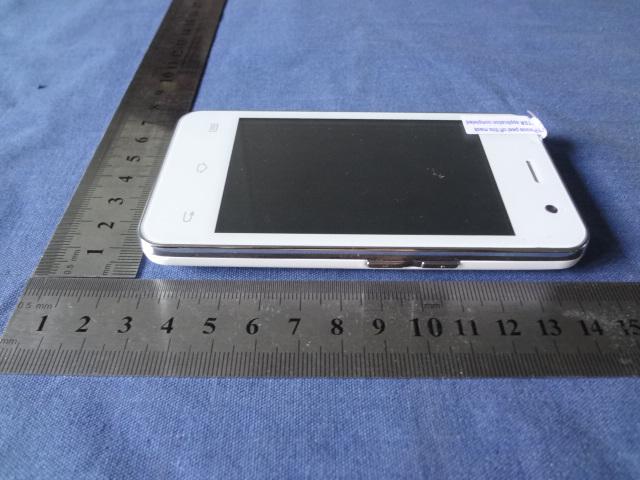

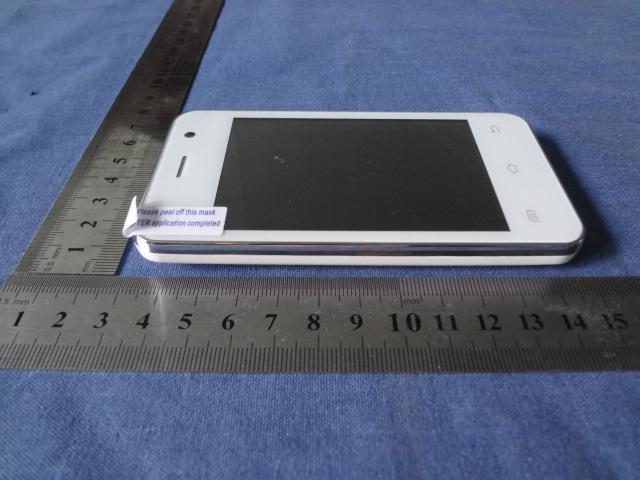

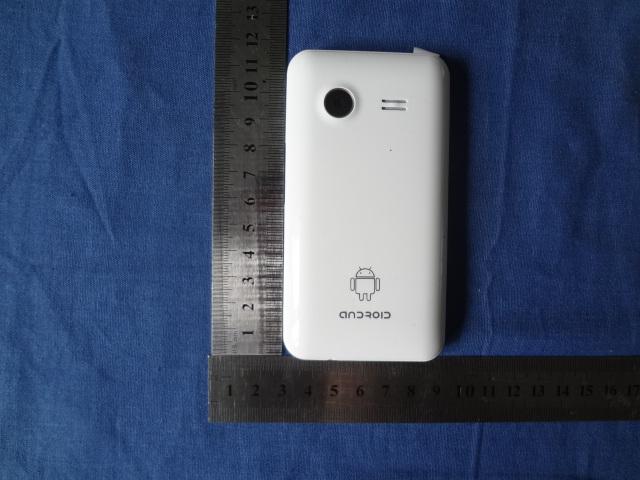

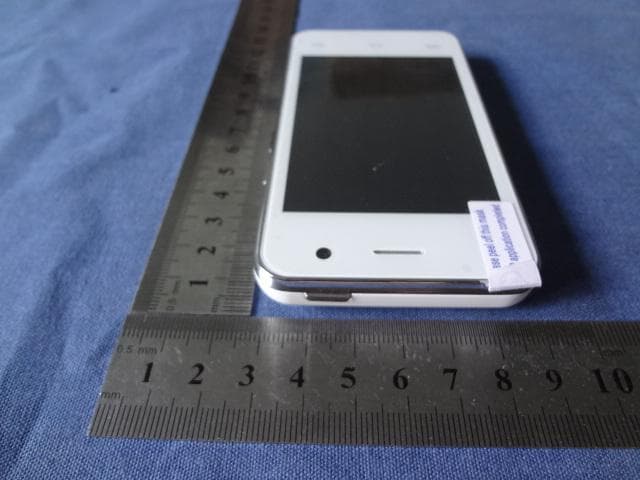

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6

Mobile phone Model: NEO F30 FCC ID: 2ACEVF2NEOF30 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Label

Photo 7 Photo 8 WIFI/BT Antenna GSM Antenna Photo 9 Photo 10 Photo 11 Photo 12 Photo 13 Photo 14

Report No.: BL-SZ1450006-701 2 / 110 Revision History Version Issue Date Revisions Rev. 01 May 14, 2014 Initial Issue Rev. 02 May 20, 2014 Correct equipment calibration date. TABLE OF CONTENTS 1 GENERAL INFORMATION ..................................................................................................................... 4 1.1 Identification of the Testing Laboratory ............................................................................................. 4 1.2 Identification of the Responsible Testing Location ............................................................................ 4 1.3 Test Environment Condition .............................................................................................................. 4 1.4 Announce .......................................................................................................................................... 4 2 PRODUCT INFORMATION ..................................................................................................................... 6 2.1 Applicant ........................................................................................................................................... 6 2.2 Manufacturer ..................................................................................................................................... 6 2.3 General Description for Equipment under Test (EUT) ...................................................................... 6 2.4 Technical Information ........................................................................................................................ 6 2.5 Ancillary Equipment .......................................................................................................................... 7 3 SUMMARY OF TEST RESULTS ............................................................................................................. 8 3.1 Test Standards .................................................................................................................................. 8 3.2 Summary Of SAR Value ................................................................................................................... 8 3.3 Device Category And SAR Limit ....................................................................................................... 9 3.4 SAR Test Uncertainty ...................................................................................................................... 10 4 SAR MEASUREMENT SYSTEM ........................................................................................................... 11 4.1 Definition of Specific Absorption Rate (SAR) .................................................................................. 11 4.2 SATIMO SAR System ..................................................................................................................... 11 5 SYSTEM VERIFICATION ...................................................................................................................... 19 5.1 Antenna Port Test Requirement ...................................................................................................... 19 5.2 Purpose of System Check ............................................................................................................... 19 5.3 System Check Setup ....................................................................................................................... 19 5.4 System Verification Results ............................................................................................................ 20 6 EUT TEST POSITION CONFIGURATUONS ........................................................................................ 21 6.1 Head Exposure Conditions ............................................................................................................. 21 6.2 Body-worn Position Conditions ....................................................................................................... 22 Report No.: BL-SZ1450006-701 3 / 110 6.3 Hotspot Mode Exposure Position Conditions .................................................................................. 23 7 SAR MEASUREMENT PROCEDURES ................................................................................................ 24 7.1 SAR Measurement Process Diagram ............................................................................................. 24 7.2 SAR Scan General Requirements .................................................................................................. 25 7.3 SAR Measurement Procedure ........................................................................................................ 26 7.4 Area & Zoom Scan Procedures ...................................................................................................... 26 8 CONDUCTED RF OUPUT POWER ...................................................................................................... 27 9 EUT ANTENNA LOCATION SKETCH .................................................................................................. 30 10 SAR TEST RESULTS ............................................................................................................................ 31 10.1 Head SAR .................................................................................................................................... 31 10.2 Body SAR (15mm separation) ..................................................................................................... 31 10.3 SAR Measurement Variability ...................................................................................................... 32 11 SIMULTANEOUS TRANSMISSION ...................................................................................................... 33 11.1 Simultaneous Transmission Mode Consider ............................................................................... 33 11.2 Esti…

Text truncated - open the document above for the full version.

RADIO TEST REPORT FCC ID: 2ACEVF2NEOF30 Product： Mobile phone Trade Name： F2 mobile Model Name： NEO F30 Serial Model： N/A Report No.： BZT140438F05 Prepared for IED CONEXION VIRTUAL S.A. DE C.V. lztacalco MZ 146 LT 4 D Col. La Florida de Ciudad Azteca C.P. 55120. Municipio, Ecatepec de Morelos, Edo. De Mexico Prepared by BZT Testing Technology Co., Ltd Add. : Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. Page 2 of 56 Report No.: BZT140438F05 ` TEST RESULT CERTIFICATION Applicant’s name ................. : IED CONEXION VIRTUAL S.A. DE C.V. Address ................................. : lztacalco MZ 146 LT 4 D Col. La Florida de Ciudad Azteca C.P. 55120. Municipio, Ecatepec de Morelos, Edo. De Mexico Manufacture's Name ............ : Shenzhen Kaliho Technology Development Limited Address ................................. : Rm1901, Block A, The Stars Plaza, Huaqiang North Rd., Futian District, Shenzhen, China Product description Product name ........................... : Mobile phone Model and/or type reference : NEO F30 Serial Model ............................. : N/A Standards ............................. : FCC Part 22H and 24E Test procedure .............................. : ANSI C63.4-2003, RSS-Gen Issue 3 This device described above has been tested by BZT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of BZT, this document may be altered or revised by BZT, personal only, and shall be noted in the revision of the document. Date of Test .......................................... : Date (s) of performance of tests ............. : May 04, 2014 ~ May 13, 2014 Date of Issue ........................................ : May 14, 2014 Test Result ............................................ : Pass Page 3 of 56 Report No.: BZT140438F05 ` Table of Contents Page 1 . SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 2 . GENERAL INFORMATION 7 2.1 GENERAL DESCRIPTION OF EUT 7 2.2 DESCRIPTION OF TEST MODES 8 2.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 9 2.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) 10 2.5 EQUIPMENTS LIST FOR ALL TEST ITEMS 11 3 . TEST RESULT 12 3.1 ANTENNA REQUIREMENT 12 3.1.1 STANDARD REQUIREMENT 12 3.1.2 EUT ANTENNA 12 3.2 OUTPUT POWER 13 3.2.1 CONDUCTED OUTPUT POWER 13 3.2.2 RADIATED OUTPUT POWER 14 3.3 SPURIOUS EMISSION 17 3.3.1 CONDUCTED SPURIOUS EMISSION 17 3.3.2 RADIATED SPURIOUS EMISSION 19 3.4 FREQUENCY STABILITY 22 3.4.1 MEASUREMENT METHOD 22 3.4.2 PROVISIONS APPLICABLE 22 3.5 OCCUPIED BANDWIDTH 25 3.5.1 MEASUREMENT METHOD 25 3.5.2 PROVISIONS APPLICABLE 25 3.5.3 MEASUREMENT RESULT 25 3.6 EMISSION BANDWIDTH 26 3.6.1 MEASUREMENT METHOD 26 3.6.2 PROVISIONS APPLICABLE 26 3.6.3 MEASUREMENT RESULT 26 3.7 BAND EDGE 27 3.7.1 MEASUREMENT METHOD 27 3.7.2 PROVISIONS APPLICABLE 27 3.7.3 MEASUREMENT RESULT 27 APPENDIX I 28 APPENDIX II 46 APPENDIX III 52 Page 4 of 56 Report No.: BZT140438F05 ` Table of Contents Page 4 . EUT TEST PHOTO 56 APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Page 5 of 56 Report No.: BZT140438F05 ` 1. SUMMARY OF TEST RESULTS Test procedures according to the technical standards: Item Number Item Description Rules Result 1 Output Power Conducted Output Power 22.913(a) / 24.232 (b) RSS-132(5.4) SRSP-503(5.1.3) Pass Radiated Output Power 2 Spurious Emission Conducted Spurious Emission 2.1051 / 22.917 / 24.238 RSS-132(5.5) RSS-133 (6.5) Pass Radiated Spurious Emission 3 Frequency Stability 2.1055 /24.235 RSS-132(5.3) RSS-133(6.3) Pass 4 Occupied Bandwidth 2.1049 (h)(i) Pass 5 Emission Bandwidth 22.917(b) / 24.238 (b) RSS-132(5.5.1) RSS-133(6.5.1) Pass 6 Band Edge 22.917(b) / 24.238 (b) RSS-132(5.5.1) RSS-133(6.5.1) Pass Page 6 of 56 Report No.: BZT140438F05 ` 1.1 TEST FACILITY BZT Testing Technology Co., Ltd Add. : 1/F, Building E, Fenda Science Park, Sanwei Community, Xixiang Street, Bao’an District, Shenzhen P.R. China. FCC Registration No.: 701733 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U，where expended uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k=2，providing a level of confidence of approximately 95 %。 No. Item Uncertainty 1 Conducted Emission Test ±1.38dB 2 Radiated Emission Test ±3.17dB 3 RF power,conducted ±0.16dB 4 Spurious emissions,conducted ±0.21dB 5 All emissions,radiated(<1G) ±4.68dB 6 All emissions,radiated(>1G) ±4.89dB Page 7 of 56 Report No.: BZT140438F05 ` 2. GENERAL INFORMATION 2.1 GENERAL DESCRIPTION OF EUT Equipment Mobile phone Trade Name F2 mobile Model Name NEO F30 OEM Brand/Model Name N/A Model Difference N/A Frequency: GSM 850 MHz;:824.2-848.4MHz PCS 1900 MHz: 1850.2-1909.8MHz Output Power: GSM850(Class 4) : 1.205 W (30.81dBm) GPRS850(Multislot Class 8) : 1.069 W (30.29 dBm) GSM1900 (Class 1) : 0.869 W (29.39dBm) GPRS1900 (Multislot Class 8) : 0.782 W (28.93 dBm) Type of Modulation GMSK Antenna Type FIFA Antenna Power Source DC Voltage supplied from battery Power Rating DC 3.7V from battery Connecting I/O Port(s) Please refer to the User's Manual Products Covered N/A EUT Modification(s) N/A Note: 1. For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 8 of 56 Report No.: BZT140438F05 ` 2.2 DESCRIPTION OF TEST MODES To investigate the maximum EMI emission characteristics generates from EUT, the test system was pre-scanning tested base on the consideration of following EUT operation mode or test configuration mode which possible have effect on EMI emission level. Each of these EUT operation mode(s) or test configuration mode(s) mentioned above was evaluated respectively. For Radiated Emission Final Test Mode Description GSM850 TX1 PCS1900 TX2 GPRS850 TX3 GPRS1900 TX4 Note: (1)During the testing, the EUT (GSM Dual …

Text truncated - open the document above for the full version.

Page 41 of 42 Report No.: BZT140438F04 10. EUT TEST PHOTO Radiated Measurement Photos Page 42 of 42 Report No.: BZT140438F04 Conducted Measurement Photos
