2ACGBSOL915OM247 SOLO2

OM247 Installation Guide  2 OM247 Installation Tool User Guide Issue Date: 07/09/11 Document No: 94-0033-4-F G4S Monitoring Technologies Ltd 4 Dominus Way Meridian Business Park Leicester LE19 1RP UK Tel: +44 (0) 116 229 2600 Fax: +44 (0) 116 229 2604 Web: www.g4s.com/uk Copyright © 2011 G4S Monitoring Technologies Ltd. All rights reserved. Copyright in the whole and every part of this document belongs to G4S Monitoring Technologies Limited (the “Owner”) and may not be used, sold, transferred, copied or reproduced in whole or in part in any manner or form or in or on any media to any person other than in accordance with the terms of the Owner’s Agreement or otherwise without the prior written consent of the Owner. All brand or product names are trademarks or registered trademarks of their respective companies or organisations.  3 Table of Contents Introduction ..........................................................4 Welcome .......................................................................................................................................5 Terms and Abbreviations ....................................................................................................6 Overview ......................................................................................................................................7 Getting Started ....................................................8 General Layout ..........................................................................................................................9 Charging the Battery ............................................................................................................10 Sleep Mode ................................................................................................................................11 FMO’s Key Fob .........................................................................................................................12 Checking the Key Fob’s Battery .....................................................................................13 Linking to MUs .........................................................................................................................14 Linking to TUs ...........................................................................................................................15 Get TU Status ...........................................................................................................................16 Controls and Status Lights ...............................17 Strap Fitting Lever ..................................................................................................................18 PID Buttons ................................................................................................................................19 PID Status Lights .....................................................................................................................20 MU Buttons ................................................................................................................................21 MU Status Lights .....................................................................................................................22 RAM Status Lights ..................................................................................................................23 Installing Monitoring Equipment .....................24 MU/TU-Dock Positioning Tips ........................................................................................25 Initialising an MU .....................................................................................................................26 Initialising a TU ..........................................................................................................................27 Getting a GPS Location Fix ..............................................................................................28 Preparing Straps for Installation ......................................................................................29 Fitting a PID to a Subject ...................................................................................................30 Fitting a SOLO to a Subject .............................................................................................33 MU Range Survey and Data Upload ...........................................................................37 TU Range Survey and Data Upload ............................................................................39 Removing and Replacing Tags ..........................41 Abandoning an Install ...........................................................................................................42 Removing a Tag.........................................................................................................................43 Replacing a Tag..........................................................................................................................44 Tamper Investigation & RAM Survey ..............45 Investigating Tamper Alerts ................................................................................................46 Performing a RAM Survey .................................................................................................47 Trouble Shooting ...............................................48 Installation Tool Errors .........................................................................................................49 MU Error Messages ...............................................................................................................50 TU Error Messages ................................................................................................................52 Index ...................................................................54  4 This section introduces you to the concepts and terms used when installing a tag. It contains the follow…

Text truncated - open the document above for the full version.

Document Classification: Public OM247-SOLO Safety Guide User Safety and Regulations Page 2Document Classification: Public This guide contains basic regulatory and safety information. Document Number: 94-0159-01 Revision: 1.0 Issue Date: 22/05/2014 About This Guide Page 3Document Classification: Public Operational Warnings Important information on safe and efficient operation. Read this information before using the device. For safe and efficient use of the device, observe the guidelines outlined below. International Protection Rating The device carries an IP rating of IP68 and as such can be immersed in water up to a depth of 5 metres. Environmental Specification 10% to 90% humidity (Battery Charger fitted) 0°C to +45°C (No Battery Charger fitted) -20°C to +60°C Installation The equipment must be installed by a SERVICE PERSON. Unit Record The model number, regulatory number and serial number are located on a nameplate on the rear of the device. Battery Charging When not in use, disconnect the battery charger from both the device and the mains electricity supply. To halt charging, remove the charging clip from the device. User Safety Page 4Document Classification: Public „Do not disassemble, open, crush, deform or puncture the product. „Do not modify, remanufacture, attempt to insert foreign objects, expose to fire, explosion or other hazards. „Only use the product with an approved charger. Use of an unqualified charger may present a risk of fire, explosion, leakage or other hazard. „Use only approved power accessories such as AC-power adaptors. AC Power Adaptor Source: G4SMTL Model: SMC Part Number: 35-0092-3 Input Rating: 100-240V VAC, 50-60Hz, 350mA Output Rating: 5VDC, 3000mA Product Handling Page 5Document Classification: Public This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: „Reorient or relocate the receiving antenna. „Increase the separation between the equipment and receiver. „Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. „Consult the dealer or an experienced radio/TV technician for help. FCC Statements Page 6Document Classification: Public FCC Statements (continued) Modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment under FCC rules. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation. This product meets the FCC Radiofrequency Emission Guidelines and is certified with the FCC as: FCC ID: OY3SOLO433 FCC ID: 2ACGBSOL915 The FCC ID is located on a label on the rear face of the product. Page 7Document Classification: Public We hereby declare that this device is in conformance to all essential requirements of the R&TTE Directive 1999/5/EC. This equipment is marked with the ‘CE’ symbol and can be used throughout the European Community. This indicates compliance with the R&TTE Directive 1999/5/ EC and meets the relevant parts of the following technical specifications: „ETSI EN 300 220-1 V2.3.1 „ETSI EN 300 220-2 V2.3.1 „ETSI EN 301 489-1 V1.8.1 „ETSI EN 301 489-3 V1.4.1 „EN 60950-1:2006 EU Regulatory Conformance This symbol indicates that this product should be recycled and not be disposed of in unsorted municipal waste. This product should be returned to the supplier for correct disposal. Page 8Document Classification: Public This unit has been tested for RF exposure compliance at a qualified test laboratory. It was found to comply with the regulations regarding exposure to RF Energy under the recommendations of the International Commission on Non-Ionizing Radiation Protection (ICNIRP). SAR (Specific Absorption Rate) is measured using the device’s highest transmitting power. Because the device automatically lowers its power output to the minimum required to connect with the network, the actual SAR while it is operating is typically lower than the quoted figure. The SAR limit for mobile devices set by FCC/IC is 4.0 W/kg, averaged over 10 grams of tissue for the extremities — hands, wrists, ankles, and feet. The highest reported SAR value of the OM247-SOLO tag is 3.571 W/kg, averaged over 10g. The maximum 10g volume averaged SAR level measured for all the tests performed did not exceed the 2.0 W/kg level defined for limiting the exposure of the general population to time-varying electric and magnetic fields by ICNIRP (1998), which is the relevant standard for testing according to the CENELEC EN 62209-1: 2006 test method. RF Safety Exposure (SAR)

TRL 51F047 iss04

TRL 51F050 iss04 G4S Monitoring Technologies 3 Centurion Court Meridian East Meridian Business Park Leicester LE19 1TP REQUEST FOR CONFIDENTIALITY IN ACCORDANCE WITH FCC RULE 0.459 30/05/2014 TRaC GLOBAL LTD. 100 Frobisher Business Park Malvern Worcestershire WR14 1BX UK RE: Certification Application FCC ID: 2ACGBSOL915 To Whom It May Concern: Please be advised that G4S monitoring Technologies Ltd request that the following information is to be held permanently confidential on behalf of G4S Monitoring technologies Ltd. • Track and Component Layout drawings • Technical documents: OM247 Solo - System Overview • Block diagrams • Schematics • BOMs • Internal Photographs G4S monitoring Ltd have spent substantial effort in developing this product, in particular some of the tamper features are not available in competitor products. Having the information easily available to competitors would negate any advantage they have achieved by developing these features. The application contains technical information which G4S Monitoring Technologies deems to be trade secrets and propriety. If made public, the information might be used to the disadvantage of the applicant in the market place. The product is a sealed device (welded in production) and a non-consumer device serviceable only by the grantee. Thank you for your attention to this matter. Yours faithfully G4S Monitoring Technologies Ltd

G4S Monitoring Technologies Ltd Issue Date: 30/05/2014 Version: 1.0 Document Owner: Fiona Farrer Current Date: 02/06/14 Page 1 of 3 SOLO 915MHz Photographs COPYRIGHT STATEMENT This document and the information contained therein is the property of G4S Monitoring Technologies Ltd. It must not be reproduced in whole or part or otherwise disclosed without prior written consent of the G4S Monitoring Technologies Ltd Quality Manager or Quality Director. SOLO 915MHz Photographs Page 2 of 3 Contents 1 SOLO 915MHz Photos .......................................................................................... 3 1.1 Top Side Main PCB + GPS Board in Lower Internal Case: ..... Error! Bookmark not defined. 1.2 Bottom Side Main PCB + GPS Board in Upper Internal Case: Error! Bookmark not defined. 1.3 Internal Front View: Upper Internal Case + Antenna ............... Error! Bookmark not defined. 1.4 Internal Rear View: Lower Internal Case + Battery .................. Error! Bookmark not defined. 1.5 External View: Front ................................................................................................................. 3 1.6 External View: Rear + Label ..................................................................................................... 3 SOLO 915MHz Photographs Page 3 of 3 1 SOLO 915MHz External Photos 1.1 External View: Front 1.2 External View: Rear + Label

G4S Monitoring Technologies Ltd +/- 1 +0.25 -0 +0.10 -0 +0.05 -0 +0 -0.25 +0 -0.10 +0 -0.05 X X.X X.XX 2:1 A 1245 A 2145 A4 NW 01 96-0182-4 A-700-MP POLYESTER SILVER THERMAL TRANSFER PRINTED AS DRAWING SOLO FCC LABEL DRAWING 17/04/14 G4S MT Ltd 2014 Document Classification CONFIDENTIAL SOLGMTXXXXXX SOLGML600000 FCC ID: 2ACGBSOL915 35.0 SOLO CODE128 BARCODE S/N FONT ARIAL 8 POINT ON CL 3.5 8.5 9.0 NOTES - 1. DIMENSIONS FOR INSPECTION PURPOSES ONLY. FOR ALL OTHER DIMENSIONS REFER TO - 96-0182-4 SOLO FCC PRINTED LABEL DRAWING.AI 2. PRINTED ON ADVANCED LABELS A-700-MP SILVER THERMAL TRANSFER POLYESTER LABEL STOCK 104μm THICK P/N 96-0017-4. 3. PRINTED COLOURS: TEXT AND LOGOS BLACK. 4. BACKED WITH 20μm #310 ACRYLIC ADHESIVE. 5. USE TRUE TYPE FONT: ARIEL SIZE 8 POINT. 6.5 5.0 FFC ID FONT ARIAL 5 POINT ON CL SYMBOL MUST BE EQUALLY SPACED AND A MINIMUM OF 5MM TALL 40.0

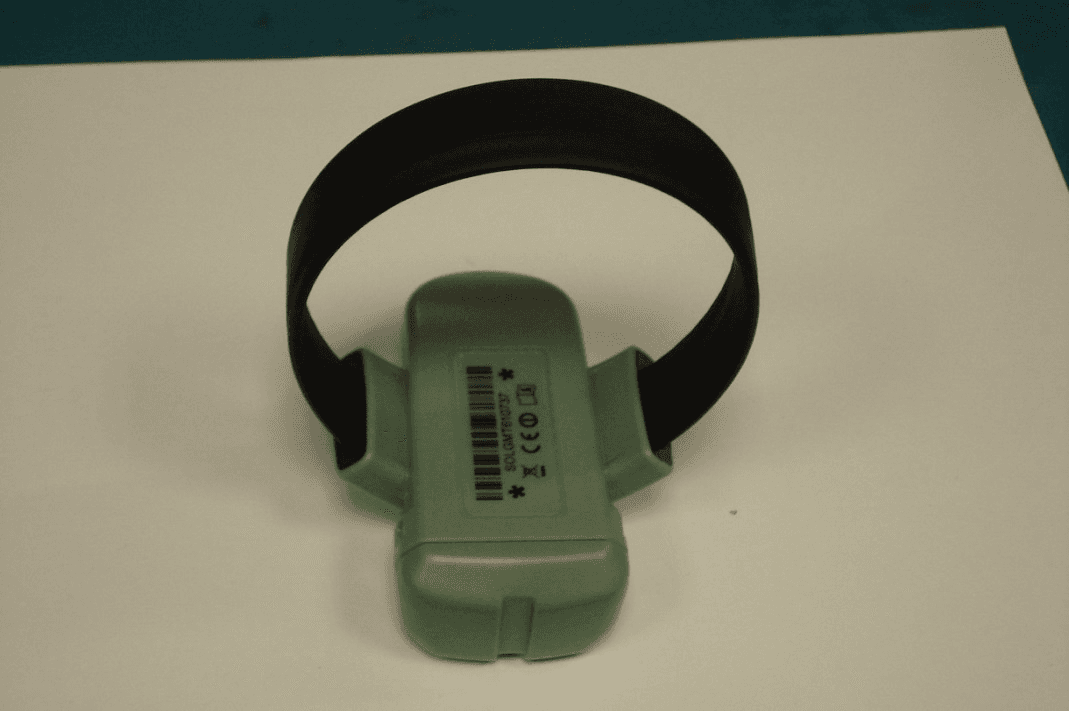

G4S Monitoring Technologies Ltd Issue Date: 30/05/2014 Version: 1.0 Document Owner: Fiona Farrer Current Date: 02/06/14 Page 1 of 3 Document Classification: CONFIDENTIAL SOLO 915MHz FCC Label Position COPYRIGHT STATEMENT This document and the information contained therein is the property of G4S Monitoring Technologies Ltd. It must not be reproduced in whole or part or otherwise disclosed without prior written consent of the G4S Monitoring Technologies Ltd Quality Manager or Quality Director. SOLO 915MHz FCC Label Position Page 2 of 3 Document Classification: CONFIDENTIAL Contents 1 SOLO 915MHz label Position ................................................................................ 3 1.1 External View: Rear + Label ..................................................................................................... 3 SOLO 915MHz FCC Label Position Page 3 of 3 Document Classification: CONFIDENTIAL 1 SOLO 915MHz label Position The FCC label is to be affixed on the rear side of the product in place of the representative label seen in the picture below 1.1 External View: Rear + Label

SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo Page 1 of 29 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. SAR Test Report Dosimetric Assessment of the Tracking Device OM247 SOLO2 3G 915MHz from G4S (FCC ID: 2ACGBSOL915) According to the FCC Requirements April 08, 2015 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer TRaC Global Limited Unit 1, Pendle Place, Skelmersdale West Lancashire WN8 9PN The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo Page 2 of 29 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Executive Summary The OM247 SOLO2 3G 915MHz is a new ankle worn tracking device (Portable Device) from G4S operating in the 850 MHz and 1900 MHz frequency range. The device has an integrated antenna and works in the GPRS 850 (Class 10), GPRS 1900 (Class 10) and 900 MHz SRD standards. Since the OM247 SOLO2 3G 915MHz is an ankle worn device, according KDB 447498 D01, IMST has conducted SAR measurements for extremity exposure configuration. The objective of the measurements done by IMST was the dosimetric assessment of one device in GPRS 850 and GPRS 1900 worst case configuration according the applicable KDB. Measurements for SRD are not required since the output power is below the threshold. The examinations have been carried out with the dosimetric assessment system „DASY4“. The measurements were made according to the 47 CFR § 2.1093 [47CFR] for evaluating compliance of mobile and portable devices with FCC limits for human exposure (general population) to radiofrequency emissions. Additional information and guidelines given by the following FCC documents were used:  SAR Measurement Requirements for 100 MHz to 6 GHz [KDB 865664 D01 v01r03]  Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies [KDB 447498 D01 v05r02]  3G SAR Measurement Procedures [KDB 941225 D01 V03] All measurements have been performed in accordance to the recommendations given by SPEAG. SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo Page 3 of 29 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Compliance Statement The assessed SAR values for OM247 SOLO2 3G 915MHz device from G4S (FCC ID: 2ACGBSOL915) are in compliance with the SAR limits over any 10g tissue according to:  47 CFR § 2.1093 [47CFR]  ANSI / IEEE C95.1-1999 [IEEE C95.1-1999] SAR assessment was conducted with zero separation distance to the flat part of the SAM phantom. All measured SAR results are shown in Table 8, the highest reported results of SAR for the OM247 SOLO2 3G 915MHz are as follows: Worst Case SAR Results Band Freq. [MHz] CH Phantom Configuration Fig. No. Reported SAR 10g [W/kg] Limit SAR 10g [W/kg] GPRS 850 836.6 190 Extremity Exposure Front 10 1.316 4.0 PASS GPRS 1900 1880.0 661 1.688 4.0 PASS Prepared by: ........................................ Reviewed by: ..................................... Alexander Rahn Markus Ridder Test Engineer Quality Assurance SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo Page 4 of 29 Dasy_Report_FCC_DECT_1900_1.1.doc/28.11.2013/AvB Table of Contents 1 SUBJECT OF INVESTIGATION ............................................................................................................... 5 2 FCC EXPOSURE CRITERIA ..................................................................................................................... 5 2.1 DISTINCTION BETWEEN EXPOSED POPULATION, DURATION OF EXPOSURE AND FREQUENCIES ................ 6 2.2 DISTINCTION BETWEEN MAXIMUM PERMISSIBLE EXPOSURE AND SAR LIMITS ......................................... 6 3 THE FCC MEASUREMENT PROCEDURE .............................................................................................. 7 3.1 GENERAL REQUIREMENTS ................................................................................................................... 7 4 BODY-WORN CONFIGURATIONS .......................................................................................................... 7 4.1 EXTREMITY EXPOSURE CONDITIONS ...................................................................................................... 7 4.2 PHANTOM REQUIREMENTS ................................................................................................................... 8 4.3 TEST TO BE PERFORMED ..................................................................................................................... 8 4.3.1 MEASUREMENT VARIABILITY ............................................................................................................ 8 5 THE MEASUREMENT SYSTEM ............................................................................................................... 9 5.1 PHANTOMS ........................................................................................................................................ 10 5.2 E-FIELD-PROBES ............................................................................................................................... 11 5.3 MEASUREMENT PROCEDURE .............................................................................................................. 12 5.4 UNCERTAINTY ASSESSMENT .............................................................................................................. 13 6 SAR EVALUATION ................................................................................................................................. 14 6.1 OUTPUT POWER VALUES ................................................................................................................... 14 6.2 TUNE-UP INFORMATION ......................................................................................…

Text truncated - open the document above for the full version.

SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo_CalData Page 1 of 27 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the Tracking Device OM247 SOLO2 3G 915MHz from G4S (FCC ID: 2ACGBSOL915) According to the FCC Requirements Calibration Data April 08, 2015 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer TRaC Global Limited Unit 1, Pendle Place, Skelmersdale West Lancashire WN8 9PN The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Cal_D835V2_SN437_0214 Page 1 of 7 Calibration Certificate Certificate No: Cal_D835V2_SN437_0214 Object: D835V2 SN: 437 Date of Calibration: February 24, 2014 Next Calibration: February 2016 Object Condition: In Tolerance Calibration Equipment used: Test Equipment Serial Number Last calibration Calibrated by Next calibration Powermeter E4416A GB41050414Nov 12 Rohde&Schwarz (262487-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301H US40010212Nov 12 Rohde&Schwarz (262492-D-K-15012- 01-00-2012-11) Nov 14 Powermeter E4417A GB41050441Nov 12 Rohde&Schwarz (262488-D-K-15012- 01-00-2012-11) Nov 14 Power Sensor E9301A MY41495584Nov 12 Rohde&Schwarz (262489-D-K-15012- 01-00-2012-11) Nov 14 Network Analyzer E5071C MY46103220Jul 13 Rohde&Schwarz (11-300285997) Jul 15 Reference Probe ET3DV6R 1669 Feb 13 SPEAG, No ET3- 1669_Feb13/2 Feb 14 DAE4 631 Sep 13 SPEAG, No DAE4- 631_Sep13 Sep 14 Cal_D835V2_SN437_0214 Page 2 of 7 Calibration is performed according the following standards: IEEE 1528-2003 "IEEE Recommended Practice for Determining the Peak Spatial - Averaged Specific Absorption Rate (SAR) in the Human Head from Wireless Communication Devices: Measurement Technique", December 2003 IEC 62209-1 "Procedure to measure the Specific Absorption Rate (SAR) for hand - held devices used in close proximity to the ear (frequency range of 300 MHz to 3GHz)", February 2005 IEC 62209-2 "Evaluation of Human Exposure to Radio Frequency Fields from Handheld and Body-Mounted Wireless Communication Devices in the Frequency Range of 30 MHz to 6 GHz: Human models, Instrumentation, and Procedures ", Part 2: “Procedure to determine the Specific Absorption Rate (SAR) for including accessories and multiple transmitters” Edition 1.0, 2010-01 KDB 865664 D01 “SAR Measurement Requirements for 100 MHz to 6GHz”, 865664 D01 SAR measurement 100 MHz to 6GHz v01r03, Feb. 2014 Additional Documentation: DASY 4/5 System Handbook prepared by: reviewed by: Alexander Rahn André van den Bosch test engineer quality assurance engineer 08 Cal_D835V2_SN437_0214 Page 3 of 7 Measurement Conditions DASY Version: Dasy 4; V4.7 Phantom: SAM Phantom 1341 Distance Dipole Center – TSL: 15mm With spacer Area Scan resolution dx, dy = 15 mm Zoom Scan resolution dx, dy, dz = 5mm Frequency: 835 MHz ± 1MHz Head TSL Parameters at 835 MHz Temperature Permittivity Conductivity Nominal Head TSL Parameters 22.0 41.50 0.90 Measured Head TSL Parameters 21.8 42.10 ± 6% 0.88 S/m ± 6% SAR Result with Head TSL at 835 MHz Averaged over 1g SAR measured 250 mW input power 2.60 mW/g SAR normalized normalized to 1W 10.40 mW/g SAR for nominal Head TSL parameters normalized to 1W 10.61 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 1.71 mW/g SAR normalized normalized to 1W 6.84 mW/g SAR for nominal Head TSL parameters normalized to 1W 6.95 mW/g ± 16.5 % (k=2) Cal_D835V2_SN437_0214 Page 4 of 7 Body TSL Parameters at 835 MHz Temperature Permittivity Conductivity Nominal Body TSL Parameters 22.0 55.20 0.97 Measured Body TSL Parameters 21.9 56.20 ± 6% 0.96 S/m ± 6% SAR Result with Body TSL at 835 MHz Averaged over 1g SAR measured 250 mW input power 2.50 mW/g SAR normalized normalized to 1W 10.00 mW/g SAR for nominal Body TSL parameters normalized to 1W 10.12 mW/g ± 16.5 % (k=2) Averaged over 10g SAR measured 250 mW input power 1.64 mW/g SAR normalized normalized to 1W 6.56 mW/g SAR for nominal Body TSL parameters normalized to 1W 6.62 mW/g ± 16.5 % (k=2) General Antenna Parameters at 835 MHz Antenna Parameters with Head TSL Impedance, transformed to feed point 45.1 Ω + 3.36 jΩ Return Loss -24.08 dB Antenna Parameter with Body TSL Impedance, transformed to feed point 45.9 Ω + 6.76 jΩ Return Loss -21.75 dB After long term use with 100W radiated power, only a slight warming of the dipole near the feedpoint can be measured. The dipole is made of standard semigrid coaxial cable. The center conductor of the feeding line is directly connected to the second arm of the dipole. The antenna is therefore short-circuited for DC signals. Additional EUT Data Manufactured by: SPEAG Manufactured on: December 15, 2000 Cal_D835V2_SN437_0214 Page 5 of 7 SAR Result with Head TSL at 835 MHz Test Laboratory: Imst GmbH, DASY Yellow (II); File Name: 240214_y_1669.da4 DUT: Dipole 835 MHz SN437; Type: D835V2; Serial: D835V2 - SN:437 Program Name: System Performance Check at 835 MHz Communication System: CW; Frequency: 835 MHz;Duty Cycle: 1:1 Medium parameters used: f = 835 MHz; σ = 0.88 mho/m; ε r = 42.1; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: ET3DV6R - SN1669; ConvF(6.32, 6.32, 6.32); Calibrated: 19.02.2013 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE4 Sn631; Calibrated: 23.09.2013 - Phantom: SAM Sugar 1341; Type: QD 000 P40 CB; Serial: TP-1341 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 d=10mm, Pin=250mW/Area Scan (7x7x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.81 mW/g d=10mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Refere…

Text truncated - open the document above for the full version.

SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo_Plots Page 1 of 13 The Testcenter facility ‘Dosimetric Test Lab’ within IMST GmbH is accredited by the German National ‘Deutsche Akkreditierungsstelle GmbH (DAkkS)’ for testing according to the scope as listed in the accreditation certificate: D-PL-12139-01-00. Appendix for the SAR Test Report Dosimetric Assessment of the Tracking Device OM247 SOLO2 3G 915MHz from G4S (FCC ID: 2ACGBSOL915) According to the FCC Requirements SAR Distribution Plots April 08, 2015 IMST GmbH Carl-Friedrich-Gauß-Str. 2 - 4 47475 Kamp-Lintfort Germany Customer TRaC Global Limited Unit 1, Pendle Place, Skelmersdale West Lancashire WN8 9PN The test results only relate to the items tested. This report shall not be reproduced except in full without the written approval of the testing laboratory. SAR_Report_TRaC_60320_6150056_FCC_850_1900_Solo_Plots Page 2 of 13 dasy_report_fcc_DECT_1900_plots_1.0.doc/110.05.2006/ABo 1 SAR Distribution Plots Test Laboratory: IMST GmbH, DASY Blue (I); File Name: Solo_bahm_1_front.da4 DUT: G4S; Type: Solo; Program Name: GPRS850 (2TX) Communication System: GPRS 850; Frequency: 836.6 MHz;Duty Cycle: 1:4 Medium parameters used: f = 836.6 MHz; σ = 0.99 mho/m; ε r = 53.9; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY4 Configuration: - Probe: EX3DV4 - SN3536; ConvF(9.8, 9.8, 9.8); Calibrated: 24.07.2014 - Sensor-Surface: 4mm (Mechanical Surface Detection) - Electronics: DAE3 Sn335; Calibrated: 19.02.2015 - Phantom: SAM Sugar 1059; Type: Speag; Serial: 1059 - Measurement SW: DASY4, V4.7 Build 80; Postprocessing SW: SEMCAD, V1.8 Build 186 Body/Area Scan (7x11x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 1.89 mW/g Body/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 28.9 V…
