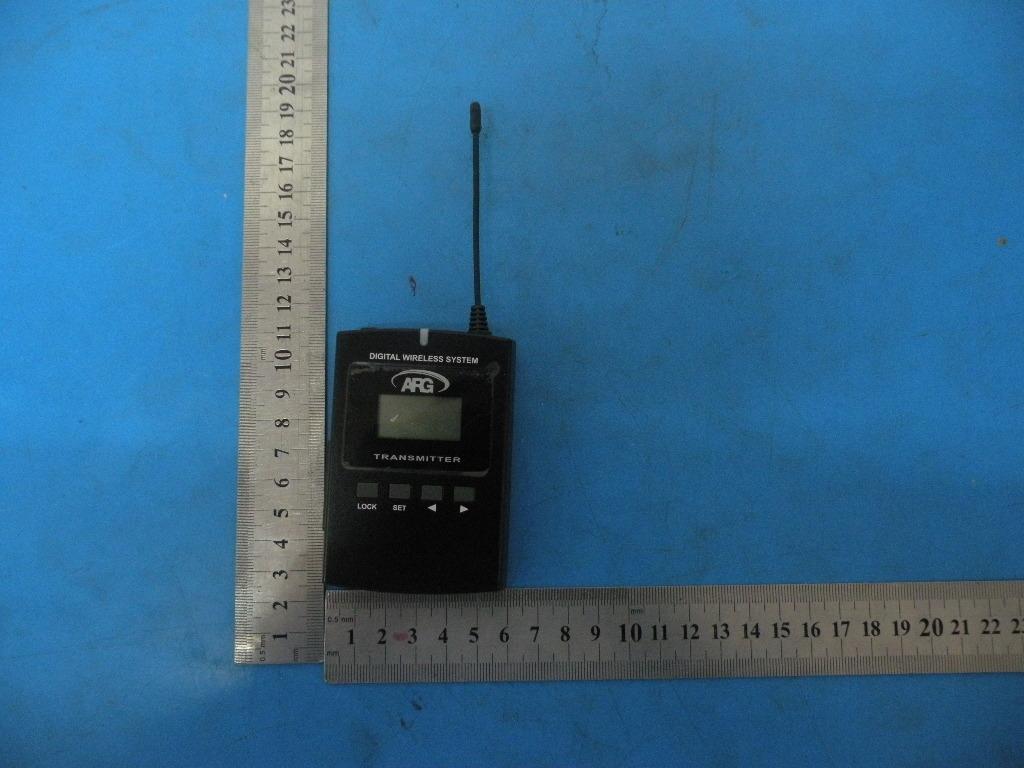

2ACGI-TX900BP900MHz digital bodypack transmitter

1. ON/OFF: Main power control. 2. LED Display: Blue indicates power on; Red indicates battery is charging. 3. SET - (Microphone Gain): Press to adjust the microphone gain between 0-9, (0 is the lowest setting and 9 is the highest setting). The factory default setting is 3, therefore every time the ON/OFF (1) is cycled, the transmitter will default back to 3. Note: The “LOCK” (4) needs to be in the “UNLOCK” mode. 4. LOCK: Press for three seconds until the lock icon disappears from the display to enter into the Programming Mode. Press it again for three seconds to return to the Lock Mode. 5. ˂(Low Pass Filter): Increasing the filter setting decreases unwanted high frequencies while maintaining an acceptable audio range; this is adjustable from 1-8. The display area will go blank once it is scrolled past 8, which indicates the filter is off. Note: The default setting is OFF. Note: “LOCK” (4) needs to be in the “UNLOCK” mode. 6. ˃(Channel): Use to scroll through the available channels, 1-12. Note: The “LOCK” (4) needs to be in the “UNLOCK” mode. 7. USB: Charging port 8. Mic-In/Line-In: The mono 3.5mm jack accepts wired microphones or audio devices that have a line-level output, this includes MP3 players, IPODS and CD players. 900MHz DIGITAL BODYPACK TRANSMITTER Model Number ARG-TX900BP QUICK USER GUIDE 1. The ARG-TX900BP has a lithium battery pack installed. Before initial use, you will need to charge the battery. When fully indicating the battery is charged and ready for use. The charging cycle is approximately 3 ½ hours andthe transmitter can operate for up to 20 hours in between charging cycles. The battery level is displayed on the bat tery level indicator located on the LCD display. Note:Battery removal must be done by a factory trained professional. 2. Insert the included microphone into the Microphone-Input Jack located on the side of the transmitter. 3. Turn the power switch to “ON” position and the LCD backlight will appear. 4. Adjust the channel number to match the channelnumber on the receiver. Note:When using two transmitters simultaneously, bothmust be set to different channels. Note:The transmitter must be in the “UNLOCKED” mode. 5. Adjust the Microphone Gain setting and the Low Pass Filter setting, if needed. Note:The transmitter must be in the “UNLOCKED” mode. 6. Maintain line-of-site operation with the speaker, if possible. Note:The transmitter and speaker should be as close as possible to each other, but no closer than three feet. 7. When finished using, slide the “ON/OFF” switch to the “OFF” position. Note:For extended periods of storage, make sure to fully charge the battery before storing. charged, the red charge LED indicator will shut off This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help.

Audio Resource Group, Inc. Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Request for Confidentiality Company name: Audio Resource Group, Inc. FCC ID : 2ACGI-TX900BP FCC Part 15 Certification Gentlemen, Pursuant to 47 CFR 0.457(d)(1)(ii) and 0.459 we hereby requests permanent confidentiality of the following documents for the subject application: Exhibit Type Description ☒ Schematics All circuitry of devices and component values ☒ Block Diagrams Details of device showing the frequency of all oscillators ☒ Operational Description Description of the circuit functions Note: Exhibit types that are commonly held confidential are: (1) Schematics, (2) Block Diagrams, (3) Bill Of Materials, (4) Operational Descriptions. Any exhibit NOT granted confidentiality is viewable on the FCC website as soon as a grant is issued. These documents contain detailed system and equipment description and related information about the product which we considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, we consider that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Signatory 2015-03-18 Name : Rick Allerdings Company: Audio Resource Group, Inc. Adress : 405 Main Ave W, Suite 4G, West Fargo, ND58078,US Tel. : 701-540-07501 Fax : 701-540-0750 Email : [email protected]

Audio Resource Group, Inc Date: 03/18/2015 Authority to Act as an Agent We declare that the following representative (agent) Name Mark Zhu Position Manager Company Name Alpha Product Testing Laboratory Address Building B, East Area of Nanchang Second, Industrial Zone, Gushu 2nd Road, Bao'an, Shenzhen, China Tel / Fax 0755-86375541/0755-26736857 Email [email protected] to act on our behalf on all matters concerning the application and documents submitted to PHOENIX TEST-LAB for product certification below Product Name 900MHz digital bodypack transmitter Model Name ARG-TX900BP,RAW-TX900BP,ARG-TX900BP-X, RAW-TX900BP-X, ARG-TX900BP-XX, RAW-TX900BP-XX, ARG- TX900BP-XXX, RAW-TX900BP-XXX Brand Name ARG FCC ID 2ACGI-TX900BP . Signatory Name : Rick Allerdings Company: Audio Resource Group, Inc. Adress : 405 Main Ave W, Suite 4G, West Fargo, ND58078,US Tel. : 701-540-07501 Fax : 701-540-0750 Email : [email protected]

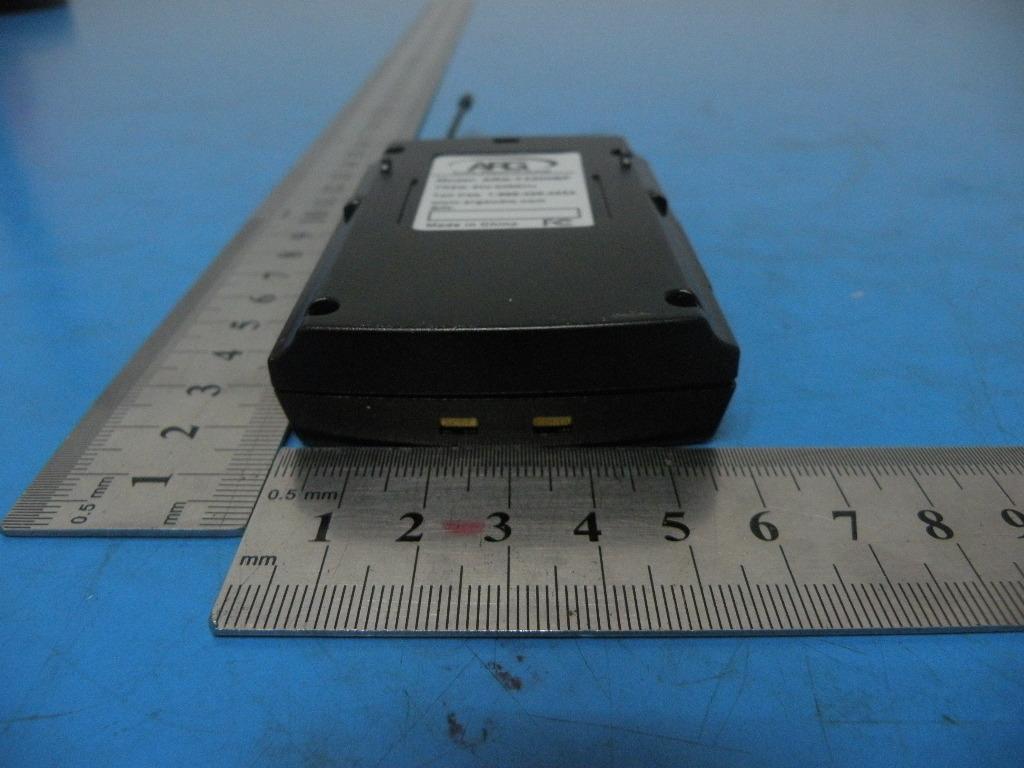

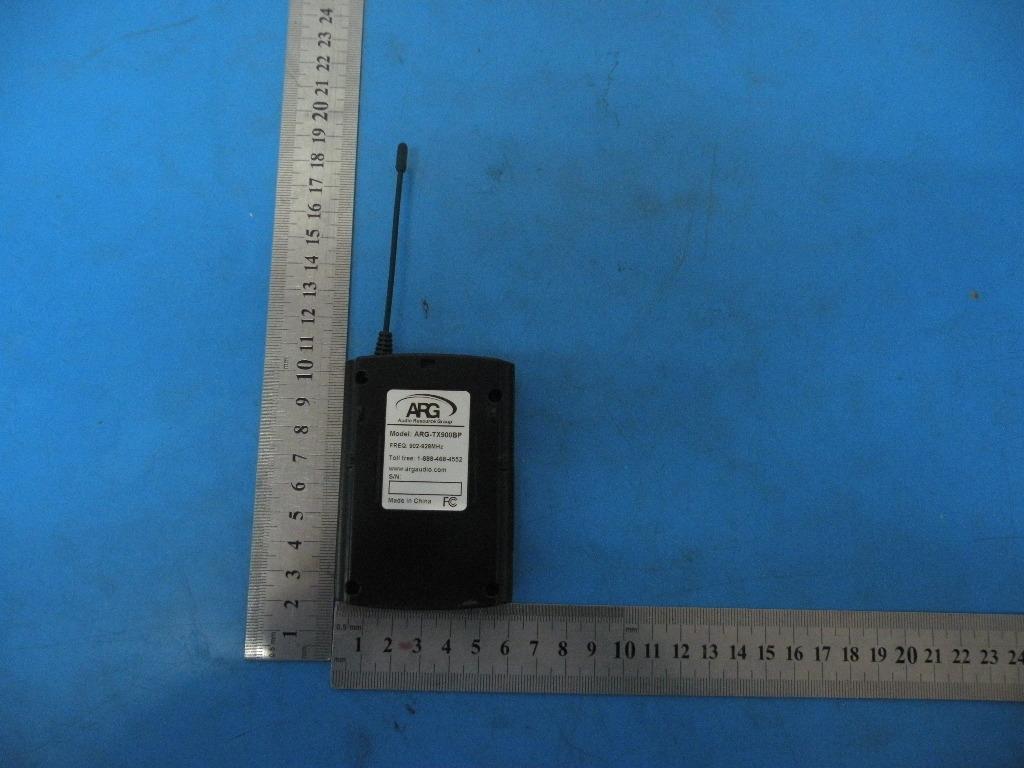

25mm 20mm FCC ID: 2ACGI-TX900BP Audio Resource Group, Inc Model name: 900MHz digital bodypack transmitter Model No.: ARG-TX900BP Label Location

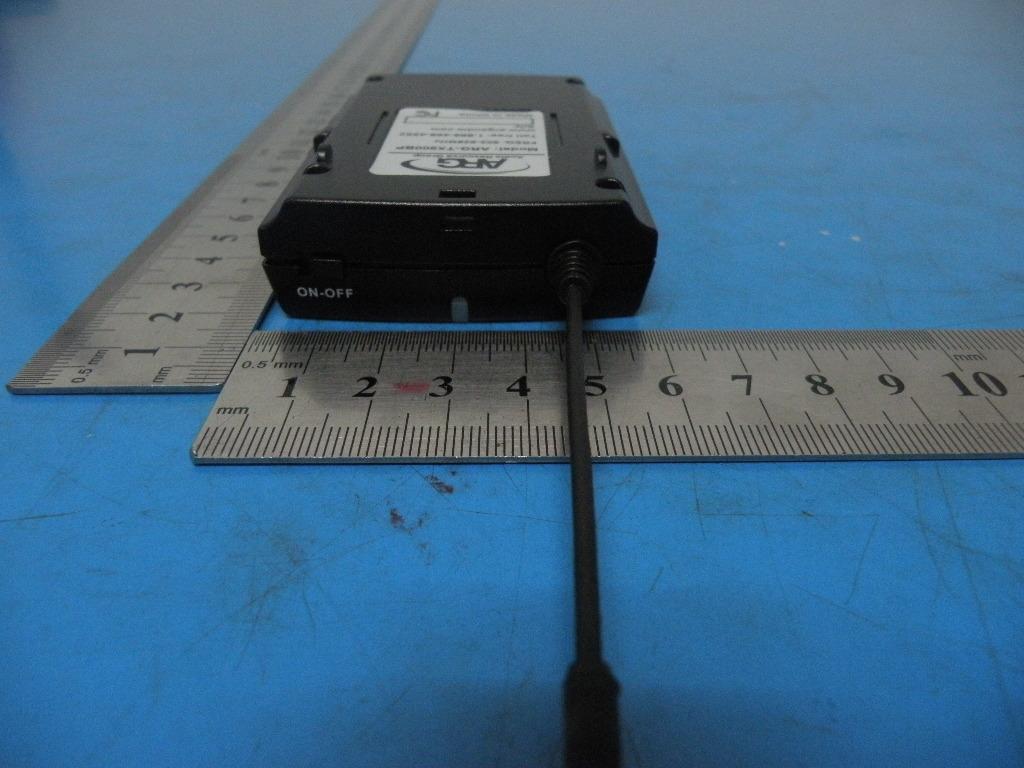

Antenna

FCC ID: 2ACGI-TX900BP RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison Worse case is as below: Frequency (GHz) Distance (mm) Power (dBm) Power (mW) Cal. Density (mW/mm) Exclusion Threshold (mW/mm) 0.904 5 7 5.01 0.95 ≤3.0 0.916 5 7 5.01 0.96 ≤3.0 0.926 5 7 5.01 0.96 ≤3.0 Then, as a result, SAR evaluation is not required

Page 1 of 40 Report No.: T1850074 01 TEST REPORT FCC ID: 2ACGI-TX900BP Applicant : Audio Resource Group, Inc Address : 405 Main Ave W, Suite 4G, West Fargo, ND58078, USA Equipment Under Test (EUT): Name : 900MHz digital bodypack transmitter Model : ARG-TX900BP,RAW-TX900BP,ARG-TX900BP-X, RAW-TX900BP-X, ARG-TX900BP-XX, RAW-TX900BP-XX, ARG-TX900BP-XXX, RAW-TX900BP-XXX In Accordance with: FCC PART 15, SUBPART C : 2014 (Section 15.247) Report No : T1850074 01 Date of Test : January 30, 2015 to February 26, 2015 Date of Issue : March 13, 2015 Test Result : PASS In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) General Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Alpha Product Testing Laboratory Or test done by Alpha Product Testing Laboratory Approvals in connection with, distribution or use of the product described in this report must be approved by Alpha Product Testing Laboratory Approvals in writing. Page 2 of 40 Report No.: T1850074 01 TABLE OF CONTENT 1 General Information ------------------------------------------------------------------------------------ 4 1.1 Description of Device (EUT) --------------------------------------------------------------------- 4 1.2 Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List ------------------------------------------------------------------------------------ 5 3 Test Procedure ------------------------------------------------------------------------------------------- 7 4 Summary of Measurement ---------------------------------------------------------------------------- 8 4.1 Summary of test result ---------------------------------------------------------------------------- 8 4.2 Test connection ------------------------------------------------------------------------------------- 9 4.3 Assistant equipment used for test ---------------------------------------------------------------- 9 4.4 Test mode ------------------------------------------------------------------------------------------- 9 4.5 Test Conditions ------------------------------------------------------------------------------------- 9 4.6 Measurement Uncertainty (95% confidence levels, k=2)----------------------------------- 10 5 Spurious Emission ---------------------------------------------------------------------------------- 11 5.1 Radiation Emission ------------------------------------------------------------------------------ 11 5.1.1 Radiation Emission Limits(15.209) ----------------------------------------------------------- 11 5.1.2 Test Setup ----------------------------------------------------------------------------------------- 11 5.1.3 Test Procedure ------------------------------------------------------------------------------------ 13 5.1.4 Test Equipment Setting For emission test Result. ------------------------------------------- 13 5.1.5 Test Condition ------------------------------------------------------------------------------------ 13 5.1.6 Test Result ---------------------------------------------------------------------------------------- 13 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 18 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 18 6.2 Test Setup ----------------------------------------------------------------------------------------- 18 6.3 Test Procedure ------------------------------------------------------------------------------------ 19 6.4 Test Results --------------------------------------------------------------------------------------- 19 7 Conducted Maximum Output Power ----------------------------------------------------------- 22 7.1 Test limit ------------------------------------------------------------------------------------------ 22 7.2 Test Procedure ------------------------------------------------------------------------------------ 22 7.3 Test Setup ----------------------------------------------------------------------------------------- 22 7.4 Test Results --------------------------------------------------------------------------------------- 22 8 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 23 8.1 Test limit ------------------------------------------------------------------------------------------ 23 8.1.1 Please refer section15.247. -------------------------------------------------------------------- 23 8.2 Method of measurement ------------------------------------------------------------------------ 23 8.3 Test Setup ----------------------------------------------------------------------------------------- 23 8.4 Test Results --------------------------------------------------------------------------------------- 23 9 Bandwidth ---------------------------------------------------------------------------------------------- 26 9.1 Test limit ------------------------------------------------------------------------------------------ 26 9.2 Method of measurement ------------------------------------------------------------------------ 26 9.3 Test Setup ----------------------------------------------------------------------------------------- 26 9.4 Test Results --------------------------------------------------------------------------------------- 26 10 Band Edge Check ------------------------------------------------------------------------------------ 29 10.1 Test limit ------------------------------------------------------------------------------------------ 29 10.2 Test Procedure ------------------------------------------------------------------------------------ 29 10.3 Test Setup …

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Conducted Emission test
