2ACIK-HS6618UUWB Module

User’s manual HS6618U V1.0 HS6618U User ’s manual 1 of 16 CONTENT 1. Package Components .............................................................................................................................................................. 6 2. How to install the HS6618U? ............................................................................................................................................... 6 2.1 UWB RF module applications ................................................................................................................................... 6 2.2 Interface signals .............................................................................................................................................................. 6 2.3 Module Installation ....................................................................................................................................................... 7 3. S/W installation .......................................................................................................................................................................... 8 4. Connecting Wireless USB dongle to USB port ............................................................................................................ 9 5. Cautions ...................................................................................................................................................................................... 11 6. HARDWARE SPECIFICATIONS ........................................................................................................................................... 12 6.1 GENERAL ......................................................................................................................................................................... 12 6.2 PRODUCT CHACTERISTICS ..................................................................................................................................... 12 6.3 ENVIRONMENT ............................................................................................................................................................ 12 6.3.1 Temperature ................................................................................................................................................... 12 6.3.2 Humidity ........................................................................................................................................................... 12 6.4 PRODUCT PHOTOGRAPH........................................................................................................................................ 13 7. HARDWARE REQUIREMENTS ............................................................................................................................................ 13 7.1 FUNCTIONAL BLOCK DIAGRAM .......................................................................................................................... 13 7.2 AL6301/AL5100 CHIPSET ARCHITECTURE ....................................................................................................... 14 7.3 IO CONNECTOR PIN DEFINITION ....................................................................................................................... 15 7.4 PERFORMANCE TEST RESULTS ............................................................................................................................. 15 HS6618U User ’s manual 2 of 16 7.4.1 Current Consumption ................................................................................................................................. 15 8. DIMENSION INFORMATION .............................................................................................................................................. 15 8.1 PCB DIMENSION ......................................................................................................................................................... 15 9. HANSHIN IT CONTACT INFORMATION ....................................................................................................................... 16 HS6618U User ’s manual 3 of 16 “Installer must use provided special cables for installation of the module in order to meet FCC 15.519 emission limit.” HS6618U User ’s manual 4 of 16 FCC information The following information must be included in the User Manual for the Final End Product (Host Product): This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is authorized under Title 47 CFR 15.519 (the FCC Rules and Regulations). The operation of this device is subject to the following restriction: The changes or substitutions of the antennas which are furnished with the device is prohibited. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or satellite is prohibited. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following Contains FCC ID: 2ACIK-HS6618U This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. HS6618U User ’s manual 5 of 16 1. Package Components RF module Anti-shielding bag Driver CD Supplied antenna USB cable 2. How to install the HS6618U? 2.1 UWB RF module applications This is the UWB module for OEM usage in the application of high speed data transmission. This module is compact module which can be put on the any PCB board. This module is used primarily inside devices as like set -top box, wireless monitor or A/V receiver box for wireless connection o…

Text truncated - open the document above for the full version.

Hanshin Information Technology Co.,Ltd. (305-510)201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea Tel. +82-42-933-8507 Fax +82-42-933-8509 February 27, 2015 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD21046 In re : Hanshin Information Technology Co.,Ltd. FCC Application for FCC ID: 2ACIK-HS6618U To Whom It May Concern: We, the undersigned, hereby attest to the fact that we will apply the Declaration of Conformity procedure to the class B computer peripheral portion of this composite filing. Regards, JeongSik, Chae / CEO Hanshin Information Technology Co.,Ltd.

SCS-F26 Modular Approval Letter Page 1 of 4 Rev 8.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Modular Approval Declaration Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (Obsolete) 1.0 1.0 Dec-04-2006 Added IC Modular Letter (Obsolete) 1.0 2.0 Feb 16 2009 Add LMA and MA option (Obsolete) 2.0 3.0 April 14 2010 Revised per RSS Gen issue 3.0 (Obsolete) 3.0 4.0 Jan 12 2011 Removed Foot(2) (obsolete) 4.0 5.0 July 19 2011 Adding New note per KDB996369 D01 V01R03 (obsolete) 5.0 6.0 August 29 2011 Updated company template & Added text box (obsolete) 6.0 7.0 Jan-31-2012 Updated modular requirement (current) 7.0 8.0 Sept 05 2014 SCS-F26 Modular Approval Letter Page 2 of 4 Rev 8.0 (Company Letter head) (Date) 02/27/2015 (Product name) FCC ID : 2ACIK-HS6618U , is seeking FCC Authorization as a Single Modular transmitter / Single Limited Modular Approval (Please check one). The EUT meets the requirements for Single Modular approval / Single Limited Modular Approval (please check one) as detailed in FCC public Notice DA00-1407. Compliance to each of the requirements is described below : Questions are: * Please provide a detailed explanation if the answer is “No.” Item Modular requirement Yes No 1 The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly; √ 2 The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal; √ 3 The module must contain power supply regulation on the module; √ 4 The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b); √ 5 The module must demonstrate compliance in a stand-alone configuration; √ 6 The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements); √ 7 The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee; √ 8 The module must comply with RF exposure requirements √ Note: (1) LMA may be granted when one or more of the requirements in the table above cannot be demonstrated. LMA will also be issued in those instances where applicants can demonstrate that they will retain control over the final installation of the device, such that compliance of the end product is assured. In such cases, an operating condition on the LMA for the module must state that the module is only approved for use when installed in devices produced by a specific manufacturer. When LMA is sought, the application for equipment certification must specifically state how control of the end product into which the module will be installed, and will be maintained, such that full compliance of the end product is always ensured. (2) Please provide Clear and specific instructions describing the conditions, limitations and procedures for third-parties to use and/or integrate the module into a host device. (3) For non-Software Defined Radio transmitter modules where software is used to ensure compliance of the device, technical description of how such control is implemented to ensure prevention of third party modification must be provided (see KDB 594280). Note 1: Compliance of a module in its final configuration is the responsibility of the applicant. A host device will not be considered certified if the instructions regarding antenna configuration provided in the original description, of one or more separately certified modules it contains, were not followed. Example: A separately certified low-power transceiver module using Bluetooth technology which is housed in a desktop computer, laptop or peripheral does not require the overall system to be recertified, if the desktop computer, laptop or peripheral, as a stand-alone unit, complies with all applicable technical standards. Client’s signature Client’s name / title JeongSik, Chae / CEO Contact information / address (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea SCS-F26 Modular Approval Letter Page 3 of 4 Rev 8.0 (Company letter head) (Date) mm/dd/yy (Product name) IC ID : , is seeking IC Authorization as a modular transmitter / Limited Modular Transmitter (Please check one). The EUT meets the requirements for modular approval / Limited Modular Approval (Please check one) as detailed in RSS GEN. Compliance to each of the requirements is described below: * Please provide a detailed explanation if the answer is “No.” a. The radio elements must have the radio frequency circuitry must be shielded. Physical/discrete and tuning capacitors may be located external to the shield, but must be on the module assembly. Yes / No b. The module shall have buffered modulation/data input(s) (if such inputs are provided) to ensure that the module will comply with the requirements set out in the applicable RSS standard under conditions of excessive data rates or over-modulation. Yes / No c. The module shall have its own power supply regulation on the module. This is to ensure that the module will comply with the requirements set out in the applicable standard regardless of the design of the power supplying circuitry in the host device which houses the module Yes / No d. The module shall comply with the provisions for external power amplifiers and antennas detailed in this standard. The equipment certification submission shall contain a detailed description of the configuration of all antennas that will be used with the module. Yes / No e. The module shall be tested for compliance with the applicable standard in a stand-alone configuration, i.e. the module must not b…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (current) 3.0 4.0 May-23-2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 4.0 Hanshin Information Technology Co.,Ltd. February 27, 2015 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, Hanshin Information Technology Co.,Ltd. hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): FCC ID : 2ACIK-HS6618U, M/N : HS6618U Sincerely, JeongSik, Chae / CEO Hanshin Information Technology Co.,Ltd. (305-510)201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Hanshin Information Technology Co.,Ltd. February 27, 2015 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACIK-HS6618U We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : JeongSik, Chae / CEO Contact information / address: Hanshin Information Technology Co.,Ltd. / (305-510)201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 Hanshin Information Technology Co.,Ltd. February 27, 2015 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ACIK-HS6618U To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - Manual - EXT PHOTO - INT PHOTO - Test PHOTO The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : JeongSik, Chae / CEO Contact information / address: Hanshin Information Technology Co.,Ltd. / (305-510)201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea

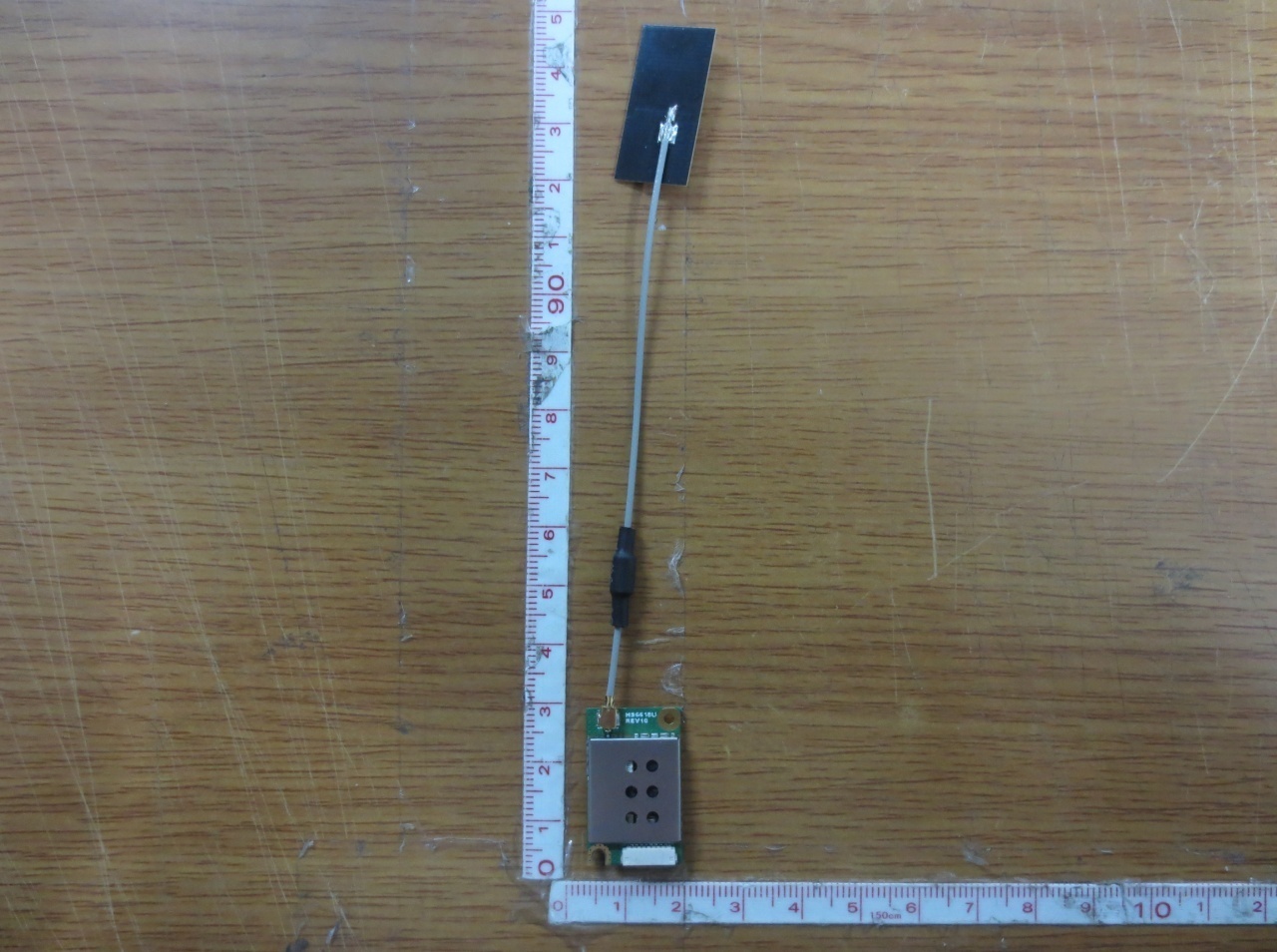

FCC ID: 2ACIK-HS6618U Copyright ○ c 2015, LTA Co., Ltd. Page 1 of 4 Upper Lower FCC ID: 2ACIK-HS6618U Copyright ○ c 2015, LTA Co., Ltd. Page 2 of 4 Front Rear FCC ID: 2ACIK-HS6618U Copyright ○ c 2015, LTA Co., Ltd. Page 3 of 4 Special cable Special cable (Zoom) FCC ID: 2ACIK-HS6618U Copyright ○ c 2015, LTA Co., Ltd. Page 4 of 4 Antenna – M/N : UWBANT-03-105

FCC ID: 2ACIK-HS6618U Copyright Ⓒ2015, LTA Co., Ltd. SAMPLE LABEL & LOCATION Model name ;: HS6618U FCC ID ;;;: 2ACIK-HS6618U

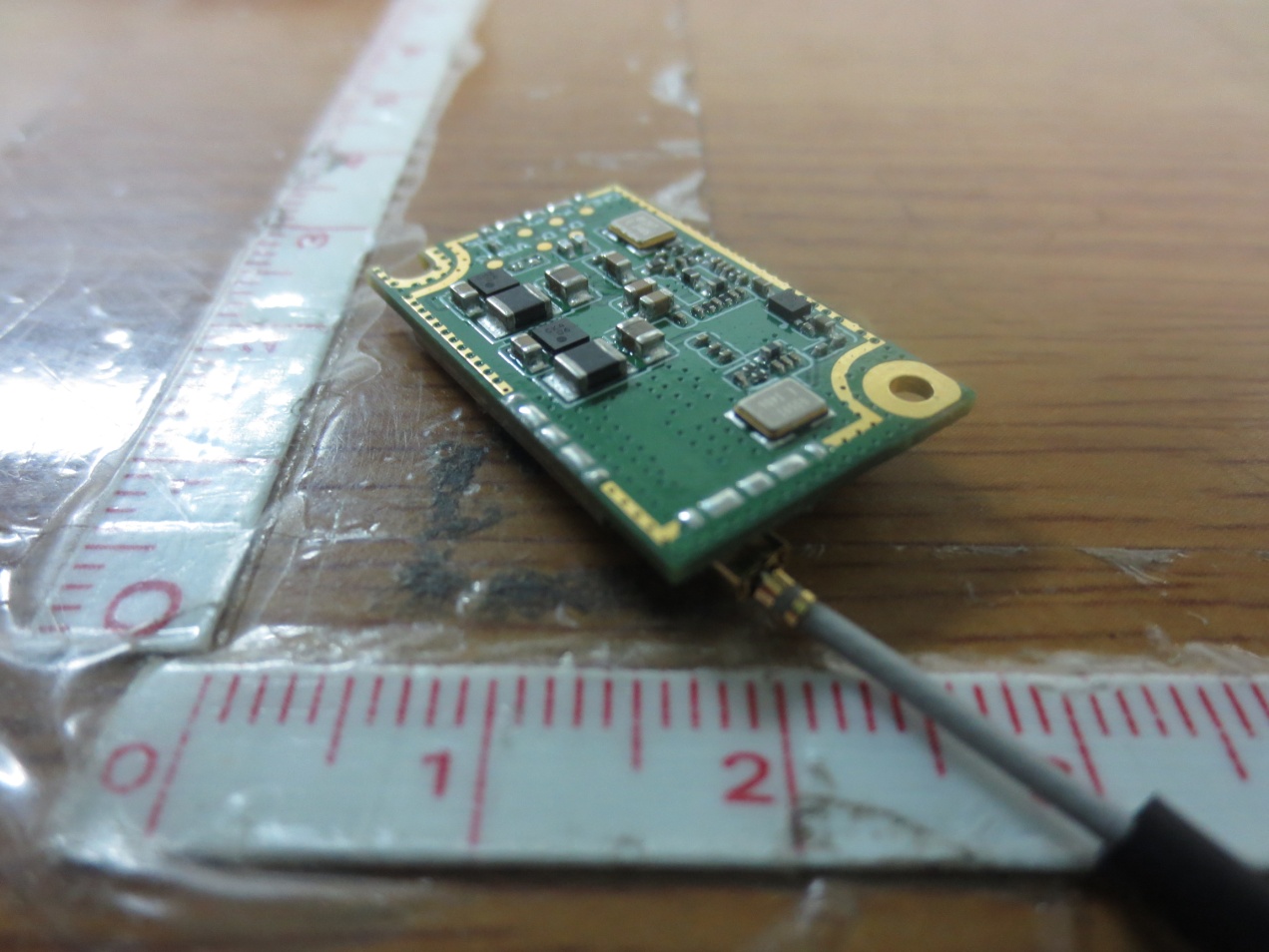

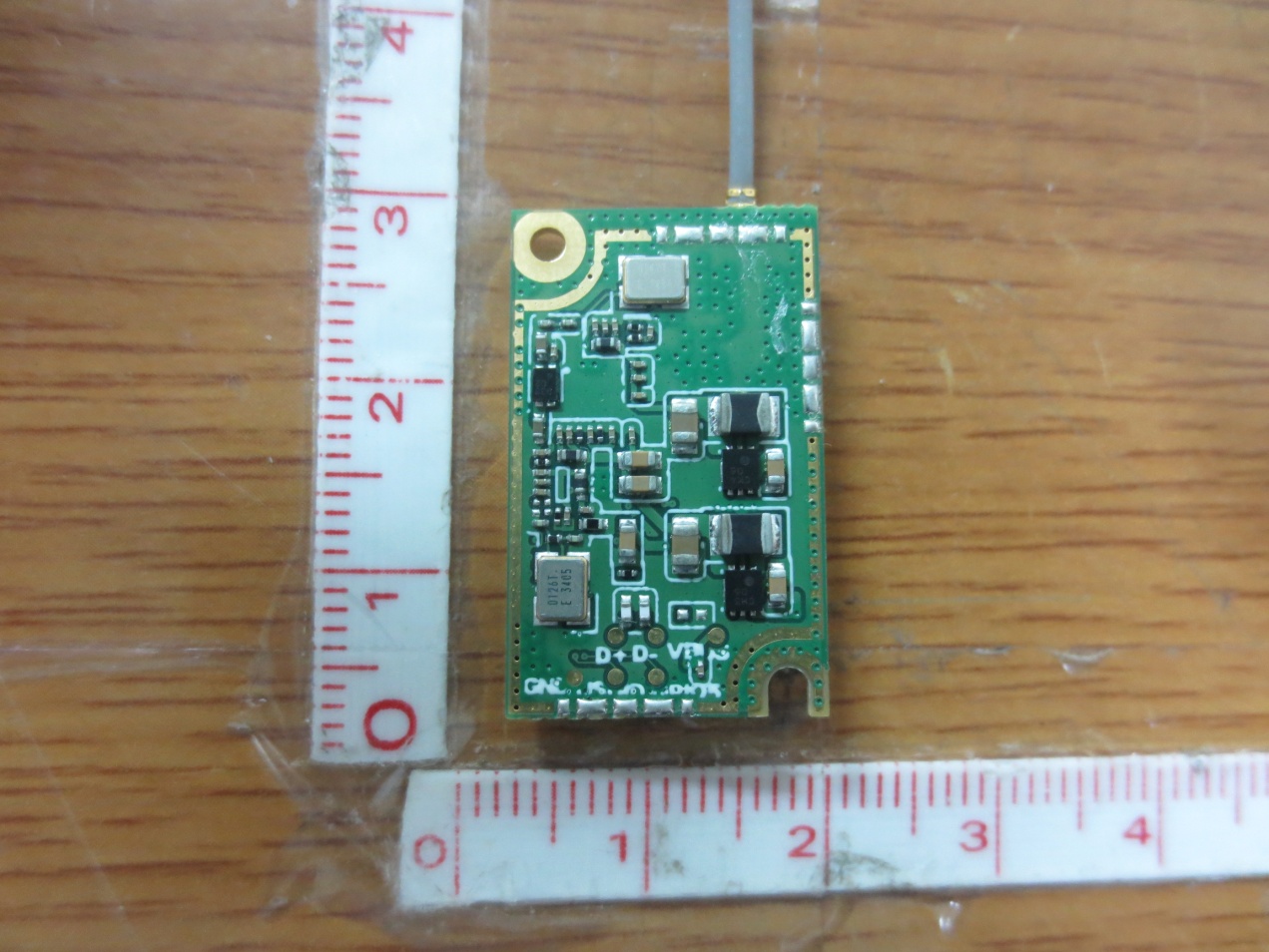

FCC ID: 2ACIK-HS6618U Copyright ○ c 2015, LTA Co., Ltd. Page 1 of 1 MainBoard–Front MainBoard–Rear

Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 1 of 32 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: April 6, 2015 ~ April 28, 2015 Test Report S/N: LR500111502H Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Ultra Wideband Transmitter (UWB) Manufacturing Description : UWB Module Manufacturer : Hanshin Information Technology Co.,Ltd. Model name : HS6618U Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15 Subpart F ; ANSI C-63.4-2009 Frequency Range : 6336 MHz ~ 7920 MHz Max. Output Power : Max 72.59 dBuV - Radiated Data of issue : April 28, 2015 This test report is issued under the authority of: The test was supervised by: Dong in Youn, Manager Ha-Ram Lee, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 2ACIK-HS6618U Hanshin Information Technology Co.,Ltd. Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 2 of 32 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 OPERATIONAL LIMITATIONS -------------------------------------------------------------- 3.2.3 UWB BANDWIDTH MEASUREMENT --------------------------------------------------- 3.2.4 RADIATED EMISSIONS MEASUREMENT ----------------------------------------------- 3.2.5 RADIATED EMISSIONS GPS BANDS MEASUREMENT ------------------------------- 3.2.6 PEAK EMISSIONS WITHIN A 50MHz BANDWIDTH MEASUREMENT ---------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 6 6 7 7 10 11 14 19 24 26 Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 3 of 32 1. General information 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2015-09-30 ECT accredited Lab. RRA KOREA KR0049 UPDATING EMC accredited Lab. FCC U.S.A 610755 2017-04-21 FCC filing FCC U.S.A 649054 UPDATING FCC CAB VCCI JAPAN R2133(10 m), C2307 2017-06-21 VCCI registration VCCI JAPAN T-2009 2016-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing KOLAS KOREA NO.551 2017-01-08 KOLAS accredited Lab. Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 4 of 32 2. Information about test item 2-1 Client & Manufacturer Company name : Hanshin Information Technology Co.,Ltd. Address : (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea Tel / Fax : TEL No : +82-42-933-8507 / FAX No : +82-42-933-8509 2-2 Equipment Under Test (EUT) Trade name : FCC ID : 2ACIK-HS6618U Model name : HS6618U Serial number : Identical prototype Date of receipt : July 28, 2014 EUT condition : Pre-production, not damaged Antenna type : PCB Antenna Frequency Range : 6336 MHz ~ 7920 MHz RF output power : Max 72.59 dBuV - Radiated Type of Modulation : MB-OFDM Power Source : 3.3 Vdc by Main system Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 5 of 32 2-3 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook PP17L N/A DELL PRINTER STYLUS C65 N/A EPSON Special Cable N/A N/A Hanshin Information Technology Co.,Ltd. 2-4 Description of Test modes MODE SUB-BAND Frequency (MHZ) 1 1 6600 2 2 7128 3 3 7656 4 1,2,3 6600, 7128, 7656 NOTE: After pre-testing each mode, the combination mode 4 was the worst situation and only the data was presented in the following sections <Except for “Radiated Emissions in GPS Bands”, “UWB Bandwidth Measurement”, “Peak Emission Measurement”>. EUT configure mode Applicable to Description RE<1G RE≥1G GPS UB PE Frequency (MHZ) 1 - - √ √ √ 6600 2 - - √ √ √ 7128 3 - - √ √ √ 7656 4 √ √ √ √ √ 6600, 7128, 7656 Where RE<1G: Radiated Emission below 1GHz RE≥1G: Radiated Emission above 1GHz UB:UBW Bandwidth PE: Peak Emission GPS: Radiated Emissions in GPS Bands Ref. No.: LR500111502H Copyright ○ c 2015, LTA Co., Ltd. Page 6 of 32 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.207 AC Conducted Emissions EN 55022 Refer to the 5.1 Table 2 Line Conducted C 15.519(a) Operational Limitations - Radiated C 15.519(b) UWB Bandwidth between 3100MHz to 10,600MHz C 15.519(c)/ 15.209 Radiated Emissions Refer to the 3.2.4 C 15.519(d) Radiated Emissions in GPS Bands 19.44dBuV/m at 1M C 15.519(e) Peak Emissions within a 50MHz Bandwidth 90.77dBuV/m at 1M C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The Hanshin Information Technology Co.,Ltd. , FCC ID: 2ACIK-HS6618U unit complies with the requirement of §15.203. The antenna is PCB Antenna. The antenna …

Text truncated - open the document above for the full version.
