2ACIKHS6620WCUWB Module

HS6620WC User’s manual 1 of 18 User’s manual HS6620WC/Device V1.0 HS6620WC User’s manual 2 of 18 CONTENT 1. Package Components .............................................................................................................................................................. 6 2. How to install the HS6620WC? ........................................................................................................................................... 6 2.1 UWB RF module applications ................................................................................................................................... 6 2.2 Interface signals .............................................................................................................................................................. 6 2.3 Module Installation ....................................................................................................................................................... 7 3. S/W installation .......................................................................................................................................................................... 8 4. Connecting Wireless USB dongle to USB port ..........................................................................................................10 5. Cautions .......................................................................................................................................................................................12 6. HARDWARE SPECIFICATIONS ............................................................................................................................................13 6.1 GENERAL ..........................................................................................................................................................................13 6.2 PRODUCT CHACTERISTICS ......................................................................................................................................13 6.3 ENVIRONMENT .............................................................................................................................................................13 6.3.1 Temperature ....................................................................................................................................................13 6.3.2 Humidity ............................................................................................................................................................13 6.4 PRODUCT PHOTOGRAPH ........................................................................................................................................14 7. HARDWARE REQUIREMENTS .............................................................................................................................................14 7.1 FUNCTIONAL BLOCK DIAGRAM ...........................................................................................................................14 7.2 AL6301/AL5100 CHIPSET ARCHITECTURE ........................................................................................................15 7.3 IO CONNECTOR PIN DEFINITION ........................................................................................................................16 7.4 PERFORMANCE TEST RESULTS ..............................................................................................................................16 HS6620WC User’s manual 3 of 18 7.4.1 Current Consumption ..................................................................................................................................16 8. DIMENSION INFORMATION ...............................................................................................................................................16 8.1 PCB DIMENSION ..........................................................................................................................................................16 9. HANSHIN IT CONTACT INFORMATION ........................................................................................................................17 10. IC Statement .....................................................................................................................................................................18 11. EU Limitations ...................................................................................................................................................................18 HS6620WC User’s manual 4 of 18 HS6620WC User’s manual 5 of 18 FCC information The following information must be included in the User Manual for the Final End Product (Host Product): This device complies with part 15 of the FCC Rules. Operation is subject to the following tw o conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This device is authorized under Title 47 CFR 15.519 (the FCC Rules and Regulations). The operation of this device is subject to the following restriction: The changes or substitutions of the antennas which are furnished with the device is prohibited. UWB devices may not be employed for the operation of toys. Operation onboard an aircraft, a ship or satellite is prohibited. UWB devices operating under the provisions of this section must be hand held, i.e.,they are relatively small devices that are primarily hand held while being operated and do not employ a fixed infrastructure. LABEL OF THE END PRODUCT: The final end product must be labeled in a visible area with the following Contains FCC ID: 2ACIKHS6620WC This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may c…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (current) 2.0 3.0 Jan-31-2012 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 3.0 Hanshin Information Technology Co.,Ltd. June 26, 2014 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Project and Product Certification Representative Authorization Letter We, Hanshin Information Technology Co.,Ltd. hereby authorize SIEMIC, INC. to act as a Certification Body for certifying for the following project(s): FCC ID : 2ACIKHS6620WC, M/N : HS6620WC We affirm that between SIEMIC and Hanshin Information Technology Co.,Ltd. any difference in understanding, including test plan, measurement methods, applicable standards and relevant procedures and processes have been resolved prior to commencement of testing activities. Sincerely, JeongSik, Chae / CEO Hanshin Information Technology Co.,Ltd. (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea

SCS-F19: Confidentiality Request Letter Page 1 of 3 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 3 Rev 3.0 Hanshin Information Technology Co.,Ltd. June 26, 2014 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ACIKHS6620WC We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description - Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Client’s name / title : JeongSik, Chae / CEO Contact information / address: Hanshin Information Technology Co.,Ltd. / (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea SCS-F19: Confidentiality Request Letter Page 3 of 3 Rev 3.0 Hanshin Information Technology Co.,Ltd. June 26, 2014 To: Federal Communications Commission Office of Engineering and Technology Equipment Authorization Division 7345 Oakland Mills Road Columbia, Maryland 21046 Subject: Short Term Confidentiality Request for FCC ID: 2ACIKHS6620WC To Whom It May Concern: Pursuant to sections 0.457 and 0.459 of CFR 47 and to avoid premature release of sensitive information prior to marketing or release of the product to the public, the applicant requests the following documents contained in this certification application be temporarily withheld from public disclosure for an initial period of 45 or 180 days (please check one). - Manual - EXT PHOTO - INT PHOTO - Test PHOTO The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Sincerely, Client’s signature : Client’s name / title : JeongSik, Chae / CEO Contact information / address: Hanshin Information Technology Co.,Ltd. / (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea

Hanshin Information Technology Co.,Ltd. (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea Tel. +82-42-933-8507 Fax +82-42-933-8509 FCC ID: 2ACIKHS6620WC Request for Single Modular approval Transmitter Module Characteristics  The module will be used to the manufactured product by Hanshin Information Technology Co.,Ltd. No Requirements EUT 1 Have its own RF shielding Device is equipped with metal shielding to cover RF section. Refer to external photos. 2 Have buffered modulation/data inputs (if such inputs are provided) All inputs to the modules are buffered thought logic or microprocessor inputs. 3 Have it own power supply regulation Internal 3.3V power regulation. Refer to Module Block diagram 4 Meet the antenna requirements of Section 15.203 Refer to external photos. 5 Be tested in a stand-alone configuration, i.e., the antenna, AC or DC power and data input/output lines must be connected to the module but, the module must not be inside another case during testing Device was tested on a supplied developmen t platform for single modular approval. Refer to setup photos. 6 Be labeled with its own FCC ID number, and if the FCC ID is not visible when the module is installed inside another device, then the out side of the device into which the module is installed must also display a label referring to the enclosed module Label is to be placed in Front of the EUT(HS6620WC), and other label is to be placed in the User’s Guide. Refer to FCC ID label format. 7 The modular transmitter is manufactured so t hat the user cannot influence the operation of the transmitter that will operate outsi de of the scope of the regulations. Refer to “User’s Guide” 8 Address compliance with the Commission’s RF exposure limits in Sections 1.1310 and 2.1091. In addition, spread spectrum transmitters operating under Section 15.247 are required to address RF exposure compliance in accordance with Section 15.247(b)(4). This device is categorically excluded from routine environmental because it operate at very low power level

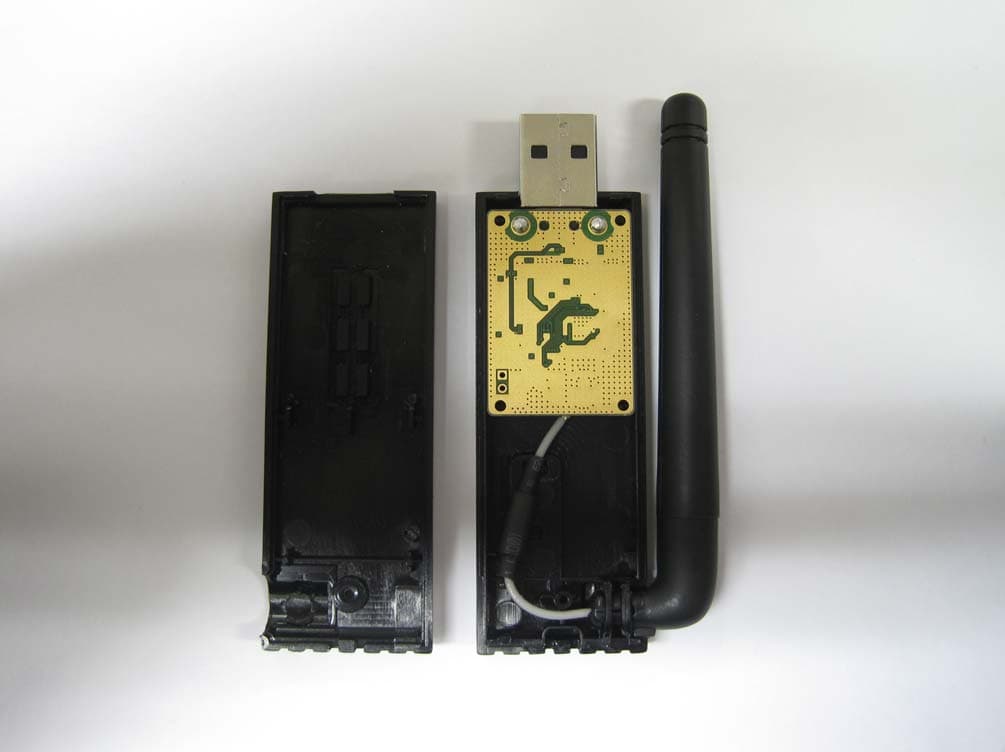

FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 3 Upper Lower FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 3 Front Rear FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 3 ANTENNA- M/N: UWBANT-04-143

FCC ID: 2ACIKHS6620WC Copyright Ⓒ 2014, LTA Co., Ltd. SAMPLE LABEL & LOCATION

FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 1 Main Board – Front Main Board – Rear

Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 28 243 Jubug-Ri,Yangji-Myeon, Yongin-Si, Gyeonggi-Do, Korea 449-822 Tel: +82-31-323-6008 Fax: +82-31-323-6010 http://www.ltalab.com Dates of Tests: June 02~24, 2014 Test Report S/N: LR500111406C Test Site : LTA CO., LTD. CERTIFICATION OF COMPLIANCE FCC ID. APPLICANT Equipment Class : Ultra Wideband Transmitter (UWB) Manufacturing Description : UWB Module Manufacturer : Hanshin Information Technology Co.,Ltd. Model name : HS6620WC Test Device Serial No.: : Identical prototype Rule Part(s) : FCC Part 15 Subpart F ; ANSI C-63.4-2009 Frequency Range : 3168MHz ~ 4752MHz Max. Output Power : Max 81.74 dBuV - Radiated Data of issue : June 25, 2014 This test report is issued under the authority of: The test was supervised by: Jae-Ho Lee, Manager Young-Jin Lee, Test Engineer This test result only responds to the tested sample. It is not allowed to copy this report even partly without the allowance of the test laboratory. This report must not be used by the applicant to claim product endorsement by any agency. NVLAP LAB Code.: 200723-0 2ACIKHS6620WC Hanshin Information Technology Co.,Ltd. Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 28 TABLE OF CONTENTS 1. GENERAL INFORMATION -------------------------------------------------------------------------- 2. INFORMATION ABOUT TEST ITEM ------------------------------------------------------------- 3. TEST REPORT --------------------------------------------------------------------------------------------- 3.1 SUMMARY OF TESTS ------------------------------------------------------------------------------ 3.2 TECHNICAL CHARACTERISTICS TEST ------------------------------------------------------- 3.2.1 AC CONDUCTED EMISSIONS -------------------------------------------------------------- 3.2.2 OPERATIONAL LIMITATIONS -------------------------------------------------------------- 3.2.3 UWB BANDWIDTH MEASUREMENT --------------------------------------------------- 3.2.4 RADIATED EMISSIONS MEASUREMENT ----------------------------------------------- 3.2.5 RADIATED EMISSIONS GPS BANDS MEASUREMENT ------------------------------- 3.2.6 PEAK EMISSIONS WITHIN A 50MHz BANDWIDTH MEASUREMENT ---------- APPENDIX APPENDIX TEST EQUIPMENT USED FOR TESTS -------------------------------------------- 3 4 6 6 7 7 10 11 14 20 25 27 Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 28 1. General information 1-1 Test Performed Company name : LTA Co., Ltd. Address : 243, Jubug-ri,Yangji-Myeon,Youngin-Si, Kyunggi-Do, Korea. 449-822 Web site : http://www.ltalab.com E-mail : [email protected] Telephone : +82-31-323-6008 Facsimile +82-31-323-6010 Quality control in the testing laboratory is implemented as per ISO/IEC 17025 which is the “General requirements for the competents of calibration and testing laboratory”. 1-2 Accredited agencies LTA Co., Ltd. is approved to perform EMC testing by the following agencies: Agency Country Accreditation No. Validity Reference NVLAP U.S.A 200723-0 2014-09-30 ECT accredited Lab. RRA KOREA KR0049 2015-03-06 EMC accredited Lab. FCC U.S.A 610755 2017-04-21 FCC filing FCC U.S.A 649054 2015-04-17 FCC CAB VCCI JAPAN R2133(10 m), C2307 2017-06-21 VCCI registration VCCI JAPAN T-2009 2016-12-23 VCCI registration VCCI JAPAN G-563 2015-05-28 VCCI registration IC CANADA 5799A-1 2015-06-21 IC filing KOLAS KOREA NO.551 2017-01-08 KOLAS accredited Lab. Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 4 of 28 2. Information about test item 2-1 Client & Manufacturer Company name : Hanshin Information Technology Co.,Ltd. Address : (305-510) 201, IT Venture Tower, 694 Taprip-Dong, Yuseong-Gu, Daejeon, Korea Tel / Fax : TEL No : +82-42-933-8507 / FAX No : +82-42-933-8509 2-2 Equipment Under Test (EUT) Trade name : FCC ID : 2ACIKHS6620WC Model name : HS6620WC Serial number : Identical prototype Date of receipt : June 02, 2014 EUT condition : Pre-production, not damaged Antenna type : PCB Antenna Frequency Range : 3168MHz ~ 4752MHz RF output power : Max 81.74 dBuV - Radiated Type of Modulation : MB-OFDM Power Source : 5.0Vdc Firmware version : V1.0.1 Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 5 of 28 2-3 Ancillary Equipment Equipment Model No. Serial No. Manufacturer Notebook PP17L N/A DELL PRINTER STYLUS C65 N/A EPSON TV Moniter LE23R18(R) 63343HDP901391E SAMSUNG 2-4 Description of Test modes MODE SUB-BAND Frequency (MHZ) 1 1 3432 2 2 3960 3 3 4488 4 1,2,3 3432, 3960, 4488 NOTE: After pre-testing each mode, the combination mode 4(hopping mode) was the worst situation and only the data was presented in the following sections <Except for “Radiated Emissions in GPS Bands”, “UWB Bandwidth Measurement”, “Peak Emission Measurement”>. EUT configure mode Applicable to Description RE<1G RE≥1GGPS UB PE Frequency (MHZ) 1 - - √ √ √ 3432 2 - - √ √ √ 3960 3 - - √ √ √ 4488 4 √ √ √ √ √ 3432, 3960, 4488 Where RE<1G: Radiated Emission below 1GHz RE≥1G: Radiated Emission above 1GHz UB:UBW Bandwidth PE: Peak Emission GPS: Radiated Emissions in GPS Bands Ref. No.: LR500111406C Copyright ○ c 2014, LTA Co., Ltd. Page 6 of 28 3. Test Report 3.1 Summary of tests FCC Part Section(s) Parameter Limit Test Condition Status (note 1) 15.207 AC Conducted Emissions EN 55022 Line Conducted C 15.519(a) Operational Limitations - Radiated C 15.519(b) UWB Bandwidth between 3100MHz to 10,600MHz C 15.519(c)/ 15.209 Radiated Emissions Refer to the 3.2.4 C 15.519(d) Radiated Emissions in GPS Bands 19.44dBuV/m at 1M C 15.519(e) Peak Emissions within a 50MHz Bandwidth 90.77dBuV/m at 1M C 15.203 Antenna requirement - - C Note 1: C=Complies NC=Not Complies NT=Not Tested NA=Not Applicable Note 2: The data in this test report are traceable to the national or international standards.  Antenna Requirement The Hanshin Information Technology Co.,Ltd. , FCC ID: 2ACIKHS6620WC unit complies with the requirement of §15.203. The antenna is Internal PCB Antenna The sample was tested according to…

Text truncated - open the document above for the full version.

FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 1 of 3 Radiate Emission (worst case) FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 2 of 3 Radiate Emission (worst case) FCC ID: 2ACIKHS6620WC Copyright ○ c 2014, LTA Co., Ltd. Page 3 of 3 Conducted Emission (worst case)
