2ACK6-ELC0343Cabasse Pearl Remote Control

CABASSE SA
Cabasse Pearl Remote Control - FCC ID 2ACK6-ELC0343 - CABASSE SA
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Jun 02, 2021
Application Purpose
Original Equipment
Date of Application
Jun 02, 2021
Equipment Note
Cabasse Pearl Remote Control
Frequency Range
2402.00000000 - 2480.00000000
Company
CABASSE SA
Country
France

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

8 9    FIRST USE Connect THE PEARL THE PEARL AKOYA/THE PEARL SUB to the mains with the proper power cord. THE PEARL / THE PEARL AKOYA / THE PEARL SUB are operationals as soon as the LED on the left of the rear panel opposite is lit in solid blue. A voice announcement, if the volume of THE PEARL / THE PEARL AKOYA/ THE PEARL SUB is not at a minimum, indicates the status of the network connection: current, successful, failure. STEREO USE WITH 2 THE PEARL / THE PEARL AKOYA / THE PEARL SUB Use only one remote control to drive a stereo pair. Do not activate another remote in the same room. REMOTE CONTROL ACTIVATION Before rst use, unscrew the screw (PH00 screwdriver), remove the cover, remove the protective tab, replace the cover and retighten the screw. The blue LED on the remote control ashes, waiting for pairing. PAIRING THE REMOTE CONTROL 1- Connect the speaker to the mains. 2- Switch on the speaker using the on / o button on the back. 3- Press the "pairing" button on the back of THE PEARL/ THE PEARL AKOYA / THE PEARL SUB briey. The LED "pairing" ashes. 4- The LEDs on the remote control and THE PEARL stop ashing when the pairing is nalized. Replacement of the CR-2450 type button- cell: turn the remote control over, unscrewthe screw, remove the cover, remove the old battery, insert the new battery, marked "+" to the outside, replace the cover, tighten the screw. COLOR CODES OF THE STATUS LED CYAN DLNA input: wi, Ethernet, domestic streaming , internet streaming GREEN Spotify Connect WHITE Aux In Input YELLOW Optical input BLUE Bluetooth input RED (ashing) Connexion to network failed PURPLE Automatic calibration running Status LED Pairing LED Reset Pairing Optical LAN USB ON/OFF Analog RCA IN POWER Federal Communications Commission Notice This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Cover Letter(s)

FCC ID: 2ACK6-ELC0343 CABASSE SA Model Difference All models have same circuits diagram of Bluetooth module PCB, RF Chip constructionl; All models have same circuits diagram of Power. Sincerely, Name: David.kerneis / Manager Company: CABASSE SA Address: 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Phone: 33298058888 Fax: 33298058899 E-Mail: [email protected] Mode List ELC0343 REMOTE CONTROL BLACK THE PEARL ELC0344 REMOTE CONTROL PEARL THE PEARL

Cover Letter(s)

TOTEM ACOUSTIQUE INC. for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2021-05-15> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2ACK6-ELC0343 ELC0343 REMOTE CONTROL BLACK THE PEARL For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, ------------------------------------ Name: David.kerneis / Manager Company: CABASSE SA Address: 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Phone: 33298058888 Fax: 33298058899 E-Mail: [email protected]

Cover Letter(s)

CABASSE SA 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Tel: 33298058888 Fax: 33298058899 Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021/05/15 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relati ng to applications for equipment authorization FCC ID: [2ACK6-ELC0343] including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: David.kerneis / Manager Company: CABASSE SA Address: 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Phone: 33298058888 Fax: 33298058899 E-Mail: [email protected]

External Photos

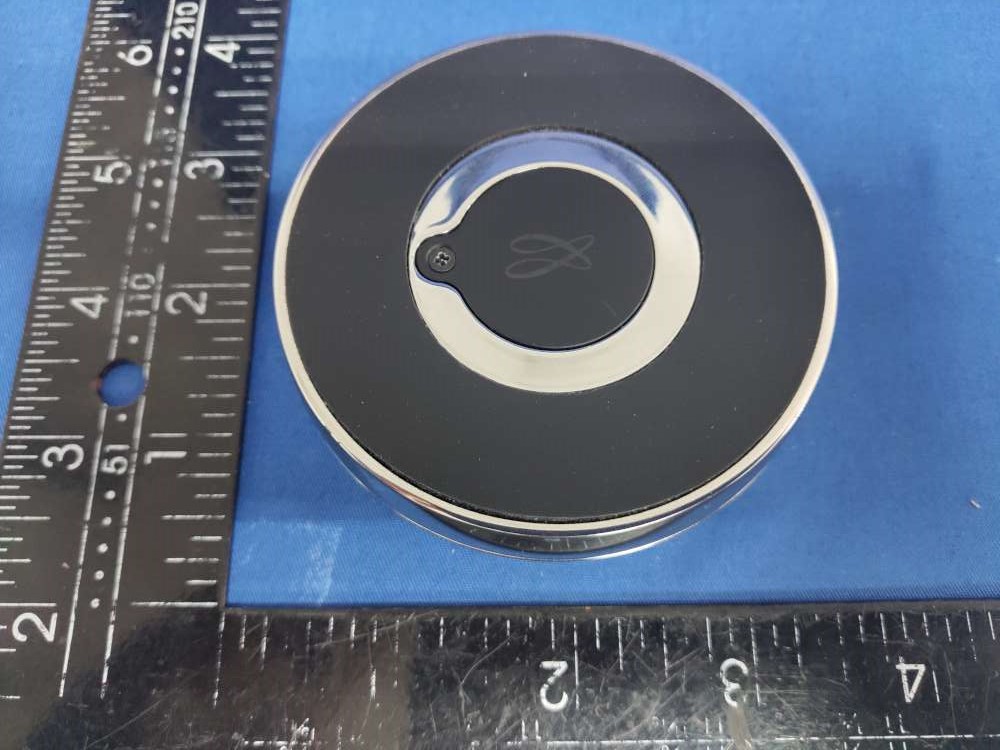

FCC ID:2ACK6-ELC0343 FCC ID:2ACK6-ELC0343 FCC ID:2ACK6-ELC0343

ID Label/Location Info

Cabasse Pearl Remote Control Model No: ELC0343 REMOTE CONTROL BLACK THE PEARL FCC ID:2ACK6-ELC0343 FCC ID Location

Internal Photos

FCC ID: 2ACK6-ELC0343 FCC ID: 2ACK6-ELC0343 BT ANT FCC ID: 2ACK6-ELC0343

RF Exposure Info

RF Exposure evaluation FCC ID: 2ACK6-ELC0343 1.1. Applicable Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1093 RF exposure is calculated. KDB447498 v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. 1.2. Requirement According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 1.3. Manufacturing tolerance 2.1. Evaluation Result Band/ Mode f (GHz) Antenna Distance (mm) RF output power (including tune-up tolerance) SAR Test Exclusion Threshold SAR Test Exclusion dBm mW BT(BLE) 2.440 5 7 5.012 1.566<3.0 Yes Note: Result=P F /D P=Maximum turn-up power in mW F=Channel frequency in GHz D=Mininmun test separation distance in mm 3.1. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1093 for the uncontrolled RF Exposure and SAR Exclusion Threshold per KDB 447498 v06, No SAR is required. BLE GFSK Channel Channel 01 Channel 20 Channel 40 Target (dBm) 7.0 7.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0

Test Report

Project No.: ZKT-210508L1670 Page 1 of 40 FCC TEST REPORT FCC ID:2ACK6-ELC0343 Report Number. ................................ : ZKT-210508L1670 Date of Test ........................................ May 06, 2021 to May 28, 2021 Date of issue .................................... : May 29, 2021 Total number of pages ...................... 40 Test Result ..................................... : PASS Testing Laboratory. ........................... : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ............................ : CABASSE SA Address .......................................... : 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Manufacturer's name ..................... : CABASSE SA Address .......................................... : 210, RUE RENE DESCARTES-BP 10, 29280 PLOUZANE, France Test specification: Standard ........................................... : FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10:2013 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. .................... : TRF-EL-111_V0 Test Report Form(s) Originator .... : ZKT Testing Master TRF .................................... : Dated: 2021-05-29 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................... : Cabasse Pearl Remote Control Trademark ...................................... : Model/Type reference ...................... : ELC0343 REMOTE CONTROL BLACK THE PEARL ELC0344 REMOTE CONTROL PEARL THE PEARL Ratings ............................................. : DC 3V from battery Project No.: ZKT-210508L1670 Page 2 of 40 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-210508L1670 Page 3 of 40 Table of Contents Page 1.Version ..................................................................................................................................................... 5 2.SUMMARY OF TEST RESULTS .............................................................................................................. 6 2.1 TEST FACILITY ............................................................................................................................... 7 2.2 MEASUREMENT UNCERTAINTY .................................................................................................. 7 3. GENERAL INFORMATION ..................................................................................................................... 8 3.1 GENERAL DESCRIPTION OF EUT ............................................................................................... 8 3.2 DESCRIPTION OF TEST MODES .................................................................................................. 9 3.3 BLOCK DIGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED ............................. 9 3.4 DESCRIPTION OF SUPPORT UNITS(CONDUCTED MODE) ....................................................... 9 3.5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................ 10 4. EMC EMISSION TEST .......................................................................................................................... 11 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................ 11 4.1.1 POWER LINE CONDUCTED EMISSION Limits ................................................................. 11 4.1.2 TEST PROCEDURE ............................................................................................................. 11 4.1.3 DEVIATION FROM TEST STANDARD ................................................................................ 11 4.1.4 TEST SETUP ........................................................................................................................ 12 4.1.5 EUT OPERATING CONDITIONS ......................................................................................... 12 4.2 RADIATED EMISSION MEASUREMENT ..................................................................................... 13 4.2.1 Radiated Emission Limits .................................................................................................. 13 4.2.2 TEST PROCEDURE ............................................................................................................. 14 4.2.3 DEVIATION FROM TEST STANDARD ................................................................................ 14 4.2.4 TEST SETUP ........................................................................................................................ 14 4.2.5 EUT OPERATING CONDITIONS ......................................................................................... 15 5.RADIATED Band EMISSION MEASUREMENT .................................................................................... 20 5.1 Test Requirement: .................................................................................................................. 20 5…

Text truncated - open the document above for the full version.

Test Setup Photos

FCC ID:2ACK6-ELC0343 RadiatedEmission(Below 1G) Radiated Emission (Above 1G)

Contact Information

Applicant

KERNEIS David
[email protected]33298058888Fax: 33298058899

Test Firm

Shenzhen ZKT Technology Co., Ltd.Lake Xie
[email protected]0086-13620010775

Technical Specifications

#Rule PartsFrequency RangePower Output
115C2.40 GHz - 2.48 GHz3.90 mW
Confidentiality
Long Term
Grant Notes
Output Power listed is peak conducted.
