2ACML-201850V3 Desk Screen

Condeco User manual and Technical Specification for Desk Screen V3 Condeco 2 Harbour Exchange Square London E14 9GE www.condecosoftware.com The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 2 of 20 Condeco Hardware Section Responsibility Name Owner Condeco Ltd Author(s) Kelvin Koh Reviewer Michael Hull Approver John Hartwell, Max Nealon Version Status Reason for change Date 1.0 Preliminary Initial Release 10/06/2019 1.1 1.2 Added installation and setup guide Added FCC statement For CE safety test Required 22/08/2019 18/12/2019 Name Organisation Project Number The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 3 of 20 Condeco Hardware Section Technical Specification for Desk Screen V3 Technical Specification: 1. Android 8 operating system. 2. 3” LCD with CTP. 3. i.MX7 processor. 4. 1Gbyte DDR3. 5. 16Gbyte Micro SD card. 6. Wi-Fi 802.11 b/g/n/ac Dual-band. 7. Bluetooth V4.1. 8. 125KHz and 13.56MHz RFID/NFC. 9. USB Type C connector. 10. RGB indicator LED’s. 11. Maximum operating temperature 40 Degree Celsius. RFID/NFC Technology and Card Compatibility: 1. RFID Technology: RFID (Radio Frequency Identification) technology has been used on Desk Screen V3 to allow user to book the desk with their RFID card. The operation frequencies are 125 KHz and 13.56 MHz 1) 125 KHz used for HID Prox card. 2) 13.56 MHz used for Mifare iso 14443 and HID iClass cards iso 15693. 2. Following type of the RFID cards are compatible with Condeco Desk Screen V3: 1) HID Prox 2) HID iClass 3) Mifare 4) Desfire 3. NFC Technology NFC (Near-field communication) technology has been used on Desk Screen V3 for transferring configuration file from Condeco mobile application. The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 4 of 20 Condeco Hardware Section Equipment required: 1. Desk Screen V3 unit 2. Custom Desk Screen V3 USB cable 3. 5V, 1A USB power source. 4. Desk Screen V3 docking unit Start with Desk Screen V3: Connect the provided custom Desk Screen V3 USB cable to the Desk Screen V3 unit. Assemble unit as shown, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 5 of 20 Condeco Hardware Section Assemble unit into docking unit, wall mount, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 6 of 20 Condeco Hardware Section Desk mount,

The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 7 of 20 Condeco Hardware Section Power ON the unit by plugging in the other end of the custom Desk Screen V3 USB cable to a suitable power source. Follow the onscreen instructions, Select the preferred language, Click “Next”, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 8 of 20 Condeco Hardware Section Click “Set up manually”, Wait for the Desk Screen V3 to scan the available access points, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 9 of 20 Condeco Hardware Section Select the appropriate access point, click on “Tap to enter WiFi password” Click “Next” on the “Connected” page.

The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 10 of 20 Condeco Hardware Section Wait for “Checking For Update” to finish, Retrieve the activation code from Condeco self-service portal and enter the activation code, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 11 of 20 Condeco Hardware Section Click on “Activate this device”, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 12 of 20 Condeco Hardware Section Click “Next”, Wait for the device to finish retrieving bookings,

The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 13 of 20 Condeco Hardware Section Wait for device home screen to show up, To book the device, tap on the screen The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 14 of 20 Condeco Hardware Section Swipe the registered RFID card, Booked Desk Screen page, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 15 of 20 Condeco Hardware Section To release the booking, tap on the screen, Swipe the registered RFID card, The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 16 of 20 Condeco Hardware Section Released Desk Screen page,

The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 17 of 20 Condeco Hardware Section Radio Equipment Directive The Desk Screen V3 contains the following radio transceivers: RFID reader operating in the 119 to 128.6 kHz band with maximum field strength of 10.5 dBμA/m at 3m RFID reader operating at 13.553-13.567 MHz band with maximum field strength of 4.4dBμA/m at 3m  Bluetooth 4.0 operating in the 2400-2483.5 MHz band with maximum transmit power of 3.51dBm EIRP WiFi operating in the 2412-2462 MHz band with maximum transmit power of 16.21 dBm EIRP and the 5150-5350 MHZ, 5470-5725 MHZ and 5725-5850MHZ bands with maximum transmit power of 14.80 dBm EIRP. Condeco Ltd tímto prohlašuje, že tento DESK SCREEN V3 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 2014/53/EU. Undertegnede , Condeco Ltd erklærer herved, at følgende udstyr DESK SCREEN V3 overholder de væsentlige krav og øvrige relevante krav i direktiv 2014/53/EU. Hiermit erklärt , Condeco Ltd dass sich das Gerät DESK SCREEN V3 in Übereinstimmung mit den grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der Richtlinie 2014/53/EU befindet. Käesolevaga kinnitab , Condeco Ltd seadme DESK SCREEN V3 vastavust direktiivi 2014/53/EL põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele. Hereby, Condeco Ltd declares that DESK SCREEN V3 is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Por medio de la presente Condeco Ltd declara que el DESK SCREEN V3 cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 2014/53/UE. ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ, Condeco Ltd ΔΗΛΩΝΕΙ ΟΤΙ DESK SCREEN V3 ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩΔΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 2014/53/ΕE. Par la présente, Condeco Ltd déclare que l'appareil DESK SCREEN V3 est conforme aux exigences essentielles et aux autres dispositions pertinentes de la directive 2014/53/UE. Con la presente , Condeco Ltd dichiara che questo DESK SCREEN V3 è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla direttiva 2014/53/UE. Ar šo Condeco Ltd deklarē, ka DESK SCREEN V3 atbilst Direktīvas 2014/53/ES būtiskajām prasībām un citiem ar to saistītajiem noteikumiem, Šiuo Condeco Ltd deklaruoja, kad šis DESK SCREEN V3 atitinka esminius reikalavimus ir kitas 2014/53/ES Direktyvos nuostatas Hierbij verklaart , Condeco Ltd dat het toestel DESK SCREEN V3 in overeenstemming is met de essentiële eisen en de andere relevante bepalingen van richtlijn 2014/53/EU. Hawnhekk, Condeco Ltd, jiddikjara li dan DESK SCREEN V3 jikkonforma mal-ħtiġijiet essenzjali u ma provvedimenti oħrajn relevanti li hemm fid-Dirrettiva 2014/53/UE. The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ Page 18 of 20 Condeco Hardware Section Alulírott, , Condeco Ltd nyilatkozom, hogy a DESK SCREEN V3 megfelel a vonatkozó alapvetõ követelményeknek és az 2014/53/EU irányelv egyéb elõírásainak. Niniejszym Condeco Ltd oświadcza, że DESK SCREEN V3 jest zgodny z zasadniczymi wymogami oraz pozostałymi stosownymi postanowieniami Dyrektywy 2014/53/UE. Condeco Ltd declara que este DESK SCREEN V3 está conforme com os requisitos essenciais e outras disposições da Directiva 2014/53/UE. Condeco Ltd izjavlja, da je ta DESK SCREEN V3 v skladu z bistvenimi zahtevami in ostalimi relevantnimi določili direktive 2014/53/EU. Condeco Ltd týmto vyhlasuje, že DESK SCREEN V3 spĺňa základné požiadavky a všetky príslušné ustanovenia Smernice 2014/53/EÚ. Condeco Ltd vakuuttaa täten että DESK SCREEN V3 tyyppinen laite on direktiivin 2014/53/EU oleellisten vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen. Härmed intygar Condeco Ltd att denna DESK SCREEN V3 står I överensstämmelse med de väsentliga egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 2014/53/EU. Hér með lýsir Condeco Ltd yfir því að DESK SCREEN V3 er í samræmi við grunnkröfur og aðrar kröfur, sem gerðar eru í tilskipun 2014/53/EU. Condeco Ltd erklærer herved at utstyret DESK SCREEN V3 er i samsvar med de grunnleggende krav og øvrige relevante krav i direktiv 2014/53/EU. Noi, Condeco Ltd, declarăm pe propria noastră răspundere că produsul DESK SCREEN V3 este în conformitate cu cerinţele esenţiale şi celelalte prevederi aplicabile ale Directivei 2014/53/UE. The full text of the EU declaration of conformity is available at the following internet address: https://www.condecosoftware.com/help/ FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subjec…

Text truncated - open the document above for the full version.

Condeco Ltd Agent Authorization Company: Condeco Ltd Address: 8th Floor Exchange Tower, 2 Harbour Exchange Square. London. E14 9GE London United Kingdom Product Name: V3 Desk Screen Model Number(s): 201850 Product Description: V3 Desk Screen We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Name: Philip Briffa Title: Technical Director Company: Condeco Ltd 27/12/2019

Condeco Ltd Offi ce of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2019-12-25 Subject; Request for Confidentiality FCC ID: 2ACML-201850 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These docum ents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Philip Briffa Title: Technical Director FCC Software Security Requirements for UNII devices

FCC Software Configuration Control Declaration Rev1.1.docx Condeco Ltd FCC Software Configuration Control Declaration Date: December 27, 2019 F ederal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. P roduct/ Model Number: V3 Desk Screen / 201850 Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Configuration Control v02r01. “A ll applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. N ame: Philip Briffa Date: Title: Technical Director Signature of applicant 27/12/2019

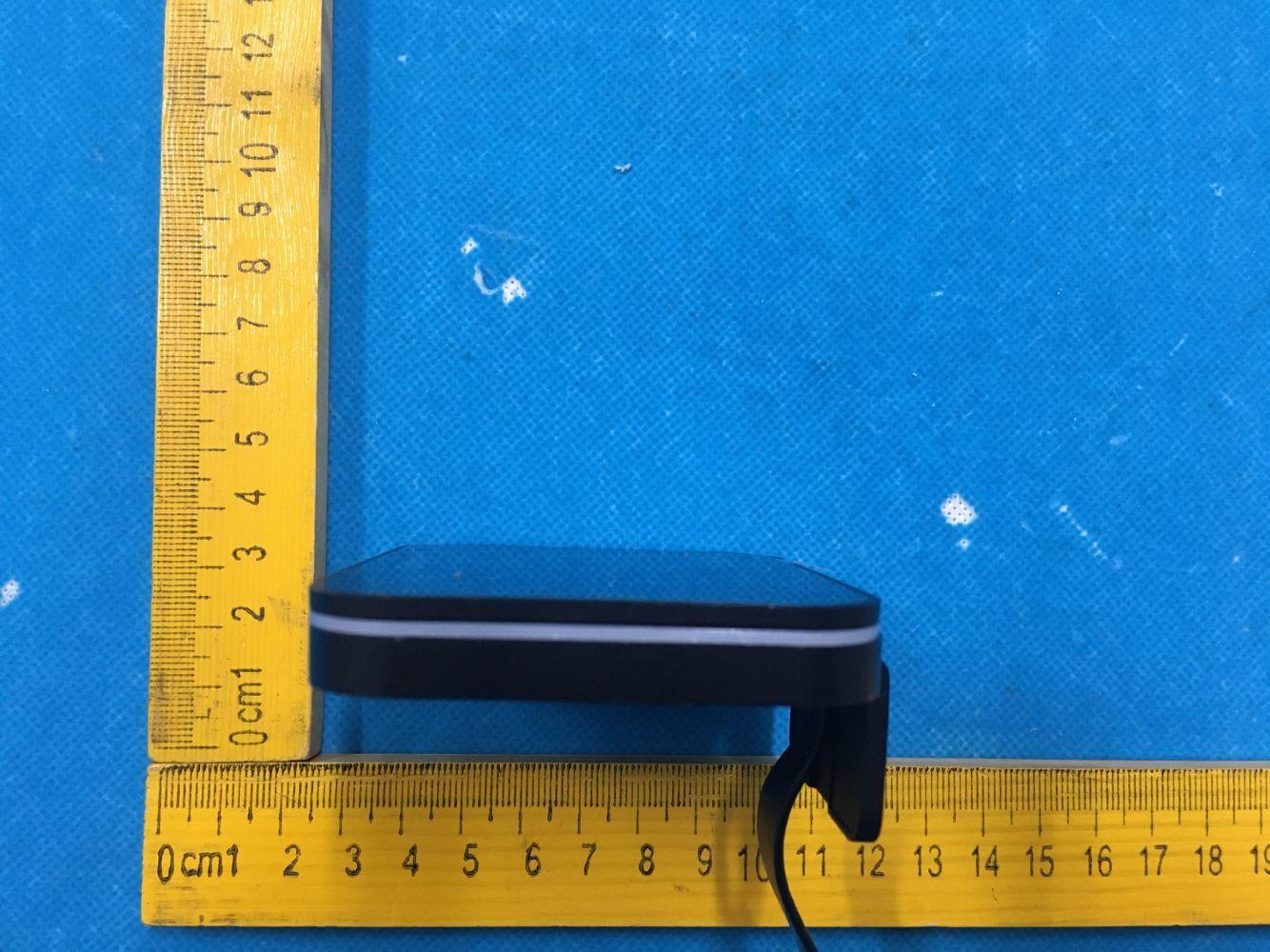

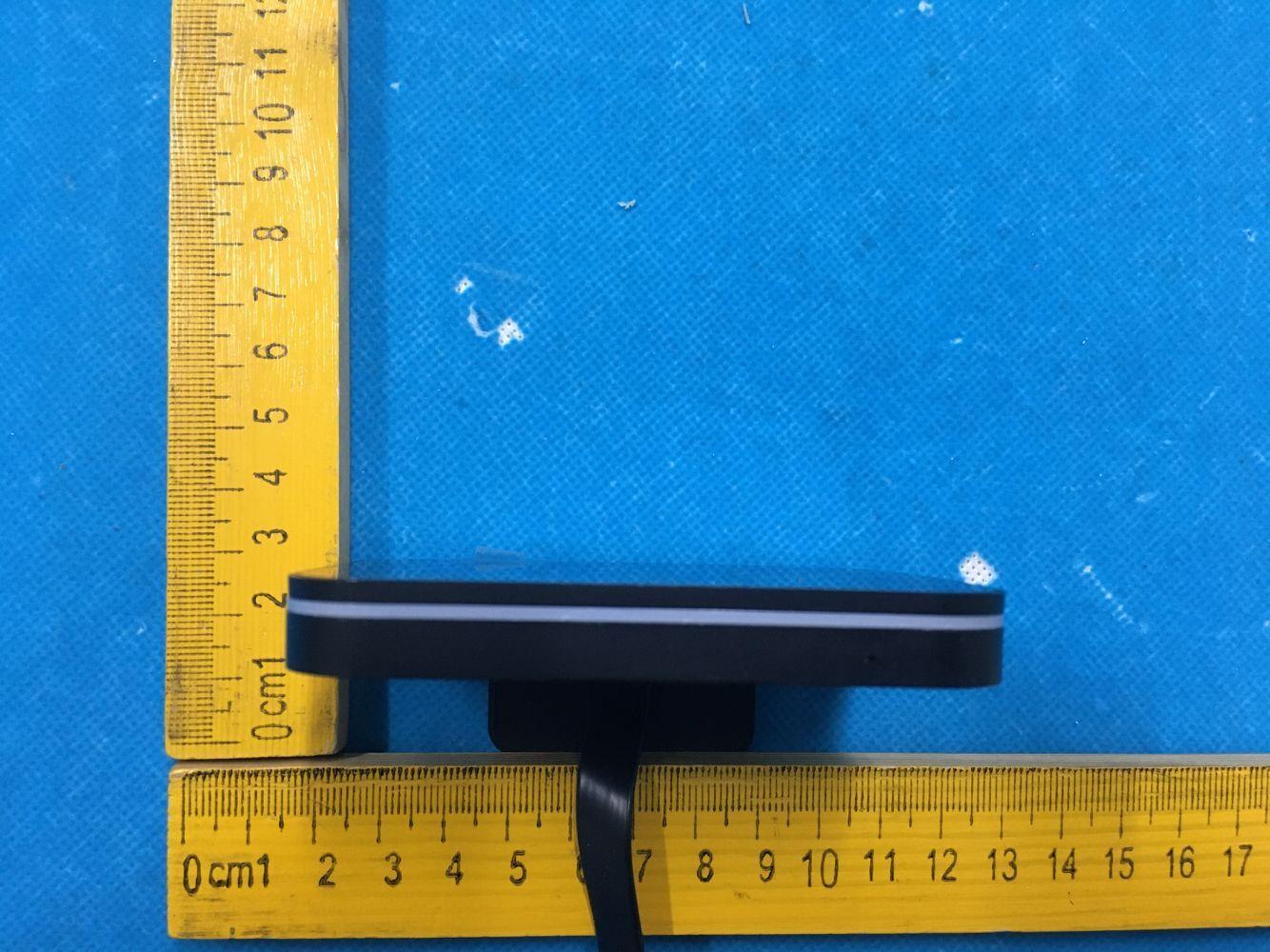

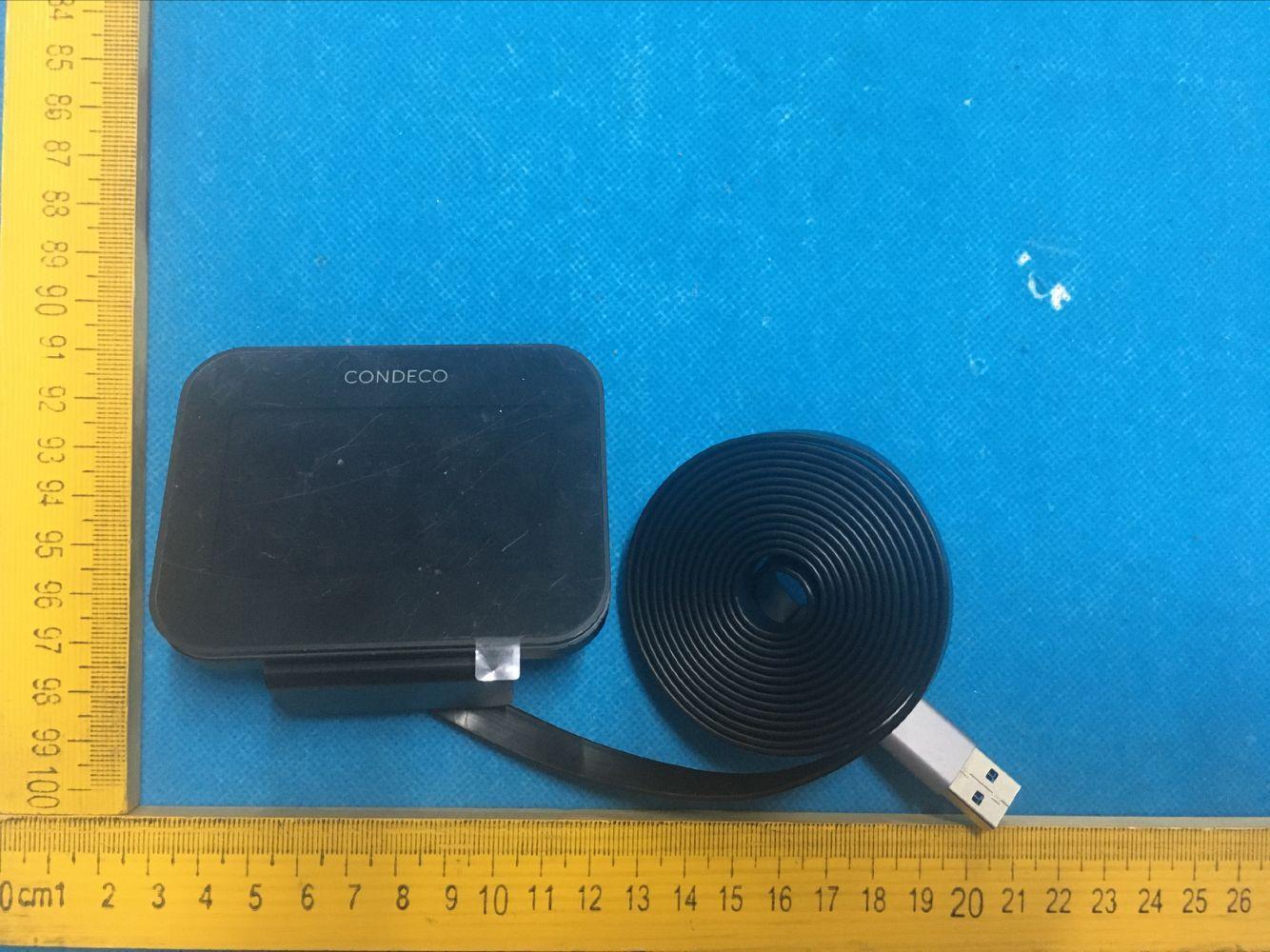

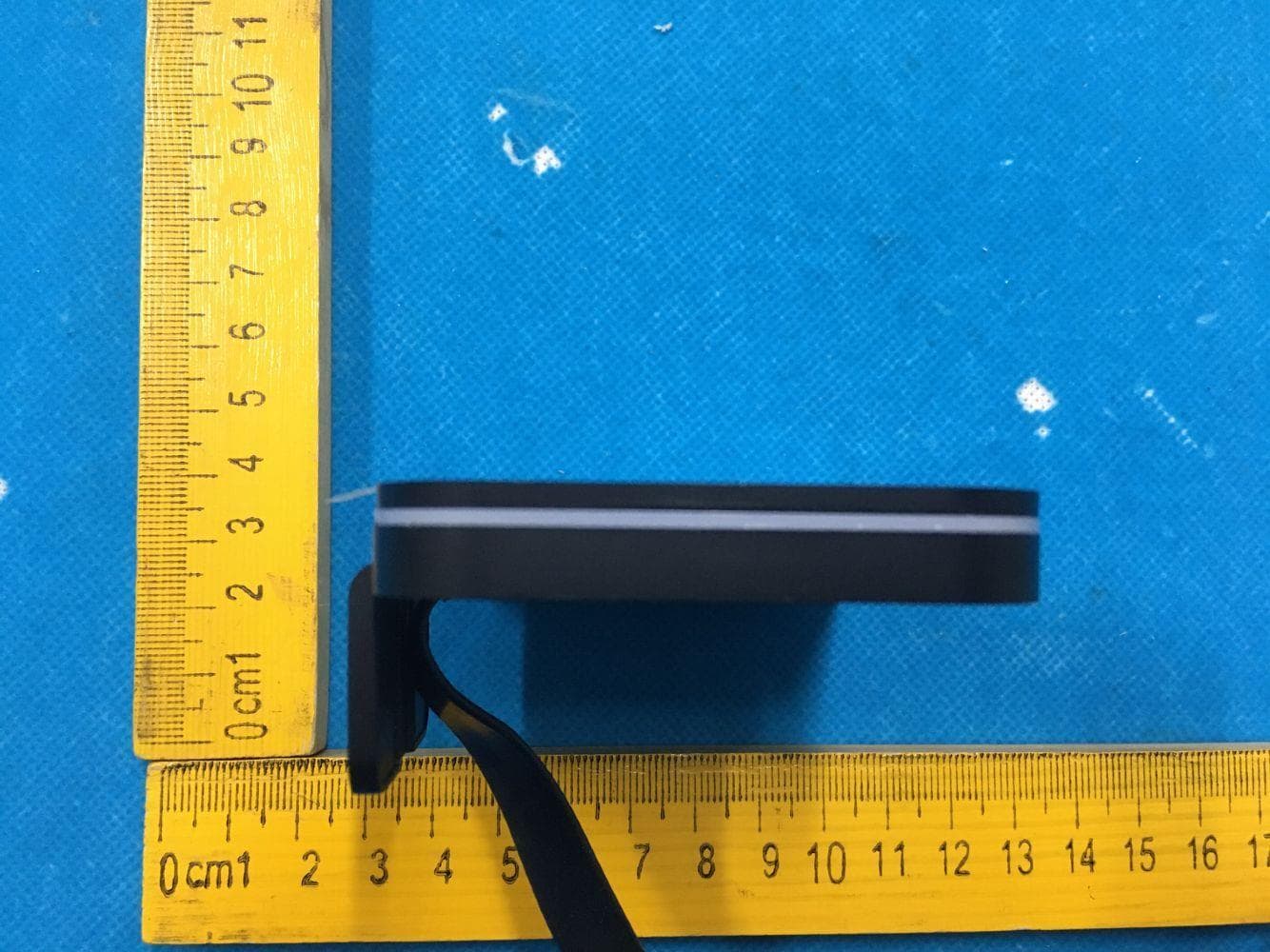

Model: 201850 FCC ID: 2ACML-201850

5GWIFI /BT ANT 2.4G WIFI ANT NFC/RFID ANT

FCC ID: 2ACML-201850 RF Exposure Evaluation Limit The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1310 & 2.1091 Table 1-Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 - - f/300 6 1500–100,000 - - 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 - - f/1500 30 1500–100,000 - - 1.0 30 Note: f = frequency in MHz Evaluation Method Transmission formula: P d = (Pout*G)/(4*pi*R 2 ) Where Pd = power density in mW/cm2, Pout = output power to antenna in mW, G = gain of antenna in linear scale; Pi = 3.1416, R = distance between observation point and center of the radiator in cm Conducted Power Results 2.4GWIFI Mode Conducted Peak Output Power (dBm) 802.11b 16.21 802.11b 13.89 802.11n(HT20) 13.46 802.11n(HT40) 12.66 BLE Mode Conducted Peak Output Power (dBm) GFKS 3.51 BT+EDR Mode Conducted Peak Output Power (dBm) GFKS 1.25 π/4DQPSK 1.21 8DPSK 1.57 FCC ID: 2ACML-201850 5GWIFI Mode Conducted Peak Output Power (dBm) 802.11a 14.80 802.11n HT20 13.71 802.11n HT40 13.85 802.11ac VHT20 12.53 802.11ac VHT40 12.88 802.11ac VHT80 12.16 Manufacturing tolerance 2.4GWIFI 802.11b (Peak) Target (dBm) 15.5 Tolerance ±(dB) 1 802.11g (Peak) Target (dBm) 13 Tolerance ±(dB) 1 802.11n20 (Peak) Target (dBm) 12.5 Tolerance ±(dB) 1 802.11n40 (Peak) Target (dBm) 12 Tolerance ±(dB) 1 BLE 802.11b (Peak) Target (dBm) 3 Tolerance ±(dB) 1 BT+EDR GFSK Target (dBm) 1 Tolerance ±(dB) 1 π/4DQPSK Target (dBm) 1 Tolerance ±(dB) 1 8DPSK Target (dBm) 1 Tolerance ±(dB) 1 5GWIFI 802.11a (Peak) Target (dBm) 14 Tolerance ±(dB) 1 802.11n HT20 (Peak) Target (dBm) 13 Tolerance ±(dB) 1 FCC ID: 2ACML-201850 802.11n HT40 (Peak) Target (dBm) 13 Tolerance ±(dB) 1 802.11ac VHT20 (Peak) Target (dBm) 12 Tolerance ±(dB) 1 802.11ac VHT40 (Peak) Target (dBm) 12 Tolerance ±(dB) 1 802.11ac VHT80 (Peak) Target (dBm) 11.5 Tolerance ±(dB) 1 Evaluation Results 2.4G WIFI Band/Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Result dBm mW 802.11b 20 16.5 44.67 0.81 0.007 1.0 Pass 802.11g 20 14 25.12 0.81 0.004 1.0 Pass 802.11n20 20 13.5 22.39 0.81 0.004 1.0 Pass 802.11n40 20 13 19.95 0.81 0.003 1.0 Pass BLE Band/Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Result dBm mW GFSK 20 4 2.51 0.81 0.0004 1.0 Pass BT+EDR Band/Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Result dBm mW GFSK 20 2 1.58 0.81 0.0003 1.0 Pass π/4DQPSK 20 2 1.58 0.81 0.0003 1.0 Pass 8DPSK 20 2 1.58 0.81 0.0003 1.0 Pass 5G WIFI Band/Mode Antenna Distance (cm) Conducted Output Power Gain of antenna in linear scale Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Result dBm mW 802.11a 20 15 31.62 2.86 0.018 1.0 Pass 802.11n(HT20) 20 14 25.12 2.86 0.014 1.0 Pass 802.11n(HT40) 20 14 25.12 2.86 0.014 1.0 Pass 11ac(VHT20) 20 13 19.95 2.86 0.011 1.0 Pass 11ac(VHT40) 20 13 19.95 2.86 0.011 1.0 Pass 11ac(VHT80) 20 12.5 17.78 2.86 0.010 1.0 Pass FCC ID: 2ACML-201850 Remark: 1. Output power including tune up tolerance; 2. The maximum 2.4G antenna gain is -0.94dBi 3. The maximum 2.4G antenna gain is 4.56dBi 3. The exposure safety distance is 20cm. Simulation Transmission EUT can only work in 2.4G WiFi+ Bluetooth mode or 5G WiFi+ Bluetooth mode The formula of calculated the Simulation Transmission MPE is: CPD1 /LPD1 + CPD2 /LPD2 + ...... etc. < 1 CPD = Calculation Maximum Power Density LPD = Limit of Power Density Mode Result 2.4G WiFi+ Bluetooth 0.0074 5G WiFi+ Bluetooth mode 0.0184 Conclusion The measurement results comply with the FCC Limit per 47 CFR 1.1310 & 2.1091 for the uncontrolled RF Exposure and MPE complicance per KDB 447498 v06.

FCC RF Test Report For Condeco Ltd Test Standards: FCC Part 15 Subpart C §15.209 FCC Part 15 Subpart C §15.225 Product Description: V3 Desk Screen Tested Model: 201850 FCC ID: 2ACML-201850 Classification (DXX) Low Power Communication Device Transmitter Report No.: EC1911039RF06 Tested Date: 2019-12-10 to 2019-12-30 Issued Date: 2019-12-30 Prepared By: Jerry Wang / Engineer Approved By: Bacon Wu / RF Manager Hunan Ecloud Testing Technology Co., Ltd. Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Liuyang Economic and Technological Development Zone, Hunan, P.R.C Tel.: +86-731-89634887 Fax.: +86-731-89634887 www.hn-ecloud.com Note: The test results in this report apply exclusively to the tested model / sample. Without written approval of Hunan Ecloud Testing Technology Co., Ltd., the test report shall not be reproduced except in full. Report No.: EC1911039RF06 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 2 of 33 Report Revise Record Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2019.12.30 Valid Original Report Report No.: EC1911039RF06 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 3 of 33 TANFC OF CONTENTS 1. TEST LABORATORY ................................................................................................................................. 5 1.1 Test facility ......................................................................................................................................... 5 2. GENERAL DESCRIPTION .......................................................................................................................... 6 2.1 Applicant ............................................................................................................................................ 6 2.2 Manufacturer ...................................................................................................................................... 6 2.3 General Description Of EUT .............................................................................................................. 6 2.4 Modification of EUT ........................................................................................................................... 7 2.5 Applicable Standards ......................................................................................................................... 7 3. TEST CONFIGURATION OF EQUIPMENT UNDER TEST ........................................................................ 8 3.1 Descriptions of Test Mode ................................................................................................................. 8 3.2 Test Configurations............................................................................................................................ 9 3.3 Support Equipment .......................................................................................................................... 10 3.4 Test Setup ....................................................................................................................................... 10 3.5 Measurement Results Explanation Example ................................................................................... 12 4. TEST RESULT .......................................................................................................................................... 13 4.1 20dB and 99% Bandwidth Measurement ........................................................................................ 13 4.2 Frequency Stability Measurement ................................................................................................... 14 4.3 Field Strength of Fundamental Emissions and Mask Measurement ............................................... 15 4.4 Radiated Emissions Measurement .................................................................................................. 19 4.5 AC Conducted Emission Measurement........................................................................................... 25 4.6 Antenna Requirements .................................................................................................................... 28 5. LIST OF MEASURING EQUIPMENT ........................................................................................................ 29 6. UNCERTAINTY OF EVALUATION ........................................................................................................... 31 APPENDIX A. SETUP PHOTOGRAPHS Report No.: EC1911039RF06 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 4 of 33 Summary of Test RESULT FCC Rule Description Limit Result Remark - 99% Bandwidth - Pass - 15.225(a)(b)(c) Field Strength of Fundamental Emissions 15.225(a)(b)(c) Pass - 2.1049 20dB Spectrum Bandwidth 2.1049 Pass - 15.225(d) 15.209 Radiated Emission 15.225(d) & 15.209 Pass Under limit 17.69 dB at 38.73 MHz 15.207 AC Conducted Emission 15.207(a) Pass Under limit 16.10 dB at 0.204 MHz 15.225(e) Frequency Stability < ±100 ppm Pass 15.203 Antenna Requirement N/A Pass - Report No.: EC1911039RF06 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 5 of 33 1. Test Laboratory 1.1 Test facility CNAS ( accreditation number:L11138 ) Hunan Ecloud Testing Technology Co., Ltd. has obtained the accreditation of China National Accreditation Service for Conformity Assessment (CNAS). FCC (Desig…

Text truncated - open the document above for the full version.

Report No.: EC1911039RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 193 of 194 Appendix H: Setup Photographs AC mains conducted emission Radiated Emission: Report No.: EC1911039RF01 Building A1, Changsha E Center, No. 18 Xiangtai Avenue, Tel.:+86-731-89634887 Liuyang Economic and Technological Development Zone, Hunan, P.R.C Fax.: +86-731-89634887 FCC ID : 2ACML-201850 www.hn-ecloud.com Page 194 of 194 --------------------------------------------------------End of the report--------------------------------------------------------
