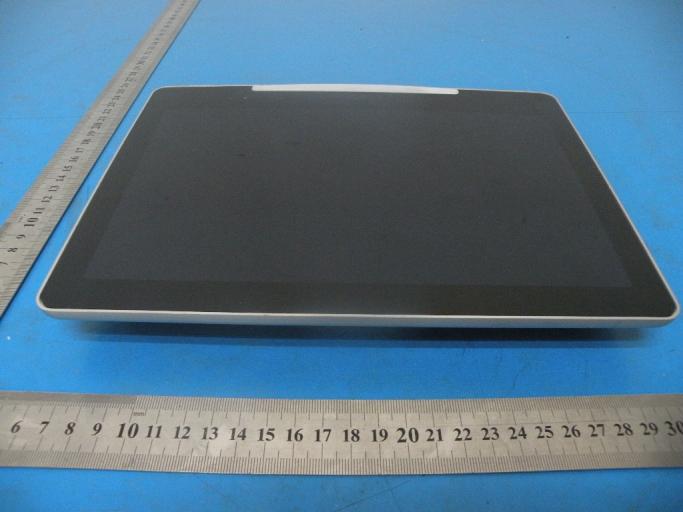

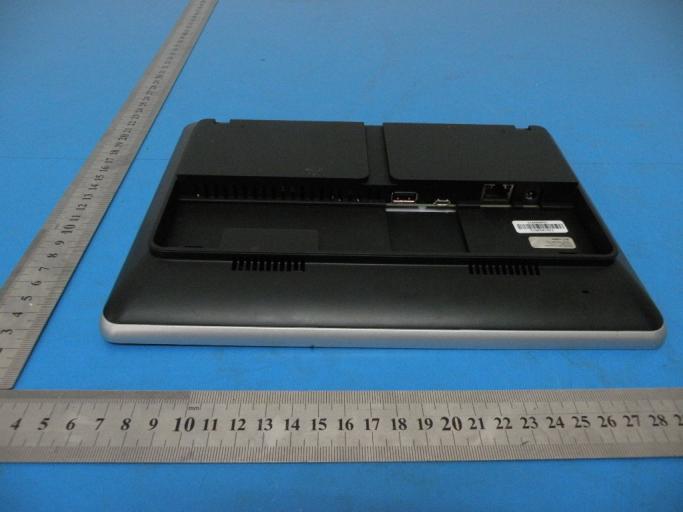

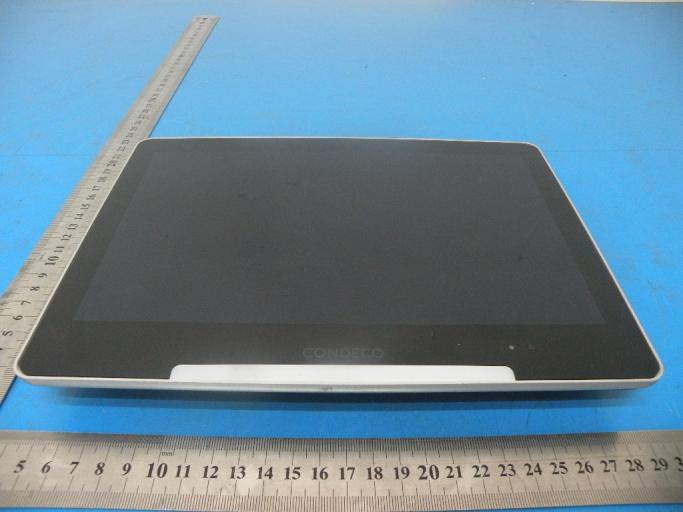

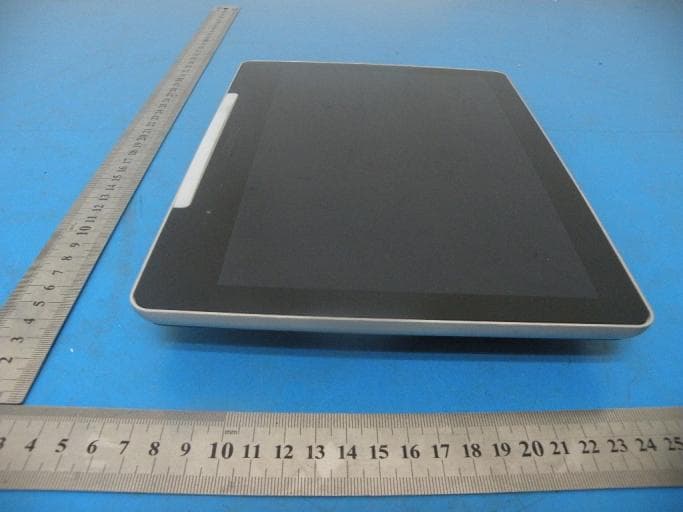

2ACMLT201502V2 Touch Screen

Condeco User Manual for V2 Touch Screen Condeco 2 Harbour Exchange Square London E14 9GE www.condecosoftware.com Page 2 of 13 Condeco Hardware Section Contents Contents ............................................................................................................................. 2 User manual ........................................................................................................................ 4 Technical Specification ................................................................................................... 4 Equipments required: ..................................................................................................... 4 Start with V2 Touch Screen: ........................................................................................... 4 Book the meeting room with V2 Touch Screen ............................................................... 5 Start the meeting ........................................................................................................... 8 End the meeting ............................................................................................................. 8 Extend the meeting ...................................................................................................... 10 About ................................................................................................................................ 12 Condeco Room Booking ............................................................................................... 12 About Condeco ............................................................................................................. 12 Who we work with ........................................................................................................ 12 Contact .............................................................................................................................. 13 Page 3 of 13 Condeco Hardware Section Responsibility Name Owner Condeco Ltd Author(s) Reviewer Approver Version Status Reason for change Date 1.0 Final Initial Release 18 Jun 2014 Name Organisation Project Number Page 4 of 13 Condeco Hardware Section User Manual for V2 Touch screen Technical Specification: 1. Win CE7 operating system. 2. 10.1” LCD with CTP. 3. i.MX6 Dual cord prosessor. 4. 1Gbyte DDR3. 5. 8 Gbyte managed NAND (eMMC). 6. MicroSD connector. 7. WiFi 802.11 b/g/n 8. 10/100/10000 Ethernet. 9. RFID TI1 standard on board. 10. RFID LED functionality incorporated into main central LED. 11. USB host connector – type A. 12. USB host connector – type B. 13. RGB indicatior LED’s. 14. RTC coin cell. 15. POE. 16. iBeacon. 17. Legic Modular Plug-in. Equipment required: 1. A standard POE (48V) network connection. 2. A shield network cable. (The 12v socket at the back of the screen is for manufacture test and debugging only. Should not be used by users) Start with V2 Touch Screen: Page 5 of 13 Condeco Hardware Section Connect the POE network cable to RJ45 connector at the back of the screen to power it up. To book the meeting room: 1. Once it has powered on, the Resource ID screen will comes up. Key in the Resource ID (for example: 180) on the touch screen and then press Confirm button. Page 6 of 13 Condeco Hardware Section 2. Press the time displayed on the screen to choose when you want to use the meeting room. 3. The time you have chosen will be highlighted in yellow. Press Confirm button. Page 7 of 13 Condeco Hardware Section 4. Swipe the RFID card at bottom centre of the display panel, or key in the pin on the touch screen to book the meeting room. 5. Once it has been successfully booked, the time bar on the screen will become red. Page 8 of 13 Condeco Hardware Section To Start the Meeting: Press Start button on the touch screen. To End the meeting: 1. If you have finished using meeting room before the time run out, you can end the meeting to free the room by press End button on the screen. Page 9 of 13 Condeco Hardware Section 2. Swipe the RFID card at bottom centre of the display panel, or key in the pin on the touch screen. 3. Once the card or PIN has accepted, then the time booking bar will be cleared. Page 10 of 13 Condeco Hardware Section To Extend the meeting: 1. Press Extend button on the touch screen. 2. Press + button to extend the time. Then press Confirm button to confirm it. Page 11 of 13 Condeco Hardware Section 3. Swipe your card or key in the user PIN to extend the booking. 4. Once your card or PIN has been accepted, the extension will be confirmed on the time bar in red. Page 12 of 13 Condeco Hardware Section About Condeco Room Booking Condeco Meeting Room Booking software helps you to maximise your meeting room space, reduce admin time and introduce smarter booking processes into your workplace. Key features include Hospitality and Resource Management as well as Video Conference booking. We also offer interactive room signage and Mobile Room Booking. About Condeco We are the leading provider of meeting room and desk booking solutions, as well as advanced digital signage solutions. Our robust software and exceptionally designed hardware is the most feature-rich and versatile on the market. It powers your business to change the way you work and manage your real estate more effectively. Our complementary product suite and service delivery means, we spare you the headache of having to manage multiple vendors. Our vertically integrated departments encompass R+D and design − leading the way in software and hardware innovations – through to delivery, support and upgrade. Who we work with Today, we work with around 400 companies worldwide, including over 30% of the FTSE 100. We have offices in the UK, USA and India, as well as strategic partners in Australia, South Africa, Italy, Spain and Switzerland. Our strategic partners enable us to respond quickly to client demands with 24/7 customer support. They also extend our global reach, enabling us to provide scalable solu…

Text truncated - open the document above for the full version.

August 18, 2015 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ACMLT201502 Product Name: V2 Touch Screen Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Philip Briffa Position General Manager Company Name Condeco Ltd Address 8th Floor, Exchange Tower, 2 Harbour Exchange Square, London E14 9GE UK Tel +44 (0)207 0012028 Fax +44 (0)207 0012030 Email [email protected]

Ersteller: D. Brandhorst Revision: 00 Erstelldatum: 07.03.2008 Datum: 00.00.00 Seite 1 von 1 Condeco Ltd Date: September 15, 2015 FCC ID: 2ACMLT201502 Subject: Attestation Letter “Declaration of Conformity” Dear Sirs, Our products with the above FCC ID are defined as composite device. The transmitter is authorized under the “Certification” procedure. The device is also defined as “PC Periphery” acc to §15.101 Equipment authorization of unintentional radiators, where we hereby declare, that we apply and follow the “Declaration of Conformity” procedure. If you have any questions, please feel free to contact me at the address shown below. Yours sincerely, Name Philip Briffa Position General Manager Company Name Condeco Ltd Address 8th Floor, Exchange Tower, 2 Harbour Exchange Square, London E14 9GE UK Tel +44 (0)207 0012028 Fax +44 (0)207 0012030 Email [email protected] procedure, We will apply FCC DOC at FCC recognized and accredited MRA lab , FCC DOC will be got before sale.

30mm 20mm FCC ID: 2ACMLT201502 Condeco Ltd Model name: V2 Touch Screen Model No.: T201502 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

BT ANT WIFI ANT BT ANTTENNA WIFI ANTTENNA RFIDANTENNA RFID ANT

MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) WiFi: Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.97 （2.95dBi） 41.78 （16.21dBm） 0.0164 1 Compiles BLE: Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 1.29 （1.11dBi） 0.183 （-7.38dBm） 0.000047 1 Compiles 0.0164+0.000047=0.016447<1

 5HSRUW1R& )&&,'$&0/7                                               3DJHRI TEST REPORT FCC ID: 2ACMLT201502 Applicant : Condeco Ltd Address : 8 th Floor, Exchange Tower, 2 Harbour Exchange Square, London E14 9GE UK Equipment under Test (EUT): Name : V2 Touch Screen Model : T201502 Trademark : )54*+)5 Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) ANSI C63.4:2014 Report No. : C1850317 08 Date of Test : August 04, 2015- August 11, 2015 Date of Issue : August 12, 2015 Test Result : PA SS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing  5HSRUW1R& )&&,'$&0/7                                               3DJHRI TABLE OF CONTENT Description Page 1 General Information --------------------------------------------------------------------------------------- 4 1.1 Description of Device (EUT) --------------------------------------------------------------------- 4 1.2 Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List ------------------------------------------------------------------------------------ 5 3 Test Procedure ------------------------------------------------------------------------------------------- 6 4 Summary of Measurement ---------------------------------------------------------------------------- 7 4.1 Summary of test result ---------------------------------------------------------------------------- 7 4.2 Test connection ------------------------------------------------------------------------------------- 7 4.3 Assistant equipment used for test ---------------------------------------------------------------- 8 4.4 Test mode ------------------------------------------------------------------------------------------- 8 4.5 Test Conditions ------------------------------------------------------------------------------------- 9 4.6 Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 9 5 Spurious Emission ---------------------------------------------------------------------------------- 10 5.1 Radiation Emission ------------------------------------------------------------------------------ 10 5.1.1 Radiation Emission Limits(15.209) ----------------------------------------------------------- 10 5.1.2 Test Setup ----------------------------------------------------------------------------------------- 10 5.1.3 Test Procedure ------------------------------------------------------------------------------------ 12 5.1.4 Test Equipment Setting For emission test Result -------------------------------------------- 12 5.1.5 Test Condition ------------------------------------------------------------------------------------ 13 5.1.6 Test Result ---------------------------------------------------------------------------------------- 13 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 19 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 19 6.2 Test Setup ----------------------------------------------------------------------------------------- 19 6.3 Test Procedure ------------------------------------------------------------------------------------ 20 6.4 Test Results --------------------------------------------------------------------------------------- 20 7 Conducted Maximum Output Power ----------------------------------------------------------- 23 7.1 Test limit ------------------------------------------------------------------------------------------ 23 7.2 Test Procedure ------------------------------------------------------------------------------------ 23 7.3 Test Setup ----------------------------------------------------------------------------------------- 23 7.4 Test Results --------------------------------------------------------------------------------------- 23 8 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 25 8.1 Test limit ------------------------------------------------------------------------------------------ 25 8.2 Method of measurement ------------------------------------------------------------------------ 25 8.3 Test Setup ----------------------------------------------------------------------------------------- 25 8.4 Test Results --------------------------------------------------------------------------------------- 26 9 Bandwidth ---------------------------------------------------------------------------------------------- 29 9.1 Test limit ------------------------------------------------------------------------------------------ 29 9.2 Method of measurement ------------------------------------------------------------------------ 29 9.3 Test Setup ----------------------------------------------------------------------------------------- 29 9.4 Test Results --------------------------------------------------------------------------------------- 29 10 Band Edge Check ------------------------------------------------------------------------------------ 33 10.1 Test limit ------------------------------------------------------------------------------------------ 33 10.2 Test Procedu…

Text truncated - open the document above for the full version.

5HSRUW1R& )&&,'$&0/7                                                   3DJHRI TEST REPORT FCC ID: 2ACMLT201502 Applicant : Condeco Ltd Address : 8 th Floor, Exchange Tower, 2 Harbour Exchange Square, London E14 9GE UK Equipment under Test (EUT): Name : V2 Touch Screen Model : T201502 Trademark : )54*+)5 Standards : FCC PART 15, SUBPART C : 2014 (Section 15.247) ANSI C63.4:2014 Report No. : C1850317 06 Date of Test : August 04, 2015- August 11, 2015 Date of Issue : August 12, 2015 Test Result : PA SS * * In the configuration tested, the EUT complied with the standards specified above Authorized Signature (Mark Zhu) Manager The manufacture should ensure that all the products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of Shenzhen Certification Technology Service Co., Ltd. Or test done by Shenzhen Certification Technology Service Co., Ltd. Approvals in connection with, distribution or use of the product described in this report must be approved by Shenzhen Certification Technology Service Co., Ltd. Approvals in writing . 5HSRUW1R& )&&,'$&0/7                                                   3DJHRI TABLE OF CONTENT Description Page 1 General Information --------------------------------------------------------------------------------------- 4 1.1 Description of Device (EUT) --------------------------------------------------------------------- 4 1.2 Description of Test Facility ----------------------------------------------------------------------- 5 2 EMC Equipment List ------------------------------------------------------------------------------------ 5 3 Test Procedure ------------------------------------------------------------------------------------------- 6 4 Summary of Measurement ---------------------------------------------------------------------------- 7 4.1 Summary of test result ---------------------------------------------------------------------------- 7 4.2 Test connection ------------------------------------------------------------------------------------- 7 4.3 Assistant equipment used for test ---------------------------------------------------------------- 8 4.4 Test mode ------------------------------------------------------------------------------------------- 8 4.5 Channel list ----------------------------------------------------------------------------------------- 9 4.6 Test Conditions ------------------------------------------------------------------------------------- 9 4.7 Measurement Uncertainty (95% confidence levels, k=2)------------------------------------- 9 5 Spurious Emission ---------------------------------------------------------------------------------- 10 5.1 Radiation Emission ------------------------------------------------------------------------------ 10 5.1.1 Radiation Emission Limits(15.209) ----------------------------------------------------------- 10 5.1.2 Test Setup ----------------------------------------------------------------------------------------- 10 5.1.3 Test Procedure ------------------------------------------------------------------------------------ 12 5.1.4 Test Equipment Setting For emission test Result -------------------------------------------- 12 5.1.5 Test Condition ------------------------------------------------------------------------------------ 13 5.1.6 Test Result ---------------------------------------------------------------------------------------- 13 6 POWER LINE CONDUCTED EMISSION ------------------------------------------------------- 25 6.1 Conducted Emission Limits(15.207) ---------------------------------------------------------- 25 6.2 Test Setup ----------------------------------------------------------------------------------------- 25 6.3 Test Procedure ------------------------------------------------------------------------------------ 26 6.4 Test Results --------------------------------------------------------------------------------------- 26 7 Conducted Maximum Output Power ----------------------------------------------------------- 29 7.1 Test limit ------------------------------------------------------------------------------------------ 29 7.2 Test Procedure ------------------------------------------------------------------------------------ 29 7.3 Test Setup ----------------------------------------------------------------------------------------- 29 7.4 Test Results --------------------------------------------------------------------------------------- 29 8 PEAK POWER SPECTRAL DENSITY ---------------------------------------------------------- 31 8.1 Test limit ------------------------------------------------------------------------------------------ 31 8.2 Method of measurement ------------------------------------------------------------------------ 31 8.3 Test Setup ----------------------------------------------------------------------------------------- 31 8.4 Test Results --------------------------------------------------------------------------------------- 32 9 Bandwidth ---------------------------------------------------------------------------------------------- 38 9.1 Test limit ------------------------------------------------------------------------------------------ 38 9.2 Method of measurement ------------------------------------------------------------------------ 38 9.3 Test Setup ----------------------------------------------------------------------------------------- 38 9.4 Test Results --------------------------------------------------------------------------------------- 38 10 Band Edge Check ------------------------------------------------------------------------------------ 45 10.1 T…

Text truncated - open the document above for the full version.

Photos of Radiated emission Photos of Radiated emission Photos of Conducted Emission test
