2ACQ6-CCT2.4 GHz Transceiver

Ideal Industries Lighting LLC, DBA CREE Lighting
2.4 GHz Transceiver - FCC ID 2ACQ6-CCT - Ideal Industries Lighting LLC, DBA CREE Lighting
Click to zoom

Application Details

Equipment Class
DTS - Digital Transmission System
Date of Grant
Aug 16, 2014
Application Purpose
Original Equipment
Date of Application
Aug 16, 2014
Equipment Note
2.4 GHz Transceiver
Frequency Range
2405.00000000 - 2480.00000000
Company
Ideal Industries Lighting LLC, DBA CREE Lighting
Country
United States

Documents & Files

Select a file to view

Users Manual

↗

Cover Letter(s)

↗
↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

RF Exposure Info

↗

Test Report

↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

LPN00212X0006A1_B 1 of 2 INSTALLATION INSTRUCTIONS Cree Configuration Tool With SmartCast™ Technology Wireless Configuration Tool Includes: CCT-CWC-1 IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: READ AND FOLLOW ALL SAFETY INSTRUCTIONS 1. Caution: The batteries used in this device may present a fire or chemical burn hazard if mistreated. Do not recharge, disassemble, heat above 100°C (212°F) or dispose of in fire. Replace batteries with CR123A type only. Use of another battery may present a risk of fire or explosion. 2. Dispose of used batteries properly. Keep away from children. Do not disassemble and do not dispose of in fire. 3. Replace batteries at the same time using fresh cells only. 4. Avoid direct eye exposure to forward facing LED. 5. Indoor use only and suitable for damp locations. 6. Any changes or modifications to these devices not explicitly approved by manufacturer could void your authority to operate this equipment. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE • USB cable ( part number: LAH00206X0001A0 ) can be used to power the device in the absence of working batteries. UNIT DESCRIPTION- FIGURE 1 The Cree Configuration Tool is used to set up and configure Cree SmartCast™ Technology enabled devices. Revolutionary OneButton™ Setup enables automated setup of luminaires and dimmers with little to no installer intervention. With the press of a single button, SmartCast™ Technology enabled luminaires and dimmers create their own secure network, learn about the spaces they’re installed in and form logical groups. BATTERY INSTALLATION STEP 1: Remove battery cover and install the two included CR123A batteries in the orientation indicated by label on the device. STEP 2: Replace battery cover. SET UP NEW INSTALLATION STEP 1: Turn Configuration Tool on using power button. Cree logo is displayed when tool starts up. See Figure 2. STEP 2: Once ready, the Configuration Tool will prompt to begin OneButton™ Setup. Be sure to have all devices powered on before beginning OneButton™ Setup. If other lighting networks are found, select Set Up New to setup a new installation. STEP 3: OneButton™ Setup will create a secure lighting network, calibrate daylighting, and form luminaires and dimmers into groups. The Configuration Tool will display progress throughout this process. Step 4: OneButton™ Setup is complete and your installation is ready to use. Changes to groups and other settings can be made from the Main Menu. 1 Front View Bottom View USB (Mini B) Port Selection LED LCD Display Keypad Battery Compartment 2 Cancel/ Back Up Device Select Power Down OK LPN00212X0006A1_B 2 of 2 www.cree.com/lighting © 2013 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See www.cree.com/lighting/products/warranty for warranty and specifications. Cree® and the Cree logo are registered trademarks, and SmartCast ™ and OneButton™ are trademark of Cree, Inc. MAIN MENU After starting the Configuration Tool and setting up a new installation or joining an existing installation, you will be brought to the Main Menu. See Figure 3. Modify Groups • Create new groups by selecting devices • Merge existing groups together • Add devices to an existing group • Ungroup an existing group Device Settings • Make changes to motion sensor settings, including timeout and occupied/unoccupied levels • Make changes to daylight harvesting settings. Test Occupancy • Place motion sensors into a test mode where they will have a short timeout and operate individually to verify operation and placement. Advanced • Setting/Changing a PIN for the Configuration Tool • Device replacement • Add new devices to the existing lighting network • Joining a lighting network • Resetting devices or the lighting network 3 CLEANING Clean using a cloth dampened only with water and a little mild detergent. Use of solvents or hydrocarbon-based cleaners may cause permanent damage. FCC NOTICE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the device. This device has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the device is operated in a commercial environment. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this device in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. In addition, this device complies with ICES-003 of the Industry Canada (IC) Regulations. The LED in the front of this device operates within Risk Group 1 levels per IEC 62471. INDUSTRY CANADA STATEMENT This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. In addition, this device complies with ICES-003 of the Industry Canada (IC) Regulations. Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le…

Text truncated - open the document above for the full version.

Cover Letter(s)

9201 Washington Avenue, Racine, WI 53406 USA Main: (262) 886-1900 Date: 2014-05-06 UL LLC Certification Division 47173 Benicia Street Fremont, CA 94538, USA To whom it may concern: I, the undersigned, hereby authorize UL LLC to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL LLC on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). [Remove this section if Regulatory Authority is not FCC] In authorizing UL LLC as our agent, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to the us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the Certification Division when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Dan Guillien Compliance Manager Cree, Inc. REMARK: 1. This authorization letter will be sent along with your application when filing with the Certification Division. 2. Please follow the format and type it on company letterhead and send original to us. 3. Authorized signature must be in agreement with grantee code contact in FCC database.

Cover Letter(s)

9201 Washington Avenue, Racine, WI 53406 USA Main: (262) 886-1900 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 Fax: (310) 344-2050 Reference FCC ID: 2ACQ6-CCT Organization: CREE INC. Subject: Request under 47 CFR 0.457 and 0.459 that materials submitted to the commission be withheld from public inspection. CREE INC. hereby requests that the materials attached here to be withheld from public inspection in accordance with 47 CFR 47 0.457 and 0.459. Specifically, CREE INC. requests that the following materials be withheld from public inspection under 47 CFR 0.457 and 0.459 because the schematics and designs are considered confidential trade secrets and technical data which customarily would be guarded from competitors: Schematic Diagram Block Diagram Theory of Operation Therefore, in accordance with CFR 47 0.457 and 0.459, CREE INC. requests that the above listed materials, copies of which are here, to be withheld from public inspection. Authorized Signature: Date: 2014/07/15 Dan Guillien Compliance Manager Cree, Inc.

External Photos

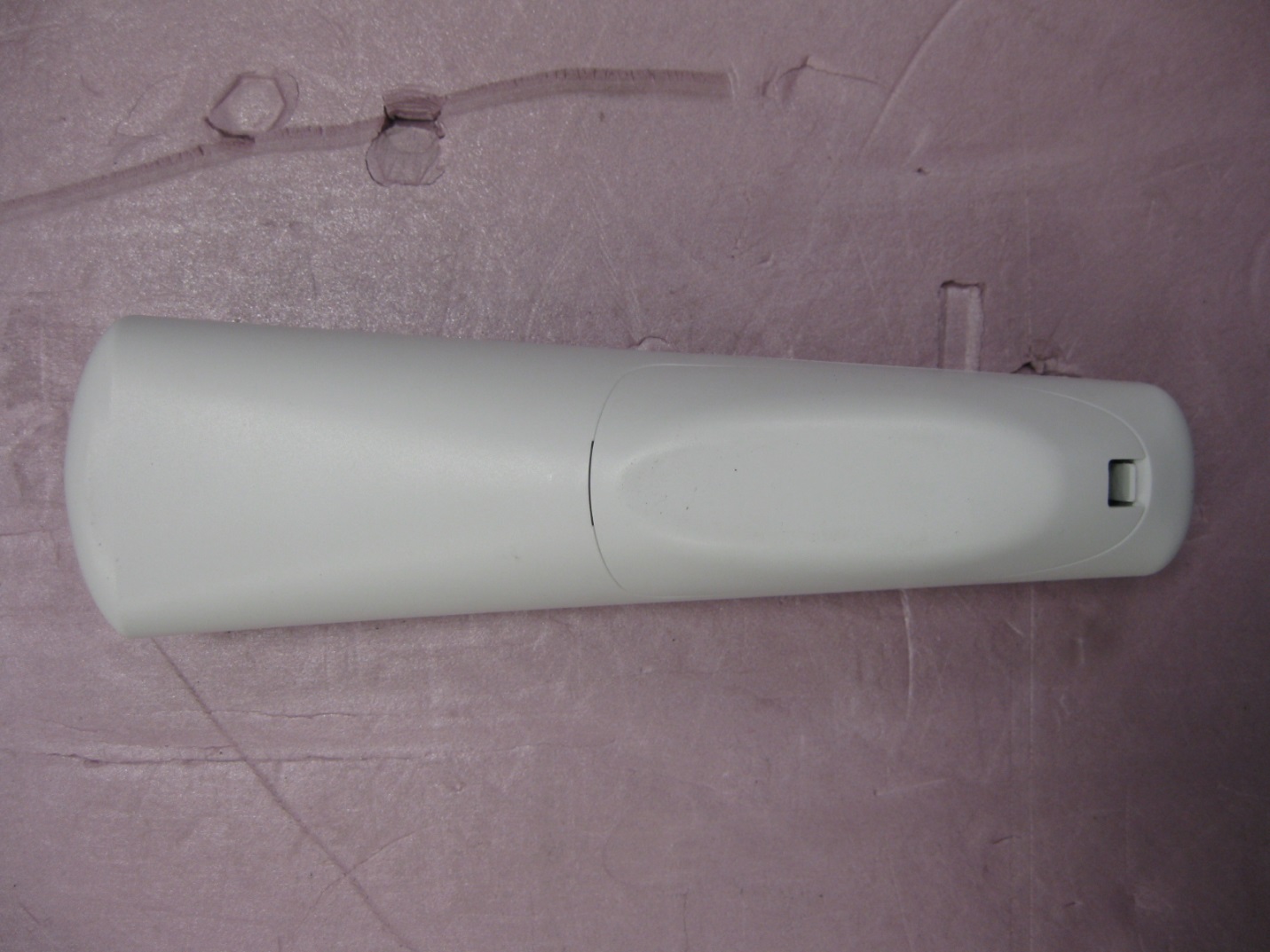

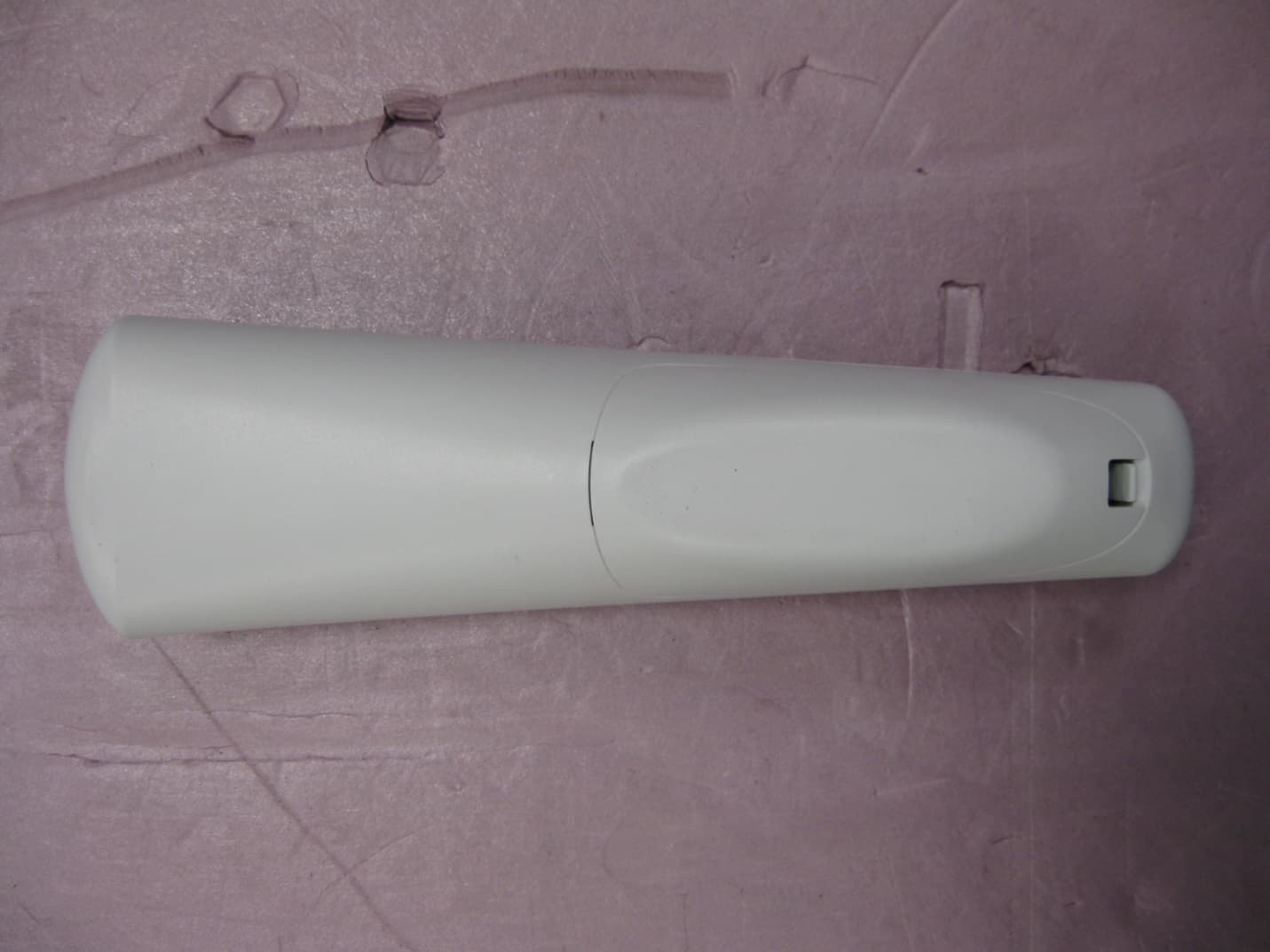

EXTERNAL PHOTOS FCC ID: 2ACQ6-CCT IC: 11481A-CCT Page 1 of 2 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 COMMISIONING TOOL MODEL NUMBER: CCT-CWC-1 FCC ID: 2ACQ6-CCT IC: 11481A-CCT Commissioning Tool Top EXTERNAL PHOTOS FCC ID: 2ACQ6-CCT IC: 11481A-CCT Page 2 of 2 UL LLC 12 LABORATORY DR., RESEARCH TRIANGLE PARK, NC 27709 TEL: (919) 549-1400 Commissioning Tool Bottom
