2ACS65TXController of Dominator Drone

BC Dominator Drone Age 12+ User’s GUide 6001359 23 We hope you enjoy your Dominator Drone from RadioShack. Please read this user’s guide before setting up and using your drone. Features •6-axis super stabilizing control system •Flip 360 degree stunt mode •Beginners and Advanced modes Package Contents • Drone • Remote Control • USB Charging Cable • Spare Blades (2) • User’s Guide specifications Power ....................................................................................................................... Drone ...........................................................3.7V lithium polymer battery Remote Control................................................................4 × AA batteries Control Distance ......................................................................70 ft. (21.33m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Fly safely • When flying outdoors, keep the drone away from power lines, trees, weeds, and water. • When flying indoors, keep the drone away from walls, air conditioning, air vents, fans, breakable objects, and other obstacles. • Do not fly the drone near or at other people or animals. • Keep eyes, hands, hair, and loose clothing away from moving blades. •Adult supervision is recommended at all times. Contents Features .................................................................................3 Package Contents .................................................................3 Specifications ........................................................................3 Fly Safely ................................................................................3 Install Batteries in the Remote Control ...............................4 Battery Notes ..............................................................................................4 Lithium Battery Notes ..............................................................................4 Charge the Drone ..................................................................5 Get Ready to Fly: Pairing .......................................................8 Fly Your Drone........................................................................8 Trim Your Drone .........................................................................................8 Land Your Drone.........................................................................................9 Perform Stunts ...........................................................................................9 Calibrate the Drone ...............................................................9 Replace Damaged Blades....................................................10 Troubleshooting ..................................................................11 Drone does not respond ........................................................................11 Drone difficult to control ........................................................................11 FCC Information ..................................................................12 Limited Warranty .................................................................13 CHOKING HAZARD! Small parts. Not for children under 3 years. 45 install Batteries in the remote Control 1. On the remote control, set the ON/OFF switch to OFF. 2. Use a screwdriver to open the twin battery compartments. Then insert four AA batteries (not included), matching the polarities (+ and –) marked inside. Replace the cover. Note: If the remote control’s LED flashes during use, the batteries are low and should be replaced. Battery Notes •Dispose of old batteries promptly and properly. Do not burn or bury them. Use only fresh batteries of the required size and recommended type. • Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. •Remove batteries during longer storage periods. Batteries can leak chemicals that can damage electronic parts. Lithium Battery Notes •Follow the instructions for charging. Do not charge longer than recommended. Unplug the charging cable when the drone is charged. •Do not puncture or crush. Do not disassemble. •Do not dispose of lithium batteries in the trash. • If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention. •Do not attempt to charge or operate damaged toys. Charge the drone Your drone uses a built-in lithium polymer battery for power. 1. Set the drone's ON/OFF switch to OFF. 2. Connect the included USB charging cable to the drone's CHG jack and a USB power source (such as a laptop). The LED inside the USB connector lights red during charging, and turns off when charging is complete. A full charge takes about 55 minutes, and gives up to 7 minutes of flight time. 3. After charging, unplug the charging cable. CaUtiON •Use only the included USB charging cable to charge the drone's battery. Other cables may damage the drone. •Always let the drone battery cool before recharging. CHG ON/OFF 67 Left / Right  Slide trim Forward / Reverse  Movement trim throttle Steering ascend Descend turn rightturn left LED ON/OFF Forward Backward Slide rightSlide left Push (High/low speed) Push (Stunt mode) 89 Get ready to Fly: Pairing 1. Turn on the drone. The drone's LEDs flash. 3. Place the drone on level ground. 4. Turn on the remote control. The remote control's LED flashes. 5. Move the throttle all the way up and then down to pair the remote control with the drone. The drone’s blades remain still during pairing. When paired, the LEDs on both the remote control and drone light steadily. Note: If pairing fails, turn off the drone and remote control and repeat the steps above, or change locations to avoid electrical interference. Fly Your drone 1. After pairing, push the steering control in to switch betw…

Text truncated - open the document above for the full version.

External Photo

Label Sample

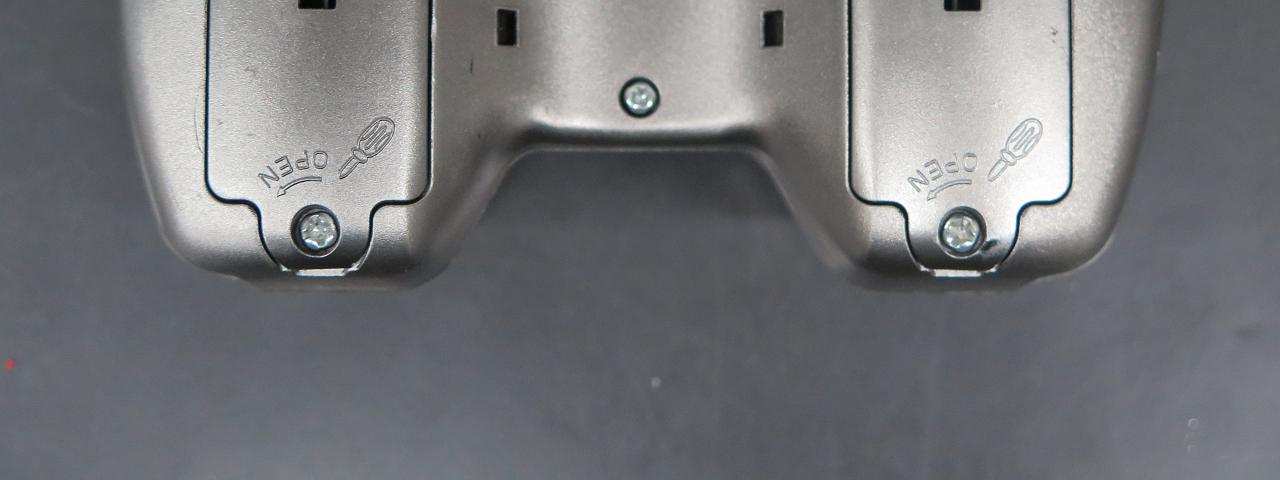

Internal Photo

TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 28 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ACS65TX Application No. : LT018800(6) Applicant : Zego Electronic Company Limited (Shenzhen Yangri Electronic Ltd) Room 703, Kowloon Building, 555 Nathan Road, Kowloon, HK Sample Description : One(1) item of submitted sample stated to be Controller of Dominator Drone of Model No. 6001359 Sample registration No. : RT026006-003, RT0035651-001 Radio Frequency : 2402MHz – 2475MHz Transceiver Rating : 4 x 1.5V AAA size batteries No. of submitted sample : Two (2) set (s) Date Received : 29 Apr 2015, 24 Jul 2015 Test Period : 07 May 2015 to 11 Aug 2015. Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-12 Edition) ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 28. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Page 2 of 28 FCC ID: 2ACS65TX Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 13 3.1 Test Procedure .................................................................................................................................. 13 3.2 Test Result ........................................................................................................................................ 13 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 13 4 Photograph ............................................................................................................................................... 14 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 14 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 14 5 Supplementary document ......................................................................................................................... 15 5.1 Bandwidth ......................................................................................................................................... 15 6 Appendices ............................................................................................................................................... 16 TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Page 3 of 28 FCC ID: 2ACS65TX 1 General Information 1.1 General Description The equipment under test (EUT) is a controller for Dominator Drone. The EUT is power by 4 x 1.5V AAA size batteries. It operates at 2402MHz – 2475MHz. There are buttons and joysticks on the EUT. When the buttons are pressed or the joysticks are moved, the EUT will transmit radio control signal to receiver. The brief circuit description is listed as follows: - U3 and its associated circuit act as MCU - U1 (module) and its associated circuit act as RF circuit - U1 and its associated circuit act as power supply circuit - Y1 and its associated circuit act as oscillator - S2, S4, S5, S6, S7, S9, VR1, VR2 and its associated circuit act as copter control TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Page 4 of 28 FCC ID: 2ACS65TX 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Page 5 of 28 FCC ID: 2ACS65TX 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date Calibration Period EMI Test Receiver R&S ESCI 100152 28 Aug 2015 1Year Spectrum Analyzer R&S FSV40 100628 02 Feb 2016 1Year Broadband Antenna Schaffner CBL6112B 2698 19 Feb 2016 2Years Loop Antenna EMCO 6502 00056620 28 Oct 2015 2Years Horn Antenna Schwarzbeck BBHA 9120D 9120D-531 24 Nov 2016 2Years Horn Antenna Schwarzbeck BBHA 9170 BBHA9170442 18 Jun 2017 2Ye…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 27 of 28 FCC ID: 2ACS65TX A6. 20dB Bandwidth Plot Bandwidth 1 (2402MHz) Bandwidth 2 (2433MHz) TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 28 of 28 FCC ID: 2ACS65TX A6. 20dB Bandwidth Plot Bandwidth 3 (2475MHz) ***** End of Report *****

TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 25 of 28 FCC ID: 2ACS65TX A5. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AT0039591(5) Date : 12 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 26 of 28 FCC ID: 2ACS65TX A5. Band Edge Upper edge (Peak measurement) Upper edge (Average measurement)

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz)
