2ACS67TXControlller of Battle Drone

Battle Drone AGE 12+ USER’S GUIDE 6001381 6001381_PM_En.indd 18/13/2015 5:00:35 PM 2 Contents Features .................................................................................3 Package Contents .................................................................3 Specifications ........................................................................3 Fly Safely ................................................................................3 Charge the Drone ..................................................................4 Lithium Battery Notes ..............................................................................4 Install Batteries in the Remote Control ...............................5 Battery Notes ..............................................................................................5 Pairing .....................................................................................8 Fly Your Drone........................................................................8 Trim Your Drone .........................................................................................8 Land Your Drone.........................................................................................9 Perform Stunts ...........................................................................................9 Dogfight! ................................................................................9 Replace Damaged Propellers .............................................10 Troubleshooting ..................................................................11 Drone does not respond ........................................................................11 Drone difficult to control ........................................................................11 Calibrate Your Drone .....................................................................11 FCC Information ..................................................................12 Limited Warranty .................................................................13 CHOKING HAZARD! Small parts. Not for children under 3 years. 6001381_PM_En.indd 28/13/2015 5:00:35 PM 3 We hope you enjoy your Battle Drone from RadioShack. Please read this user’s guide before setting up and using your drone. Features • Drone Combat Mode • Six-Axis Gyro •Auto-stabilize feature • USB charging Package Contents •Drone (2) • Remote Control (2) •USB Charging Cable (2) • Spare Propellers (8) • User’s Guide Specifications Power ....................................................................................................................... Drone ...........................................................3.7V lithium polymer battery Remote Control.............................................................4 × AAA batteries Control Distance ............................................................................65 ft. (20m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Fly Safely •When flying outdoors, keep the drone away from power lines, trees, water, and other obstacles. •When flying indoors, keep the drone away from walls, air conditioning, air vents, fans, breakable objects, and other obstacles. •Do not fly the drone near or at other people or animals. •Keep eyes, hands, hair, and loose clothing away from moving propellers. •Adult supervision is recommended at all times. 6001381_PM_En.indd 38/13/2015 5:00:35 PM 4 Charge the Drone 1. Set the drone's ON/OFF switch to OFF. 2. Connect the included USB charging cable to the drone's CHG jack and a USB power source. The USB connector LED lights red during charging, and turns off when charging is complete. A full charge takes about 50 minutes, and gives you up to 5 minutes flight time. 3. After charging, unplug the charging cable. CAUTION •Use only the included USB charging cable to charge the drone's battery. Other cables may damage the drone. •Always let the drone battery cool before recharging. Lithium Battery Notes Your drone uses a built-in lithium polymer battery for power. Follow the instructions for charging. •Do not charge longer than recommended. Unplug the charging cable when the drone is charged. •Do not puncture or crush. Do not disassemble. •Do not dispose of lithium batteries in the trash. •If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention. •Do not attempt to charge or operate damaged toys. ON/OFF CHG LED 6001381_PM_En.indd 48/13/2015 5:00:36 PM 5 Install Batteries in the Remote Control 1. On the remote control, set the ON/OFF switch to OFF. 2. Use a screwdriver to open the twin battery compartments. Then insert four AAA batteries (not included), matching the polarities (+ and –) marked inside. Replace the cover. Note: If the remote control’s LED flashes during use, the batteries are low and should be replaced. Battery Notes •Dispose of old batteries promptly and properly. Do not burn or bury them. Use only fresh batteries of the required size and recommended type. •Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. •Remove batteries during longer storage periods. Batteries can leak chemicals that can damage electronic parts. 6001381_PM_En.indd 58/13/2015 5:00:37 PM 6 Movement Trim Forward / Reverse  Throttle Ascend Descend Turn right Turn left LED Push (Stunt mode) Multiple Fire 6001381_PM_En.indd 68/13/2015 5:00:37 PM 7 Slide Trim Left / Right  Movement Trim Forward / Reverse  Steering OFF/ON Forward Backward Spin right Spin left Push (High/low speed) Single fire 6001381_PM_En.indd 78/13/2015 5:00:38 PM 8 Pairing Switch on and pair one drone and remote control at a time. 1. Turn on the drone. The drone's LEDs flash. 2. Place the drone on level ground. 3. Turn on the remote control. The…

Text truncated - open the document above for the full version.

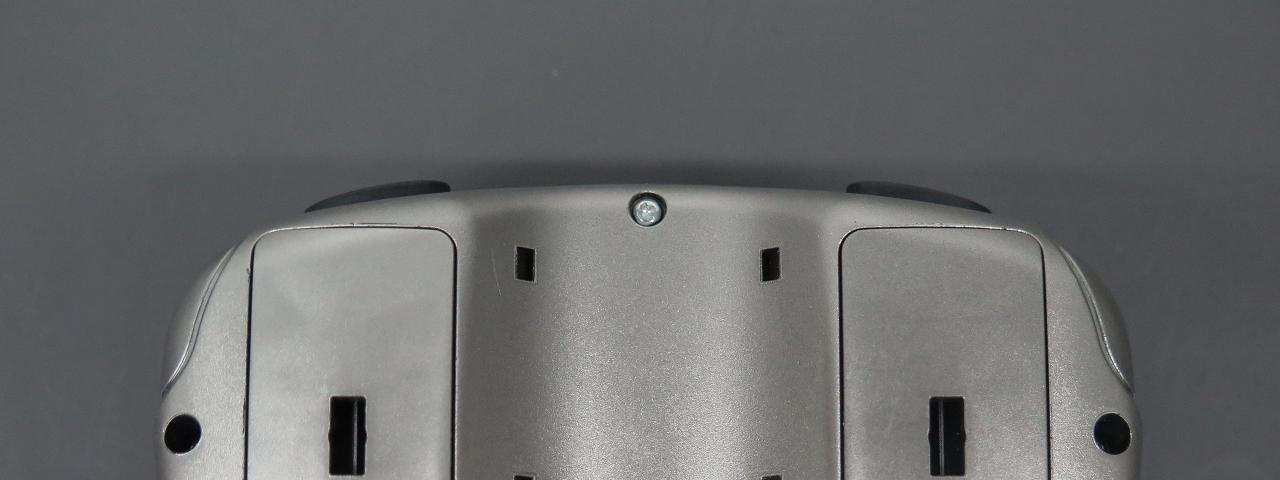

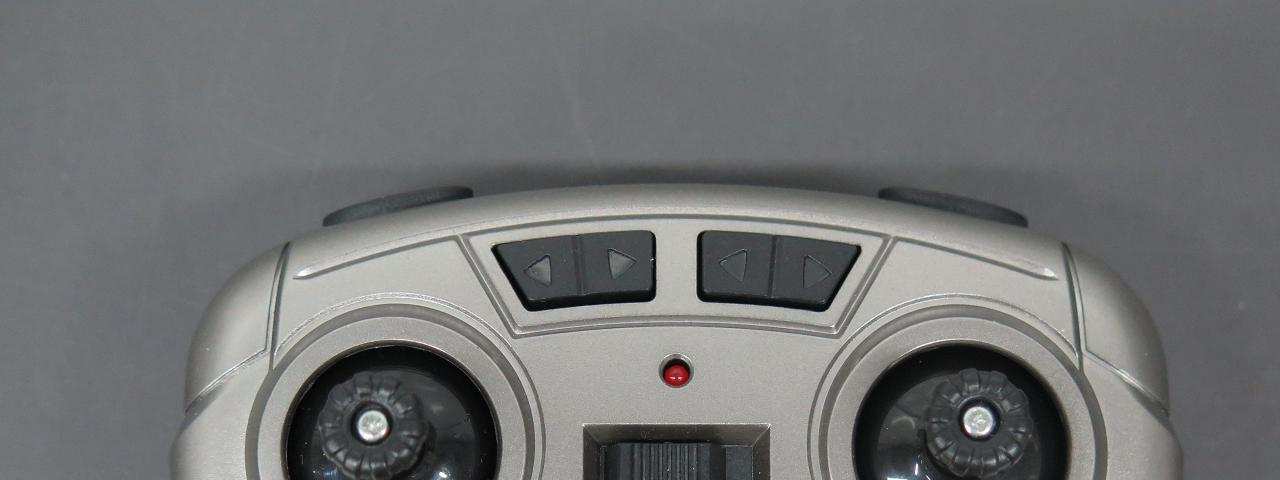

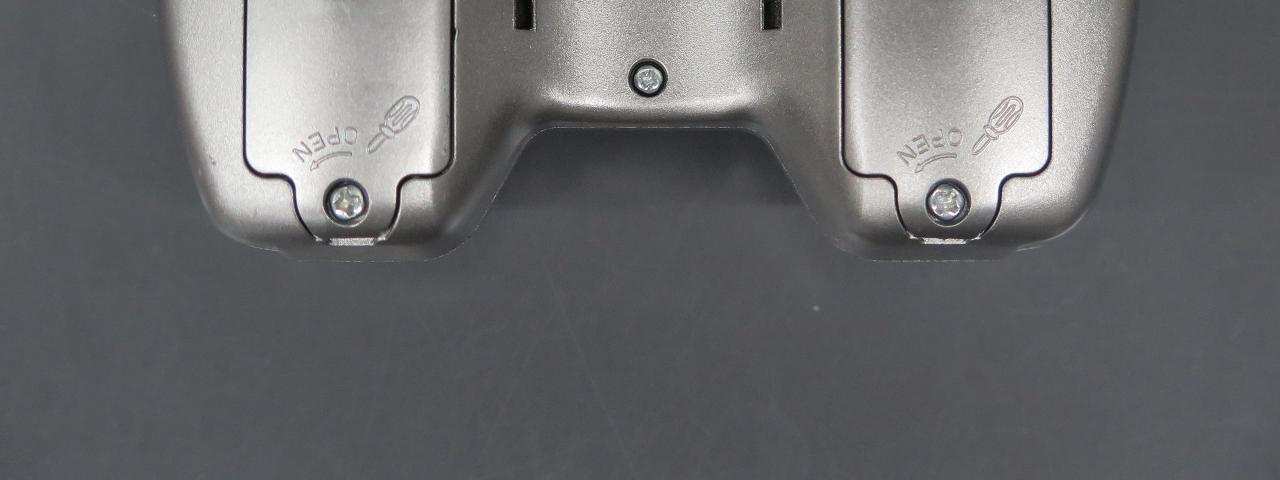

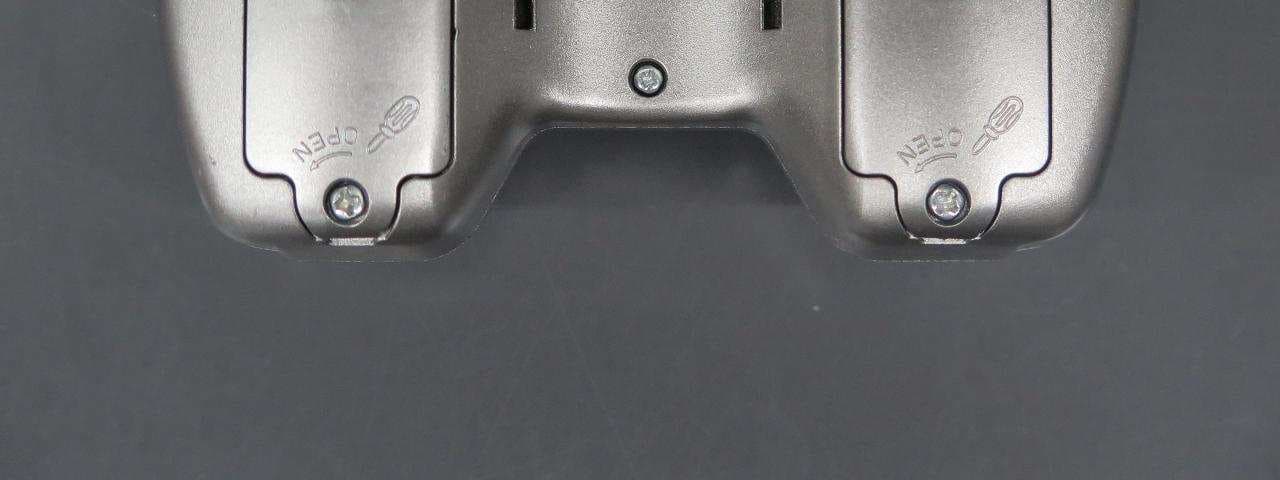

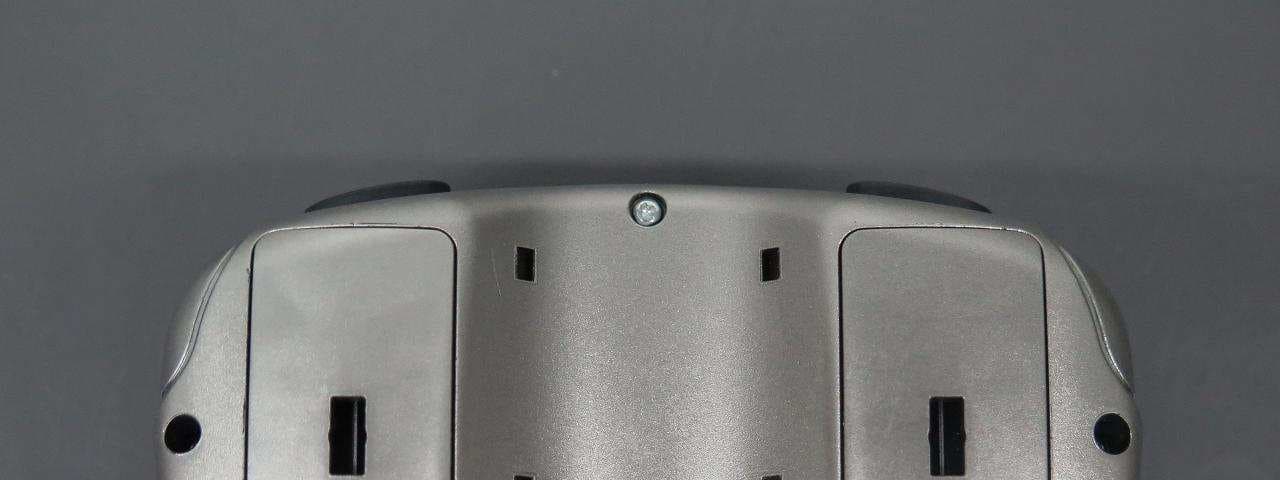

External Photo

Label Sample

Internal Photo

TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 28 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ACS67TX Application No. : LT023608(8) Applicant : Zego Electronic Company Limited (Shenzhen Yangri Electronic Ltd) Room 703, Kowloon Building, 555 Nathan Road, Kowloon, HK Sample Description : One(1) item of submitted sample stated to be Controller of Battle Drone of Model No. 6001381 Sample registration No. : RT026476-001 Radio Frequency : 2402MHz – 2475MHz Transceiver Rating : 4 x 1.5V AAA size batteries No. of submitted sample : One (1) set (s) Date Received : 03 Jun 2015 Test Period : 08 Jun 2015 to 30 Jun 2015. Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-14 Edition) ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 28. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart B and C. TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Page 2 of 28 FCC ID: 2ACS67TX Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 13 3.1 Test Procedure .................................................................................................................................. 13 3.2 Test Result ........................................................................................................................................ 13 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 13 4 Photograph ............................................................................................................................................... 14 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 14 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 14 5 Supplementary document ......................................................................................................................... 15 5.1 Bandwidth ......................................................................................................................................... 15 6 Appendices ............................................................................................................................................... 16 TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Page 3 of 28 FCC ID: 2ACS67TX 1 General Information 1.1 General Description The equipment under test (EUT) is a controller for Battle Drone. The EUT is power by 4 x 1.5V AAA size batteries. It operates at 2402MHz – 2475MHz. There are buttons and joysticks on the EUT. When the buttons are pressed or the joysticks are moved, the EUT will transmit radio control signal to receiver. The brief circuit description is listed as follows: - U3 and its associated circuit act as MCU - U1(module) and its associated circuit act as RF circuit - U1 and its associated circuit act as power supply circuit - Y1 and its associated circuit act as oscillator - S2, S3, S4, S5, S6, S7, S8, S9, VR1, VR2 and its associated circuit act as copter control TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Page 4 of 28 FCC ID: 2ACS67TX 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Page 5 of 28 FCC ID: 2ACS67TX 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date Calibration Period EMI Test Receiver R&S ESCI 100152 28 Aug 2015 1Year Spectrum Analyzer R&S FSV40 100628 02 Feb 2016 1Year Broadband Antenna Schaffner CBL6112B 2698 19 Feb 2016 2Years Loop Antenna EMCO 6502 00056620 28 Oct 2015 2Years Horn Antenna Schwarzbeck BBHA 9120D 9120D-531 24 Nov 2016 2Years Horn Antenna Schwarzbeck BBHA 9170 BBHA9170442 18 Jun 2017 2Years Broadband Pre-Amplifier…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 27 of 28 FCC ID: 2ACS67TX A6. 20dB Bandwidth Plot Bandwidth 1 (2402MHz) Bandwidth 2 (2433MHz) TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 28 of 28 FCC ID: 2ACS67TX A6. 20dB Bandwidth Plot Bandwidth 3 (2475MHz) ***** End of Report *****

TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 25 of 28 FCC ID: 2ACS67TX A5. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AT0051064(5) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 26 of 28 FCC ID: 2ACS67TX A5. Band Edge Upper edge (Peak measurement) Upper edge (Average measurement)

Antenna Compliance According to FCC 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The following picture is the antenna of the EUT Antenna of this product is unique antenna and unchangeable; fulfill the requirement of this section Antenna

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz)
