2ACS67RXCopter of Battle Drone

Battle Drone AGE 12+ USER’S GUIDE 6001381 6001381_PM_En.indd 18/13/2015 5:00:35 PM 2 Contents Features .................................................................................3 Package Contents .................................................................3 Specifications ........................................................................3 Fly Safely ................................................................................3 Charge the Drone ..................................................................4 Lithium Battery Notes ..............................................................................4 Install Batteries in the Remote Control ...............................5 Battery Notes ..............................................................................................5 Pairing .....................................................................................8 Fly Your Drone........................................................................8 Trim Your Drone .........................................................................................8 Land Your Drone.........................................................................................9 Perform Stunts ...........................................................................................9 Dogfight! ................................................................................9 Replace Damaged Propellers .............................................10 Troubleshooting ..................................................................11 Drone does not respond ........................................................................11 Drone difficult to control ........................................................................11 Calibrate Your Drone .....................................................................11 FCC Information ..................................................................12 Limited Warranty .................................................................13 CHOKING HAZARD! Small parts. Not for children under 3 years. 6001381_PM_En.indd 28/13/2015 5:00:35 PM 3 We hope you enjoy your Battle Drone from RadioShack. Please read this user’s guide before setting up and using your drone. Features • Drone Combat Mode • Six-Axis Gyro •Auto-stabilize feature • USB charging Package Contents •Drone (2) • Remote Control (2) •USB Charging Cable (2) • Spare Propellers (8) • User’s Guide Specifications Power ....................................................................................................................... Drone ...........................................................3.7V lithium polymer battery Remote Control.............................................................4 × AAA batteries Control Distance ............................................................................65 ft. (20m) Specifications are subject to change and improvement without notice. Actual product may vary from the images found in this document. Fly Safely •When flying outdoors, keep the drone away from power lines, trees, water, and other obstacles. •When flying indoors, keep the drone away from walls, air conditioning, air vents, fans, breakable objects, and other obstacles. •Do not fly the drone near or at other people or animals. •Keep eyes, hands, hair, and loose clothing away from moving propellers. •Adult supervision is recommended at all times. 6001381_PM_En.indd 38/13/2015 5:00:35 PM 4 Charge the Drone 1. Set the drone's ON/OFF switch to OFF. 2. Connect the included USB charging cable to the drone's CHG jack and a USB power source. The USB connector LED lights red during charging, and turns off when charging is complete. A full charge takes about 50 minutes, and gives you up to 5 minutes flight time. 3. After charging, unplug the charging cable. CAUTION •Use only the included USB charging cable to charge the drone's battery. Other cables may damage the drone. •Always let the drone battery cool before recharging. Lithium Battery Notes Your drone uses a built-in lithium polymer battery for power. Follow the instructions for charging. •Do not charge longer than recommended. Unplug the charging cable when the drone is charged. •Do not puncture or crush. Do not disassemble. •Do not dispose of lithium batteries in the trash. •If the electrolyte in the cells should get on your skin, thoroughly wash with soap and water. If in the eyes, rinse thoroughly with cool water. Immediately seek medical attention. •Do not attempt to charge or operate damaged toys. ON/OFF CHG LED 6001381_PM_En.indd 48/13/2015 5:00:36 PM 5 Install Batteries in the Remote Control 1. On the remote control, set the ON/OFF switch to OFF. 2. Use a screwdriver to open the twin battery compartments. Then insert four AAA batteries (not included), matching the polarities (+ and –) marked inside. Replace the cover. Note: If the remote control’s LED flashes during use, the batteries are low and should be replaced. Battery Notes •Dispose of old batteries promptly and properly. Do not burn or bury them. Use only fresh batteries of the required size and recommended type. •Do not mix old and new batteries, different types of batteries (standard, alkaline, or rechargeable), or rechargeable batteries of different capacities. •Remove batteries during longer storage periods. Batteries can leak chemicals that can damage electronic parts. 6001381_PM_En.indd 58/13/2015 5:00:37 PM 6 Movement Trim Forward / Reverse  Throttle Ascend Descend Turn right Turn left LED Push (Stunt mode) Multiple Fire 6001381_PM_En.indd 68/13/2015 5:00:37 PM 7 Slide Trim Left / Right  Movement Trim Forward / Reverse  Steering OFF/ON Forward Backward Spin right Spin left Push (High/low speed) Single fire 6001381_PM_En.indd 78/13/2015 5:00:38 PM 8 Pairing Switch on and pair one drone and remote control at a time. 1. Turn on the drone. The drone's LEDs flash. 2. Place the drone on level ground. 3. Turn on the remote control. The…

Text truncated - open the document above for the full version.

ZEGO ELECTRONIC CO.,LTD (July 21 2015) Equipment Authorization Division Office id Engineering and Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Dear Sirs: ZEGE ELECTRONIC CO., LIMITE requests acceptance of the labeling proposal described below for (6001381) bearing FCC ID: 2ACS67RX. The subject (6001381) models as shown in figure 1, authorized under FCC Part 15 Class Figure 1 ZEGO ELECTRONIC CO.,LTD It is because the surface of the device does not enough to indicate the FCC statement. For this reason, (ZEGE ELECTRONIC CO., LIMITED) proposes those statements is showing on the user manual and the device is carrying the FCC ID number only. The figure2 is showing the FCC ID location. figure 2 Sincerely, ZEGE ELECTRONIC CO., LIMITED ------------------------------- Jade Wang Vice-general Manager

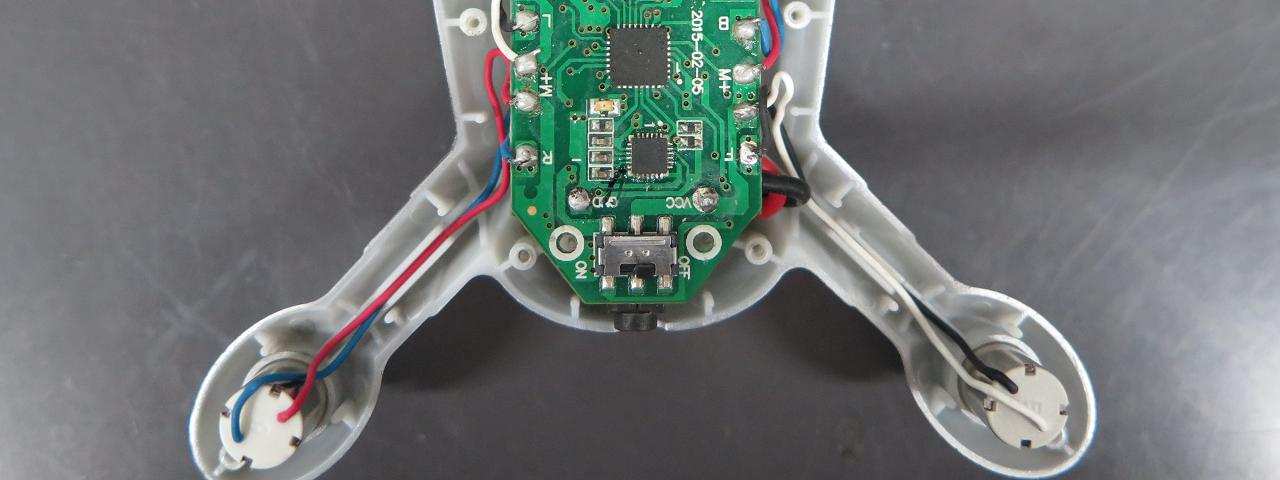

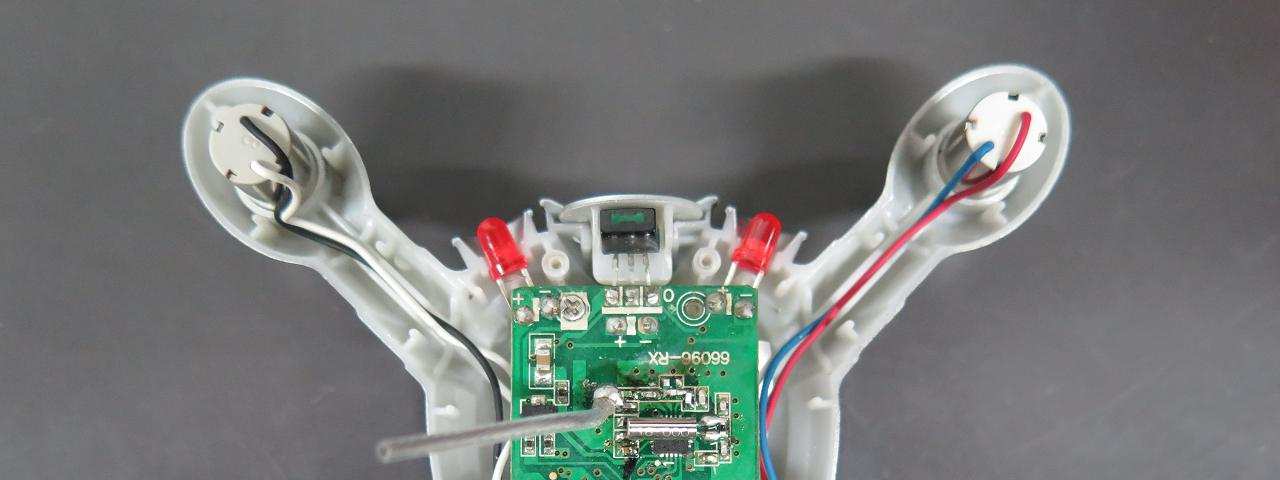

Internal Photo

TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 For and on behalf of CMA Industrial Development Foundation Limited Authorized Signature : Page 1 of 37 Mr. WONG Lap-pong, Andrew Manager Electrical Division FCC ID: 2ACS67RX Application No. : LS025878(8) Applicant : Zego Electronic Company Limited (Shenzhen Yangri Electronic Ltd) Room 703, Kowloon Building, 555 Nathan Road, Kowloon, HK Sample Description : One(1) item of submitted sample stated to be Copter of Battle Drone of Model No. 6001381 Sample registration No. : RT026476-001, RT035651-001 Radio Frequency : 2402MHz – 2475MHz Transceiver Rating : 3.7V rechargeable battery : USB 5V charging adaptor No. of submitted sample : Three (3) set (s) Date Received : 03 Jun 2015, 24 Jul 2015 Test Period : 08 Jun 2015 to 06 Aug 2015 Test Requested : FCC Part 15 Certificate Test Method : 47 CFR Part 15 (10-1-12 Edition) ANSI C63.4 – 2009 Test Engineer : Mr. LEUNG Shu-kan, Ken Test Result : See attached sheet(s) from page 2 to 37. Conclusion : The submitted sample was found to comply with requirement of FCC Part 15 Subpart C. TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Page 2 of 37 FCC ID: 2ACS67RX Table of Contents 1 General Information ................................................................................................................................... 3 1.1 General Description ............................................................................................................................ 3 1.2 Location of the test site ....................................................................................................................... 4 1.3 List of measuring equipment............................................................................................................... 5 1.4 Measurement Uncertainty ................................................................................................................... 6 2 Description of the radiated emission test ................................................................................................... 7 2.1 Test Procedure .................................................................................................................................... 7 2.2 Test Result .......................................................................................................................................... 8 2.3 Radiated Emission Measurement Data ............................................................................................... 9 3 Description of the Line-conducted Test ................................................................................................... 14 3.1 Test Procedure .................................................................................................................................. 14 3.2 Test Result ........................................................................................................................................ 14 3.3 Graph and Table of Conducted Emission Measurement Data .......................................................... 14 4 Photograph ............................................................................................................................................... 15 4.1 Photographs of the Test Setup for Radiated Emission and Conducted Emission ............................. 15 4.2 Photographs of the External and Internal Configurations of the EUT .............................................. 15 5 Supplementary document ......................................................................................................................... 16 5.1 Bandwidth ......................................................................................................................................... 16 6 Appendices ............................................................................................................................................... 17 TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Page 3 of 37 FCC ID: 2ACS67RX 1 General Information 1.1 General Description The equipment under test (EUT) is a copter for Battle Drone. The EUT is power by 3.7V rechargeable battery. It operates at 2402MHz – 2475MHz. When the receiver receives radio signal from transmitter, it will take corresponding actions. The brief circuit description is listed as follows: - U1, U5 and its associated circuit act as MCU - U3 and its associated circuit act as RF circuit - X1 and its associated circuit act as oscillator - Q1, Q3 and its associated circuit act as LED - M1, M2, M3, M4 and its associated circuit act as motor TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Page 4 of 37 FCC ID: 2ACS67RX 1.2 Location of the test site FCC Registered Test Site Number: 552221 Radiated emissions measurements are investigated and taken pursuant to the procedures of ANSI C63.4 – 2009. A Semi-Anechoic Chamber Testing Site is set up for investigation and located at: Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. Conducted emissions measurements are investigated and also taken pursuant to the procedures of ANSI C63.4 – 2009. A shielded room is located at : Ground Floor, Yan Hing Centre, 9 – 13 Wong Chuk Yeung Street, Fo Tan, Shatin, New Territories, Hong Kong. TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Page 5 of 37 FCC ID: 2ACS67RX 1.3 List of measuring equipment Equipment Manufacturer Model No. Serial No. Calibration Due Date Calibration Period EMI Test Receiver R&S ESCI 100152 28 Aug 2015 1Year Spectrum Analyzer R&S FSV40 100628 02 Feb 2016 1Year Broadband Antenna Schaffner CBL6112B 2698 19 Feb 2016 2Years Loop Antenna EMCO 6502 00056620 28 Oct 2015 2Years Horn Antenna Schwarzbeck BBHA 9120D 9120D-531 24 Nov 2016 2Years Horn Antenna Schwarzbeck BBHA 9170 BBHA9170442 18 Jun 2017 2Years Broadband Pre-Amplifier Schwarzbeck BBV 9718 9718-119 24 Nov 2016 2Years Broadband Pre-Amplifier Schwa…

Text truncated - open the document above for the full version.

TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 31 of 37 FCC ID: 2ACS67RX A6 Conducted Emission Measurement Date TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 32 of 37 FCC ID: 2ACS67RX A6 Conducted Emission Measurement Date TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 33 of 37 FCC ID: 2ACS67RX A6 Conducted Emission Measurement Date

TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 34 of 37 FCC ID: 2ACS67RX A7. Band Edge Lower edge (Peak measurement) Lower edge (Average measurement) TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 35 of 37 FCC ID: 2ACS67RX A7. Band Edge Upper edge (Peak measurement) Upper edge (Average measurement) )

TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 36 of 37 FCC ID: 2ACS67RX A8. 20dB Bandwidth Plot Bandwidth 1 (2402MHz) Bandwidth 2 (2433MHz) TEST REPORT Report No. : AT0051065(6) Date : 07 Aug 2015 Tested by: Reviewed by: Mr. LEUNG Shu-kan, Ken Mr. WONG Lap-pong, Andrew Page 37 of 37 FCC ID: 2ACS67RX A8. 20dB Bandwidth Plot Bandwidth 3 (2475MHz) ***** End of Report *****

Antenna Compliance According to FCC 15.203, an intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this section. The following picture is the antenna of the EUT Antenna of this product is unique antenna and unchangeable; fulfill the requirement of this section Antenna

Test Setup Photo Front view (30MHz – 1GHz) Rear view (30MHz – 1GHz) Front view (9kHz – 30MHz) Rear view (9kHz – 30MHz) Front view (1GHz – 25GHz) Rear view (1GHz – 25GHz) Front view (Charging) Rear view (Charging) Conducted emission (Front view) Conducted emission (Rear view) Conducted emission (Side view)
