2ACVFK-10BWalkie Talkie

K-10 Walkie Talkie User Guide US 1. Antenna 2. Volume Knob 3. Backl it LCD Display 4. External Speaker/ Microphone 5. Up Button 6. Down Button 7. Microphone 8. Speaker 9. Menu/Power Buttonn 10. NOAA/Scan Button 11. Call/Lock Button 12. PTT(Pull to talk) Butto 13. Wrist Strap Connection 14. Belt Clip 15. Battery Compartment 16. Battery Door Latch 1 2 3 4 5 6 7 8 9 11 12 13 14 15 16 CAUTION Product number Frequency range Channel number Channel spacing Working voltage Frequency stability Operating temperature range The antenna impedance Overall dimensions Weight K-10 FRS 22 12.5KHz 3.6V 2.5ppm -10°C~50°C 50Ω 160*54*41mm 120g Rf power Modulation method Noise and harmonic Residual Radiation Modulation distortion Maximum deviation 1.0W/0.5w F3E -40dB ≤-35dB ≤7% ≤±5KHz TRANSMITER The sensitivity Modulation receiver bandwidth Adjacent selective Intermodulation interference resistance Spurious response inhibition Audio output power Audio distortion ≤0.2uV 5KHz ≥40dB ≥35dB ≥70dB ≥300mW ≤8% RECEIVER Channel 1 2 3 4 5 6 7 8 9 10 11 Frequency(MHz) Frequency(MHz) 462.5625 462.5875 462.6125 462.6375 462.6625 462.6875 462.7125 467.5625 467.5875 467.6125 467.6375 Channel 12 13 14 15 16 17 18 19 20 21 22 467.6625 467.6875 467.7125 462.5500 462.5750 462.6000 462.6250 462.6500 462.6750 462.7000 462.7250 12 (Include Antenna) Read this operating instruction carefully before using your two way radio, including the part on Product Safety and Important Notice. 10 Product Features TECHNICALPARAMETERS Product Features Backlit LCD Display 1.Battery Level Indicator 2.Roger Beep Icon 3.VOX Icon 4.Weather Icon 5.Lock Icon 6.Hi/Low Power Icon 7.DCS/CTCSS Icons 8.Scan Icon 9.Weather Alert Icon 10. DCS/CTCSS Privacy Code Numbers 11. Power Saver Icon 12. Channel Numbers 13.Receive/Transmit Icon 14. Key Tone Icon 1 2 3 4 5 6 11 12 13 10 8 7 9 14 Features • 22 Channels Seven shared with FRS/GMRS, seven FRS only, eight GMRS only. • 10 Channel NOAA All Hazards Radio • Weather Alert • 121 Privacy Codes (38 CTCSS codes/83 DCS codes) • Hands-Free Operation (VOX) • Scan Channels, privacy codes • Backl it LCD Display • Cal l Alert Ten selectable tones • Button Lock • Speaker/Microphone/Jack • Roger Beep Selectable On/Off • Battery/Power Saver • Keystroke Tones • Battery Level Indicator • Low Battery Audible Alert • Auto Squelch Installing Batteries To install or replace batteries: 1.Remove belt clip by releasing belt clip latch and sliding clip up. 2.Pull the battery door lock tab down to release the battery cover. 3.Insert the cable of the supplied one lion rechargeable Into the battery jack. 4.Put the battery cover back into place.Snap the lock tab and beltclip back into place. For charging radio(s) : 1.Insert the USB cable into charging jack on right of the radio. 2.Plug the USB cable into power port. The radio will display flashing battery icon while charging.And when charging complete, the cycle moving will be stopped. Recommends your radio be turned off while being charged. TurningonYourRadio Press and hold the Menu/ Power button until you hear a series of audible tones indicating the radio is on. Your radio is now in Standby mode,ready to receive transmissions. The radio is always in Standby mode except when the Talk, Call or Mode/Power buttons are pressed. Quick Start 1.Press and hold the Menu/Power button to turn on your radio. 2.Press the Menu, Press the Up or Down button to select a channel. 3.Press and hold the PTT button while speaking into the microphone. 4.When finished talking, release the PTT button and listen for a response. 3 4 Maximum range may vary and is based on unobstructed line-of-sight communication under ideal conditions. Both radios must be tuned to the same channel/privacy code to communicate. Turning on Your Radio To Adjust Volume Rotate Volumen Knob until you reach a comfortable listening level.Rotate Volume Knob clockwise to increase the volume or counterclockwise to decrease the volume. Press and release the Cal l button. The other person will hear a two second cal l tone. This tone is used only to establ ish voice communications. See page 9 on how to select between ten ca l tone settings. The Lock function locks the Up, Down and Mode/Power buttons to prevent accidental operation. To turn the lock on or off: -Press and hold the Cal l/Lock button for two seconds. A double beep sound is used to confirm your lock on or off request. When in Lock mode,the Lock icon will be displayed. By scrolling through the MENU function,you will be able to select or turn on preferred features of your radio.When scrolling through the Menu function,your radio features will be displayed in the same Set Channels Set CTCSS Privacy Codes Set DCS Privacy Codes Set Vox On/Off Set Vox Sensitivity Set Call Tones 1-10 Set Roger Beep On/Off Set Key Tones On/Off Battery Low When battery power is low,the final bar in the Battery Low icon will blink and an audible tone will sound twice before the radio shuts off. Your batteries should be replaced or recharged, if using rechargeable batteries. If there are no transmissions within 10 seconds,the radio will automatically switch to Battery Save mode and the Power Saver icon will flash in the display. This will not affect the radio’s ability to receive incoming transmissions. Communicating with Another Person 1.Press and hold the PTT button. 2.With the microphone about two inches (5cm) from your mouth, speak in a normal voice. 3.Release the PTT button when you are finished talking and listen for a response. You cannot receive incoming cal ls while pressing the PTT button. Both radios must be tuned to the same channel/privacy code to communicate. With the radio on, select any of the 22 channels by pressing Menu and the Up or Channel Down button. Both radios must be tuned to the same channel to communicate. 5 6 Battery Low The radio will display flashing battery icon whi le charging. Battery Save Mode Lock Icon Auto Battery Save To Select a Channel Release the PTT button to receive incomin…

Text truncated - open the document above for the full version.

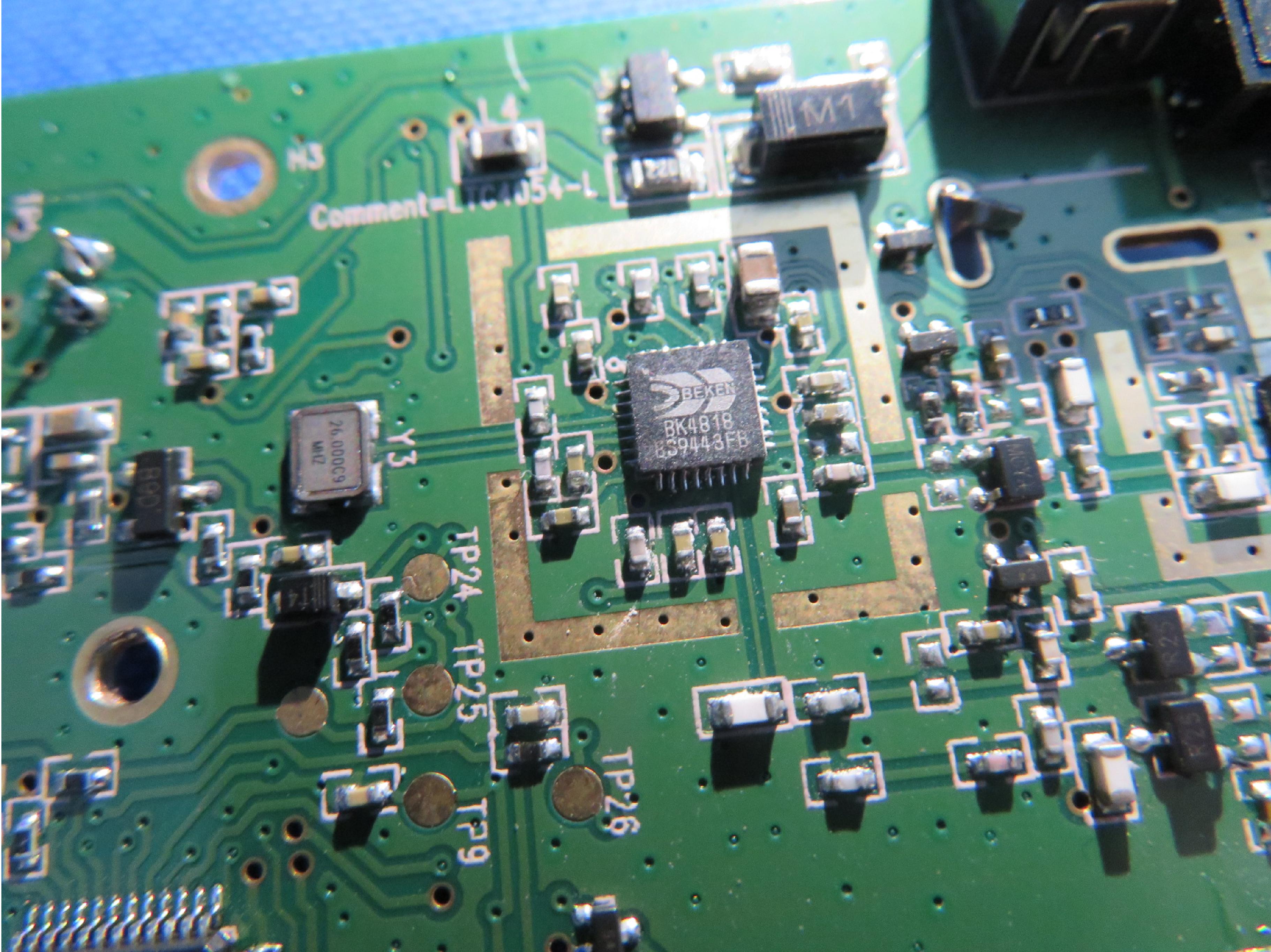

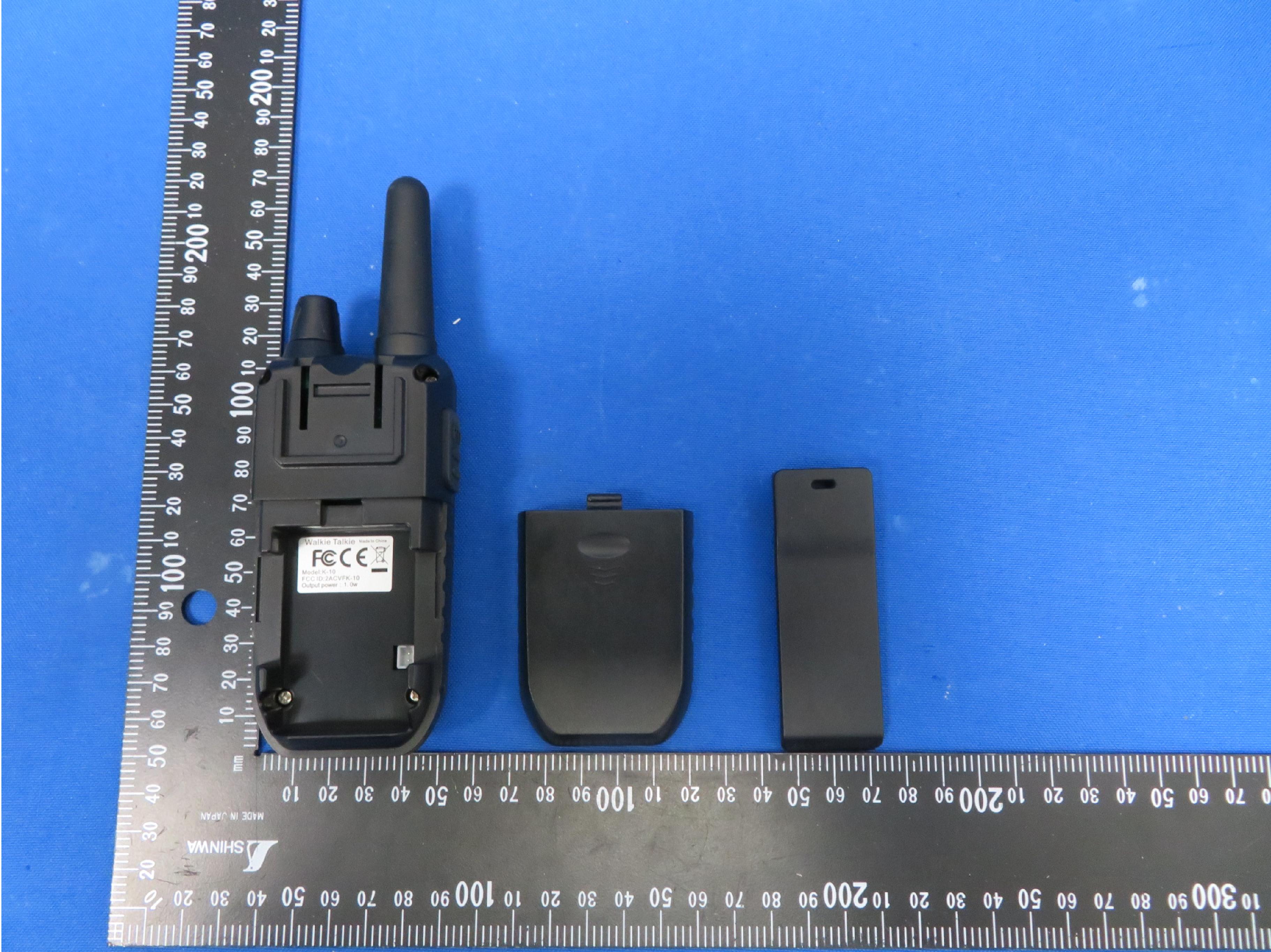

Report No.: 2011RSU065-UE 1 of 8 EUT External Photograph (1) EUT Photo (2) EUT Photo Report No.: 2011RSU065-UE 2 of 8 (3) EUT Photo (4) EUT Photo Report No.: 2011RSU065-UE 3 of 8 (5) EUT Photo (6) EUT Photo Report No.: 2011RSU065-UE 4 of 8 (7) EUT Photo (8) EUT Photo Report No.: 2011RSU065-UE 5 of 8 (9) EUT Photo (10) EUT Photo Report No.: 2011RSU065-UE 6 of 8 (11) EUT Photo (12) EUT Photo Report No.: 2011RSU065-UE 7 of 8 (13) EUT Photo (14) EUT Photo Report No.: 2011RSU065-UE 8 of 8 (15) EUT Photo

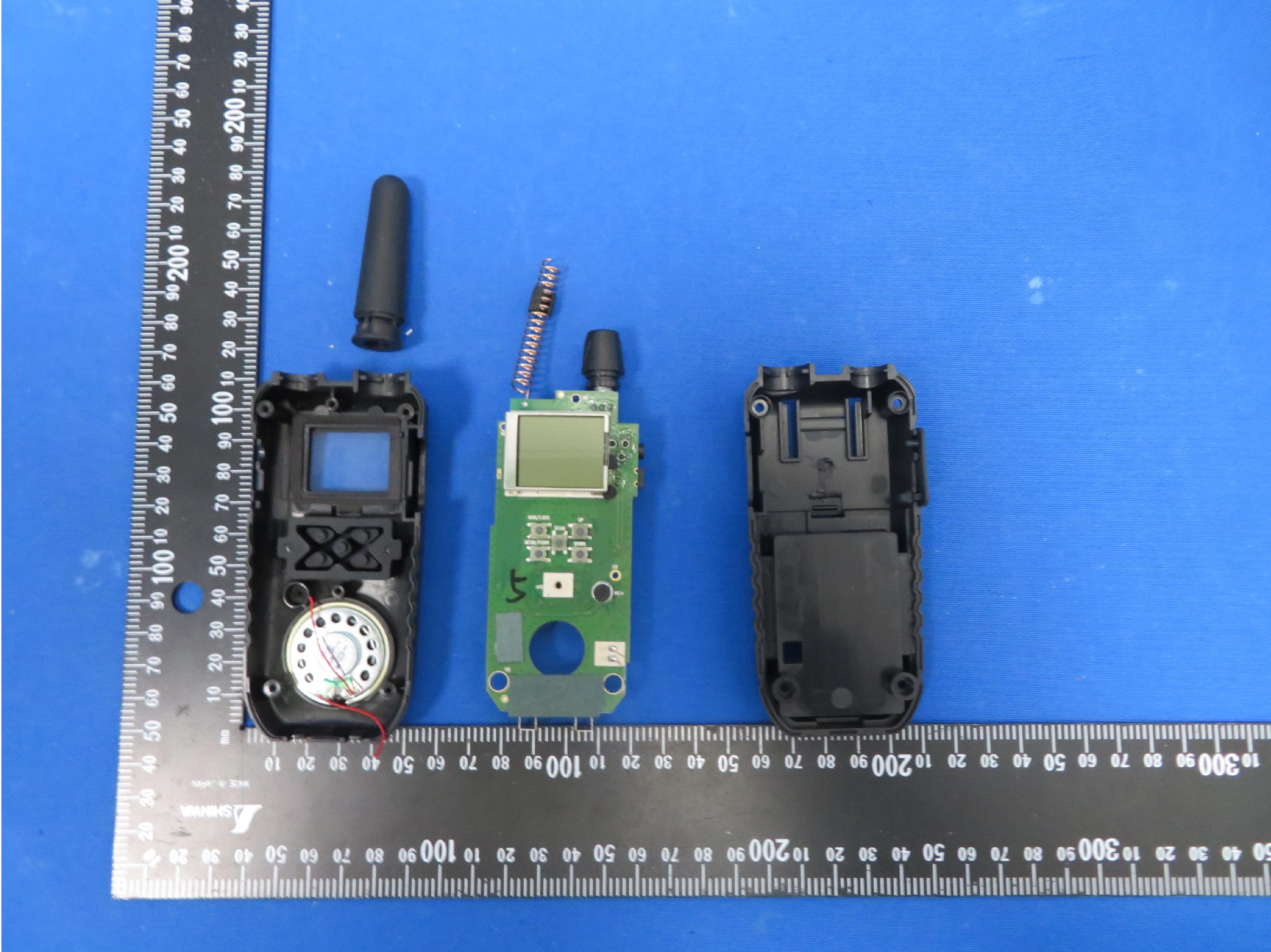

Report No.: 2011RSU065-UE 1 of 3 EUT Internal Photograph (1) EUT Photo (2) EUT Photo Report No.: 2011RSU065-UE 2 of 3 (3) EUT Photo (4) EUT Photo Report No.: 2011RSU065-UE 3 of 3 (5) EUT Photo

MRT Technology (Suzhou) Co., Ltd Report No.: 2011RSU065-U3 Phone: +86-512-66308358 Report Version: V01 Web: www.mrt-cert.com Issue Date: 11-27-2020 Page Number: 1 of 26 FCC ID: 2ACVFK-10B Applicant: Shenzhen ChangTaiWei Electronic CO., LTD Application Type: Certification Product: Walkie Talkie Model No.: K-10 FCC Rule Part(s): FCC Part 15 Subpart B: 2020, Class B Test Procedure(s): ANSI C63.4: 2014 Result: Complies Test Date: November 16 ~ 17, 2020 Reviewed By: ( Sunny Sun ) Approved By: ( Robin Wu ) MEASUREMENT REPORT FCC Part 15B The test results relate only to the samples tested. This equipment has been shown to be capable of compliance with the applicable technical standards as indicated in the measurement report and was tested in accordance with the measurement procedures specified in ANSI C63.4-2014. Test results reported herein relate only to the item(s) tested. The test report shall not be reproduced except in full without the written approval of MRT Technology (Suzhou) Co., Ltd. Report No.: 2011RSU065-U3 Page Number: 2 of 26 Revision History Report No. Version Description Issue Date Note 2011RSU065-U3 Rev. 01 Initial Report 11-27-2020 Valid Note: This report is based on MRT original report (Report no.: 2011ESZ036-U1) to copy report for Certification. Report No.: 2011RSU065-U3 Page Number: 3 of 26 CONTENTS Description Page 1. GENERAL INFORMATION ........................................................................................................ 4 1.1. Applicant .......................................................................................................................... 4 1.2. Manufacturer ................................................................................................................... 4 1.3. Testing Facility ................................................................................................................. 4 2. PRODUCT INFORMATION ........................................................................................................ 5 2.1. Equipment Description .................................................................................................... 5 2.2. Test Mode ....................................................................................................................... 5 2.3. Configuration of Tested System ...................................................................................... 6 2.4. Test System Details ........................................................................................................ 7 2.5. Test Procedure ................................................................................................................ 7 2.6. EMI Suppression Device(s)/Modifications ....................................................................... 7 3. TEST EQUIPMENT CALIBRATION DATE ................................................................................ 8 4. MEASUREMENT UNCERTAINTY ............................................................................................. 9 5. TEST RESULT ......................................................................................................................... 10 5.1. Summary ....................................................................................................................... 10 5.2. Conducted Emission Measurement .............................................................................. 11 5.2.1. Test Limit ................................................................................................................... 11 5.2.2. Test Setup ................................................................................................................. 11 5.2.3. Test Result ................................................................................................................. 12 5.3. Radiated Emission Measurement ................................................................................. 14 5.3.1. Test Limit ................................................................................................................... 14 5.3.2. Test Setup ................................................................................................................. 14 5.3.3. Test Result ................................................................................................................. 16 6. CONCLUSION .......................................................................................................................... 24 Appendix A - Test Setup Photograph ............................................................................................ 25 Appendix B - EUT Photograph ...................................................................................................... 26 Report No.: 2011RSU065-U3 Page Number: 4 of 26 1. GENERAL INFORMATION 1.1. Applicant Shenzhen ChangTaiWei Electronic CO., LTD 5/F.,6 Block, XinGu Industrial Zone, GuShu Village, XiXiang Town, BaoAn District, Shenzhen City, China 1.2. Manufacturer Shenzhen ChangTaiWei Electronic CO., LTD 5/F.,6 Block, XinGu Industrial Zone, GuShu Village, XiXiang Town, BaoAn District, Shenzhen City, China 1.3. Testing Facility Test Site – MRT Suzhou Laboratory Laboratory Location (Suzhou - Wuzhong) D8 Building, No.2 Tian’edang Rd., Wuzhong Economic Development Zone, Suzhou, China Laboratory Location (Suzhou - SIP) 4b Building, Liando U Valley, No.200 Xingpu Rd., Shengpu Town, Suzhou Industrial Park, China Laboratory Accreditations A2LA: 3628.01 CNAS: L10551 FCC: CN1166 ISED: CN0001 VCCI: R-20025, G-20034, C-20020, T-20020 Test Site – MRT Shenzhen Laboratory Laboratory Location (Shenzhen) 1G, Building A, Junxiangda Building, Zhongshanyuan Road West, Nanshan District, Shenzhen, China Laboratory Accreditations A2LA: 3628.02 CNAS: L10551 FCC: CN1284 ISED: CN0105 Test Site – MRT Taiwan Laboratory Laboratory Location (Taiwan) No. 38, Fuxing 2nd Rd., Guishan Dist., Taoyuan City 333, Taiwan (R.O.C.) Laboratory Accreditations …

Text truncated - open the document above for the full version.

Report No.: 2011RSU065-UT RF Test Setup Photograph Description: Radiated Emission Test Setup for below 1GHz Description: Radiated Emission Test Setup for above 1GHz Report No.: 2011RSU065-UT FCC SAR Test Setup Photograph Description: Head Front of Face with 25mm gap Description: Body Back with 0mm gap Report No.: 2011RSU065-UT FCC Part15B Test Setup Photograph Test Mode: Mode 2 Description: Front View of Conducted Emission Test Setup for Power Port Test Mode: Mode 2 Description: Back View of Conducted Emission Test Setup for Power Port Report No.: 2011RSU065-UT Test Mode: Mode 1 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 1 Description: Radiated Emission Test Setup for above 1GHz Report No.: 2011RSU065-UT Test Mode: Mode 2 Description: Radiated Emission Test Setup for below 1GHz Test Mode: Mode 2 Description: Radiated Emission Test Setup for above 1GHz
