2ACYESK-MH60TG-A3Long Reach Terminal Unit

MULTIHAUL™ TG Wireless 60 GHz L2 SDN Mesh for Multi-Gigabit Ethernet Installation, Operation and Maintenance Manual MHTG-I&O-01, Rev.D5 June 2021 This document is proprietary and confidential. No part of this document may be disclosed in any manner to a third party without prior written consent. © Siklu Communication Ltd 2021 All rights reserved. 2 Trademarks Siklu, the Siklu logo, and MultiHaul™ are all trademarks of Siklu Communication Ltd. All other product names and trademarks mentioned in this document are trademarks or registered trademarks of their respective companies. Copyrights Copyright © 2021 Siklu Communication Ltd. All rights reserved. No part of this publication may be reproduced or distributed in any form or by any means, or stored in a database or retrieval system, without the prior written consent of Siklu. Disclaimers The information contained in this document is subject to change without notice. Siklu assumes no responsibility for any errors that may appear. Siklu makes no warranties, expressed or implied, by operation of law or otherwise, relating to this document, the products or the computer software programs described herein. This document was originally written in English. Please refer to the English language version for a full and accurate description of all products and services described herein. This document is proprietary and confidential. No part of this document may be disclosed in any manner to a third party without prior written consent. © Siklu Communication Ltd 2021 All rights reserved. 3 Table of Contents 1 Introduction .......................................................................................................................................................... 5 1.1 Scope ............................................................................................................................................................ 5 1.2 Applicable Products and Releases ................................................................................................................ 5 1.3 Audience ....................................................................................................................................................... 5 1.4 Conventions .................................................................................................................................................. 5 1.5 List of Abbreviations ..................................................................................................................................... 6 2 Safety and Regulatory Notices ............................................................................................................................. 7 2.1 General ......................................................................................................................................................... 7 2.2 FCC Regulatory Statements ........................................................................................................................... 7 2.3 Canada Regulatory Statements ..................................................................................................................... 8 2.4 EU Regulatory Notes ..................................................................................................................................... 8 3 MultiHaul™ TG Overview .................................................................................................................................... 10 3.1 N366 Node .................................................................................................................................................. 11 3.2 T265 TU ....................................................................................................................................................... 11 3.3 T280 TU ....................................................................................................................................................... 11 4 Installing the MultiHaul™ TG Units, N366 and T265 .......................................................................................... 13 4.1 Preparing the Site ....................................................................................................................................... 13 4.2 MultiHaul™ TG Package Contents .............................................................................................................. 15 4.3 Unpacking the MultiHaul™ TG Units .......................................................................................................... 15 4.4 Required Tools ............................................................................................................................................ 15 4.5 Mounting and Aligning the MultiHaul™ TG Node on a Pole ...................................................................... 15 4.6 Mounting the MultiHaul™ TG Node on a Wall ........................................................................................... 18 4.7 Mounting and Aligning the MultiHaul™ TG TU on a Pole or Wall ............................................................... 19 4.8 Connecting Cables ...................................................................................................................................... 20 4.9 LED indicators ............................................................................................................................................. 25 4.10 Link Up Verification .................................................................................................................................... 26 4.11 Resetting the Unit ....................................................................................................................................... 27 5 Installing the MultiHaul™ TG T 2 8 0 Te r m i n a l Unit ......................................................................................... 28 5.1 Preparing …

Text truncated - open the document above for the full version.

FCC, Request for non-disclosure Date: 21-Nov-2018 RF_501, Issue 8 Page 1 of 1 Company Name: Siklu Communication Ltd. Address: 43 HaSivim street City: Petach Tikva 49517 Country: Israel To: Telefication B.V., Dept. FCC TCB Wilmersdorf 50 7327 AC Apeldoorn The Netherlands Subject: Request for confidentiality FCC ID:2ACYESK-MH60TG-A3 Reference number: 42253 Dear FCC TCB, 1. Long-Term Confidentiality Pursuant to 47 CFR Section 0.459(a) & (b), we hereby requests non-disclosure and confidential treatment of the following materials submitted in support of FCC certification application: Bill(s) of Material Block Diagrams Operational Description Schematic Diagrams Tune-up Procedure Above materials contain secrets, proprietary and technical information, which would customarily be guarded from competitors under 47 CFR, section 0.457(d)(2). Disclosure or publication or any portion of this company confidential material to other parties could cause substantial competitive harm and provide unjustified benefits for competitors. 2. Short-Term Confidentiality (STC) Pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, applicant hereby requests Short-Term Confidential treatment of the following materials (See notes below): Internal Photos User’s Manual Test Set-up Photos External Photos Justification: The above information may assist competitors in understanding the system archtecture and major components, which may hurt our competitive advantage and help competitors with designing competing products Date: June 14, 2021 Name and signature of applicant: Baruch Schwarz Notes: 1) A document or type of document can only have ONE type of confidentiality! 2) Short-Term confidentiality is in principle for 45 days from date of grant; it can be extended max 3 times (total time 180 days max.)! The planned date should stated in the RF731 application form. 3) FCC must be informed when marketing begins earlier. 4) Release takes place automatically thus extension must be requested in time. Telefication does not remind you of this! 5) Request for extension or for release must be received by Telefication at least 7 days before date of actual marketing or before expiration of the STC period

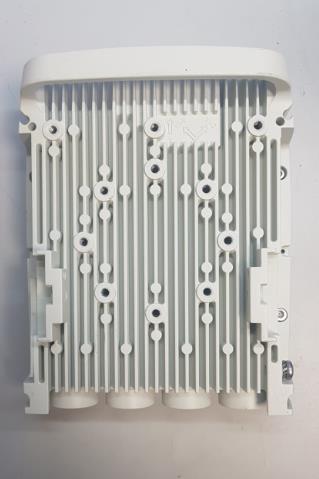

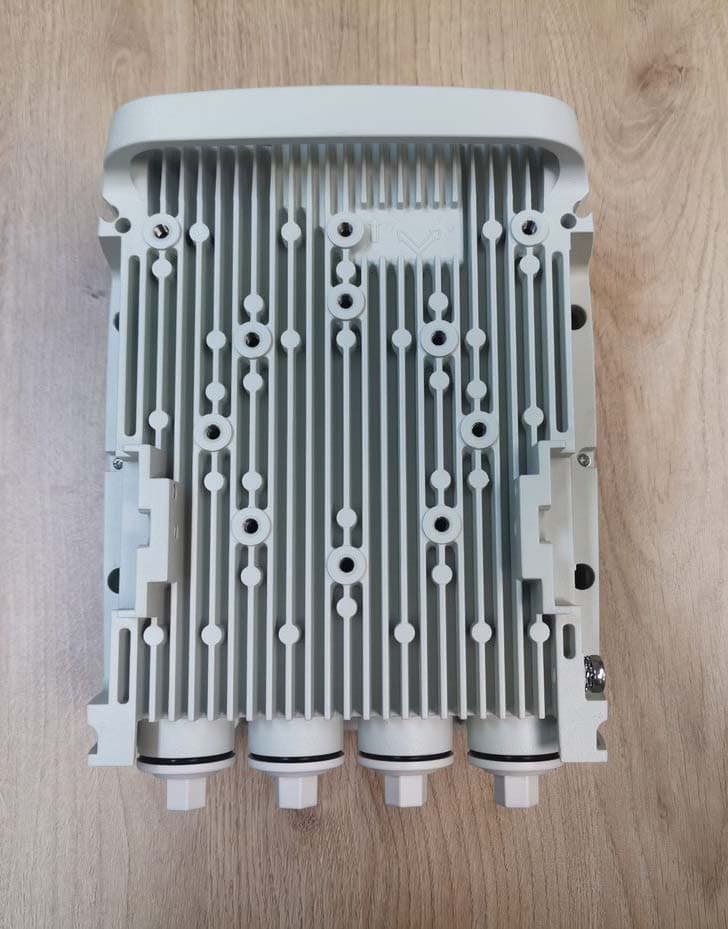

Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 1 of 5 EXTERNAL PHOTOGRAPHS This document contains 4 photographs Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 2 of 5 Photograph No.1 MH-T280-CCP-PoE-MWB front view Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 3 of 5 Photograph No.2 MH-T280-CCP-PoE-MWB bottom view Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 4 of 5 Photograph No.3 MH-T280-CCP-PoE-MWB top view Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 5 of 5 Photograph No.4 MH-T280-CCP-PoE-MWB bottom view

Siklu Communication Ltd. FCC ID:2ACYESK-MH60TG-A3 Page 1 of 2 LABEL The label is affixed on the side of the radio unit as shown below. The label material is PVC with a permanent adhesive. Model:MH-T280-CCP-PoE-MWB Model:MH-T280-CNN-PoE-MWB Model:MH-T270-CCP-PoE-MWB Siklu Communication Ltd. FCC ID:2ACYESK-MH60TG-A3 Page 2 of 2 Model:MH-T270-CNN-PoE-MWB Label location

Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 1 of 7 INTERNAL PHOTOGRAPHS This document contains 6 photographs Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 2 of 7 Photograph No.1 MH-T280-CCP-PoE-MWB Main bottom Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 3 of 7 Photograph No.2 MH-T280-CCP-PoE-MWB RF Main top on the chassis Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 4 of 7 Photograph No.3 MH-T280-CCP-PoE-MWB RF Main top Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 5 of 7 Photograph No.4 MH-T280-CCP-PoE-MWB RF top on the chassis Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 6 of 7 Photograph No.5 MH-T280-CCP-PoE-MWB RF bottom Siklu Communication Ltd. FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 Page 7 of 7 Photograph No.6 MH-T280-CCP-PoE-MWB RF top

Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Tel. +972-4-6288001 Fax. +972-4-6288277 E-mail: [email protected] Report ID: SIKRAD_42253_RFexposure Date of Issue: 22-Jun-21 Page 1 of 20 RF EXPOSURE ASSESSMENT REPORT ACCORDING TO: FCC 47 CFR part 1 sections 1.1307 and 1.1310 FOR: Siklu Communication Ltd. MultiHaul™ TG Long Reach Terminal Unit Models: MH-T280-CCP-PoE-MWB MH-T280-CNN-PoE-MWB MH-T270-CCP-PoE-MWB MH-T270-CNN-PoE-MWB FCC ID: 2ACYESK-MH60TG-A3 Report ID: SIKRAD_42253_RFexposure June 16, 2021 Page 2 of 20 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 Products Description ..................................................................................................................................................... 5 6.1 General ......................................................................................................................................................................... 5 6.2 Maximum antenna gain ................................................................................................................................................. 5 6.3 Maximum output power ................................................................................................................................................. 6 7 RF exposure assessment .............................................................................................................................................. 7 7.1 General ......................................................................................................................................................................... 7 7.2 Limitation of exposure of the general public .................................................................................................................. 8 7.3 Compliance boundary ................................................................................................................................................... 9 7.4 Assessment of compliance boundary of dish antenna systems .................................................................................... 9 7.5 Guidance on compliance boundary of a dish N/A integrated antenna ......................................................................... 15 7.6 Guidance on compliance boundary of a dish EH-ANT-1ft-60GHz antenna ................................................................. 16 7.7 Guidance on compliance boundary of a dish EH-ANT-2ft-60GHz antenna ................................................................. 17 8 APPENDIX A Test laboratory description .................................................................................................................... 18 9 APPENDIX B Specification references........................................................................................................................ 18 10 APPENDIX F Manufacturer’s declaration .................................................................................................................... 19 11 APPENDIX C Abbreviations and acronyms ................................................................................................................ 20 Report ID: SIKRAD_42253_RFexposure June 16, 2021 Page 3 of 20 1 Applicant information Client name: Siklu Communication Ltd. Address: 43 Hasivim street, Petach-Tikva 49517, Israel Telephone: +972 3921 4015 Fax: +972 3921 4162 E-mail: [email protected] Contact name: Mr. Igor Efimov 2 Equipment under test attributes Product name: MultiHaul™ TG Long Reach Terminal Unit Product type: Transceiver Model(s): MH-T280-CCP-PoE-MWB Serial number: S040000026 Hardware version: A0 Software release: R1.0.3 Receipt date 28-Oct-20 3 Manufacturer information Client name: Siklu Communication Ltd. Address: 43 Hasivim street, Petach-Tikva 49517, Israel Telephone: +972 3921 4015 Fax: +972 3921 4162 E-mail: [email protected] Contact name: Mr. Igor Efimov 4 Test details Project ID: 42253 Location: Hermon Laboratories Ltd. Harakevet Industrial Zone, Binyamina 30500, Israel Project started: 16-Jun-2021 Project completed: 16-Jun-2021 Test specification: FCC 47 CFR part 1 sections 1.1307 and 1.1310 Report ID: SIKRAD_42253_RFexposure June 16, 2021 Page 4 of 20 5 Tests summary Test Status FCC 47 CFR part 1 sections 1.1307 and 1.1310 and OET Bulletin 65 section 2 standard requirements Environmental evaluation and exposure limit Pass This test report supersedes the previously issued test report identified by Doc ID: SIKRAD_FCC.42253_RFexposure Note: It is manufacturer responsibility to make information on RFexposure and safety boundary available to installers and end users. Name and Title Date Signature Issued by: Mrs. S. Peysahov Sheynin, test engineer, EMC & Radio 16-Jun-21 Approved by: Mr. M. Nikishin, group manager, EMC & Radio 21-Jun-21 Report ID: SIKRAD_42253_RFexposure June 16, 2021 Page 5 of 20 6 Products Description 6.1 General The EUT is the MultiHaul™ Long Range Terminal unit. The unit operates in 57-66GHz regulated V-band using the TG protocol. It supports both PtP (Point-to-Point) and PtMP (Point-to-Multipoint) applications. In P…

Text truncated - open the document above for the full version.

Hermon Laboratories Ltd. P.O. Box 23, Binyamina 3055001, Israel Tel. +972 4628 8001 Fax. +972 4628 8277 E-mail: [email protected] Page 1 of 101 Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 ELECTRICAL TESTING 0839.01 TEST REPORT ACCORDING TO: FCC 47 CFR part 15 section 15.255 and subpart B; RSS-210 issue 10 Annex J, RSS-Gen issue 5 FOR: Siklu Communication Ltd. MultiHaul™ TG Long Reach Terminal Unit Models: MH-T280-CCP-PoE-MWB MH-T280-CNN-PoE-MWB MH-T270-CCP-PoE-MWB MH-T270-CNN-PoE-MWB FCC ID: 2ACYESK-MH60TG-A3 IC: 12353A-MH60TGA3 This report is in conformity with ISO/ IEC 17025. The "A2LA Accredited" symbol endorsement applies only to the tests and calibrations that are listed in the scope of Hermon Laboratories accreditation. The test results relate only to the items tested. This test report shall not be reproduced in any form except in full with the written approval of Hermon Laboratories Ltd. Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Page 2 of 101 Table of contents 1 Applicant information ..................................................................................................................................................... 3 2 Equipment under test attributes .................................................................................................................................... 3 3 Manufacturer information .............................................................................................................................................. 3 4 Test details .................................................................................................................................................................... 3 5 Tests summary .............................................................................................................................................................. 4 6 EUT description ............................................................................................................................................................. 5 6.1 General information ....................................................................................................................................................... 5 6.2 Ports and lines .............................................................................................................................................................. 5 6.3 Changes made in the EUT ............................................................................................................................................ 5 6.4 Test configuration .......................................................................................................................................................... 6 6.5 Transmitter characteristics ............................................................................................................................................ 7 7 Transmitter tests............................................................................................................................................................ 8 7.1 Transmitter power test ................................................................................................................................................... 8 7.2 Occupied bandwidth test ............................................................................................................................................. 15 7.3 Field strength of emissions .......................................................................................................................................... 20 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz ................................................................................... 33 7.5 Frequency stability test ................................................................................................................................................ 74 7.6 Conducted emissions .................................................................................................................................................. 77 7.7 Antenna requirements ................................................................................................................................................. 80 8 Emission tests according to 47CFR part 15 subpart B requirements .......................................................................... 81 8.1 Conducted emission .................................................................................................................................................... 81 8.2 Radiated emission measurements .............................................................................................................................. 84 9 APPENDIX A Test equipment and ancillaries used for tests ....................................................................................... 88 10 APPENDIX B Measurement uncertainties ................................................................................................................... 90 11 APPENDIX C Test laboratory description ................................................................................................................... 91 12 APPENDIX D Specification references ....................................................................................................................... 91 13 APPENDIX E Test equipment correction factors ......................................................................................................... 92 14 APPENDIX F Manufacturer’s declaration .................................................................................................................. 100 15 APPENDIX G Abbreviations and acronyms .............................................................................................................. 101 Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Page 3 of 101 1 Applica…

Text truncated - open the document above for the full version.

Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(2), RSS-210 section J.3, Out of band radiated emissions below 40 GHz Test procedure: 47 CFR, Section 2.1053; ANSI C63.10, Section 9.13 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 29 of 101 Plot 7.3.7 Radiated emission measurements from 1000 to 18000 MHz at low frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) Plot 7.3.8 Radiated emission measurements from 1000 to 18000 MHz at mid frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) 0 10 20 30 40 50 60 70 80 90 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Level in dBμV/m Frequency in GHz 14.619833333 GH z 51.496 dB μV /m 0 10 20 30 40 50 60 70 80 90 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Level in dBμV/m Frequency in GHz 7.830033333 G H z 52.025 dB μV /m Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(2), RSS-210 section J.3, Out of band radiated emissions below 40 GHz Test procedure: 47 CFR, Section 2.1053; ANSI C63.10, Section 9.13 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 30 of 101 Plot 7.3.9 Radiated emission measurements from 1000 to 18000 MHz at high frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) 0 10 20 30 40 50 60 70 80 90 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 Level in dBμV/m Frequency in GHz 17.981866667 GH z 51.138 dB μV /m Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(2), RSS-210 section J.3, Out of band radiated emissions below 40 GHz Test procedure: 47 CFR, Section 2.1053; ANSI C63.10, Section 9.13 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 31 of 101 Plot 7.3.10 Radiated emission measurements from 18000 to 40000 MHz at low frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) Plot 7.3.11 Radiated emission measurements from 18000 to 40000 MHz at mid frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) 0 10 20 30 40 50 60 70 80 90 18G 30G40G Level in dBμV/m Frequency in Hz 38.715200000 GH z 59.046 dB μV /m 0 10 20 30 40 50 60 70 80 90 18G 30G40G Level in dBμV/m Frequency in Hz 38.745266667 GH z 59.684 dB μV /m Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(2), RSS-210 section J.3, Out of band radiated emissions below 40 GHz Test procedure: 47 CFR, Section 2.1053; ANSI C63.10, Section 9.13 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 32 of 101 Plot 7.3.12 Radiated emission measurements from 18000 to 40000 MHz at high frequency TEST SITE: Semi anechoic chamber TEST DISTANCE: 3 m ANTENNA POLARIZATION: Vertical and Horizontal EUT POSITION: Typical (Vertical) 0 10 20 30 40 50 60 70 80 90 18G 30G40G Level in dBμV/m Frequency in Hz 38.787800000 GH z 58.805 dB μV /m Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 33 of 101 7.4 Out of band radiated emissions above 40 GHz up to 200 GHz 7.4.1 General This test was performed to measure radiated spurious emissions from the EUT. Specification test limits are given in Table 7.4.1. Table 7.4.1 Spurious emission field strength limits Frequency, GHz Power density at 3 m distance pW/cm 2 Distance, m Field strength dB(V/m)*, peak Field strength dB(V/m)*, average 40 – 220 90.0 3.0 105.30 85.30 75 - 110 90.0 0.50 120.90** 100.90** 110 - 140 90.0 0.05 140.90** 120.90** 140 - 200 90.0 0.01 154.80** 134.80** *- The limit is provided in average values. **- The limit for 1 m and other test distance was calculated using the inverse distance extrapolation factor as follows: for far field: Lim S2 = Lim S1 + 20 log (S 1 /S 2 ), where S 1 – standard defined distance in meters; S 2 – measurement distance in meters (according to ANSI C63.10) 7.4.2 Test procedure for spurious emission field strength measurements 7.4.2.1 The EUT was set up as shown in Figure 7.4.1, energized and the performance check was conducted. 7.4.2.2 The specified frequency range was investigated with antenna connected to spectrum analyzer/ EMI receiver. To find maximum radiation the turntable was rotated 360 0 , the measuring antenna height was changed from 1 to 4 m, its polarization was switched from vertical to horizontal. 7.4.2.3 The test results are given in Table 7.4.2 and shown in the associated plots. Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 34 of 101 Figure 7.4.1 Spurious emission field strength above 40 GHz test set up Spectrum analyzer/ EMI receiver Test antenna Test antenna EUT Ground plane 1.0m 4.0m 1.5 m Height Test distance Ferrites Power supply Auxilliary equipment Flush mo…

Text truncated - open the document above for the full version.

Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 67 of 101 Plot 7.4.45 Spurious emission measurements in 150 - 160 GHz range TEST SITE: OATS TEST DISTANCE: 0.01 m ANTENNA POLARIZATION: Vertical and Horizontal DETECTOR: Peak RBW = 1 MHz; VBW = 3 MHz DETECTOR: Average RBW = 1 MHz; VBW = 100 kHz High carrier frequency: 64800 MHz Plot 7.4.46 Spurious emission measurements in 160 - 170 GHz range TEST SITE: OATS TEST DISTANCE: 0.01 m MODULATION: 16QAM ANTENNA POLARIZATION: Vertical and Horizontal DETECTOR: Peak RBW = 1 MHz; VBW = 3 MHz DETECTOR: Average RBW = 1 MHz; VBW = 100 kHz Low carrier frequency: 58320 MHz Report ID: SIKRAD_FCC.42253_Rev3 Date of Issue: 27-Jun-21 Test specification: FCC Section 15.255(d)(3), RSS-210 section J.3, Out of band radiated emissions above 40 GHz Test procedure: ANSI C63.10, Sections 9.9, 9.12 Test mode: Compliance Verdict: PASS Date(s): 04-Apr-21 Temperature: 21 ºC Relative Humidity: 39 % Air Pressure: 1010 hPa Power: 48 VDC Remarks: Page 68 of 101 Plot 7.4.47 Spurious emission measurements in 160 - 170 GHz range TEST SITE: OATS TEST DISTANCE: 0.01 m ANTENNA POLARIZATION: Vertical and Horizontal DETECTOR: Peak RBW = 1 MHz; VBW = 3 MHz DETECTOR: Average RBW = 1 MHz; VBW = 100 kHz Mid carrier frequency: 62640 MHz Plot 7.4.48 Spurious emission measurements in 160 - 170 GHz range TEST SITE: OATS TEST DISTANCE: 0.01 m ANTENNA POLARIZATION: Vertical an…
