2ADHKA092534A09-2534

A09-2534 USER GUIDLINES The A09-2534 device SAMB11 Xpro is an ultra-low power Bluetooth ® SMART (BLE 4.1) Evaluation Board with Integrated Transceiver, Modem, MAC, PA, TR Switch, and Power Management Unit (PMU). It can be used as a Bluetooth Low Energy link controller or data pump with external host MCU. The qualified Bluetooth ® Smart protocol stack is stored in dedicated ROM, the firmware includes L2CAP service layer protocols, Security Manager, Attribute protocol (ATT), Generic Attribute Profile (GATT) and the Generic Access Profile (GAP). Additionally, application profiles such as Proximity, Thermometer, Heart Rate, Blood Pressure and many others are supported and included in the protocol stack. The module contains all circuitry required including a ceramic high gain antenna, 26MHz crystal and PMU circuitry. The customer simply needs power the board with an external +5V DC supply or by connecting the board to a USB host. The following connections are required for the proper operation: - +5VDC supply to power the BLE module and all components including supplying the on-chip regulators which supply the Power Amplifier. The module must not be co-located or operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the module/product. - Increase the separation between the equipment and module/product. - Consult the dealer or an experienced radio/TV technician for help. Changes and modifications made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

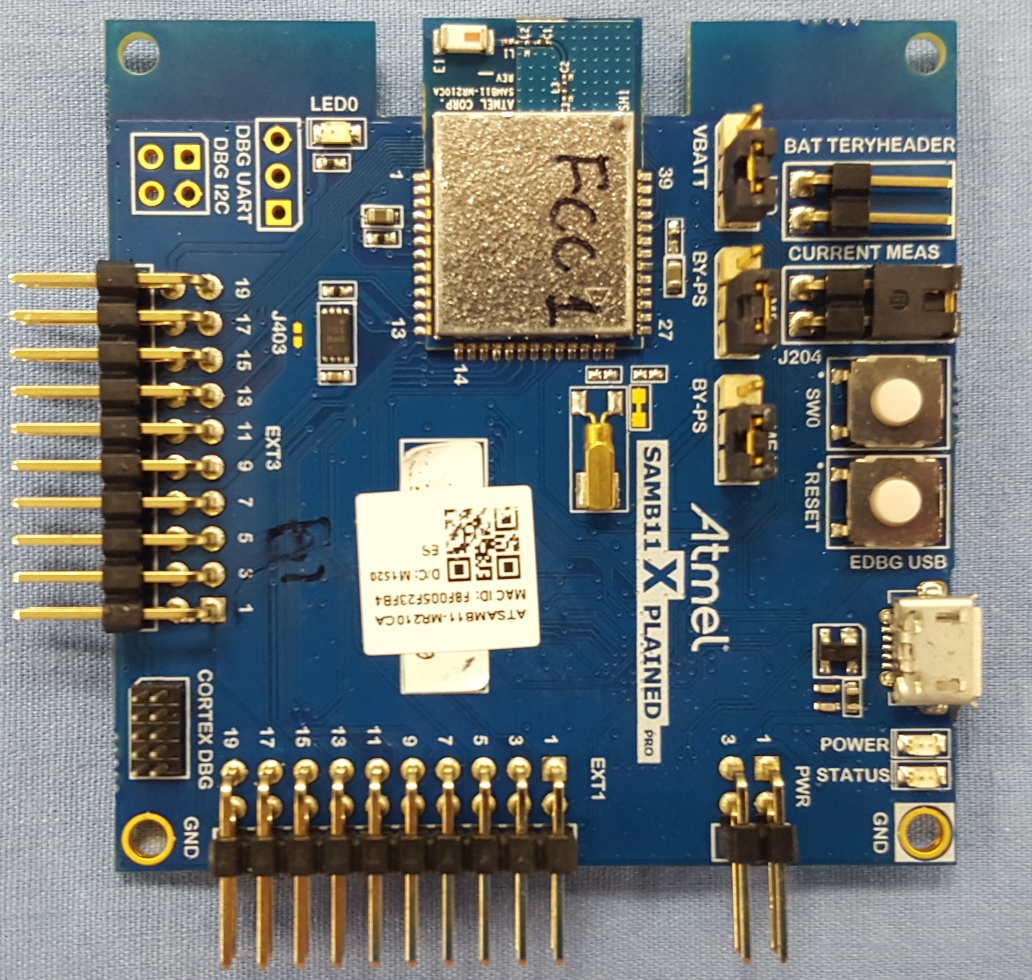

SAMB11 XPRO

This device FCC ID: is excluded from SAR testing by the following justification The maximum power that the transmitter is capable o f is 1.78 mW Applied duty cycle? no Using the following formula from section 4.3.1 of K DB 447498 at test separation distances ≤ 50 mm [(max. power of channel, including tune-up toleranc e, mW) / (min. test separation distance, mm)] * [ √ f(GHz)] Duty Cycle 50.00% Value 1-g (mW) 10-g (mW) 0.56 (355) -212 "Value" shall be ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR 1-g power limit 10-g power limit 95 238 “source-based” time-averaging based on an inherent property or duty-cycle of a device is allowed. An e xample of this is the determination of exposure from a device that uses digital technology such as a time-division mu ltiple-access (TDMA) scheme for transmission of a 2ADHKA092534 Max Peak Power (dBm) Min Separation distance (mm) Fre quency (Ghz) < 50mm power limits for above frequency and distanc e When the minimum test separation distance is < 5 mm , a distance of 5 mm according to 5) in section 4.1 is applied to determine SAR test exclusion. 2.48 5 2.5

Report Number: D51009R1 FCC ID: 2ADHKA092534 FCC Part 15 Subpart C Section 15.247 and RSS 247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 1 of 19 FCC PART 15 SUBPART C & RSS 247 TEST REPORT for SAMB11 X PRO Model: A09-2534 Prepared for ATMEL CORPORATION 1 SPECTRUM POINTE DR., SUITE 225 LAKE FOREST, CA 92630 Prepared by:_____________________ TOREY OLIVER Approved by:____________________ MATT HARRISON COMPATIBLE ELECTRONICS INC. 20621 PASCAL WAY LAKE FOREST, CALIFORNIA 92630 (949) 587-0400 DATE: OCTOBER 09, 2015 REPORT APPENDICES TOTAL BODY A B C D E PAGES 19 2 2 2 15 37 77 This report shall not be reproduced except in full, without the written approval of Compatible Electronics. Report Number: D51009R1 FCC ID: 2ADHKA092534 FCC Part 15 Subpart C Section 15.247 and RSS 247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 2 of 19 TABLE OF CONTENTS Section / Title PAGE GENERAL REPORT SUMMARY 4 SUMMARY OF TEST RESULTS 5 1. PURPOSE 6 2. ADMINISTRATIVE DATA 7 2.1 Location of Testing 7 2.2 Traceability Statement 7 2.3 Cognizant Personnel 7 2.4 Date Test Sample was Received 7 2.5 Disposition of the Test Sample 7 2.6 Abbreviations and Acronyms 7 3. APPLICABLE DOCUMENTS 8 4. DESCRIPTION OF TEST CONFIGURATION 9 4.1 Description of Test Configuration 9 4.1.1 Photograph Test Configuration 9 4.1.2 Cable Construction and Termination 10 5. LISTS OF EUT, ACCESSORIES AND TEST EQUIPMENT 11 5.1 EUT and Accessory List 11 5.2 EMI Test Equipment 12 6. TEST SITE DESCRIPTION 13 6.1 Test Facility Description 13 6.2 EUT Mounting, Bonding and Grounding 13 6.3 Facility Environmental Characteristics 13 7. CHARACTERISTICS OF THE TRANSMITTER 14 7.1 Channel Number and Frequencies 14 7.2 Antenna 14 8. TEST PROCEDURES 15 8.1 RF Emissions 15 8.1.1 Conducted Emissions Test 15 8.1.2 Radiated Emissions (Spurious and Harmonics) Test 16 8.1.3 DTS Bandwidth 17 8.1.4 Maximum Peak Conducted Output Power 17 8.1.5 Maximum Peak Power Spectral Density Level In The Fundamental Emission 17 8.1.6 Emissions in Non-Restricted Frequency Bands (in 100kHz Bandwidth) 18 8.1.7 Emissions in the Restricted Bands (Radiated) 18 8.1.8 Emissions Radiated Outside of the Fundamental Frequency Band 18 9. TEST PROCEDURE DEVIATIONS 19 10. CONCLUSIONS 19 Report Number: D51009R1 FCC ID: 2ADHKA092534 FCC Part 15 Subpart C Section 15.247 and RSS 247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 3 of 19 LIST OF APPENDICES APPENDIX TITLE A Laboratory Accreditations and Recognitions B Modifications to the EUT C Additional Models Covered Under This Report D Diagrams, Factors, Charts, and Photos  Test Setup Diagrams  Antenna and Amplifier Factors  Radiated and Conducted Emissions Photos E Radiated and Conducted Emissions Data Sheets LIST OF FIGURES FIGURE TITLE 1 Plot Map And Layout of Test Site Below 1GHz 2 Plot Map And Layout of Test Site Above 1GHz 3 Conducted Emissions Test Setup Report Number: D51009R1 FCC ID: 2ADHKA092534 FCC Part 15 Subpart C Section 15.247 and RSS 247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 4 of 19 GENERAL REPORT SUMMARY This electromagnetic emission test report is generated by Compatible Electronics Inc., which is an independent testing and consulting firm. The test report is based on testing performed by Compatible Electronics personnel according to the measurement procedures described in the test specifications given below and in the "Test Procedures" section of this report. The measurement data and conclusions appearing herein relate only to the sample tested and this report may not be reproduced in any form unless done so in full with the written permission of Compatible Electronics. This report must not be used to claim product certification, approval or endorsement by NVLAP, NIST, or any agency of the federal government. Device Tested: SAMB11 X PRO Model: A09-2534 S/N: N/A Product Description: The EUT is an ultra-low power Bluetooth® SMART (BLE 4.1) Evaluation Board with Integrated Transceiver, Modem, MAC, PA, TR Switch, and Power Management Unit (PMU). Modifications: The EUT was modified in order to comply with specifications. Please see the list of modifications in Appendix B. Manufacturer: Atmel Corporation 1 Spectrum Pointe Dr., Suite 225 Lake Forest, CA 92630 Test Dates: October 8, 9, 2015 Test Specifications: EMI requirements CFR Title 47, Part 15 Subpart C Sections 15.205, 15.207, 15.209, & 15.247. RSS 247 & RSS GEN Test Procedure: ANSI C63.4 & C63.10, and KDB 558074 D01 v03r03. Report Number: D51009R1 FCC ID: 2ADHKA092534 FCC Part 15 Subpart C Section 15.247 and RSS 247 Test Report Brea Division 114 Olinda Drive Brea, CA 92823 (714) 579-0500 Agoura Division 2337 Troutdale Drive Agoura, CA 91301 (818) 597-0600 Silverado Division 19121 El Toro Road Silverado, CA 92676 (949) 589-0700 Lake Forest Division 20621 Pascal Way Lake Forest, CA 92630 (949) 587-0400 Page 5 of 19 SUMMARY OF TEST RESULTS TEST DESCRIPTION RESULTS 1 Conducted RF Emissions, 150 kHz - 30 MHz Complies with the limits of CFR Title 47 Part 15 Subpart C Section 15.207 and RSS GEN 2…
