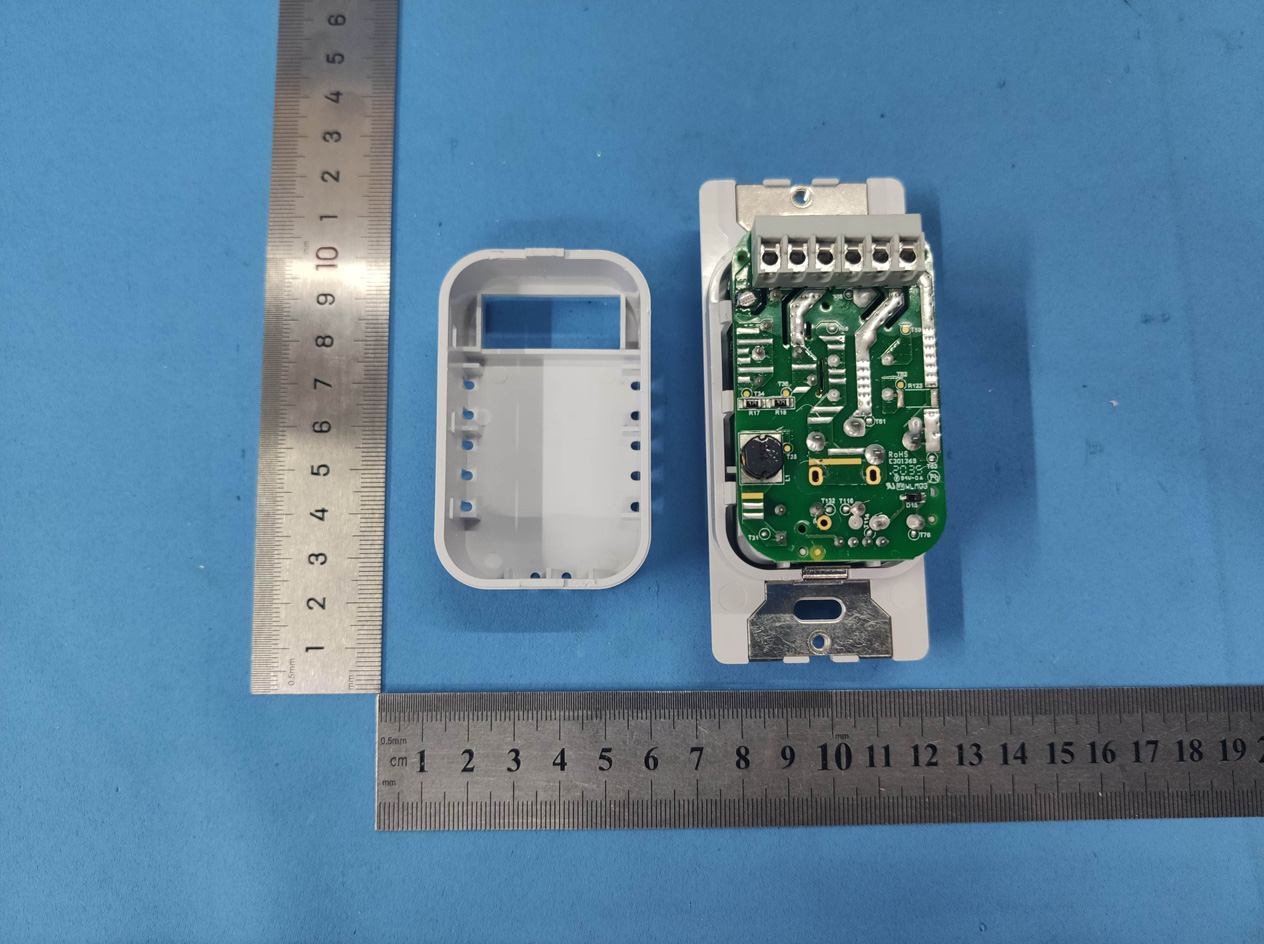

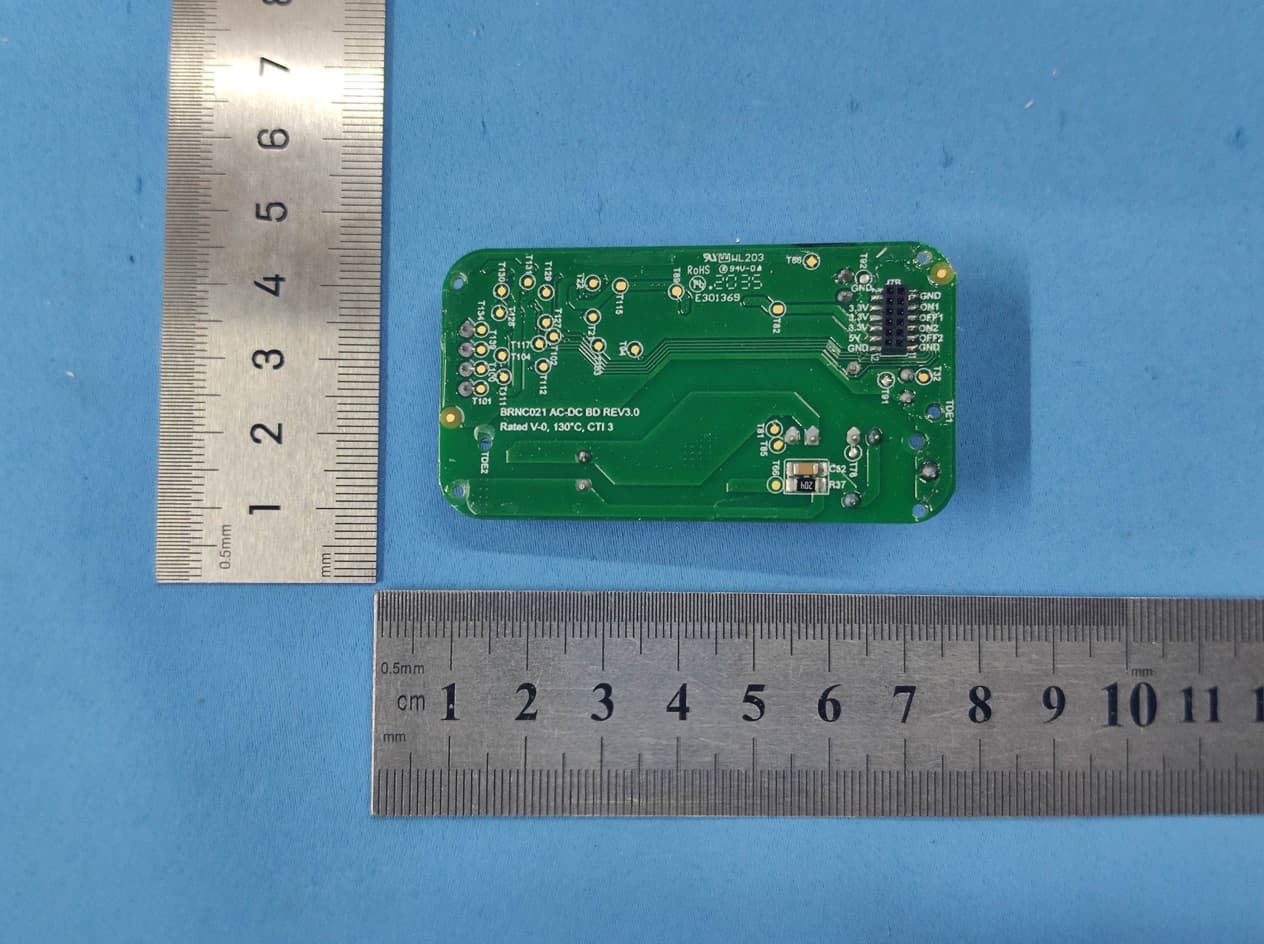

2ADLL-1103434Wall control

Overture TM WALL CONTROL INCLUDED Wall Control Part No. 1103434 User Manual Quick Start Guide Note: Wall plate not included – Use Broan Part No. S97012925 (or equivalent) 1103414A For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan-NuTone.com 800-558-1711. In Canada - Broan.ca or NuTone.ca 877-896-1119 CONTROL SPECIFICATIONS • cULus Listed • 120 VAC 60 Hz Line Power • Maximum load ½ HP Motor, 15A Resistive, 15A Inductive, 3A Incandescent, 0.6A Electronic Ballast • When used in combination with fan/light fixtures that are switched together, the device is rated for the following lamps: 360W Incandescent, 72W LED, or 72W CFL • For Control of Electronic Ballast, CFLs, LED and LED lamps or the equivalent • Typical Wire Sizes: 12AWG (MAX) or 14AWG solid copper wire rated for at least 90°C • Operating temperature: 32-95°F (0-35°C) • Purpose of Control: Operating Control • Rated impulse voltage: 2500 V SAFETY TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Before installing the wall control, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. CAUTION: Risk of Electric Shock - More than one disconnect switch may be required to de-energize the equipment before servicing. 2. All electrical work must be done in accordance with local codes, ordinances, or National Electrical Code, as applicable, including fire-rated construction codes and standards. FOR SAFETY, THIS PRODUCT MUST BE GROUNDED. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician. 3. Use copper wire only. 4. WARNING: This device shall not be used in combination with a wall switch controlling a receptacle. 5. Install only in a UL Listed junction box sized 2.0 x 3.0 x 3.0 in. (50.8 x 76.2 x 76.2 mm) or larger, with a minimum volume of 18.0 in 3 (295 CM 3 ) for 14AWG wiring and 20.0 in 3 (328 CM 3 ) for 12AWG wiring. 6. This control requires a neutral wire for operation. 7. When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities. 8. To prevent serious injury from electrical shock or damage to electrical components - DO NOT WIRE HOT! 9. The automatic operation feature is Type 1 action, according to UL 60730-1. 10. The enclosure protection rating is IP30. 11. The product is Pollution Degree 2, which is intended to be used in a household environment or similar. 12. The devices are not intended for use in locations where the temperature may be less than actual room conditions, such as unheated warehouses or garages. 13. Avoid water and wet locations. Keep the device away from water, fire, excessive humidity, or hot environments. 14. Do not use the device where wireless devices are not allowed. 15. Do not attempt to disassemble, repair, or modify the device. Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us. 16. Note: When power is applied, the Wall Control 1103434 may require approximately 30 seconds to boot up and be ready to function. 17. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own risk. Warranty is void if miswired. INSTALLATION NOTE: This control requires a 120 VAC source (hot and neutral) in the switch box to operate the wall control. 1. Turn off the power and lockout the service panel before wiring the control. 2. Location Notes: a. For bathroom applications, the control should be placed at a level to detect humidity. Placing the control directly above a heater or near drafts is NOT recommended. b. For bathroom applications, the Wall Control should be placed in close proximity to the shower/tub/sink/ etc. (the main source of humidity/steam/VOC) and at sink height or higher for effective monitoring of your indoor air quality. c. Place your Wall Control within the range of your Wi-Fi router or access point (approximately 100 feet). d. Avoid physical obstructions and radio interference in the surrounding area. 3. Install the wall control in at least a 3” deep switch box for #14 AWG wire or at least a 3 ½” deep switch box for #12 AWG wire. The control can be installed in either a metal outlet box or a plastic outlet box. 4. Attach the incoming power line and ventilator power line to switch box. It may be necessary to use two side knockouts for some applications. Use proper connectors. Provide 6” leads inside box and ventilation product. 5. Make electrical connections following the diagrams provided below or in the Broan-NuTone Overture TM app. Use wire nuts. Make sure both the control and the ventilator are properly grounded. Wire terminals accept up to #12 AWG MAX solid wire. a. Loosen screw terminals. b. Strip wire 0.275” and insert the bare wire into the screw terminal opening. c. Tighten the terminal screw, making sure wire remains under the clamp. Torque the terminal screws to 3.5 in-lbs (.4 N-m). d. Note: Do not reuse wire formed into a “J” loop or wrapped around screw threads. The screw terminal is designed for the straight insertion of stripped wire for proper mechanical and electrical connection. 6. Tuck wires in and fasten control to switch box using attached screws. Verify wall control orientation before installation. Note “TOP” direction shown on the wall control label. 7. Attach switch plate (not included) using color-matched oval head screws. 8. Download the Broan-NuTone Overture TM App for step by step set-up instructions to connect your Wall Control to the Overture…

Text truncated - open the document above for the full version.

Broan-NuTone LLC DATE : 2020-11-16 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADLL-1103434 Product Name: Wall control Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Darren McArthur Title: Principal Regulatory Engineer Company: Broan-NuTone LLC

DATE:2020-11-16 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.andNo. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Broan-NuTone LLC and 926 West State Street, Hartford, Wisconsin 53027, United States Signature: Name: Darren McArthur Title: Principal Regulatory Engineer Company: Broan-NuTone LLC

Label location

4.Material: 3m7816 5单排卷装来料。 6. F: Shaft Inner Diameter=75mm 7. G: ≤Φ150mm

FCC ID: 2ADLL-1103434 RF Exposure Evaluation FCC Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 )6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 )30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2ADLL-1103434 Test Result of RF Exposure Evaluation Wifi Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 )Result Lowest 199.99 0.08355 1.0 PASS Middle 172.98 0.07227 1.0 PASS Highest 169.43 0.07079 1.0 PASS BLE Channel Output power to antenna (mW) Power Density at R=20cm (mW/cm 2 ) Limit (mW/cm 2 )Result Lowest 3.80 0.00159 1.0 PASS Middle 4.71 0.00197 1.0 PASS Highest 5.35 0.00223 1.0 PASS Antenna gain: 3.23dBi

Global United Technology Services Co., Ltd. Report No.: GTS202011000034-01 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 50 TEST REPORT Applicant: Broan-NuTone LLC Address of Applicant: 926 West State Street, Hartford, Wisconsin 53027, United States Manufacturer /Factory: Computime Electronics (Shenzhen) Company Limited Address of Manufacturer/Factory: Yuekenguangyu Industrial Park,Kangqiao Road 88#, Danzhutou Community, Nanwan Street office,Longgang District, Shenzhen, China Equipment Under Test (EUT) Product Name: Wall control Model No.: 1103434 Trade Mark: Broan-NuTone FCC ID: 2ADLL-1103434 IC: 2143B-1103434 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-Gen Issue 5 RSS-247 Issue 2 Date of sample receipt: November 04, 2020 Date of Test: November 05-13, 2020 Date of report issued: November 16, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202011000034-01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 50 2 Version Version No. Date Description 00 November 16, 2020 Original Prepared By: Date: November 16, 2020 Project Engineer Check By: Date: November 16, 2020 Reviewer Report No.: GTS202011000034-01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 50 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 TEST FACILITY .................................................................................................................................... 7 5.5 TEST LOCATION ................................................................................................................................. 7 5.6 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH .......................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 20 7.6 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 23 7.6.1 Conducted Emission Method ..................................................................................................... 23 7.6.2 Radiated Emission Method ........................................................................................................ 32 7.7 FREQUENCY STABILITY ..................................................................................................................... 47 8 TEST SETUP PHOTO ............................................................................................................................ 50 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 50 Report No.: GTS202011000034-01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 50 4 Test Summary Test Item Section Result Antenna requirement FCC part 15.203/15.247 (c) RSS-Gen Section 6.8 Pass AC Power Line Conducted Emission FCC part 15.207 RSS-Gen Section 8.8 Pass Conducted Peak Output Power FCC part 15.247 (b)(3) RSS-247 Section 5.4(d) Pass Channel …

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTS202011000034-02 Authorized Signature: Robinson Lo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 40 TEST REPORT Applicant: Broan-NuTone LLC Address of Applicant: 926 West State Street, Hartford, Wisconsin 53027, United States Manufacturer /Factory: Computime Electronics (Shenzhen) Company Limited Address of Manufacturer/Factory: Yuekenguangyu Industrial Park,Kangqiao Road 88#, Danzhutou Community, Nanwan Street office,Longgang District, Shenzhen, China Equipment Under Test (EUT) Product Name: Wall control Model No.: 1103434 Trade Mark: Broan-NuTone FCC ID: 2ADLL-1103434 IC: 2143B-1103434 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 RSS-247 Issue 2 RSS-Gen Issue 5 Date of sample receipt: November 04, 2020 Date of Test: November 05-13, 2020 Date of report issued: November 16, 2020 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202011000034-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 40 2 Version Version No. Date Description 00 November 16, 2020 Original Prepared By: Date: November 16, 2020 Project Engineer Check By: Date: November 16, 2020 Reviewer Report No.: GTS202011000034-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 40 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 7 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED OUTPUT POWER ........................................................................................................... 14 7.4 CHANNEL BANDWIDTH & 99% OCCUPY BANDWIDTH .......................................................................... 16 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 18 7.6 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 20 7.6.1 Conducted Emission Method ..................................................................................................... 20 7.6.2 Radiated Emission Method ........................................................................................................ 23 7.7 FREQUENCY STABILITY ..................................................................................................................... 38 8 TEST SETUP PHOTO ............................................................................................................................ 40 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 40 Report No.: GTS202011000034-02 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 40…

Text truncated - open the document above for the full version.

Radiated Emission Conducted Emission
