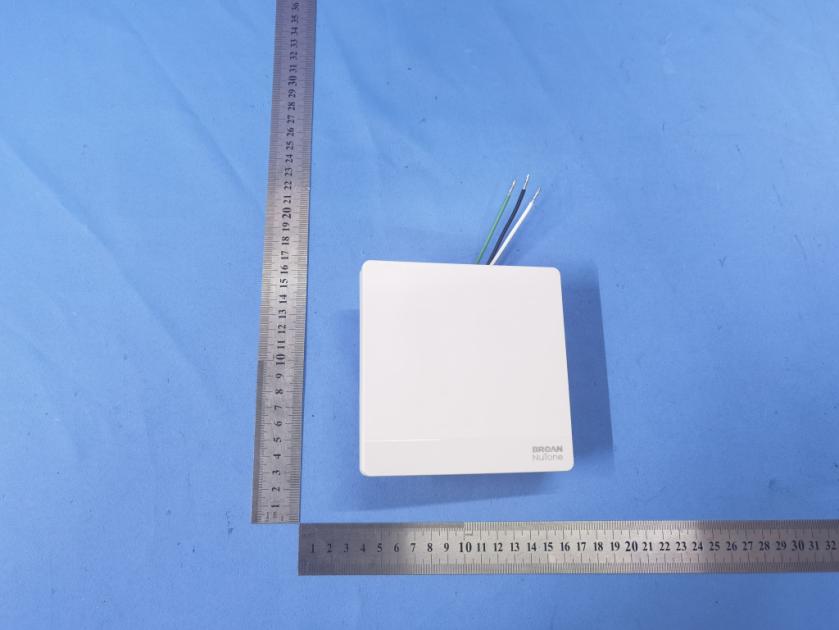

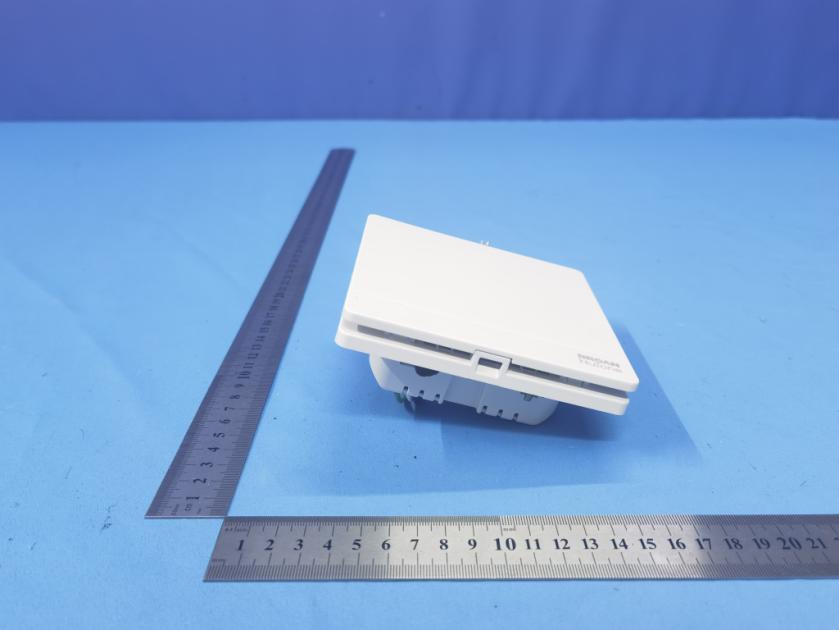

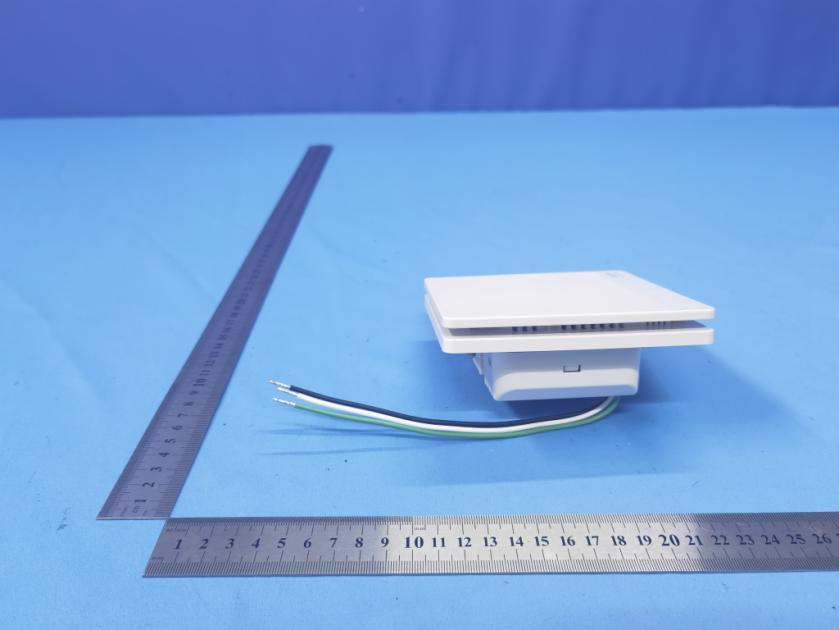

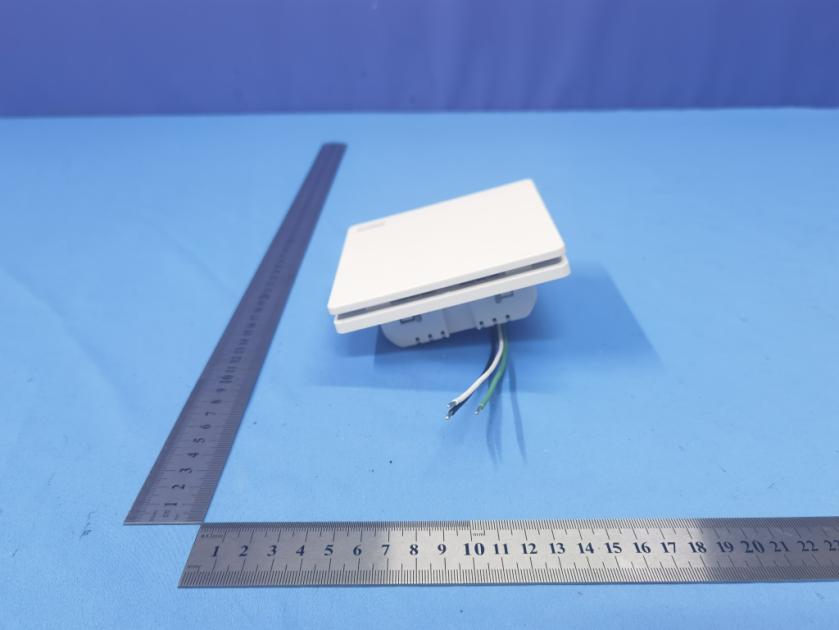

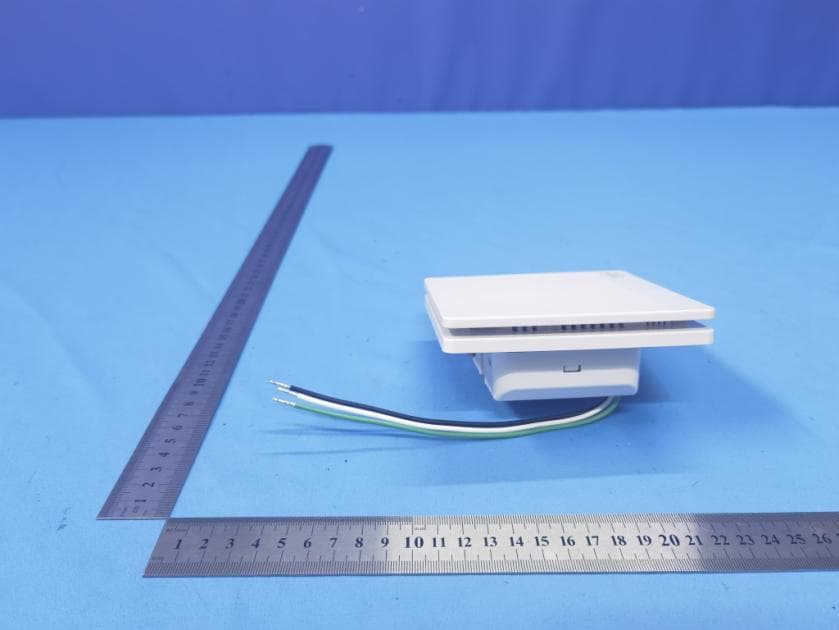

2ADLL-1110725Hardwired Room Sensor

Overture TM HARDWIRED ROOM SENSOR INCLUDED Hardwired Room Sensor Part No. 1110725 User Manual Quick Start Guide Wire Nuts: Quantity 3 For Warranty Statement, Service Parts, Technical Support, or to Register your product, please visit our website or call: In the United States - Broan-NuTone.com 800-558-1711. In Canada - Broan-NuTone.ca 800-567-3855 CONTROL SPECIFICATIONS • cULus Listed • 120 VAC 60 Hz Line Power • Typical Wire Sizes: 12 AWG (MAX) or 14 AWG solid wire rated for at least 90°C • Operating temperature: 32-95°F (0-35°C) • Purpose of Control: Operating Control • Rated impulse voltage: 2500 V SAFETY TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING: 1. Before installing the Hardwired Room Sensor, switch power off at the service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. CAUTION: Risk of Electric Shock - More than one disconnect switch may be required to de-energize the equipment before servicing. 2. All electrical work must be done in accordance with local codes, ordinances, or National Electrical Code, as applicable, including fire-rated construction codes and standards. FOR SAFETY, THIS PRODUCT MUST BE GROUNDED. If you are unfamiliar with methods of installing electrical wiring, secure the services of a qualified electrician. 3. Use copper wire only. 4. Install only in a UL Listed dual-gang junction box sized 4.0 x 3.0 x 3.0 in. (101.6 x 76.2 x 76.2 mm) or larger, with a minimum volume of 30.0 in³ (491.6 cm³) and a minimum depth of 3.0 in (76.2 cm). 5. This control requires a neutral wire for operation. 6. When cutting or drilling into wall or ceiling, do not damage electrical wiring or other hidden utilities. 7. To prevent serious injury from electrical shock or damage to electrical components - DO NOT WIRE HOT! 8. The automatic operation feature is Type 1 action, according to UL 60730-1. 9. The enclosure protection rating is IP10. 10 The product is Pollution Degree 2, which is intended to be used in a household environment or similar. 11. The devices are not intended for use in locations where the temperature may be less than actual room conditions, such as unheated warehouses or garages. 12. Avoid water and wet locations. Keep the device away from water, fire, excessive humidity, or hot environments. 13. Do not use the device where wireless devices are not allowed. 14. Do not attempt to disassemble, repair, or modify the device. Don’t disassemble the product, or make repairs yourself. You run the risk of electric shock and voiding the limited warranty. If you need service, please contact us. 15. Note: When power is applied, the Hardwired Room Sensor 1110725 may require approximately 30 seconds to boot up and be ready to function. 16. Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to the improper use of the device. Please use this product with care and operate at your own risk. Warranty is void if miswired. INSTALLATION NOTE: This control requires a 120 VAC source (hot and neutral) in the switch box to operate the Hardwired Room Sensor. 1. Turn off the power and lockout the service panel before wiring the control. 2. Location Notes: a. The control should be placed on interior walls only at switch box height from the floor. b. Keep the control away from HVAC equipment such as heat registers, cold air returns, heaters, fans, and drafts. c. Place your Hardwired Room Sensor within the range of your Wi-Fi router or access point (approximately 100 feet). d. Avoid physical obstructions and radio interference in the surrounding area. 3. Install the control in at least a 3" deep dual-gang junction box. The control can be installed in either a metal outlet box or a plastic outlet box. 4. Attach the incoming power line to switch box. It may be necessary to use two side knockouts for some applications. Use proper connectors. Provide 6" leads inside box. 5. Make electrical connections following the diagram below or on the Broan-NuTone Overture TM website. Use wire nuts. Make sure the control is properly grounded. 6. Tuck wires in and fasten control to junction box using attached screws. Verify Hardwired Room Sensor orientation before installation. Note “UP” direction shown on the front of control. 7. Attach front cover by aligning top locators and snaps on the bottom. Push to secure. 8. Download the Broan-NuTone Overture TM App for step by step set-up instructions to connect your Hardwired Room Sensor to the Overture TM system. Scan QR code to go to App Store. Regulatory Information The Overture TM Hardwired Room Sensor 1110725 is certified to comply with applicable FCC and IC rules and regulations governing RF and EMI emissions. Refer to 1110725. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. The distance between user and device should be no less than 20 cm. FCC Notice This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on…

Text truncated - open the document above for the full version.

DATE : 2023-01-12 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with Broan-NuTone LLC and 926 West State Street , Hartfor, Wisconsin 53027, United States Signature: Name: Darren McArthur Title: Regulatory Engineering Manager Company: Broan-NuTone LLC

DATE : 2023-01-12 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADLL-1110725 Product Name: Hardwired Room Sensor Request for Confidentiality To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name: Darren McArthur Title: Regulatory Engineering Manager Company: Broan-NuTone LLC

Scope of use: Suitable for Computime WIFI 2.4G antenna scheme. Electrical specifications: Frequency band 2400-2500MHz Antenna material FPC Input impedance 50Ω Antenna connection mode Second generation connector connection Standing wave ratio ≤3.0 Operating temperature -40°C～+85°C Antenna gainSee test data Long-term storage temperature +19°C～+23°C Polarization modeLinear polarization Test instruments and methods: Testing instrument Test methodTest result 1、7 x 4 x 3 microwave 2、darkroom Aglient E5071B Network analyzer 1. Assemble the antenna to be tested on the prototype to make passive test fixture 2. Place the passive fixture on the test fixture in the dark room and connect it to the network analyzer 3. Test the passive antenna data with the test software See test data Test data: 1、Passive efficiency and gain： 2、Waveform diagram： 3、Direction chart： Sample picture： Antenna installation diagram: Paste the upper right corner of the antenna flush with the shell Antenna package 1、Outer packing (carton packing) Front view:Side view: 2. Inner packaging (one small package for every 100PCS, 10 small packages and one large package, and then packing, the size of the packaging bag depends on the product size) Product material composition declaration table Product nameWIFI 2.4G ANTProduct model JBT-009A Date of declaration 2022/8/4 Company name (Seal) Shenzhen Borges Communication Technology Co. LTD Contact person Zhou Xuebing telephone 0755-86083452 Serial number Component name Homogeneous material name The amount of RoHS limiting substances contained in homogeneous materials（ppm） Test report numberTest date CdPbHgCr+6PBBPBDE 1 Antenna radiation unit Flexible copper-clad sheet with adhesive NDNDNDNDNDND SHAEC22024605042022/2/21 2 Printing ink NDNDNDNDNDND ETR218058162021/9/3 3 3M glue NDNDNDNDNDND SHAEC21187289012021/9/4 4 Wire rod Silver plated copper wire NDNDNDNDNDND SHAEC21270511152021/12/16 5 Tinned copper wire NDNDNDNDNDND SHAEC21185529052021/8/30 6 insulation NDNDNDNDNDND NGBML22001243012022/1/27 7 terminal electroplating NDNDNDNDNDND A2210343821101002E2021/8/31 8 Rubber core ND7.25NDNDNDND ETR218013812021/8/13 9 Copper plate ND68NDNDNDND SZXEC21034067222021/11/11 Made by: Liang JinghuaReviewer:Liang Deliu Explanation: The material analysis expansion table is similar to the machine BOM of our company, which describes the composition of each material provided by the supplier, and then carries out RoHS control for each composition (in other words, the supplier should carry out RoHS compliance management for his suppliers and provide the inspection certificate of each third party). A complete material analysis expansion table, which includes: 1 Material expansion table: component composition decomposition 2 Third party verification report of each component

8

G F E D C B A 1234567 8910 11 1234567 8910 11 G F E D C B A 1.953 1.362 1.761 MUST BE REACH COMPLIANT PER BPGLOBAL21: NO MUST BE COMPLIANT PER BPGLOBAL22 - PROP65: YES CHANGE NUMBER: 104466 REVISION A SHEET: 1 OF 1FORMAT SIZE: B PROPERTY OF BROAN-NUTONE LLC TO BE RETURNED UPON DEMAND. MAY INCLUDE CONFIDENTIAL, PROPRIETARY INFORMATION OF BROAN-NUTONE LLC TO BE USED OR DISCLOSED ONLY AS REQUIRED TO ACCOMPLISH THE PURPOSE INCLUDING SUBJECT OF DRAWING. BROAN-NUTONE LLC RETAINS ALL PATENT, TRADEMARK, COPY, AND TRADE SECRETS. PART NUMBER 1110079 DESCRIPTION LABEL, SPEC F/BIAQHWRS100 HARTFORD, WISCONSIN RELEASEDRAR2023-01-04104466A DESCRIPTIONBYDATECHANGE NO.REV.- DATE -APPROVED BY: TOLERANCES UNLESS OTHERWISE SPECIFIED LINEAR DIMENSION ±0.0625 ANGULAR DIMENSION ±1.0° 2023-01-04R.REVERSDRAWN BY: MAJOR: LIKELY TO CAUSE SERIOUS DAMAGE TO THE PRODUCT, SIGNIFICANTLY REDUCE THE FUNCTION, OR CAUSE UNACCEPTABLE APPEARANCE. CRITICAL: LIKELY TO RESULT IN HAZARDOUS OR UNSAFE CONDITION (SAFETY RELATED). CLASSIFIED CHARACTERISTIC SYMBOLS DIMENSIONS ARE IN INCHES [MM] THIRD ANGLE PROJECTION SEE NOTEMATERIAL: MUST BE ROHS COMPLIANT PER BPGLOBAL20: YES NOTES: 1. USE ONLY APPROVED ARTWORK 2. BLACK PRINTING ON WHITE BACKGROUND 3. COMBINATION OF LABEL MATERIALS TO BE PERMANENT AND TO BE A UL RECOGNIZED MARKING AND LABELING SYSTEM SERIAL NUMBER IN THE FORM YYWWHRNNNNNN TO BE PLACED HERE WITH ASSOCIATED QR CODE YY - YEAR WW - WEEK HR - HARDWIRED ROOM SENSOR (KEEP AS "HR") NNNNNN - CONSECUTIVE NUMBERS STARTING AT 000001 SCALE 2.000 Broan-NuTone LLC Model / Modèle 1110725 Overture TM Hardwired Room Sensor Capteur intelligent câblé Overture MC Inputs - 120 V~, 60 Hz Entrée - 120 V~, 60 Hz CAUTION High Voltage - Disconnect power before servicing. ATTENTION Haute tension. Couper le courant avant d’effectuer l’entretien. For Indoor Use Only Utilisation à l’intérieur seulement Operating Ambient Temperature 0°C to 35°C Température de fonctionnement : 0 °C à 35 °C FCC ID: 2ADLL-1110725 IC: 2143B-1110725 Made in China / Fabriqué en Chine Broan-NuTone LLC, 926 West State Street, Hartford, Wisconsin, USA 53027 Broan-NuTone.com 800-558-1711 Venmar Ventilation ULC, 550 Lemire Blvd., Drummondville, Québec, Canada J2C 7W9 Broan-NuTone.ca 800-567-3855 1110079A

FCC ID: 2ADLL-1110725 RF Exposure Evaluation Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (A) Limits for Occupational/Controlled Exposures 0.3–3.0 614 1.63 *(100) 6 3.0–30 1842/f 4.89/f *(900/f 2 ) 6 30–300 61.4 0.163 1.0 6 300–1500 f/300 6 1500–100,000 5 6 (B) Limits for General Population/Uncontrolled Exposure 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f 2 ) 30 30–300 27.5 0.073 0.2 30 300–1500 f/1500 30 1500–100,000 1.0 30 f = frequency in MHz Friis transmission formula: Pd = (Pout*G)/(4*pi*r 2 ) Where Pd = power density in mW/cm 2 , Pout = output power to antenna in mW; G = gain of antenna in linear scale, Pi = 3.1416; R = distance between observation point and center of the radiator in cm Pd id the limit of MPE, 1 mW/cm 2 . If we know the maximum gain of the antenna and the total power input to the antenna, through the calculation, we will know the distance r where the MPE limit is reached. Test Procedure Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. FCC ID: 2ADLL-1110725 Test Result of RF Exposure Evaluation WIFI 2.4G Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 2437MHz 23.21 209.41 0.110 1.0 PASS Remark: antenna gain=4.23dBi BLE Channel Output power to antenna (dBm) Output power to antenna (mW) Power Density at R=20cm (mW/cm2) Limit (mW/cm2) Result 2480MHz 6.66 4.63 0.002 1.0 PASS Remark: antenna gain=4.23dBi Simultaneous Transmission: WIFI+BLE: 0.112<1 The max power density is less than MPE exempt limit, so it is compliance.

Global United Technology Services Co., Ltd. Report No.: GTS202212000042F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 39 TEST REPORT Applicant: Broan-NuTone LLC Address of Applicant: 926 West State Street , Hartfor, Wisconsin 53027, United States Manufacturer/Factory: Computime Electronics (Shenzhen) Company Limited Address of Manufacturer/Factory: Yuekenguangyu Industrial Park,Kangqiao Road 88#, Danzhutou Community, Nanwan Street office,Longgang District, Shenzhen, China. Equipment Under Test (EUT) Product Name: Hardwired Room Sensor Model No.: 1110725 Trade Mark: Broan-NuTone FCC ID: 2ADLL-1110725 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 06, 2022 Date of Test: December 06-16, 2022 Date of report issued: December 16, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 39 2 Version Version No. Date Description 00 December 16, 2022 Original Prepared By: Date: December 16, 2022 Project Engineer Check By: Date: December 16, 2022 Reviewer Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 39 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 VERSION .................................................................................................................................................. 2 3 CONTENTS .............................................................................................................................................. 3 4 TEST SUMMARY ..................................................................................................................................... 4 5 GENERAL INFORMATION ...................................................................................................................... 5 5.1 GENERAL DESCRIPTION OF EUT ......................................................................................................... 5 5.2 TEST MODE ........................................................................................................................................ 6 5.3 DESCRIPTION OF SUPPORT UNITS ....................................................................................................... 7 5.4 DEVIATION FROM STANDARDS ............................................................................................................. 7 5.5 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................... 7 5.6 TEST FACILITY .................................................................................................................................... 7 5.7 TEST LOCATION ................................................................................................................................. 7 5.8 ADDITIONAL INSTRUCTIONS ................................................................................................................. 7 6 TEST INSTRUMENTS LIST ..................................................................................................................... 8 7 TEST RESULTS AND MEASUREMENT DATA .................................................................................... 10 7.1 ANTENNA REQUIREMENT ................................................................................................................... 10 7.2 CONDUCTED EMISSIONS ................................................................................................................... 11 7.3 CONDUCTED PEAK OUTPUT POWER .................................................................................................. 14 7.4 CHANNEL BANDWIDTH ...................................................................................................................... 15 7.5 POWER SPECTRAL DENSITY ............................................................................................................. 16 7.6 SPURIOUS EMISSION IN NON-RESTRICTED & RESTRICTED BANDS ....................................................... 17 7.6.1 Conducted Emission Method ..................................................................................................... 17 7.6.2 Radiated Emission Method ........................................................................................................ 18 8 TEST SETUP PHOTO ............................................................................................................................ 39 9 EUT CONSTRUCTIONAL DETAILS ..................................................................................................... 39 Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A,Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 39 4 Test Summary Test Item Section Result Antenna requirement FCC part 15.203/15.247 (c) Pass AC Power Line Conducted Emission FCC part 15.207 Pass Conducted Peak Output Po…

Text truncated - open the document above for the full version.

Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 46 1. Duty Cycle 1.1 Ant1 1.1.1 Test Result Ant1 Mode TX Type Frequency (MHz) T_on (ms) Period (ms) Duty Cycle (%) Duty Cycle Correction Factor (dB) Max. DC Variation (%) 802.11b SISO 2412 0.592 1.237 47.86 3.20 0.05 2437 0.592 1.237 47.86 3.20 0.07 2462 0.592 1.237 47.86 3.20 0.07 802.11g SISO 2412 0.587 1.231 47.68 3.22 0.05 2437 0.587 1.231 47.68 3.22 0.05 2462 0.587 1.231 47.68 3.22 0.07 802.11n (HT20) SISO 2412 0.563 1.207 46.64 3.31 0.02 2437 0.563 1.207 46.64 3.31 0.02 2462 0.563 1.208 46.61 3.32 0.02 802.11n (HT40) SISO 2422 0.583 1.227 47.51 3.23 0.05 2437 0.583 1.227 47.51 3.23 0.05 2452 0.583 1.227 47.51 3.23 0.05 Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 46 1.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 46 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 46 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 46 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 46 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 46 802.11n(HT40)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_HCH_2452MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 8 of 46 2. Bandwidth 2.1 OBW 2.1.1 Test Result Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result 802.11b SISO 2412 1 13.805 Pass 2437 1 13.747 Pass 2462 1 13.715 Pass 802.11g SISO 2412 1 19.093 Pass 2437 1 19.079 Pass 2462 1 19.078 Pass 802.11n (HT20) SISO 2412 1 19.872 Pass 2437 1 19.766 Pass 2462 1 19.895 Pass 802.11n (HT40) SISO 2422 1 39.823 Pass 2437 1 39.849 Pass 2452 1 39.818 Pass Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 9 of 46 2.1.2 Test Graph 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 10 of 46 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 11 of 46 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 12 of 46 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 13 of 46 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT40)_LCH_2422MHz_Ant1 (SISO)_NTNV Report No.: GTS202212000042F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 …

Text truncated - open the document above for the full version.

Global United Technology Services Co., Ltd. Report No.: GTS202212000042F02 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 27 TEST REPORT Applicant: Broan-NuTone LLC Address of Applicant: 926 West State Street , Hartfor, Wisconsin 53027, United States Manufacturer/Factory: Computime Electronics (Shenzhen) Company Limited Address of Manufacturer/Factory: Yuekenguangyu Industrial Park,Kangqiao Road 88#, Danzhutou Community, Nanwan Street office,Longgang District, Shenzhen, China. Equipment Under Test (EUT) Product Name: Hardwired Room Sensor Model No.: 1110725 Trade Mark: Broan-NuTone FCC ID: 2ADLL-1110725 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of sample receipt: December 06, 2022 Date of Test: December 06-16, 2022 Date of report issued: December 16, 2022 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTS202212000042F02 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 27 2 Version Version No. Date Description 00 December 16, 2022 Original Prepared By: Date: December 16, 2022 Project Engineer Check By: Date: December 16, 2022 Reviewer Report No.: GTS202212000042F02 Global United Technology Services Co., Ltd. No. 123- 128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 27 3 Contents Page 1 COVER PAGE .........................................................................................…

Text truncated - open the document above for the full version.
