T600 User Manual Brand name:ROYQUEEN FCC ID:2ADORRQT600 Dear customer, Thank you for purchasing the LED Light Bluetooth speaker T600. To ensure correct operation, please read this user manual carefully before operation. Important Safety Instructions This speaker is designed to protect against splashing water sprayed at all angles. Dropping the whole unit in body of water may damage the product. Keep speaker away from any source of heat. Adjust the volume to a suitable level so as to avoid damaging your hearing, or the unit itself. If does not use this speaker for long time, please charge at lease once within one month, in order to prevent the lithium battery from causing and damaging because of excessive consumption. Features 1. Five Multi-colored LED Themes Full spectrum light themes matching with your music 2. Bluetooth Music play 4.0 version Bluetooth 4.0 stereo music playing 3.Mobile Hands-free Function Support mobile hands-free communication 4. Micro SD Card Music Playing Support the entire MP3/WMA/WAV/APE/FLAC coding rate 5. AUX IN Work as the external speaker by connecting to the audio source of computer, mobile, PSP/MP3/MP4 etc. Technical Data Voltage DC 5V Aux In3.5mm Output 4W N.W 235g Impedance 4Ω Size 90.0 × 90.0 × 46.5mm Package Contents Speaker, USB cable, 3.5mm Audio Cable, Manual, Strap SLOT AND KEYS 1 Short press:Pause/Play/Mute/Hang off/Answer the Call Double click: Dial Back the last call 2 / Short Press:previous/Next song Long Press:Volume decrease/increase 3 Short Press to Switch the LED Themes 4 Short Press to change different mode 5 + Reduce the lighteness 6 + increase the lighteness Instructions 1. Power on/off Switch the button to power on/off the speaker 2. Bluetooth 1) Bluetooth Paired:Press M to enter the Bluetooth mode, now please turn on the Bluetooth function of your mobile/other devices. And start to search for Bluetooth devices, the “T600” will be found, please connect it. (The speaker will voice “Device paired” when connecting). 2) Bluetooth Music Play: Please turn on the mobile or other devices’ music player, and speaker will play the selected music. 3).Mobile Hands-free communication 4) Answer the call Short Press Answer the call. Hang off Press again to hang off the call Dial Back the call Double press the button, Dial the last call back 3. LED Themes Short press to switch the LED Themes, there are five different LED themes 4 Micro SD Card Music Playing Inserting the Micro SD Card into the speaker to enter the memory card mode, the speaker will play the Micro SD card music directly. (Speaker will voice “memory card mode”). The speaker support music format at WAV,MP3,WMA,APE,FLAC . 5 AUX in Use the 3.5mm audio cable included to connect the speaker to an audio source (PC, MP3/MP4, mobile phone). Short press the M button to enter “AUX IN” mode (the speaker will voice “Aux in” mode). The speaker will play the music from the audio source. Please note: Low battery will affect the music sound quality, please charge the speaker by adaptor (5V 1A) soon. 6 Charging The speaker with the built-in lithium battery, use the USB cable included to connect the speaker to the computer or a branded good quality 5V/1000mA adaptor to charge the battery. When charging, the LED indicator is orange, when finished charging, the LED indicator will turn blue. Please note:(1) If low capacity, the indicator light will flash quickly, please charge immediately. (2)We recommend to charge the speaker by branded adaptor (5V 1A). Troubleshooting 1.What should I do if the speaker can not pair with the Bluetooth device and play music accordingly? Please check the specification/ the manual of the Bluetooth device (your mobile or computer), and check if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode. 2. What should I do if the Micro SD card can not work? (1) Ensure that the Micro SD card is in good condition. Also check that the audio files are the correct formats - MP3/WMA/WAV/APE/FLAC. (2) Besides the above case, the problem maybe the compatibility of the Micro SD card. We recommend you formatting the Micro SD Card to FAT32 file formats. This device complies with part 15 of the FCC rules. Operation is subject to the following t wo conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cau se undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Jan.06, 2015 Federal Communication Commission Authorization and Evaluation Division FCC ID: 2ADORRQT600 Re: Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1: Block Diagram 2: Circuit Diagram 3: Parts List 4.Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rules 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Shenzhen Royqueen Audio Technology Co., Ltd. Contact person: Joyce Xie Title: Sales

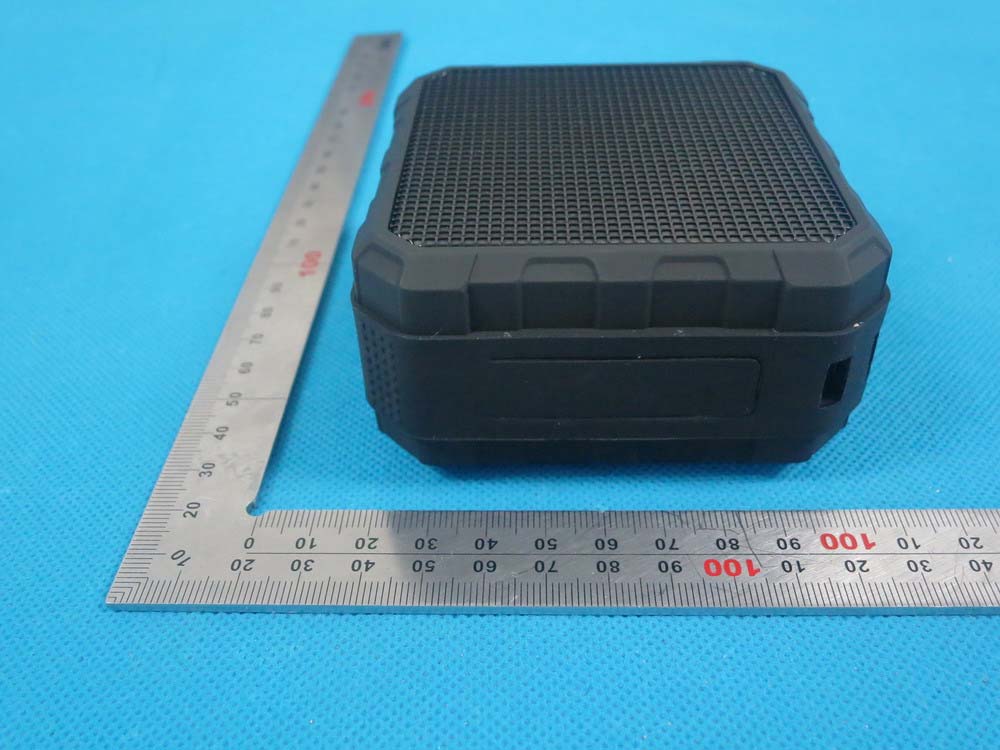

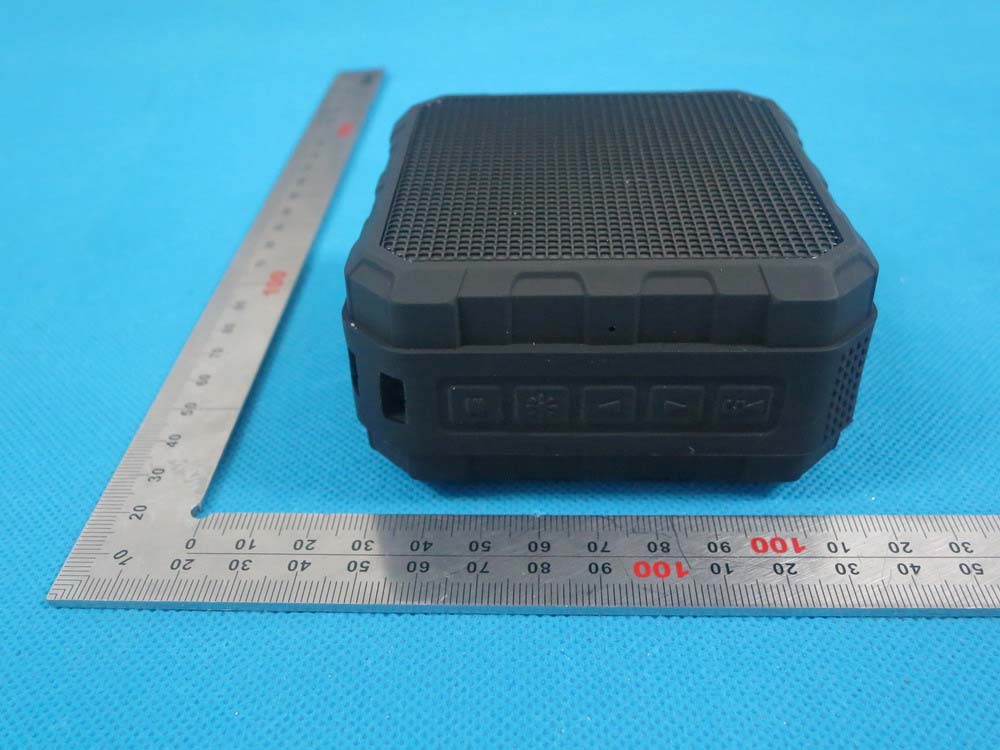

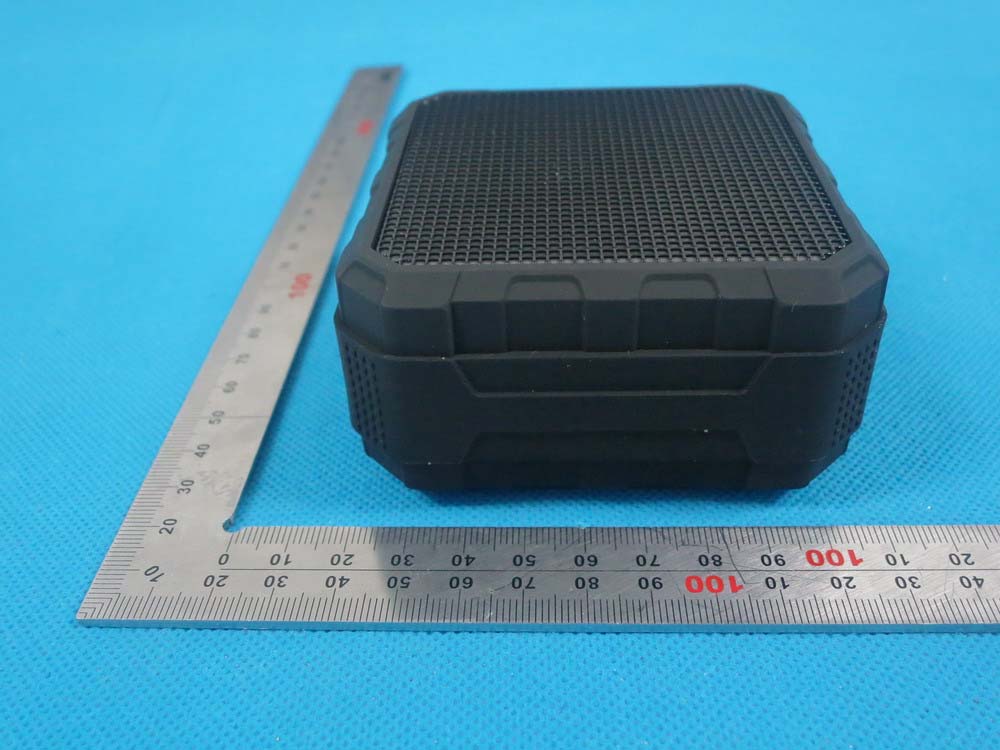

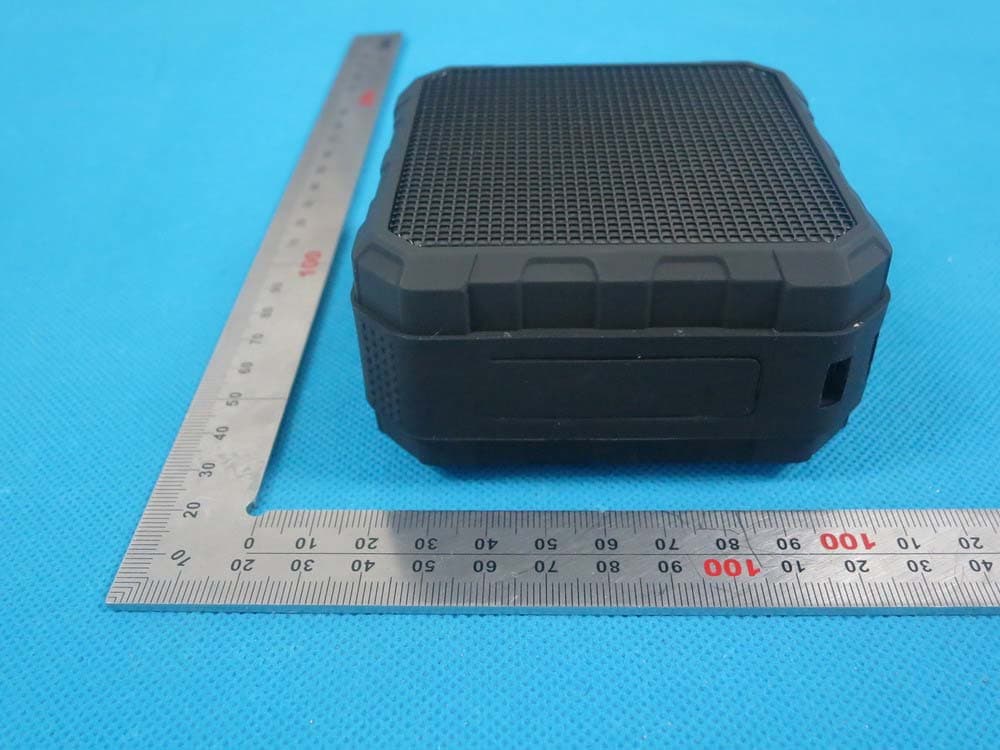

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (PORT)

FCC ID Label Location FCC ID: 2ADORRQT600

Internal Photos OPEN VIEW OF EUT-1 OPEN VIEW OF EUT-2 INTERNAL VIEW OF EUT-1 Antenna INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

Page 1 of 51 FCC Test Report Report No.: AGC01329141203FE08 FCC ID : 2ADORRQT600 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Bluetooth speaker BRAND NAME : ROYQUEEN MODEL NAME : T600, T600B, T630, T650 CLIENT : Shenzhen Royqueen Audio Technology Co., Ltd. DATE OF ISSUE : Dec.26,2014 STANDARD(S) : FCC Part 15 Rules REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd CAUTION: This report shall not be reproduced except in full without the written permission of the test laboratory and shall not be quoted out of context. Report No.: AGC01329141203FE08 Page 2 of 51 Report Revise Record Report Version Revise Time Issued Date Valid VersionNotes V1.0 / Dec.26,2014 Valid Original Report Report No.: AGC01329141203FE08 Page 3 of 51 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE......................................................................................................... 5 2.GENERAL INFORMATION ...................................................................................................................... 6 2.1PRODUCT DESCRIPTION ............................................................................................................... 6 2.2 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................. 6 2.3TEST METHODOLOGY .................................................................................................................... 6 2.4 TEST FACILITY ................................................................................................................................ 6 2.5 SPECIAL ACCESSORIES ................................................................................................................ 6 2.6 EQUIPMENT MODIFICATIONS ....................................................................................................... 7 2.7 MEASUREMENT UNCERTAINTY ................................................................................................... 7 3. SYSTEM TEST CONFIGURATION ......................................................................................................... 8 3.1 CONFIGURATION OF TESTED SYSTEM ....................................................................................... 8 3.2 EQUIPMENT USED IN TESTED SYSTEM ...................................................................................... 8 3.3. SUMMARY OF TEST RESULTS ..................................................................................................... 8 4. DESCRIPTION OF TEST MODES .......................................................................................................... 9 5. ANTENNA REQUIREMENT .................................................................................................................... 9 5.1. STANDARD APPLICABLE .............................................................................................................. 9 5.2. TEST RESULT ................................................................................................................................ 9 6. TEST FACILITY ..................................................................................................................................... 10 7. RADIATED EMISSION .......................................................................................................................... 11 7.1 MEASUREMENT PROCEDURE .................................................................................................... 11 7.2 TEST SETUP .................................................................................................................................. 12 7.3 LIMITS AND MEASUREMENT RESULT ........................................................................................ 13 7.4 TEST RESULT (WORST MODULATION: GFSK) ................................................................................ 13 8. BAND EDGE EMISSION ....................................................................................................................... 26 8.1. MEASUREMENT PROCEDURE ................................................................................................... 26 8.2. TEST SET-UP ............................................................................................................................... 26 8.3. TEST RESULT .............................................................................................................................. 27 9. 6DB BANDWIDTH ................................................................................................................................ 31 9.1. TEST PROCEDURE ...................................................................................................................... 31 9.2. SUMMARY OF TEST RESULTS/PLOTS ...................................................................................... 31 10. CONDUCTED OUTPUT POWER ....................................................................................................... 33 10.1. MEASUREMENT PROCEDURE ................................................................................................. 33 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ........................................................ 33 10.3. LIMITS AND MEASUREMENT RESULT ..................................................................................... 34 11. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ................................................ 36 11.1 MEASUREMENT PROCEDURE .................................................................................................. 36 Report No.: AGC01329141203FE08 Page 4 of 51 11.2 TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) ......................................................... 36 11.3 LIMITS AND MEASUREMENT RESULT ...................................................................................... 36 12. FCC LINE CONDUCTED EMISSION TEST ....................…
