2ADORT300BSPEAKERPHONE

Road Talk User Manual Dear customer, Thank you for purchasing the car Bluetooth speaker Road Talk. To ensure correct operation, please read this user manual carefully before operation. Important Safety Instructions ◆ Keep speaker away from water and other liquids. ◆ Keep speaker away from any source of heat. ◆ Adjust the volume to a suitable level so as to avoid damaging your hearing, or the unit itself. Features: ◆ Bluetooth 4.0 Hands-free (mobile) Communication , support to pair with two mobile simultaneously. Multipoint support for HFP connection to 2 handsets for voice and also for A2DP sources for music playback. ◆ Built-in Voice Module ◆ Low power consumption, it will auto enter the sleep mode when not paired with mobile. ◆ Ergonomic design ◆ With Alloy Back Splint, can be handed on the Car Visor easily Technical Data Bluetooth: 4.0 Impedance: 4 ohm Output: 1W Voltage: DC 5V N.W: 89 g Dimension: 103*59*37.5 mm Li Battery: 800 mAh Talking Hours: 12 hours Standby Hours: 900 hours Package Contents Car Bluetooth Speaker Road Talk, USB Charging Cable, User Manual. Quick Start 1. Microphone 2. Hands-free button 3. Speaker (Driver) 4. Volume Knob 5. ON/OFF 6. Charging Slot 7. Battery Instructions 1. Power On Please turn the switch to the ON position LED flash quickly in blue means the speaker is waiting for pairing. The LED light will flash slowly when paired. 2. Power Off Please turn the switch to the OFF position Speaker will enter the sleep mode after 10 minutes when disconnect with the mobile phone. The next time using the speaker, please re-power on the speaker again. Please Note: LED flash in orange means the speaker battery is under low capacity. 3. Bluetooth Paired (1) The first time to use this speaker, please follow below steps Please turn the switch to the ON position. LED light will be flashing in blue quickly. (2) Turn on the Bluetooth function of the mobile, and start to search the Bluetooth device. The “Road Talk” will be found, please connect it. The mobile may remind you to input the pairing code）. The speaker’s default pairing code is “0000”. When Bluetooth connected, the LED blue light will flash slowly. (3) The speaker will be auto pair to the previous mobile. If want to pair with another mobile, please follow below steps, 1. Pair the Road Talk to the first mobile phone successfully. 2. Turn off the Bluetooth function of the first mobile phone (Please note is not to ignore this equipment, is turn off the Bluetooth on the mobile directly). 3. Turn on the second mobile phone’s Bluetooth function and start to search the Road Talk, and connect to the Road Talk. 4. When the second mobile phone paired successfully, please turn on the first mobile phone’s Bluetooth function, it will paired to Road Talk automatically. Follow the above steps; Road Talk can pair with two mobile phones in one time. 4. Bluetooth Disconnected If you want to disconnect the mobile with the speaker, please turn the switch to the OFF position, or long press the mobile “Hands-free” button, or you can operate on the mobile. 5. Hands-free Function (1) Pick up the phone call Short press the “Hands-free” button to pick up the phone (2) Hand off the phone call Under phone conversation, short press the “Hands-free” button again to end the phone call. (3) Refuse the phone call Short press the “Hands-free” button twice to refuse the phone call (4) Switch the phone call Under phone conversation, press the “Hands-free” button for 2 seconds, you can switch the phone call between the speaker and the mobile (5) Re-dial the latest number Speaker under standby status, continue to short press the “Hands-free” button twice can re -call the last number (6) Volume Knob Under phone conversation, can use the volume knob to adjustment the volume 6. Bluetooth Music Playback Bluetooth paired successfully, the Road Talk can play music from the mobile phone directly. Normally the Road Talk will play the first mobile phone’s music first. It can not support to play music from two mobiles in one time. Press the “Hands-free” button for play/pause. 7. Charging The included Li battery can be charged repeatedly. For the first time using, please full charge the battery. (1) Please use the included USB cable to connect the speaker to the computer for charging (2) Please use the included USB cable to connect the car adaptor for charging Please Note: Under charging, the orange LED light will be on. And finish charging, the LED light will be off. 8. LED Light Indicator Flash in blue quickly: Waiting for pairing Flash in blue slowly: Bluetooth Paired Flash in orange: Battery low capacity Stay in orange: Battery under charging Orange light off: Battery charging finished Troubleshooting 1. What should I do if the speaker can not pair with the Bluetooth device and can not enjoy the hands-free function? Please check the specification/ the manual of the Bluetooth device (your mobile or computer), and see if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode. Some mobile may required to be set the mobile’s hands-free device as Road Talk. 2. What should I do if there is no response of the Road Talk? Under working, if there is no response of the speaker, please check the battery has capacity or not. If yes, please try to take off the battery and re-install again. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Federal Communications Commission (FCC) Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are…

Text truncated - open the document above for the full version.

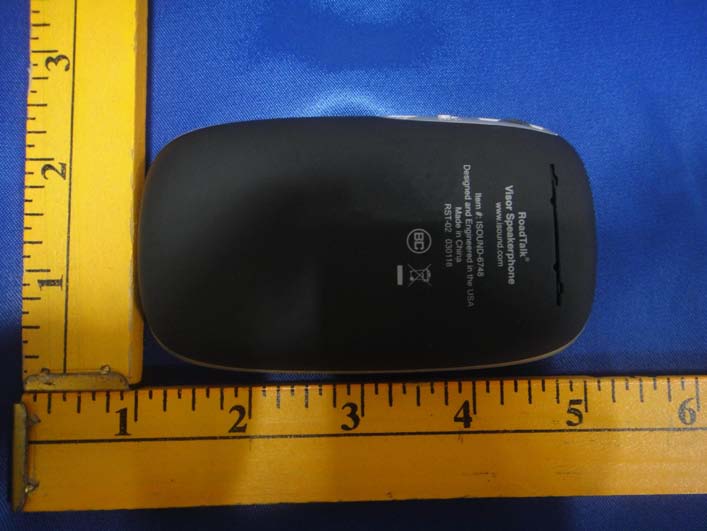

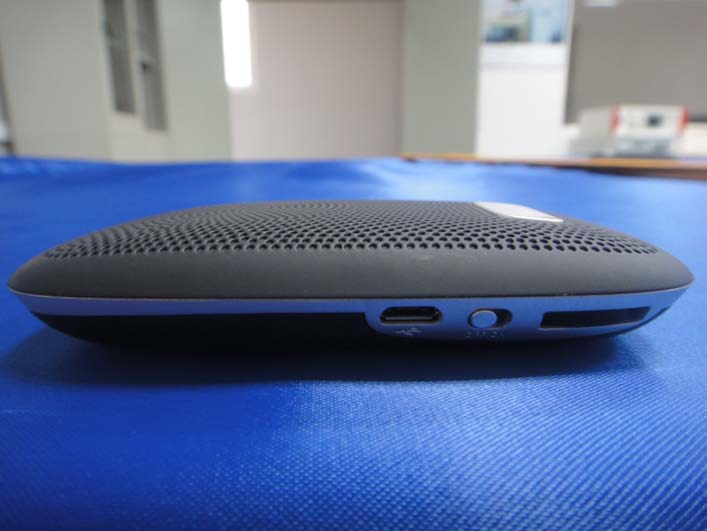

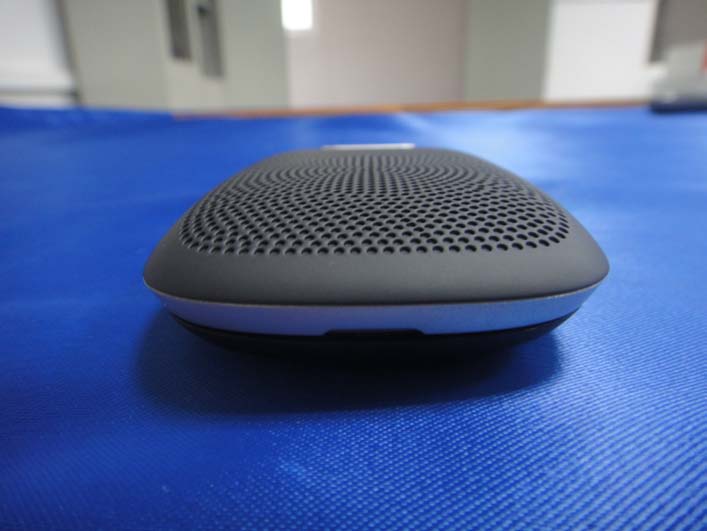

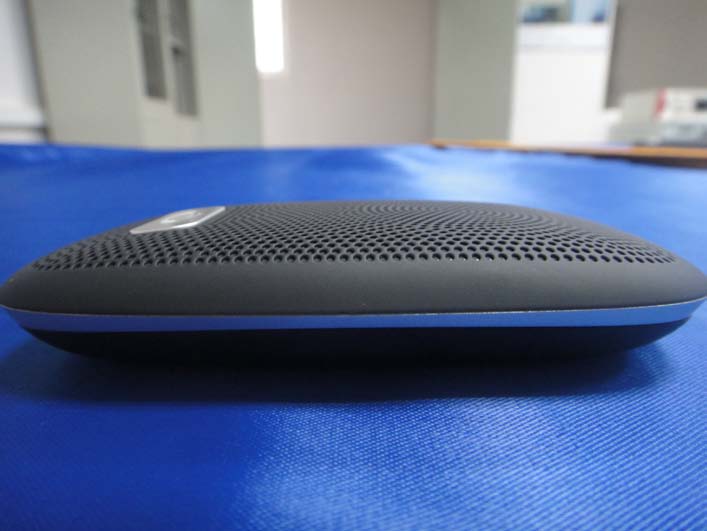

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

SPEAKERPHONE M/N: T300B FCC ID: 2ADORT300B Shenzhen RoyQueen Audio Technology Co., Ltd.

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS

Page 1 of 25 FCC RADIO TEST REPORT FCC ID: 2ADORT300B Product： SPEAKERPHONE Trade Name : ROYQUEEN Model Name：T300B, ISOUND-6748, ROAD TALK Prepared for Shenzhen RoyQueen Audio Technology Co., Ltd. The 2nd Floor, Shenhui Industrial Park, No.1010, Bulong Road, Longhua New District, Shenzhen, China Prepared by DongGuan Precise Testing Service Co.,Ltd. Building D, Baoding Technology Park, Guangming Road 2, Guangming Community, Dongcheng District, Dongguan, Guangdong, China Report No.: PT1504028127F Page 2 of 25 TEST RESULT CERTIFICATION Applicant’s name ........ Shenzhen RoyQueen Audio Technology Co., Ltd. Address ................... .... The 2nd Floor, Shenhui Industrial Park, No.1010, Bulong Road, Longhua New District, Shenzhen, China Manufacture's Name... Shenzhen RoyQueen Audio Technology Co., Ltd. Address ........................ The 2nd Floor, Shenhui Industrial Park, No.1010, Bulong Road, Longhua New District, Shenzhen, China Product description Product name ... ... ........... SPEAKERPHONE Model and/or type reference ..................... T300B, ISOUND-6748, ROAD TALK In all, the original product and the alternative product are the same. Standards .................... FCC Part15.249 Test procedure ................ ANSI C63.4-2014 This device described above has been tested by PTS, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of PTS, this document may be altered or revised by PTS, personal only, and shall be noted in the revision of the document. Date of Test .................... ................ .. Date (s) of performance of test s ....... Apr. 14, 2015 ~ Apr. 20, 2015 Date of Issue ..................................... Apr. 20, 2015 Test Result......................................... Pass Tested by : Authorized Signatory : Maike Huang / Engineer Chris Du / Manager Report No.: PT1504028127F Page 3 of 25 2 Test Summary Test Items Test Requirement Result Spurious Radiated Emissions 15.205(a) 15.209 15.249(d) PASS Band edge Emissions 15.249(d) PASS Conducted Emissions 15.207 PASS 20dB Bandwidth 15.215c 15.249 PASS Report No.: PT1504028127F DongGuan Precise Testing Service Co., Ltd Page 4 of 25 TABLE OF CONTENTS 2 TEST SUMMARY 3 3 GENERAL INFORMATION 5 3.1 GENERAL DESCRIPTION OF E.U.T. 5 3.2 DETAILS OF E.U.T. 5 3.3 CHANNEL LIST 5 3.4 DESCRIPTION OF SUPPORT UNITS 6 3.5 TEST FACILITY 6 4 EQUIPMENT USED DURING TEST 7 4.1 EQUIPMENTS LIST 7 4.2 MEASUREMENT UNCERTAINTY 7 4.3 TEST EQUIPMENT CALIBRATION 8 5 CONDUCTED EMISSION 9 5.1 E.U.T. OPERATION 9 5.2 EUT SETUP 9 5.3 CONDUCTED EMISSION TEST RESULT 10 6 SPURIOUS RADIATED EMISSIONS 12 6.1 EUT OPERATION : 12 6.2 TEST SETUP 13 6.3 SPECTRUM ANALYZER SETUP 14 6.4 TEST PROCEDURE 15 6.5 CORRECTED AMPLITUDE & MARGIN CALCULATION 15 6.6 SUMMARY OF TEST RESULTS 15 7 BAND EDGE MEASUREMENT 20 7.1 TEST PROCEDURE 20 7.2 TEST RESULT: 20 8 20 DB BANDWIDTH MEASUREMENT 22 8.1 TEST PROCEDURE: 22 8.2 TEST RESULT: 22 9 ANTENNA REQUIREMENT 25 Report No.: PT1504028127F DongGuan Precise Testing Service Co., Ltd Page 5 of 25 3 General Information 3.1 General Description of E.U.T. Product Name : SPEAKERPHONE Model No. : T300B, ISOUND-6748, ROAD TALK Brand Name : ROYQUEEN Operation Frequency : 2402MHz ~ 2480MHz,79 channels in total, separated by 1MHz Type of Modulation : GFSK, Pi/4DQPSK, 8DPSK Antenna installation : PCB Printed Antenna Antenna Gain : 2 dBi Bluetooth version : 4.0 hardware version :RQ01 software version :1.0 Serial number :01 3.2 Details of E.U.T. Technical Data : (1)DC 3.7V from battery (2)DC 5V from adapter for charger 3.3 Channel List Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) Channel No. Frequency (MHz) 1 2402 2 2403 3 2404 4 2405 5 2406 6 2407 7 2408 8 2409 9 2410 10 2411 11 2412 12 2413 13 2414 14 2415 15 2416 16 2417 17 2418 18 2419 19 2420 20 2421 21 2422 22 2423 23 2424 24 2425 25 2426 26 2427 27 2428 28 2429 29 2430 30 2431 31 2432 32 2433 33 2434 34 2435 35 2436 36 2437 37 2438 38 2439 39 2440 40 2441 41 2442 42 2443 43 2444 44 2445 45 2446 46 2447 47 2448 48 2449 49 2450 50 2451 51 2452 52 2453 53 2454 54 2455 55 2456 56 2457 57 2458 58 2459 59 2460 60 2461 61 2462 62 2463 63 2464 64 2465 65 2466 66 2467 67 2468 68 2469 69 2470 70 2471 71 2472 72 2473 73 2474 74 2475 75 2476 76 2477 77 2478 78 2479 79 2480 - - Report No.: PT1504028127F DongGuan Precise Testing Service Co., Ltd Page 6 of 25 3.4 Description of Support Units No. Equipment Manufacturer Model No. Series No. 1. Adapter Huawei HW-050200C3W N/A 3.5 Test Facility The test facility has a test site registered with the following organizations: Dongguan Quality Supervision Testing Center Add.: B#, Dongguan Quality Supervision Testing Center, NO.2 South Industry Road, Songshan Lake, Dongguan City, 523808, China. FCC Registration No.: 817095 . Report No.: PT1504028127F DongGuan Precise Testing Service Co., Ltd Page 7 of 25 4 Equipment Used during Test 4.1 Equipments List Mains Terminal Disturbance Voltage (Conducted Emission) Item Equipment Manufacturer Model No. Serial No. Last Cal. Next Due CAL Date 1. EMI Test Receiver R&S ESCI 100229 2014/10/25 2015/10/24 2 LISN SCHWARZBECK NSLK8127 8127437 2014/10/25 2015/10/24 3 LISN R&S ESH3-Z6 100690 2014/10/25 2015/10/24 4 Pulse Limiter R&S ESH3-Z2 101242 2014/10/25 2015/10/24 5 Cable DTB 944 cable 1# 944001 2014/10/25 2015/10/24 3m Semi-anechoic Chamber for Radiation Item Equipment Manufacturer Model No. Serial No. Last Cal. Next Due CAL Date 1 EMI Test Receiver R&S ESCI 100229 2014/10/25 2015/10/24 2 Trilog-Broadband Antenna SCHWARZBECK VULB9163 9613-248 2014/11/01 2015/10/31 3 Horn antenna (1~18GHz) R&S HF906 EC348 2014/11/01 2015/10/31 4 Horn antenna (18~25GHz) SCHWARZBECK BBHA9170 9170517 2014/10/25 2015/10/24 5 Pre-amplifer SCHWARZBECK BBHA9170 9170517 2014/10/25 2015/10/24 6 Signal Conditio…
