2ADORT900Bluetooth speaker

T900 User Manual FCC ID:2ADORT900 Dear customer, Thank you for purchasing the LED Light Bluetooth speaker T900. To ensure correct operation, please read this user manual carefully before operation. Important Safety Instructions ◆ If you do not operate the speaker for a long time, please charge battery once a month, in order to prevent the lithium battery from being damaged. ◆ Do not use the speaker in special cold, hot, dusty or humid environments. ◆ Please avoid the speaker dropping or hitting with a hard object, it may cause damage to the inside battery or other hardware damage. ◆ When low battery, the indicator light will flash and voice guide the low battery, please charge battery in time. ◆ Keep speaker away from any source of heat/fire . Features 1. Five Multi-colored LED Themes Full spectrum light themes matching with your music 2. Bluetooth Music and Mobile Hands-free Function Bluetooth 4.0 stereo music playing, support mobile hands-free function. 3. NFC (Near Field Communication) One touch easy pairing with your NFC Smartphone 4. Micro SD Card Music Playing Support the entire MP3/WMA/WAV/APE/FLAC coding rate 5. Aux In Work as the external speaker by connecting to the audio source of computer, mobile, PSP/MP3/MP4 etc. Technical Data Voltage: DC 5V Impedance: 4Ω Output: 3.5W*2 Aux in Jack: 3.5mm Net Weight: 445g Size: 184.5* 73.5* 81.5(mm) Package Contents Bluetooth Speaker, Micro USB Cable, User Manual, 3.5mm audio cable Slot and Keys Quick Start 1. Short press the buttons to decrease / increase the volume gradually. Long press the buttons to decrease / increase the volume continuously. 2. M Short press the M button to switch the mode of Bluetooth/ Mirco SD Card/AUX In 3. Under music playing mode, short press the buttons to switch to the previous / next song. Long press the buttons for previous/next folder. 4. Short press to switch the LED themes 5. Long press the button and hold for 2 seconds to power on the speaker, the Working Indicator Light will be blue. Long press the button to power off the speaker. Short press the button to pause/play/mute/answer the phone/end up the phone 6. + Pressing the light and the volume buttons simultaneously, you can choose the level of illumination: no lighting, level 1, level 2 and level 3. 7. Indicator light Instructions 1. Power On/Off Long press the button for 2 seconds to power on (Indicator turns blue); Long press the button again to power off. 2. Bluetooth (1) Bluetooth Paired Press the M button to enter the Bluetooth mode, now please turn on the Bluetooth function of your mobile/other devices. And start to search for Bluetooth devices, the “T900” will be found, please connect it. (The speaker will voice “Device paired” when connecting). (2) NFC Function (It requires the mobile has the NFC function and the speaker need under Bluetooth mode) Turn on the mobile’s NFC function and make the mobile touch the speaker’s NFC area. The mobile will remind you to pair with the Bluetooth device. Choose yes to complete the pairing. (3) Bluetooth Music Please turn on the mobile or other devices’ music player, and speaker will play the selected music. (4) Mobile Hands-free Under pairing, using phone to call, it can enter the Hands-free status. When a mobile call comes in, short press the button to pick up the phone, re-press the button to end up the call. Press the button twice and speaker will re-dial the last telephone number. 3. LED Themes Short press the to switch the LED themes, there are five different LED themes. Please note: The Club and Equalize themes only display when music playing 4. Gravity sensor At Club and Equalize themes, the speaker can support gravity sensor. 4. Micro SD Card Music Playing Inserting the Micro SD Card into the speaker to enter the memory card mode, the speaker will play the Micro SD card music directly. (Speaker will voice “memory card mode”). The speaker support music format at WAV,MP3,WMA,APE,FLAC. 5. Aux In Use the 3.5mm audio cable included to connect the speaker to an audio source (PC, MP3/MP4, mobile phone). Short press the M button to enter “AUX IN” mode (the speaker will voice “Aux in” mode). The speaker will play the music from the audio source. Please note: Low battery will affect the music sound quality, please charge the speaker by adaptor (5V 1A) soon. 6.Charging The speaker with the built-in lithium battery, use the USB cable included to connect the speaker to the computer or a branded good quality 5V/1000mA adaptor to charge the battery. When charging, the LED indicator is orange, when finished charging, the LED indicator will turn blue. Please note: (1) If low capacity, the indicator light will flash quickly, please charge immediately. (2)We recommend to charge the speaker by branded adaptor (5V 1A). Troubleshooting 1. What should I do if the speaker can not pair with the Bluetooth device and play music accordingly? Please check the specification/ the manual of the Bluetooth device (your mobile or computer), and check if the device can support the A2DP stereo audio transmission. If yes, please turn on the A2DP stereo mode. 2. What should I do if the Micro SD card can not work? (1) Ensure that the Micro SD card is in good condition. Also check that the audio files are the correct formats - MP3/WMA/WAV/APE/FLAC. (2) Besides the above case, the problem maybe the compatibility of the Micro SD card. We recommend you formatting the Micro SD Card to FAT32 file formats. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If …

Text truncated - open the document above for the full version.

Jul.23, 2015 Eurofins Product Service GmbH Storkower Str. 38c 15526 Reichenwalde GERMANY Subject: Explanation of differences between product types FCC ID : 2ADORT900 Model Number: T900, T950, iGlowSound Tower, ISOUND-6703 To Whom It May Concern: We, Shenzhen Royqueen Audio Technology Co., Ltd., hereby declare that the model : T950, iGlowSound Tower, ISOUND-6703 is identical with the model : T900, except the model name and color. Except for the different above, no other modification is performed. Sincerely, Shenzhen Royqueen Audio Technology Co., Ltd. Signature: Shenzhen Royqueen Audio Technology Co., Ltd. Contact person: Joyce Xie Title: Sales

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/23/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2ADORT900 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Shenzhen Royqueen Audio Technology Co., Ltd. Contact person: Joyce Xie Title: Sales

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 7/23/2015 Request for Confidentiality Company name: Shenzhen Royqueen Audio Technology Co., Ltd. FCC ID: 2ADORT900 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Royqueen Audio Technology Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Shenzhen Royqueen Audio Technology Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Royqueen Audio Technology Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [Joyce Xie] [Sales] Shenzhen Royqueen Audio Technology Co., Ltd. The 2nd Floor, Shenhui Industrial Park,No.1010 Bulong Road,Longhua New District,Shenzhen,China

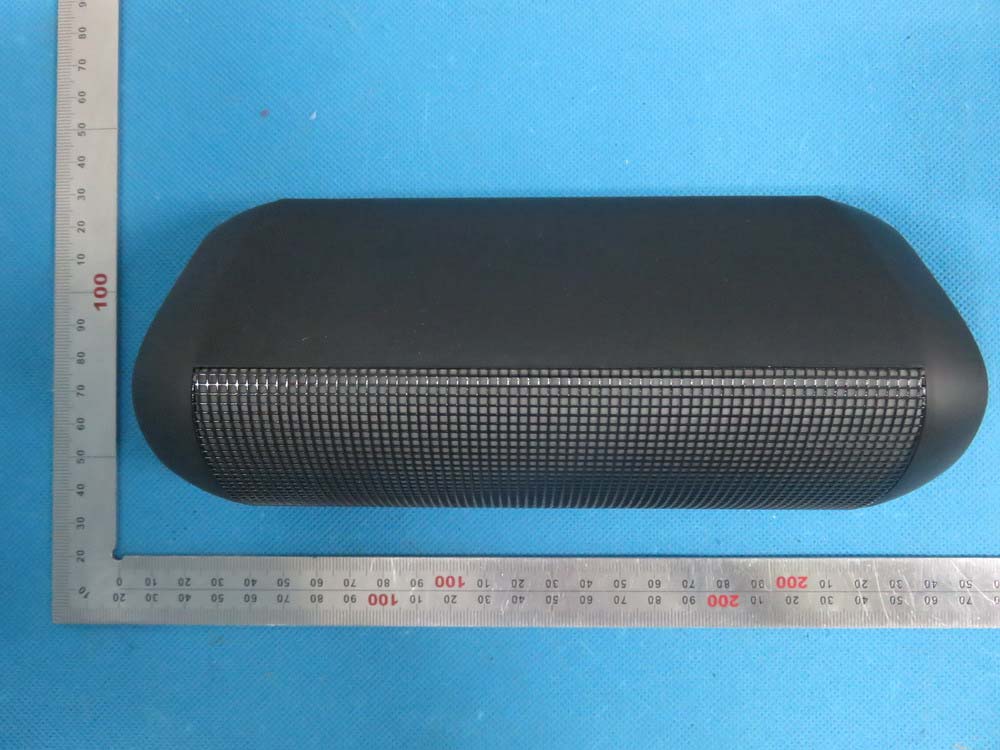

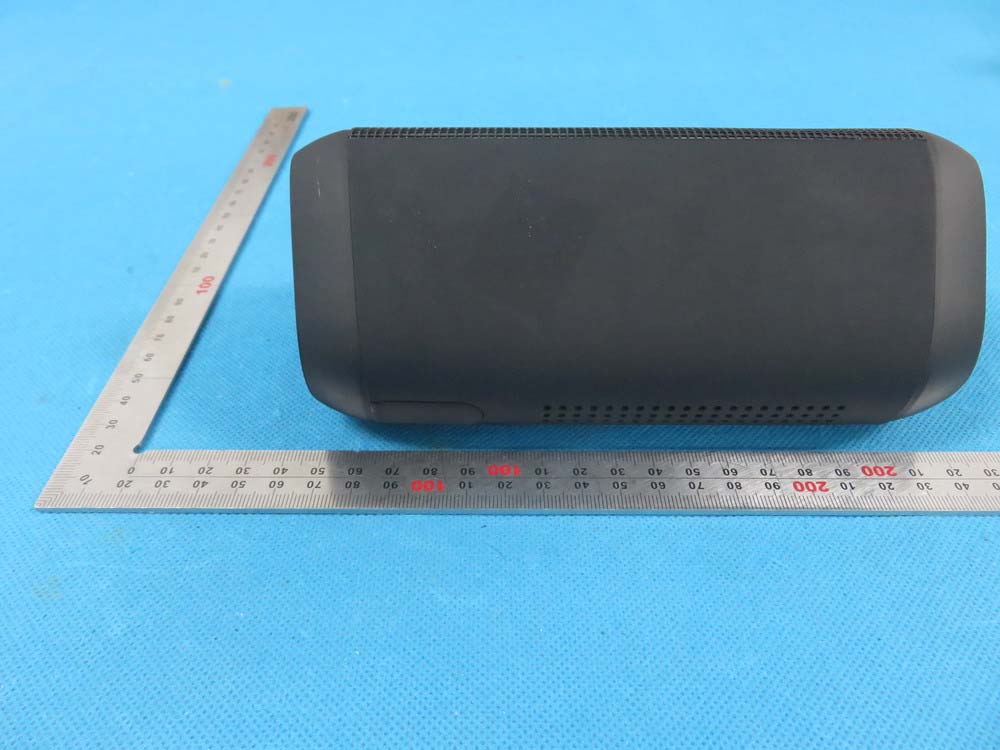

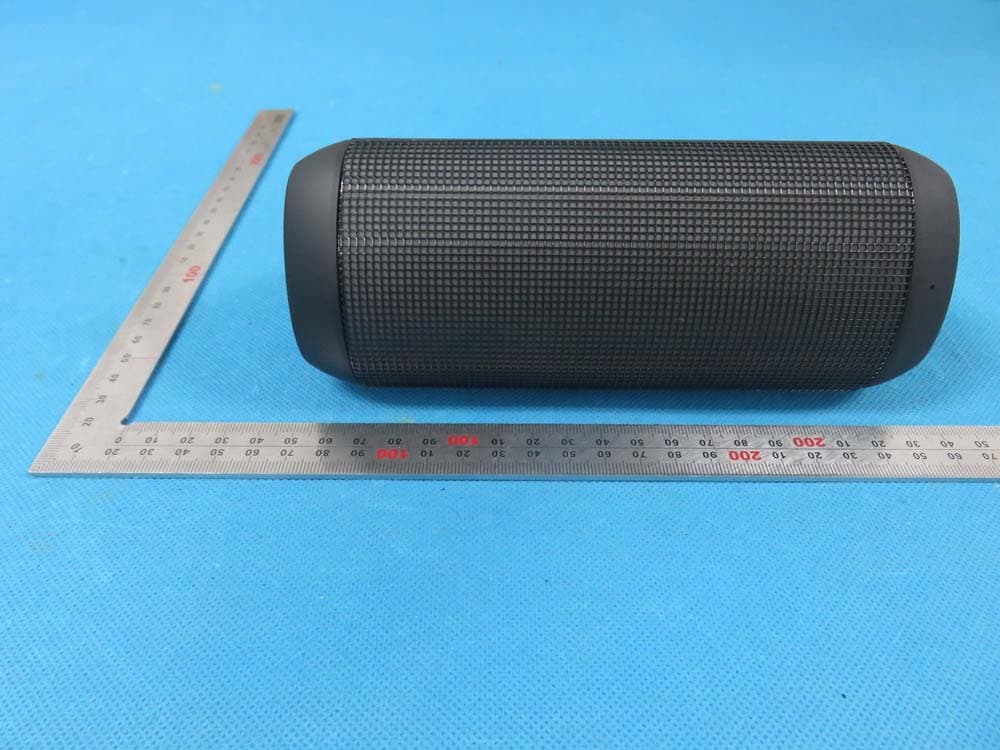

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT（Port）

FCC ID Label Location Bluetooth Speaker Brand: ROYQUEEN Model:T900 FCC ID: 2ADORT900

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5 INTERNAL VIEW OF EUT-6 INTERNAL VIEW OF EUT-7 INTERNAL VIEW OF EUT-8 INTERNAL VIEW OF EUT-9 INTERNAL VIEW OF EUT-10 Antenna INTERNAL VIEW OF EUT-11 INTERNAL VIEW OF EUT-12 INTERNAL VIEW OF EUT-13 INTERNAL VIEW OF EUT-14

RF Exposure evaluation Product Description:Bluetooth speaker Model Number: T900 FCC ID: 2ADORT900 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power（P t ）formula： P t =（E x d） 2 /（30 x g t ） P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=96.28dBuv/m=0.065V/m,d=3m,g t =1 P t =（E x d） 2 /（30 x g t ）=(0.065x3) 2 /(30x1)=0.001268W=1.27mW The result is rounded to one decimal place for comparison Worse case is as below: [2480MHz -1.27mW output power] (1.27mW /5mm) .[√2.480(GHz)]= 0.4<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.

APPENDIX IV PHOTOGRAPHS OF TEST SETUP FCC LINE CONDUCTED EMISSION TEST SETUP FCC RADIATED EMISSION TEST SETUP
