2ADOW-P106W10Wireless Charger Power Bank

品名:使用指南 P106W10 V1.0 国外 料号: 尺寸:115*75mm 材质:80g双胶纸，双面单黑色印刷，风琴折 正面 反面 It is forbidden to put the equipment in high temperature and high humidity environment, lest cause equipment overhea -ting and internal short circuit and damage to equipment. Storage temperature not more than 45 degrees, high tem -perature storage for a long time can affect the service life of the machine. maintenance For a long time do not use the equipment should be the power plug from the outlet of down.At least half a year using a device to ensure the service life of equipment. If the equipment malfunction, please have qualified personnel maintenance, don't disassemble equipment without permission. IMPORTANT SAFETY INSTRUCTIONS: Certificate Of Approval Customer Couplet Date of Manufacture: Quality Controller: POLYMER POWER BANK P106W10 USER MANUAL Product Guide 1 Accessories Host User manual Cable 2 Specification 3 Overview Charging digital devices: Once the power bank is connected to the digital device, the device shall be charged. Charging power bank: See below diagram,the white indicator is flickering when charging.It will stop flicker and all the indicators turn in white after fully charged.Please remove the adapter safely after power bank is fully charged. Operation introduction Type-C Output Type-C Input Dimensions Weight Battery Capacity ModelP106W10 138x 70x 18.7mm 210±10g 10000mAh/3.7V/37Wh USB-A Output USB-A Output 5V /3A， 9V/2A Warranty Card Thank you very much for using our products. According to the prescription, anybelongs to under normal usage circumstance cause because of the product quality's problem of breakdown,our company will be responsible for giving free maintain during this period. Free maintain won't be given under the following circumstance: 1.Without Protection to fix warrantees and the purchasing invoice. 2.The protect to fix card or purchasing invoice has been changed. 3.The breakdown and damage caused by the Force majeure. 4.The breakdown,damaged because of the transportation or handling. 5.The breakdown caused by the manipulation that hasn't follow the requests of the Manual. 6.The damage caused by the dismantle movement of non-our- company authorized maintainer. In protect fix the period,customers can bring the purchasing invoice and the customer couplet that has filled to the vendor,and please send back to HAME for repair by the vendor. Matters needing attention ! 5V /2.4A， 9V/2A, 12V/1.5A g) Do not use the power bank that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. h) Do not disassemble the power bank. Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or injury to persons. i) Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion. The temperature of 100°C can be replaced by the temperature of 212°F. j) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. k) Switch off the power bank when not in use. SAVE THESE INSTRUCTIONS Made in china Hame Technology Co., Limited Add: 3/F, Plant #1, Huahan Industrial Park,No.16, Jinniu West Rd., Pingshan New District,Shenzhen 518118, China. Website: www.hametech.com Enterprice Standard：Q/HAME 002-2016 Hame Technology Co., Limited Add: 3/F, Plant #1, Huahan Industrial Park,No.16, Jinniu West Rd., Pingshan New District,Shenzhen 518118, China. Website: www.hametech.com WARNING – When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. d) Do not expose power bank to rain or snow. e) Use of a power supply or charger not recommended or sold by power pack manufacturer may result in a risk of fire or injury to persons. f) Do not use the power bank in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons. Type-C Input&Output Battery indicators Battery indicator button Adapter AC 100-240V Please read this user manual before using the product, then keep it in good condition. 5V /3A， 9V/2A Wireless charger Output 5W/7.5W/10W Output18W(Max) Wireless charger For charging digital devices. Input Output /Wireless charger Battery indicators Battery indicator button Self-charging LED indicators to show battery status Press to check the battery level *Compatible With Wireless Charging Stanard *Blue light indicate Quick Charge Output *Blinking light indicates recharging. Solid light indicates fully charged. FCC Statement This device complies with part 15 and part 18 of the FCC Rules. Operation is Subject To the following two conditions: (1) This device may not cause harmful interference, and (2) this devicemust accept any interference received, including interference that may cause undesired operation. Changes or modifications not explicitly approved by the partyresponsible for compliance could void the user's authority tooperate this equipment. Note: this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 and part 18 of the FCC Rules. These limits are designed to providereasonable protection against harmful interference in a residential installation. This equipment generates, uses and canradiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment off and on, the u…

Text truncated - open the document above for the full version.

Hamedata Technology Co., Limited Agent Authorization Company: Hamedata Technology Co., Limited Address: 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen, China Product Name: Wireless Charger Power Bank Trade Mark: HAME Model Number(s ): P106W10 FCC ID: 2ADOW-P106W10 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-01-09 Name: Zuo Xinrong Title: / Company: Hamedata Technology Co., Limited

Hamedata Technology Co., Limited Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-01-09 Subject; Request for Confidentiality FCC ID: 2ADOW-P106W10 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Zuo Xinrong Title: /

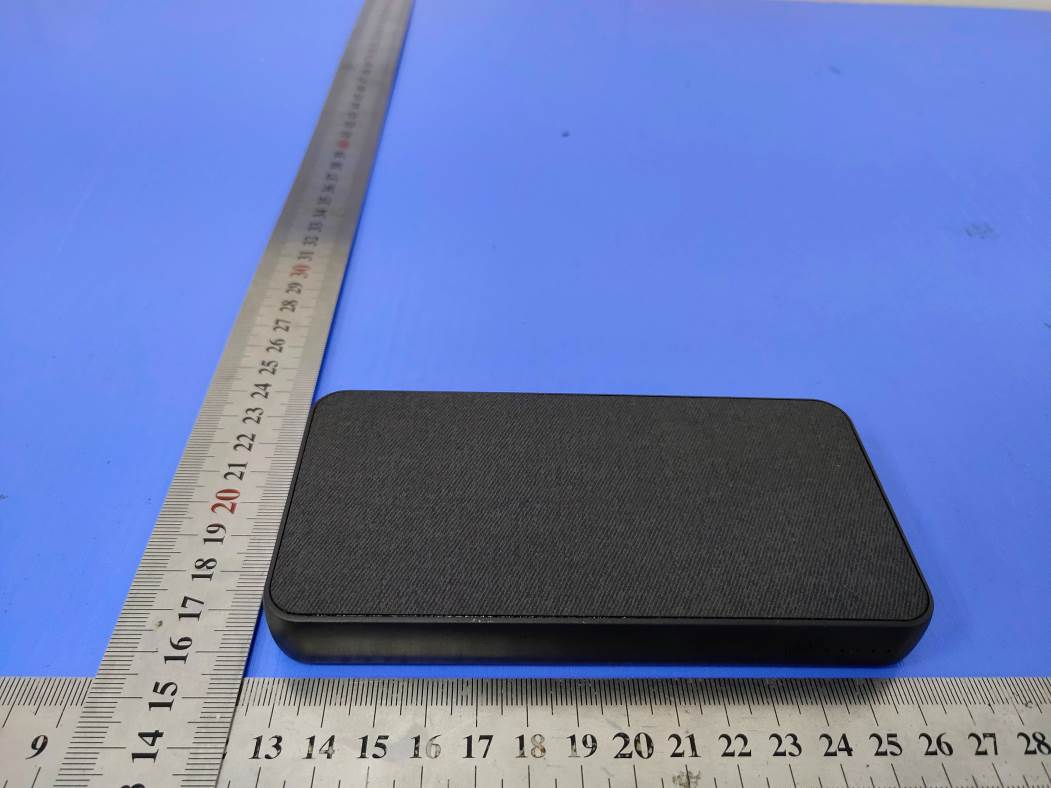

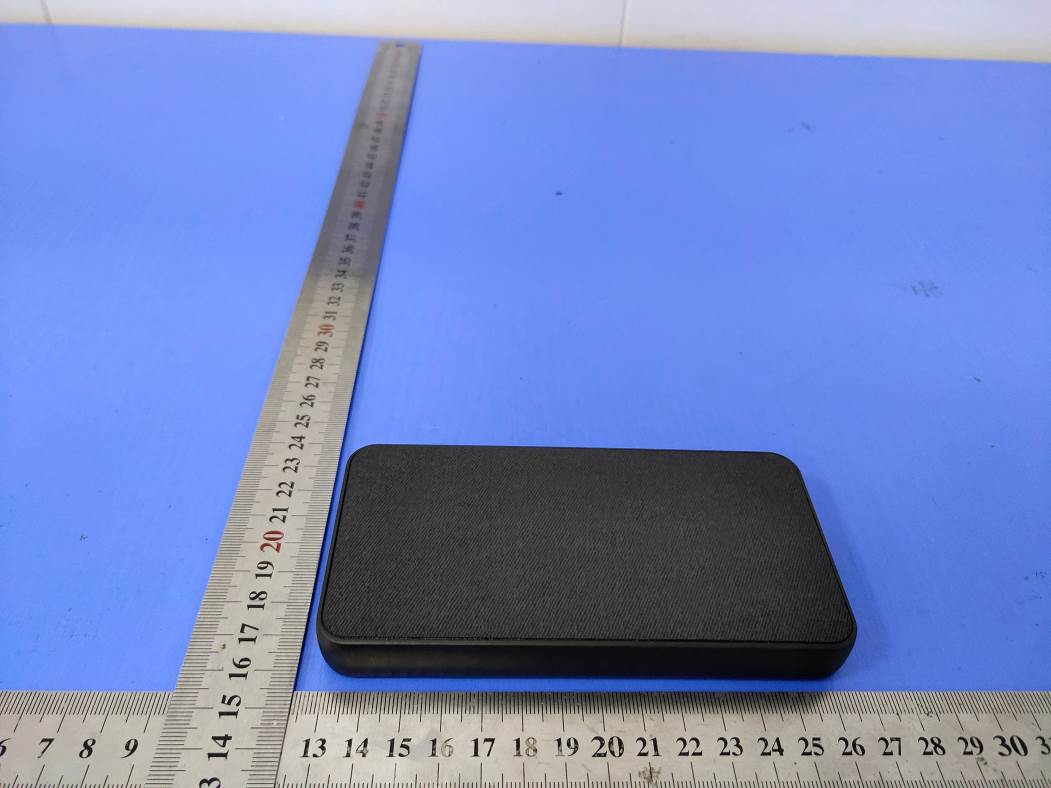

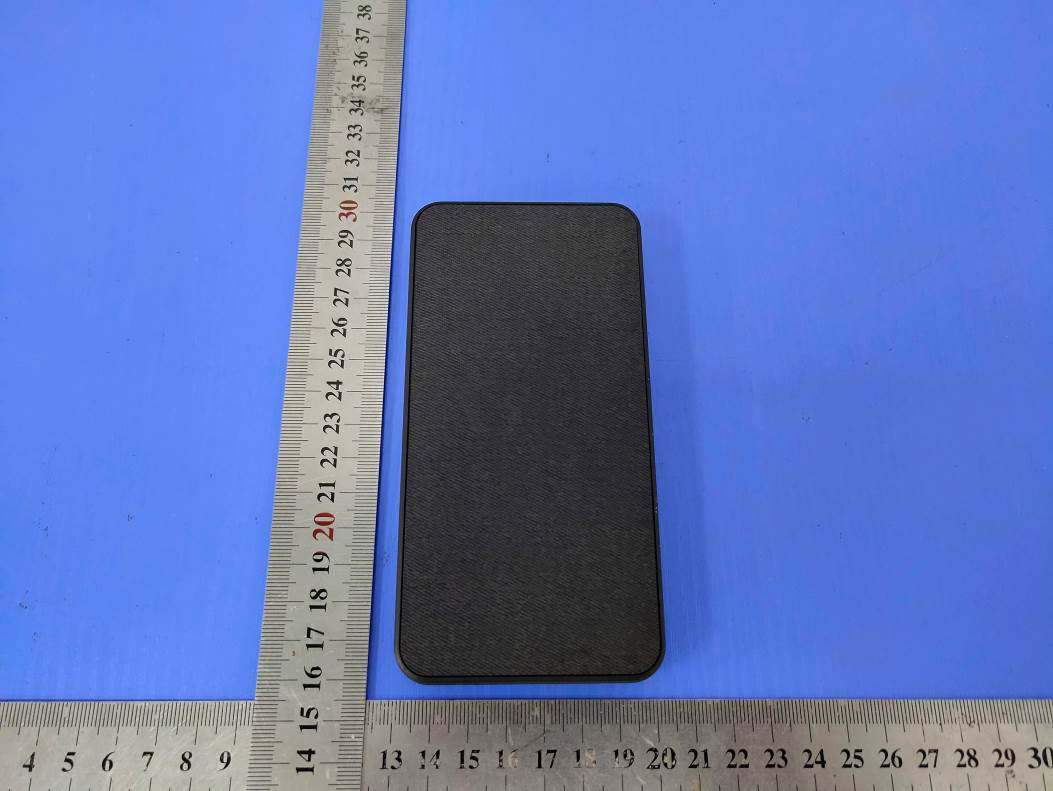

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 4 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 4 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 4 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 4 of 4 Fig.7

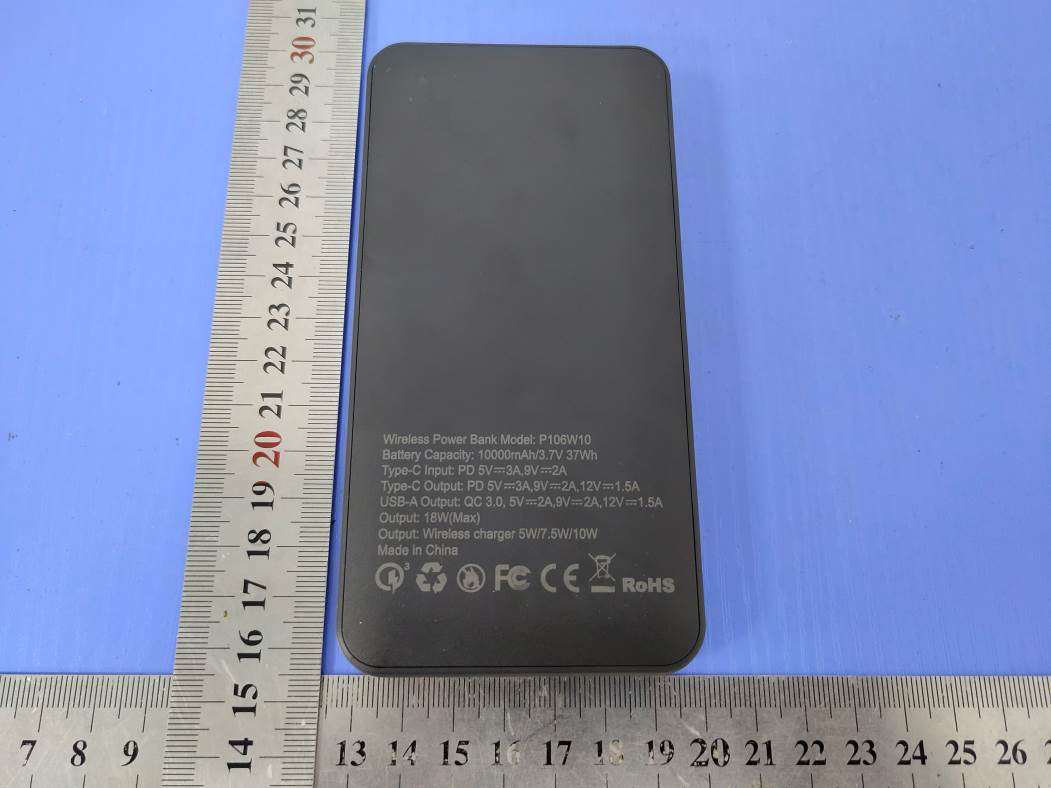

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L: 2.0cm*W: 1.5cm Label Location Wireless Charger Power Bank Model No.: P106W10 FCC ID : 2ADOW-P106W10 Battery Capacity: 10000mAh/3.7V 37Wh Type-C Input: PD 5V/3A, 9V/2A Type-C Output: PD 5V/3A, 9V/2A, 12V/1.5A USB-A Output: QC 3.0, 5V/2.4A, 9V/2A, 12V/1.5A Wireless Output: 5W/7.5W/10W Output: 18W(Max) Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 3 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 2 of 3 Fig.3 Fig.4 Coil Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA ________________________________________________________________________________ _________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 3 of 3 Fig.5 Fig.6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 24 RF Exposure Evaluation Report 1. Product Information FCC ID: 2ADOW‐P106W10 Product Name Wireless Charger Power Bank Model Number P106W10 Power Supply Battery Capacity: 10000mAh/3.7V 37Wh Type‐C Input: PD 5V/3A, 9V/2A Type‐C Output: PD 5V/3A, 9V/2A, 12V/1.5A USB‐A Output: QC 3.0, 5V/2.4A, 9V/2A, 12V/1.5A Wireless Output: 5W/7.5W/10W Output: 18W(Max) Modulation Type Continuous Wave Frequency Range 110.0~205.0KHz Operation Frequency 128.0 KHz Antenna Type Coil Antenna Hardware version V1.1 Software version V1.0 Accessories / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Per KDB 680106 D01 Section 3. RF Exposure Requirements; 1) Consumer wireless power transfer devices approved under Part 18 in some cases have to demonstrate compliance with RF exposure requirements. The potential for exposure must be assessed according to the operating configurations of the wireless system and the exposure conditions of users and bystanders. RF exposure must be evaluated with the client device(s) being charged by the primary at maximum output power. The RF exposure requirements must be determined in conjunction with the device operating characteristics, according to the mobile and portable exposure requirements in Section 2.1091 and Section 2.1093 of the rules. SAR and MPE limits do not cover the frequency range for wireless power transfer applications which operate below 100 kHz and 300 kHz respectively; therefore, RF exposure compliance needs to be determined with respect to 1.1307 (c) and (d) of the FCC rules. 2) Based on the design and implementation of the power transfer application, it must be clearly identified if mobile or portable RF exposure conditions apply. Devices that are installed to provide separation of at least 20 cm from users and bystanders may qualify for mobile exposure conditions. For some conditions where users and bystanders may be exposed at closer than 20 cm, section 2.1091(d) (4) of the rules may apply. 3) For devices designed for typical desktop applications, such a wireless charging pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 ___________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 24 assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. 4) Portable exposure conditions from 100 kHz to 6 GHz are determined with respect to SAR requirements. Existing SAR systems and test procedures are generally intended for measurements above 100 MHz. While numerical modeling can be an alternative, the constraints of substantial computational resources at low frequencies could introduce further limitations. Under these circumstances, including operations below 100 kHz, the Commission may consider a combination of analytical analysis, field strength, radiated and conducted power measurements, in conjunction with some limited numerical modeling to assess compliance. 5) Depending on the operating frequency, existing SAR and MPE measurement procedures may be adapted to evaluate wireless power transfer devices for compliance with respect to mobile or portable exposure conditions. If the grantee or its test lab have any questions regarding RF exposure evaluation they should contact the FCC Laboratory with sufficient system operating configuration details to determine if RF exposure evaluation is necessary and, if required, how to apply specific test procedures. Below 100 MHz, when SAR testing is required and the device is operating at close proximity to persons, information on device design, implementation, operating configurations, exposure conditions of users and bystanders are needed to determine the evaluation and testing requirements. In addition, the influence of nearby objects may also need consideration according to the wireless power transfer system implementation; for example, the effects of placing the device, its coils or radiating elements on or near metallic surfaces 3. Evaluation Limit 3.1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 680106 D01 RF Exposure Wireless Charging Apps v03: RF Exposure Considerations for Low Power Consumer Wireless Power Transfer Applications FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices FCC CFR 47 part 18.107:Indusial, Scientific, and Medical Equipment 3.2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3‐3.0 614 1.63 *100 6 3.0‐30 1842/f 4.89/f *900/f 2 6 30‐300 61.4 0.163 1.0 6 300‐1,500 / / f/300 6 1,500‐100,000 / / 5 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 _________________________________________________________________…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 22 FCC TEST REPORT For Hamedata Technology Co., Limited Wireless Charger Power Bank Test Model: P106W10 Prepared for : Hamedata Technology Co., Limited Address : 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 17, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : September 17, 2020 ~ September 25, 2020 Date of Report : September 27, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 22 FCC TEST REPORT FCC CFR 47 PART 18 Report Reference No. ................. : LCS200916065AEA Date Of Issue ................................. : September 27, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address .......................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ......................... : Hamedata Technology Co., Limited Address .......................................... : 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen, China Test Specification Standard ......................................... : FCC CFR 47 PART 18 Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Wireless Charger Power Bank Trade Mark ..................................... : HAME Test Model ..................................... : P106W10 Power Supply ................................. : Battery Capacity: 10000mAh/3.7V 37Wh Type-C Input: PD 5V/3A, 9V/2A Type-C Output: PD 5V/3A, 9V/2A, 12V/1.5A USB-A Output: QC 3.0, 5V/2.4A, 9V/2A, 12V/1.5A Wireless Output: 5W/7.5W/10W Output: 18W(Max) Result .......................................... : Positive Compiled by: Supervised by: Approved by: Ray Yang / Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 22 FCC TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200916065AEA September 27, 2020 Date of issue Test Model.............................. : P106W10 EUT......................................... : Wireless Charger Power Bank Applicant............................... : Hamedata Technology Co., Limited Address.................................. : 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Hamedata Technology Co., Limited Address................................... : 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen, China Telephone............................... : / Fax.......................................... : / Factory................................... : / Address................................... : / Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 22 Revision History Revision Issue Date Revisions Revised By 000 September 27, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 22 TABLE OF CONTENTS 1. GENERAL INFORMATION ......................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................... 6 1.2 Support equipment List ...........................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Photographs of Test Setup Conducted Emission-AC adapter charge mode Conducted Emission-AC adapter charge mode SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2ADOW-P106W10 Report No.: LCS200916065AEA _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Radiated Emission below 30MHz-AC adapter charge mode Radiated Emission below 1GHz-AC adapter charge mode
