2ADOW-P246W5Power Bank

It is forbidden to put the equipment in high temperature and high humidity environment, lest cause equipment overheating and internal short circuit and damage to equipment. Storage temperature not more than 45 degrees, high temperature storage for a long time can affect the service life of the machine. maintenance For a long time do not use the equipment should be the power plug from the outlet of down.At least half a year using a device to ensure the service life of equipment. If the equipment malfunction, please have qualified personnel maintenance, don't disassemble equipment without permission. IMPORTANT SAFETY INSTRUCTIONS: Certificate Of Approval Customer Couplet Date of Manufacture: Quality Controller: P246W5 Magnetic Power Bank USER MANUAL Product Guide 1 Accessories 1 Portable Battery 1 USB-C charging cable 1 User manual 1 Warranty card 2 Specification 3 Overview Charging digital devices: Once the power bank is connected to the digital device, the device shall be charged. Charging power bank: See below diagram,the white indicator is flickering when charging.It will stop flicker and all the indicators turn in white after fully charged.Please remove the adapter safely after power bank is fully charged. Operation introduction Warranty Card Matters needing attention f) Do not use the power bank in excess of its output rating. Overload outputs above rating may result in a risk of fire or injury to persons. g) Do not use the power bank that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. h) Do not disassemble the power bank. Take it to a qualified service person when service or repair is required. Incorrect reassembly may result in a risk of fire or injury to persons. i) Do not expose a power pack to fire or excessive temperature. Exposure to fire or temperature above 100°C may cause explosion. The temperature of 100°C can be replaced by the temperature of 212°F. j) Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. k) Switch off the power bank when not in use. SAVE THESE INSTRUCTIONS WARNING ‒ When using this product, basic precautions should always be followed, including the following: a) Read all the instructions before using the product. b) To reduce the risk of injury, close supervision is necessary when the product is used near children. c) Do not put fingers or hands into the product. d) Do not expose power bank to rain or snow. e) Use of a power supply or charger not recommended or sold by power pack manufacturer may result in a risk of fire or injury to persons. Adapter AC 100-240V Please read this user manual before using the product, then keep it in good condition. ！ Jupiter Technology Co., Limited Address: Building B3,Demonstration Park for Undertaking Industrial Transfer,Western District,Xiangxi Hi tech Zone, Hunan Province Website：www.cooflypower.com Made in China Thank you very much for using our products. According to the prescription, anybelongs to under normal usage circumstance cause because of the product quality's problem of breakdown,our company will be responsible for giving free maintain during this period. Free maintain won't be given under the following circumstance: 1.Without Protection to fix warrantees and the purchasing invoice. 2.The protect to fix card or purchasing invoice has been changed. 3.The breakdown and damage caused by the Force majeure. 4.The breakdown,damaged because of the transportation or handling. 5.The breakdown caused by the manipulation that hasn't follow the requests of the Manual. 6.The damage caused by the dismantle movement of non-ourcompany authorized maintainer. How to claim your warranty? 1.Enter https://cooflypower.com/pages/warranty-registration 2.Fill in the corresponding information and submit Our professional customer service team will serve you sincerely! Email：[email protected] URL：www.cooflypower.com Wireless Output Retractable stand USB-C Input& Output For charging digital devices. Input Output /Wireless charger Charge LED indicators Power button Self-charging LED indicators to show battery status Press to check the battery level Charge LED indicators & Power button Wireless Output:15W (Max) Type-C Plug Output Type-C Port Input Dimensions Weight Battery Capacity ModelP246W5 67.3x96x15.6mm 143±10g 5000mAh 5V/3A 9V/2.22A 12V/1.67A 5V/3A, 9V/2.22A, 12V/1.67A Output(Max)20W FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device mustaccept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in are sidential installation. This equipment generates uses and can radiate radiofrequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is noguarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged totry to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio…

Text truncated - open the document above for the full version.

- Hamedata Technology Co., Limited - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/25/2024 U.S. Agent Designation Hamedata Technology Co., Limited acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2ADOW-P246W5): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Hamedata Technology Co., Limited. Hamedata Technology Co., Limited with the FRN 0024119901 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Zuo Xinrong Manager Hamedata Technology Co., Limited Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

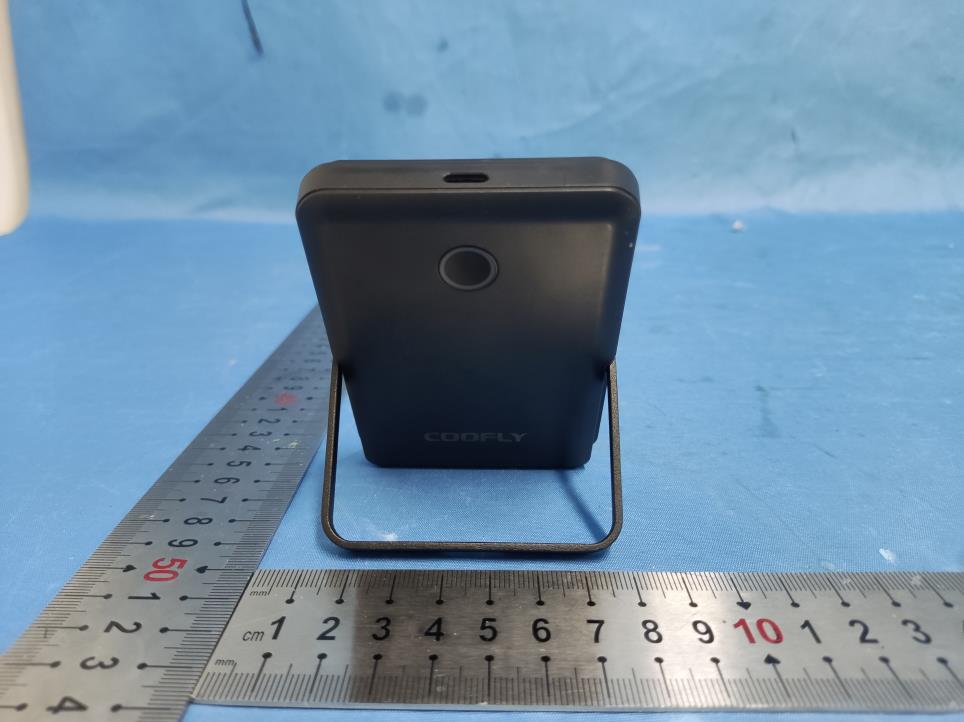

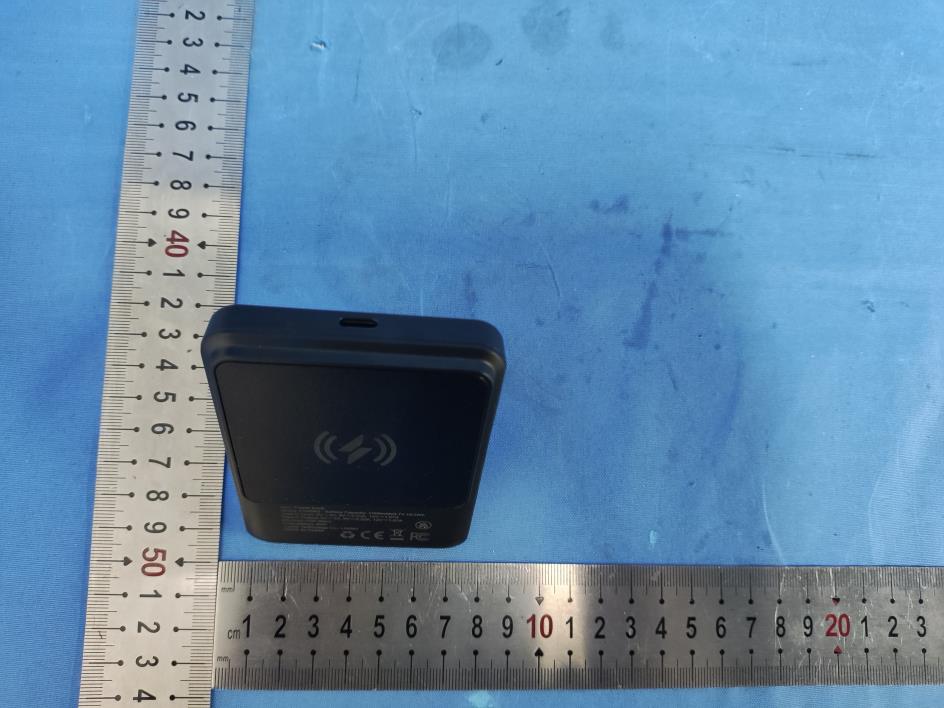

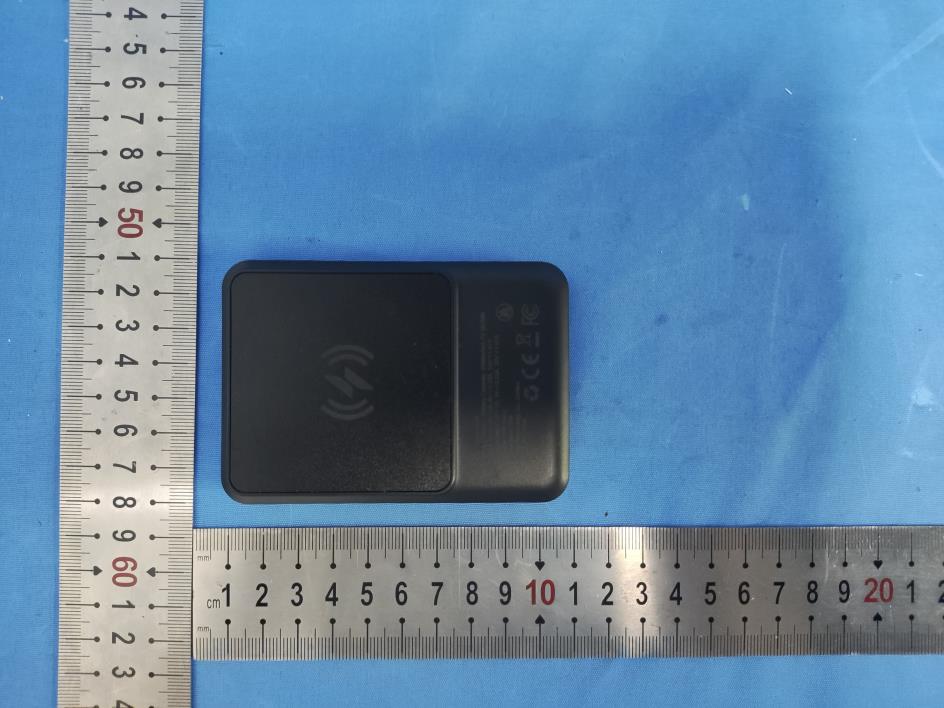

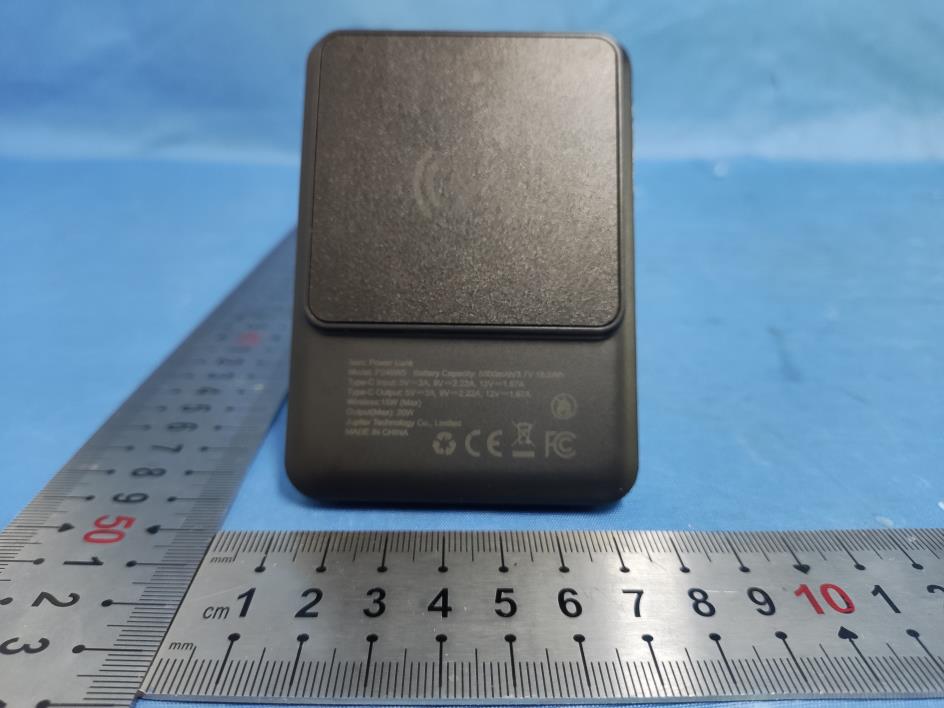

Page 1 of 7 FCC ID: 2ADOW-P246W5 External Photos Photo 1 Photo 2 Page 2 of 7 FCC ID: 2ADOW-P246W5 Photo 3 Photo 4 Page 3 of 7 FCC ID: 2ADOW-P246W5 Photo 5 Photo 6 Page 4 of 7 FCC ID: 2ADOW-P246W5 Photo 7 Photo 8 Page 5 of 7 FCC ID: 2ADOW-P246W5 Photo 9 Photo 10 Page 6 of 7 FCC ID: 2ADOW-P246W5 Photo 11 Photo 12 Page 7 of 7 FCC ID: 2ADOW-P246W5 Photo 13 ------End------

Label Size: W18mm * L45mm 1. The label is silk-screen on the sample W L Power Bank Model Name: P246W5 FCC ID: 2ADOW-P246W5

Page 1 of 6 FCC ID: 2ADOW-P246W5 Internal Photos Photo 1 Photo 2 Antenna Page 2 of 6 FCC ID: 2ADOW-P246W5 Photo 3 Photo 4 Page 3 of 6 FCC ID: 2ADOW-P246W5 Photo 5 Photo 6 Page 4 of 6 FCC ID: 2ADOW-P246W5 Photo 7 Photo 8 Page 5 of 6 FCC ID: 2ADOW-P246W5 Photo 9 Photo 10 Page 6 of 6 FCC ID: 2ADOW-P246W5 Photo 11 ------End------

Page 1 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China RF Exposure Evaluation Client Information: Applicant: Hamedata Technology Co., Limited Applicant add.: 1-3F & 6-8F, BLDG#A,Changfang Industrial Park, No.2 Guihua 5th Road, Pingshan District, Shenzhe Manufacturer: Jupiter Technology Co.,Limited Manufacturer add.: 1-4F, BLDG#9,1/F, BLDG#5, West Industrial Park, South of the Intersection of Ma'anshan Tunnel and Zhangshe Avenue, Xiangxi High-tech Zone, Hunan Province, China Product Information: Product Name: Power Bank Model No.: P246W5 Brand Name: N/A FCC ID: 2ADOW-P246W5 Applicable standards: FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: May 31, 2024 Date of Test: May 31, 2024 ~ Jun.07, 2024 Date of Issue: Jun.07, 2024 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China TABLE OF CONTENTS 1 TEST FACILITY 4 1.1 Deviation from standard 4 1.2 Abnormalities from standard conditions 4 1.3 Test Location 4 2 GENERAL INFORMATION 5 3 TEST METHODOLOGY 7 3.1 Measuring Standard 7 3.2 Requirements 7 3.3 Test Setup 8 3.4 Test Procedure 8 4 Equipment Approval Considerations 9 4.1 Description of the test mode 10 4.2 Peripheral List 10 4.3 Test Instruments list 11 4.4 Duty Cycle: 12 4.5 Compliance Location: Center vs Tip-Surface of the Probe 13 4.6 Test Result 15 5 Test Setup photo 26 Page 3 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China Revision History Revision Issue Date Revisions Revised By 00 Jun.07, 2024 Initial Issue Simba Huang Page 4 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China 1 TEST FACILITY The test facility is recognized, certified or accredited by the following organizations: .CNAS- Registration No: L6177 Dongguan Yaxu (AiT) technology Limited is accredited to ISO/IEC 17025:2017 general Requirements for the competence of testing and calibration laboratories (CNAS-CL01 Accreditation Criteria for the competence of testing and calibration laboratories) on April 17, 2022 FCC-Registration No.: 703111 Designation Number: CN1313 Dongguan Yaxu (AiT) technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 6819A CAB identifier: CN0122 The 3m Semi-anechoic chamber of Dongguan Yaxu (AiT) technology Limited has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 6819A A2LA-Lab Cert. No.: 6317.01 Dongguan Yaxu (AiT) technology Limited has been accredited by A2LA for technical competence in the field of electrical testing, and proved to be in compliance with ISO/IEC 17025: 2017 General Requirements for the Competence of Testing and Calibration Laboratories and any additional program requirements in the identified field of testing. 1.1 Deviation from standard None 1.2 Abnormalities from standard conditions None 1.3 Test Location Dongguan Yaxu (AiT) Technology Limited Address: No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Page 5 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China 2 GENERAL INFORMATION EUT Name: Power Bank Model No: P246W5 Serial Model: N/A Test sample(s) ID: AIT24053016001 Sample(s) Status: Engineer sample Operation frequency: 111kHz-205kHz Modulation Technology: ASK Antenna Type: loop coil Antenna Antenna gain: 0dBi Hardware version.: N/A Software version.: N/A Power supply: Battery Capacity: 5000mAh/3.7V 18.5Wh Type-C Input: 5V⎓3A,9V⎓2.22A,12V⎓1.67A Type-C Output: 5V⎓3A,9V⎓2.22A,12V⎓1.67A Wireless: 15W (Max) Output (Max): 20W Model different: N/A Note: For a more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 6 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China Coil Specifications: ltem Parameter Input inductance: LOA(Individual coil): 3.8uH±20% LOA(Coil+diskette): 6.3uH±10% Material of enclosure(s): Hot Air stranded Wire Number of turns: Transmitter 1: 11 turns Coil Size: Page 7 of 28 Report No.: AIT24053016FW2 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China 3 TEST METHODOLOGY 3.1 Measuring Standard According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Cocmission’s guidelines. According to §1.131…

Text truncated - open the document above for the full version.

Page 1 of 24 Report No.: AIT24053016FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China FCC TEST REPORT Client Information: Applicant: Hamedata Technology Co., Limited Applicant add.: 1-3F & 6-8F, BLDG#A,Changfang Industrial Park, No.2 Guihua 5th Road, Pingshan District, Shenzhe, China Manufacturer: Jupiter Technology Co.,Limited Manufacturer add.: 1-4F, BLDG#9, 1/F, BLDG#5, West Industrial Park, South of the Intersection of Ma'anshan Tunnel and Zhangshe Avenue, Xiangxi High-tech Zone, Hunan Province, China Product Information: Product Name: Power Bank Model No.: P246W5 Brand Name: N/A FCC ID: 2ADOW-P246W5 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Prepared By: Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan, Guangdong, China Tel.: +86-769-8202 0499 Fax.: +86-769-8202 0495 Date of Receipt: May 30, 2024 Date of Test: May 30, 2024 ~ Jun.07, 2024 Date of Issue: Jun.07, 2024 Test Result: Pass This device described above has been tested by Dongguan Yaxu (AiT) Technology Limited and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. Note: This report shall not be reproduced except in full, without the written approval of Dongguan Yaxu (AiT) Technology Limited, this document may be altered or revised by Dongguan Yaxu (AiT) Technology Limited, personal only, and shall be noted in the revision of the document. This test report must not be used by the client to claim product endorsement. Reviewed by: Approved by: Emiya Lin Simba Huang Page 2 of 24 Report No.: AIT24053016FW1 Dongguan Yaxu (AiT) Technology Limited No.22, Jinqianling Third Street, Jitigang, Huangjiang,Dongguan,Guangdong, China 1 Contents Page COVER PAGE 1 CONTENTS .................................................................................................................................................... 2 2 TEST SUMMARY ............................................................................................................................................ 5 2.1 STATEMENT OF THE MEASUREMENT UNCERTAINTY ......................................................................................... 5 2.2 MEASUREMENT UNCERTAINTY ...................................................................................................................... 5 3 TEST FACILITY .............................................................................................................................................. 6 3.1 DEVIATION FROM STANDARD ......................................................................................................................... 6 3.2 ABNORMALITIES FROM STANDARD CONDITIONS ............................................................................................... 6 3.3 TEST LOCATION .......................................................................................................................................... 6 4 GENERAL INFORMATION ............................................................................................................................. 7 4.1 EUT TEST MODE ........................................................................................................................................ 8 4.2 DESCRIPTION OF TEST SETUP ....................................................................................................................... 8 4.3 PERIPHERAL LIST ........................................................................................................................................ 9 4.4 EUT PERIPHERAL LIST ................................................................................................................................ 9 5 EQUIPMENTS LIST FOR ALL TEST ITEMS ................................................................................................. 10 6 CONDUCTED EMISSION TEST.................................................................................................................... 11 6.1 CONDUCTED EMISSION MEASUREMENT............................................................................................ 11 6.2 POWER LINE CONDUCTED EMISSION LIMITS ....................................................................................... 11 6.3 TEST PROCEDURE ............................................................................................................................... 11 6.4 DEVIATION FROM TEST STANDARD .................................................................................................... 11 6.5 TEST SETUP .......................................................................................................................................... 12 6.6 EUT OPERATING CONDITIONS ............................................................................................................ 12 6.7 TEST RESULT ........................................................................................................................................... 13 7 RADIATED EMISSION MEASUREMENT ..................................................................................................... 15 7.1 RADIATED EMISSION LIMITS ........................................................................................................................ 15 7.2 ANECHOIC CHAMBER TEST SETUP DIAGRAM ................................................................................................ 16 7.3 TEST PROCEDURE ..................................................................................................................................... 16 7.4 DEVIATION FROM TEST STANDARD .................................................................................................... 16 7.5 TEST RESULT ..................................................................................…

Text truncated - open the document above for the full version.

深圳市深广电子科技有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 客户/Client华美兴泰 名称/TYPE A11/45/16.5单孔双槽背胶线长16MM 产品型号 ModelNOSG-A11-44-6.3UH 产品编号 A11-45-16.5-016 Partnunberingsystey 客户料号 Clientp/NO 工程编号 EnginrerNOTQE1800510003 日期 /Date 2022/11/17 本公司工程部 /ForEnginerDepartnerOnly 修改内容 /RrvisedContent 认可日期 /APProvedDate 编制/Prepared审核/Checked认可/Approved 谢燕琪段家旺谢小仔 客户认可回签/AuthorixedSignaturureCompanyChop 工程/Enginrer认可/QCAPProved认可日期/APProved A11/45/16.5 The length of single-hole and double-slot rubber cable is 16mm 深圳市深广电子科技有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 一、线圈工艺/WindingProcese: NO绕组线规匝数绕线方向备注 1N12UEW-B-0.08*105P11TSCCW 2 二．电气性能/FEATURES: 1.测试条件（Testconditions）：25°C,65%RH@100KHz/1V 1.1电感量（Inductance） 1.11L0A（单独线圈）=3.8uH±20% 1.12L0A(线圈+磁片)=6.3uH±10% 1.2Q值=70MIN 1.3直流电阻（DCR）：50mΩMAX 1.4工作温度(OperatingTemperature)：-25°C~85°C 2.测试仪器(Testinstrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单 N O 项目材料 1WIRE￠0.08*105p2UEW-1.15mm 2FERRITE 43.5*5.3*0.7L 型槽铁氧体硬磁 3GLUE 白胶 4SOLDERXCD-907B 5Adhesive 开槽双面背胶+PE黑膜 6 High temperature adhesive 3MM 高温胶带 7 8 L0A (separate coil) =3.8uH±20% L0A (coil + disk) =6.3uH±10% Q value bill of materials project materials L-slot ferrite hard magnetic white glues Slotted double-sided adhesive +PE black film high-temperature tape 深圳市深广电子科技有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 三．电路图/CIRCUITDIAGRAM 单位：MM 四．外形图 /OUTSIDEDIAGRA 注：线圈出线位置缠绕3MM（Min）高温胶纸 标准ABCDEFHG STD 40±116.5±1.50.7±0.116±2 2-544Max2.2Max5MAX 单位： MM Note: Wrap 3MM (Min) high-temperature adhesive paper around the coil outlet position unit Lead flattening reverse disk 深圳市深广电子科技有限公司 ShenzhenShenguangElectronicTechnologyCo.,LTD 五．包装 /PACKAGE 5.3包装以现有包装盘为参照标准，以实际出货包装为准，如有特需要求可以定制。 Thepackagingshallbebasedontheexustingpackingplateandtheactualdeliverypackage shallprevail.Ifthereisanyrequirement,wecancustomizeit. 1400

Page 1 of 2 FCC ID: 2ADOW-P246W5 Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID: 2ADOW-P246W5 Radiation (30MHz-1000MHz) ------End------
