2ADOW-WM3WIFI-Speaker

Federal Communications Commission (FCC) Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: z Reorient or relocate the receiving antenna. z Increase the separation between the equipment and receiver. z Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. z Consult the dealer or an experienced radio/TV technician for help. Warning: Changes or modifications made to this device not expressly approved by Hamedata Technology Co., Limited may void the FCC authorization to operate this device. Note: The manufacturer is not responsible for any radio or tv interference caused by unauthorized modifications to this equipment. Such modifications could void the user’s authority to operate the equipment. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

Hamedata Technology Co., Limited 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China TEL: +86-755-28398777-8425 FAX: +86-755-28398779 DOC ATTESTATION LETTER FCC ID: 2ADOW-WM3 Date: Nov. 27, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: I, the undersigned, hereby attest to the fact that I will apply the Declaration of Conformity procedure to the computer peripheral. I understand the following FCC requirements: 1. Devices subject to the DoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission is published on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Test facilities located in countries, where the U.S. does not have an operational Telcom MRA are not recognized by the FCC to test for the DoC procedure. 3. Pt 2.1077 contains the list of information that must be included in the Declaration of Conformity, which must be supplied with each product sold. The DoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain the name, address, and phone number of the responsible party, which must be located within the United States. According to 2.909(c)(2), the responsible party is either the Manufacturer or if the product is imported the Importer. Sincerely, Zuo Xinrong/Manager 4. FCC DOC is doing at FCC recognized and authorized MRA lab and FCC DOC will be issued before sell.

Hamedata Technology Co., Limited 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China TEL: +86-755-28398777-8425 FAX: +86-755-28398779 DATE 11-27-2014 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ADOW-WM3 Product Name: WIFI-Speaker Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block diagram • Operation description These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Dated this 11-27-2014 By: Zuo Xinrong Signature Printed Title: Manager On behalf of : Hamedata Technology Co., Limited Telephone: +86-755-28398777-8425

Hamedata Technology Co., Limited 1st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China TEL: +86-755-28398777-8425 FAX: +86-755-28398779 Series Models Description FCC ID: 2ADOW-WM3 Date: Nov. 27, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: To whom concern: The device (Product Name: WIFI-Speaker) Models Name: WM3, WM1, WM2, WM1S, WM2S, WM3S, WM4, W5, WM6, WM7, WM8, WM9, WM4S, WM5S, WM6S, WM7S, WM8S, WM9S, WU01X, WU02X, WU03X, WU04X, WU05X have same electrical, PCB and BOM, only the model’s name and color are different for marketing requirements. Sincerely, Zuo Xinrong/Manager

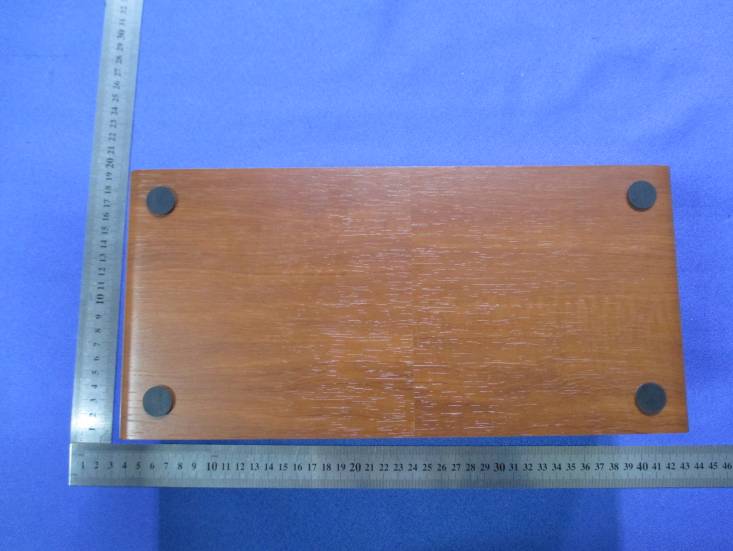

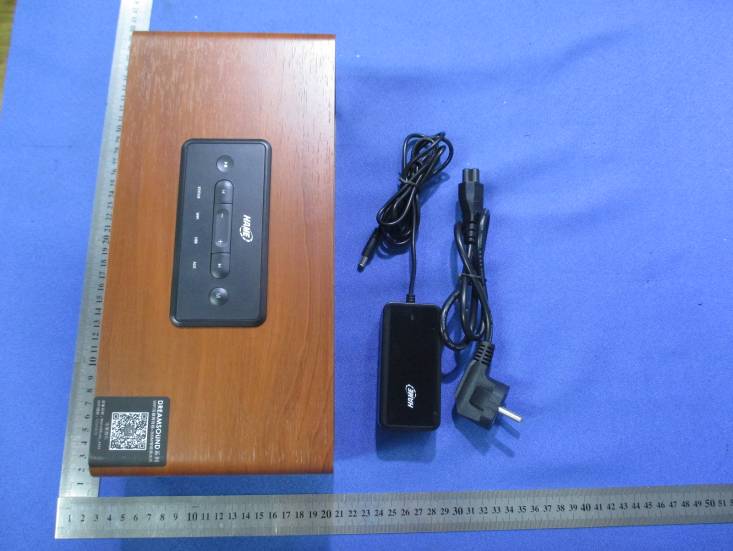

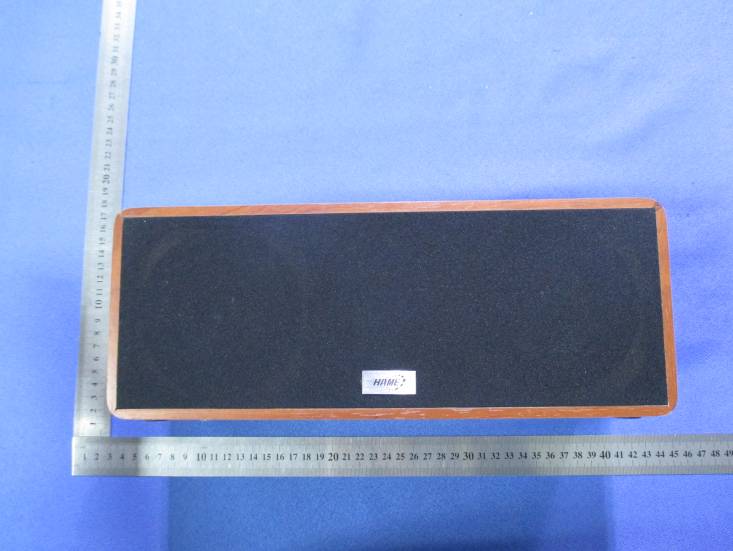

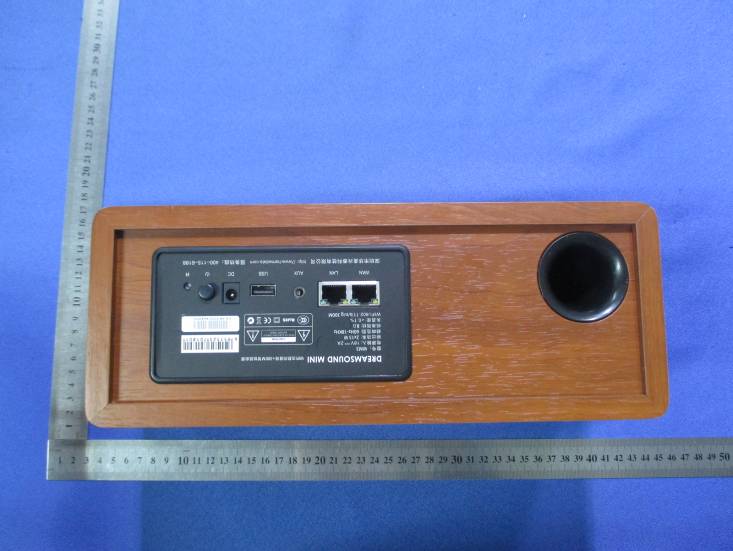

External Photos of EUT

FCC ID Label Information 1. Label location: 2. FCC ID Label: Hamedata Technology Co., Limited WIFI-Speaker Model: WM3 FCC ID: 2ADOW-WM3 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos of EUT

MPE Calculation Method E (V/m) = (30*P*G) 0.5 /d Power Density: Pd (W/m2) = E 2 /377 E = Electric Field (V/m) P = Peak RF output Power (W) G = EUT Antenna numeric gain (numeric) d = Separation distance between radiator and human body (m) The formula can be changed to Pd = (30*P*G) / (377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. Calculated Result and Limit(WORSE CASE IS AS BELOW) Directional Antenna Gain (Numeric) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result 2.51 （1+10log2=4dBi） 8.97 （9.53dBm） 0.0045 1 Compiles

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 Fax: +86-755-26636041 FCC PART 15 SUBPART C TEST REPORT Part 15.247 Report Reference No......................: CTL1410302624-WF Compiled by ( position+printed name+signature) .: File administrators Jacky Chen Name of the organization performing the tests ( position+printed name+signature) .: Test Engineer Tracy Qi Approved by ( position+printed name+signature) .: Manager Tracy Qi Date of issue.....................................: Nov. 24, 2014 Test Laboratory Name...................: Shenzhen CTL Testing Technology Co., Ltd. Address ............................................: Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Applicant’s name............................: Hamedata Technology Co., Limited Address ............................................: 1 st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China Test specification: Standard ...........................................: FCC Part 15.247: Operation within the bands 902–928 MHz, 2400– 2483.5 MHz, and 5725–5850 MHz. TRF Originator..................................: Shenzhen CTL Testing Technology Co., Ltd. Master TRF.......................................: Dated 2011-01 Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: WIFI-Speaker FCC ID.......................................: 2ADOW-WM3 Trade Mark ....................................... : Model/Type reference ......................: WM3, WM1, WM2, WM1S, WM2S, WM3S, WM4, W5, WM6, WM7, WM8, WM9, WM4S, WM5S, WM6S, WM7S, WM8S, WM9S, WU01X, WU02X, WU03X, WU04X, WU05X Modulation .......................................: 802.11b DSSS, 802.11g/n: OFDM Work Frequency Range ...................: 802.11b/g/n(20MHz): 2412~2462MHz 802.11n(40MHz): 2422~2452 Antenna Type ...................................: Undetachable Antenna Gain....................................: 1.0dBi Result ............................................... : Positivec V1.0 Page 2 of 109 Report No.: CTL1410302624-WF T E S T R E P O R T Test Report No. : CTL1410302624-WF Nov. 24, 2014 ______________________________________________________________________________________________ Date of issue Equipment under Test: WIFI-Speaker Model /Type : WM3 Listed Modes : WM1, WM2, WM1S, WM2S, WM3S, WM4, W5, WM6, WM7, WM8, WM9, WM4S, WM5S, WM6S, WM7S, WM8S, WM9S, WU01X, WU02X, WU03X, WU04X, WU05X Difference Description: Only the color and model's name is different Applicant : Hamedata Technology Co., Limited Address : 1 st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China Manufacturer : Hamedata Technology Co., Limited Address : 1 st Zone, 3F, Plant#1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District, Shenzhen518118, China Test Result according to the standards on page 4: Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. V1.0 Page 3 of 109 Report No.: CTL1410302624-WF Contents 1. TEST STANDARDS................................................................. 4 2.SUMMARY............................................................................ 5 2.1.General Remarks 5 2.2.Equipment Under Test 5 2.3.Short description of the Equipment under Test (EUT) 5 2.4.EUT operation mode 6 2.5.EUT configuration 6 2.6.NOTE 6 2.7.Related Submittal(s) / Grant (s) 7 2.8.Modifications 7 3. TEST ENVIRONMENT ............................................................. 8 3.1.Address of the test laboratory 8 3.2.Test Facility 8 3.3.Environmental conditions 8 3.4.Configuration of Tested System 8 3.5.Duty Cycle 9 3.6.Statement of the measurement uncertainty 9 3.7.Equipments Used during the Test 10 3.8.Summary of Test Result 11 4. TEST CONDITIONS AND RESULTS.......................................... 12 4.1.Conducted Emissions Test 12 4.2.Radiated Emission Test 15 4.3.6dB Bandwidth Measurement 23 4.4.Maximum Peak Output Power 32 4.5.Band Edge Measurement 33 4.6.Power Spectral Density Measurement 66 4.7.Spurious RF Conducted Emission 75 4.8.Antenna Requirement 99 5. TEST SETUP PHOTOS OF THE EUT ....................................... 100 6.EXTERNAL AND INTERNAL PHOTOS OF THE EUT .................... 102 V1.0 Page 4 of 109 Report No.: CTL1410302624-WF 1. TEST STANDARDS The tests were performed according to following standards: FCC Part 15.247: Frequency Hopping, Direct Spread Spectrum and Hybrid Systems that are in operation within the bands of 902-928 MHz, 2400-2483.5 MHz, and 5725-5850 MHz. ANSI C63.10-2009: American National Standard for Testing Unlicensed Wireless Devices. ANSI C63.4-2009 KDB Publication No. 558074 D01 v03r02 Guidance on Measurements for Digital Transmission Systems V1.0 Page 5 of 109 Report No.: CTL1410302624-WF 2. SUMMARY 2.1. General Remarks Date of receipt of test sample : Nov. 03, 2014 Testing commenced on : Nov. 03, 2014 Testing concluded on : Nov. 24, 2014 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ƽ 120V / 60 Hz ƻ 115V / 60Hz ƻ 12 V DC ƻ 24 V DC ƻ Other (specified in blank below) Description of the test mode IEEE 802.11b/g/n(HT20): Thirteen channels are provided to the EUT, but only eleventh channels used for USA and Canada. Channel Frequency(MHz)ChannelFrequency(MHz) 1 241282447 2 241792452 3 2422102457 4 2427112462 5 2432 6 2437 7 2442 IEEE 802.11n (HT…

Text truncated - open the document above for the full version.

Test Setup Photos of the EUT
