2ADQOMDNA14Smart Kit USB Wi-Fi adaptor

Complies with IDA Standards Da105762 USER MANUAL OF SMART KIT MODEL:OSK101 SK101 GD MIDEA AIR-CONDITIONING EQUIPMENT CO.,LTD. CONTENTS DECLARATION OF CONFORMITY.........................1 SPECIFICATION..................................................1 PRECAUTIONS ...................................................1 TECHNICAL SOLUTION ......................................3 OPERATION INSTRUCTION ................................5 APP USAGE ......................................................14 FAQ...................................................................23 2 3 4 5 7 6 1 Standard:IEEE 802.11b/g Antenna Type:PCB layout Antenna Frequency:WIFI2.4-2.4835GHz Maximum Transmitted Power: 20dBm Max Dimension:76*28*13mm OOOO Operation Temperature:0C~45C/32F~113F. Operation Humidity:10%~85% Power Input:DC 5V/300mA FCC ID:2ADQOMDNA14 IC :12575A-MDNA14 Applicable system :IOS, Android. Please check the service website for more applicable devices. Disclaimer:Due to the special situation existed during App use,we explicitly claim as bellow: Not all of the Android and IOS systems are compatible with the APP.We will not be responsible for any issue as a result of the incompatibility SMART KIT wireless safety strategy. Smart kit Only support WPA-PSK/WPA2-PSK encryption and none encryption . WPA-PSK/WPA2-PSK encryption is recommended. Hereby, we declare that this AC is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted with sales agent. DECLARATION OF CONFORMITY 1 2 3 SPECIFICATION PRECAUTIONS 1 2 ¢Ü This device complies with Part 15 of the FCC Rules and RSS 210 of Industry & Science Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Le present appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si letbrouillage est susceptible d'en compromettre le fonctionnement. Only operate the device in accordance with the instructions supplied. This device complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC and IC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 1. WIFI Router Home Control Mode. A WIFI router is needed at this mode. Smart phone and connect to the AC through the WIFI router conditioner. 1Smart Phone 2Smart Air conditioner 3WIFI Router TECHNICAL SOLUTION 4 3 4 2. How to install the smart kit Remove the protective cap of the smart kit Open the front panel and insert the smart kit into the reserved port Insert Attach the QR code packed with SMART KIT to the side panel of the machine, ensure it is convenience to be scanned by the mobile phohe. 1 2 3 2.How to reset the WIFI to defaults? When you first time use WIFI function, it is necessary to make the Air Conditioner(AC) to enter the WIFI Network Setting Mode to do settings. The procedure includes the following steps: 1) Disconnect the power supply of AC 2) Connect the power supply of AC, and continuously press the LEDor DO NOT DISTURB or button (depending on the remote controller seven times in 3 minutes. 3) When the AC displays AP , it means that the AC WIFI has already entered into the WIFI Network Setting Mode. 4) When the AC WIFI entered into WIFI Network Setting Mode, the Air-conditioning remote control can't open the AC. It needs to wait 3-5 minutes or when the AC finish the WIFI Network Setting Mode, then the Air-conditioning remote control can control AC normally. 5)If there is no set operation under WIFI Network setting mode,AC will quit this mode automatically 8 minutes later ,and then the user can control the AC normally. 1).Iphone Users:scan QR Code or go to App Store and search forNetHome app and download it. 2).Android Phone users:scan QR Code or go to google play, search for NetHome app and download it 1.Install App OPERATION INSTRUCTION ' ' 5 56 Click WIFI Select NetHome UsingAppledevicetolink the air conditioner with yourWIFINetworkconnection 1 2 3.Set AC connected to router (for WIFI router home control mode only) When first using, set the AC and connect the to router. use the control software to set the AC after connect the phone touter 1) Reset the AC to defaults. 2) Turn on the power of AC, enter the WIFI setting of smart phone, find the router with name Nethome , connect the smart phone to the AC. 3) Open the APP on the smart phone, do following settings: ' ' Go to Network 3 4 Select your WIFI network. Enter your WIFI password and click on OK. 5 78 Go to Network. Click on Scan QR Code. Using Android device to link the air conditioner with your WIFI network connection. 1 2 Select your WIFI network. 3 Enter your WIFI password and click on OK. 4 9 10 Go to User Registration 1 2 4. Only applicable to users who wish to remote access the air conditioners via Internet. Please ensure both your mobile device and air conditioner are connected to the Internet during the registration process. User Registration for remote access via Internet. Fill in all the required information and click on OK to complete registration. Username:Limited to 2-20 characters, case sensitive and excluding Spaces; Password :Limited to 6-16 characters, case sensitive and excluding Spaces; 11 12 Agree 3 Enter your login ID,password and click on Remote. Click on Bind. 5. Bind Smart Air-conditioner Only applicable to users who wi…

Text truncated - open the document above for the full version.

Date (22/01/2015) BABT TCB Balfour House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Confidentiality Request FCC ID: 2ADQOMDNA14 Pursuant to Sections 0.457(d)(1)(ii) and 0.459 of the Commission’s Rules, GD Midea Air-conditioning Equipment Co.,Ltd. Midea Industrial District , Beijiao ,Shunde, Foshan, Guangdong, People’s Republic of China on behalf of Icon Health & Fitness hereby requests permanent confidential treatment of information accompanying this application as outlined below: Schematics, PCB layout Parts List Block Diagrams Theory of Operation The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457(d)(1)(ii), disclosure of this Application and all accompanying materials will not be made before the date of the Grant for this Application. Yours sincerely, Company Officer: Qin Crystal Telephone Number: +86-757-2633810 Email: [email protected]

广东美的制冷设备有限公司 GD Midea Air-Conditioning Equipment Co.,Ltd. 中国广东顺德美的工业城Beijiao，ShunDe,Guangdong ,P.R.C 电话Tel:(0757)26338338 传真Fax: (0757)26659759 邮编P.C.:528311 网址：http://www.midea.com.cn email:[email protected] Date (2015-01-30) BABT Forsyth House, Churchfield Road, Walton-on-Thames, Surrey, KT12 2TD Dear Sir or Madam, We, GD Midea Air-Conditioning Equipment Co., Ltd. Midea Industrial City, Beijiao, 528311 Shunde, Foshan, Guangdong, People's Republic of China hereby declare: Product name: Smart Kit Model: SK101, OSK101 FCC ID:2ADQOMDNA14 IC:12575A-MDNA14 The two models are identical in circuit design, PCB layout and components used but only different in appearance. Sincerely, Certification Engineer: Crystal Qin Signature: Telephone Number: +86-757-26338106 Email: [email protected]

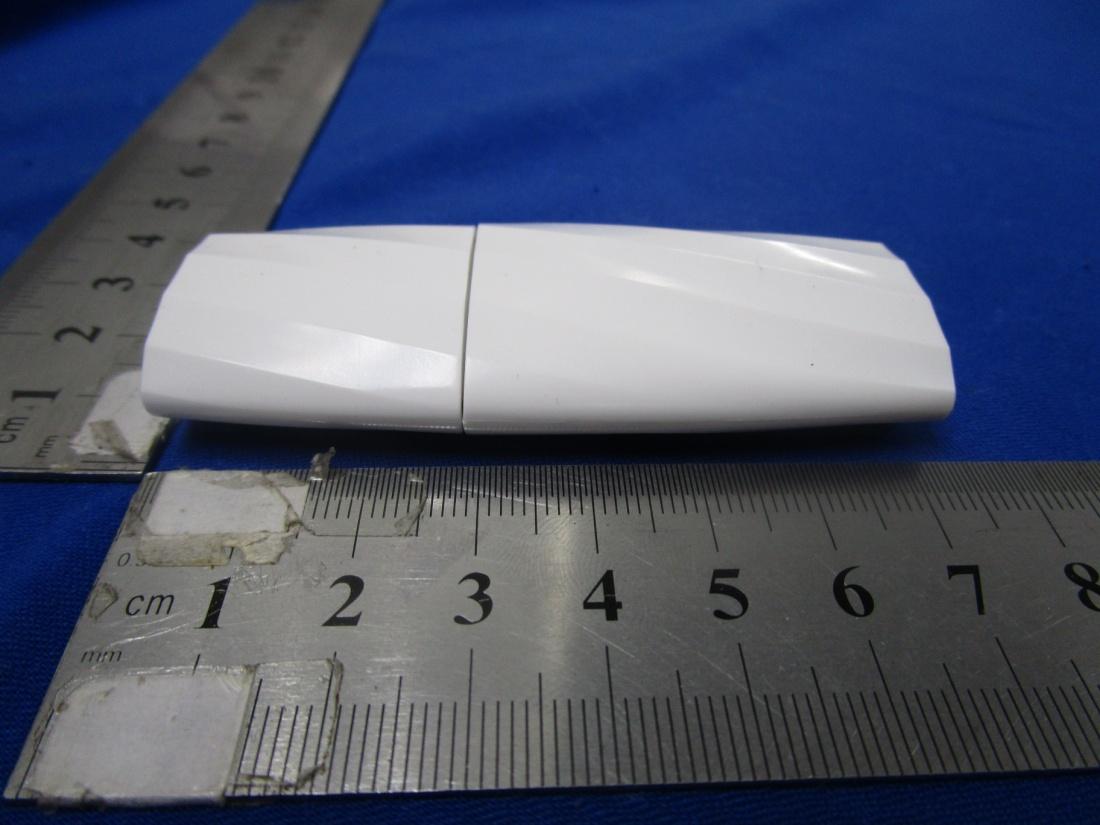

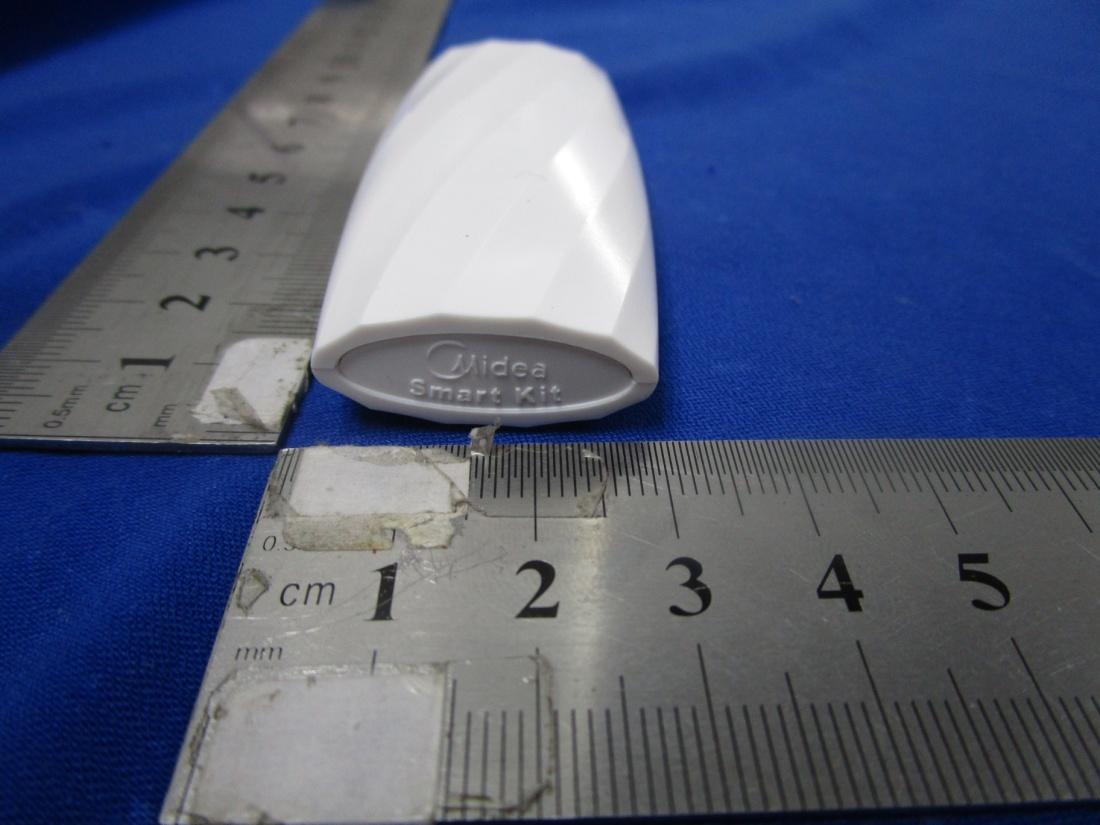

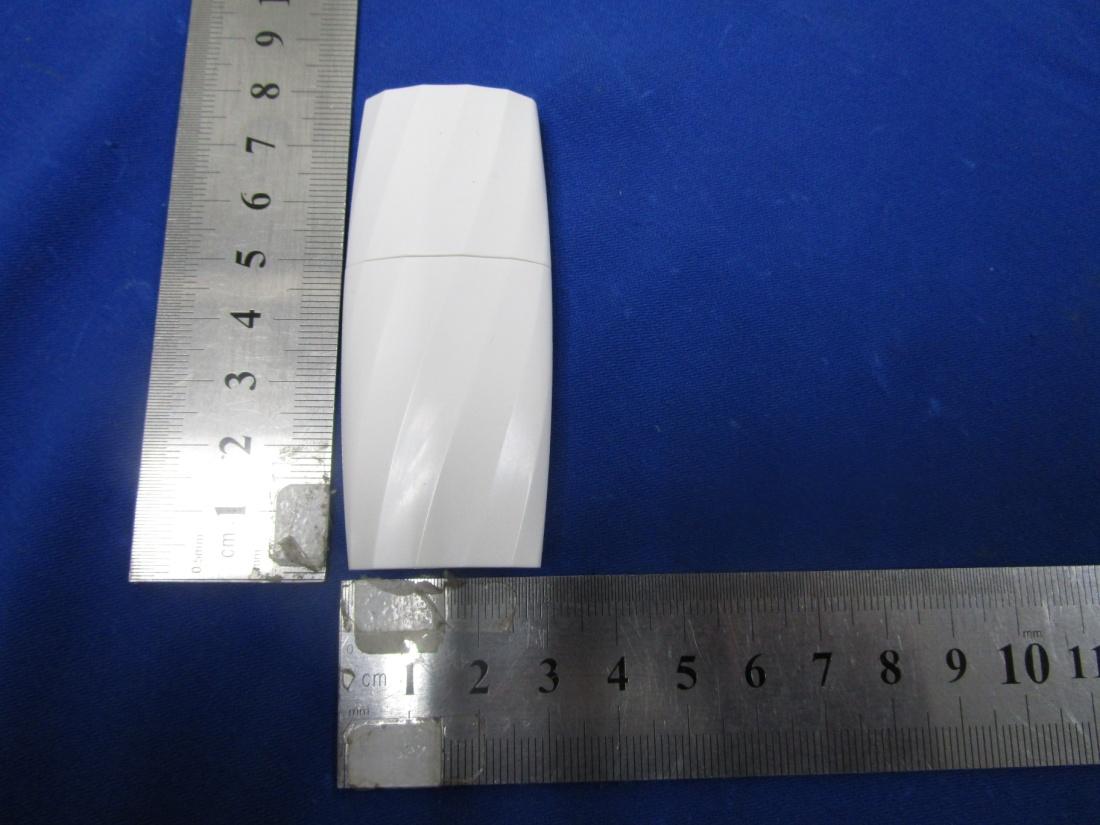

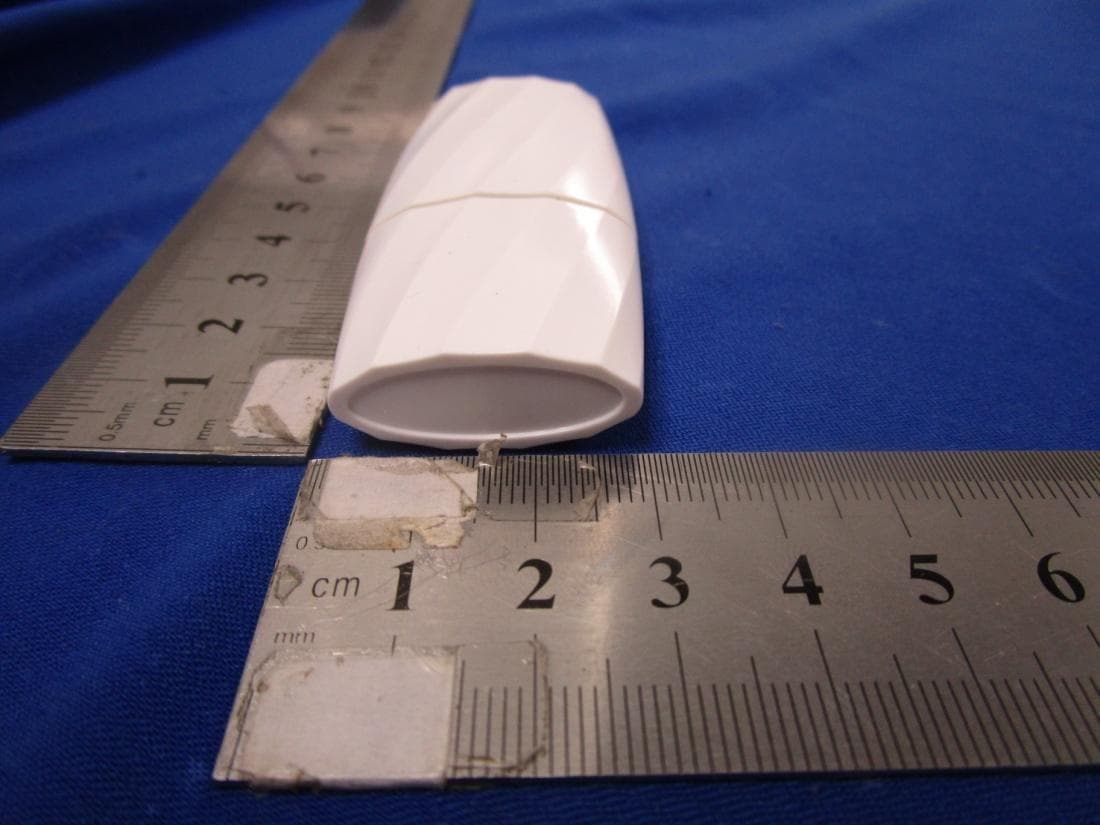

External Photos Top view Bottom view Side view

Antenna

Report Number: 64.711.14.04572.01-RF exposure Page1 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 R F E x p o s u r e C o m p l i a n c e R e p o r t Model / Serial No. : OSK101, SK101 Product Type : Smart Kit FCC ID : 2ADQOMDNA14 Applicant : GD Midea Air-conditioning Equipment Co.,Ltd. Address : Midea Industrial District , Beijiao ,Shunde, Foshan, Guangdong, People’s Republic of China Manufacturer : GD Midea Air-conditioning Equipment Co.,Ltd. Test Result :  COMPLIED Total pages including Appendices : 3 The test result only corresponds to the tested sample. It is not permitted to copy this report, in part or in full, without the permission of the test laboratory. Prepared by Approved by Storm Shu Tony Liu Report Number: 64.711.14.04572.01-RF exposure Page2 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 RF Exposure Compliance Requirement 1. Standard requirement Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a fixed device whereby a distance of 0.2m normally can be maintained between the user and the device. (a) Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀ ,H׀ 2 or S (m nutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842/f 4.89/f (900/f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100000 5 6 (b) Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S)(mW/cm 2 ) Averaging Times ׀E׀ 2 ׀ ,H׀ 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/500 30 1500-100000 1.0 30 Note: f=frequency in MHz; *Plane-wave equivalent power density Report Number: 64.711.14.04572.01-RF exposure Page3 of 3 TÜV SÜD Certification and Testing (China) Co., Ltd. Guangzhou Branch 5F, Communication Building,163 Pingyun Rd, Huangpu Ave. West Guangzhou, P.R.China TEL: +86 20 3832 0668 FAX: +86 20 3832 0478 2. MPE Calculation Method E (V/m)=(30*P*G) 0.5 /d Power Density: Pd(W/m 2 )=E 2 /377 E=Electric Field (V/m) P=Peak RF output Power (W) G=EUT Antenna numeric gain (numeric) d= Separation distance between radiator and human body (m) The formula can be changed to Pd= (30*P*G)/(377*d 2 ) From the peak EUT RF output power, the minimum mobile separation distance, d=0.2m, as well as the gain of the used antenna, the RF power density can be obtained. 3. Calculated Result and Limit Continuously transmitting mode. Antenna Gain: 2.0dBi Model Mode Channel frequency (MHz) Peak Output Power (dBm) Peak Output Power (mW) Power Density (S) (mW/cm2) Limit of Power Density (S) (mW/cm2) Test Result OSK101 802.11b 2412 18.81 76.03 0.02397 1 Complies 2437 19.03 79.98 0.02522 2472 19.59 90.99 0.02869 802.11g 2412 19.32 85.50 0.02696 2437 19.48 88.72 0.02797 2472 19.15 82.22 0.02593
