2ADR3U9053G MOBILE PHONE

user manual Model name: Brand name:unnecto ™ U905 Unnecto ™ Air 5.5 User Manual 1 Contents Safety Precautions ............................................................................................................................. 2 Overview ........................................................................................................................................... 3 Installing and Removal of the SIM Card ............................................................................................... 3 Installing and Removal of the Micro SD Card ....................................................................................... 3 Battery Use ........................................................................................................................................ 4 Battery Charging ................................................................................................................................ 4 Starting your device for the first time ................................................................................................. 4 Dialing Calls ....................................................................................................................................... 4 SIM Management .............................................................................................................................. 4 Mobile Networks ............................................................................................................................... 4 Wireless Update................................................................................................................................. 4 Play Store .......................................................................................................................................... 4 FCC .................................................................................................................................................... 5 Specifications of Battery and Charger Battery: Li-ion 3.8 V∣2500 mA Max Charging Voltage: 4.35 V Charger: Input: 100-240 VAC∣50/60 Hz ∣180 mA Output: DC 5.0 V∣1000 mA Unnecto ™ Air 5.5 User Manual 2 Safety Precautions Read these simple guidelines. Breaking the rules may be dangerous or illegal. Further detailed information is given in this manual. ROAD SAFETY Do not use the phone while you are driving. Park the vehicle before using your phone. SWITCH OFF IN AIRCRAFT Mobile device may cause harmful interference so turn off your mobile device before boarding an airplane. SWITCH OFF IN HOSPITALS Follow any restrictions or rules. Switch off the phone near medical equipment. SWITCH OFF WHEN REFUELING Switch off the phone at a refueling point or any fuel or chemicals places. SWITCH OFF NEAR BLASTING POINT Don’t use the phone where blasting is in progress. Observe restrictions, and follow any regulations or rules. INTERFERENCE All wireless phones may be susceptible to interference, which could affect the performance. USE NORMALLY Use in the normal position explained in the product documentation. Don’t touch the antenna unnecessarily. ENHANCEMENTS AND BATTERIES Use only the approved enhancements and batteries. Do not connect incompatible products. EMERGENCY CALLS Turn on your phone and keep it in service areas, dial emergency phone numbers and then press send key to make a call. KEEP AWAY FROM CHILDREN Keep your phone and its accessories away from children. Unnecto ™ Air 5.5 User Manual 3 1. Overview 1 - Volume Keys 6 - Receiver 2 - Earphone Jack 7 - Power Key 3 - Front Camera 8 - Back Camera 4 - Capacitive Buttons 9 - Flash Light 5 - Micro USB Port 10 - Back Cover 2. Installing and Removal of the SIM Card  Switch off the phone and remove the battery.  Insert the SIM Card into the designated SIM 1 or SIM 2 slot.  To remove the SIM Card; turn off the phone; remove the battery; then remove the SIM Card from the SIM Card slot. 3. Installing and Removal of the Micro SD Card  Turn off phone before inserting or removing the Micro SD Card.  To insert, slide the Micro SD Card into the Micro SD Card slot (Micro SD Card facing up), located inside the back of the phone.  To remove, pull the Micro SD Card out of the slot. Unnecto ™ Air 5.5 User Manual 4 4. Battery Use - Installation and Removal of the Battery  Turn off the phone before removing the battery.  Remove the back cover to access the battery.  Place the battery into the phone; aligning the battery pins to the phone’s pins.  To remove the battery, lift up the crease on the corner of the phone. 5. Battery Charging  Plug the provided charger into a standard wall outlet.  Plug the Micro USB charger into the USB port of the phone.  When the phone is fully charged; unplug the charger from the standard wall outlet and from the phone.  If the phone automatically powers off or the battery indictor is low; then you should immediately charge the phone. 6. Starting your device for the first time  Make sure one or two SIM cards are inserted before powering on the phone.  Make sure the battery is charged for at least 30 minutes before the phone is powered on.  Create or sign in an existing Google account for access to the Android features. 7. Dialing Calls  Press the Phone Icon on the phone.  Input the phone number; press the dial key to make the call.  Default call setting is on “Always ask”. For outgoing calls, a prompt will ask you to select SIM 1 or SIM 2. The default can be changed in the SIM Management Settings. 8. SIM Management  SIM Management is located in Settings.  You are able to manage SIM 1 and/or SIM 2 Call, Data, and Roaming preferences. 9. Mobile Networks  Mobile Networks are located in Settings-> More...-> Mobile Network  This setting allows you to select the preferred SIM Card for the 3G Data connection. 10. Wireless Update  Wireless Updates are located in settings-> About Phone ->Wireless Update.  If available, this will update the phone’s firmware. 11. Play S…

Text truncated - open the document above for the full version.

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2Rev 5.0 UNNECTO HOLDING LIMITED 2015.1.18 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, UNNECTO HOLDING LIMITED (client’s company name) hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Product description, model name): Product description: 3G MOBILE PHONE model name: U905 FCC ID: 2ADR3U905 Sincerely, Client’s signature : VILSON .PR Client’s name / title: manager Applicant company：UNNECTO HOLDING LIMITED address： ROOM 1501(445),15/F., SPA CENTRE,53-55 LOCKHART ROAD,WANCHAI,HONGKONG

SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 3.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (current) 2.0 3.0 Jan-31-2012 SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 3.0 UNNECTO HOLDING LIMITED 2015.1.18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2ADR3U905 We hereby request confidential treatment of information accompanying this application as outlined below: - e.g. Block Diagram - e.g. Schematics - e.g. Operational Description - e.g. Tune up Procedure - e.g. Part List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : VILSON .PR Client’s name / title : manager Applicant company：UNNECTO HOLDING LIMITED address： ROOM 1501(445),15/F., SPA CENTRE,53-55 LOCKHART ROAD,WANCHAI,HONGKONG

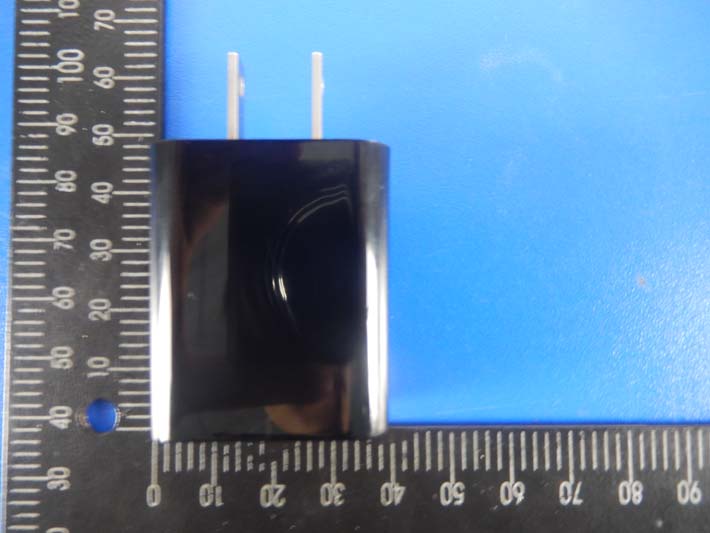

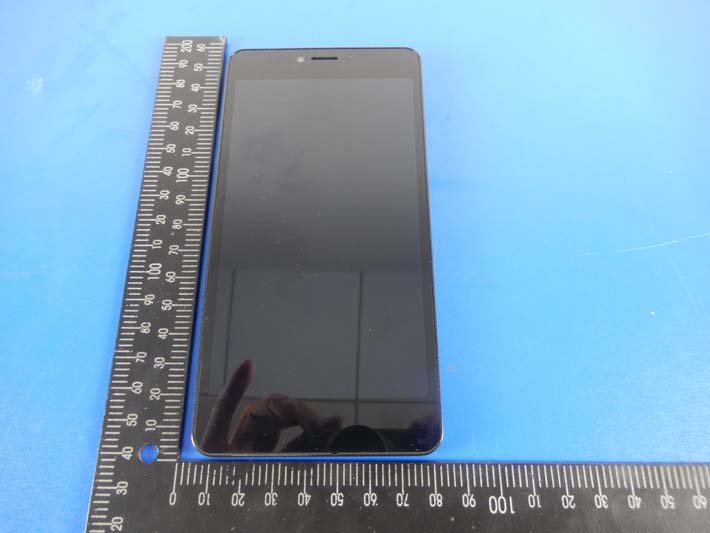

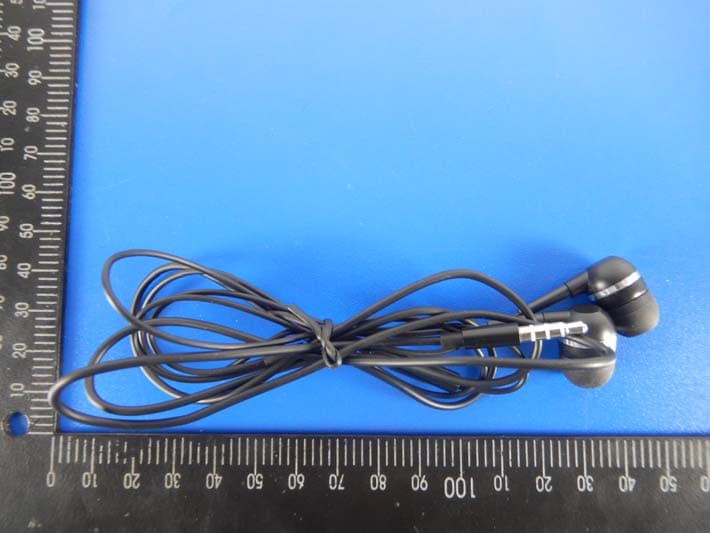

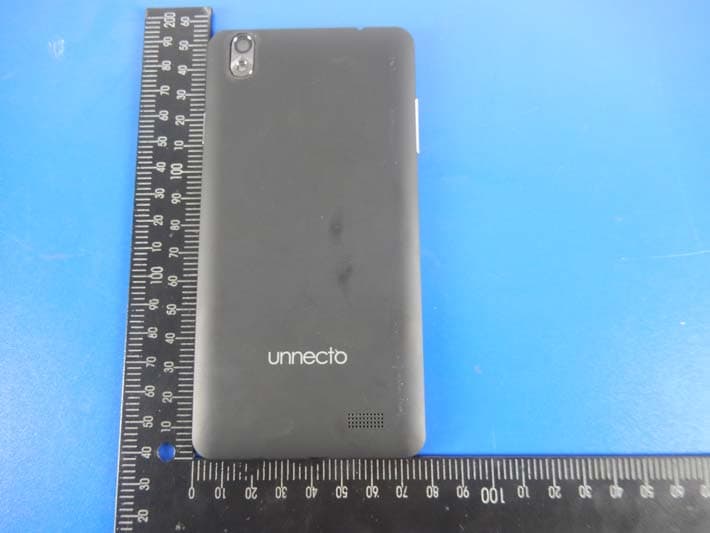

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 Photo 3 Photo 4 Photo 5 Photo 6 Photo 7 Photo 8 Photo 9 Photo 10 Photo 11 Photo 12

Label 3G MOBILE PHONE Model name: U905 Brand name: unnecto ™ FCC ID: 2ADR3U905 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. label

BT/WIFI/GPS ANTENNA GSM/WCDMA ANTENNA 3.8CM 1.45CM 4.6CM 1.8CM 15.8CM

APPENDIX-PHOTOGRAPHS OF EUT CONSTRUCTIONAL DETAILS Photo 1 Photo 2 BT/WIFE/GPS ANTENNA GSM/WCDMA ANTENNA Photo 3 Photo 4 Photo 5

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC SAR TEST REPORT Report No: STS1501039H01 Issued for UNNECTO HOLDING LIMITED ROOM 1501(445),15/F.,SPA CENTRE,53-55 LOCKHART ROAD,WANCHAI,HONGKONG Product Name: 3G MOBILE PHONE Brand Name: unnecto ™ Model No.: U905 Series Model: N/A FCC ID: 2ADR3U905 Test Standard: ANSI/IEEE Std. C95.1 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 Max. SAR (1g): Head:0.262 W/kg Body: 1.481 W/kg S T L A B S Page 2 of 126 Report No.:STS1501039H01 Test Report Certification Applicant’s name ................. : UNNECTO HOLDING LIMITED Address ................................. : ROOM 1501(445),15/F., SPA CENTRE,53-55 LOCKHART ROAD, WANCHAI, HONGKONG Manufacture's Name ............ : SHENZHEN UNI-ONE ELECTRONIC CO.,LTD Address ................................. : 5/F, Bldg A2,Kexing Science Park, Keyuan Rd., Hi-Tech Park Shenzhen, P.R. China Product description Product name ........................ : 3G MOBILE PHONE Trademark ........................... : unnecto ™ Model and/or type reference : U905 Serial Model： N/A Standards ............................. : ANSI/IEEE Std. C95.1-1992 FCC 47 CFR Part 2 ( 2.1093) IEEE 1528: 2013 The device was tested by Shenzhen STS Test Services Co., Ltd. in accordance with the measurement methods and procedures specified in KDB 865664 The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. Date of Test ........................................... : Date (s) of performance of tests ............. : 23 Jan.. 2015 Date of Issue .......................................... : 26 Jan.. 2015 Test Result.............................................. : Pass Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) Page 3 of 126 Report No.:STS1501039H01 TABLE OF CONTENS 1. General Information 4 1.1 EUT Description 4 1.2 Test Environment 5 1.3 Test Facility 5 2. Test Standards And Limits 6 3. SAR Measurement System 7 3.1 Definition Of Specific Absorption Rate (SAR) 7 3.2 SAR System 7 3.2.1 Probe 8 3.2.2 Phantom 9 3.2.3 Device Holder 9 4. Tissue Simulating Liquids 10 4.1 Simulating Liquids Parameter Check 10 5. SAR System Validation 11 5.1 Validation System 11 5.2 Validation Result 11 6. SAR Evaluation Procedures 12 7. EUT Antenna Location Sketch 13 7.1 SAR TEST EXCLUSION CONSIDER TABLE 14 8. EUT Test Position 16 8.1 Define Two Imaginary Lines On The Handset 16 8.2 Hotspot mode exposure position condition 17 9. Measurement Uncertainty 18 10. Conducted Power Measurement 20 11. EUT And Test Setup Photo 24 11.1 EUT Photo 24 11.2 Setup Photo 27 12. SAR Result Summary 33 12.1 Head SAR 33 12.2 Body SAR And Hotspot 34 12.3 repeated SAR measurement 36 13. Equipment List 39 Appendix A. System Validation Plots 40 Appendix B. SAR Test Plots 52 Appendix C. Probe Calibration And Dipole Calibration Report 126 Page 4 of 126 Report No.:STS1501039H01 1. General Information 1.1 EUT Description Equipment 3G MOBILE PHONE Brand Name unnecto ™ Model No. U905 Serial Model N/A FCC ID 2ADR3U905 Model Difference N/A Adapter Input: AC100-240V, 0.18A, 50/60 Hz Output: DC 5V, 1000mA Battery Rated Voltage: 3.8V Capacity: 2500mAh Hardware Version UH09_MB_V0.1 2014-11-11 Software Version ALPS.KK1.MP1.V2.10 Frequency Range GSM 850: 824.2 ~ 848.8 MHz PCS1900: 1850.2 ~ 1909.8 MHz WCDMA II: 1852.4~1907.6 MHz WCDMA V: 826.4~846.6 MHz WLAN 802.11 b/g/n(HT20):2412-2462 MHz WLAN 802.11 n(HT40):2422-2452 MHz Bluetooth：2402~2480MHz Transmit Power(MAX): GSM 850: 30.70dBm GSM 1900: 28.88dBm WCDMA II: 21.51dBm WCDMA V: 22.84dBm 802.11b: 15.87dBm 802.11g: 12.26 dBm 802.11 n(HT20): 12.54dBm 802.11 n(HT40): 9.31dBm Bluetooth: 5.115dBm Max. Reported SAR(1g): Head: GSM 850: 0.100 W/kg GSM 1900: 0.103 W/kg WCDMA II: 0.216 W/kg WCDMA V: 0.262 W/kg WIFI: 0.180 W/kg Body: GSM 850: 0.146 W/kg GSM 1900: 0.741 W/kg WCDMA II: 1.477 W/kg WCDMA V: 0.228 W/kg WIFI: 0.074 W/kg Hotspot: GSM 850: 0.355 W/kg GSM 1900: 1.481 W/kg WCDMA II: 1.477 W/kg WCDMA V: 0.228 W/kg WIFI: 0.074 W/kg Operating Mode: GSM: GSM Voice/GPRS/EGPRS Class 12; WCDMA: RMC/HSDPA/HSUPA Release 6; WLAN: 802.11 b/g/n; Bluetooth: V4.0 + EDR (GFSK +π/4DQPSK+8DPSK) Antenna Specification: GSM/WCDMA: PIFA Antenna BT/WIFI: PIFA Antenna SIM Card Support dual-SIM, dual standby, the multiple SIM card with two lines cannot transmitting at the same time Hotspot Mode: Support DTM Mode: Not Support Page 5 of 126 Report No.:STS1501039H01 1.2 Test Environment Ambient conditions in the SAR laboratory: Items Required Actual Temperature (°C) 18-25 22~23 Humidity (%RH) 30-70 55~65 1.3 Test Facility Shenzhen STS Test Services Co., Ltd. Add. : 1/F, Building 2, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China FCC Registration No.: 842334;IC Registration No.: 12108A-1 Page 6 of 126 Report No.:STS1501039H01 2. Test Standards And Limits No. Identity Document Title 1 47 CFR Part 2 Frequency Allocations and Radio Treaty Matters; General Rules and Regulations 2 ANSI/IEEE Std. C95.1-1992 IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz 3 IEEE Std. 1528-2013 Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques 4 FCC KDB 447498 D01 v05r02 Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 5 FCC KDB 865664 D01 v01r03 SAR Measurement 100 MHz to 6 …

Text truncated - open the document above for the full version.

Page 52 of 126 Report No.:STS1501039H01 Appendix B. SAR Test Plots Plot 1: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 4.83 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Right head Device Position Cheek Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) 4.80 Maximum location: X=-49.00, Y=-33.00 SAR Peak: 0.11 W/kg SAR 10g (W/Kg) 0.060738 SAR 1g (W/Kg) 0.082855 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 53 of 126 Report No.:STS1501039H01 Plot 2: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 4.83 Area Scan dx=8mm dy=8mm, h= 5.00 mm Zoom Scan 5x5x7,dx=8mmdy=8mmdz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Right head Device Position Tilt Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) -0.75 Maximum location: X=-40.00, Y=-17.00 SAR Peak: 0.10 W/kg SAR 10g (W/Kg) 0.054640 SAR 1g (W/Kg) 0.074076 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 54 of 126 Report No.:STS1501039H01 Plot 3: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 4.83 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm,Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Left head Device Position Cheek Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.2 Conductivity (S/m) 0.91 Variation (%) 3.34 Maximum location: X=-49.00, Y=-40.00 SAR Peak: 0.14 W/kg SAR 10g (W/Kg) 0.052464 SAR 1g (W/Kg) 0.093235 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 55 of 126 Report No.:STS1501039H01 Plot 4: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 4.83 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Left head Device Position Tilt Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.2 Conductivity (S/m) 0.91 Variation (%) 2.01 Maximum location: X=-41.00, Y=-24.00 SAR Peak: 0.10W/kg SAR 10g (W/Kg) 0.054347 SAR 1g (W/Kg) 0.075760 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 56 of 126 Report No.:STS1501039H01 Plot 5: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 5.02 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body Front Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) 4.19 Maximum location: X=10.00, Y=-48.00 SAR Peak: 0.11 W/kg SAR 10g (W/Kg) 0.053339 SAR 1g (W/Kg) 0.075307 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 57 of 126 Report No.:STS1501039H01 Plot 6: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 5.02 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body back Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) 1.21 Maximum location: X=8.00, Y=-15.00 SAR Peak: 0.23 W/kg SAR 10g (W/Kg) 0.097262 SAR 1g (W/Kg) 0.136388 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 58 of 126 Report No.:STS1501039H01 Plot 7: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 5.02 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body left side Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) 0.75 Maximum location: X=1.00, Y=-38.00 SAR Peak: 0.10 W/kg SAR 10g (W/Kg) 0.040784 SAR 1g (W/Kg) 0.064886 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 59 of 126 Report No.:STS1501039H01 Plot 8: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 5.02 Area Scan dx=8mm dy=8mm, h= 5.00 mm ZoomScan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body right side Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) -2.36 Maximum location: X=3.00, Y=-64.00 SAR Peak: 0.08 W/kg SAR 10g (W/Kg) 0.035137 SAR 1g (W/Kg) 0.053208 SURFACE SAR VOLUME SAR 3D screen shot Z Axis Scan Page 60 of 126 Report No.:STS1501039H01 Plot 9: DUT: 3G MOBILE PHONE; EUT Model: U905 Test Data 2015-01-23 Ambient Temperature(°C) 22.70 Liquid Temperature(°C) 22.30 Probe SN 17/14 EP221 ConvF 5.02 Area Scan dx=8mm dy=8mm, h= 5.00 mm Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5mm, Complete/ndx=8mm dy=8mm, h= 5.00 mm Phantom Validation plane Device Position Body bottom side Band GSM850 Channels Middle Signal TDMA (Crest factor: 8.32) Frequency (MHz) 836.6 Relative permittivity (real part) 44.22 Conductivity (S/m) 0.91 Variation (%) -0.26 Maximum location: X=7.00, Y=-2.00 SAR Peak: 0.09 W/kg SAR …

Text truncated - open the document above for the full version.

Ref : ACR.262.1.14.SATU.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F, BUILDING 2, ZHUOKE SCIENCE PARK, CHONGQING ROAD FUYONG, BAO’ AN DISTRICT, SHENZHEN,CHINA SATIMO COMOSAR DOSIMETRIC E-FIELD PROBE SERIAL NO.: SN 17/14 EP221 Calibrated at SATIMO US 2105 Barrett Park Dr. - Kennesaw, GA 30144 09/01/2014 Summary: This document presents the method and results from an accredited COMOSAR Dosimetric E-Field Probe calibration performed in SATIMO USA using the CALISAR / CALIBAIR test bench, for use with a SATIMO COMOSAR system only. All calibration results are traceable to national metrology institutions. COMOSAR E-Field Probe Calibration Report COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 2/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. Name Function Date Signature Prepared by : Jérôme LUC Product Manager 9/19/2014 Checked by : Jérôme LUC Product Manager 9/19/2014 Approved by : Kim RUTKOWSKI Quality Manager 9/19/2014 Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A 9/19/2014 Initial release COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 3/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. TABLE OF CONTENTS 1 Device Under Test ..................................................................................................... 4 2 Product Description ................................................................................................... 4 2.1 General Information _______________________________________________________ 4 3 Measurement Method ................................................................................................ 4 3.1 Linearity ________________________________________________________________ 4 3.2 Sensitivity _______________________________________________________________ 5 3.3 Lower Detection Limit _____________________________________________________ 5 3.4 Isotropy _________________________________________________________________ 5 3.5 Boundary Effect __________________________________________________________ 5 4 Measurement Uncertainty .......................................................................................... 5 5 Calibration Measurement Results .............................................................................. 6 5.1 Sensitivity in air __________________________________________________________ 6 5.2 Linearity ________________________________________________________________ 7 5.3 Sensitivity in liquid ________________________________________________________ 7 5.4 Isotropy _________________________________________________________________ 8 6 List of Equipment ...................................................................................................... 9 COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 4/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 1 DEVICE UNDER TEST Device Under Test Device Type COMOSAR DOSIMETRIC E FIELD PROBE Manufacturer Satimo Model SSE5 Serial Number SN 17/14 EP221 Product Condition (new / used) New Frequency Range of Probe 0.4 GHz- 6 GHz Resistance of Three Dipoles at Connector Dipole 1: R1=0.179 M Dipole 2: R2=0.167 M Dipole 3: R3=0.178 M A yearly calibration interval is recommended. 2 PRODUCT DESCRIPTION 2.1 GENERAL INFORMATION Satimo’s COMOSAR E field Probes are built in accordance to the IEEE 1528, OET 65 Bulletin C and CEI/IEC 62209 standards. Figure 1 – Satimo COMOSAR Dosimetric E field Dipole Probe Length 330 mm Length of Individual Dipoles 4.5 mm Maximum external diameter 8 mm Probe Tip External Diameter 5 mm Distance between dipoles / probe extremity 2.7 mm 3 MEASUREMENT METHOD The IEEE 1528, OET 65 Bulletin C, CENELEC EN50361 and CEI/IEC 62209 standards provide recommended practices for the probe calibrations, including the performance characteristics of interest and methods by which to assess their affect. All calibrations / measurements performed meet the fore mentioned standards. 3.1 LINEARITY The evaluation of the linearity was done in free space using the waveguide, performing a power sweep to cover the SAR range 0.01W/kg to 100W/kg. COMOSAR E-FIELD PROBE CALIBRATION REPORT Ref: ACR.262.1.14.SATU.A Page: 5/9 This document shall not be reproduced, except in full or in part, without the written approval of SATIMO. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of SATIMO. 3.2 SENSITIVITY The sensitivity factors of the three dipoles were determined using a two step calibration method (air and tissue simulating liquid) using waveguides as outlined in the standards. 3.3 LOWER DETECTION LIMIT The lower detection limit was assessed using the same measurement set up as used for the linearity measurement. The required lower detection limit is 10 mW/kg. 3.4 ISOTROPY The axial isotropy was evaluated by exposing the probe to a reference wave from a standard dipole with the dipole mounted under the flat phantom in the test configuration suggested for system validations and checks. The probe was rotated along its main axis from 0 - 360 degrees in 15 degree steps. The hemispherical isotropy is determined by inserting the probe in a thin plastic box filled with tissue-equivalent liquid,…

Text truncated - open the document above for the full version.

Any reproduction of this document must be done in full. No single part of this document may be reproduced without permission from STS, All Test Data Presented in this report is only applicable to presented Test sample. Shenzhen STS Test Services Co., Ltd. 1/F, Building B, Zhuoke Science Park, Chongqing Road, Fuyong, Baoan District, Shenzhen, China TEL: +86-755 3688 6288 FAX: +86-755 3688 6277 E-mail:[email protected] FCC RADIO REPORT Report No: STS1501039F01 Issued for UNNECTO HOLDING LIMITED ROOM 1501(445),15/F.,SPA CENTRE,53-55 LOCKHART ROAD,WANCHAI,HONGKONG Product Name: 3G MOBILE PHONE Brand Name: unnecto ™ Model No.: U905 Series Model: N/A FCC ID: 2ADR3U905 Test Standard: FCC Part 22H and 24E S T L A B S 2 of 113 Report No.: STS1501039F01 Testing Engineer : (Tony Liu) Technical Manager : (Vita Li) Authorized Signatory : (Bovey Yang) TEST RESULT CERTIFICATION Applicant’s name ................... UNNECTO HOLDING LIMITED Address .................................. . ROOM 1501(445),15/F.,SPA CENTRE,53-55 LOCKHART ROAD, WAN- CHAI,HONGKONG Manufacture's Name ............ . SHENZHEN UNI-ONE ELECTRONIC CO.,LTD Address .................................. . 5/F,Bldg A2,Kexing Science Park,Keyuan Rd.,Hi-Tech Park Shenz- hen,P.R.China Product name ......................... . 3G MOBILE PHONE Band name ........................... . unnecto ™ Model and/or type reference .. . U905 Standards .............................. . FCC Part 22H and 24E Test procedure ....................... .TIA 603 C This device described above has been tested by STS and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of STS, this document may be altered or revised by STS, personal only, and shall be noted in the revision of the document. Date of Test ..................................... Date of performance of tests ........... 15 Jan. 2015 ~21 Jan. 2014 Date of Issue ................................... 21 Jan. 2014 Test Result ....................................... Pass 3 of 113 Report No.: STS1501039F01 TABLE OF CONTENTS Page 1. SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 5 1.2 MEASUREMENT UNCERTAINTY 5 2. GENERAL INFORMATION 6 2.1 PRODUCT DESCRIPTION 6 2.2 RELA…

Text truncated - open the document above for the full version.
