2ADS4HUB2BLUETOOTH TRANSMITTER / RECEIVER

DATASHEET-USER GUIDE HUB2 Version 1.3, 02-01-2020 103 rue Louvain Ouest, H2N 1A3, Montreal 2 USER GUIDE HUB2 | VERSION 1.3 Contents 1. HUB2 presentation and characteristics ........................................................................................3 1.1 Description use ................................................................................................................................... 3 1.2 Electrical charateristics ....................................................................................................................... 3 1.2.1 Description ................................................................................................................................... 3 1.2.2 Key features ................................................................................................................................. 3 1.2.3 Working temperature .................................................................................................................. 3 1.2.4 Water/Dust protection ................................................................................................................. 3 1.2.5 Physical and body ......................................................................................................................... 3 1.2.6 Electrical specs ............................................................................................................................. 4 1.2.7 Communication protocol ....................................................................................................... 4 1.2.8 Coverage ............................................................................................................................... 4 2. FCC Statements ..........................................................................................................................5 3. IC Statements .............................................................................................................................6 4. Warning .....................................................................................................................................7 4.1 Security ............................................................................................................................................... 7 4.2 Label .................................................................................................................................................... 7 5. Material needed .........................................................................................................................7 6. Installation .................................................................................................................................8 6.1 Installation .......................................................................................................................................... 8 6.2 Orientation .......................................................................................................................................... 8 6.3 Connections ........................................................................................................................................ 8 7. HUB2 Button control and light ....................................................................................................9 7.1 Home screen ....................................................................................................................................... 9 8. Troubleshooting ....................................................................................................................... 10 8.1 BLE-Devices ....................................................................................................................................... 10 8.2 PHONE (HUBDROID) .......................................................................................................................... 10 8.3 PHONE (HUBDROID) software update .............................................................................................. 10 8.4 IP NETWORKING ................................................................................................................................ 10 103 rue Louvain Ouest, H2N 1A3, Montreal 3 USER GUIDE HUB2 | VERSION 1.3 1. HUB2 presentation and characteristics 1.1 Description use The Pixmob HUB2 is an improvement from the last version of the HUB. It doesn’t need anymore a hard line wire for ethernet either an AC plug, smartphone as screen, battery powered, etc. The HUB2 can be place in hard access position and with the integrated battery, it will last around a half of the day if it always used. 1.2 Electrical charateristics 1.2.1 Description The Hub2 detect will take all the information around him via Bluetooth and will transmit it via WIFI or LTE to the server. 1.2.2 Key features -Small equipment -Battery powered -Easy to recharge -Same protocol as Klik gear 1.2.3 Working temperature -20 ° to 60 °C -5 ° to 140 °F 1.2.4 Water/Dust protection NONE 1.2.5 Physical and body Both of HUB have aluminum casing, one is custom (HUB1) and the other is from BUD IND. (Manufactuer part#: EXN-23352-BK) 103 rue Louvain Ouest, H2N 1A3, Montreal 4 USER GUIDE HUB2 | VERSION 1.3 1.2.6 Electrical specs FREQUENCY BAND: 2400–2483.5 MHz RF POWER MAX(W): Conducted 115mW TYPE OF MODULATION: GFSK POWER REQUIREMENTS: USB 5V with a battery 3.7V 5000mAh inside MAXIMUM TRANS DUTY CYCLE: 10% of duty cycle ANTENNAS INFORMATION: Bluetooth antenna RPSMA, 2.4 GHz Gain 4.9 dBi. The EUT is professionally installed. 1.2.7 Communication protocol -BLUETOOTH: 4.0 LE Compliant, Support for Bluetooth v4.1 host stack including ATT, GATT, SMP, L2CAP, GAP -WIFI/LTE: From Phone to the server 1.2.8 Coverage Depending the environment where the HUB2 is installed, it can reach more than 300m in an open space without obstacle, and between 50 to 150m with thick wall. 103 rue Louvain Ouest, H2N 1A3, Mo…

Text truncated - open the document above for the full version.

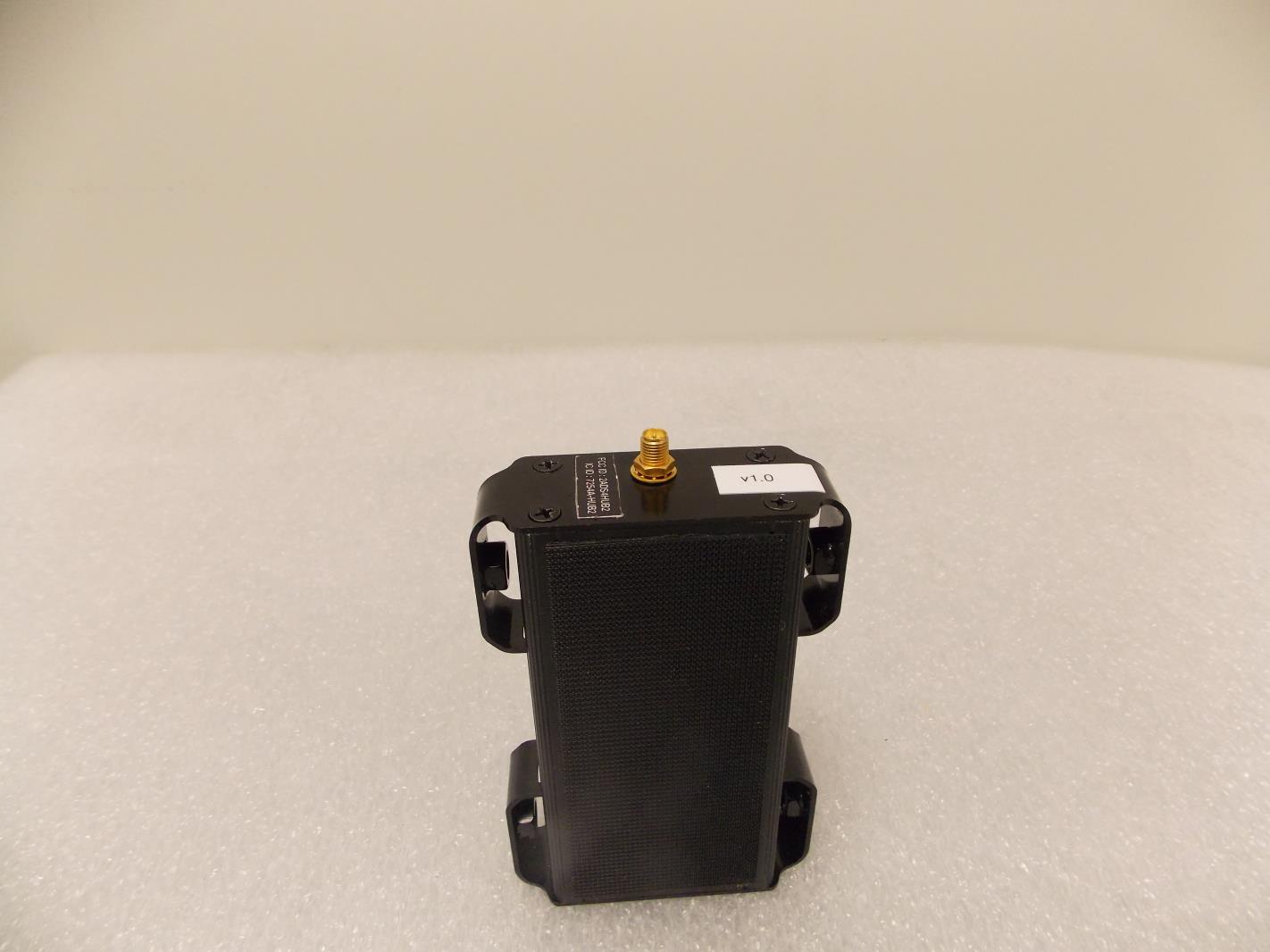

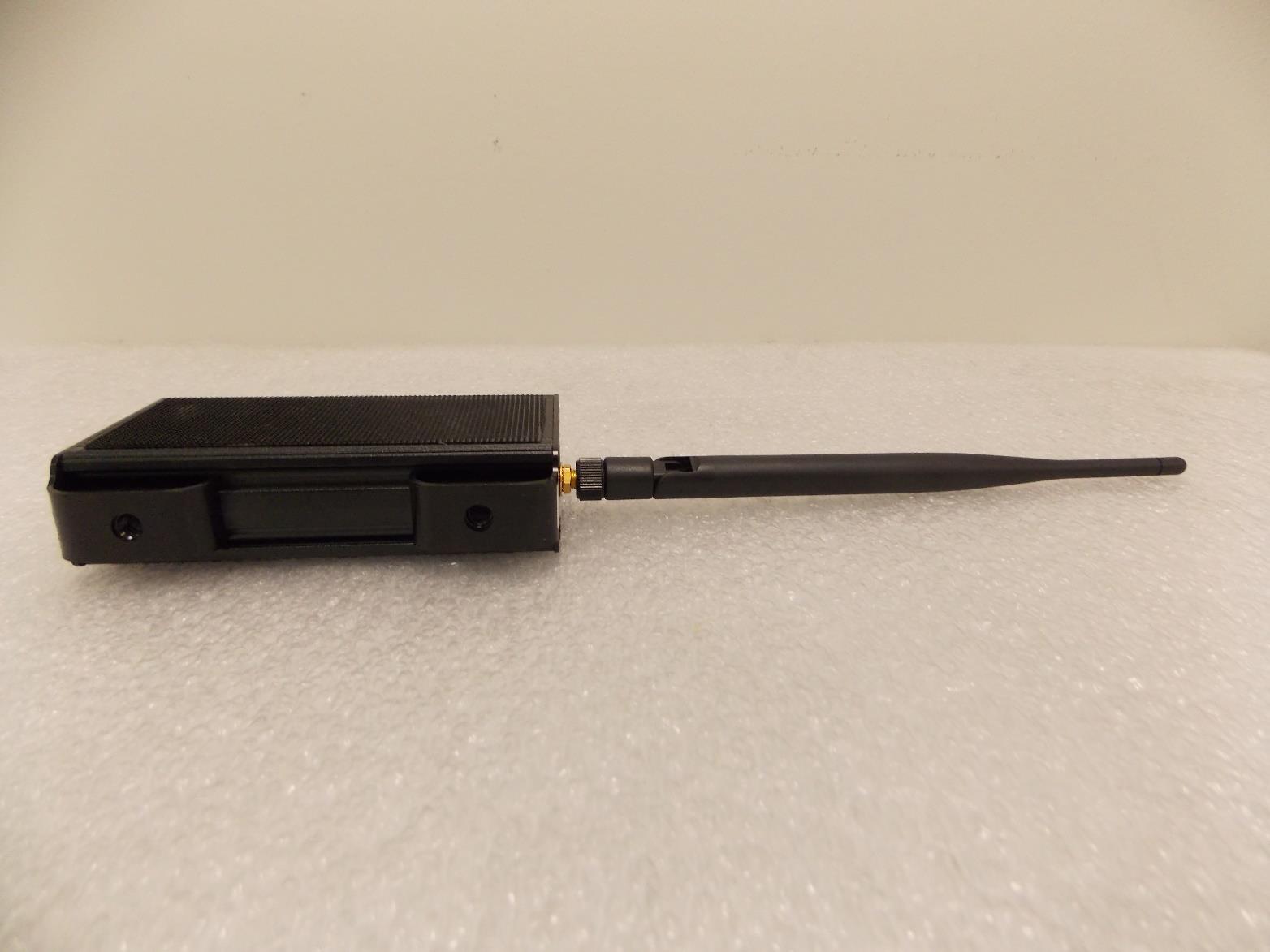

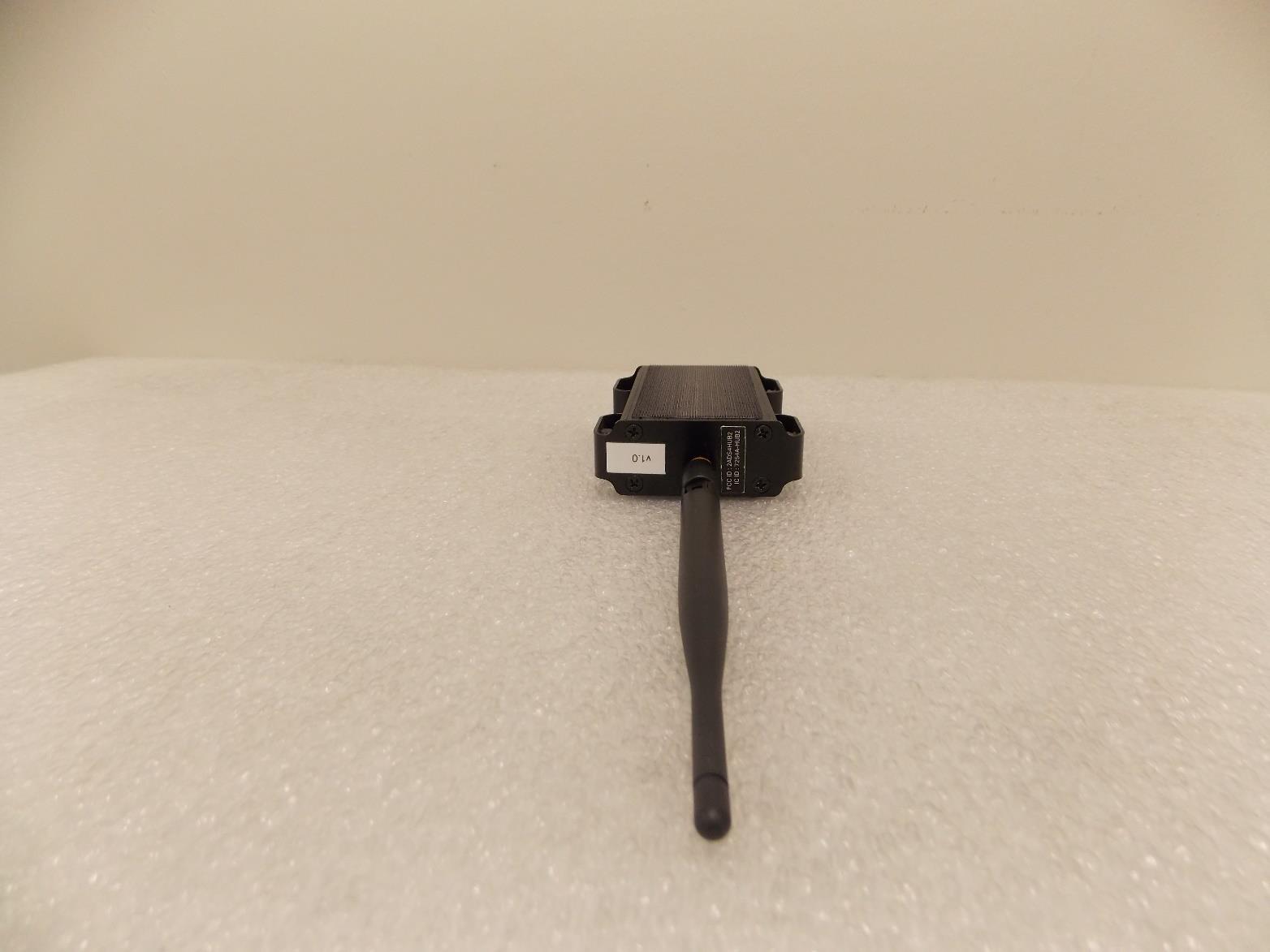

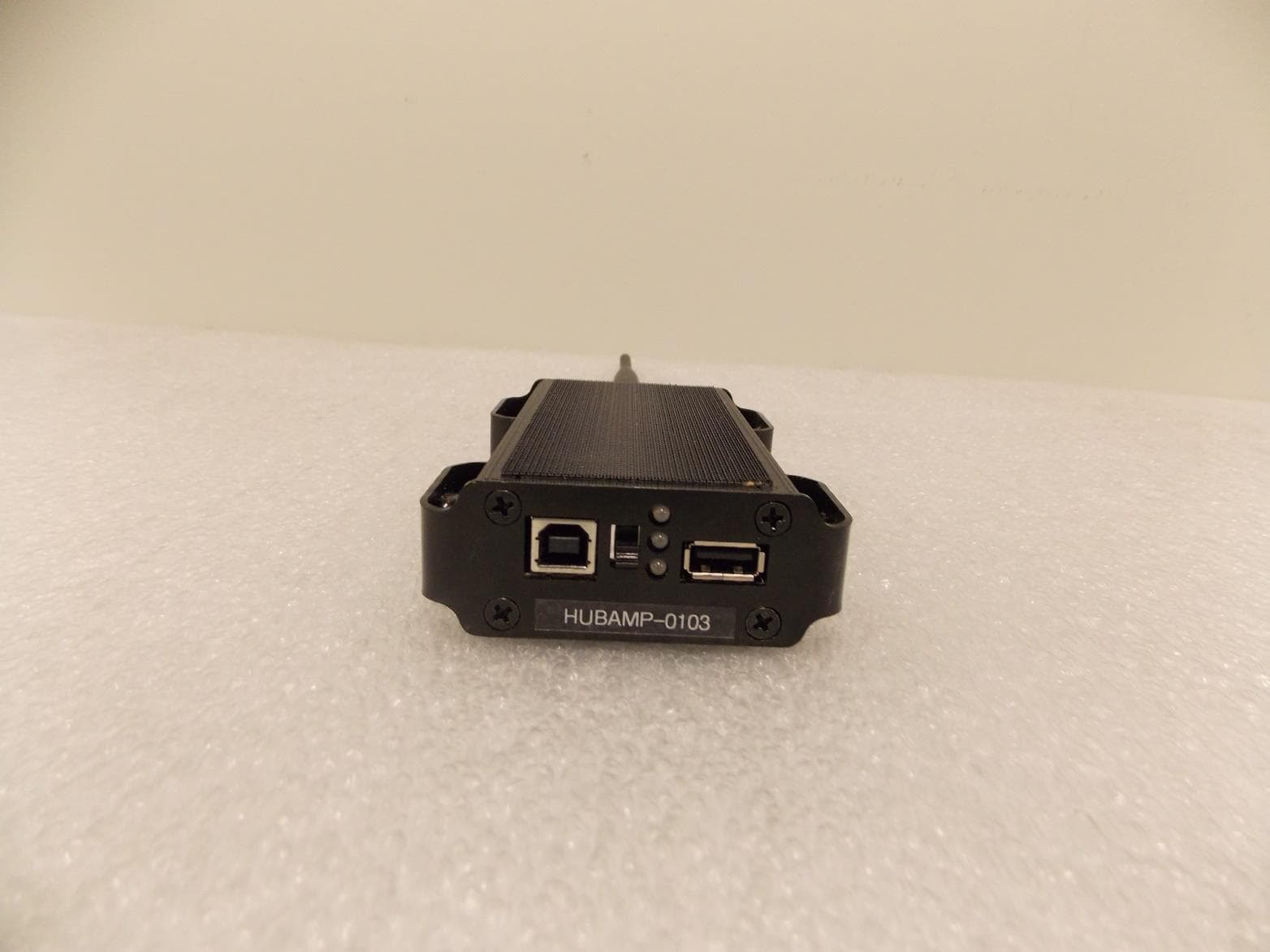

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation External photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL External photos 378131-1RADWL Date of issue: Click here to enter a date. Applicant: ESKI Inc. Product: Hub Model: PX-HUB2 FCC ID: IC Registration number: 2ADS4HUB2 7254A-HUB2 Section 1: External photos Report reference ID: 378131-1RADWL Page 2 of 7 Section 1. External photos 1.1 Top front view Section 1: External photos Report reference ID: 378131-1RADWL Page 3 of 7 1.2 Top rear view Section 1: External photos Report reference ID: 378131-1RADWL Page 4 of 7 1.3 Side View Section 1: External photos Report reference ID: 378131-1RADWL Page 5 of 7 1.4 Side view Section 1: External photos Report reference ID: 378131-1RADWL Page 6 of 7 1.5 EUT and antenna connector Section 1: External photos Report reference ID: 378131-1RADWL Page 7 of 7 1.6 EUT and antenna connector

Label format and location v1.1

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation Internal photos.docx; Date: May 2013 Internal photos 378131‐2RADWL Date of issue: Click here to enter a date. Applicant: ESKI Inc. Product: Hub Model: PX‐HUB2 FCC ID: IC Registration number: 2ADS4HUB2 7254A‐HUB2 Section 1: Internal photos Report reference ID: 378131‐2RADWL Page φ of ψ Section λ. Internal photos Section 1: Internal photos Report reference ID: 378131‐2RADWL Page χ of ψ Section 1: Internal photos Report reference ID: 378131‐2RADWL Page ψ of ψ

Prediction of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 where:S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Maximum peak output power at device output terminal:20.60dBm Cable and Jumper loss:0.0dB Maximum peak output power at antenna input terminal:20.60dBm 114.8153621mW Single Antenna gain (typical):4.9dBi Number of Antennae:1 Total Antenna gain (typical):4.9dBi 3.090295433(numeric) Prediction distance:20cm Prediction frequency:2402MHz MPE limit for uncontrolled exposure at prediction frequency:1mW/cm 2 Power density at prediction frequency:0.070588 mW/cm 2 0.705879W/m 2 Tx On time:1.000000ms Tx period time:1.000000ms Average Factor:100.000000% Average Power density at prediction frequency:0.705879W/m 2 Maximum allowable antenna gain:16.41269855dBi Margin of Compliance:11.51269855dB 2 4R PG S   ONE WORLDOURAPPROVAL

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation FCC 15.247 and RSS-247.docx; Date: Apr 2019 MRA il ac SCC Accredited LAB LAB Accrédité CCN TM Choose Scandinavian trust Wireless test report – 378131-1TRFWL Applicant: ESKI Inc. Product type: Hub Model: PX-HUB2 FCC ID: IC Registration number: 2ADS4HUB2 7254A-HUB2 Specifications:  FCC 47 CFR Part 15 Subpart C, §15.247 Operation in the 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz  RSS-247, Issue 2, Feb 2017, Section 5 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices 5) Standard specifications for frequency hopping systems and digital transmission systems operating in the bands 902–928 MHz, 2400–2483.5 MHz and 5725–5850 MHz Date of issue: December 11, 2019 Avul Nzenza, EMC/Wireless Specialist Tested by Signature Andrey Adelberg, Senior Wireless/EMC Specialist Reviewed by Signature Report reference ID: 378131-1TRFWL Applicant: ESKI Inc. Model: PX HUB2 Page 2 of 38 Test location(s) Company name Nemko Canada Inc. Site name Montreal Address 292 Labrosse Avenue City Pointe-Claire Province Quebec Postal code H9R 5L8 Country Canada Telephone +1 514 694 2684 Facsimile +1 514 694 3528 Toll free Website www.nemko.com Site number (3 m SAC) FCC: CA2041; IC: 2040G-5 Limits of responsibility Note that the results contained in this report relate only to the items tested and were obtained in the period between the date of initial receipt of samples and the date of issue of the report. This test report has been completed in accordance with the requirements of ISO/IEC 17025. All results contain in this report are within Nemko Canada’s ISO/IEC 17025 accreditation. Copyright notification Nemko Canada Inc. authorizes the applicant to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. © Nemko Canada Inc. Report reference ID: 378131-1TRFWL Applicant: ESKI Inc. Model: PX HUB2 Page 3 of 38 Table of contents Table of contents .......................................................................................................................................................................................................... 3 Section 1. Report summary ................................................................................................................................................................................. 4 1.1 Applicant and manufacturer .................................................................................................................................................................................... 4 1.2 Test specifications .................................................................................................................................................................................................... 4 1.3 Test methods ............................................................................................................................................................................................................ 4 1.4 Statement of compliance ......................................................................................................................................................................................... 4 1.5 Exclusions ................................................................................................................................................................................................................. 4 1.6 Test report revision history ...................................................................................................................................................................................... 4 Section 2. Summary of test results ....................................................................................................................................................................... 5 2.1 FCC Part 15 Subpart C, general requirements test results ........................................................................................................................................ 5 2.2 FCC Part 15 Subpart C, intentional radiators test results for digital transmission systems (DTS) ............................................................................. 5 2.3 ISED RSS-Gen, Issue 5, test results............................................................................................................................................................................ 5 2.4 ISED RSS-247, Issue 2, test results for digital transmission systems (DTS) ................................................................................................................ 5 Section 3. Equipment under test (EUT) details ..................................................................................................................................................... 6 3.1 Sample information .................................................................................................................................................................................................. 6 3.2 EUT information ....................................................................................................................................................................................................... 6 3.3 Technical information .....................................................................................................................................................…

Text truncated - open the document above for the full version.

www.nemko.com Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation setup photos.docx; Date: May 2013 SCC Accredited LAB LAB Accrédité CCN TM ONE WORLDOURAPPROVAL Setup photos 378131-3RADWL Date of issue: Click here to enter a date. Applicant: ESKI Inc. Product: Hub Model: PX-HUB2 FCC ID: IC Registration number: 2ADS4HUB2 7254A-HUB2 Section 1: setup photos Report reference ID: 378131-3RADWL Page 2 of 4 Section 1. Setup photos Radiated spurious (out-of-band) emissions setup photo – 30 to 1000 MHz Radiated spurious (out-of-band) emissions setup photo – 30 to 1000 MHz Section 1: setup photos Report reference ID: 378131-3RADWL Page 3 of 4 Radiated spurious (out-of-band) emissions setup photo – above 1 GHz Radiated spurious (out-of-band) emissions setup photo – above 1 GHz Section 1: setup photos Report reference ID: 378131-3RADWL Page 4 of 4 Conducted Emissions_ setup photo Conducted Emissions_ setup photo
