2ADTG-ARC900CAR DASH CAM

User Guide This product records videos while the vehicle is operating. Read and follow the instructions in this guide to properly use and maintain the product. Before using the product About the product This product records videos while the vehicle is operating. Use this product only for reference when investigating incidents or road accidents. This product is not guaranteed to record all events. The device may not record accidents with impacts that are too minor to activate the impact sensor or accidents with massive impacts that cause the vehicle’s battery voltage to deviate. Please read the user guide thoroughly before using this product. The manufacturer is not responsible for any accidents that occur due to not reading the user guide thoroughly. A PC meeting the minimum OS requirements is necessary for using all of this product's functions. Please check the "Using the mobile viewer" and "Using the PC viewer" sections later for details. Video recording does not begin until the product is completely turned on (booted up). To ensure that all vehicle events are recorded, wait until the product is completely booted up after turning it on, and then begin operating the vehicle. This product currently displays the product's status with LEDs. People who have difficulty distinguishing the colors of LEDs, such as those with color blindness or another color vision deficiency, should use it with caution. Depending on the vehicle's configuration or operating conditions, such as the installation of remote door lock devices, ECU settings, or TPMS settings, some product features may not be supported, and different firmware versions may influence the product's performance or features. About the user guide The information provided in the guide may change when the manufacturer updates its service policy. If the information provided changes, the THINKWARE website (www.thinkware.com) and its app will provide separate guidance. This user guide is intended for THINKWARE ARC900 models only, and it may contain technical errors, editorial errors, or missing information. Copyrights All rights for the content and maps in this guide are reserved by THINKWARE and are protected under copyright laws. All unauthorized duplication, revision, publication, or distribution of this guide without written consent from THINKWARE is prohibited and is eligible for criminal charges. Registered trademarks THINKWARE ARC900 is a registered trademark of THINKWARE. Other product logos and service names in this guide are trademarks of the relevant companies. Turning voice recording ON or OFF Some jurisdictions may prohibit recording voice in the vehicle or may require that all passengers have knowledge of the recording and provide consent before you record voice in the vehicle. It is your responsibility to know and follow all laws and restrictions for your jurisdiction. The device can record voice using the integrated microphone while recording video. Voice recording is ON by default. Please refer to the manual to turn voice recording on or off at any time. 3 Contents Safety information 4 1. Product overview 6 1.1 Included items 6 1.1.1 Standard items 6 1.1.2 Accessories (sold separately) 6 1.2 Part names 7 1.2.1 Front camera (main unit) - front view 7 1.2.2 Front camera (main unit) - rear view 8 1.2.3 Rear camera 8 1.3 Removing and inserting the memory card 9 1.4 Accessing recorded videos using a USB-C data cable 9 2. Installing the product 10 2.1 Installing the front camera (main unit) 10 2.1.1 Selecting an installation location 10 2.1.2 Securing the product 10 2.1.3 Connecting the power cable 12 2.2 Installing the rear camera 15 2.2.1 Selecting an installation location 15 2.2.2 Securing the rear camera 15 2.2.3 Connecting the rear camera cable 16 3. Using recording features 18 3.1 Turning the product on or off 18 3.2 Using the LCD display 18 3.3 Learning about the LED indicator and file storage locations 18 3.4 Using the continuous recording feature 19 3.5 Recording manually 19 3.6 Using parking mode 20 3.7 Using the Night Vision 21 3.8 Using the High Dynamic Range (HDR) 21 3.9 About the screen layout 22 3.9.1 Live view screen 22 3.9.2 Quick menu screen 23 3.9.3 Home screen 23 3.10 Playing videos 24 4. Using the road safety and ADAS features 26 4.1 Road safety features 26 4.2 ADAS features 26 4.2.1 ADAS settings 26 4.2.2 ADAS safety features 27 5. Settings 28 5.1 Managing the memory card 28 5.2 Setting the Camera 29 5.3 Setting recording features 29 5.4 Setting road safety features and ADAS features 30 5.5 Configuring the system settings 31 6. Using the mobile viewer 32 6.1 Connect the product to a smartphone 32 7. Using the PC viewer 33 7.1 System requirements 33 7.2 Learning about the PC viewer 33 7.2.1 Downloading the PC viewer 33 7.2.2 PC viewer screen layout 34 7.2.3 Playing recorded videos on the PC viewer 35 8. Upgrading the firmware 36 9. Troubleshooting 37 10. Specifications 38 4 Safety information Read the following safety information to properly use the product. Safety symbols in this guide "Warning" - Indicates a potential hazard which, if not avoided, may result in injury or death. "Caution" - Indicates a potential hazard which, if not avoided, may result in minor injury or property damage. "Note" - Provides useful information to help users better utilize the product’s features. Safety information for proper use Driving and product operation • Do not operate the product while driving a vehicle. Distraction while driving may cause accidents and result in injury or death. • Install the product in places where the driver’s view is not obstructed. Obstruction of the driver’s vision may cause accidents and result in injury or death. Check with your state and municipal laws before mounting the product to the windshield. Power supply • Do not operate or handle the power cable with wet hands. Doing so may result in an electrocution. • Do not use damaged power cables. Doing so may result in an electrical fire or electrocution…

Text truncated - open the document above for the full version.

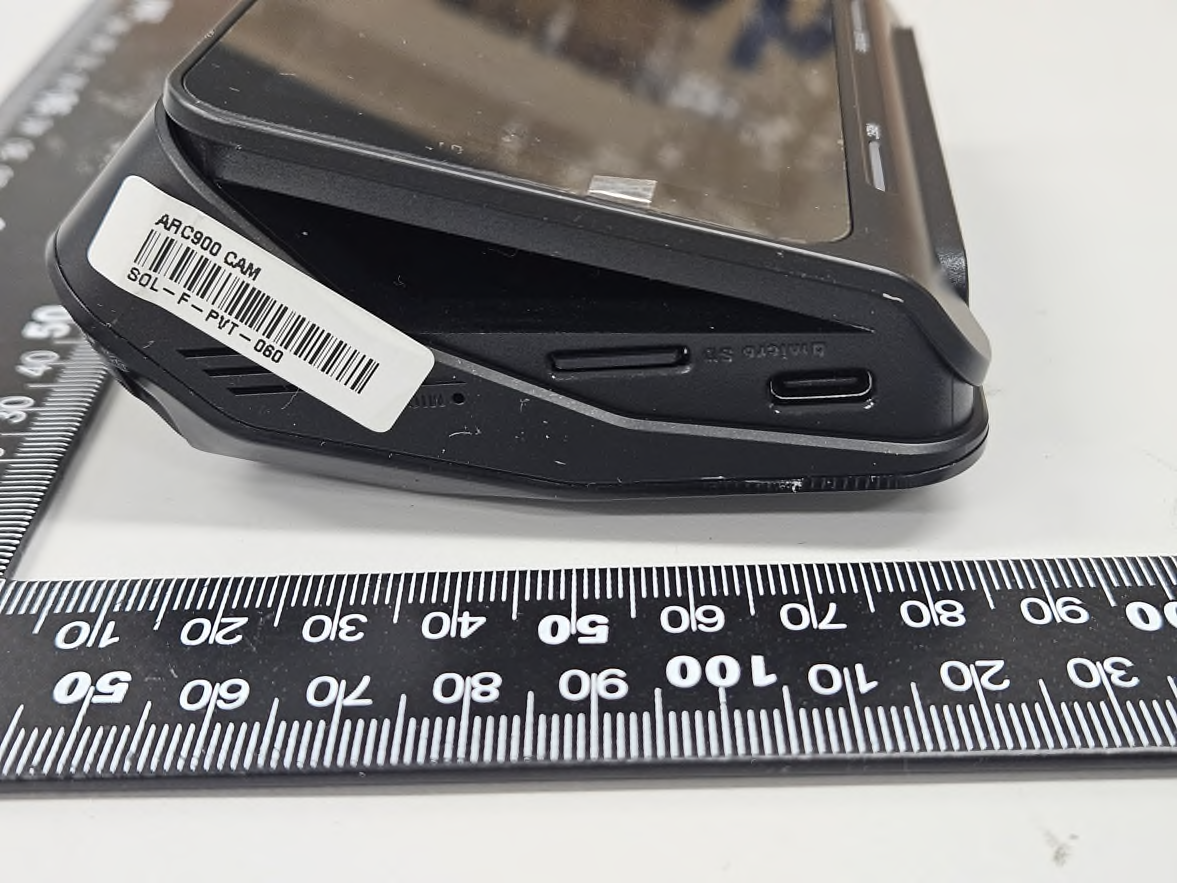

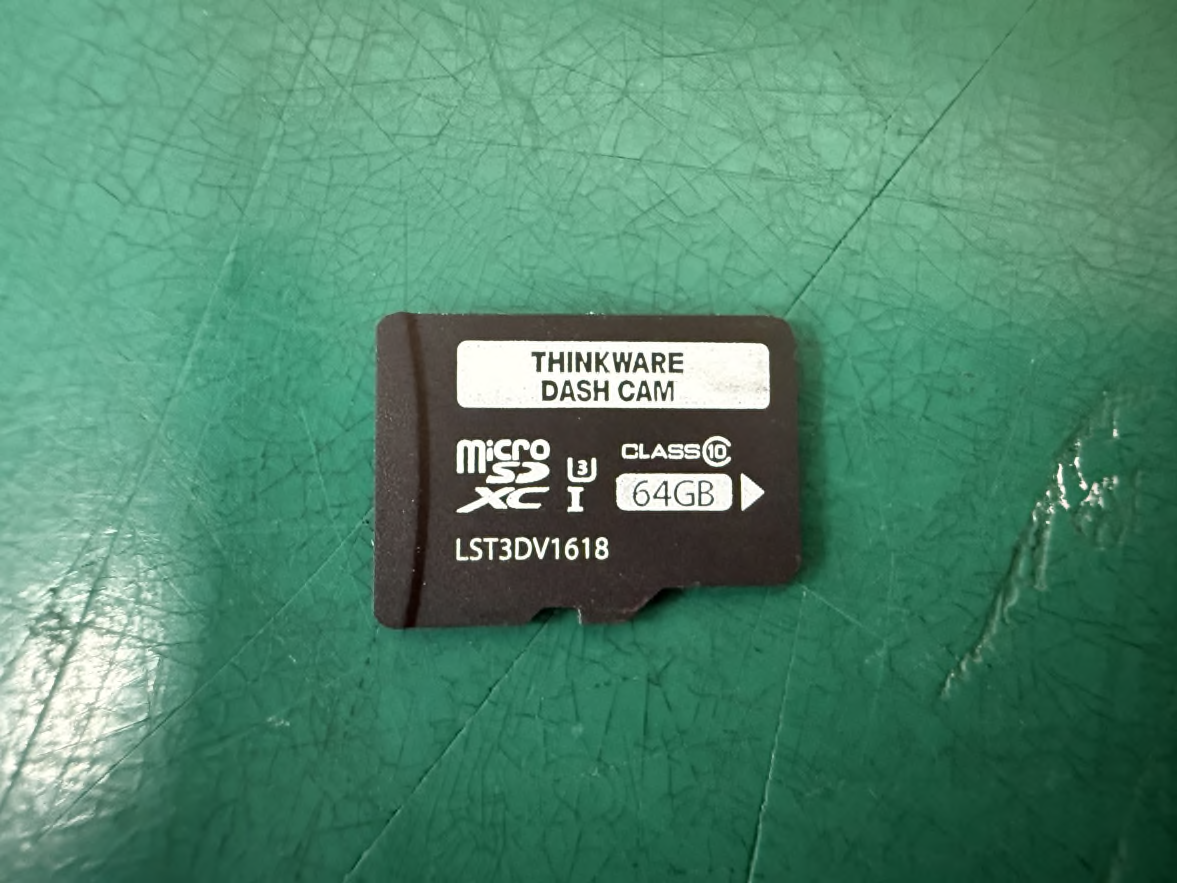

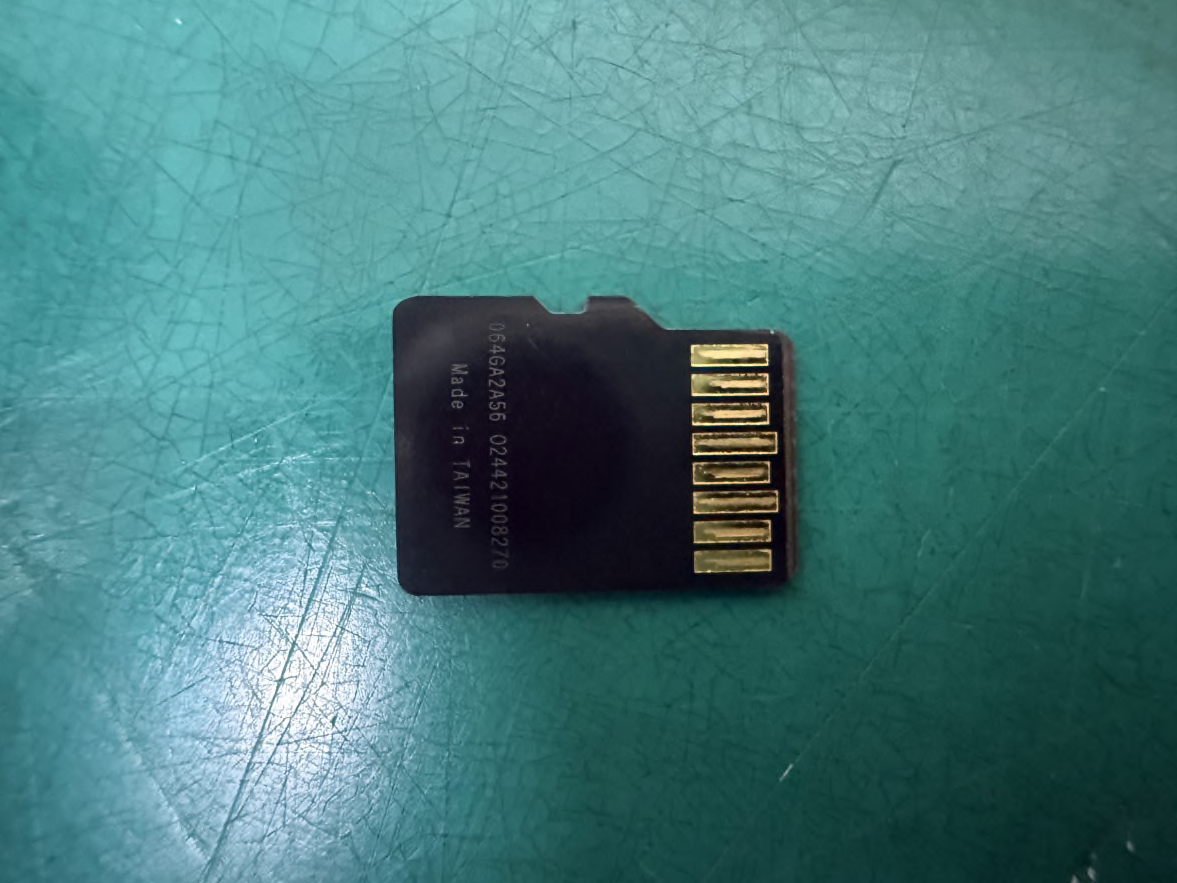

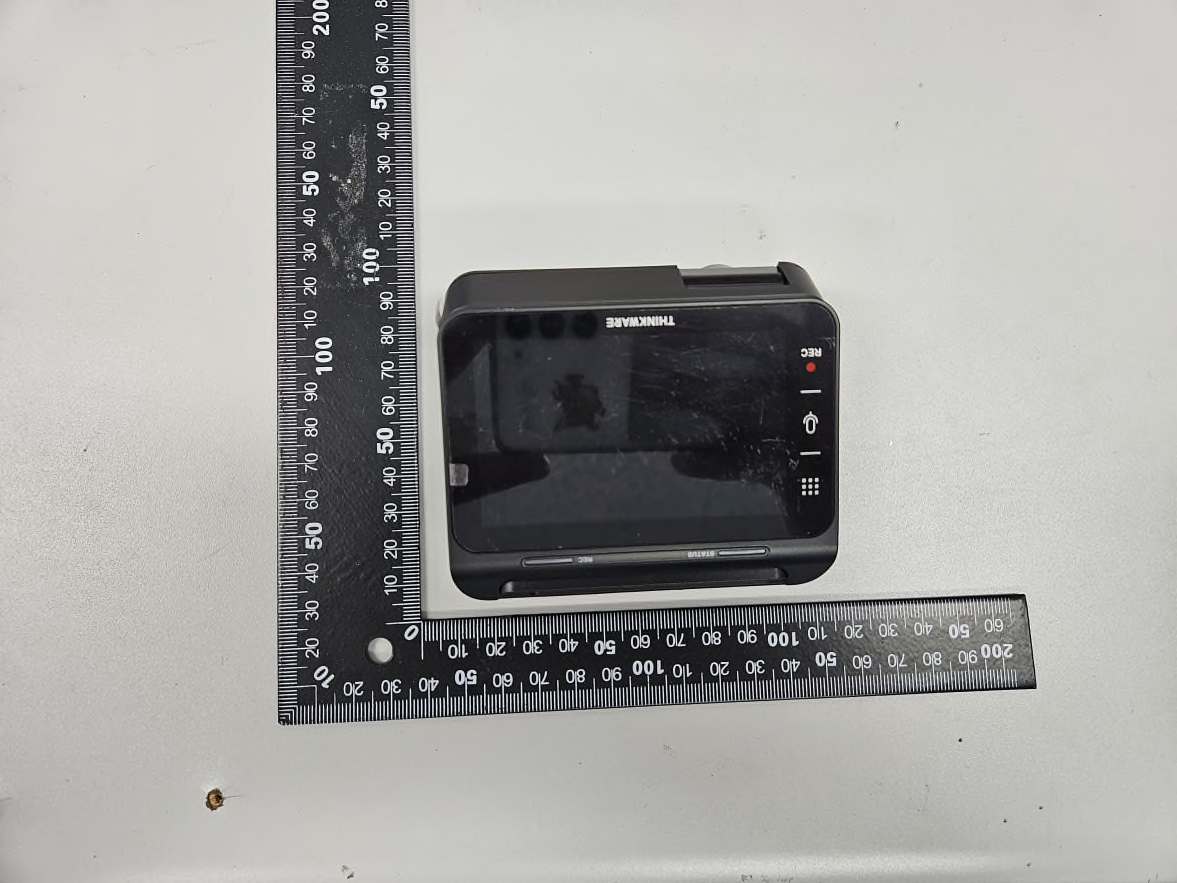

FCC ID : 2ADTG-ARC900 IC number : 12594A-ARC900 Page 1 of 4 Internal photos FCC ID : 2ADTG-ARC900 IC number : 12594A-ARC900 Page 2 of 4 Chip antenna FCC ID : 2ADTG-ARC900 IC number : 12594A-ARC900 Page 3 of 4 FCC ID : 2ADTG-ARC900 IC number : 12594A-ARC900 Page 4 of 4

FCC ID : 2ADTG-ARC900 IC number : 12594A-ARC900 Page 1 of 1 Appendix B.Measurement equipment Radiated test Blank

ٛDielectric Chip Antenna Original Design Chip Antenna Data Sheet - P/N : ODBWPTR5020 - - Application Frequency Band[MHz] Bluetooth(2.4GHz WiFi) & 5GHz WiFi Bluetooth : 2400 ~ 2485 & WiFi : 5150 ~ 5825 `Dielectric Chip Antenna ■ ODBWPTR5020 Dimension B B C Chip Antenna Dimension Chip Antenna Soldering Pad Dimension PCB Soldering Land Dimension T L W A F F C EAEAAD AAAAAA D ParameterLWTABCDEF Value[mm] 5.0 ±0.1 2.0 ±0.1 1.2 ±0.1 0.60.80.41.40.70.9 Unless Specified tolerances are ± 0.05 mm `Dielectric Chip Antenna ■ Antenna Marking System ◀ BW 1 5 4 ①②③④⑤ ITEMDESCRIPTION ① Input Signal Input Signal ② Serial Bluetooth(2.4GHz WiFi) Band and 5GHz WiFi Band ③ Year Ex)1-2011,2-2012, .... , 9 - 2019, .... ④ Month 123456 JanuaryFebruaryMarchAprilMayJune 789ABC JulyAugustSeptemberOctoberNovemberDecember ⑤ Date 123456789AB 1st2nd3rd4th5th6th7th8th9th10th11th CDEFGHIJKLM 12th13th14th15th16th17th18th19th20th21th22th NOPQRSTUV 23th24th25th26th27th28th29th30th31th ■ Antenna PAD Information Via Non-Ground Region Ground Region 0.5mm feed line 1005 series 1005 series 1005 series 78 123 65 4 0.5mm feed line ◀BW154 ` Dielectric Chip Antenna ■ AutoCAD Drawing of Reference PCB Design for ODBWPTR5020 Product 1 2 3 4 5 6 7 8 `Dielectric Chip Antenna ■ FEEDING METHOD (unit : mm, tolerance : ± 0.05) Via Non-Ground Region Ground Region 0.5mm feed line 1005 series 1005 series 1005 series 78 123 65 4 0.5mm feed line <Top View> Via Non-Ground Region Ground Region <Bottom View> 12 3 4 87 6 5 < Equivalent Circuit > ◀BW154 `Dielectric Chip Antenna ■ Matching Value Band (MHz) Dual FeedingSingle Feeding Matching Valu e (Default) PCB Artwor k (Example) ■ Temperature condition 온도범위단위 사용온도 -40 ∼ +110 °C 보관온도 -40 ∼ +70 °C - 온도조건 Test 조건 항목온도범위 사용온도 저온 -75 °C 에서 24 시간 정상동작 고온 +150 °C 에서 24 시간 정상동작 보관온도 저온 -75 °C 에서 1000 hr 방치 시 정상동작 고온 +85 °C 에서 1000 hr 방치 시 정상동작 * 고온 방치 시 포장재 보관온도 문제로 85 °C이상불가함 . `Dielectric Chip Antenna - Dual Feeding 3D Passive Gain For BT&WiFi ■ Gain & VSWR Peak [dBi] Average [dBi] Efficiency [%] 2400MHz1.38-0.9680.09 2445MHz1.47-0.8482.43 2485MHz0.86-1.6069.26 5150MHz2.35-1.4072.50 5500MHz2.54-1.4172.30 5825MHz3.36-1.4671.47 ■ 3D Radiation Pattern Dual Feeding 3D Passive BT/WiFi Dual Feeding VSWR `Dielectric Chip Antenna - Single Feeding 3D Passive Gain For BT&WiFi ■ Gain & VSWR Peak [dBi] Average [dBi] Efficiency [%] 2400MHz2.19-1.0179.20 2445MHz1.69-1.4072.49 2485MHz1.58-1.5570.02 5150MHz3.20-0.9181.04 5500MHz1.55-2.3757.96 5825MHz1.52-3.2347.54 ■ 3D Radiation Pattern Single Feeding 3D Passive BT/WiFi Single Feeding #1 VSWR

TEST REPORT Report No. : KES-RF250639 Page1/87 KES Co., Ltd. #3002, #3503, #3701, 40, Simin-daero365beon-gil, Dongan-gu, Anyang-si,Gyeonggi-do, 14057, Republic ofKorea Tel : +82-31-425-6200, Fax : +82-31-341-3838 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). FCC & IC TEST REPORT 1. Client ○ Name : THINKWARE CORPORATION ○ Address : A, 9FL., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea 2. Sample Description ○ Product item : CAR DASH CAM ○ Model name : ARC 900 ○ Manufacturer etc. : THINKWARE CORPORATION 3. Date of test :2025.10.14 ~ 2025.10.27 4. Location of Test :Permanent Testing LabOn Site Testing ○ Adress : 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea 5. Test method used :Part 15 Subpart C 15.247, RSS-247 (Issue 4), RSS-Gen (Issue 5) 6. Test result :PASS The results shown in this test report refer only to the sample(s) tested unless otherwise stated. This test report cannot be reproduced and copied without permission without the written consent of KES Co., Ltd. This laboratory is not accredited for the test results marked *. This test report is not related to KOLAS accreditation. Affirmation Tested byTechnical Manager Name : Gu-Bong, Kang(Signature) Name :Yeong-Jun Cho(Signature) 2025. 11. 03. KES Co., Ltd. Report No. : KES-RF250639 Page2/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). REPORT REVISION HISTORY DateTest Report No.Revision History 2025.11.03KES-RF250639Initial This report shall not be reproduced except in full, without the written approval of KES Co., Ltd. This document may be altered or revised by KES Co., Ltd. personnel only, and shall be noted in the revision section of the document. Any alteration of this document not carried out by KES Co., Ltd. will constitute fraud and shall nullify the document. Report No. : KES-RF250639 Page3/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). TABLE OF CONTENTS 1.General information ................................................................................................................................... 4 1.1.EUT description .......................................................................................................................... 4 1.2.Test configuration........................................................................................................................ 5 1.3.Information about derivative model ............................................................................................ 5 1.4.Accessory information ................................................................................................................ 5 1.5.Device modifications................................................................................................................... 5 1.6.Sample calculation ..................................................................................................................... 5 1.7.Worst case data rate................................................................................................................... 5 1.8.Measurement Uncertainty .......................................................................................................... 6 1.9.Frequency/channel operations ................................................................................................... 6 2.Summary of tests ....................................................................................................................................... 8 3.Test results ................................................................................................................................................. 9 3.1.99% Occupied Bandwidth .......................................................................................................... 9 3.2.6㏈bandwidth ........................................................................................................................ 14 3.3.Output power ............................................................................................................................ 19 3.4.Power spectral density ............................................................................................................. 21 3.5.Radiated restricted band and emissions .................................................................................. 26 3.6.Conducted spurious emissions & band edge ........................................................................... 77 3.7.Antenna Requirement............................................................................................................... 86 Appendix A. Measurement equipment.......................................................................................................... 87 Report No. : KES-RF250639 Page4/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). 1.General information Applicant:THINKWARE CORPORATION Applicant address:A, 9FL., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do, South Korea Test site:KES Co., Ltd. Test site address:#3002, #3503, #3701, 40, Simin-daero365beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do, 14057, Republic of Korea 473-21, Gayeo-ro, Yeoju-si, Gyeonggi-do, Korea Test FacilityFCC Accreditation Designation No.: KR0100, Registration No.: 444148 ISED Registration No.: 23298 FCC rule part(s):15.247 FCC ID:2ADTG-ARC900 IC rule part(s):RSS-247 (Issue 4), RSS-Gen (Issue 5) IC Number:12594A-ARC900 Test device serial No.:ProductionPre-productionEngineering 1.1.EUT description Equipment under testCAR DASH CAM Frequency range & Number of channels 2 412㎒~ 2 462㎒(802.11b/g/n_HT20) : 11 ch 2 422㎒~ 2 452㎒(802.11n_HT40) : 7 ch UNII-1 for FCC 5 180㎒~ 5 240㎒(802.11a/n_HT20/ac_VHT20) : 4 ch 5 …

Text truncated - open the document above for the full version.

Report No. : KES-RF250639 Page42/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page43/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11b (1 Mbps) Distance of measurement:3 meter Channel:6 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 036.5044.16PeakH-7.93-36.2374.0037.77 1 248.4843.98PeakV-6.60-37.3874.0036.62 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page44/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11b (1 Mbps) Distance of measurement:3 meter Channel:11 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 012.3044.75PeakH-8.07-36.6874.0037.32 1 042.3044.89PeakV-7.89-37.0074.0037.00 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 484.0148.97PeakH1.31-50.2874.0023.72 2 484.0948.12PeakV1.31-49.4374.0024.57 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Report No. : KES-RF250639 Page45/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page46/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11g (6 Mbps) Distance of measurement:3 meter Channel:1 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 030.7045.04PeakV-7.96-37.0874.0036.92 1 032.1044.66PeakH-7.95-36.7174.0037.29 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 389.8960.23PeakV1.00-61.2374.0012.77 2 389.8943.21AverageV1.000.3244.5354.009.47 2 389.9065.48PeakH1.00-66.4874.007.52 2 389.9048.69AverageH1.000.3250.0154.003.99 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Restricted band // Horizontal // AverageRestricted band // Vertical // Average Report No. : KES-RF250639 Page47/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page48/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11g (6 Mbps) Distance of measurement:3 meter Channel:6 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 033.7044.13PeakV-7.94-36.1974.0037.81 1 268.6745.14PeakH-6.46-38.6874.0035.32 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page49/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11g (6 Mbps) Distance of measurement:3 meter Channel:11 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 025.1044.88PeakH-8.00-36.8874.0037.12 1 181.4844.64PeakV-7.07-37.5774.0036.43 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.5164.53PeakV1.31-65.8474.008.16 2 483.5149.32AverageV1.310.3250.9554.003.05 2 484.1868.21PeakH1.31-69.5274.004.48 2 484.1846.55AverageH1.31 0.32 48.1854.005.82 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Restricted band // Horizontal // AverageRestricted band // Vertical // Average Report No. : KES-RF250639 Page50/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page51/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11g (6 Mbps) Distance of measurement:3 meter Channel:1 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 012.9044.07PeakH-8.07-36.0074.0038.00 1 116.4944.24PeakV-7.45-36.7974.0037.21 -Band edge …

Text truncated - open the document above for the full version.

Report No. : KES-RF250639 Page57/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page58/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11n_HT20 (MCS0) Distance of measurement:3 meter Channel:6 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 041.7044.43PeakV-7.90-36.5374.0037.47 1 085.6944.33PeakH-7.64-36.6974.0037.31 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page59/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11n_HT20 (MCS0) Distance of measurement:3 meter Channel:11 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 030.5045.38PeakV-7.96-37.4274.0036.58 1 034.7043.86PeakH-7.94-35.9274.0038.08 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.7159.08PeakV1.31-60.3974.0013.61 2 483.7141.05AverageV1.310.3642.7254.0011.28 2 483.9262.33PeakH1.31-63.6474.0010.36 2 483.9246.10AverageH1.31 0.36 47.7754.006.23 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Restricted band // Horizontal // AverageRestricted band // Vertical // Average Report No. : KES-RF250639 Page60/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page61/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11n_HT20 (MCS0) Distance of measurement:3 meter Channel:1 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 008.9044.13PeakV-8.09-36.0474.0037.96 1 021.9044.39PeakH-8.01-36.3874.0037.62 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 389.8356.52PeakV1.00-57.5274.0016.48 2 389.8339.77AverageV1.000.3641.1354.0012.87 2 389.9160.43PeakH1.00-61.4374.0012.57 2 389.9143.38AverageH1.000.3644.7454.009.26 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Restricted band // Horizontal // AverageRestricted band // Vertical // Average Report No. : KES-RF250639 Page62/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page63/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11n_HT20 (MCS0) Distance of measurement:3 meter Channel:6 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 044.7044.34PeakV-7.88-36.4674.0037.54 1 045.1044.26PeakH-7.88-36.3874.0037.62 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page64/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11n_HT20 (MCS0) Distance of measurement:3 meter Channel:11 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 018.5044.37PeakH-8.03-36.3474.0037.66 1 230.4844.52PeakV-6.73-37.7974.0036.21 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.6359.16PeakV1.31-60.4774.0013.53 2 483.6341.36AverageV1.310.3643.0354.0010.97 2 483.8263.37PeakH1.31-64.6874.009.32 2 483.8246.26AverageH1.31 0.36 47.9354.006.07 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Restricted band // Horizontal // AverageRestricted band // Vertical // Average Report No. : KES-RF250639 Page65/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page66/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 12 V_802.11n_HT40 (MCS0) Distance of measurement:3 meter Channel:3 -Spurious Frequency (㎒)…

Text truncated - open the document above for the full version.

Report No. : KES-RF250639 Page72/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Restricted band // Horizontal // AverageRestricted band // Vertical // Average Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page73/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11n_HT40 (MCS0) Distance of measurement:3 meter Channel:6 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 108.4944.38PeakH-7.50-36.8874.0037.12 1 267.2743.87PeakV-6.47-37.4074.0036.60 Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page74/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Mode:DC 24 V_802.11n_HT40 (MCS0) Distance of measurement:3 meter Channel:9 -Spurious Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 1 075.4944.41PeakV-7.70-36.7174.0037.29 1 616.6443.88PeakH-4.07-39.8174.0034.19 -Band edge Frequency (㎒) Level (㏈㎶) Detect mode Ant. Pol. (H/V) CF (㏈) DCF (㏈) Field strength (㏈㎶/m) Limit (㏈㎶/m) Margin (㏈) 2 483.6559.45PeakV1.31-60.7674.0013.24 2 483.6545.33AverageV1.310.4647.1054.006.90 2 484.2164.83PeakH1.31-66.1474.007.86 2 484.2149.79AverageH1.31 0.46 51.5654.002.44 2 487.2858.94PeakV1.32-60.2674.0013.74 2 487.2843.95AverageV1.320.4645.7354.008.27 2 487.3164.32PeakH1.32-65.6474.008.36 2 487.3149.01AverageH1.320.4650.7954.003.21 Restricted band // Horizontal // PeakRestricted band // Vertical // Peak Report No. : KES-RF250639 Page75/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Restricted band // Horizontal // AverageRestricted band // Vertical // Average Horizontal // Peak for 1㎓to 3㎓Vertical // Peak for 1㎓to 3㎓ Horizontal // Peak for 3㎓to 18㎓Vertical // Peak for 3㎓to 18㎓ Note. 1. No spurious emission were detected above 3㎓. 2. Average test would be performed if the peak result were greater than the average limit. Report No. : KES-RF250639 Page76/87 KES-QP16-F01(00-23-01-01)KES Co., Ltd. You can check the authenticity of this test report on our website (www.kes.co.kr). Test results (18㎓to 30㎓) – Worst case Mode:DC 12 V _802.11n_HT40 (MCS0) (Worst case) Distance of measurement:3 meter Channel:3 (Worst case) Horizontal // PeakVertical // Peak Note. 1. No spurious emission were detected above 18㎓. Mode:D…

Text truncated - open the document above for the full version.
