2ADTG-BNDOLSBOYNEXTDOOR OFFICIAL LIGHT STICK

<QUICK START GUIDE> How to insert and replace batteries 1. Rotate the battery cap on the bottom of the product handle to remove the battery holder inside. 2. Combine 3 alkaline AAA batteries into the battery holder as shown in the picture. • When connecting the batteries, check the + polarity carefully. The part with the spring on the holder is the -pole part of the battery without the spring is the + pole. 3. Insert the battery holder with the battery attached in the direction of the arrow and turn the bottom battery cap in reverse to completely close it. How to connect a USB cable • Connect the included USB cable (A to C) to the product's USB C type socket. • Connect the included USB cable to the adapter's USB A type socket. • The product does not work when connected to the fast charger's USB C type socket. • When the USB cable is connected, the battery power is cut off and USB power is used. How to use a cradle • The Light Stick can be used by attaching it to a cradle. Power On/Off • To turn on the product, press and hold the button ①. When the product is powered on, it enters basic mode. • To power off the product, press and hold the button ①. Using basic mode • To change the LED color, press button ① • To change the LED flashing speed, press button ②. The sequence is repeated in the following order: long > normal > fast > light (flashing off). Use color shaking mode • To switch to color shaking mode, press and hold the button ② while the product is on. • The LED color changes every time the product is shaken. • To switch to basic mode, press and hold button ②. Using Bluetooth mode • Turn on your smartphone's Bluetooth mode and press and hold the buttons ① and ② for at least 2 seconds at the same time. The LED flashes blue and a Bluetooth connection is attempted with the smartphone. - When the Bluetooth connection is complete, the LED color changes to the color set in the app. • To switch to basic mode, press and hold the buttons ① and ② at the same time. - The buttons cannot be operated in Bluetooth mode, which is not a defect. - When connecting to Bluetooth, the connection to the smartphone may be interrupted intermittently during use. - Bluetooth only supports BLUETOOTH 4.2 or higher. Use performance mode • To use performance mode, go to the “App Store” for iPhone users, go to the “Play Store” for Android users,” Search for “BOYNEXTDOOR Official Light Stick” and install the app. • Go to the “App” performance mode and select the performance date. • Then follow the instructions in the “App” to complete pairing. • Once pairing is complete, the LED on the cheering stick turns off automatically - Depending on the performance, it may be performed without pairing, so please refer to the performance information when attending the performance. - If the pairing between the smartphone and product is not smooth, please contact the pairing booth at the Concert hall. How to remove and assemble the cheering stick light symbol • How to remove symbols Grab the handle and turn the head in the direction of the arrow as shown in [Figure 1] - Press the head with the logo to open it left and right as shown in [Figure 2]. - Pull the logo (house) forward as shown in [Figure 3]. [Figure 1] [Figure 2] [Figure 3] • How to assemble a symbol - As shown in [Figure 4], separate the front and back sides and assemble them so that they make a “perfect” sound. - Please be aware that if there is no “perfect” sound, they may separate from the head during use. - Assemble in the reverse order of separation. [Figure 4] Handling precautions 1. Avoid hot and humid places and keep at room temperature when storing. 2. Please avoid looking directly at the LED light from a nearby location. 3. Please note that dropping or forcibly impacting the product may affect the LED color. 4. Be careful not to swallow or put parts in your mouth. 5. Strong impact on the product or contact with water may cause failure, so please be careful. 6. If the product is damaged, discontinue use and do not disassemble/repair or modify the product arbitrarily. 7. When the battery has reached the end of its life, please use a new battery and remove the battery when not in use for a long time. 8. Store batteries that have reached the end of their lifespan out of reach of children or dispose of them at designated disposal locations. 9. Be sure to use a genuine AAA battery and check the polarity carefully when inserting the battery. - Otherwise, there is a risk of product damage, burns, and fire. 10. There is a possibility of confusion during wireless operation of this product. How to check if the cheering stick Bluetooth is working 1. Install and run the Cheering Stick mobile app (search and download “BOYNEXTDOOR Official Light Stick”), then select Self-Mode. 2. Press and hold the button ① and button ② on the product for at least 2 seconds to confirm that they are blinking blue. 3. If it blinks blue, the product has changed to Bluetooth mode, and the mobile app connects to the product. 4. Check that the color of the product image on the mobile app screen changes to the same color and select “OK” or “Cancel.” 5. Select the desired color from the color palette on the mobile app screen and visually check if the product changes to that color. 6. If the color of the product changes according to the selected color, the Bluetooth function of the product is working normally. 7. If the Bluetooth function of the mobile app is disabled, you may not be able to connect to the product. 8. If the operation does not work properly, close the mobile app, enable the Bluetooth function on the smartphone, and then relaunch the mobile app. 9. After running the mobile app, retry steps 1 to 5 above to check whether the product works with Bluetooth. Quality certificate 1. This product is manufactured through a strict quality control inspection process. 2. If a failure occurs during the consumer's normal use, we will provide a free warranty during the warranty period. 3. Please b…

Text truncated - open the document above for the full version.

Certification designating a U.S. Agent for service of process: As required by section 2.911(d)(7), the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. In either scenario, the designation of the U.S. agent for service of process should be provided as an attachment to the equipment authorization application. The applicant must provide a written certification, which must: i. Be signed by both the applicant and designated agent for service of process, if the agent is different from the applicant. ii. Acknowledge the applicant’s consent and the designated agent’s obligation to accept service of process. iii. Provide a physical U.S. address and email for the designated agent. iv. Acknowledge the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Unofficial information provided by FCC personnel on February 14, 2023, via the monthly call with the TCB Council: The Agent for Process of Service: • cannot be a TCB or affiliated with a TCB (e.g. could not be a person who works for a TCB or a company that owns or is owned by the TCB) • cannot be a [FCC recognised] Lab or affiliated with a test lab (e.g. could not be a person who works for a Lab or a company that owns or is owned by the Lab) • Agent can be Individual Entity or a Company Entity • Agent Entity must be located in US, US address/phone • Entity acting as Agent must have FRN (best practice, put FRN on Agent Letter) • Agent letter does not have to be FCC ID specific, can be general Agent for Grantee For devices being marketed or for which marketing has ceased for less than 1 year, if the Agent for Process of Service changes, then for every TC Number the TCB must request the FCC to put application into Audit Mode and Agent Letter needs to be updated (superseded). NOTE: The U.S. Agent for Service of Process should not be confused with the authorized agent used for signing the 731 form, other cover letters within the application, and/or the agent who may interface with the TCB. THINKWARE CORPORATION A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) U.S. Agent Designation for Service of Process ATTENTION: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA REGARDING: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Approve-IT, Inc. Contact Name: Nathan Grinager Street Address: 8011 34 th Ave South, Suite 342 City/Province/Zip: Bloomington, MN 55425 Telephone No: 651-247-1678 Email: [email protected] FRN #: 0027533835 This letter is t o confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: February 13, 2024 Signed by (Printed Name/Title): Nathan Grinager / Co-President *This letter is valid indefinitely for all applications submitted within the period of 2 /13/2024 - 8/12/2025 The Applicant confirms its explicit consent and acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Appl icant Company name: THINKWARE CORPORATION Grantee FRN: 0024149957 FCC ID: 2ADTG-BNDOLS Contact Name: Moon Hyung Gon Street Address: A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) City/Province/Zip: Telephone No: +82-2-589-9425 Email: [email protected] Appl icant Signature: THINKWARE CORPORATION A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) Date: 01/29/2024 Signed by (Printed Name/Title): Mu Sung Kim / Project Manager

Rev 1/16/2024 THINKWARE CORPORATION A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-29-2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2ADTG-BNDOLS [THINKWARE CORPORATION] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Mu Sung Kim Rev 1/16/2024 THINKWARE CORPORATION A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 01-29-2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2ADTG-BNDOLS [THINKWARE CORPORATION] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List ( as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment . Sincerely, Mu Sung Kim

THINKWARE CORPORATION A, 9FL.., Samwhan Hipex, 240, Pangyoyeok-ro, Bundang-gu, Seongnam-si, Gyeonggi-do Seongnam Korea (Republic Of) Date: 01/29/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Letter of Authorization We, the undersigned, hereby authorize Geunki Son of Dt&C Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2ADTG-BNDOLS including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of Dt&C Co., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from THINKWARE CORPORATION. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Mu Sung Kim Title: Project Manager

THINKWARE CORPORATION A, 9FL., Samwhan Hipex,240, Pangyoyeok-ro, Bundang Seongnam-si, Gyeonggi-do South Korea Date: 01/29/2024 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Request of Confidentiality FCC ID: 2ADTG-BNDOLS To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, THINKWARE CORPORATION hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give THINKWARE CORPORATION temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Mu Sung Kim Title: Project Manager

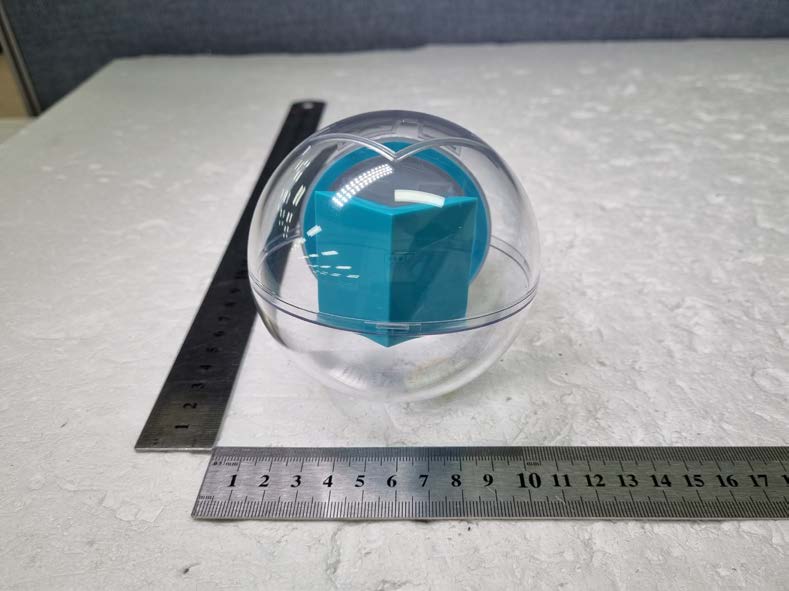

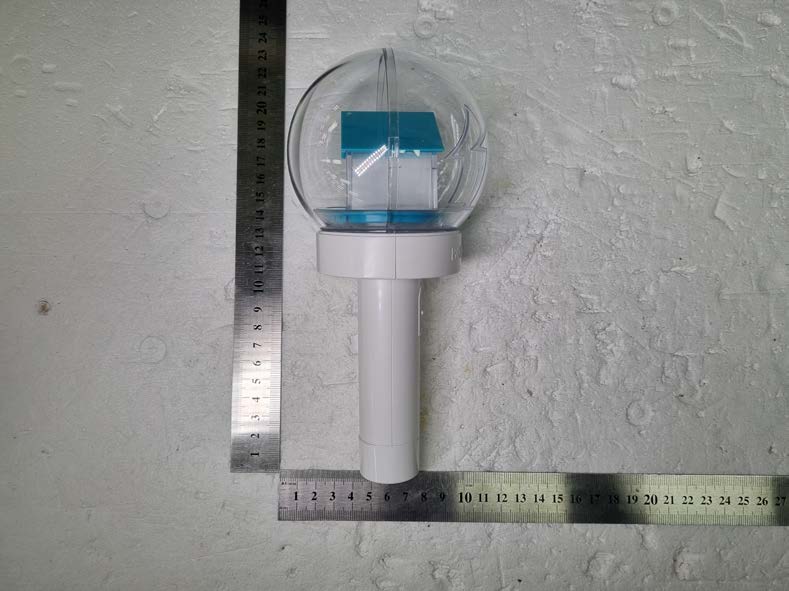

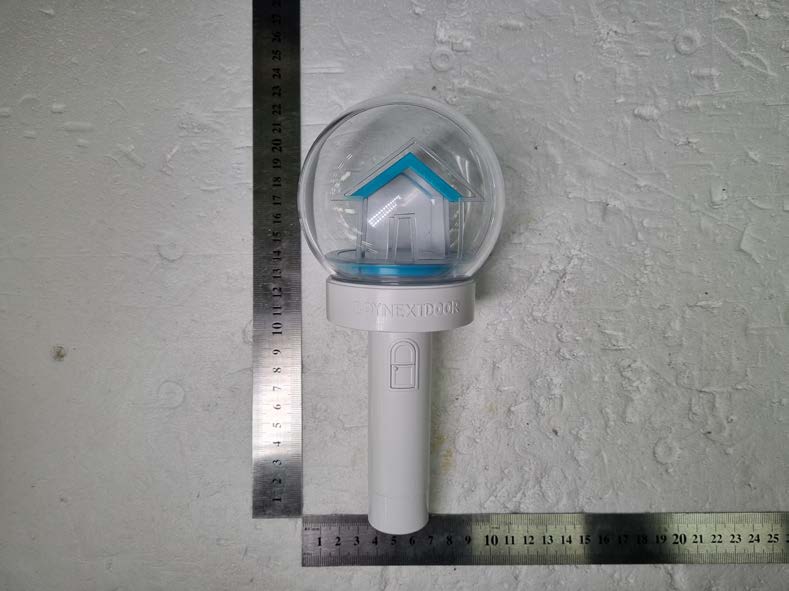

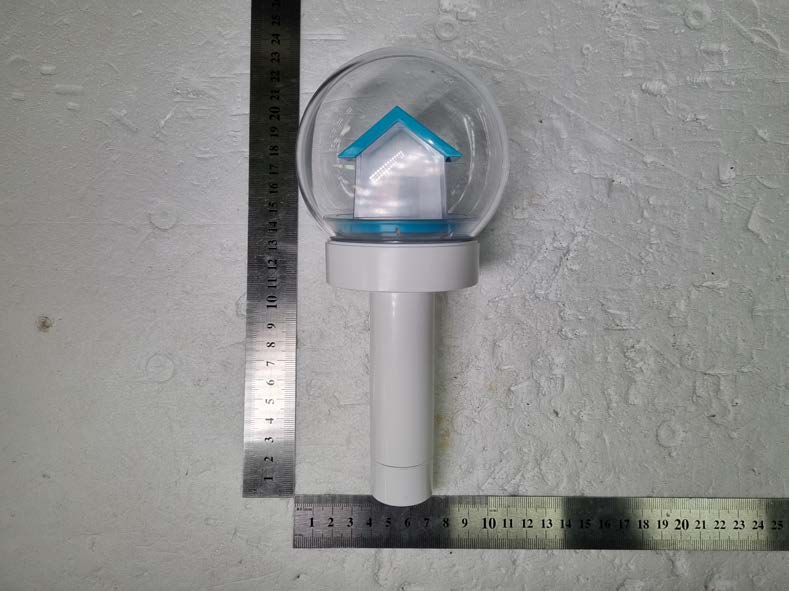

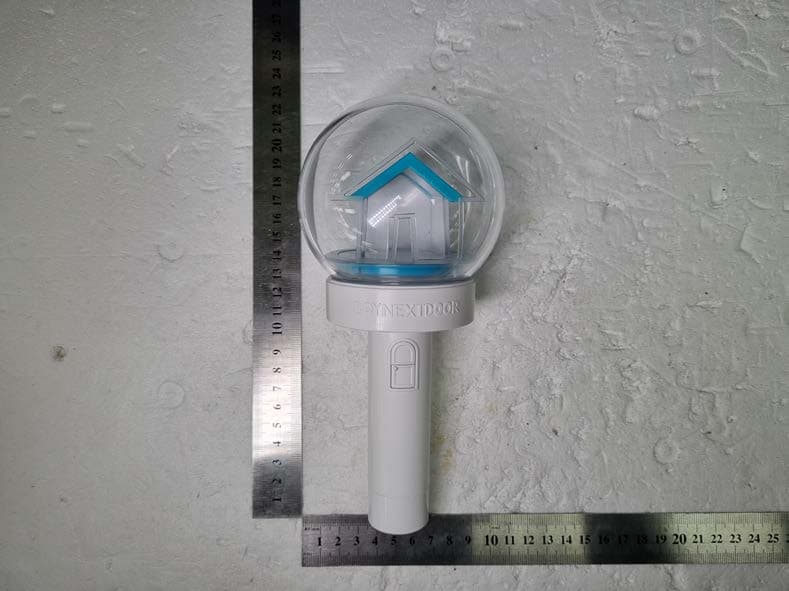

FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 1 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 2 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 3 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 4 <Port>

Label plate FCC ID: 2ADTG-BNDOLS

FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 1 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 2 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 3 FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. View 4 <Antenna 1> <Antenna 2>

FCC ID: RF feature Mode Transmitting Frequency(MHz) Test separation distance (mm) ANT Gain (dBi) Max. power with tune-up tolerance (dBm) Note1 Max. power with tune-up tolerance (mW) Power thresholds SAR test exclusion thresholds BLE GFSK(1Mbps) 2 480.00 5.0 3.95 -12.50 0.056 2 0.02 3.00 Zigbee O-QPSK (250 kbps) 2 480.00 5.0 3.95 -7.00 0.199 5 0.06 3.00 Note1. Conclusion : = [ ( 0.0562mW / 5mm ) ] X [ √2.48GHz ] = 0.02Note. The calculation result was rounded to two decimal place f or comparison. 2ADTG-BNDOLS Please refet to the operation description for Max Tune-up power . Standalone SAR test exclusion considerations SAR evaluation for general popul ation exposure conditions by me asurement or numerical simulation is not required KDB 447498 D01 clause 4.3.1 Step 1) SAR test exclusion thresho lds for 100MHz to 6GHz at test separation distances ≤ 50 mm [ ( max. power of channel, inclu ding tune-up tolerance, mW ) / ( min. test separation distance, mm ) ] · [ √f(GHz) ] ≤ 3.0 for 1g SAR and ≤ 7.5 for 10g extremity SAR Sample Calculation

2024.01.11 RA-N2301-11 APPROVAL SHEET MODEL : KANE3 Antenna layout Review Consent Approval Messrs.THINKWARE Co.,Ltd RadiNa Co. ,Ltd TEL:+82-2-463-0373 FAX:+82-2-463-0374 PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 2 / 10 RADINA. Co., LTD Table of contents 1. Revision History 2. Product Information 2.1 General Features 2.2 Electrical Specifications 3. Pattern Specifications 4. Mat ching Network 5. Electrical Characteristics 5.1 VSWR 5.2 Smith Chart 5.3 3D-PLOT 5.4 2D-GAIN 6. Passive Measurement 7. Measurement Process PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 3 / 10 RADINA. Co., LTD 1. Revision History NO. Before After Reason Date 1 2 3 4 5 6 7 8 9 10 11 12 13 PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 4 / 10 RADINA. Co., LTD 2. Product Information 2.1 General Features PART NUMBER GradiANT ANTENNA TYPE PCB Pattern Antenna APPLICATIONS bluetooth 2.2 Electrical Specifications Frequency Range1 (TX) 2400MHz~2485MHz Frequency Range1 (RX) 2400MHz~2485MHz IMPEDANCE 50  V.S.W.R TX 2400MHz 2485MHz 3↓ 3↓ RX 2400MHz 2485MHz 3↓ 3↓ RADIATION PATTERN Omni-directional POLARIZATION Linear PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 5 / 10 RADINA. Co., LTD 3. Pattern Specifications 4. Matching Network Capacitor value can be changed depending on different situation PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 6 / 10 RADINA. Co., LTD 5. Electrical Characterristics 5.1 VSWR 5.2 SMITH CHART PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 7 / 10 RADINA. Co., LTD 5.3 3D-PLOTs 5.4 2D-GAIN PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 8 / 10 RADINA. Co., LTD 6. Passive Measurement 1 2 3 4 5 6 7 8 9 10 Frequency [MHz] 2400 2405 2410 2415 2420 2425 2430 2435 2440 2445 Efficiency [dB] -2.73 -2.83 -3.01 -3.17 -3.30 -3.11 -2.93 -3.00 -3.14 -3.08 Efficiency [%] 53.3 52.1 50.0 48.2 46.8 48.9 51.0 50.1 48.5 49.2 TRG θ [dB] -3.64 -3.70 -3.90 -4.08 -4.18 -4.04 -3.79 -3.88 -4.07 -3.96 Gain θ Peak [dB] 3.57 3.35 3.24 3.54 3.41 3.54 3.77 3.84 3.58 3.71 Gain θ M in [dB] -22.90 -24.90 -24.24 -25.38 -22.17 -22.27 -19.80 -19.56 -22.56 -20.27 TRG φ [dB] -9.97 -10.25 -10.34 -10.39 -10.65 -10.28 -10.36 -10.35 -10.29 -10.43 Gain φ Peak [dB] -1.16 -1.88 -1.52 -1.84 -2.13 -1.55 -1.64 -1.49 -1.17 -1.92 Gain φ M in [dB] -30.57 -37.27 -54.02 -38.07 -51.98 -33.64 -32.00 -47.56 -33.47 -51.42 UHRG [dB] -8.26 -8.34 -8.59 -8.82 -8.98 -8.79 -8.80 -8.82 -8.94 -8.99 UHRG/TRG [%] 28.0 28.2 27.7 27.2 27.0 27.0 25.9 26.2 26.3 25.6 H-Plane -7.73 -7.86 -7.85 -8.27 -8.25 -8.10 -7.72 -7.70 -7.87 -7.78 E1-Plane, AVG [dB] -5.06 -5.11 -5.32 -5.63 -5.57 -5.35 -5.18 -5.20 -5.43 -5.08 E2-Plane, AVG [dB] -2.70 -2.78 -2.96 -3.06 -3.18 -2.97 -2.80 -2.71 -3.22 -2.97 Peak Gain [dB] 3.85 3.59 3.53 3.65 3.55 3.69 3.90 3.95 3.82 3.83 Directivity [dB] 6.58 6.42 6.54 6.82 6.85 6.80 6.83 6.95 6.96 6.91 Minimum Gain [dB] -20.22 -19.35 -19.02 -18.19 -22.01 -20.47 -18.21 -18.14 -20.20 -17.65 11 12 13 14 15 16 17 18 19 20 Frequency [MHz] 2450 2455 2460 2465 2470 2475 2480 2485 2490 2497 Efficiency [dB] -3.33 -3.30 -3.65 -3.80 -3.79 -3.95 -3.89 -4.25 -4.06 -4.18 Efficiency [%] 46.4 46.8 43.1 41.7 41.7 40.2 40.8 37.5 39.2 38.2 TRG θ [dB] -4.24 -4.18 -4.55 -4.71 -4.69 -4.83 -4.80 -5.22 -4.98 -5.09 Gain θ Peak [dB] 3.49 3.61 3.16 3.17 3.28 3.05 2.67 2.61 2.86 2.99 Gain θ M in [dB] -25.38 -21.12 -26.25 -26.55 -27.46 -35.46 -32.78 -37.22 -32.64 -38.29 TRG φ [dB] -10.60 -10.63 -10.93 -11.00 -11.10 -11.34 -11.15 -11.27 -11.25 -11.42 Gain φ Peak [dB] -1.88 -1.65 -2.13 -2.17 -2.10 -2.51 -2.37 -2.37 -2.35 -2.83 Gain φ M in [dB] -30.26 -33.80 -34.09 -35.27 -40.37 -37.46 -38.39 -30.40 -30.41 -32.81 UHRG [dB] -9.27 -9.47 -9.72 -9.91 -9.86 -10.24 -9.88 -10.26 -10.11 -10.22 UHRG/TRG [%] 25.5 24.1 24.8 24.5 24.8 23.5 25.2 25.1 24.8 24.9 H-Plane -7.91 -8.25 -8.02 -8.22 -8.18 -8.27 -7.84 -8.07 -7.69 -7.93 E1-Plane, AVG [dB] -5.31 -5.22 -5.55 -5.97 -5.62 -6.05 -5.69 -6.19 -6.11 -5.90 E2-Plane, AVG [dB] -3.15 -3.15 -3.60 -3.73 -3.73 -3.92 -3.94 -4.28 -3.89 -4.06 Peak Gain [dB] 3.58 3.72 3.28 3.24 3.35 3.20 3.34 2.72 2.90 3.04 Directivity [dB] 6.92 7.02 6.94 7.04 7.15 7.15 7.23 6.97 6.96 7.22 Minimum Gain [dB] -20.42 -18.71 -19.06 -21.99 -21.78 -33.34 -23.10 -27.86 -25.42 -27.33 Average Efficiency -3.40dBi 45.70% Peak Gain 3.95dBi PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 9 / 10 RADINA. Co., LTD 7. Measurement Process 7.1 SWR / Return loss Set Condition Network Analyzer Agilent 8753ES Cable Semi-ridid (40mm, 60mm) Test condition 7.2 Gain Antenna gain is measured in the anechoic chamber of this company. Anechoic Chamber for Antenna Gain Measurement PRODUCT APPROVAL SHEET GRTW23012BE31 MODEL NAME KANE3 REV. 1.0 Page 10 / 10 RADINA. Co., LTD 7.3 Gain test block diagram Active test Sysetm - TRP, NHPRP,UHRP - TIS, NHPIS, UHIS - Relative Sensitivity Passiver test Sysetm - Efficiency - Peak Gain, Avg, Gain - Min, Max PWR

Report No.: DRTFCC2402-0016 FCC ID: 2ADTG-BNDOLS This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-238(06)210316 Pages: 2 / 29 Test Report Version Test Report No. Date Description Revised by Reviewed by DRTFCC2402-0016 Feb, 08. 2024 Initial issue SeungMin Gil JaeJin Lee Report No.: DRTFCC2402-0016 FCC ID: 2ADTG-BNDOLS This test report is prohibited to copy or reissue in whole or in part without the approval of Dt&C Co., Ltd. TRF-RF-238(06)210316 Pages: 3 / 29 Table of Contents 1. General Information .................................................................................... 4 1.1. Description of EUT .......................................................................................................... 4 1.2. Declaration by the applicant / manufacturer ................................................................ 4 1.3. Testing Laboratory .......................................................................................................... 5 1.4. Testing Environment ....................................................................................................... 5 1.5. Measurement Uncertainty............................................................................................... 5 1.6. Test Equipment List ........................................................................................................ 6 2. Test Methodology ........................................................................................ 7 2.1. EUT Configuration ........................................................................................................... 7 2.2. EUT Exercise .................................................................................................................... 7 2.3. General Test Procedures ................................................................................................ 7 2.4. Instrument Calibration .................................................................................................... 7 2.5. Description of Test Modes.............................................................................................. 7 3. Antenna Requirements ............................................................................... 8 4. Summary of Test Results ........................................................................... 9 5. Test Result ................................................................................................. 10 5.1. Maximum Peak Conducted Output Power .................................................................. 10 5.1.1. Test Setup .................................................................................................................. 10 5.1.2. Test Procedures ........................................................................................................ 10 5.1.3. Test Results ............................................................................................................... 10 5.2. 6 dB Bandwidth ............................................................................................................. 12 5.2.1. Test Setup .................................................................................................................. 12 5.2.2. Test Procedures ........................................................................................................ 12 5.2.3. Test Results ............................................................................................................... 12 5.3. Power Spectral Density ................................................................................................. 14 5.3.1. Test Setup .................................................................................................................. 14 5.3.2. Test Procedures ........................................................................................................ 14 5.3.3. Test Results ............................................................................................................... 14 5.4. Unwanted Emissions (Conducted) .............................................................................. 16 5.4.1. Test Setup .................................................................................................................. 16 5.4.2. Test Procedures ........................................................................................................ 16 5.4.3. Test Results ............................................................................................................... 17 5.5. Unwanted Emissions (Radiated) .................................................................................. 20 5.5.1. Test Setup .................................................................................................................. 21 5.5.2. Test Procedures ........................................................................................................ 21 5.5.3. Test Results ............................................................................................................... 22 5.6. AC Power-Line Conducted Emissions ........................................................................ 23 5.6.1. Test Setup .................................................................................................................. 23 5.6.2. Test Procedures ........................................................................................................ 23 5.6.3. Test Results ............................................................................................................... 23 APPENDIX I .................................................................................................... 26 APPENDIX II ................................................................................................... 27 APPENDIX III ...............................................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID: 2ADTG-BNDOLS Copyright Ⓒ 2024, Dt&C Co., Ltd. Test Setup Photo of AC Line Conducted Measurement
