2AEEDUS-PC201Smart Power Controller

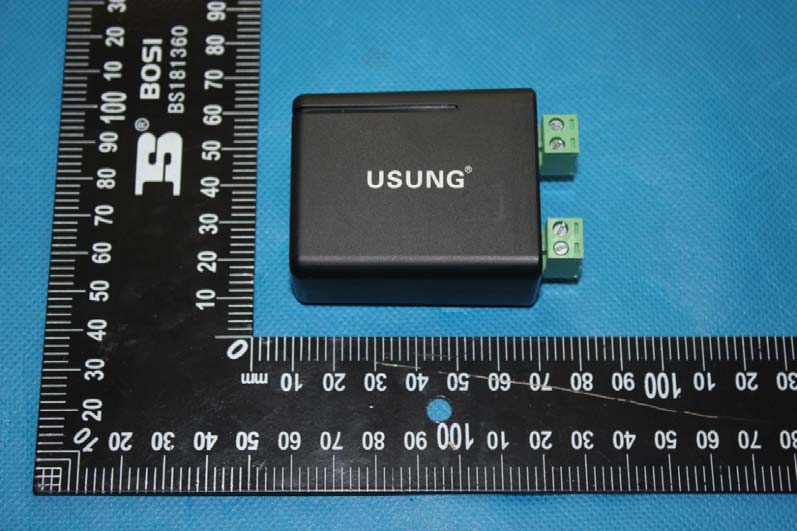

Smart Power Controller - Manual Product name：Smart Power Controller Product description：this is one of the USUNG SmartHome System components, and must work together with other SmartHome components. It controls to power on/off AC 100V-240V lighting units. Product parameters： In package: user manual x1; power controller x1; Installation & usage: 1. There are four connectors in the Power Controller, respectively, input: N & L, connectors and output: N1 & L1 connectors; 2. Please connect the wires according to the arrow marks on the controller cover. During wiring, please make sure that power is safely shut off and the output connectors should be properly connected to the device to be controlled; 3. Installation completes. Illustration: Precautions: 1. Please do not disassemble or try to repair the product in your own will; 2. Please do not put the product under extreme conditions like high temperature or high pressure, etc.; 3. Please keep the product away from baby or child; 4. Please keep the product dry and away from humidity; Smart Home Initial Configuration and User Manual Software Login Configuration z Firstly, please follow the user manual, correctly install the Smart Gateway and other smart components, and power them on. Please make backup and memo for each device during the installation in accordance with the description of the attached ID Backup Table. z Secondly, download and install the SmartHome Suite Client Software from USUNG SmartHome System Official Website(downloading url: http://home.iusung.com/download ), or you may use a barcode scanner tool from your mobile to check out the downloading address from the 2D barcode shown below. Note: There are various 2D barcode scanner tools available for mobiles, such as Wechat. Take Wechat for example: select Discover -> choose Scan (if not available, please enable the Scan tool in the Settings) z Then, on your mobile, enter Settings Æ Wireless LAN, find the AP named like“WIMA******” z Open the client software, from the Login interface , click on the “Initial Usage Wizard”and enter the Router Configuration interface; z In Router Configuration interface, click on Confirmation button, and you will be redirect to your mobile phone’s default browser, where you can login to the Smart Gateway (with“admin”as both default username and password ); z Once logged in successfully, by following the interface requests, enter the SSID of your Home WIFI, and please write down the MAC address shown in the page that followed, which will be used in remote Controlling Settings Or by auto-scanning using Scanning Hotspot function, you may choose the SSID of your Home WIFI. z Input the password for your home WIFI; „ Click Save button to save the settings data. „ Click Return to go back to the Router Configuration interface. „ and then click on Return complete the settings. z After completion of the above configuration, the Smart Gateway should have joined your home WIFI. Now, if your mobile has not yet connected to your home WIFI automatically, please open the Settings Æ Wireless LAN, and connect your mobile again to your home WIFI. z Reopen your mobile client software and go back to the login interface; The client software will automatically search the Smart Gateway that joined already in your home WIFI, and display it (or them) in the login list. (This process will last for 10-60 seconds, be patient please. If it takes too long to find your WIFI, please press down the reset button at the back of the gateway for 6 seconds to reset the gateway and then you may start the configuration from the start again. z After completion of the search , please choose the gateway that you want to login and input the password for the gateway (default is the initial 8 digits of the gateway’s ID ). Login! Congratulations! You’ve finished the settings, now you can use your SmartHome System. Note: z Once completed above setting procedures, you may not change above initial settings through the gateway’s built-in WIFI network directly, unless reset the gateway. z After completion of above setting procedures, if your other family members need to control the SmartHome system by using the mobile client software through the home WIFI, they are not required to repeat above configuration but only to login with gateway password. z When using the Mobile Client Software, please keep live the connection to the wireless LAN of your home router. z If you changed the home WIFI router, you need to reset the gateway (for guidance please refer to the product manual), and repeat the configurations described in this manual. Using APP Software z Naming and Area Definition „ Please confirm firstly that you have correctly installed and powered on all smart components. „ Open the SmartHome APP software and login , in the main interface, click on My Settings. „ In My Settings interface, click to open the Online Device, where you see all installed smart components. „ The default name of a newly added device is its ID. Click on any device, in the popup menu, you can rename the device and assign an area to it.(if you have marked down the information of the device such as installation location etc. by using the suite attached ID Backup Table, you may now take advantage of it) „ After completion of the settings, please click on Save button on the top-right corner. z Using Smart Power Controller „ Before start using, please make sure you have correctly installed the Smart Power Controller strictly following the attached Product Manual. „ Then, please go back to the home interface of the software, click on Online Devices button to enter the Online Device list. „ Find any Smart Power Controller item in the list, click on the Switch button , and you may turn on/off the light or light group controlled by this controller. z Configure and use Smart Switch Panel „ Click and enter My Settings Æ Online Devices to enter the list; „ Click any Smart Switch Panel in the list, and enter the Device Details interface. „ In…
