2AEEV-OBFTC0044APower Bank

4” 2” PMS 109 Process Black Step 1 Step 2 Final POWER BANK POWER BANK 6” Project Name: INSERT CARD POWER BANK QUICK START GUIDE Date: 4.28.2020Part #: 20-55265Rev: A Colors Coatings and Treatments:Notes: Accordian Fold Dieline and material shall follow: 23-84697 Designer: Rowell Confidential property of Otter Products LLC Reproduction and unauthorized use is prohibited Otterproducts LLC: 209 South Meldrum Street, Fort Collins,CO 80521 NOT FOR PRINT - FOR REFERENCE ONLY Dielines- do not print Folds- do not print POWER BANK QUICK START GUIDE OBFTC0044A CHARGEUR PORTATIF GUIDE DE DÉMARRAGE RAPIDE 20-55265_A COMPLETE USER MANUAL MODE D’EMPLOI COMPLET OTTERBOX.COM/SAFETY-INSTRUCTIONS DE Gesamtes Benutzerhandbuch IT Manuale Utente Completo ES Manual de Usuario Completo PT Manual do Utilizador Completo JA KO 사용 설명서 ZHT 完整版使用者手冊 ZH 完整版用户手册 When not charging, press button to view capacity (Fig. 2): • No LEDs – 0% capacity • 1 flashing LED – 0-10% capacity • 1 solid LED – 10-25% capacity • 2 solid LEDs – 25-50% capacity • 3 solid LEDs – 50-75% capacity • 4 solid LEDs – 75-100% capacity FULLY CHARGE FOR FIRST USE While charging display continually shows (Fig. 1): • 1 flashing LED – < 25% capacity • 1 solid LED, 1 flashing LED – 25-50% capacity • 2 solid LEDs, 1 flashing LED – 50-75% capacity • 3 solid LEDs, 1 flashing LED – 75-99% capacity • 4 solid LEDs – 100% capacity CHARGE DEVICES Power bank automatically starts charging most devices. WIRELESSLY CHARGE DEVICES (IF APPLICABLE) Press button and place your device flat on the side of the Power bank featuring the OtterBox logo. An orange light blinks while detecting your device and stops blinking if the device is not detected. The orange light blinks when a device is connected and charging. CARE & MAINTENANCE Cleaning 1. Wipe with a dry cloth. 2. Do not use solvents, chemicals, cleaning solutions, alcohol, ammonia or abrasives. CUSTOMER SERVICE 18556887269 USA + Canada - Toll Free [email protected] otterbox.com/support This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. SERVICE À LA CLIENTÈLE 18556887269 É.-U. + Canada - Gratuit [email protected] otterbox.com/support Cet appareil est conforme à la section 15 des réglementations de la FCC. Son fonctionnement est soumis aux deux conditions suivantes : (1) cet appareil ne doit pas causer d’interférences nuisibles ; (2) cet appareil doit accepter toute interférence reçue, notamment les interférences susceptibles d’occasionner un fonctionnement indésirable. FIG.1 FIG.2 changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. ISED compliance statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) L’appareil ne doit pas produire de brouillage; (2) L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. Radiation Exposure statement This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20 cm between the radiator and your body. Cet équipement est conforme aux limites d'exposition aux radiations FCC/IC CNR-102 établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps.

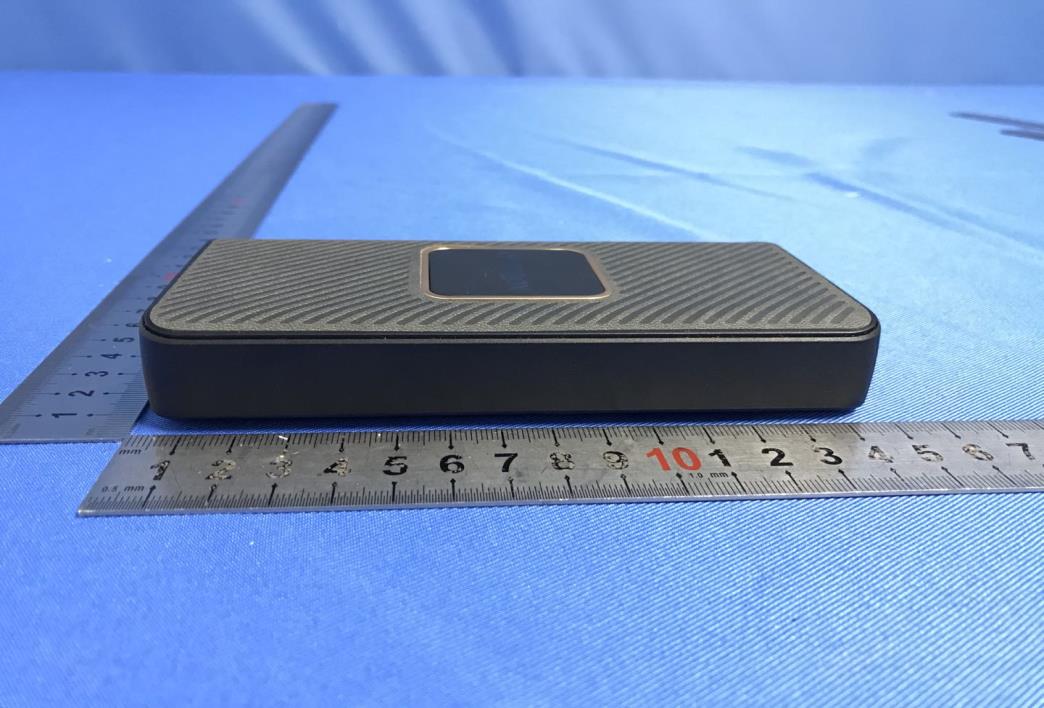

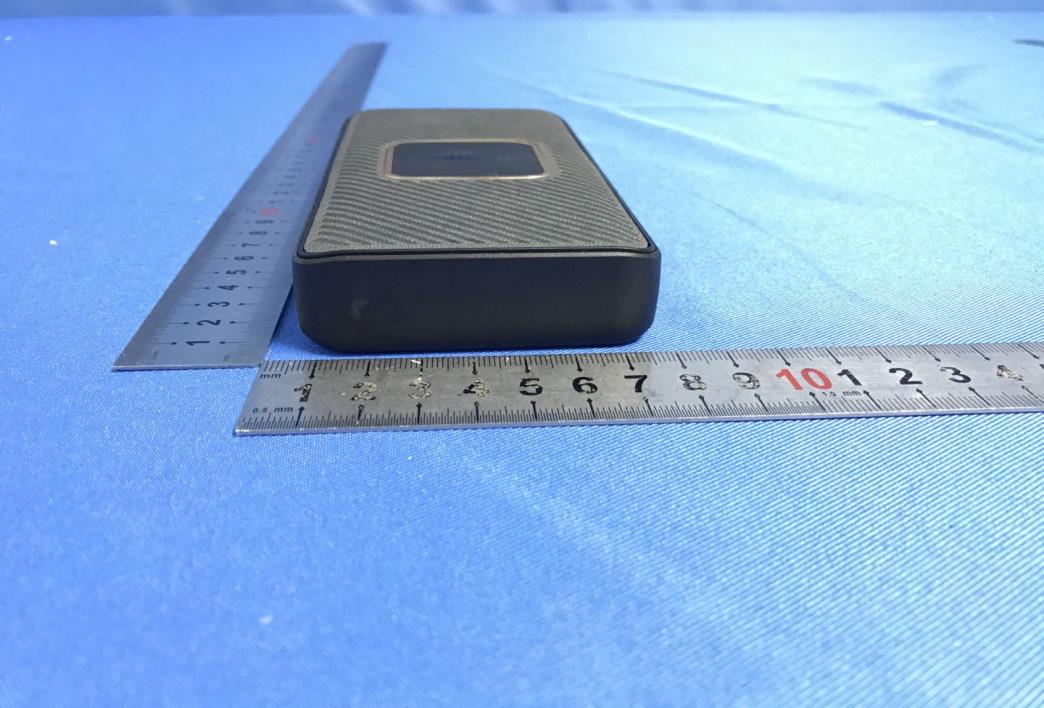

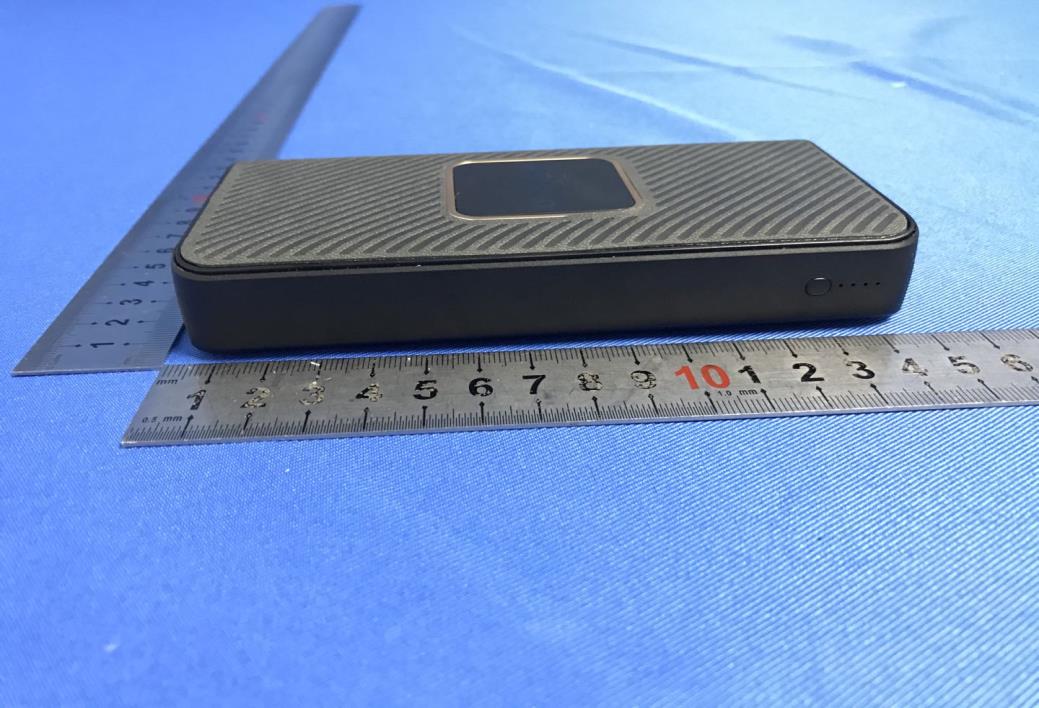

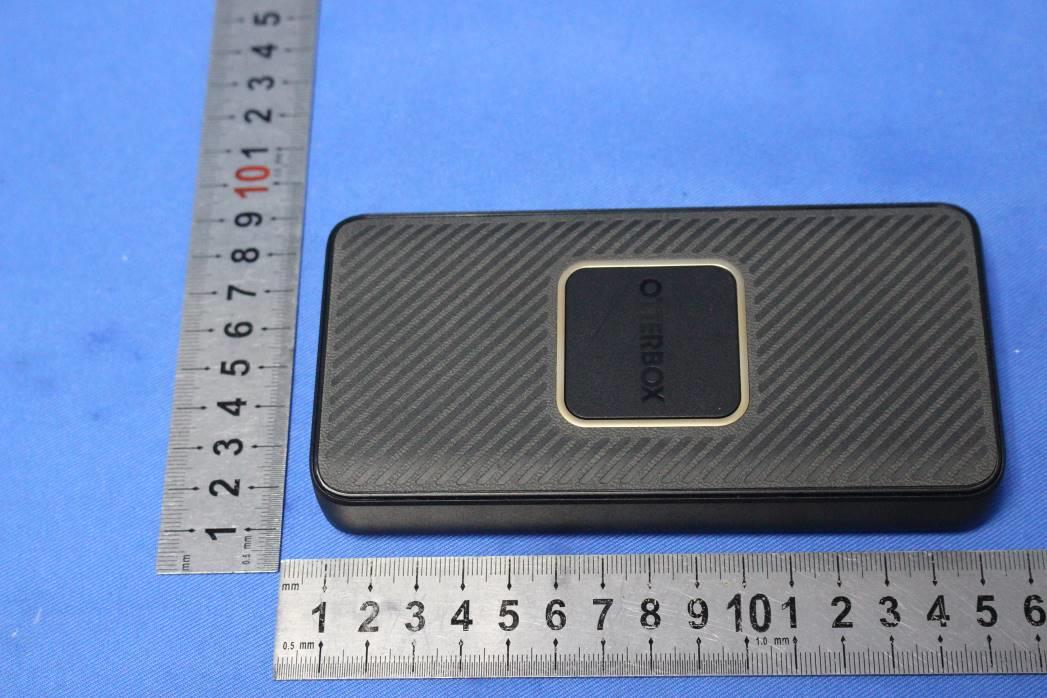

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 External Photos for SZEM2005004379BA FCC ID: 2AEEV-OBFTC0044A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4

镭雕日期（规则：年周，如2020年23周为023，2021年3周103） 字体Lorimer No2 023

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 3 Internal Photos for SZEM2005004379BA FCC ID: 2AEEV-OBFTC0044A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 3 1 EUT Constructional Details SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 3

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437903 Page: 1 of 8 Keny Xu EMC Laboratory Manager 1 COVER PAGE Human Exposure Report Application No.: SZEM2005004379CR Applicant: Otter Products LLC. Address of Applicant: 209 South Meldrum, Fort Collins, Colorado, 80521 United States Manufacturer: Hamedata Technology Co., Limited Address of Manufacturer: 3F, Building 1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District., Shenzhen Factory: Hamedata Technology Co., Limited Address of Factory: 3F, Building 1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District., Shenzhen Equipment Under Test (EUT): EUT Name: Power Bank Model No.: OBFTC-0044-A Trade mark: OTTERBOX FCC ID: 2AEEV-OBFTC0044A Standards: 47 CFR PART 1, Subpart I, Section 1.1310 47 CFR PART 2, Subpart J, Section 2.1091 Date of Receipt: 2020-06-01 Date of Test: 2020-06-03 to 2020-06-09 Date of Issue: 2020-06-11 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437903 Page: 2 of 8 Revision Record Version Chapter Date Modifier Remark 01 2020-06-11 Original Authorized for issue by: Peter Geng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437903 Page: 3 of 8 2 Contents 1 COVER PAGE ......................................................................................................................................................... 1 2 CONTENTS .............................................................................................................................................................. 3 3 GENERAL INFORMATION ................................................................................................................................... 4 3.1 DETAILS OF E.U.T. ................................................................................................................................................. 4 3.2 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................... 4 3.3 TEST LOCATION ...................................................................................................................................................... 5 3.4 TEST FACILITY ....................................................................................................................................................... 5 3.5 DEVIATION FROM STANDARDS ............................................................................................................................... 5 3.6 ABNORMALITIES FROM STANDARD CONDITIONS .................................................................................................... 5 4 EQUIPMENTS USED DURING TEST .................................................................................................................. 6 5 TEST RESULTS ...................................................................................................................................................... 7 5.1 RF EXPOSURE TEST ................................................................................................................................................ 7 5.1.1 E.U.T. Operation ........................................................................................................................................ 7 5.1.2 Measurement Data .................................................................................................................................... 8 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437903 Page: 4 of 8 3 General Information 3.1 Details of E.U.T. Power Supply: Battery Capacity: 15000mAh/3.7V 55.5Wh Rated Capacity(min):9200mAh USB-C Input: DC 5V, 3A; DC 9V, 2A; DC 12V, 1.5A USB-A Output: DC 5V, 2.4A; DC 9V, 2A; DC 12V, 1.5A USB-C Output: DC 5V, 3A; DC 9V, 2A; DC 12V, 1.5A Qi Output: 5W; 7.5W; 10W Total Output: DC 5V, 3A Operation frequency: 126.44-129.01kHz Antenna Type: Loop Antenna Modulation Type: Load Modulation 3.2 Description of Support Units Description Manufacturer Model No. Serial No. iPhone 8 Apple A1863 F4GVQ656JC6D SAMSUNG Galaxy S8 SAMSUNG SM-G9500 R28J9140LPB SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437903 Page: 5 of 8 3.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch E&E Lab, No. 1 Workshop, M-10, Middle section, Science & Technology Park, Shenzhen, Guangdong,China 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 No tests were sub-contracted. 3.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 462…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437902 Page: 1 of 23 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: SZEM2005004379BA Applicant: Otter Products LLC. Address of Applicant: 209 South Meldrum, Fort Collins, Colorado, 80521 United States Manufacturer: Hamedata Technology Co., Limited Address of Manufacturer: 3F, Building 1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District., Shenzhen Factory: Hamedata Technology Co., Limited Address of Factory: 3F, Building 1, Huahan Industrial Park, No.16, Jinniu West Rd., Pingshan New District., Shenzhen Equipment Under Test (EUT): EUT Name: Power Bank Model No.: OBFTC-0044-A Trade Mark: OTTERBOX FCC ID: 2AEEV-OBFTC0044A Standard(s) : 47 CFR Part 15, Subpart C Date of Receipt: 2020-06-01 Date of Test: 2020-06-03 to 2020-06-09 Date of Issue: 2020-06-11 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437902 Page: 2 of 23 Revision Record Version Chapter Date Modifier Remark 01 2020-06-11 Original Authorized for issue by: Peter Geng /Project Engineer Eric Fu /Reviewer SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437902 Page: 3 of 23 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C N/A 47 CFR Part 15, Subpart C 15.203 Pass Radio Spectrum Matter Part Item Standard Method Requirement Result 20dB Bandwidth 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.9.2 47 CFR Part 15, Subpart C 15.215 Pass Restricted Bands 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 Pass Radiated Emissions (9kHz-30MHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.4 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Emissions (30MHz-1GHz) 47 CFR Part 15, Subpart C ANSI C63.10 (2013) Section 6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: SZEM200500437902 Page: 4 of 23 3 Contents Page 1 COVER PAGE ............................................................................................................................................ 1 2 TEST SUMMARY ....................................................................................................................................... 3 3 CONTENTS ................................................................................................................................................ 4 4 GENERAL INFORMATION ........................................................................................................................ 5 4.1 DETAILS OF E.U.T. ............................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS ......................................................................................................... 5 4.3 MEASUREMENT UNCERTAINTY .............................................................................................................. 5 4.4 TEST LOCATION .................................................................................................................................... 6 4.5 TEST FACILITY ...................................................................................................................................... 6 4.6 DEVIATION FROM STANDARDS ............................................................................................................... 6 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ..................................................................................... 6 5 EQUIPMENT LIST ...................................................................................................................................... 7 6 RADIO SPECTRUM TECHNICAL REQUIREMENT ................................................................................. 9 6.1 ANTENNA REQUIREMENT ...................................................................................................................... 9 6.1.1 Test Requirement: ......................................................................................................................... 9 6.1.2 Conclusion ..................................................................................................................................... 9 7 RADIO SPECTRUM MATTER TEST RESULTS ..................................................................................... 10 7.1 20DB BANDWIDTH .............................................................................................................................. 10 7.1.1 E.U.T. Operation .......................................................................................................................... 10 7.1.2 Test Setup Diagram ..................................................................................................................... 10 7.1.3 Measurement Procedure and Data............................................................................................. 10 7.2 RESTRICTED BANDS ........................................................................................................................... 12 7.2.1 E.U.T. Operation .......................................................................................................................... 12 7.2.2 Test Setup Diagram ..................................................................................................................... 12 7.2.3 Measurement Procedure and Data............................................................................................. 12 7.3 RADIATED EMISSIONS (9KHZ-30MHZ) ................................................................................................. 14 7.3.1 E.U.T. Operat…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 2 Setup Photos for SZEM2005004379BA FCC ID: 2AEEV-OBFTC0044A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 2 1 Photographs 1.1 Radiated Emissions (9kHz-30MHz) Test Setup 1.2 Radiated Emissions (30MHz-1GHz) Test Setup

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 1 of 4 RF exposure setup for SZEM2005004379BA FCC ID: 2AEEV-OBFTC0044A SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 2 of 4 1.1 Test photos Test with mobile phone with 15cm measurement distance Side 1 Side 2 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 3 of 4 Side 4 Side 3 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Page: 4 of 4 Top
