2AEKF-C20Smart Commuter Helmet C20

www.livall.com Smart Commuter Helmet C20 Quick Start Guide & Warranty Information 1 I .Introduction Welcome to the User Guide for LIVALL smart commuter helmets. Avoid crowds and ride free with the new C20 commuter helmet. Smart features include built-in SOS fall detection, LED lighting, and sleek, waterproof design. This Guide will help you better use this product. With continuous improvements of our products, this Guide will be updated from time to time. You can access the latest version and learn more about the helmet on www.livall.com. Visor Note: The picture is for reference only. If the actual product appears different from the picture, the real product shall prevail. ChinstrapTension adjusterTaillightMagnetic USB charging portPower Switch II. Packing List Helmet x 1 Quick Start Guide & Warranty Information x 1 Magnetic USB charging cable x 1 2 III. Wearing Instructions IncorrectIncorrectCorrect Adjust the length of the chinstrap Leave a gap as thick as one finger Correctly position the helmet Check whether the buckle is properly fastened 3 Power on Power off Lighting Mode Adaptive Warning Lighting Hold the button at the back of the helmet for 2 seconds, then the LED taillight will blink for 10 seconds after the helmet is powered on, which means the helmet automatically enters adaptive warning light mode. Hold the button at the back of the helmet for 2 seconds until all the LED taillight turns off. lighting mode: After the helmet is power on, press the button for a second to switch the three lighting modes in order. 1.adaptive warning mode A;2.adaptive warning mode B;3.keep warning light always on. 2 seconds after power on, press the button (less than 1 second), the helmet will enter the adaptive warning lighting mode. In daytime or in a bright environment, only the central LED will keep flashing, other LED will turn off automatically. While at night or in a dark environment, the whole taillight will keep flashing automatically. Hold 2 seconds Remark: When powering on, you could check the remaining battery level of the helmet by the number of tail lights, all the 7 lights on indicates full power. 4 Charging Lighting Always on Mode In daytime or in a bright environment, the whole taillight will keep flashing. Brake warning light When the helmet detects a clear deceleration, the whole taillight will light up for 1-2 seconds to warn the vehicles behind. Comment: When the helmet shakes too heavy, the built-in sensor detects obvious deceleration to trigger the warning light always on, which is normal. Auto Power-off When the helmet keeps stationary for 20 minutes, it will automatically power off. Auto Power-on When the battery of the helmet is charged, shake the helmet a few times. It will power on automatically. (This function is off in the factory default setting, you can activate the function in the settings of LIVALL Riding App) When the soft rubber lid with “” image is opened, the Magnetic charging port will be seen. Insert a USB cable into the USB Charging cable interface of the helmet. Charging starts when the central LED blinks. During charging, when the central LED stops blinking and turns off, charging is completed. Open the soft rubber 5 NO Function 1 Quick Flashing Light, Tidal Light 2 Adaptering light 3 Brake warning light 4 Auto-power off 5 Auto-power on 6 SOS Alert Connect to the phone (Tip: Once connected, to ensure the stability of the connection, please try to position your mobile phone in front of you.) Helmet Headset "Click to connect" " □ " function button Turn on the helmet. Only if the helmet is successfully connected to LIVALL Riding App, SOS alert feature can work. LIVALL Riding AppSwith on the Bluetooth on your phone and click to connect the "Smart Helmet" device. 6 IV. Technical Specifications Notes: The above data is measured by LIVALL in a controlled environment, with room temperature at 25°C and specific light patterns. The actual data might be different according to the environment. Model:C20 Charging port : Magnetic USB Battery : 3.7V/455mAh Waterproof class : IPX4 Temperature: Storage Temperature: -20°C ~45°C. Temperature for use: 0°C~40°C. Temperature while charging: 0°C~40°C. Electricity parameter : DC 5V/1A Charging time : 3-4 hours Battery life : about. 26-36hrs for lighting all the time Performance standards: USA: CPSC1203:1998, FCC Part 15 Rules Europe: EN 1078: 2012+A1:2012 V. Considerations 1. The helmet contains electronic parts inside. Please do not take a long ride in the rain although the helmet can prevent the rain from splashing. 2. After the helmet gets wet in the rain, the water droplets might occur in the chimney of tail LED lights. The water droplets will disappear when you put the helmet under the ventilation environment for 1-2 days. 3. The helmet contains the battery of 3.7V/455mAh. The battery capacity varies with temperature change. The battery life can decay when the helmet is used at low temperatures or below Zero degrees Celsius. 4. Trying to clean the golden colour contacts of the charging plug sheet with metal or hard tools such as blades or tweezers is strictly forbidden. Please use cotton swabs with clean water or alcohol in case of cleaning. Please make sure the charging plug is clean and try while charging the helmet. 5. If the electronic functions do not work, please charge the helmet for 3 hours and then check if it works normally. 7 VI. Instructions for Use and Care 1. That the helmet can only protect if it fits well and that the buyer should try different sizes and choose the size which feels secure and comfortable on the head. 2. That the helmet should be adjusted to fit the user e.g. the straps positioned so that they do not cover the ears, the buckle positioned away from the jawbone and the straps and buckle adjusted to be both comfortable and firm. 3. How the helmet should be position on the head to ensure the intended protection is provided (e.g. that it should be placed so as to protect the forehead and not be pus…

Text truncated - open the document above for the full version.

LIVALL Tech Co., Ltd. May 21, 2021 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject: Explanation of differences between product types FCC ID : 2AEKF-C20 Model Number: C20, N20, A20, C21, C22, C23, SH50 SOS, SH50 To Whom It May Concern: We, The LIVALL Tech Co., Ltd. hereby declare that the models are identical except the model name. Except for the different above, no other modification is performed. Sincerely, Signature: LIVALL Tech Co., Ltd. Contact person: YongZheng Ye

LIVALL Tech Co., Ltd. Agent Authorization Company: LIVALL Tech Co., Ltd. Address: Room 904, 9F, R&D Building, Tsinghua Hi-Tech Park, Nanshan District, Shenzhen, China Product Name: Smart Commuter Helmet C20 Model Number(s): C20, N20, A20, C21, C22, C23, SH50 SOS, SH50 Product Description: Smart Commuter Helmet C20 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-21 Name: YongZheng Ye Company: LIVALL Tech Co., Ltd.

LIVALL Tech Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-12 Subject; Request for Confidentiality FCC ID: 2AEKF-C20 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely LIVALL Tech Co., Ltd. Contact person: YongZheng Ye

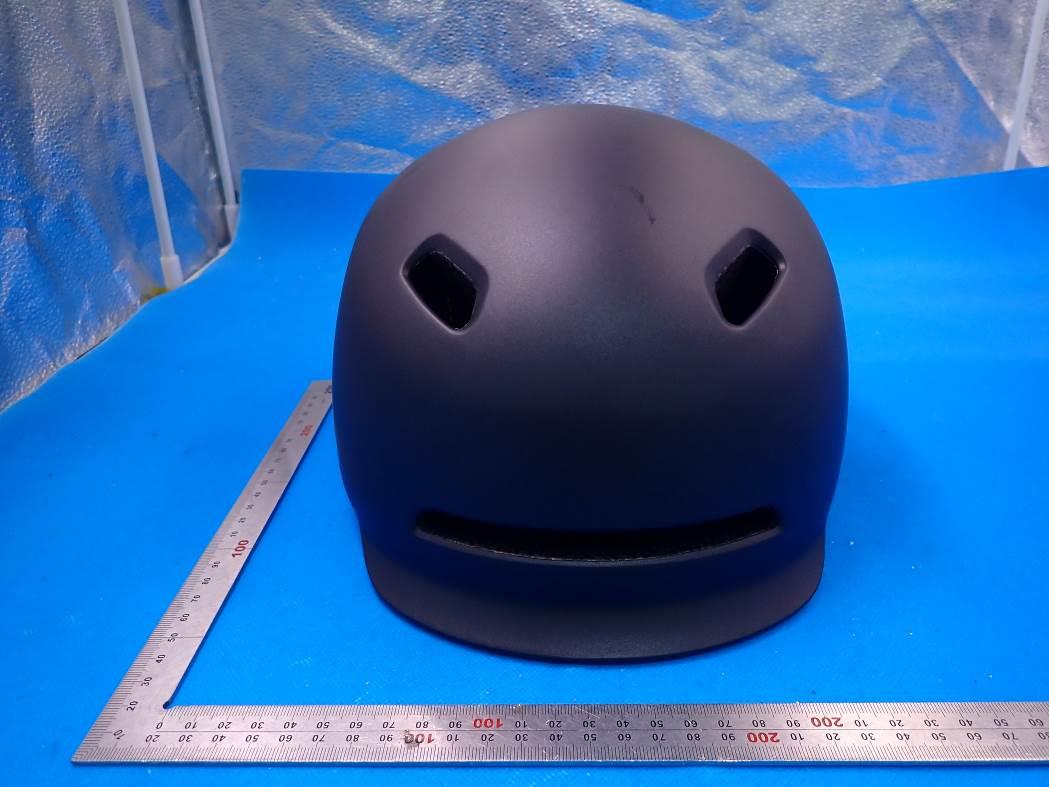

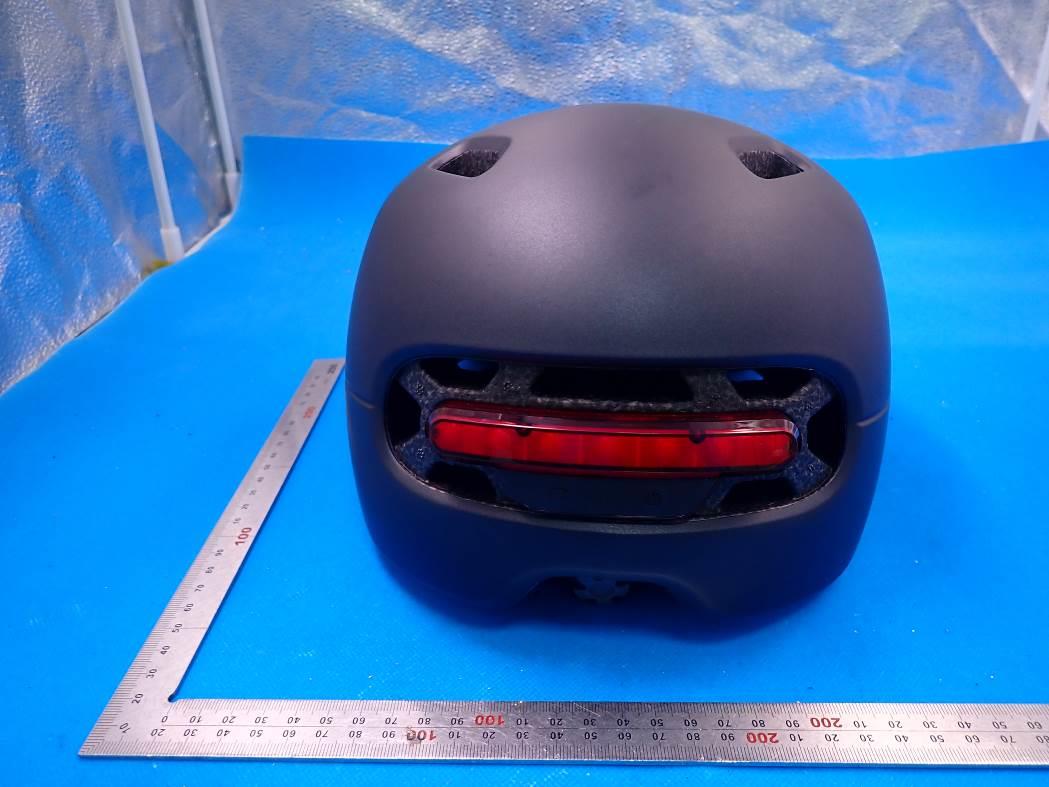

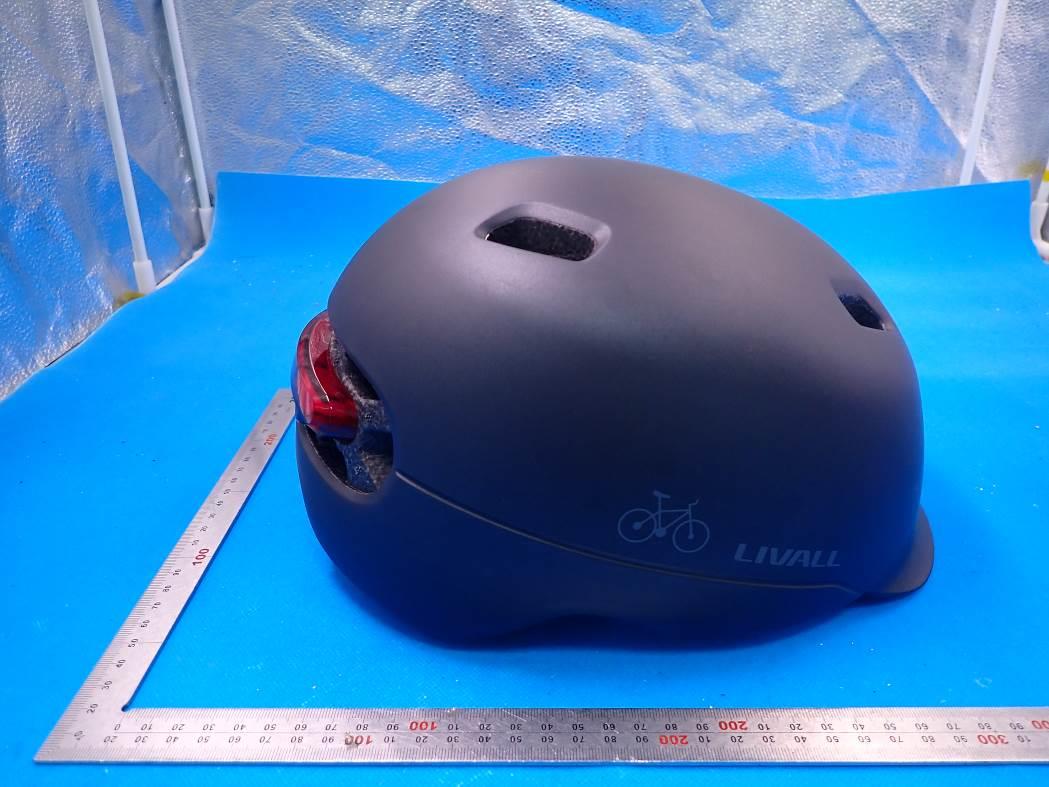

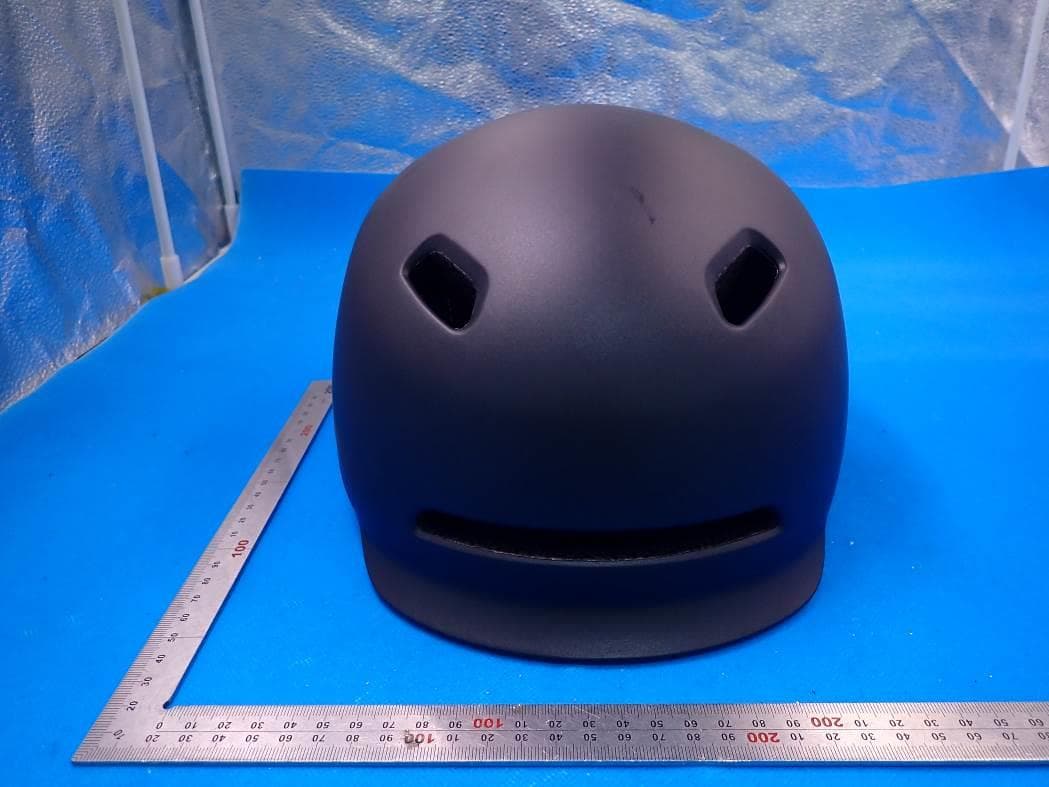

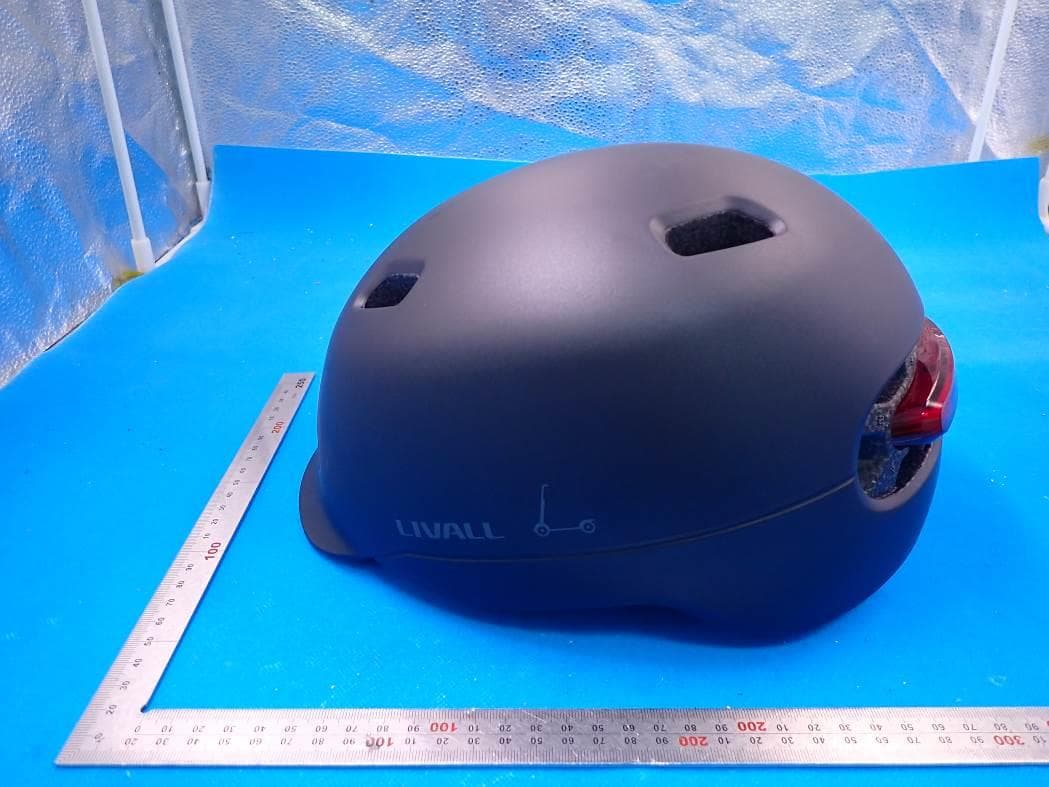

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT

FCC ID Label Location 101mm&35.5mm

Internal Photos OPEN VIEW OF EUT VIEW OF BATTERY INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 INTERNAL VIEW OF EUT-5

RF EXPOSURE EVALUATION 1. PRODUCT INFORMATION Product Description Smart Commuter Helmet C20 Model Name C20, N20, A20, C21, C22, C23, SH50 SOS, SH50 FCC ID 2AEKF-C20 2. EVALUATION METHOD According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. Where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation 3. CALCULATION P t =-3.543dBm=0.44mW The value of the Maximum output power P t is referred to the test report of the CFR47 §15.247. The result for RF exposure evaluation SAR=(0.44mW /5mm) .[√2.440GHz)]= 0.14<3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR. 4. CONCLUSION The SAR evaluation is not required.

Page 1 of 52 FCC Test Report Report No.: AGC01993210303FE02 FCC ID : 2AEKF-C20 APPLICATION PURPOSE : Original Equipment PRODUCT DESIGNATION : Smart Commuter Helmet C20 BRAND NAME : LIVALL MODEL NAME : C20, N20, A20, C21, C22, C23, SH50 SOS, SH50 APPLICANT : LIVALL Tech Co., Ltd. DATE OF ISSUE : May 12, 2021 STANDARD(S) : FCC Part 15.247 REPORT VERSION : V1.0 Attestation of Global Compliance (Shenzhen) Co., Ltd Report No.: AGC01993210303FE02 Page 2 of 52 REPORT REVISE RECORD Report Version Revise Time Issued Date Valid Version Notes V1.0 / May 12, 2021 Valid Initial Release Report No.: AGC01993210303FE02 Page 3 of 52 TABLE OF CONTENTS 1. VERIFICATION OF COMPLIANCE .................................................................................................................. 5 2. GENERAL INFORMATION .............................................................................................................................. 6 2.1. PRODUCT DESCRIPTION ........................................................................................................................ 6 2.2. TABLE OF CARRIER FREQUENCYS ....................................................................................................... 6 2.3. RELATED SUBMITTAL(S)/GRANT(S) ....................................................................................................... 7 2.4. TEST METHODOLOGY ............................................................................................................................. 7 2.5. SPECIAL ACCESSORIES .......................................................................................................................... 7 2.6. EQUIPMENT MODIFICATIONS ................................................................................................................. 7 2.7. ANTENNA REQUIREMENT ....................................................................................................................... 7 3. MEASUREMENT UNCERTAINTY ................................................................................................................... 8 4. DESCRIPTION OF TEST MODES ................................................................................................................... 9 5. SYSTEM TEST CONFIGURATION ................................................................................................................ 10 5.1. CONFIGURATION OF TESTED SYSTEM ............................................................................................... 10 5.2. EQUIPMENT USED IN TESTED SYSTEM .............................................................................................. 10 5.3. SUMMARY OF TEST RESULTS .............................................................................................................. 10 6. TEST FACILITY .............................................................................................................................................. 11 7. PEAK OUTPUT POWER ................................................................................................................................ 12 7.1. MEASUREMENT PROCEDURE .............................................................................................................. 12 7.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 12 7.3. LIMITS AND MEASUREMENT RESULT .................................................................................................. 13 8. BANDWIDTH .................................................................................................................................................. 15 8.1. MEASUREMENT PROCEDURE .............................................................................................................. 15 8.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 15 8.3. LIMITS AND MEASUREMENT RESULTS ............................................................................................... 15 9. CONDUCTED SPURIOUS EMISSION........................................................................................................... 19 9.1. MEASUREMENT PROCEDURE .............................................................................................................. 19 9.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................... 19 9.3. MEASUREMENT EQUIPMENT USED .................................................................................................... 19 9.4. LIMITS AND MEASUREMENT RESULT .................................................................................................. 19 10. MAXIMUM CONDUCTED OUTPUT POWER SPECTRAL DENSITY ........................................................ 26 10.1. MEASUREMENT PROCEDURE ............................................................................................................ 26 10.2. TEST SET-UP (BLOCK DIAGRAM OF CONFIGURATION) .................................................................. 26 10.3. MEASUREMENT EQUIPMENT USED .................................................................................................. 26 10.4. LIMITS AND MEASUREMENT RESULT................................................................................................ 26 11. RADIATED EMISSION ................................................................................................................................. 28 11.1. MEASUREMENT PROCEDURE ............................................................................................................ 28 11.2. TEST SETUP .......................................................................................................................................... 29 11.3. LIMITS AND MEASUREMENT RESULT................................................................................................ 30 11.…

Text truncated - open the document above for the full version.

Report No.: AGC01993210303FE02 Page 46 of 52 APPENDIX B: PHOTOGRAPHS OF EUT TOP VIEW OF EUT BOTTOM VIEW OF EUT Report No.: AGC01993210303FE02 Page 47 of 52 FRONT VIEW OF EUT BACK VIEW OF EUT Report No.: AGC01993210303FE02 Page 48 of 52 LEFT VIEW OF EUT RIGHT VIEW OF EUT Report No.: AGC01993210303FE02 Page 49 of 52 OPEN VIEW OF EUT VIEW OF BATTERY Report No.: AGC01993210303FE02 Page 50 of 52 INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 BT Antenna Report No.: AGC01993210303FE02 Page 51 of 52 INTERNAL VIEW OF EUT-3 INTERNAL VIEW OF EUT-4 Report No.: AGC01993210303FE02 Page 52 of 52 INTERNAL VIEW OF EUT-5 ----END OF REPORT---- Conditions of Issuance of Test Reports 1. All samples and goods are accepted by the Attestation of Global Compliance (Shenzhen) Co., Ltd (the “Company”) solely for testing and reporting in accordance with the following terms and conditions. The company provides its services on the basis that such terms and conditions constitute express agreement between the company and any person, firm or company requesting its services (the “Clients”). 2. Any report issued by Company as a result of this application for testing services (the “Report”) shall be issued in confidence to the Clients and the Report will be strictly treated as such by the Company. It may not be reproduced either in its entirety or in part and it may not be used for advertising or other unauthorized purposes without the written consent of the Company. The Clients to whom the Report is issued may, however, show or send it, or a certified copy thereof prepared by the Company to its customer, supplier or other persons directly concerned. The Company will not, without the consent of the Clients, enter into any discussion or correspondence with any third party concerning the contents of the Report, unless required by the relevant governmental authorities, laws or court orders. 3.The Company shall not be called or be liable to be called to give evidence or testimony on the Report in a court of law without its prior written consent, unless required by the relevant governmental authorities, laws or court orders. 4. The non-CMA report issued by AGC is only permitted to be used by the client as internal reference use and shall not be used for public demonstration purpose. 5. In the event of the improper use of the report as determined by the Company, the Company reserves the right to withdraw it, and to adopt any other additional remedies which may be appropriate. 6. Samples submitted for testing are accepted on the understanding that the Report issued cannot form the basis of, or be the instrument for, any legal action against the Company. 7. The Company will not be liable for or accept responsibility for any loss or damage however arising from the use of information contained in any of its Reports or in any communication whatsoever about its said tests or investigations. 8.Clients wishing to use the Report in court proceedings or arbitration shall inform the Company to that effect prior to submitting the sample for testing. 9. The Company is not responsible for recalling the electronic version of the original report when any revision is made to them. The Client assumes the responsibility to providing the revised version to any interested party who uses them. 10. Subject to the variable length of retention time for test data and report stored hereinto as otherwise specifically required by individual accreditation authorities, the Company will only keep the supporting test data and information of the test report for a period of six years. The data and information will be disposed of after the aforementioned retention period has elapsed. Under no circumstances shall we provide any data and information which has been disposed of after retention period. Under no circumstances shall we be liable for damage of any kind, including (but not limited to) compensatory damages, lost profits, lost data, or any form of special, incidental, indirect, consequential or punitive damages of any kind, whether based on breach of contract of warranty, tort (including negligence), product liability or otherwise, even if we are informed in advance of the possibility of such damages.

Test Setup Photos RADIATED EMISSION TEST SETUP BELOW 1GHZ RADIATED EMISSION TEST SETUP ABOVE 1GHZ CONDUCTED EMISSION TEST SETUP CONDUCTED TEST SETUP
