2AEKFBJ100Bling Jet

LIVALL Tech Co., Ltd.
Bling Jet - FCC ID 2AEKFBJ100 - LIVALL Tech Co., Ltd.
Click to zoom

Application Details

Equipment Class
DXX - Part 15 Low Power Communication Device Transmitter
Date of Grant
Nov 18, 2015
Application Purpose
Original Equipment
Date of Application
Nov 18, 2015
Equipment Note
Bling Jet
Frequency Range
2402.00000000 - 2480.00000000
Company
LIVALL Tech Co., Ltd.
Country
China

Documents & Files

Select a file to view

Users Manual

↗

Attestation Statements

↗

Cover Letter(s)

↗

External Photos

↗

ID Label/Location Info

↗

Internal Photos

↗

Operational Description

↗

RF Exposure Info

↗

Test Report

↗
↗

Test Setup Photos

↗

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

N OTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Attestation Statements

Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/17/2015 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AEKFBJ100 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Signature Shenzhen Qianhai Livall LOT Technology Co., Ltd. Contact person: YongZheng Ye Title: Manager

Cover Letter(s)

Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 11/17/2015 Request for Confidentiality Company name: Shenzhen Qianhai Livall LOT Technology Co., Ltd. FCC ID: 2AEKFBJ100 FCC Part 15 Certification Gentlemen, In accordance with CFR 47 § 0.459, Shenzhen Qianhai Livall LOT Technology Co., Ltd. hereby requests confidentiality of following attachments: (1) schematic diagrams, (2) detailed block diagrams, (3) detailed operational descriptions, (4) parts lists. These documents contain detailed system and equipment description and related information about the product which Shenzhen Qianhai Livall LOT Technology Co., Ltd. considers to be proprietary, confidential and a custom design and otherwise would not release to the general public. Since the design is a basis from which future technological products will evolve, Shenzhen Qianhai Livall LOT Technology Co., Ltd. considers that this information would be of benefit to its competitors and that the disclosure of the information in these documents would give competitors an unfair advantage in the market. Sincerely, Signature [YongZheng Ye] [Manager] Shenzhen Qianhai Livall LOT Technology Co., Ltd. Room 904, 9F., R&D Building, Shenzhen Tsinghua Hi-Tech Park, Nanshan District, Shenzhen, China

External Photos

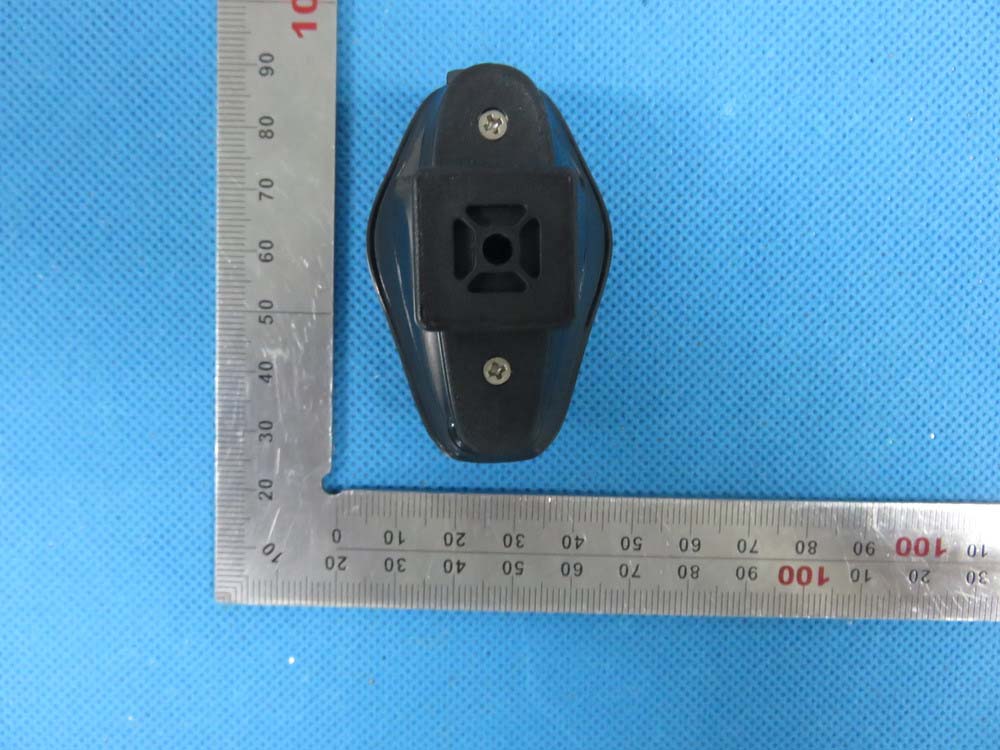

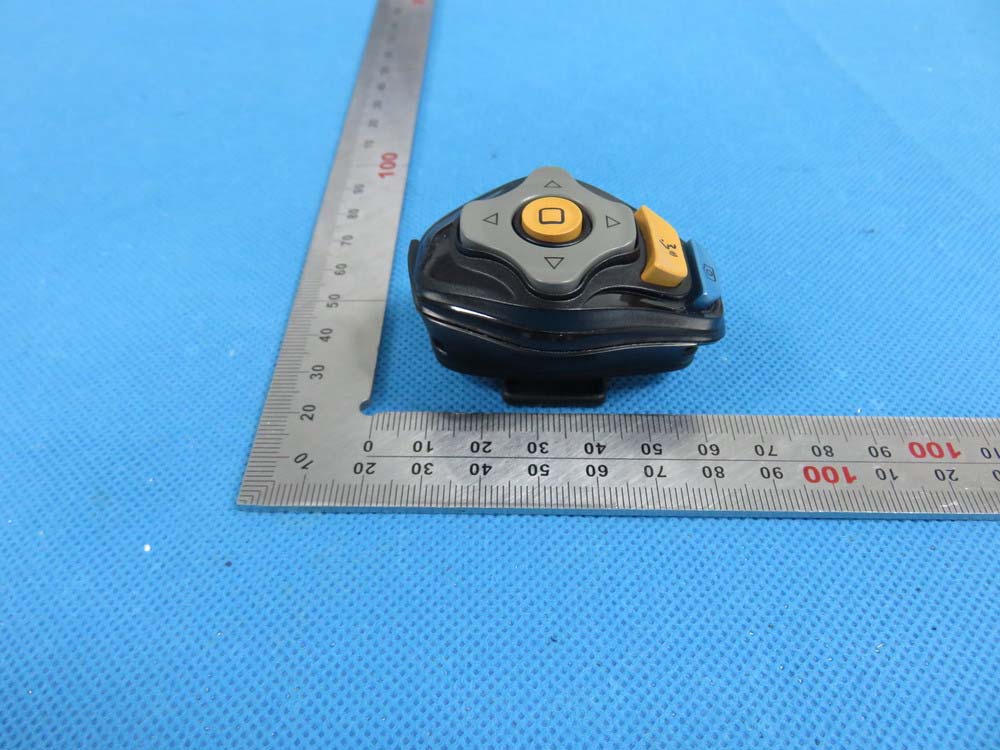

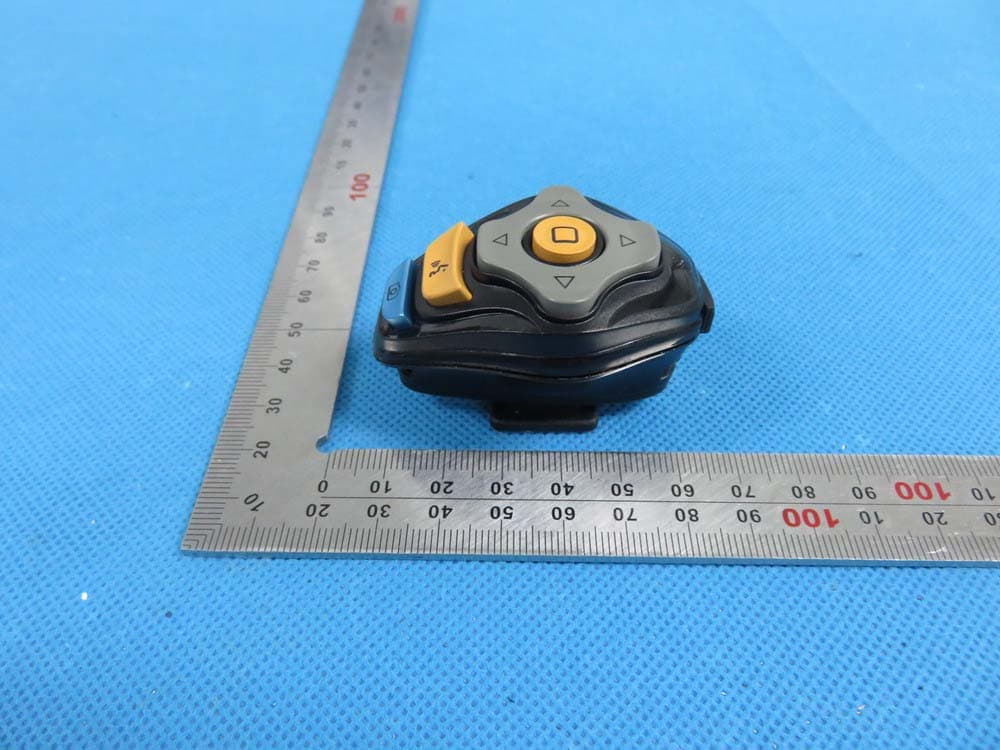

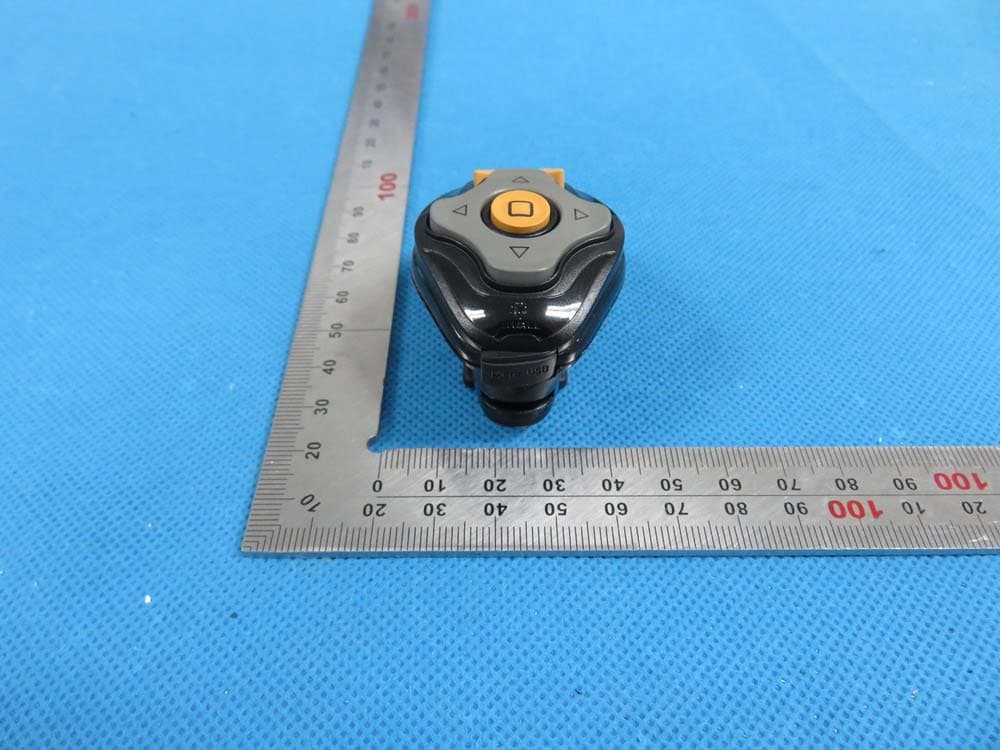

External Photos TOP VIEW OF EUT BOTTOM VIEW OF EUT FRONT VIEW OF EUT BACK VIEW OF EUT LEFT VIEW OF EUT RIGHT VIEW OF EUT VIEW OF EUT (Port)

ID Label/Location Info

FCC ID Label Location Model: BJ100 FCC ID: 2AEKFBJ100

Internal Photos

Internal Photos OPEN VIEW OF EUT INTERNAL VIEW OF EUT-1 INTERNAL VIEW OF EUT-2 INTERNAL VIEW OF EUT-3 Antenna

Operational Description

Declaration concerning Antenna Specification It is hereby declared that the product Model No.: BJ100 FCC ID: 2AEKFBJ100 fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for internal antenna type described below: Model No. of antenna: N/A Type of antenna: PCB Antenna Gain of the antenna: 0 dBi Frequency range: 2402-2480 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen Qianhai Livall LOT Technology Co., Ltd. Address: Room 904, 9F., R&D Building, Shenzhen Tsinghua Hi-Tech Park, Nanshan District City: Shenzhen ZIP / Postal code: N/A Country: China Place: Shenzhen Date: Nov.17,2015 Signature:

RF Exposure Info

RF Exposure evaluation Product Description:Bling Jet Model Number: BJ100 FCC ID: 2AEKFBJ100 According to 447498 D01 General RF Exposure Guidance v05 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation According to the follow transmitter output power(P t )formula: P t =(E x d) 2 /(30 x g t ) P t =transmitter output power in watts g t =numeric gain of the transmitting antenna (unitess) E=electric field strength in V/m d=measurement distance in meters (m) According to the above test data, Emax=91.08dBuv/m=0.036V/m,d=3m,g t =1 P t =(E x d) 2 /(30 x g t )=(0.036x3) 2 /(30x1)=0.000389W=0.39mW The result is rounded to one decimal place for comparison Worse case is as below: [2402MHz -0.39mW output power] (0.39mW /5mm) .[√2.402(GHz)]= 0.121<3.0 for 1-g SAR Then SAR evaluation is not required NOTE: For the maximum power, you can refer FCC test report.
