2AEOCPC207Portable Handheld 4W AM CBRS Transceiver

President Electronics USA

Click to zoom

Application Details

Equipment Class: TNB - Licensed Non-Broadcast Station Transmitter
Date of Grant: Feb 04, 2021
Application Purpose: Original Equipment
Date of Application: Feb 03, 2021
Equipment Note: Portable Handheld 4W AM CBRS Transceiver
Frequency Range: 26.96500000 - 27.40500000
Company: President Electronics USA
Country: United States

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

Owner’s manual Manual del usuario Handheld or Mobile CB Radio Radio CB Portátil o Móvil 2 Contents / Contenido: C2 C4 C5 C6 C7 C1 C1 RANDY FCC C2 Flexible antenna S-20 C3 Antenna adapter TNC/PL239 C4 Microphone support C5 Belt clip C6 Wrist wrap C7 AC power supply C8 Home charger C9 Battery pack 1800 mA (Lithium Ion) C10 Car adapter C11 Fuse C12 User’s manual C12 C11 details may differ / foto no contractual C3 C8 C9 C10 3 Your RANDY FCC at a glance Please refer to our website : www.president-electronics.us for optional accessories. Consulte nuestro sitio: www.president-electronics.us para los accesorios opcionales. C1 RANDY FCC C2 Antena flexible S-20 C3 Adaptador de antena TNC/PL239 C4 Soporte de micrófono C5 Pinza de cinturón C6 Correa de mano C7 Suministrado de potencia CA C8 cargador C9 Batería 1800 mA Litio Ion C10 Adaptador de coche C11 Fusible C12 Manual del usuario Un vistazo a vuestro PRESIDENT RANDY FCC 4 SUMARIO CONFIGURACIÓN MÓVIL 29 CONFIGURACIÓN PORTÁTIL 31 CONTROLES Y FUNCIONES 31 DESCRIPCIÓN DE LAS FUNCIONES 32 MENÚS 39 FUNCIÓN CON LA PALANCA DE EMISIÓN PTT 44 CARGANDO EL RANDY FCC 44 CARACTERÍSTICAS TÉCNICAS 45 GUÍA DE PROBLEMAS 46 CÓMO EMITIR O RECIBIR UN MENSAJE 47 GLOSARIO 47 CONDICIONES GENERALES DE GARANTÍA 50 TABLA DE FRECUENCIAS 52 ~ 53 Español SUMMARY MOBILE CONFIGURATION 6 HANDHELD CONFIGURATION 8 CONTROLS AND FUNCTIONS 8 FUNCTION DESCRIPTION 9 MENU SETTING 16 FUNCTION WITH PTT SWITCH 20 CHARGING THE RANDY FCC 20 TECHNICAL CHARACTERISTICS 21 TROUBLE SHOOTING 22 HOW TO TRANSMIT OR RECEIVE A MESSAGE 23 GLOSSARY 23 GENERAL WARRANTY CONDITIONS 26 FREQUENCY TABLES 52 ~ 53 English 5 WARNING! Before using, be careful never to transmit without first having connected the flexible antenna (C2), or, with a CB antenna*, with- out having set the SWR (Standing Wave Ra- tio) ! Failure to do so may result in destruction of the power amplifier, which is not covered by the warranty. *in mobile configuration when the flexible antenna (C2) has been removed and replaced by a CB antenna using the TNC/PL239 adapter (C3). The warranty of this transceiver is valid only in the country of purchase. English WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. AVERTISSEMENT : Ce produit peut vous exposer à des agents chimiques, y compris le plomb, identifiés par l’État de Californie comme pouvant causer le cancer et des malformations congénitales ou autres effets nocifs sur la reproduction. Pour de plus amples informations, prière de consulter le site www.P65Warnings.ca.gov. 6 Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to-date technology, which guarantees unprece- dented quality, your PRESIDENT RANDY FCC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT RANDY FCC. A) MOBILE CONFIGURATION 1) ANTENNA INSTALLATION - Remove the flexible antenna (C2) from the device. - Replace the antenna (C2) with the antenna adapter (C3) - Connect the CB antenna to the antenna adapter (C3). a) Choosing your antenna - For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna. b) Mobile antenna - Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings. - If you already have a radio-telephone antenna installed, the CB antenna should be higher than this. - There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § 3, ADJUSTMENT OF SWR). - For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed. - Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting). - Connect the antenna to the adapter (C3). c) Fixed antenna - A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be necessary to stay it, accord- ing to the laws in force (you should seek professional advice). All PRESIDENT antennas and accessories are designed to give max- imum efficiency to each CB radio within the range. English 7 OUTPUT RADIUS PATTERN 2) BASIC OPERATIONS TO BE CARRIED OUT BEFORE English USING YOUR SET FOR THE FIRST TIME (without transmitting and without using the «push-to-talk» switch) a) Check the antenna connections. b) Turn the set on by turning the Power knob (1) clockwise. c) Set the squelch OFF. See § 11 and 12 page 14. d) Adjust the volume to a comfortable level. e) Go to channel 20 by using the channel selectors s or t key (3). 3) ADJUSTMENT OF SWR (Standing wave ratio) WARNING: This must be carried out when you use your CB radio for the first time (and whenever you re-position your antenna). The adjustment must be carried out in an obstacle-free area. * Adjustment with external SWR-meter (e.g. TOS-1 PRESI- DENT) a) To connect the SWR meter : - Connect the SWR meter between the CB radio and the antenna as close as possible to the CB (use a maximum of 15.75 inches (40 cm), type President CA-2C). b) To adjust the SWR meter: - Set the CB on channel 20. - Put the switch on the SWR-meter to position FWD (calibration). - Press the «push-to-talk» switch on the microphone to transmit. - Bring the index needle to t by using the calibration key. - Change the switch to position REF (reading of th…

Text truncated - open the document above for the full version.

Cover Letter(s)

© Celltech Labs Inc – 2017 --- Proprietary --- ______________________________________________________________________________________ 21-364 Lougheed Road, Kelowna, British Columbia, Canada V1X 7R8 Tel: 1-250-765-7650 Fax: 1-250-765-7645 Date: 4 January 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 RE: New Certification Request, FCC ID: 2AEOCPC207 Dear FCC Representative This is a new certification request of FCC ID: 2AEOCPC207, Model: RANDY FCC. The RANDY FCC is Portable Handheld and Mobile 1W/4W, AM CBRS transceiver. With a detachable antenna, it can be configured as a stand-alone portable handheld device or connected to an external vehicular mounted antenna for mobile applications. This Equipment can transmit at a user configurable 1W or 4W transmitter power. In accordance with FCC 47 CFR Part 2, Subpart J, this Equipment is subject to certification to FCC 47 CFR Part 95, Subpart D. In addition, this Equipment is subject to a Suppliers Declaration of Conformity (SDoC) in accordance with FCC 47 CFR §15.101. As per FCC 47 CFR §2.1091, §2.1093, RF Exposure evaluations (SAR - Portable, MPE - Mobile) are required for this Equipment. This Equipment is capable of Voice Activated Transmission (VOX), a 75% transmit duty factor applies. The results of the RF Exposure evaluations appear separate reports accompanied with this application. Should there be any questions or concerns please feel free to contact me. Thank you for your consideration. Sincerely, Art Voss, P.Eng.

Cover Letter(s)

© Celltech Labs Inc – 2021 --- Proprietary --- ______________________________________________________________________________________ 21-364 Lougheed Road, Kelowna, British Columbia, Canada V1X 7R8 Tel: 1-250-765-7650 Fax: 1-250-765-7645 Date: 5 January 2021 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 RE: SDoC Statement for FCC ID:2AEOCPC207 Dear FCC Representative President Electronics USA, wishes to apply for a Suppliers Declaration of Conformity (SDoC) for FCC ID: 2AEOCPC207 in accordance with FCC Part 2 and as applicable to FCC §15.101(a) and (b). The device has been evaluated and meets the requirement of FCC Part 15B. The test results are documented in the test report submitted with this application. Should there be any questions or concerns please feel free to contact me. Thank you for your consideration. Sincerely, Art Voss, P.Eng.

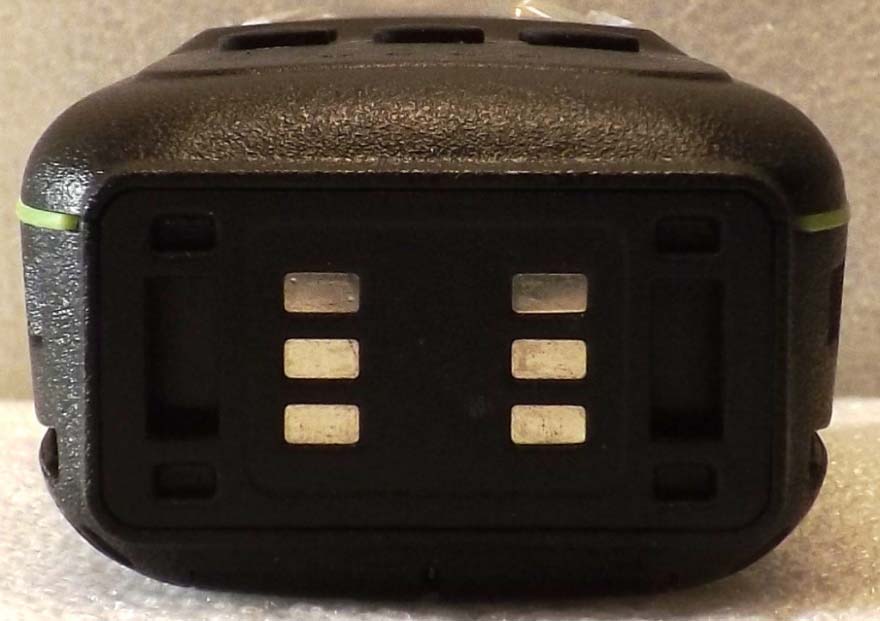

External Photos

ID Label/Location Info

Packaging Label This label will appear on the outside of the device package. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal Photos

RF Exposure Info

0.12 0.03 0.13 0.03 1.60 1007 Collier Center Way FCC 47 CFR §2.1093 Radiofrequency Radiation Exposure Evaluation: Portable Devices IC RSS-102 Issue 5 HEAD: BODY: HEAD: BODY: Naples, FL 341100 IC Registration NumberFCC ID: RANDY FCC In Accordance With: RANDY FCC © 2021 Celltech Labs Inc, This report shall not be reproduced in any form without the expressed written consent of Celltech Labs Inc. FCC ISEDC General Pop. Limit: W/kg Product Model Number / HVINProduct Name / PMN Radio Frequency Exposure Compliance of Radiocommunication Apparatus (All Frequency Bands) Canada Test Lab Certificate: 2470.01 Approved By: USA 2AEOCPC20720240-PC207 FCC Registration: 714830 Ben Hewson, President Celltech Labs Inc. IC Registration 3874A-1 21-364 Lougheed Rd. Kelowna, BC, V1X 7R8 45461636 R1.0 6 January 2021 Applicant: President Electonics USA Test Report Serial Number: Test Report Date: SAR Test Report - New Filing 1526 Project Number: Maximum Reported 1g SAR Test Report S/N: 45461636 R1.0 Test Report Issue Date: 6 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 39 Table of Contents 1.0 DOCUMENT CONTROL ................................................................................................................................................... 4 2.0 CLIENT AND DEVICE INFORMATION ............................................................................................................................ 5 3.0 SCOPE OF EVALUATION ................................................................................................................................................ 6 4.0 NORMATIVE REFERENCES ........................................................................................................................................... 7 5.0 STATEMENT OF COMPLIANCE ..................................................................................................................................... 8 6.0 SAR MEASUREMENT SYSTEM ...................................................................................................................................... 9 7.0 RF CONDUCTED POWER MEASUREMENT ................................................................................................................ 10 TABLE 7.0 CONDUCTED POWER MEASUREMENTS P1 (LITHIUM-ION BATTERY) .................................................................................................... 10 TABLE 7.1 CONDUCTED POWER MEASUREMENTS P2 (POWER SUPPLY W/ LITHIUM-ION BATTERY) ......................................................................... 10 8.0 NUMBER OF TEST CHANNELS (N C ) ............................................................................................................................ 11 9.0 ACCESSORIES EVALUATED ........................................................................................................................................ 12 TABLE 9.0 MANUFACTURER’S ACCESSORY LIST .............................................................................................................................................. 12 10.0 SAR MEASUREMENT SUMMARY .............................................................................................................................. 13 TABLE 10.0: MEASURED RESULTS – BODY .................................................................................................................................................. 13 TABLE 10.1: MEASURED RESULTS – FACE ................................................................................................................................................... 13 11.0 SCALING OF MAXIMUM MEASURE SAR ................................................................................................................... 14 TABLE 11.0 SAR SCALING ......................................................................................................................................................................... 14 TABLE 11.1 FLUID SENSITIVITY CALCULATION (1G) ......................................................................................................................................... 15 12.0 SAR EXPOSURE LIMITS ............................................................................................................................................. 16 TABLE 12.0 EXPOSURE LIMITS .................................................................................................................................................................... 16 13.0 DETAILS OF SAR EVALUATION ................................................................................................................................. 17 13.0 DAY LOG ........................................................................................................................................................................................ 17 13.1 DUT SETUP AND CONFIGURATION ....................................................................................................................................................... 18 13.2 DUT POSITIONING ........................................................................................................................................................................... 19 13.3 GENERAL PROCEDURES AND REPORT .................................................................................................................................................... 19 13.4 FLUID DIELECTRIC AND SYSTEMS PERFORMANCE CHECK ........................................................................................................................... 20 13.5 SCAN RESOLUTION 100MHZ TO 2GHZ ................................................................................................................................................ 20 13.6 SCAN RESOLUTION 2GHZ TO 3GHZ ......................................…

Text truncated - open the document above for the full version.

RF Exposure Info

Test Report S/N: 45461636 R0.1 Test Report Issue Date: 4 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 37 of 39 APPENDIX E – PROBE CALIBRATION Test Report S/N: 45461636 R0.1 Test Report Issue Date: 4 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 38 of 39 APPENDIX F – DIPOLE CALIBRATION Test Report S/N: 45461636 R0.1 Test Report Issue Date: 4 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 39 of 39 APPENDIX G - PHANTOM

RF Exposure Info

Test Report S/N: 45461639 R2.0 Test Report Issue Date: 5 February 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 1 of 1 MPE REPORT 180 f 2 S 20 = S L = S C = R 20 = R c = P T = P A = G N = f = (%) (dB) R C = S C = Art VossSenior EngineerCelltech Labs Inc. 45cm User's Manual must indicate a minimum separation distance of: (mW/cm 2 ) Power Density of the Device at 20cm Prediction of MPE Limit 47 CFR § 2.1091/ § 2.1093 S 20 = P A G N R C = √ P A G N S C = P A G N 4 πR C 2 4 π S L 4 πR 20 2 S L = S L = Duty Cycle/Loss Adjusted Power (P A ): Transmit Frequency Transmit Duty Cycle = (dBi) Tx Frequency (f): RF Power at Antenna Input Port (P T ): Transmit Duty Cycle: Use Group = General Popuation 4000.00 75.00 27.40 0.240 (mW/cm 2 ) (mW) 44.6 (cm) (mW/cm 2 ) 0.24 (mW/cm 2 ) 75% Power Density Limit Minimum Distance to the Radiating Element to Meet Compliance Power Density of the Device at the Compliance Distance R C 20cm S 20 at 20cm = 1.191 Power Input to Antenna Numeric Gain of the Antenna (MHz) Antenna Gain:3.00 (numeric) 3000.00(mW) Cable or Other Loss:0.00 Numeric Antenna Gain (G N ):2.00 Adjust Power Note: This device is capable of operating in a mobile/fixed application as well as a portable application. This MPE report addresses the RF Exposure for the mobile/fixed use case. A separate SAR report accompanying this application address the RF Exposure for the Portable use case. Note: The MPE calculations differ between the FCC and ISED. The ISED calculations yield a more conservative separation distance of 53cm and this is the reported separation distance.

Test Report

President Electronics USA Test Report Serial Number: Test Report Date: EMC Test Report - New Certification 45461639 R1.0 Project Number: 6 January 2021 © 2021 Celltech Labs Inc, This report shall not be reproduced in any form without the expressed written consent of Celltech Labs Inc. Citizen Band (26.960 to 27.410 MHz) FCC 47 CFR Part 95 Subpart D, Part 15 Subpart B Licensed Non-Broadcast Station Transmitter (TNB) FCC Registration: CA3874 Ben Hewson, President Celltech Labs Inc. IC Registration 3874A-1 21-364 Lougheed Rd. Kelowna, BC, V1X 7R8 Canada Test Lab Certificate: 2470.01 In Accordance With: 1529 Approved By: FCC ID:IC Registration Number Applicant: RSS-GEN, RSS-236 Issue 1 1007 Collier Center Way Naples, FL, 34110 USA Product Model Number / HVINProduct Name / PMN RANDY FCCRANDY FCC 2AEOCPC20720240-PC207 Test Report S/N: 45461639 R1.0 Test Report Issue Date: 6 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 66 Table of Contents 1.0 DOCUMENT CONTROL ................................................................................................................................................... 5 2.0 CLIENT AND DUT INFORMATION .................................................................................................................................. 6 3.0 SCOPE .............................................................................................................................................................................. 7 4.0 TEST RESULT SUMMARY .............................................................................................................................................. 8 5.0 NORMATIVE REFERENCES ......................................................................................................................................... 10 6.0 FACILITIES AND ACCREDITATIONS ........................................................................................................................... 11 7.0 CONDUCTED POWER ................................................................................................................................................... 12 8.0 MODULATION RESPONSE ........................................................................................................................................... 20 9.0 OCCUPIED BANDWIDTH AND EMISSION MASKS ..................................................................................................... 23 10 CONDUCTED OUT OF BAND SPURIOUS EMISSIONS ............................................................................................... 31 11.0 RADIATED SPURIOUS TX EMISSIONS ..................................................................................................................... 42 12.0 FREQUENCY STABILITY ............................................................................................................................................. 51 13.0 RECEIVER RADIATED EMISSIONS - DOC ................................................................................................................ 53 APPENDIX A – TEST SETUP DRAWINGS AND EQUIPMENT .......................................................................................... 59 APPENDIX B – EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 64 APPENDIX C – MEASUREMENT INSTRUMENT UNCERTAINTY ..................................................................................... 65 END OF REPORT ................................................................................................................................................................. 66 Test Report S/N: 45461639 R1.0 Test Report Issue Date: 6 January 2021 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 3 of 66 Table of Figures Figure A.1 – Test Setup Conducted Measurements ............................................................................................................. 59 Figure A.2 – Test Setup Audio Modulation Response Measurements ................................................................................. 60 Figure A.3 – Test Setup Radiated Emissions Measurements Below 30MHz ....................................................................... 61 Figure A.4 – Test Setup Radiated Emissions Measurements 30-1000MHz ........................................................................ 62 Figure A.5 – Test Setup Radiated Emissions Measurements 30-1000MHz ........................................................................ 62 Figure A.6 – Test Setup Frequency Stability Measurements ............................................................................................... 63 Table of Plots Plot 7.1 – Conducted Output Power – 1W Setting - Channel 1 ............................................................................................ 13 Plot 7.2 – Conducted Output Power – 1W Setting - Channel 19 .......................................................................................... 14 Plot 7.3 – Conducted Output Power – 1W Setting - Channel 40 .......................................................................................... 15 Plot 7.4 – Conducted Output Power – 4W Setting - Channel 1 ............................................................................................ 16 Plot 7.5 – Conducted Output Power – 4W Setting - Channel 19 .......................................................................................... 17 Plot 7.6 – Conducted Output Power – 4W Setting - Channel 40 .......................................................................................... 18 Plot 8.1 – Audio Frequency and Low Pass Filter Response ...........................................................…

Text truncated - open the document above for the full version.

Test Setup Photos

Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. EXHIBIT 24 – PHOTOS – EMC SETUP Figure E24.1 – Setup Photo – Conducted Measurements Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.2 – Setup Photo – Audio and Modulation Response Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.3 – Setup Photo – Radiated Emissions Below 30MHz, Front, Without Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.4 – Setup Photo – Radiated Emissions Below 30MHz, Side, Without Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.5 – Setup Photo – Radiated Emissions Below 30MHz, Front, With Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.6 – Setup Photo – Radiated Emissions Below 30MHz, Side, With Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.7 – Setup Photo – Radiated Emissions 30 - 1000MHz, Horizontal, Without Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.8 – Setup Photo – Radiated Emissions 30 - 1000MHz, Vertical, Without Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.9 – Setup Photo – Radiated Emissions 30 - 1000MHz, Horizontal, With Accessories Applicant: President Electronics USA FCC ID: 2AEOCPC207 Test Report S/N: 45461639-R1.0 ISED ID 20240-PC207 ©2021 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Figure E24.10 – Setup Photo – Radiated Emissions 30 - 1000MHz,…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Kavi Sharma(General Manager)

[email protected]305-546-8509Fax: 305-546-8509

Test Firm

CELLTECH LABS INC.Ben Hewson

[email protected]250-765-7650Fax: 250-765-7645

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
2	95D	26.965 MHz - 27.405 MHz	4 W	5K40A3E	1.01 ppm

Confidentiality

Long Term

Grant Notes

Output power listed is conducted. SAR compliance for body-worn operating configurations is limited to the specific body-worn accessories, such as antennas, belt-clips and holsters, tested for this filing, with operation not exceeding a maximum transmitting duty factor of 75%. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head (face) and body-worn accessory exposure conditions are 0.12 and <0.10 W/kg, respectively. For mobile/fixed mode operation, the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 45 cm from all persons, and have a gain of no more than 3.0 dBi. Transmitter operation must not exceed a maximum transmitting duty factor of 75%. End-users and installers must be provided with antenna installation and transmitter operating conditions for satisfying RF exposure compliance.
