2AEOCPC210Mobile 4W AM/FM CBRS Transceiver

Owner’s manual / Manual del usuario Manuel d’utilisation / Manual do usuário BILL II FCC Un vistazo a vuestro PRESIDENT BILL II FCCYour PRESIDENT BILL II FCC at a glance Votre PRESIDENT BILL II FCC en un coup d'œil Uma olhada no seu PRESIDENT BILL II FCC 3 SUMÁRIO INSTALAÇÃO 55 UTILIZAÇÃO 58 FUNÇÃO COM A ALAVANCA PTT 62 FUNÇÕES AO LIGAR O APARELHO 62 CARACTERÍSTICAS TÉCNICAS 66 GUIA DE PROBLEMAS 67 COMO TRANSMITIR OU RECEBER UMA MENSAGEM 67 GLOSSÁRIO 67 CONDIÇÕES GERAIS DE GARANTIA 70 TABELAS DE FREQUÊNCIAS 71 SOMMAIRE INSTALLATION 38 UTILISATION 41 FONCTION AVEC LA PÉDALE PTT 45 FONCTIONS À L’ALLUMAGE DU POSTE 45 CARACTÉRISTIQUES TECHNIQUES 49 GUIDE DE DÉPANNAGE 50 COMMENT ÉMETTRE/RECEVOIR UN MESSAGE 50 GLOSSAIRE 50 CONDITIONS GÉNÉRALES DE GARANTIE 53 TABLEAUX DES FRÉQUENCES 71 Français SUMARIO INSTALACIÓN 21 UTILIZACIÓN 24 FUNCIÓN CON LA PALANCA PTT 28 FUNCIONES AL ENCENDER LA EMISORA 28 CARACTERÍSTICAS TÉCNICAS 32 GUÍA DE PROBLEMAS 33 COMO EMITIR O RECIBIR UN MENSAJE 33 LÉXICO 33 CONDICIONES GENERALES DE GARANTÍA 36 TABLAS DE FRECUENCIAS 71 Português English Español SUMMARY INSTALLATION 5 HOW TO USE YOUR CB 8 FUNCTION WITH THE PTT KEY 12 FUNCTIONS TURNING ON THE UNIT 12 TECHNICAL CHARACTERISTICS 15 TROUBLE SHOOTING 16 HOW TO TRANSMIT OR RECEIVE A MESSAGE 16 GLOSSARY 17 GENERAL WARRANTY CONDITIONS 19 FREQUENCY TABLES 71 4 WARNING ! Before using, be careful never to transmit without first having connected the antenna (connection "B" situated on the back panel of the equipment) or without having set the SWR (Standing Wave Ratio) ! Failure to do so may result in destruction of the power amplifier, which is not covered by the guarantee. The guarantee of this transceiver is valid only in the country of purchase. English WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. AVERTISSEMENT : Ce produit peut vous exposer à des agents chimiques, y compris le plomb, identifiés par l’État de Californie comme pouvant causer le cancer et des malformations congénitales ou autres effets nocifs sur la reproduction. Pour de plus amples informations, prière de consulter le site www. P65Warnings.ca.gov. 5 Welcome to the world of the new generation of CB radios. The new PRESIDENT range gives you access to top performance CB equipment. With the use of up-to- date technology, which guarantees unprecedented quality, your PRESIDENT BILL II FCC is a new step in personal communication and is the surest choice for the most demanding of professional CB radio users. To ensure that you make the most of all its capacities, we advise you to read carefully this manual before installing and using your PRESIDENT BILL II FCC. A) INSTALLATION 1) WHERE AND HOW TO MOUNT YOUR MOBILE CB RADIO a) You should choose the most appropriate setting from a simple and practical point of view. b) Your CB radio should not interfere with the driver or the passengers. c) Remember to provide for the passing and protection of different wires (e.g. power, antenna, accessory cabling) so that they do not in any way interfere with the driving of the vehicle. Mounting with the cradle (diagram 1) d) To install your equipment, use the cradle (1) and the self-tapping screws [2] provided (drilling diameter 3.2 mm). Take care not to damage the vehicle’s electrical system while drilling the dash board. e) Do not forget to insert the rubber joints (3) between the CB and its support as these have a shock-absorbing effect which permits gentle orientation and tightening of the set. f) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle. Diagram 1 English Mounting diagram 6 Mounting with the quick fixation clip (diagram 2) d) To install your equipment, use the quick fixation clip (1) and the self-tapping screws [2] provided (drilling diameter 3.2 mm). Take care not to damage the vehicle’s electrical system while drilling the dash board. e) Choose where to place the microphone support and remember that the microphone cord must stretch to the driver without interfering with the controls of the vehicle. f) Slide the unit into the slide of the support and fix it by clipping the side tabs into the notches of the CB (3). - Note: As the transceiver has a frontal microphone socket, it can be set into the dash board. In this case, you will need to add an external loud speaker to improve the sound quality of communications (connector EXT.SP situated on the back panel: C). Ask your dealer for advice on mounting your CB radio. 2) ANTENNA INSTALLATION a) Choosing your antenna - For CB radios, the longer the antenna, the better its results. Your dealer will be able to help you with your choice of antenna. b) Mobile antenna - Must be fixed to the vehicle where there is a maximum of metallic surface (ground plane), away from windscreen mountings. - If you already have a radio-telephone antenna installed, the CB antenna should be higher than this. - There are two types of antenna: pre-regulated which should be used on a good ground plane (e.g. car roof or lid of the boot), and adjustable which offer a much larger range and can be used on a smaller ground plane (see § ADJUSTMENT OF SWR page 7). - For an antenna which must be fixed by drilling, you will need a good contact between the antenna and the ground plane. To obtain this, you should lightly scratch the surface where the screw and tightening star are to be placed. - Be careful not to pinch or flatten the coaxial cable (as this runs the risk of break down and/or short-circuiting). - Connect the antenna (B). Output radius pattern Diagram 2 English 7 c) Fixed antenna - A fixed antenna should be installed in a clear space as possible. If it is fixed to a mast, it will perhaps be neces- sary to stay it, according to the laws in force (you should seek …

Text truncated - open the document above for the full version.

© Celltech Labs Inc – 2020 ______________________________________________________________________________________ 21-364 Lougheed Road, Kelowna, British Columbia, Canada V1X 7R8 Tel: 1-250-765-7650 Fax: 1-250-765-7645 Date: 11 April 2022 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd. Columbia, MD 21046 RE: New Certification Request, FCC ID: 2AEOCPC210 Dear FCC Representative This is a new certification request of FCC ID: 2AEOCPC210, Model: BILL II FCC. The BILL II FCC is a Mobile 4W, AM/FM CBRS transceiver. In accordance with FCC 47 CFR Part 2, Subpart J, this Equipment is subject to certification to FCC 47 CFR Part 95, Subpart D. In addition, this Equipment receives weather channels in the 162.400 to 162.550MHz band. In accordance with FCC 47 CFR §15.101(a)(b), both the CBRS and weather receivers are subject to certification, Equipment Class CXX.. As per FCC 47 CFR §2.1091, an RF Exposure evaluation (MPE) is required for this Equipment. This Equipment is capable of Voice Activated Transmission (VOX), a 75% transmit duty factor applies. The results of the RF Exposure evaluation appear in a separate report accompanied with this application. Should there be any questions or concerns please feel free to contact me. Thank you for your consideration. Sincerely, Art Voss, P.Eng.

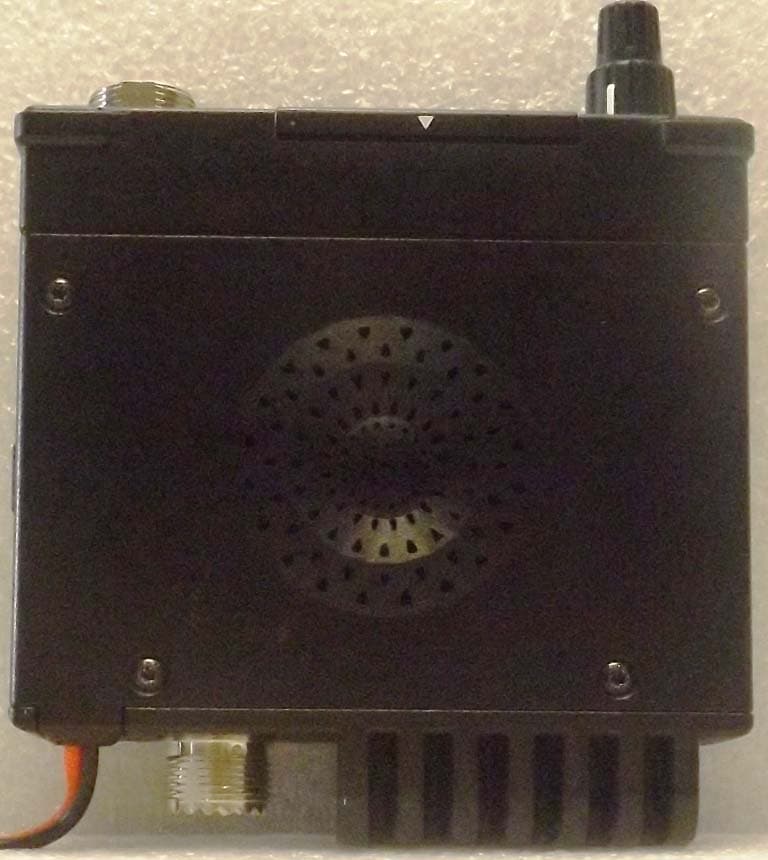

Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 10 of 33 EXHIBIT 15 – PHOTOS – DUT EXTERNAL Figure E15.1 – External, Front Figure E15.2 – External, Back Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 11 of 33 Figure E15.3 – External, Left Figure E15.4 – External, Right Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 12 of 33 Figure E15.5 – External, Top Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 13 of 33 Figure E15.6 – External, Bottom

Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 8 of 33 EXHIBIT 8 – LABEL LOCATION Figure E8.1 – Label Location

Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 11 of 23 EXHIBIT 16 – PHOTOS – DUT INTERNAL Figure E16.1 – Internal – Bottom Removed Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 12 of 23 Figure E16.2 – Internal – Top Removed Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 13 of 23 Figure E16.3 – Internal – Heat Sink Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 14 of 23 Figure E16.4 – Internal – PCB Top Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 15 of 23 Figure E16.5 – Internal – PCB Top, Shields Removed Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 16 of 23 Figure E16.6 – Internal – PCB Bottom Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 17 of 23 Figure E16.7 – Internal – Front Controls, Rear View Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 18 of 23 Figure E16.8 – Internal – Front Controls, Front View Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 19 of 23 Figure E16.9 – Internal – Display, Rear View Applicant: President Electronics USA FCC ID: 2AEOCPC210 Test Report S/N: 45461728-R1.0 ISED ID ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 20 of 23 Figure E16.10 – Internal – Display, Front View

President Electronics USA Test Report Serial Number: Test Report Date: EMC Test Report - New Filing 45461728 R2.0 Project Number: 14 April 2022 © 2022 Celltech Labs Inc, This report shall not be reproduced in any form without the expressed written consent of Celltech Labs Inc. FCC 47 CFR Part 95 Subpart D, Part 15 Subpart B Licensed Non-Broadcast Station Transmitter (TNB) FCC Registration: CA3874 Ben Hewson, President Celltech Labs Inc. IC Registration 3874A-1 21-364 Lougheed Rd. Kelowna, BC, V1X 7R8 Canada Test Lab Certificate: 2470.01 In Accordance With: 1586 Approved By: FCC ID:IC Registration Number Applicant: 1007 Collier Center Way Naples, FL, 34110 USA Product Model Number / HVINProduct Name / PMN BILL II FCC- 2AEOCPC210- Test Report S/N: 45461728 R2.0 Test Report Issue Date: 14 April 2022 ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 2 of 73 Table of Contents 1.0 REVISION HISTORY ........................................................................................................................................................ 5 2.0 CLIENT AND DUT INFORMATION .................................................................................................................................. 6 3.0 SCOPE .............................................................................................................................................................................. 7 4.0 TEST RESULT SUMMARY .............................................................................................................................................. 8 5.0 NORMATIVE REFERENCES ......................................................................................................................................... 10 6.0 FACILITIES AND ACCREDITATIONS ........................................................................................................................... 11 7.0 CONDUCTED POWER ................................................................................................................................................... 12 8.0 MODULATION RESPONSE ........................................................................................................................................... 20 9.0 OCCUPIED BANDWIDTH AND EMISSION MASKS ..................................................................................................... 25 10 CONDUCTED OUT OF BAND SPURIOUS EMISSIONS ............................................................................................... 33 11.0 RADIATED SPURIOUS TX EMISSIONS ..................................................................................................................... 47 12.0 RADIATED SPURIOUS RX EMISSIONS ..................................................................................................................... 58 13.0 FREQUENCY STABILITY ............................................................................................................................................. 64 APPENDIX A – TEST SETUP DRAWINGS AND EQUIPMENT .......................................................................................... 67 APPENDIX B – EQUIPMENT LIST AND CALIBRATION ..................................................................................................... 72 APPENDIX C – MEASUREMENT INSTRUMENT UNCERTAINTY ..................................................................................... 73 END OF REPORT ................................................................................................................................................................. 73 Table of Figures Figure A.1 – Test Setup Conducted Measurements ............................................................................................................. 67 Figure A.2 – Test Setup Audio Modulation Response Measurements ................................................................................. 68 Figure A.3 – Test Setup Radiated Emissions Measurements Below 30MHz ....................................................................... 69 Figure A.4 – Test Setup Radiated Emissions Measurements 30-1000MHz ........................................................................ 70 Figure A.5 – Test Setup Radiated Emissions Measurements 30-1000MHz ........................................................................ 70 Figure A.6 – Test Setup Frequency Stability Measurements ............................................................................................... 71 Test Report S/N: 45461728 R2.0 Test Report Issue Date: 14 April 2022 ©2022 Celltech Labs Inc. This document is not to be reproduced in whole or in part without the expressed written permission of Celltech Labs Inc. Page 3 of 73 Table of Plots Plot 7.1 – Conducted Output Power, Channel 1, AM ........................................................................................................... 13 Plot 7.2 – Conducted Output Power, Channel 19, AM ......................................................................................................... 14 Plot 7.3 – Conducted Output Power, Channel 40, AM ......................................................................................................... 15 Plot 7.4 – Conducted Output Power, Channel 1, FM ............................................................................................................ 16 Plot 7.5 – Conducted Output Power, Channel 19, FM .......................................................................................................... 17 Plot 7.6 – Conducted Output Power, Channel 40, FM .......................................................................................................... 18 Plot 8.1 – Audio Frequency and Low Pass Filter Response, AM ......................................................................................... 21 Plot 8.2 …
