2AEP6XM-JPK1SSmart Socket

FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Radiation Exposure Statement: The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. .

SCS-F18: Project and Product Certification Representative Authorization Letter Page 1 of 2 Rev 5.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Project and Product Certification Representative Authorization Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Revised wording (obsolete) 1.0 2.0 Sept–25-2007 Updated company template (obsolete) 2.0 3.0 Jan-31-2012 Updated letter information (obsolete) 3.0 4.0 May-23-2014 Added FCC ID field (current) 4.0 5.0 Sept 16 2014 SCS-F18: Project and Product Certification Representative Authorization Letter Page 2 of 2 Rev 5.0 HangZhou XiongMai Technology CO., LTD 2015-08-25 To: SIEMIC, INC. 775 Montague Expressway, Milpitas, CA 95035 USA Dear Sir/Madam, Re: Product Certification Representative Authorization Letter We, _____ HangZhou XiongMai Technology CO., LTD ____hereby authorize SIEMIC, Inc. to act as a Certification Body for certifying for the following project(s): (Smart Socket, XM-JPK1S, XM-JPK1, XM-JPK2, XM-JPK2S) FCC ID: 2AEP6XM-JPK1S Sincerely, Client’s signature Client’s name / title Ping Yao / Manager Contact information / address 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China

HangZhou XiongMai Technology CO., LTD SCS-F19: Confidentiality Request Letter Page 1 of 2 Rev 4.0 775 Montague Expressway Milpitas, CA 95035 Tel: 408-526-1188 Fax: 408-526-1088 Email: [email protected] Confidentiality Request Letter Reason for Amendment (current / obsolete) Revision History Approved Date From To Initial Release (obsolete) 1.0 1.0 Nov-14-2006 Adding CFR 2.459 (obsolete) 1.0 2.0 August – 11 - 2008 Updated company template & Added text box (obsolete) 2.0 3.0 Jan-31-2012 Added IC confidentiality letter form (current) 3.0 4.0 March-26-2015 HangZhou XiongMai Technology CO., LTD SCS-F19: Confidentiality Request Letter Page 2 of 2 Rev 4.0 2015-08-25 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD Subject: Permanent Confidentiality Request for FCC ID: 2AEP6XM-JPK1S We hereby request confidential treatment of information accompanying this application as outlined below: - Block Diagram - Schematics - Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 & 0.459 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Client’s signature : Ping Yao Client’s name & title : Manager Contact information / address: 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China

Model Declaration Letter For FCC ID: 2AEP6XM-JPK1S We, the undersigning company Company Name: HangZhou XiongMai Technology CO., LTD Address: 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China Hereby confirm that the following products: Product description: Smart Socket Type designation: XM-JPK1S, XM-JPK1, XM-JPK2, XM-JPK2S Trade name or Brand(s): XM That All models are identical in the same PCB layout, interior structure and electrical circuits, The only difference is model name for commercial purpose. City and Country: Date: Name: Function: Signature: HangZhou 08/25/2015 Ping Yao Manager

HangZhou XiongMai Technology CO., LTD WIFI Channel 12 & 13 Declaration Letter To whom it may concern : We have declared below featured for FCC equipment authorization in regard to 802.11b/g/n channel 12 & 13 operating capability for FCC ID : 2AEP6XM-JPK1S Please check Product hardware does not have the capability to operate on channel 12 & 13 Product hardware has the capability to operate on channel 12 & 13. However , these 2 channels will be disabled via software and user will not able to enable these 2 channels Product hardware has the capability to operate on channel 12 & 13. And meeting KDB 594280 D01 requirement. Pls explain detail here. Others Pls explain detail here. Company Name: HangZhou XiongMai Technology CO., LTD Address : 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China Name / Title : Ping Yao / Manager Signature : Phone : 0086-755-26509301 Email : [email protected] Date : 2015-08-25

Report No.: TB-FCC145117 Page: 1 of 9 TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AEP6XM-JPK1S Smart Socket HangZhou XiongMai Technology CO., LTD This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Model: XM-JPK1S

Report No.: TB-FCC145117 Page: 2 of 9 TB-RF-075-1.0 Appendix II ID Label Location ID LOCATION

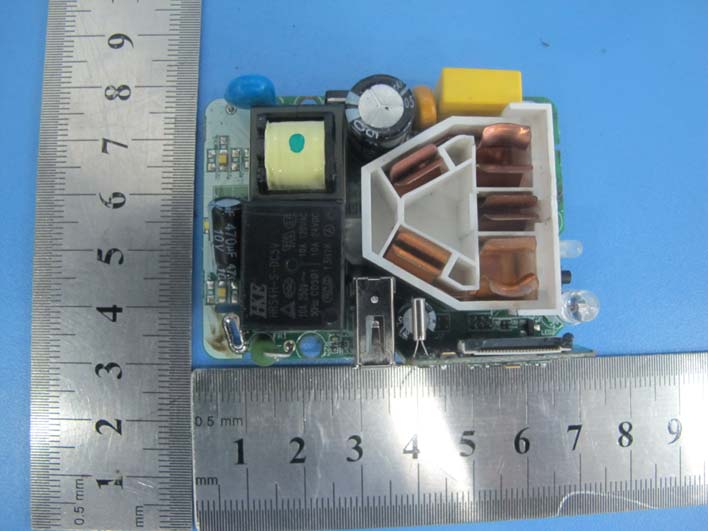

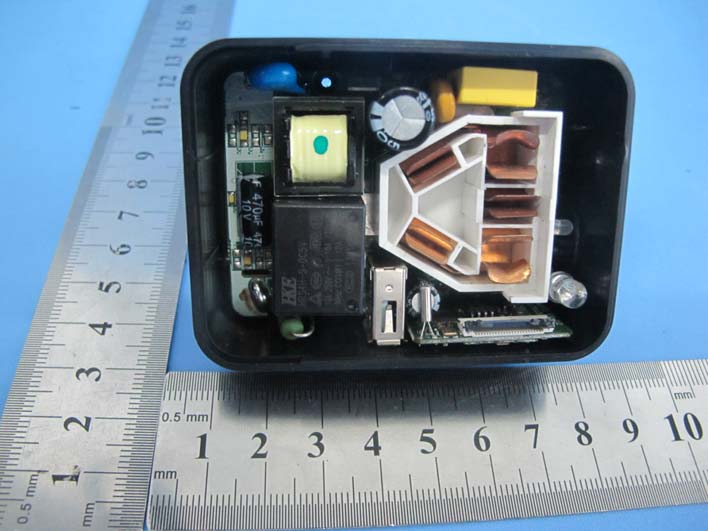

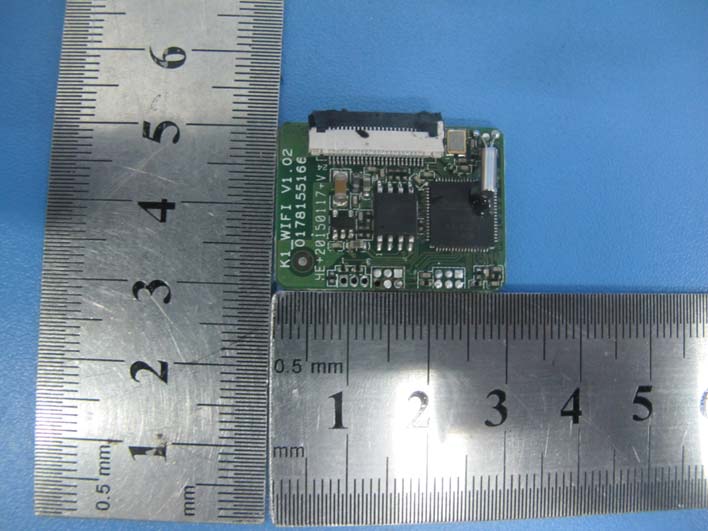

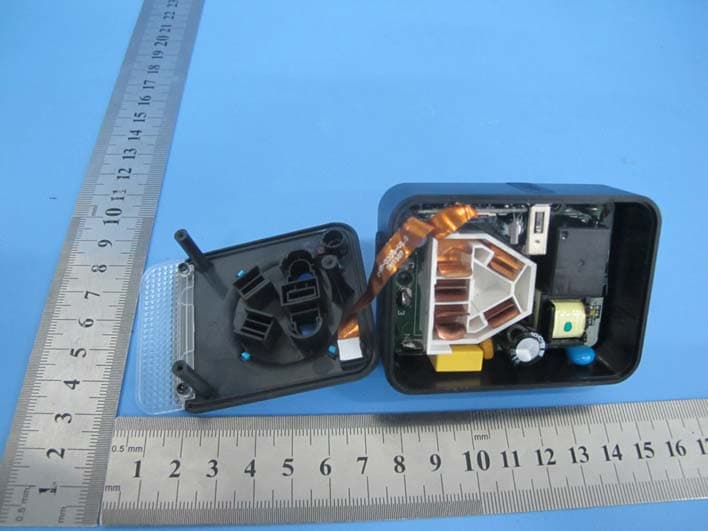

Report No.: TB-FCC145117 Page: 5 of 9 TB-RF-075-1.0 Appendix IV EUT Internal Photographs Photo 4 Internal of EUT Photo 5 Internal of EUT Report No.: TB-FCC145117 Page: 6 of 9 TB-RF-075-1.0 Photo 6 Appearance of PCB Photo 7 Appearance of PCB Report No.: TB-FCC145117 Page: 7 of 9 TB-RF-075-1.0 Photo 8 Appearance of PCB Photo 9 Appearance of PCB 2.4G Chip Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE145118 Page: 1 of 4 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Maximum Permissible Exposure Evaluation FCC ID: 2AEP6XM-JPK1S 1. Client Information Applicant : HangZhou XiongMai Technology CO., LTD. Address : 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China Manufacturer : HangZhou XiongMai Technology CO., LTD. Address : 9th Floor, Building 9, Yinhu Innovation Center, No.9 FuXian Road, YinHu Street, Hangzhou, China 2. General Description of EUT EUT Name : Smart Socket Models No. : XM-JPK1S, XM-JPK1, XM-JPK2, XM-JPK2S Model Difference : All these models are identical in the same PCB, layout and electrical circuit, the only difference is model name for commercial. Product Description : Operation Frequency: 802.11b/g/n(HT20): 2412MHz~2462MHz 802.11n(HT40): 2422MHz~2452MHz Number of Channel: 802.11b/g/n(HT20):11channels 802.11n(HT40): 7 channels Output Power: 802.11b: 12.28 dBm 802.11g: 12.11 dBm 802.11n (HT20): 11.98 dBm 802.11n (HT40): 11.35 dBm Antenna Gain: -0.5 dBi Chip Antenna Modulation Type: 802.11b: CCK, DQPSK, DBPSK 802.11g: 64-QAM,QPSK,BPSK 802.11n: 64-QAM,16-QAM,QPSK,BPSK Power Supply : AC Voltage supplied Power Rating : Input: AC 90~240V Output: AC 90~240V, DC 5V Max Load: 240V, 10A USB 5V 1A Shenzhen Toby Technology Co., Ltd. Report No.: TB-MPE145118 Page: 2 of 4 TB-RF-075-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 Connecting I/O Port(S) : Please refer to the User's Manual Note: More detail information about Equipment, please refer to User’s manual, more information about the RF, please refer to test report. Report No.: TB-MPE144821 Page: 3 of 4 TB-RF-075-1.0 MPE Calculations for WIFI 1. Antenna Gain: Chip Antenna: -0.5 dBi. 2. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 3. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 4. Test Result: Worst Maximum MPE Result Mode N TX Frequency (MHz) Power (dBm) [P] ANT Gain (dBi) [G] Turn-up Power Tolerance (dB) Distance (cm) [R] Power Density (mW/ cm 2 ) [S] 2.4G 802.11b 1 2437 12.28 -0.5 ±1 20 0.003773 802.11g 1 2437 12.11 -0.5 ±1 20 0.003629 802.11n (HT20) 1 2462 11.98 -0.5 ±1 20 0.003522 802.11n (HT40) 1 2452 11.35 -0.5 ±1 20 0.003046 Note: (1) N TX = Number of Transmit Antennas (2) RF Output power specifies that Maximum Conducted Peak Output Power. 5. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 Report No.: TB-MPE144821 Page: 4 of 4 TB-RF-075-1.0 For 802.11b/g/n (2412~2462 MHz) MPE limit S: 1 mW/ cm 2 The MPE is calculated as 0.003773mW / cm 2 < limit 1 mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report.

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC145117 Page: 1 of 93 TB-RF-074-1.0 1A/F., Bldg.6, Yusheng Industrial Zone, The National Road No.107 Xixiang Section 467, Xixiang, Bao’an, Shenzhen, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2AEP6XM-JPK1S Original Grant Report No. : TB-FCC145117 Applicant : HangZhou XiongMai Technology CO., LTD Equipment Under Test (EUT) EUT Name : Smart Socket Model No. : XM-JPK1S Series No. : XM-JPK1, XM-JPK2, XM-JPK2S Brand Name : XM Receipt Date : 2015-08-14 Test Date : 2015-08-14 to 2015-08-25 Issue Date : 2015-08-26 Standards : FCC Part 15, Subpart C (15.247:2014) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC and IC requirements Test/Witness Engineer : Approved& Authorized : This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC145117 Page: 2 of 93 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 5 1.5 Description of Test Mode .................................................................................................... 6 1.6 Description of Test Software Setting ................................................................................ 6 1.7 Measurement Uncertainty .................................................................................................. 7 1.7 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 17 5.1 Test Standard and Limit .................................................................................................... 17 5.2 Test Setup ........................................................................................................................... 18 5.3 Test Procedure ................................................................................................................... 19 5.4 EUT Operating Condition ................................................................................................. 19 5.5 Test Data ............................................................................................................................. 20 6. RESTRICTED BANDS REQUIREMENT ............................................................................. 51 6.1 Test Standard and Limit .................................................................................................... 51 6.2 Test Setup ........................................................................................................................... 51 6.3 Test Procedure ................................................................................................................... 51 6.4 EUT Operating Condition ................................................................................................. 52 6.5 Test Data ............................................................................................................................. 52 7. BANDWIDTH TEST ................................................................................................................. 73 7.1 Test Standard and Limit .................................................................................................... 73 7.2 Test Setup ........................................................................................................................... 73 7.3 Test Procedure ................................................................................................................... 73 7.4 EUT Operating Condition ................................................................................................. 73 7.5 Test Data ...........................................................................................…

Text truncated - open the document above for the full version.

Report No.: TB-FCC145117 Page: 8 of 9 TB-RF-075-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) Report No.: TB-FCC145117 Page: 9 of 9 TB-RF-075-1.0 Photo of Setup for Conducted Emission
