2AEWY-NL01ANanoleaf Esseantials Module

NL01A Datasheet Includes: NL01A Version 1.1 Nanoleaf Copyright © 2020 https://nanoleaf.cn/ About This Guide This document provides introduction to the specifications of NL01A and hardware. Release Notes Date Version Release notes 2020.07 V1.0 First release. 2020.10 V1.1 Updated the figure of NL01A dimensions. Documentation Change Notification Nanoleaf provides email notifications to keep customers updated on changes to technical documentation. Please subscribe at mailto:[email protected] . Certification Download certificates for Nanoleaf products from mailto:[email protected] 1. Overview NL01A is EFR32MG21A010F-based modules developed by Nanoleaf. Table 1-1. NL01A Core EFR32MG21 Antenna On board antenna Schematics See Figure 5-1 for details. Note: For mo re information on EFR32MG21, please refer to EFR32MG21 Datasheet. Table 1-2. NL01A Specifications Categories Items Specifications Certification RF certification SRRC, FCC, CE (RED), IC, NCC, KCC, TELEC (MIC) **(All Ongoing) Green certification RoHS, REACH Test Reliablity HTOL/HTSL/uHAST/TCT/ESD Bluetooth LE Modulation Type GFSK Frequency range 2402 MHz ~ 2480 MHz Thread Modulation Type QPSK Frequency range 2405 MHz ~ 2480 MHz Hardware Peripheral interface ADC/GPIO/I²C/I²S/SPI/UART GPIO/PWM Operating voltage 2.7 V ~ 3.8 V Operating current Average: 10 mA Minimum current delivered by power supply 200 mA Operating temperature range -40 °C ~ 85 °C Storage temperature -40 °C ~ 85 °C Module NL01A (17.50 ± 0.10) x (22.50 ± 0.10) x (3.20 ± 0.10) . Dimensions (unit: mm) 1. Overview Categories Items Specifications Software External interface - Moisture sensitivity level Level 3 Firmware upgrade OTA (via network)/Download and write via host Software development Supports Cloud Server Development/SDK for custom firmware development User configuration Cloud Server, Android/iOS app 2. Pin Description 2. Pin Description Figure 2-1. NL01 Pin Layout (Top View & Bottom View) Note: All Gnd Pin should connect to Fatherboard GND Figure 2-1 shows the pin distribution of the NL01A. NL01A have 33 pins. Please see the pin definitions in Table 2-1. Table 2-1. NL01A Pin Definitions Pin(s) Pin Name Description PIN1 PB0 GPIO PIN2 PA02 GPIO/DBG_SWDIO PIN3 PA01 GPIO/DBG_SWCLK PIN4 PA0 GPIO PIN5 PB0 GPIO PIN6 PA03 GPIO PIN7 PA04 GPIO PIN8 PA06 GPIO PIN9 PA05 GPIO PIN10 PA06 GPIO PIN11 PA04 GPIO PIN12 3V3 3.3V PIN13 PA03 GPIO PIN14 PB01 GPIO PIN15 PD04 GPIO/Flash_SSN PIN16 PD03 GPIO/Flash_MISO PIN17 GND GND PIN18 GND GND PIN19 3V3 3.3V PIN20 PD02 GPIO/Flash_MOSI PIN21 PC0 GPIO/Flash_SPI_CLK PIN22 PC01 GPIO PIN23 PC02 GPIO PIN24 PC03 GPIO PIN25 PC04 GPIO PIN26 PC05 GPIO PIN27 RESET DBG_RESET PIN28 GND GND PIN29 PA05 GPIO PIN30 GND GND PIN31 3V3 3.3V PIN32 PB01 GPIO PIN33 PA0 GPIO 3. Functional Description 3. Functional Description 3.1. Core The ARM Cortex-M processor includes a 32-bit RISC processor integrating the following features and tasks in the system: • ARM Cortex-M33 RISC processor achieving 1.50 Dhrystone MIPS/MHz • ARM TrustZone security technology • Embedded Trace Macrocell (ETM) for real-time trace and debug • Up to 1024 kB flash program memory • Up to 96 kB RAM data memory • Configuration and event handling of all modules • 2-pin Serial-Wire debug interface 3.2. Memory 3.2.1. SPI Flash NL01A currently integrate a 8-Mbit SPI flash and also supports these SPI modes: Standard SPI, DIO (Dual I/O), DOUT (Dual Output), QIO (Quad I/O) and QOUT (Quad Output). 4. Electrical Characteristics 4. Electrical Characteristics Note: Unless otherwise specified, measurements are based on VDD = 3.3 V, TA = 25 °C. 4.1. Electrical Characteristics Table 4-1. Electrical Characteristics 4.2. RF Radio Table 4-2. RF Radio Characteristics MODE Description Min Typ Max Unit Thread Radio, 250 kbps O- QPSK DSSS Input frequency 2405 - 2480 MHz Output Power - - 10 dBm Sensitivity - - 104.5 - dBm Bluetooth® Low Energy Radio GFSK Input frequency 2402 - 2480 MHz Output Power - - 10 dBm Sensitivity@1 Mbps GFSK - -94.4 - dBm Parameter Symbol Min Typ Max Unit Operating temperature - -40 20 85 °C Maximum soldering temperature (Condition: IPC/JEDEC J-STD-020) - - - 260 °C Supply voltage VDD 2.7 3.3 3.8 V Input logic level low V IL - - 0.3*IOVDD V Input logic level high V IH 0.7*IOVDD - - V Output logic level low V OL - - 0.2*IOVDD V Output logic level high V OH 0.8*IOVDD - - V 4. Electrical Characteristics 4.3. Power Consumption The following power consumption data were obtained from the tests with a 3.3 V power supply and a voltage stabilizer, in 25 °C ambient temperature. All data are based on 50% duty cycle in continuous transmission mode. Table 4-3. Power Consumption MODE Specs Min Typ Max Unit Thread Radio, 250 kbps O-QPSK DSSS Thread Radio, Active RX Mode - 9.4 - mA Active TX Mode @ 0 dBm - 9.3 - mA Active TX Mode @ 10 dBm - 33.8 - mA Bluetooth® Low Energy Radio Thread Radio, Active RX Mode - 8.8 - mA Active TX Mode @ 0 dBm - 9.3 - mA Active TX Mode @ 10 dBm - 33.8 - mA 4.4. Reflow Profile 250 200 100 50 25 0 0 100 250 Figure 4-1. NL01A Reflow Profile Note: Solder the module in a single reflow. If the PCBA requires multiple reflows, place the module on the PCB during the final reflow. 4.5. Electrostatic Discharge Table 4-4. Electrostatic Discharge Parameters Peak Temp. 235 ~ 250°C Preheating 150 ~ 200°C zone 60 ~ 120s Reflowzone >217°C 60 ~ 90s Cooling zone Ramp-up zone Soldering time > 30s Time (sec.) Name Symb Temperature: 23 ± 5 °C Based on ANSI/ESDA/JEDEC JS - 001 - 2014 2 2000 V Electrostatic Discharge (Charged - Device Model) 217 -1 ~ -5°C/s 1 ~ 3°C/s 50 150 200 Ramp-up zone — Temp.: <150°C Time: 60 ~ 90s Ramp-up rate: 1 ~ 3°C/s Preheating zone — Temp.: 150 ~ 200°C Time: 60 ~ 120s Ramp-up rate: 0.3 ~ 0.8°C/s Reflow zone — Temp.: >217°C 7LPH□@60 ~ 90s; Peak Temp.: 235 ~ 250°C (<245°C recommended) Time: 30 ~70s Cooling zone — Peak Temp. ~ 180°C Ramp-down rate: -1 ~ -5°C/s Solder — Sn&Ag&Cu Lead-free solder (SAC305) ol Reference LevelMaxUnit Electrostatic Discharge (Human - Body …

Text truncated - open the document above for the full version.

NANOGRID LIMITED FCC – Modular Approval Request Rev 2.0 Modular Transmitter Approval Request Federal Communications Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 Company name: Nanoleaf Esseantials Module FCC ID: 2AEWY-NL01A Gentlemen, In accordance with 47CFR 15.212 Modular Transmitters and KDB 996369 D01 ‘Module Certification Guide v01r04’. FCC ID: 2AEWY-NL01A has been examined against the following requirements. Requirement per 15.212 and KDB 996369 D01 ‘Modular Certification Guide v01r04 Explanation from Grantee (do not write yes/no, but explain why product complies/how it is achieved) The radio elements must have the radio frequency circuitry shielded. Physical components and tuning capacitor(s) may be located external to the shield, but must be on the module assembly Yes The radio portion of the module has been shielded, Refer to the external photos. The module must have buffered modulation/data inputs to ensure that the device will comply with Part 15 requirements with any type of input signal Yes The module has buffered modulat ion/data inputs. Refer to the Schematic diagram. The module must contain power supply regulation on the module Yes This module is equipped internal power regulators. Refer to the Schematic diagram. The module must contain a permanently attached antenna, or contain a unique antenna connector, and be marketed and operated only with specific antenna(s), per Sections 15.203, 15.204(b), 15.204(c), 15.212(a), 2.929(b) Y es This module is equipped with an PCB Antenna. Refer to the internal photo The module must demonstrate compliance in a stand-alone configuration Yes This module was tested in a stand-alone configuration. Refer to the test setup photos The module must be labelled with its permanently affixed FCC ID label, or use an electronic display (See KDB Publication 784748 about labelling requirements) Yes The module has its permanently affixed FCC ID label and the FCC ID label is shield cover. Refer to the FCC ID Label Location. The module must comply with all specific rules applicable to the transmitter including all the conditions provided in the integration instructions by the grantee Yes The module complies with all specific rules applicable to the transmitter. The module must comply with RF exposure requirements Y es .The Module belong to Part 15 Low Power Communication Device Transmitter Date: Feb. 26, 2021 Name: Christian Yan Title: COO Signatur e of applicant:

<NANOGRIDLIMITED> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:Jan.31,2021 Subject;RequestforLongTermConfidentiality FCCID:2AEWY-NL01A ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,weare requestingtheCommissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredasproprietary informationinoperationoftheequipment.Thepublicdisclosureofthesedocumentsmightbeharmfulto ourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondenceduring thecertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthisinformationwillbe availableforpublicreviewoncethegrantofequipmentauthorizationisissued. Sincerely, Signature: Name:ChristianYan Title:COO

NANOGRID LIMITED Letter of Authorization Company:NANOGRID LIMITED Address:ROOM 1405, 135 BONHAM STRAND TRADE CENTRE, 135 BONHAM STRAND, SHEUNG WAN, Hong Kong Product Name:Nanoleaf Esseantials Module Model Number:NL01A FCC ID: 2AEWY-NL01A We authorize MiCOM LabsInc, 575 Boulder Court, Pleasanton, California94566, USA, to act on our behalf on all matters concerning the above named equipment. Any individual within MiCOM Labs is authorized to act on our behalf and take action on the application. We declare that MiCOM LabsInc, 575 Boulder Court, Pleasanton, California 94566, USA, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Name:Christian YanDate: Jan. 31, 2021 Title:COO Signature of applicant:

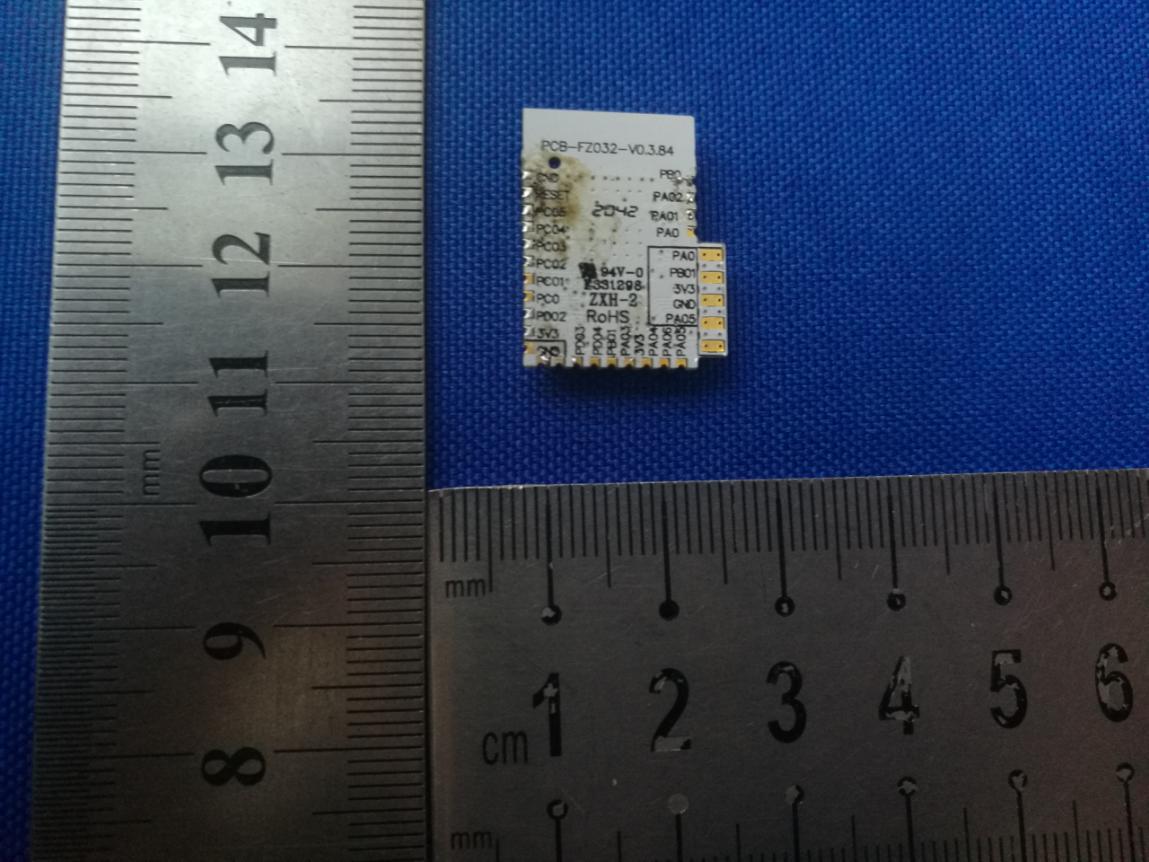

Model:NL01A

FCCIDLABEL: LabelLocation: FCCID:2AEWY-NL01A Productname:NanoleafEsseantialsModule ModelNo.:NL01A Long:2cm Width:1cm

Model:NL01A Model:NL01A

Page1of24ReportNo.:UNIA21010511ER-05 FCCRADIOTESTREPORT FCCID:2AEWY-NL01A Product ： NanoleafEsseantialsModule TradeName： Nanoleaf ModelName ： NL01A SerialModel： N/A ReportNo. ： UNIA21010511ER-03 Preparedfor NANOGRIDLIMITED ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Preparedby ShenzhenUnitedTestingTechnologyCo.,Ltd. 2F,AnnexBldg,JiahuangyuanTechPark,#365Baotian1Rd,Tiegang Community,XixiangStr,Bao'anDistrict,Shenzhen,China Page2of24ReportNo.:UNIA21010511ER-05 TESTRESULTCERTIFICATION Applicant’sname....................: NANOGRIDLIMITED Address ...................................... : ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Manufacture'sName .............. : NANOGRIDLIMITED Address......................................: ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Productdescription Productname...............................: NanoleafEsseantialsModule TradeMark.................................: Nanoleaf Modeland/ortypereference . : NL01A Standards..................................: FCCRulesandRegulationsPart15SubpartCSection15.249, ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedbyShenzhenUnitedTestingTechnology Co.,Ltd.,andthetestresultsshowthattheequipmentundertest(EUT)isincompliance withtheFCCrequirements.Anditisapplicableonlytothetestedsampleidentifiedinthe report. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofUNI,this documentmaybealteredorrevisedbyShenzhenUnitedTestingTechnologyCo.,Ltd., personnelonly,andshallbenotedintherevisionofthedocument. DateofTest...............................................: Date(s)ofperformanceoftests...............: Jan.08,2021~Jan.31,2021 DateofIssue..............................................: Jan.31,2021 TestResult .................................................. :Pass Preparedby: Bobliao/Editor Reviewer: Kahnyang/Supervisor Approved&AuthorizedSigner: Liuze/Manager Page3of24ReportNo.:UNIA21010511ER-05 TableofContentsPage 1.TESTSUMMARY4 2.GENERALINFORMATION5 2.1GENERALDESCRIPTIONOFEUT5 2.2CarrierFrequencyofChannels6 2.3OperationofEUTduringtesting6 2.4DESCRIPTIONOFTESTSETUP6 2.5MEASUREMENTINSTRUMENTSLIST7 3.CONDUCTEDEMISSIONSTEST8 3.1ConductedPowerLineEmissionLimit8 3.2TestSetup8 3.3TestProcedure8 3.4TestResult8 4RADIATEDEMISSIONTEST11 4.1RadiationLimit11 4.2TestSetup11 4.3TestProcedure12 4.4TestResult13 5BANDEDGE18 5.1Limits18 5.2TestProcedure18 5.3TestResult18 620dBBandwidth20 6.1TestSetup20 6.2TestProcedure20 6.3MeasurementEquipmentUsed20 6.4TestResult20 7ANTENNAREQUIREMENT22 8PHOTOGRAPHOFTEST23 8.1RadiatedEmission23 8.2ConductedEmission24 Page4of24ReportNo.:UNIA21010511ER-05 1.TESTSUMMARY TESTPROCEDURESANDRESULTS DESCRIPTIONOFTESTRESULTSTANGARD CONDUCTEDEMISSIONSTEST COMPLIANTFCCPart15.207 RADIATEDEMISSIONTESTCOMPLIANTFCCPart15.209/15.249 BANDEDGECOMPLIANTFCCPart15.249(d) 20dBBandwidthCOMPLIANTFCCPart15.215 ANTENNAREQUIREMENTCOMPLIANTFCCPart15.203 TESTFACILITY TestFirm:ShenzhenUnitedTestingTechnologyCo.,Ltd. Address:2F,AnnexBldg,JiahuangyuanTechPark,#365Baotian1Rd,Tiegang Community,XixiangStr,Bao'anDistrict,Shenzhen,China Thetestingqualityabilityofourlaboratorymeetwith"QualityLawofPeople'sRepublicof China"Clause19.ThetestingqualitysystemofourlaboratorymeetswithISO/IEC-17025 requirements.ThisapprovalresultisacceptedbyMRAofAPLAC. Ourtestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: A2LACertificateNumber:4747.01 TheEMCLaboratoryhasbeenaccreditedbyA2LA,andincompliancewithISO/IEC 17025:2017GeneralRequirementsfortestingLaboratories. FCCRegistrationNumber:674885 TheEMCLaboratoryhasbeenregisteredandfullydescribedinareportfiledwiththe(FCC) FederalCommunicationscommission. ICRegistrationNumber:21947 TheEMCLaboratoryhasbeenregisteredandfullydescribedinareportfiledwiththe(IC) IndustryCanada. MEASUREMENTUNCERTAINTY MeasurementUncertainty ConductedEmissionExpandedUncertainty=2.23dB,k=2 Radiatedemissionexpandeduncertainty(9kHz-30MHz)= 3.08dB,k=2 Radiatedemissionexpandeduncertainty(30MHz-1000MHz)= 4.42dB,k=2 Radiatedemissionexpandeduncertainty(Above1GHz)= 4.06dB,k=2 Page5of24ReportNo.:UNIA21010511ER-05 2.GENERALINFORMATION 2.1GENERALDESCRIPTIONOFEUT EquipmentNanoleafEsseantialsModule TradeMarkNanoleaf ModelNameNL01A SerialNo. N/A ModelDifferenceN/A FCCID 2AEWY-NL01A AntennaTypePCBAntenna AntennaGain2.1dBi FrequencyRange2402~2480MHz NumberofChannels40CH ModulationType GFSK BatteryN/A PowerSourceDC3.3V Page6of24ReportNo.:UNIA21010511ER-05 Serialboard 2.2CarrierFrequencyofChannels ChannelList Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 012402112422212442312462 022404122424222444322464 032406132426232446332466 042408142428242448342468 052410152430252450352470 062412162432262452362472 072414172434272454372474 082416182436282456382476 092418192438292458392478 102420202440302460402480 2.3OperationofEUTduringtesting OperatingMode Themodeisused:Transmittingmode LowChannel:2402MHz MiddleChannel:2440MHz HighChannel:2480MHz 2.4DESCRIPTIONOFTESTSETUP OperationofEUTduringConductedtesting: OperationofEUTduringRadiationtesting: Tableforauxiliaryequipment: EquipmentDescriptionManufacturerModelCalibrationDueDate ComputerLenovoXiaoxinAir12 N/A SerialboardN/AHW-728 N/A EUT Serialboard Computer EUT ACPower Computer Page7of24ReportNo.:UNIA21010511ER-05 2.5MEASUREMENTINSTRUMENTSLIST ItemEquipmentManufacturerModelNo.SerialNo.Calibrateduntil ConductionEmissionsMeasurement 1 ConductedEmission TestSoftware EZ-EMCVer.CCS-3A1-CEN/AN/A 2AMNSchwarzbeckNNLK812181213702021.10.15 3AMNETS3810/2000201992021.10.15 4AANTESEQT8-Cat6388882021.10.15 5PulseLimiterCYBRTEKEM5010E1150100562021.05.26 6EMITestReceiverRohde&SchwarzESCI1012102021.10.15 RadiatedEmissionsMeasurement 1 RadiatedEmission TestSoftware EZ-EMCVer.CCS-03A1N/AN/A 2HornAntennaSunolDRH-118A1014152021.10.18 3 BroadbandHybrid Antenna SunolJB1A0902152021.11.15 4PREAMPHP8449B3008A001602021.10.21 5PREAMPHP8447D2944A079992021.05.26 6EMITestReceiverRohde&S…

Text truncated - open the document above for the full version.

Page1of24ReportNo.:UNIA21010511ER-06 FCCRADIOTESTREPORT FCCID:2AEWY-NL01A Product ： NanoleafEsseantialsModule TradeName： Nanoleaf ModelName ： NL01A SerialModel： N/A ReportNo. ： UNIA21010511ER-04 Preparedfor NANOGRIDLIMITED ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Preparedby ShenzhenUnitedTestingTechnologyCo.,Ltd. 2F,AnnexBldg,JiahuangyuanTechPark,#365Baotian1Rd,Tiegang Community,XixiangStr,Bao'anDistrict,Shenzhen,China Page2of24ReportNo.:UNIA21010511ER-06 TESTRESULTCERTIFICATION Applicant’sname....................: NANOGRIDLIMITED Address ...................................... : ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Manufacture'sName .............. : NANOGRIDLIMITED Address......................................: ROOM1405,135BONHAMSTRANDTRADECENTRE, 135BONHAMSTRAND,SHEUNGWAN,HongKong Productdescription Productname...............................: NanoleafEsseantialsModule TradeMark.................................: Nanoleaf Modeland/ortypereference . : NL01A Standards..................................: FCCRulesandRegulationsPart15SubpartCSection15.249, ANSIC63.10:2013 ThisdevicedescribedabovehasbeentestedbyShenzhenUnitedTestingTechnology Co.,Ltd.,andthetestresultsshowthattheequipmentundertest(EUT)isincompliance withtheFCCrequirements.Anditisapplicableonlytothetestedsampleidentifiedinthe report. Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofUNI,this documentmaybealteredorrevisedbyShenzhenUnitedTestingTechnologyCo.,Ltd., personnelonly,andshallbenotedintherevisionofthedocument. DateofTest...............................................: Date(s)ofperformanceoftests...............: Jan.08,2021~Jan.31,2021 DateofIssue..............................................: Jan.31,2021 TestResult .................................................. :Pass Preparedby: Bobliao/Editor Reviewer: Kahnyang/Supervisor Approved&AuthorizedSigner: Liuze/Manager Page3of24ReportNo.:UNIA21010511ER-06 TableofContentsPage 1.TESTSUMMARY4 2.GENERALINFORMATION5 2.1GENERALDESCRIPTIONOFEUT5 2.2CarrierFrequencyofChannels6 2.3OperationofEUTduringtesting6 2.4DESCRIPTIONOFTESTSETUP6 2.5MEASUREMENTINSTRUMENTSLIST7 3.CONDUCTEDEMISSIONSTEST8 3.1ConductedPowerLineEmissionLimit8 3.2TestSetup8 3.3TestProcedure8 3.4TestResult8 4RADIATEDEMISSIONTEST11 4.1RadiationLimit11 4.2TestSetup11 4.3TestProcedure12 4.4TestResult13 5BANDEDGE18 5.1Limits18 5.2TestProcedure18 5.3TestResult18 620dBBandwidth20 6.1TestSetup20 6.2TestProcedure20 6.3MeasurementEquipmentUsed20 6.4TestResult20 7ANTENNAREQUIREMENT22 8PHOTOGRAPHOFTEST23 8.1RadiatedEmission23 8.2ConductedEmission24 Page4of24ReportNo.:UNIA21010511ER-06 1.TESTSUMMARY TESTPROCEDURESANDRESULTS DESCRIPTIONOFTESTRESULTSTANGARD CONDUCTEDEMISSIONSTEST COMPLIANTFCCPart15.207 RADIATEDEMISSIONTESTCOMPLIANTFCCPart15.209/15.249 BANDEDGECOMPLIANTFCCPart15.249(d) 20dBBandwidthCOMPLIANTFCCPart15.215 ANTENNAREQUIREMENTCOMPLIANTFCCPart15.203 TESTFACILITY TestFirm:ShenzhenUnitedTestingTechnologyCo.,Ltd. Address:2F,AnnexBldg,JiahuangyuanTechPark,#365Baotian1Rd,Tiegang Community,XixiangStr,Bao'anDistrict,Shenzhen,China Thetestingqualityabilityofourlaboratorymeetwith"QualityLawofPeople'sRepublicof China"Clause19.ThetestingqualitysystemofourlaboratorymeetswithISO/IEC-17025 requirements.ThisapprovalresultisacceptedbyMRAofAPLAC. Ourtestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: A2LACertificateNumber:4747.01 TheEMCLaboratoryhasbeenaccreditedbyA2LA,andincompliancewithISO/IEC 17025:2017GeneralRequirementsfortestingLaboratories. FCCRegistrationNumber:674885 TheEMCLaboratoryhasbeenregisteredandfullydescribedinareportfiledwiththe(FCC) FederalCommunicationscommission. ICRegistrationNumber:21947 TheEMCLaboratoryhasbeenregisteredandfullydescribedinareportfiledwiththe(IC) IndustryCanada. MEASUREMENTUNCERTAINTY MeasurementUncertainty ConductedEmissionExpandedUncertainty=2.23dB,k=2 Radiatedemissionexpandeduncertainty(9kHz-30MHz)= 3.08dB,k=2 Radiatedemissionexpandeduncertainty(30MHz-1000MHz)= 4.42dB,k=2 Radiatedemissionexpandeduncertainty(Above1GHz)= 4.06dB,k=2 Page5of24ReportNo.:UNIA21010511ER-06 2.GENERALINFORMATION 2.1GENERALDESCRIPTIONOFEUT EquipmentNanoleafEsseantialsModule TradeMarkNanoleaf ModelNameNL01A SerialNo.N/A ModelDifferenceN/A FCCID2AEWY-NL01A AntennaType PCBAntenna AntennaGain2.1dBi FrequencyRange2405~2480MHz NumberofChannels 16CH ModulationTypeQPSK Battery N/A PowerSourceDC3.3V Page6of24ReportNo.:UNIA21010511ER-06 Computer EUT ACPower Computer 2.2CarrierFrequencyofChannels ChannelList Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 012405052425092445132465 022410062430102450142470 032415072435112455152475 042420082440122460162480 2.3OperationofEUTduringtesting OperatingMode Themodeisused:Transmittingmode LowChannel:2405MHz MiddleChannel:2440MHz HighChannel:2480MHz 2.4DESCRIPTIONOFTESTSETUP OperationofEUTduringConductedtesting: OperationofEUTduringRadiationtesting: Tableforauxiliaryequipment: EquipmentDescriptionManufacturerModelCalibrationDueDate ComputerLenovoXiaoxinAir12 N/A SerialboardN/AHW-728 N/A Serialboard EUT Serialboard Page7of24ReportNo.:UNIA21010511ER-06 2.5MEASUREMENTINSTRUMENTSLIST ItemEquipmentManufacturerModelNo.SerialNo.Calibrateduntil ConductionEmissionsMeasurement 1 ConductedEmission TestSoftware EZ-EMCVer.CCS-3A1-CEN/AN/A 2AMNSchwarzbeckNNLK812181213702021.10.15 3AMNETS3810/2000201992021.10.15 4AANTESEQT8-Cat6388882021.10.15 5PulseLimiterCYBRTEKEM5010E1150100562021.05.26 6EMITestReceiverRohde&SchwarzESCI1012102021.10.15 RadiatedEmissionsMeasurement 1 RadiatedEmission TestSoftware EZ-EMCVer.CCS-03A1N/AN/A 2HornAntennaSunolDRH-118A1014152021.10.18 3 BroadbandHybrid Antenna SunolJB1A0902152021.11.15 4PREAMPHP8449B3008A001602021.10.21 5PREAMPHP8447D2944A079992021.05.26 6EMITestReceiverRohde&SchwarzESR31018912021.10.15 7MXASignalAnalyzerKeysightN9020AMY511101042021.10.15 8ActiveLoopAntennaCom-PowerAL-310R101600092021.05.28 9HornAntennaSchwa…

Text truncated - open the document above for the full version.

Model:NL01A Model:NL01A
