2AEWY-NL06ANanoleaf WIFI module

SPECIFICATIONS Model ： NL06A WiFi4USB2.0Networkinterface43.5*15.6mm25PIN Version：V1.0 Pages ： 10page 1 RevisionHistory VersionDateContentsofRevisionChangeDraftChecked Approv ed V1.02024/05/16Unifiedversion LIURogerZhang 2 Catalogue . 1.GeneralDescription.................................................................................................................................................3 1.1Introduction.................................................................................................................................................3 1.2Description..................................................................................................................................................3 2.Productcharacteristics.............................................................................................................................................3 3.Productpicture........................................................................................................................................................4 4.BlockDiagram........................................................................................................................................................4 5.Productpicture........................................................................................................................................................5 5.12.4GWiFiSpecifications..............................................................................................................................5 6.Pindefinition..........................................................................................................................................................6 6.1Pinoutline....................................................................................................................................................6 6.2PinDefinitiondetails.....................................................................................................................................6 7.Electricalspecification.............................................................................................................................................7 8.Dimensionalreference.............................................................................................................................................8 8.1Physicalsize.................................................................................................................................................8 9.Listofkeymaterials................................................................................................................................................8 10.Reflowweldingstandardtemperature...............................................................................................................9 11.Moisturesensitivity............................................................................................................................................10 3 1.GeneralDescription 1.1Introduction TR7628DA4G(LN)moduleisalow-costandlow-poweriotmodulebasedonMediatekMT7628asthecore, supportingLinuxandOpenWrtoperatingsystemsandcustomdevelopment,withrichinterfacesandpowerful processors,canbewidelyusedinsmartdevicesorcloudserviceapplications,etc.Andcanbefreefor secondarydevelopment 1.2Description 2．Productcharacteristics Standard:IEEE802.11b/g/n Superdataprocessingcapability,MCUmainfrequencyupto580MHz 20/40Bandwidthofthechannel Powersupply3.3V±0.2V 300Mwirelessspeed  SupportsUSB2.0  10/100Madaptivenetworkport ModelnameNL06A ProductdescriptorIEEE802.11b/g/n Dimension43.5*15.6mm Wi-FiportNetworkinterface/USB2.0 Operatingtemperature-20°Cto+70°C Storagetemperature-40°Cto+85°C 4 3.Productpicture FrontReverse 4.BlockDiagram 5 5.Generalspecification 5.12.4GWiFiSpecifications TXpowercancontrolbydriversidetoincreaseordecreasetheoutputvalue Feature Description WLANStandard IEEE802.11b/g/nWi-Ficompliant FrequencyRange 2.400GHz~2.497GHz(2.4GHzISMBand) NumberofChannels2.4GHz：Ch1~Ch14 TestItems TypicalValue EVM OutputPower 1 802.11b/11Mbps:17dBm±2dBEVM≤-10dB 802.11g/54Mbps:14dBm±2dBEVM≤-25dB 802.11n/MCS7:13dBm±2dBEVM≤-28dB SpectrumMask MeetwithIEEEstandard Freq.Tolerance ±20ppm SISOReceiveSensitivity (11b,20MHz)@8%PER -1MbpsPER@-94dBm ≤-83 -11MbpsPER@-85dBm ≤-76 SISOReceiveSensitivity (11g,20MHz)@10%PER -6MbpsPER@-90dBm ≤-85 -54MbpsPER@-71dBm ≤-68 SISOReceiveSensitivity (11n,20MHz)@10%PER -MCS=0PER@-90dBm ≤-85 -MCS=7PER@-69dBm ≤-67 SISOReceiveSensitivity (11n,40MHz)@10%PER -MCS=0PER@-87dBm ≤-82 -MCS=7PER@-66dBm ≤-64 MaximumInputLevel 802.11b:-10dBm 802.11g/n:-20dBm 6 6.Pindefinition 6.1Pinoutline 6.2PinDefinitiondetails PinnumberPinnameFunctiondescription 13.3VVDD3.3V 2GNDGroundconnections 3GPIO0GPIO0 4IICSDAIICSDA 5IICCLKIICCLK 6TX1UART1TX 7RX1UART1RX 8TX0UART0TX 9RX0UART0RX 10LED1 GPIO#19 11LED2 GPIO#18 12 GPIO1 GPIO#22 13GPIO2 GPIO#21 14GNDGroundconnections 15D+USBDP 7 16D-USBD- 17GNDGroundconnections 18TX2 PORT2Networksignalsending+ 19RX2PORT2Networksignalsending- 201V8DDR_IO_1V8 21RXIP0PORT0Networksignalacceptance+ 22RXIN0PORT0Networksignalacceptance- 23TXOP0PORT0Networksignalsending+ 24TXON0PORT0Networksignalsending- 25GNDGroundconnections 7.Electricalspecification 7.1Dccharacteristicsofpowersupply DescribeMINTYPMAXUnit OperatingTemperature-102570°C VBAT33.33.6V 7.2Powerdissipation Powerdissipation Mode VCC33=3.3V（Unit：mA) TXHT2011gMode 320 TXHT2011bMode 350 TXHT2011nMode 350 TXHT4011nMode310 RXMode200 8 8.Dimensionalreference 8.1Physicalsize 9.Listofkeymaterials PartNameDescriptionManufacturer ChipMT7628MediaTek PCBTR7628D4-AIZ(LN)-V2.212*12*0.8mmfour-layerGreen oil FZX/YX/LC Crystal 40MHz10PPM15PF-20°C～85°C3225SMDROHS JWT/JF 9 10.Reflowweldingstandardtemperature Heatingzone:Temperature:<150°C,time:60~90seconds,slopecontrolbetween1 ~3°C/S.Preheatingconstanttemperaturezone:temperature:150°C~200°C,time:60-120 seconds,slopebetween0.3-0.8.Reflowweldingzone:Peaktemperature235°C~250°C (recommen…

Text truncated - open the document above for the full version.

NANOGRID LIMITED 2024-06-19 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2AEWY-NL06A ) [NANOGRID LIMITED ] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Christian Yan Manager NANOGRID LIMITED ROOM 1301, 13/F, EXCEL CENTRE, 483A CASTLE PEAK ROAD, LAI CHI KOK, KOWLOON, Hong Kong NANOGRID LIMITED 2024-06-19 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for(FCC ID: 2AEWY-NL06A ) [NANOGRID LIMITED] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Christian Yan Manager NANOGRID LIMITED ROOM 1301, 13/F, EXCEL CENTRE, 483A CASTLE PEAK ROAD, LAI CHI KOK, KOWLOON, Hong Kong

Attestation Statements (2024/6/21) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2AEWY-NL06A) (NANOGRID LIMITED), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (NANOGRID LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: NANOGRID LIMITED Contact Name: Christian Yan Address: ROOM 1301, 13/F, EXCEL CENTRE, 483A CASTLE PEAK ROAD, LAI CHI KOK KOWLOON, Hong Kong FRN: 0024632077 Telephone No: +852 94979800 Email: [email protected] Signature [Christian Yan] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

NANOGRID LIMITED Request for Modular/Limited Modular Approval Date: June 20, 2024 Subject: Manufacturer’s Declaration for ☒ - Modular Approval ☐ - Split Modular Approval ☐ - Limited Modular Approval ☐ - Limited Split Modular Approval Confidentiality Request for: ______2AEWY-NL06A ______ 8 Basic Requirements – FCC Part 15.212(a)(1) For Items Marked “NO(*)”, the Limited Module Description Must be Filled Out on the Following Pages Modular Approval Requirement Requirement Met 1. The modular transmitter must have its own RF shielding. This is intended to ensure that the module does not have to rely upon the shielding provided by the device into which it is installed in order for all modular transmitter emissions to comply with FCC limits. It is also intended to prevent coupling between the RF circuitry of the module and any wires or circuits in the device into which the module is installed. Such coupling may result in non-compliant operation. The physical crystal and tuning capacitors may be located external to the shielded radio elements. 15.212(a)(1)(i) ☒ - YES ☐ - NO(*) 2. The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with FCC requirements under conditions of excessive data rates or over-modulation. 15.212(a)(1)(ii) ☒ - YES ☐ - NO(*) 3. The modular transmitter must have its own power supply regulation on the module. This is intended to ensure that the module will comply with FCC requirements regardless of the design of the power supplying circuitry in the device into which the module is installed. 15.212(a)(1)(iii) ☒ - YES ☐ - NO(*) 4. The modular transmitter must comply with the antenna and transmission system requirements of §§ 15.203, 15.204(b), 15.204(c), 15.212(a), and 2.929(b). The antenna must either be permanently attached or employ a ‘‘unique’’ antenna coupler (at all connections between the module and the antenna, including the cable). The ‘‘professional installation’’ provision of § 15.203 is not applicable to modules but can apply to limited modular approvals under paragraph 15.212(b). 15.212(a)(1)(iv) ☒ - YES ☐ - NO(*) 5. The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing. This is intended to demonstrate that the module is capable of complying with Part 15 emission limits regardless of the device into which it is eventually installed. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in Section 15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see Section 15.27(a)). The length of these lines shall be length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified or commercially available (see Section 15.31(i)). 15.212(a)(1)(v) ☒ - YES ☐ - NO(*) NANOGRID LIMITED Modular Approval Requirement Requirement Met 6. The modular transmitter must be labeled with its own FCC ID number, or use an electron display (see KDB Publication 784748). If using a permanently affixed label with its own FCC ID number, if the FCC ID is not visible when the module is installed inside another device, then the outside of the device into which the module is installed must also display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains Transmitter Module FCC ID: XYZMODEL1” or “Contains FCC ID: XYZMODEL1.” Any similar wording that expresses the same meaning may be used. The Grantee may either provide such a label, an example of which must be included in the application for equipment authorization, or, must provide adequate instructions along with the module which explain this requirement. In the latter case, a copy of these instructions must be included in the application for equipment authorization. If the modular transmitter uses an electronic display of the FCC identification number, the information must be readily accessible and visible on the modular transmitter or on the device in which it is installed. If the module is installed inside another device, then the outside of the device into which the module is installed must display a label referring to the enclosed module. This exterior label can use wording such as the following: “Contains FCC certified transmitter module(s).” Any similar wording that expresses the same meaning may be used. The user manual must include instructions on how to access the electronic display. A copy of these instructions must be included in the application for equipment authorization. 15.212(a)(1)(vi) ☒ - YES ☐ - NO(*) 7. The modular transmitter must comply with all specific rule or operating requirements applicable to the transmitter, including all the conditions provided in the integration instructions by the grantee. A copy of these instructions must be included in the application for equipment authorization. For example, there are very strict operational and timing requirements that must be met before a transmitter is authorized for operation under Section 15.231. For instance, data transmission is prohibited, except for operation under Section 15.231(e), in which case there are separate field strength level and timing requirements. Compliance with these requirements must be assured. 15.212(a)(1)(vii) ☒ - YES ☐ - NO(*) 8. The modular transmitter must comply with any applicable RF exposure requirements. For example, FCC Rules in Sections 2.1091, 2.1093 and specific Sections of Part 15, including 15.319(i), 15.407(f), 15.253(f) and 15.255(g), require that Unlicensed PCS, UNII and millimeter wave devices perform routine environmental evaluation for RF Expo…

Text truncated - open the document above for the full version.

NANOGRIDLIMITED 2024-06-19 EurofinsElectricaland ElectronicTestingNA, Inc. 914 West PatapscoAvenue Baltimore,MD 21230 RE: LETTEROF AGENTAUTHORIZATION To WhomIt May Concern: We, the undersigned,herebyauthorizeGuangdongGlobalTestingTechnologyCo., Ltd.to act on our behalf in all mattersrelatingto applicationfor equipmentauthorization,includingthe signingof all documentsrelatingto these matters. We also herebycertify that no party to the applicationauthorizedhereunderis subjectto the denial of benefits,includingFCC benefits,pursuantto Section5301 of the Anti-DrugAbuse Act of 1988, 21 U.S.C.853(a). This agreementexpiresone year from the currentdate. Sincerely, ChristianYan Manager NANOGRIDLIMITED ROOM1301, 13/F, EXCELCENTRE,483A CASTLEPEAKROAD,LAI CHI KOK, KOWLOON, Hong Kong

NANOGRIDLIMITED 2024-06-19 EurofinsElectricaland ElectronicTestingNA, Inc. 914 West PatapscoAvenue Baltimore,MD 21230 RE: CONFIDENTIALITYREQUESTFOR (EUT Name:NanoleafWIFI module/Model: NL06A/FCC ID: 2AEWY-NL06A) To WhomIt May Concern: This letter serves as an officialrequestfor confidentialityunder sections0.457 and 0.459 of CFR 47. We have requestedthat the( BlockDiagram,OperationalDescription,Schematics) requiredto be submittedwith this applicationbe permanentlywithheldfrom public review. Theabovematerialscontaintradesecretsandproprietaryinformationnotcustomarilyreleasedtothepublic.The publicdisclosureofthesematerialsmaybeharmfultotheapplicantandprovideunjustifiedbenefitstoitscompetitors. Please contactme if there is any informationyou may need. Sincerely, ChristianYan Manager NANOGRIDLIMITED ROOM1301, 13/F, EXCELCENTRE,483A CASTLEPEAKROAD,LAI CHI KOK, KOWLOON,Hong Kong

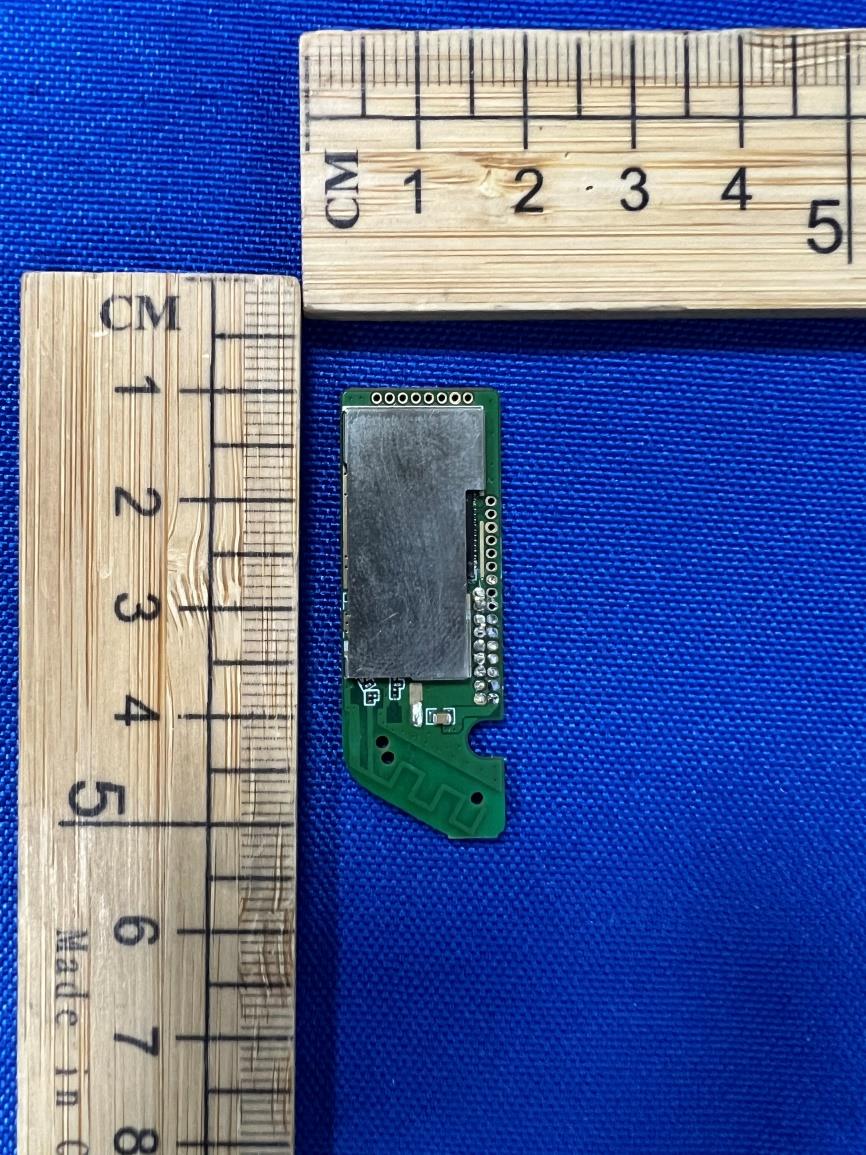

Model: NLO6A FCC ID: 2AEWY-NL06A IC: 20489-NL06A XXX-XXXXX 17.5mm7.5mm 13mm 25mm 11mm 2mm

ANTENNA

1 / 3 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) FCC ID: 2AEWY-NL06A EUT Specification EUT module Frequency band (Operating) BT: 2.402GHz ~ 2.480GHz BLE: 2.402GHz ~ 2.480GHz WIFI: 2.412GHz ~ 2.462GHz WIFI: 5.180GHz ~ 5.240GHz WIFI: 5.260GHz ~ 5.320GHz WIFI: 5.500GHz ~ 5.700GHz WIFI: 5.745GHz ~ 5.825GHz Device category Portable (<20cm separation) Mobile (>20cm separation) Exposure classification Occupational/Controlled exposure (S = 5mW/cm 2 ) General Population/Uncontrolled exposure (S=1mW/cm 2 ) Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power（peak power） 2.4G WIFI IEEE 802.11b: 15.42dBm IEEE 802.11g: 14.91dBm IEEE 802.11n-HT20: 14.94dBm IEEE 802.11n-HT40: 13.9dBm Antenna gain (Max) 2.15dBi Evaluation applied MPE Evaluation SAR Evaluation Limits for Maximum Permissible Exposure(MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 2 / 3 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 Friis transmission formula: P d =(P out *G)\(4*pi*R 2 ) Where P d = Power density in mW/cm 2 , P out =output power to antenna in mW. G= gain of antenna in linear scale, Pi=3.1416 R= distance between observation point and center of the radiator in cm=20cm P d the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the antenna and total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. For multiple RF sources: Multiple RF sources are exempt if: in the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation Evaluated k : the maximum reported SAR or MPE of fixed, mobile, or portable RF source k either in the device or at the transmitter site from an existing evaluation at the location of exposure. Exposure Limit k : either the general population/uncontrolled maximum permissible exposure (MPE) or specific Absorption rate (SAR) limit for each fixed, mobile, or portable RF source k. 3 / 3 Measurement Result 2.4G WIFI: Mode Max Measured Power (dBm) Tune up tolerance (dBm) Max tune up conducted power(dBm) Output Peak power (mW) Ant. Gain (dBi) Ant. Gain (numeric) Power density at 20cm (mW/ cm 2 ) Power density Limits (mW/ cm 2 ) 802.11b 15.42 15±1 16 39.811 2.15 1.641 0.017028 1 802.11g 14.91 15±1 16 39.811 2.15 1.641 0.017028 1 802.11n HT20 14.94 15±1 16 39.811 2.15 1.641 0.017028 1 802.11n HT40 13.9 14±1 15 31.623 2.15 1.641 0.013526 1 Signature: Shawn Wen Date: 2024-06-18

ProductCharacteristics Model: TransmitterFrequency: 2412MHz– 2484MHz ReceiverFrequency:2412MHz– 2484MHz RF-OutputPower (E.I.R.P): 20 dBm (802.11b); 15 dBm (802.11g); 15dBm(802.11n20); Type of Modulation:DSSS,OFDM Antennainformation: Antenna Name Model(s)/Type(s) RF Antenna Assembly Model/Part Number: N/A Manufacturer: ShenzhenRF sister Communicationco., Ltd. FrequencyRange:24 00 -2 500 MHz ConnectorType/ MaximumGain Integrated,2.15 dBi AntennaType/ Pattern: PCB Antenna Measurement: 15.7mm(L)*3mm(W)*0.8mm(T ) Fig.1: The dimensionof the PCB Antenna NL06A

TRF No.: 04-E001-1A TRF Originator: GTG TRF Date: 2022-06-29 Web: www.gtggroup.com E-mail: [email protected] Tel.: 86-400 755 8988 CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 3 (DTS) TEST REPORT For Nanoleaf WIFI module MODEL NUMBER: NL06A REPORT NUMBER: E04A24020436F00101 ISSUE DATE: June 6, 2024 FCC ID: 2AEWY-NL06A IC: 20489-NL06A Prepared for NANOGRID LIMITED ROOM 1301, 13/F,EXCEL CENTRE, 483A CASTLE PEAK ROAD, LAI CHI KOK KOWLOON, Hong Kong Prepared by Guangdong Global Testing Technology Co., Ltd. Room 101-105, 203-210, Building 1, No.2, Keji 8 Road, Songshan Lake Park, Dongguan city, Guangdong, People’s Republic of China, 523808 This report shall not be reproduced, except in full, without the written approval of Guangdong Global Testing Technology Co., Ltd. REPORT NO.: E04A24020436F00101 Page 2 of 92 TRF No.: 04-E001-1A Global Testing , Great Quality. Revision History Rev. Issue Date Revisions Revised By V0 June 6, 2024 Initial Issue REPORT NO.: E04A24020436F00101 Page 3 of 92 TRF No.: 04-E001-1A Global Testing , Great Quality. Summary of Test Results Test Item Clause Limit/Requirement Result Antenna Requirement N/A FCC Part 15.203/15.247 (c) RSS-GEN Clause 6.8 Pass AC Power Line Conducted Emission ANSI C63.10-2013, Clause 6.2 FCC Part 15.207 RSS-GEN Clause 8.8 N/A Conducted Output Power ANSI C63.10-2013, Clause 11.9.1.3 FCC Part 15.247 (b)(3) RSS-247 Clause 5.4 (d) Pass 6dB Bandwidth and 99% Occupied Bandwidth ANSI C63.10-2013, Clause 11.8.1 FCC Part 15.247 (a)(2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass Power Spectral Density ANSI C63.10-2013, Clause 11.10.2 FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass Conducted Band edge and spurious emission ANSI C63.10-2013, Clause 11.11 FCC Part 15.247(d) RSS-247 Clause 5.5 Pass Radiated Band edge and Spurious Emission ANSI C63.10-2013, Clause 11.11 & Clause 11.12 FCC Part 15.247 (d) FCC Part 15.205/15.209 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass Duty Cycle ANSI C63.10-2013, Clause 11.6 None; for reporting purposes only. Pass *This test report is only published to and used by the applicant, and it is not for evidence purpose in China. *The measurement result for the sample received is <Pass> according to <CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 3 (DTS)> when <Accuracy Method> decision rule is applied. REPORT NO.: E04A24020436F00101 Page 4 of 92 TRF No.: 04-E001-1A Global Testing , Great Quality. CONTENTS 1. ATTESTATION OF TEST RESULTS ............................................................................................ 5 2. TEST METHODOLOGY ................................................................................................................ 6 3. FACILITIES AND ACCREDITATION ............................................................................................ 6 4. CALIBRATION AND UNCERTAINTY .......................................................................................... 7 4.1. MEASURING INSTRUMENT CALIBRATION................................................................... 7 4.2. MEASUREMENT UNCERTAINTY ................................................................................... 7 5. EQUIPMENT UNDER TEST ......................................................................................................... 8 5.1. DESCRIPTION OF EUT .................................................................................................. 8 5.2. CHANNEL LIST ............................................................................................................... 9 5.3. MAXIMUM AVERAGE EIRP ............................................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ............................................................................... 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ................................................. 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ................................................................ 11 5.7. SUPPORT UNITS FOR SYSTEM TEST ........................................................................ 11 5.8. SETUP DIAGRAM ......................................................................................................... 11 6. MEASURING EQUIPMENT AND SOFTWARE USED ................................................................ 12 7. ANTENNA PORT TEST RESULTS ............................................................................................ 13 7.1. Conducted Output Power ............................................................................................... 13 7.2. 6dB Bandwidth and 99% Occupied Bandwidth............................................................... 15 7.3. Power Spectral Density .................................................................................................. 17 7.4. Conducted Band edge and spurious emission ............................................................... 19 7.5. Duty Cycle ..................................................................................................................... 21 8. RADIATED TEST RESULTS ...................................................................................................... 22 9. ANTENNA REQUIREMENT ....................................................................................................... 40 10. AC POWER LINE CONDUCTED EMISSION ................................................................ 41 11. TEST DATA ................................................................................................................... 43 APPENDIX: PHOTOGRAPHS OF TEST CONFIGURATION ............................................................ 88 APPENDIX: PHOTOGRAPHS OF THE EUT ..................................................................................... 90 REPORT NO.: E04A24020436F00101 Page 5 of 92 TRF No.: 04-E001-1A Global Testing , Great Quality. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: NANOGRID LIMITED Address: ROOM 130…
