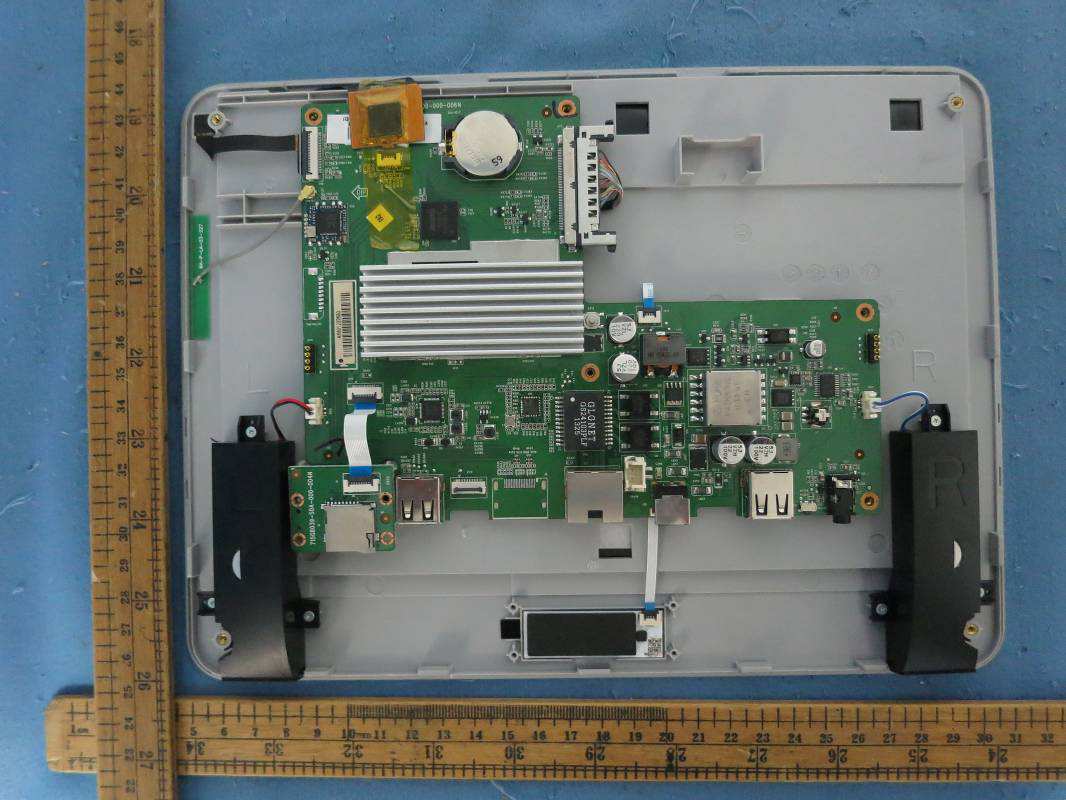

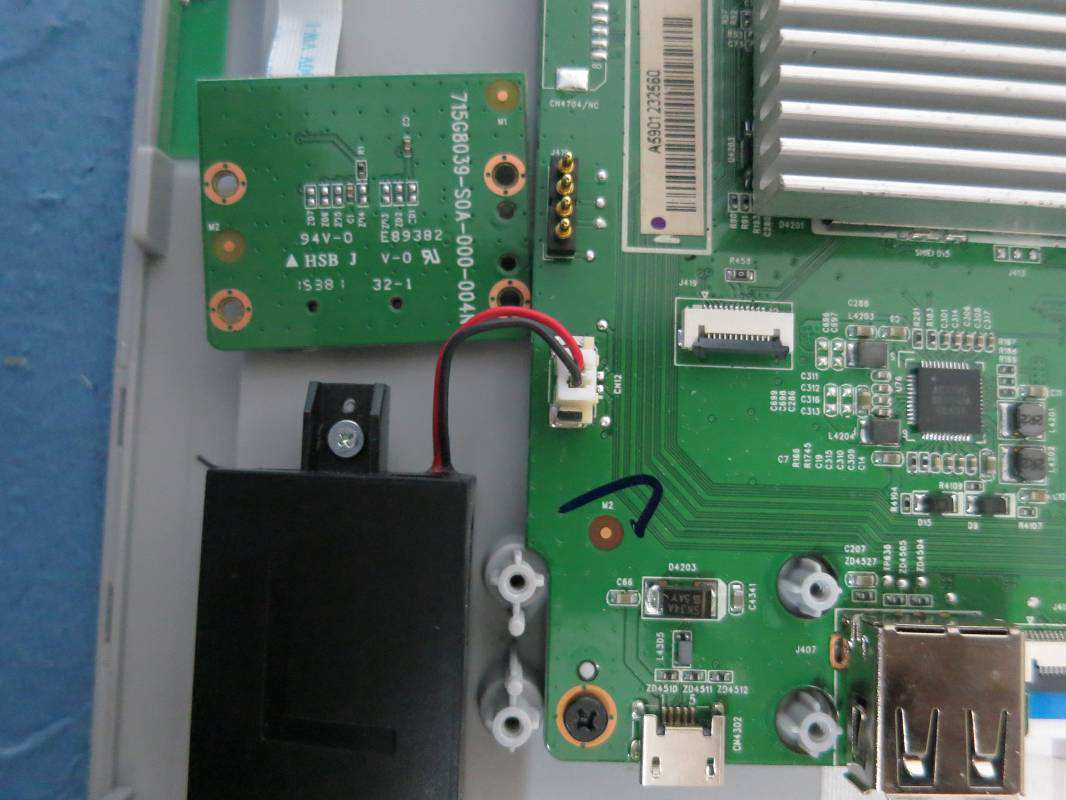

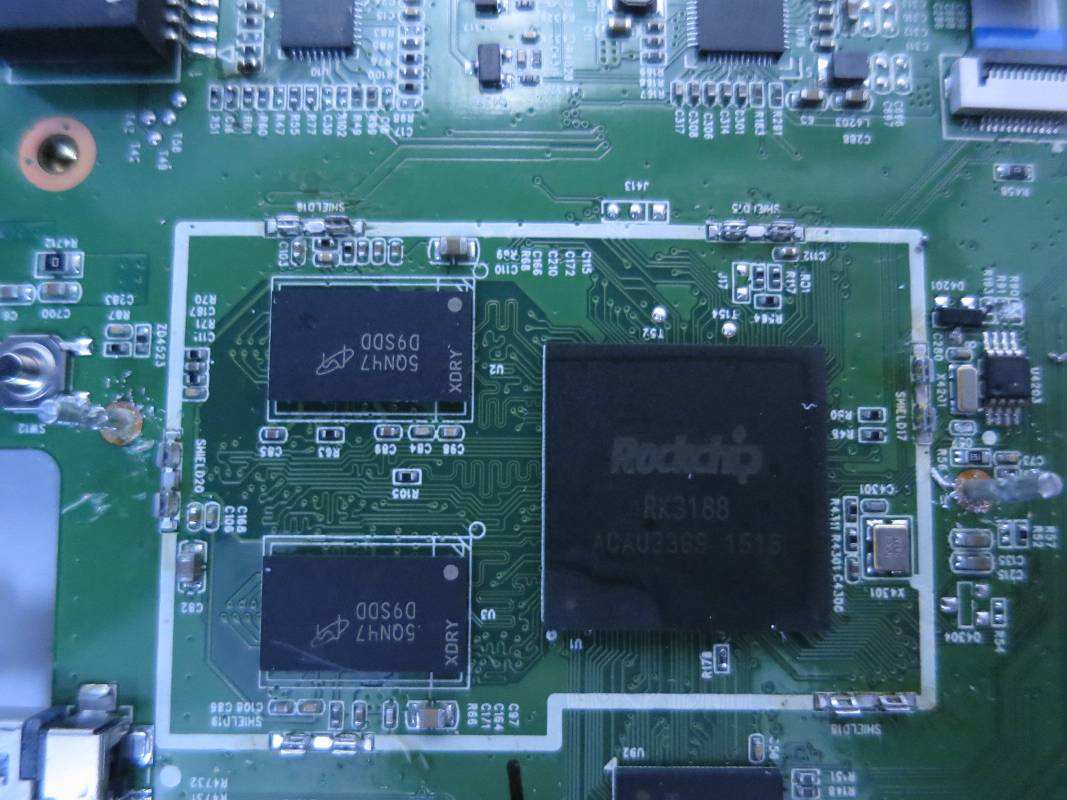

2AF82-D1050Panel PC

No 备注Remark: 内销中文字体要求高度1.8mm以上 Yes 针对带有UL logo的标签，其厂家须在 最小包装上标示UL Recognized Component Mark 公司名称， 型号及 UL file no. 嘉捷科技（福清）有限公司 TPV Electronics (Fujian) Co., Ltd. 地址(Add)：中国福建省福清市元洪路上郑 Shangzheng,Yuanhong Road, Fuqing City, Fujian Province, China 电话(Tel)：+86-591-85285555 85285559 传真(Fax)：+86-591-85285447 郵編(Postcode)：350301 条码印刷: barcode print: 1.所有条码读码等级：C级及以上， 客户有特殊要求除外； REVISION VERSION A 安规签核Safety parts: Yes No 1.印刷如上图 Printing as the drawing 2.尺寸:具体见上图所示 (公差：+/-0.2mm),R=2mm Dimension:as the above drawing(Tolerance:+/-0.2mm),R=2mm 3.材质：(材质需经过UL认证).50#PET带不干背胶 Material:50#PET with glue on the backside (material must be certified by UL laboratory) 4.底色：；字体颜色：黑色白色 Backgound color:, Fonts color:BlackWhite 5.贴附位置：后壳(如图示） 6.粘力：将label切成25mm宽，一端粘贴于钢板上，以180?方向的力拉胶带另一端，所得拉力即为粘力。用粘力测试仪进行测试. Stickiness strength :Cut label into 25mm width ,one end paste on the plate , with 180 ?direction pulling the other end of the tape, the pull is stickiness strength. With stickiness strength instrument for testing. 7.正常耐温测试：在钢板上耐温范围为-20～100，在80～100保持8小时后不翘角,不分层,不脱落,不起泡等. 在塑胶、纸箱上耐温范围为-20～65?C， 在65癈保持8小时后不翘角,不分层,不脱落,不起泡等. The normal temperature test: The range of temperature on plate is -20 ~ 100 ?C . In 80 ~ 100 ?C to maintain 8 hours , the label should not be warp,delamination,frothy and so on. The range of temperature on plastic and carton is -20 ~ 65 ?C. In 65 ?C to maintain 8 hours ,the label should not be warp, delamination,frothy and so on. 8.耐温湿度循环测试：循环条件（贴在塑胶咬花面（PET）贴在塑胶咬花面）：温度-20～65，湿度30～90％， 时间 96小时后不翘角不分层不脱落不起泡等. Temperature and humidity cycle test : Cycle conditions(stick on texture(PET) , stick on texture):In temperature of -20 ~ 65 ?C and humidity of 30～90％to maintain 96 hours , the label should not be warp,delamination,frothy and so on. 9.裁切需均匀且印刷不可有溢墨及颜色不均等不良现象. Printing ink can not have overflow and printing color can not be uneven etc. 10.包装方式：卷状，连接处打齿孔. Packing style: coil and there should be a toothed hole between the link of two pieces 11.两张连接处距离3mm，左右边离型纸3mm(公差：+/-0.5mm). 3mm should be left between the link of two pieces.Around the edge of paper distance is 3mm(Tolerance:+/-0.5mm) 12.内容由厂内打印，具体内容由业务提供。 The content printed by the factory barcode group and the specific content provided by SS. 13.其它测试要求详见（FQ-背胶类产品测试检验规格). NOTE: Q40XXXXX-XXX-XXX QBIC D-1050 EU/USA 粘贴位置示意图 Serial 编码原则： S/N:XXXXXXXX0 0 0 0 1 (SAMPLE CODE) 1 2 3 4 5 6 7 8 9 10 11 12 13 1~2 碼為年，年= 元年-1911，二碼。 3 碼為月，代如 1月= A，2月= B，3月= C，4月= D，5月= E，6月= J 7月= K，8月= L，9月= M，10月= X，11月= Y，12月= Z 4~6碼為種，同UPC code三碼，代如 001 : FHD-100 200 : TD-1050 201 : D-1050 7 碼為ODM/OEM英，ex. T：TPV 8 碼為硬(首為1) 9~13 碼為水，ex. 00001 範例：2015年11月生產的D-1050，代工TPV，本1，100。 S/N：０４Ｙ 2 ０ 1 T 1 ００１０0 3 0 . 0 0 m m Panel PC USB output: 5V 600mA each Model: lnput : D-1050 12V 1.5A Made in China WiFi MAC: XXXXXXXX 75.00 mm SN:Y201T10000104 LAN MAC:XXXXXXXX R1.0mm FCC ID : 2AF82-D1050 Panel PC USB output: 5V 600mA each Model: lnput : D-1050 12V 1.5A Made in China WiFi MAC: XXXXXXXX SN:Y201T10000104 LAN MAC:XXXXXXXX FCC ID : 2AF82-D1050

INTERTEK TESTING SERVICES FCC ID: 2AF82-D1050 R F Exposure report The Equipment Under Test (EUT) is an Panel PC with WiFi function operating at 2 4 1 2-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 9 channels with 5MHz channel spacing. The EUT was powered by AC/DC adaptor through AC120V/60Hz . For mo re detailed features description, please refer to the user’s manual. Modulation Type: BPSK, QPSK, 16QAM, 64QAM for OFDM. CCK, DQPSK, DBPSK f or DSSS. Antenna Type: Integral antenna Antenna Gain: 2.2dBi The nominal conducted output power specified: 20dBm (Tolerance: +/-3dB) The maximum conducted output power for the EUT is 21.98 dBm in the frequency 2.462GHz 802.11n-HT20 mode which is within the production variation. The minimum conducted output power for the EUT is 18.65dBm in the frequency 2.412GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in FCC Part 1.1310. The maximum EIRP= 20+3+2.2=25.2dBm=331.1mW The source-based time averaged maximum radiated power = 331.1 mW x Duty Cycle = 331.1mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET 65 as follow: = PG/4πR^2 = E I RP/4πR^2 = 331.1/ 4πR^2 = 0. 07 mW/cm^2 INTERTEK TESTING SERVICES FCC ID: 2AF82-D1050 T h e MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WiFi frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 100%. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

• The test results reported in this test report shall refer only to the sample actually tested and shall not refer or be deemed to refer to bulk from which such a sample ma y be said to have been obtained. • This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to copy or distribute this report. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results referenced from this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. • For Terms And Conditions of the services, it can be provided upon request. • The evaluation data of the report will be kept for 3 years from the date of issuance. TRF no.: FCC 15C_Tx_c In t ertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, D Block, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Tel: (86 755) 8601 6288 Fax: (86 755) 8601 6751 Website: www.china.intertek-etlsemko.com Q b i c technology Co., Ltd Application For Certification FCC ID: 2AF82-D1050 Panel PC Model: D-1050 Additional Model: D-10XX (The letters “X” in the model No. c a n be 0 to 9, A to Z or blank, for marketing use only) 2.4GHz WiFi Transceiver Report No.: 151016020SZN-003 We hereby certify that the sample of the above item is considered to comply with the requirements of FCC Part 15, Subpart C for Intentional Radiator, mention 47 CFR [10-1-14] Pre pared and Checked by: Approved by: Sign on file Harry Wu Engineer Andy Yan Senior Project Engineer Date: November 13, 2015 INTERTEK TESTING SERVICE TRF no.: FCC 15C_TX_c FCC ID: 2AF82-D1050 Report No.: 151016020SZN-003 i LIST OF EXHIBITS I N TRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labeling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Confidentiality Request EXHIBIT 10: Miscellaneous Information EXHIBIT 11: Test Equipment List INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_c FCC ID: 2AF82-D1050 Report No.: 151016020SZN-003 ii MEASUREMENT/TECHNICAL REPORT Panel PC Model: D-1050 FCC ID: 2AF82-D1050 This report concerns (check one) Original Grant X Class I Change Equipment Type: DTS - Part 15 Digital Transmission Systems (WiFi transmitter portion) Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [10-01-14] Edition] provision. Report prepared by: Harry Wu Intertek Testing Services Shenzhen Ltd. Kejiyuan Branch 6F, Block D, Huahan Building, Langshan Road, Nanshan District, Shenzhen, P. R. China Phone: (86 755) 8614 0695 Fax: (86 755) 8614 0716 INTERTEK TESTING SERVICES TRF no.: FCC 15C_TX_c FCC ID: 2AF82-D1050 Report No.: 151016020SZN-003 iii Table of Contents 1.0 Summary of Test results ............................................................................................................................. 2 2.0 General Description ...................................................................................................................................... 4 2.1 Product Description ..................................................................................................................................... 4 2.2 Related Submittal(s) Grants ....................................................................................................................... 5 2.3 Test Methodology ........................................................................................................................................ 5 2.4 Test Facility .. ................................................................................................................................................ 5 3. 0 S ystem Test Configuration ......................................................................................................................... 7 3.1 Justification .................................................................................................................................................. 7 3.2 EUT Exercising Software............................................................................................................................ 7 3.3 Special Accessories .................................................................................................................................... 7 3.4 Measurement Uncertainty .......................................................................................................................... 8 3.5 Equipment Modification .............................................................................................................................. 8 3.6 Support Equipment List and Description .. .............................................................................................. 8 4.0 Measurement Results................................................................................................................................. 10 4.1 Maximum Conducted Output Power at Antenna Terminals ..................................................................... 10 4.2 Minimum 6 dB RF Bandwidth .................…
