2AF82-TD1070LHPanel PC

TD-1070 Touch Panel PC Quick Start Guide This quick guide will help you go through installa�on quickly Contents Panel PC (TD-1070) Power Plug BracketTapeI/O CoverM3 screw *1 USEUUKAU M2 M3 Indica�on Installa�on 1.Cable connec�on 2. Tape Mount STEP 1 Connect cables. Device will power on when DC/PoE+ is inserted. STEP 2 Install I /O cover STEP 3 Fix 2* M2 screws STEP 1 A�ach tape on the back of bracket STEP 2 Place the bracket o n the back side of Panel PC STEP 3 Fasten M3 screw*1 to secure the bracket and back cover STEP 4 Fix the Panel PC on the surface using tape 3. Surface Mount STEP 1 Install bracket on surface (screws not included) This Panel PC is also compa�ble with VESA moun�ng (75mm x 75mm). It is recommended to secure with M3 screw. The suggested length of t he M3 screw is the thickness of VESA moun�ng bracket plus 8mm(Screw not included). Please ensure the moun�ng surface is clean and smooth before using the tape. M2 / M3 screw Torque<2 kgf-cm Installa�on height: <2M STEP 2 Mount the Panel PC on the bracket STEP 3 Fasten M3 screw*1 to secure the bracket and back cover NOTICE: 30° 30° M2 screw *2 (Provided by region) DC Power Adapter Bracket Kit Support siteQSG download link Optical Sensors Camera MIC 1 2 3 Display 4 Reset Button Side LED Front LED 5 6 7 Audio Jack 8 RJ45 / PoE+(36-57Vdc) USB Type C for ADB 9 10 11 Micro SDHC 12 USB 2.0DC 12V Kensington Lock Slot 13 14 1312 1110 9 8 7 4 5 14 6 1 23 Surface Prepara�on for Tape Applica�on Heavy Oils:A degreaser or solvent-based cleaner may be required to remove heavy oil or grease from a surface and should be followed by cleaning with IPA/water. Abrasion: Abrading a surface, followed by cleaning with IPA/water, can remove heavy dirt or oxida�on and can increase surface area to improve adhesion. Porous Surfaces: Most porous and fibered materials such as wood, particleboard, c oncrete etc. need to be sealed to provide a unified surface. Unique Materials: Special s urface preparation may be needed for glass and glass-like materials, copper and copper containing metals and plas�cs or rubber that contain components that migrate(e.g. plasticizers). To obtain op�mum adhesion, the bonding surfaces must be well unified, c lean and dry. Typical surface cleaning solvents are IPA/ water mixture (rubbing alcohol) o r heptane.* (Steps A and B) Bond strength is dependent upon the amount of adhesive-to- surface contact developed. Firm applica�on pressure develops be�er adhesive contact and helps improve bond strength. (Steps C and D) Generally, this means that t he tape should experience at l east 15 psi (100 kPa) in roll down or platen pressure. (Sources- page #4) A�er applica�on, the bond strength will increase as the adhesive flows onto the surface. At room temperature, approximately 50% of t he ul�mate strength will be achieved a�er 20 minutes, 90% a�er 24 hours and 100% a�er 72 hours. In some cases, bond strength can be increased and ul�mate bond strength can be achieved more quickly by exposure of t he bond to elevated temperatures(e.g. 150°F [66°C] f or 1 hour). Most substrates are best prepared by cleaning with a 50:50 mixture of i sopropyl alcohol (IPA) and water* prior to applying Tapes. There are excep�ons! Excep�ons to this general procedure that may require addi�onal surface prepara�on include: General Procedure NOTE : T hese cleaner solu�ons contain greater than 250 g/l of vola�le organic compounds (VOC). Please consult your l ocal Air Qualit y Regula�ons to be sure the cleaner i s compliant. When usin g solvents, be sure to follow the manufacturer’s precau�ons and direc�ons for use when handling such materials. IPA & Water Step A: Solvent wipe Step B: Wipe dry Step C: Apply tape to surface Step D: Roll finished joint Removal Variable Installa�on STEP 1 Remove the top screw connec�ng the TD-1070 to the bracket STEP 2 With both hands suppor�ng the top and bo�om of t he TD-1070 , carefully �lt the top sec�on of TD-1070 downward 30° STEP 3 Gently pull the TD-1070 down to remove from bracket STEP 4 Apply hot air gun to the tape beneath bracket un�l loose STEP 5 Slowly pull the tape and the bracket downward off the surface Discrete Cable Outlets The TD-1070 is designed for l andscape or portrait installa�on with a discreet cable management system. DO NOT remove bracket or tape from surface forcefully. Excessive force during removal may lead to damaged surface. NOTE: CARE AND WARNING WARNING : Changes or modifica�ons to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Correct disposal of t his product : This marking indicates that t his product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, use the return and collec�on systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. The power consump�o n of t he product i n networked standby is 5.26W which all wired network ports are connected and all wireless network ports are ac�vated. FCC & CE RF radia�on Exposure Statement Cau�on : To maintain compliance with the FCC & CE`s RF exposure guidelines. Place the product at l east 20cm from nearby persons. NOTE : Opera�ng Temperature: 0~40°C Qbic Technology Co.,Ltd. 26F.-12,No.99.Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: 886-2-2697-2000 FAX:886-2-2697-2868 NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t o Part 15 of t he FCC Rules. These limits are designed to provide reasonable protec�on against harmful interferenc e in a residen�al installa�on. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instruc�ons, …

Text truncated - open the document above for the full version.

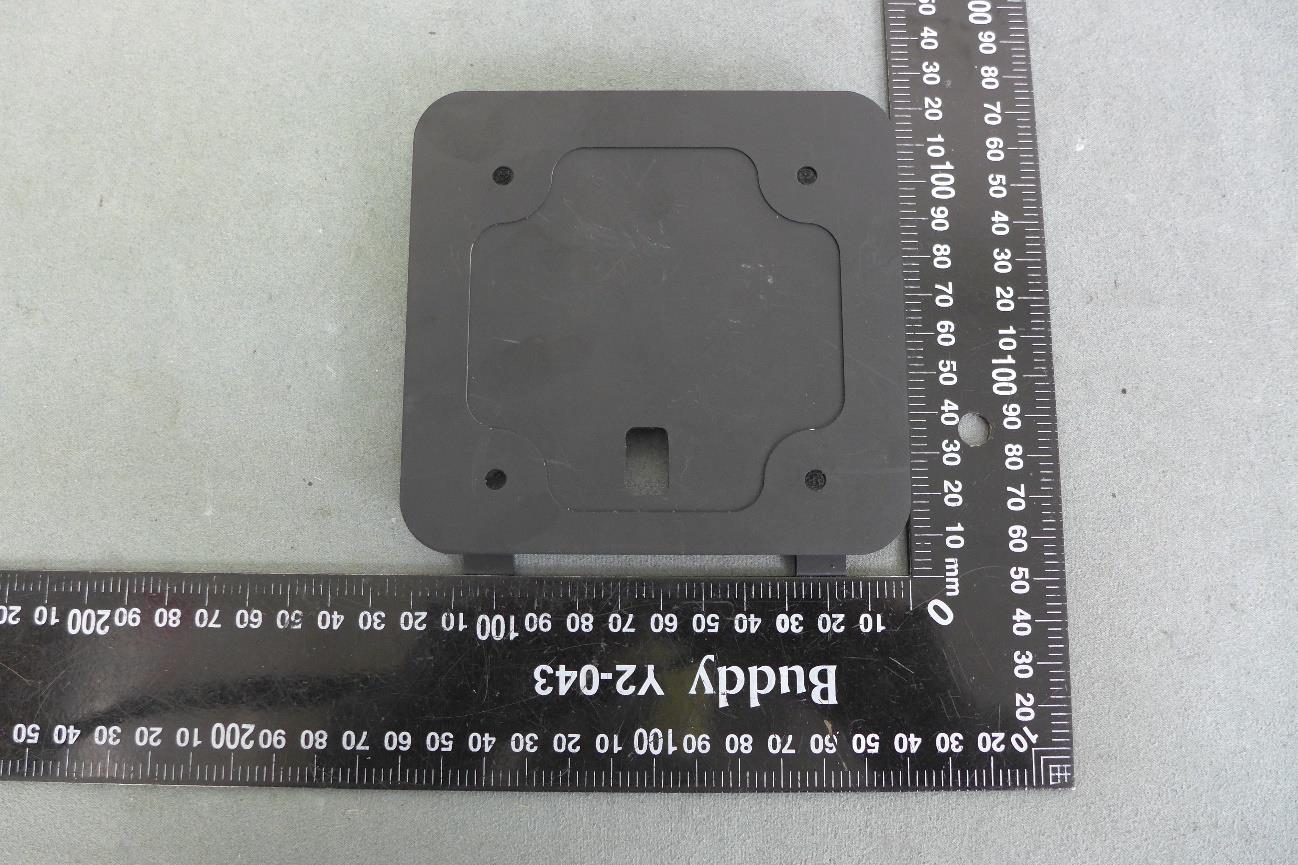

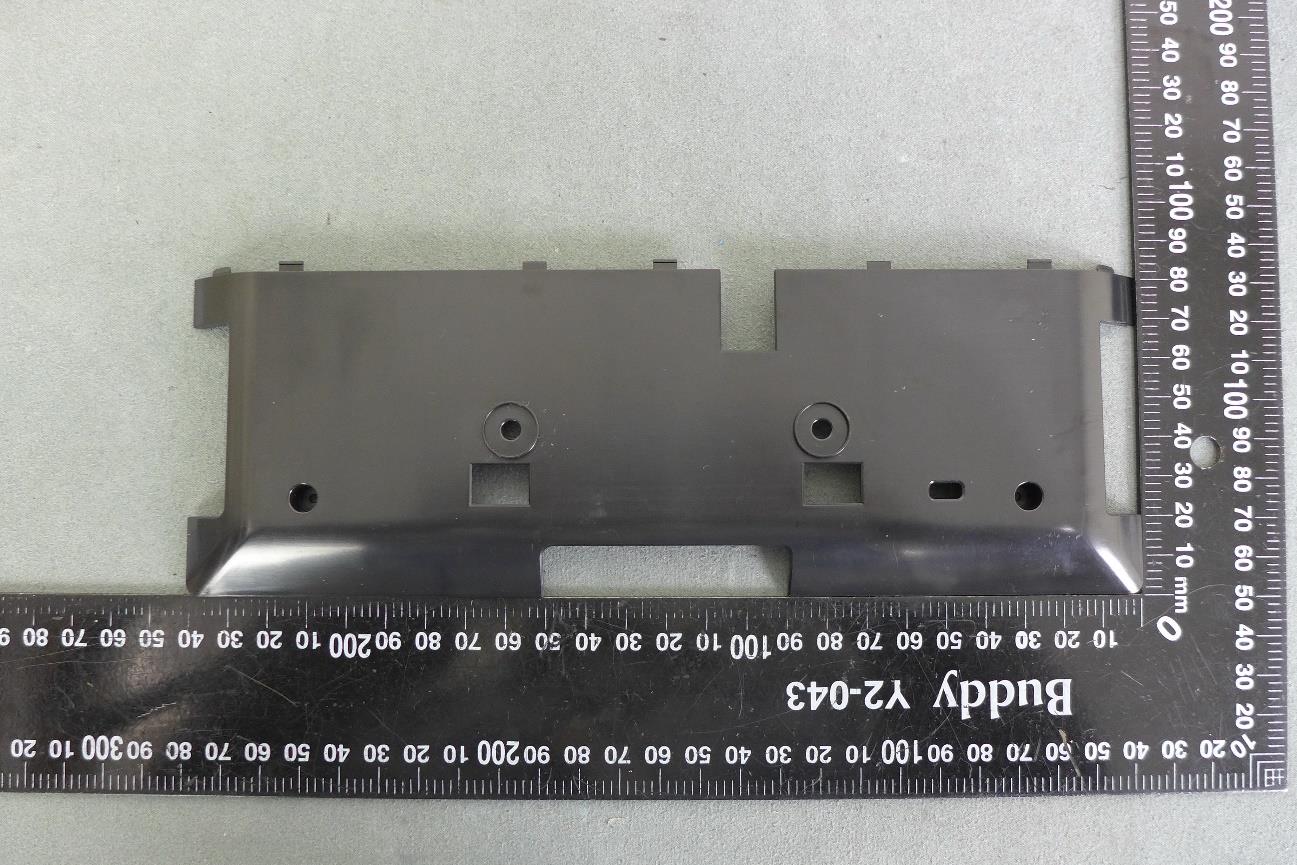

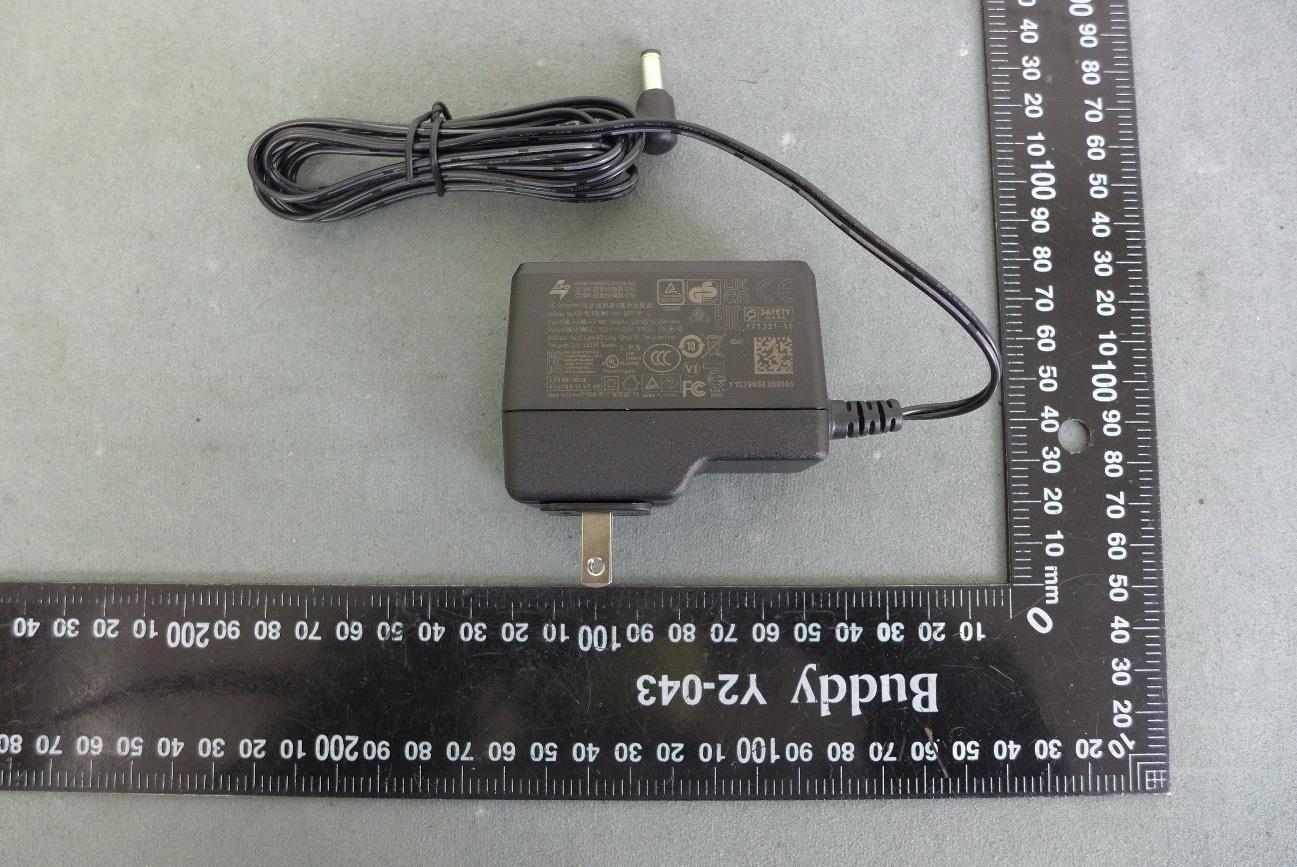

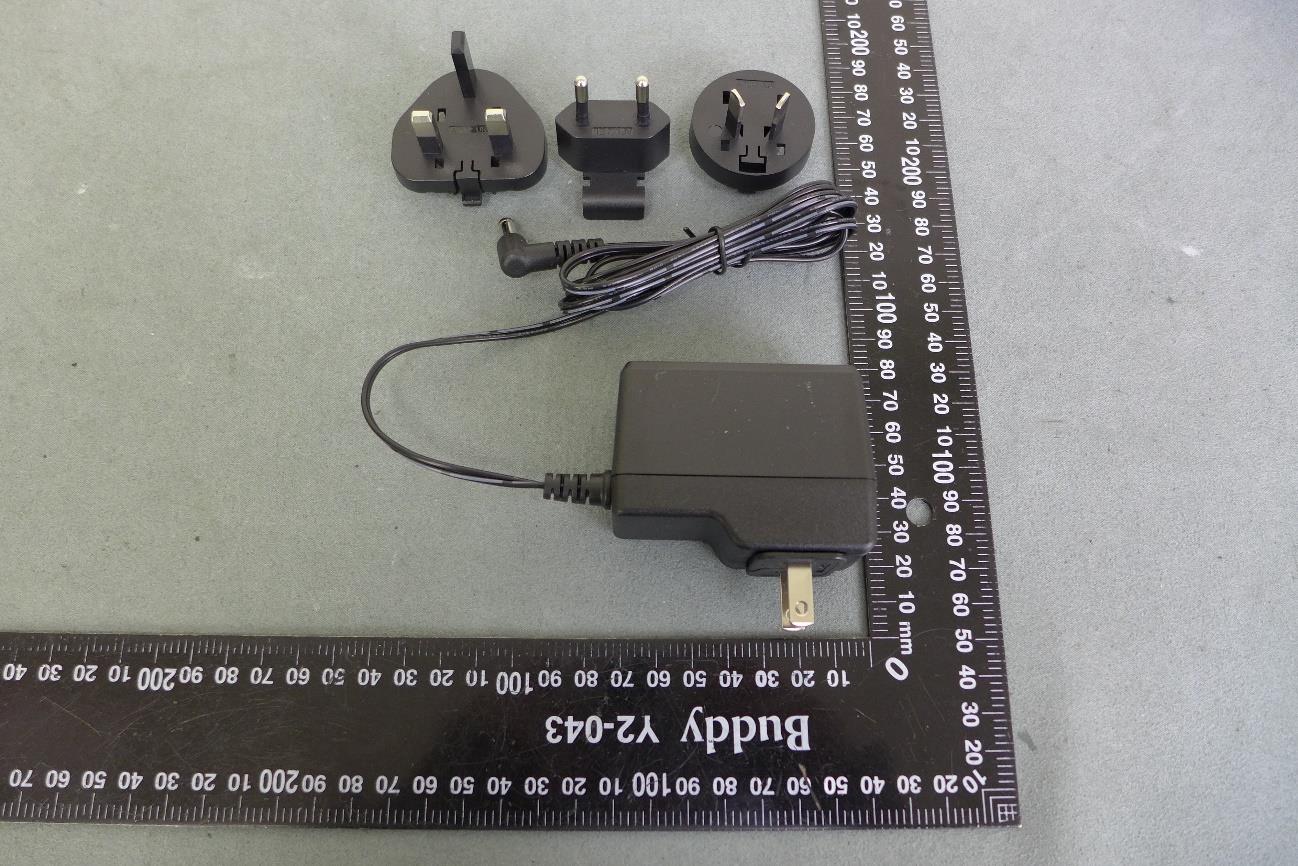

Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 1 of 40 TD-1070 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 2 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 3 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 4 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 5 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 6 of 40 TD-1070 Lite Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 7 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 8 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 9 of 40 Adapter / WA-30P12R Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 10 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 11 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 12 of 40 Plastic back shell Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 13 of 40 wall mount

Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 14 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 15 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 16 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 17 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 18 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 19 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 20 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 21 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 22 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 23 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 24 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 25 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 26 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 27 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 28 of 40

Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 29 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 30 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 31 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 32 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 33 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 34 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 35 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 36 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 37 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 38 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 39 of 40 Appendix No.: EP-2201T135B-1 APPENDIX-EUT PHOTOS Project No.:2201T135B Page 40 of 40

Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 1 of 10 Report Version: R00 Human Exposure Report FCC ID: 2AF82-TD1070LH Report No. : BTL-FCCP-4-2201T135B Equipment : Panel PC Model Name : TD-1070, TD-1070 Lite, TD-107XXXXXX (where "X" may be any alphanumeric, blank "_" or "-" for marketing purpose only) Brand Name : Qbic Applicant : Qbic Technology Co., Ltd. Address : 26F.-12, NO.99, SEC. 1, XINTAI 5TH RD., XIZHI DIST., NEW TAIPEI CITY 22175, TAIWAN Standard(s) : 47 CFR § 1.1310 Date of Receipt : 2024/5/14 Date of Test : 2024/6/14 ~ 2024/7/2 Issued Date : 2024/7/22 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eddie Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 2 of 10 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 3 of 10 Report Version: R00 CONTENTS REVISION HISTORY 4 1 GENERAL INFORMATION 5 1.1 TEST FACILITY 5 1.2 REFERENCE TEST GUIDANCE 5 2 TEST RESULTS 5 2.1 LIMITS 5 2.2 MEASUREMENT DATA 6 3 LIST OF MEASURING EQUIPMENTS 7 4 EUT TEST PHOTO 8 Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 4 of 10 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-4-2201T135B R00 Original Report. 2024/7/22 Valid Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 5 of 10 Report Version: R00 1 GENERAL INFORMATION 1.1 TEST FACILITY The test locations stated below are under the TAF Accreditation Number 0659. The test location(s) used to collect the test data in this report are: No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (FCC DN: TW0659) ☐ SAR01 ☒ SAR02 1.2 REFERENCE TEST GUIDANCE KDB680106 D01 Wireless Power Transfer v04 2 TEST RESULTS 2.1 LIMITS For 47 CFR PART 1, Subpart I, Section 1.1310: Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (m/W/cm 2 ) Averaging time (minutes) (A) Limits for Occupational / Controlled Exposures 0.3-3.0 614 1.63 *(100) 6 3.0-30 1842/f 4.89/f *(900/f 2 ) 6 30-300 61.4 0.163 1.0 6 300-1500 / / f/300 6 1500-100000 / / 5 6 (B) Limits for General Population / Uncontrolled Exposures 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100000 / / 1.0 30 F=frequency in MHz *=Plane-wave equivalent power density RF exposure compliance will need to be determined with respect to 1.1307(c) and (d) of the FCC rules. The emissions should be within the limits at 300kHz in Table 1 of 1.1310 (use the 300kHz limits for 150kHz: 614V/m, 1.63A/m). For KDB680106 D01: For devices designed for typical desktop applications, such a RHINOSHIELD Wireless Charging Pads, RF exposure evaluation should be conducted assuming a user separation distance of 15 cm. E and H field strength measurements or numerical modeling may be used to demonstrate compliance. Measurements should be made from all sides and the top of the primary/client pair, with the 15 cm measured from the center of the probe(s) to the edge of the device. Emissions between 100 kHz to 300 kHz should be assessed versus the limits at 300 kHz in Table 1 of Section 1.1310: 614 V/m and 1.63 A/m. A KDB inquiry is required to determine the applicable exposure limits below 100 kHz. Report No.: BTL-FCCP-4-2201T135B Project No.: 2201T135B Page 6 of 10 Report Version: R00 2.2 MEASUREMENT DATA Electric Field Emissions: Test Position(20 cm) Probe Measure Results (V/m) Limit (V/m) intermediate charge Front 80.12 614 Back 69.03 614 Left 44.79 614 Right 41.72 614 Top 46.77 614 Bottom 48.69 614 Note:The maximum Probe Measure Results of this EUT is 80.12 V/m, less than 307 V/m(614 *50%). Magnetic Field Emissions: Test Position(20 cm) Probe Measure Results (A/m) Limit (A/m) intermediate charge Front 0.61 1.63 Back 0.58 1.63 Left 0.53 1.63 Right 0.54 1.63 Top 0.48 1.63 Bottom 0.56 1.63 Note: Th…

Text truncated - open the document above for the full version.

Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 1 of 33 Report Version: R00 FCC Radio Test Report FCC ID: 2AF82-TD1070LH Report No. : BTL-FCCP-2-2201T135B Equipment : Panel PC Model Name : TD-1070, TD-1070 Lite, TD-107XXXXXX (where "X" may be any alphanumeric, blank "_" or "-" for marketing purpose only) Brand Name : Qbic Applicant : Qbic Technology Co., Ltd. Address : 26F.-12, NO.99, SEC. 1, XINTAI 5TH RD., XIZHI DIST., NEW TAIPEI CITY 22175, TAIWAN Radio Function : RFID (125 kHz) FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C (15.209) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2024/5/14 Date of Test : 2024/6/14 ~ 2024/7/2 Issued Date : 2024/7/22 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Eddie Lee, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 2 of 33 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 3 of 33 Report Version: R00 CONTENTS REVISION HISTORY 4 1 SUMMARY OF TEST RESULTS 5 1.1 TEST FACILITY 6 1.2 MEASUREMENT UNCERTAINTY 6 1.3 TEST ENVIRONMENT CONDITIONS 6 2 GENERAL INFORMATION 7 2.1 DESCRIPTION OF EUT 7 2.2 TEST MODES 9 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 10 2.4 SUPPORT UNITS 11 3 AC POWER LINE CONDUCTED EMISSIONS TEST 12 3.1 LIMIT 12 3.2 TEST PROCEDURE 12 3.3 DEVIATION FROM TEST STANDARD 12 3.4 TEST SETUP 13 3.5 TEST RESULT 13 4 RADIATED EMISSIONS TEST 14 4.1 LIMIT 14 4.2 TEST PROCEDURE 14 4.3 DEVIATION FROM TEST STANDARD 14 4.4 TEST SETUP 15 4.5 EUT OPERATING CONDITIONS 15 4.6 TEST RESULT – 9 KHZ TO 30 MHZ 15 4.7 TEST RESULT – 30 MHZ TO 1 GHZ 15 5 20 DB BANDWIDTH 16 5.1 LIMIT 16 5.2 TEST PROCEDURE 16 5.3 DEVIATION FROM TEST STANDARD 16 5.4 TEST SETUP 16 5.5 EUT OPERATING CONDITIONS 16 5.6 TEST RESULT 16 6 LIST OF MEASURING EQUIPMENTS 17 7 EUT TEST PHOTO 18 8 EUT PHOTOS 18 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 19 APPENDIX B RADIATED EMISSIONS - 9 KHZ TO 30 MHZ 24 APPENDIX C RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 29 APPENDIX D 20 DB BANDWIDTH 32 Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 4 of 33 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2201T135B R00 Original Report. 2024/7/22 Valid Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 5 of 33 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.209 Radiated Emissions APPENDIX B APPENDIX C Pass ------ 15.215(c) 20 dB Bandwidth APPENDIX D Pass ------ NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. Report No.: BTL-FCCP-2-2201T135B Project No.: 2201T135B Page 6 of 33 Report Version: R00 1.1 TEST FACILITY The test locations stated below are under the TAF Accreditation Number 0659. The test location(s) used to collect the test data in this report are: No. 68-1, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (FCC DN: TW0659) ☐ C05 ☐ CB08 ☐ CB11 ☐ SR10 ☒ SR11 No. 68-2, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (FCC DN: TW0659) ☒ SR05 No. 72, Ln. 169, Sec. 2, Datong Rd., Xizhi Dist., New Taipei City 221, Taiwan (FCC DN: TW0659) ☐ C06 ☒ CB21 ☐ CB22 1.2 MEASUREMENT UNCERTAINTY The reported uncertainty of measurement y ± U, where expanded uncertainty U is based on a standard uncertainty multiplied by a coverage factor of k = 2, providing a level of confidence of approximately 95 %. The measurement instrumentation uncertainty considerations contained in CISPR 16-4-2. The BTL measurement uncertainty is less than the CISPR 16-4-2 U cispr requirement. A. AC power line conducted emissions test: Test Site Method Measurement Frequency Range U (dB) SR05 CISPR 150 kHz ~ 30…

Text truncated - open the document above for the full version.

Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 产品规格书 Smarfid产品型号：TH6M22S Qbic料号：BRFNFC6M22002 版 本：V2.0.1 版本 日期 版本更新记录 校准 V2.0.0 2023.06.02 增加产品照片包装 V2.0.1 2023.09.14 天线模块规格修改更新，图片更新，读卡距离修改 V2.0.1 2023.10.12 新增Qbic料号 : BRFNFC6M22002 Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 接口方式 FPC端子 通讯协议 IIC接口,100Kbps SMARFID自定义协议 工作电压 5+/- 0.2 VDC 静态电流 <150 mA 工作电流 <150 mA 工作温度 0~60 ° 工作湿度 10~90% RH，无结露 模块尺寸 50*14*4.5mm 天线尺寸 54*14.7*3.65mm RF 频率 13.56MHz+/-50ppm and 125KHz 读卡速度 <1s 读卡间隔 <2s 支持配置卡 配置读取的卡片类型； 配置发送的数据长度 主要技术参数 Dual Tech Mini Module (125KHz&13.56MHz) Smarfid Model Number: TH6M22S Qbic Number：BRFNFC6M22002 Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 序 号 卡片技术 操作 平板读距 1 MIFARE Classic CSN，可扩展读内容 1cm~1.5cm 2 MIFARE Ultralight CSN，可扩展读内容 1cm~1.5cm 3 MIFARE Desfire EV1 CSN，可扩展读内容 0.5cm~1cm 4 MIFARE Desfire EV2 CSN，可扩展读内容 0.5cm~1cm 5 MIFARE Plus CSN，可扩展读内容 0.5cm~1cm 6 SONY Felica CSN Only 1cm~1.5cm 7 HID iClass CSN Only 1cm~2cm 8 HID iClass SE CSN Only 1cm~2cm 9 HID iClass SR CSN Only 1cm~2cm 10 HID iClass Seos CSN Only 每次读卡CSN不同 1cm~2cm 11 HID 202x/203X iCLASS PROX Prox(125KHz) or CSN (双技术卡，读卡时需要关闭125K或13.56M 射 频) 1cm~1.5cm 12 HID 1431 MifareProx Prox(125KHz) or CSN (双技术卡，读卡时需要关闭125K或13.56M 射 频 1cm~1.5cm 13 HID 1326 PROXCARD II Prox(125KHz) 1cm~2cm 14 HID 1336 DuoProx II Prox(125KHz) 1cm~2cm 15 HID 1597 Smart ISOProx II Prox(125KHz) 1cm~2cm 16 HID 1598 Smart DuoProx II Prox(125KHz) 1cm~2cm 17 HID 1391 MicroProx tag Prox(125KHz) 1cm~2cm 18 HID 1346 ProxKey III Prox(125KHz) 1cm~2cm 19 iCode CSN Only 1cm~2cm 20 Legic Advant ATC128/ATC2048 CSN Only 1cm~2.5cm 21 China CPU CSN Only 1cm~1.5cm 22 EM CSN only 1cm~1.5cm 23 CEPAS(New and old Card) CSN only 贴读0.1cm~0.5cm *最终参数以实际产品为准。 支持的卡片技术 测试刷卡位置： Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 尺寸: (mm) 仅供参考，以实际为准 模块 天线 Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 产品照片与包装 产品照片： Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 产品照片与包装 包装： Dual Tech Module_TH6M22S_V2.0.1_2023-10-12 产品照片与包装 包装： TH6M22S 一箱500pcs 尺寸：53*30*30cm 毛重：7.7KG

Appendix No.: TP-2201T135B-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2201T135B Page 1 of 3 AC Power Line Conducted Emissions test photos Appendix No.: TP-2201T135B-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2201T135B Page 2 of 3 Radiated emissions test photos 9 kHz to 30 MHz Appendix No.: TP-2201T135B-FCCP-1 APPENDIX-TEST PHOTOS Project No.: 2201T135B Page 3 of 3 Radiated emissions test photos 30 MHz to 1 GHz
