2AF82-FHD200Box PC

Box PC Quick Start Guide FHD-200 This quick guide will help you go through installation quickly Color and appearance may be subject to changes upon product enhancements or updates without prior notice. QUICK START GUIDE D CARE AND WARNING QUICK START GUIDE Qbic Technology Co., Ltd. www.qbictechnology.com Tel: +886-2-2697-2000 Power Adaptor information: Model No.: PSM10R-050 INPUT: 100~240VAC, 0.25~0.5 A OUTPUT: 5V 2A MAX 10.0W Adaptor must be used with this equipment to ensure compliance with the Class B FCC limits. RTC Battery Caution Risk of explosion if battery is replaced by an incorrect type. Disposed of used batteries according to the instructions. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Operation Temperature: 0~60°C (32~140°F) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. FCC Radiation Exposure Statement This device complies with FCC radiation exposure limits set forth for an uncontrolled environment and it also complies with Part 15 of the FCC RF Rules. This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. End-users and installers must be provided with antenna installation instructions and consider removing the no-collocation statement. NOTE: 4k60p outputs only in YUV420 color space. WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio / box PC technician for help. QBP05001UKB01 To download QSG in different language, please go to the website: https://qrgo.page.link/NtCC8 If you have any problem to access the website, please send your request with the device serial number to [email protected] Indicators B 0 PP[ 0 PP[ Content Box PC HDMI Cable (Option) Quick Start Guide VESA Mounting KitVelcro Tie x 2Power Plug (Provided by regions) for USfor CE for UKfor AUS A Power Adaptor Installation C 21698 7 354 DC-5V 1 USB 3.0 2 USB 2.0 3 HDMI 4 LAN 5 Status Light 7 Micro SD 9 ADB (Service) 6 Reset Button 8 3. Velcro Mount 1. Cable Connections Step 1.Step 2.Step 3.Step 4. * Please ensure the mounting surface is smooth and clean before using the velcro strip. * Velcro mount should only be used when device height is less than 2 meters from the ground. QUICK START GUIDEQUICK START GUIDE 2. VESA Mount Step 1.Step 2. Screw 2 screws to secure the VESA mount bracket onto the system Screw 4 screws onto the back of a VESA 75/75-compatible display Surface • Metal • Glass • Plastic PowerUSB 3.0 USB 2.0 HDMILAN DC 5VUSB 3.0ADBUSB 2.0HDMI RJ45 Micro SD Antenna

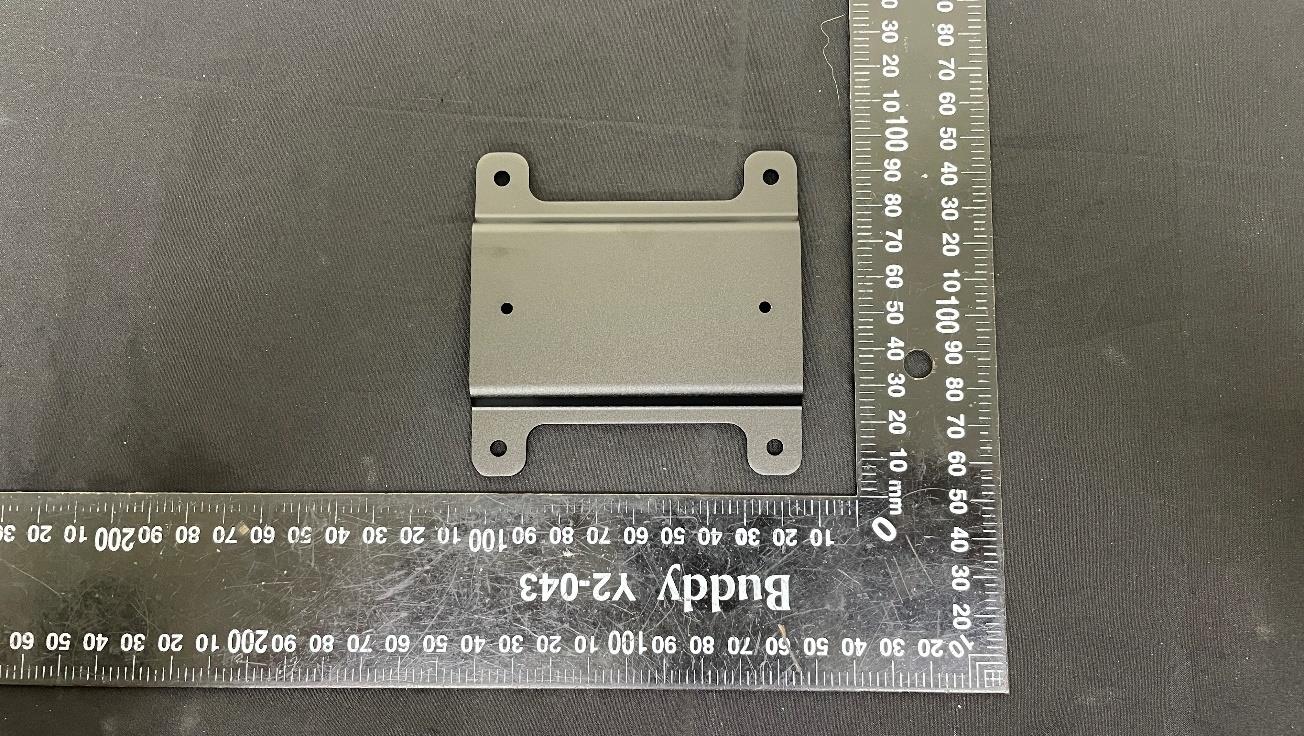

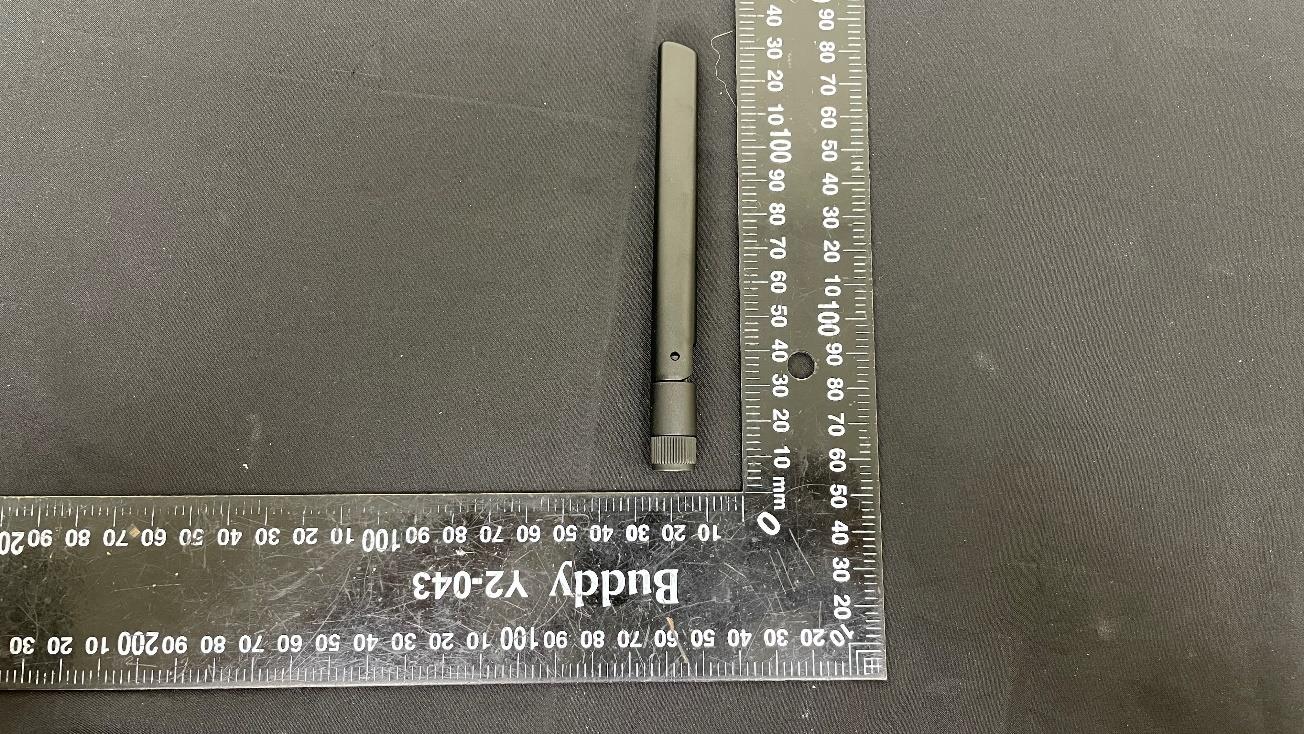

Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 1 of 21 FHD-200 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 2 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 3 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 4 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 5 of 21 VESA Mounting Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 6 of 21 Veicro Tie Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 7 of 21 Antenna Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 8 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 9 of 21 Adapter: PSM10R-050 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 10 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 11 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 12 of 21

FCC ID: 2AF82-FHD200 BOX PC 精簡型電腦 CCXXXXXXXXXXXX Model/FHD-200 Input/5V 2A IS 13252(Part1) IEC 60950-1 R-XXXXXXXX www.bis.gov.in THOMAS SAMUEL FCC ID: 2AF82-FHD200 BOX PC 精簡型電腦 CCXXXXXXXXXXXX Model/FHD-200 Input/5V 2A IS 13252(Part1) IEC 60950-1 R-XXXXXXXX www.bis.gov.in THOMAS SAMUEL 2024.04.25 FHD-200 Product Label SN : LMNOPQRSTUVWXYZ WiFi MAC : 12345678901 LAN MAC : ABCDEFGHIJK 60 mm (+/-0.1mm) 36 mm (+/-0.1mm)

Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 13 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 14 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 15 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 16 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 17 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 18 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 19 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 20 of 21 Appendix No.: EP-2104T005D-2 APPENDIX-EUT PHOTOS Project No.: 2104T005D Page 21 of 21

Report No.: BTL-FCCP-5-2104T005D Project No.: 2104T005D Page 1 of 8 Report Version: R00 FCC RF Exposure Report FCC ID: 2AF82-FHD200 Report No. : BTL-FCCP-5-2104T005D Equipment : Box PC Model Name : FHD-200 Brand Name : Qbic Applicant : Qbic Technology Co., Ltd. Address : 26F.-12, NO.99, SEC. 1, XINTAI 5TH RD., XIZHI DIST., NEW TAIPEI CITY 22175, TAIWAN FCC Rule Part(s) : 47 CFR § 2.1091 IEEE C95.1 Date of Receipt : 2024/5/28 Date of Test : 2024/6/24 ~ 2024/7/31 Issued Date : 2024/8/9 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Brett Shen, Engineer Approved by : Jerry Chuang, Supervisor BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-5-2104T005D Project No.: 2104T005D Page 2 of 8 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture’s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL’s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer’s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-5-2104T005D Project No.: 2104T005D Page 3 of 8 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-5-2104T005D R00 Original Report. 2024/8/9 Valid Report No.: BTL-FCCP-5-2104T005D Project No.: 2104T005D Page 4 of 8 Report Version: R00 1. LIMITS According to § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 6 minutes to determine compliance with occupational/controlled SAR limits. (c) The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. (e) Limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields (Table 1). Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1.500 f/300 <6 1.500-100.000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1.500 f/1500 <30 1.500-100.000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. Report No.: BTL-FCCP-5-2104T005D Project No.: 2104T005D Page 5 of 8 Report Version: R00 2. APPLIED EXEMPTION CRITERIA Refer to KDB 447498 D04, ticked item is applied: For RF Exposure Test Exemptions for Single Source: ☐ 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless …
