2AF82-FHD100BOX PC

This quick guide will help you go through installation quickly The colour and the appearance may differ depending on the product, and the specifications are subject to change without prior notice to improve the performance. Box PC FHD-100 Quick Start Guide QUICK START GUIDE Qbic Technology Co.,Ltd. 11F.-9,No.99.Sec.1, Xintai 5th Rd., Xizhi Dist., New Taipei City 221, Taiwan(R.O.C) Tel: 886-2-2697-2000 FAX: 886-2-2697-2868 CARE AND WARNING WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/panel PC technician for help. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received,including interference that may cause undesired operation. Correct Disposal of this product. This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. “ FCC & CE RF Radiation Exposure Statement Caution: To maintain compliance with the FCC & CE’s RF exposure guidelines, place the product at least 20cm from near by persons. ” Power Adapter information: Model No.: KSASB0241200150D5 INPUT: 100-240V~50/60Hz 0.6A OUTPUT: 12V 1.5A QUICK START GUIDE D QUICK START GUIDEQUICK START GUIDE A Contents B Indication C Installation DC 12V LAN USB USB ADB Micro SDHC Reset WiFi Antenna Lock Hole RS-232 Audio Out S/PDIF Setsrew*3 DC Power Adapter 1 12345678 9 10 11 12 13 14 2 3 4 5 6 7 8 9 10 11 12 HDMI USB 13 14 1. Cables connection Step 1Step 2Step 3Step 4 Step 1Step 2Step 3 Step 1Step 2Step 3 2. Surface Mount 3. Glass Mount Box PC External Antenna Air Mouse CoverMicro SD card cover Quick Start Guide DC Cover VelcroHDMI Cable Power Plug ( Provided by regions） for UK for EUfor US for AU Air mouse (optional) W A L L W A L L W A L L G L A S S G L A S S

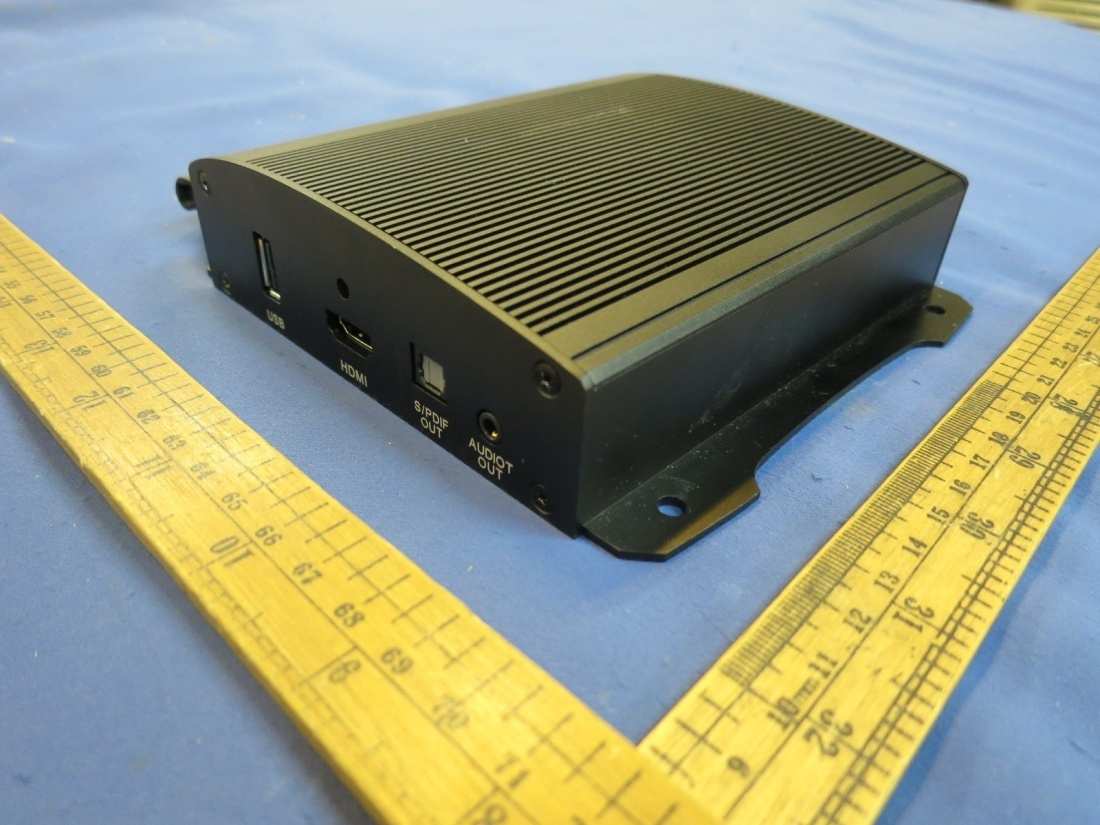

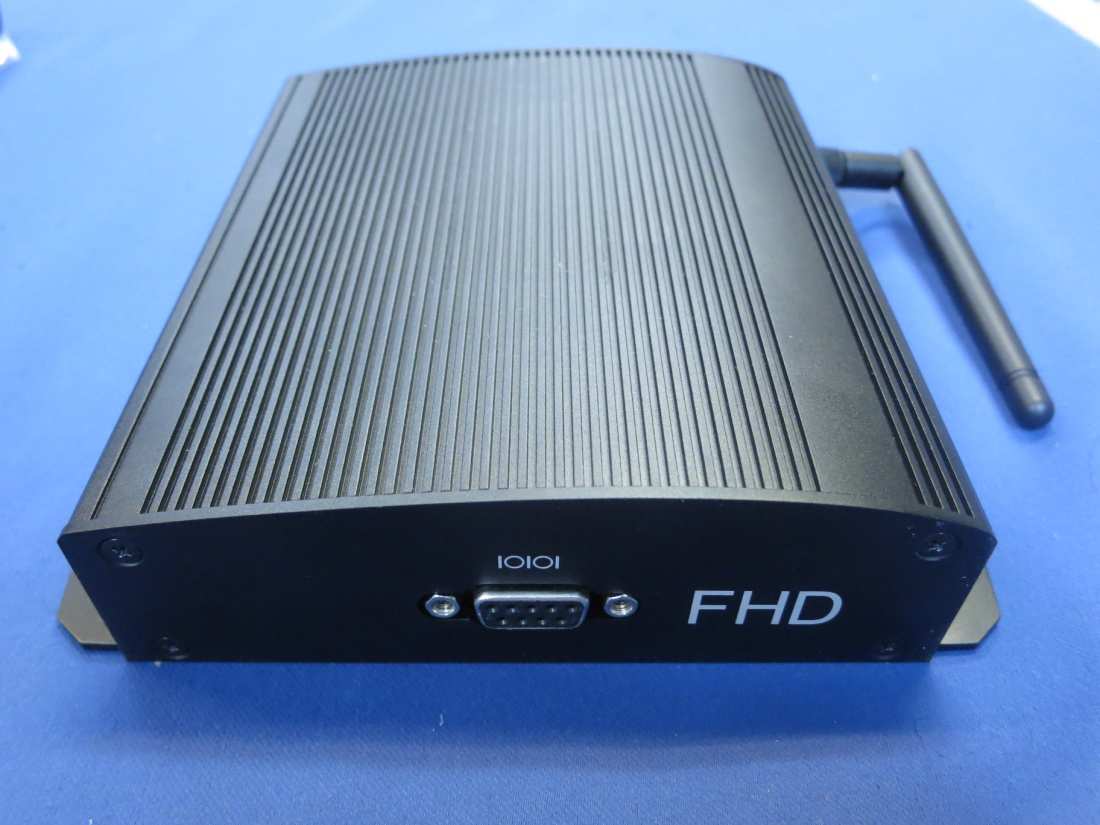

External Photos

Internal Photos

FCC ID: 2AF82-FHD100 INTERTEK TESTING SERVICES RF Exposure report The Equipment Under Test (EUT) is a BOX PC with WiFi function operating at 2412-2462MHz for 802.11b/g/n-HT20, 11 channels with 5MHz channel spacing and 2422-2452MHz for 802.11n-HT40, 9 channels with 5MHz channel spacing. The EUT was powered by AC/DC adaptor through AC120V/60Hz. For more detailed features description, please refer to the user’s manual. M odulation Type: BPSK, QPSK, 16QAM, 64QAM, CCK, DQPSK, DBPSK. Antenna Type: dedicated Antenna with nonstandard antenna jack Antenna Gain: -1.0dBi The nominal conducted output power specified: 20dBm (Tolerance: +/-3dB) The maximum conducted output power for the EUT is 22.62 dBm in the frequency 2 .462GHz 802.11g mode which is within the production variation. The minimum conducted output power for the EUT is 19.49dBm in the frequency 2.412GHz 802.11b mode which is within the production variation. According to FCC Part 2.1091, this unlicensed transmitting devices is categorically excluded from routine environmental evaluation for RF exposure prior to equipment authorization or use. According to the KDB 447498 and FCC Part 1.1310, the simple calculation as below: For Maximum Permissible Exposure (MPE) evaluation of the product, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in FCC Part 1.1310. The maximum E.I.R.P= = 20+3-1.0=22dBm=158.5mW The source-based time averaged maximum radiated power = 158.5 x Duty Cycle = 158.5mW From above data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to FCC Part 1.1310 as follow: = 158.5 / 4πR^2 = 0.03 mW/cm^2 The MPE limit is 1.0 mW/cm^2 for general population and uncontrolled exposure in the WiFi frequency range according to FCC Part 1.1310. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can FCC ID: 2AF82-FHD100 be ensured by indicating the minimum 20cm separation between the transmitter's radiating structure and body of the user or nearby persons. Transmitter Duty Cycle Calculation The EUT transmit continuously during the test, the duty cycle is 1. The following RF exposure statement or similar sentence is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”
