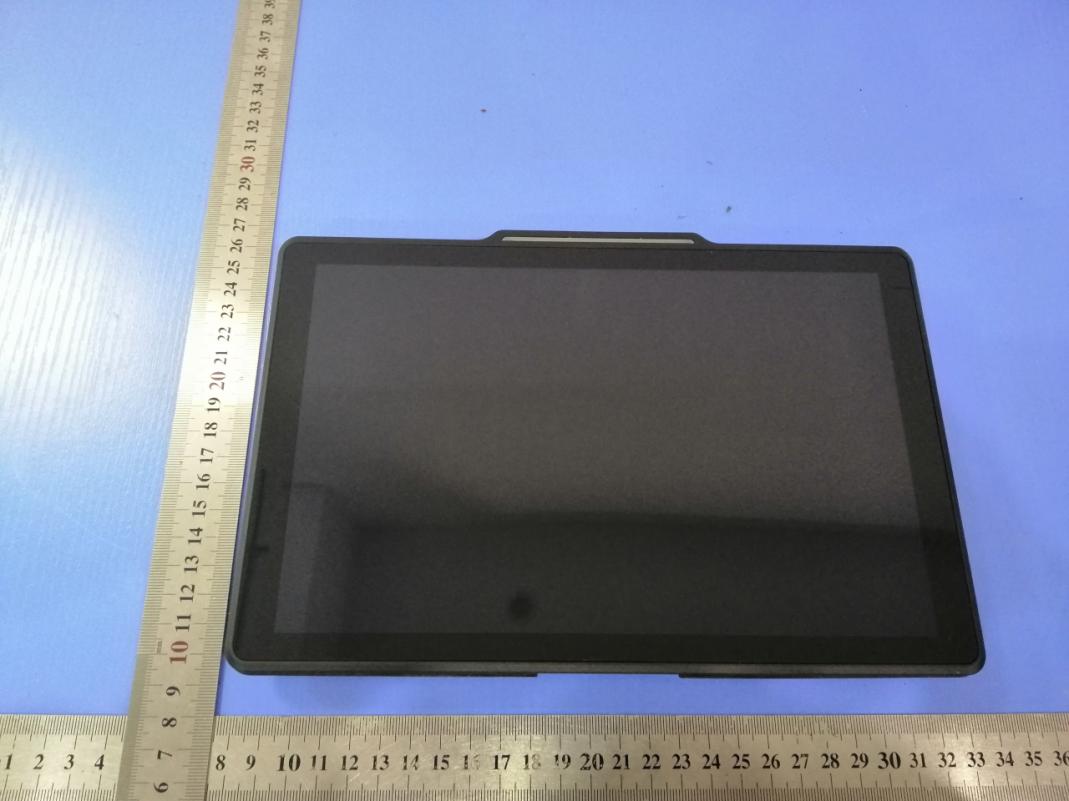

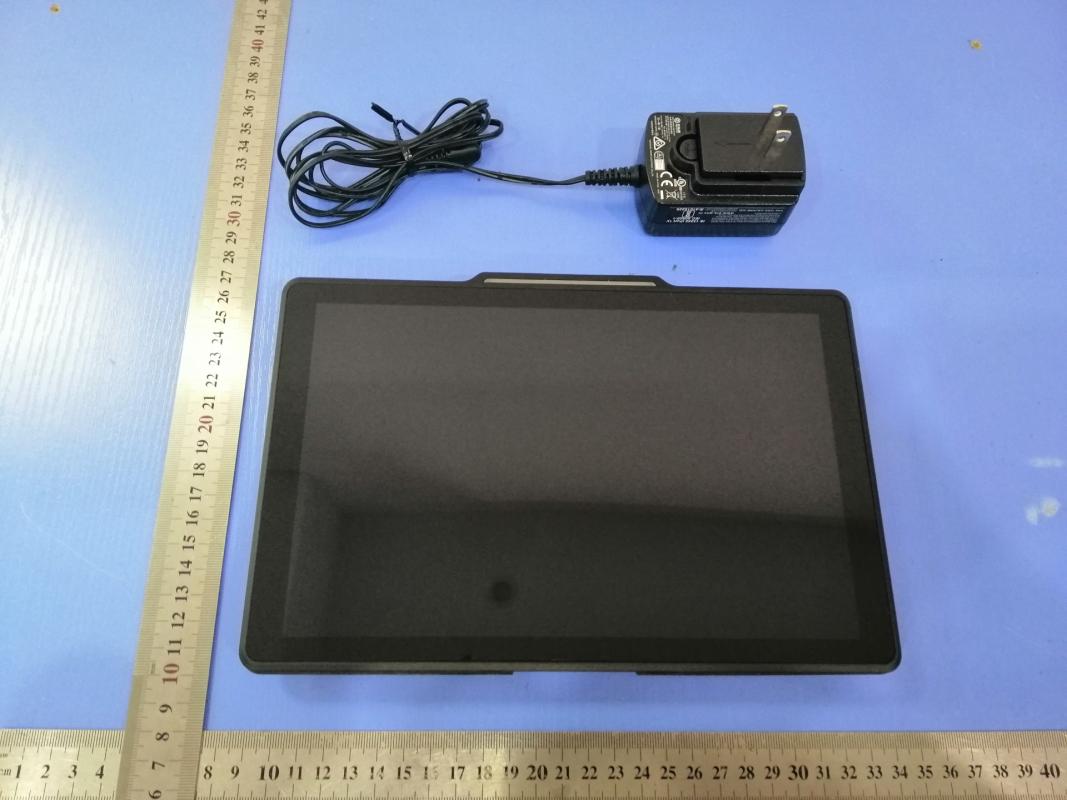

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 External Photos of the EUT Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. _____________________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd.. Page 1 of 1 LABEL AND LOCATION (Size: L4.0m x 7.0cm) Material: Tagboard Glue: adhesive sticker Font color: White Label color: Black Label Location Model No.: TD-1060 Slim FCC ID: 2AF82-TD1060S Input: For Adapter:Input:100-240V~50/60Hz Max/0.7A Output:12V1.5A This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Made In China

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 Internal Photos of the EUT Fig. 1 Fig. 2 BT/WLAN Antenna NFC Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 7 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 7 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 6 of 7 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 7 of 7 Fig. 13

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AF82-TD1060S Product name PANEL PC Model number TD-1060 Slim,TD-1060XXXXXX（X = 0~9 , A~Z ,a~z） Power supply For Adapter:Input:100-240V~50/60Hz Max/0.7A Output:12V1.5A Operation frequency IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz Bluetooth: 2402MHz-2480MHz 5.2GHz Band:5180~5240MHz 5.8GHz Band:5745~5825MHz NFC: 13.56MHz Modulation Type IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK,BPSK) GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.0 (DSS) GFSK for Bluetooth V5.0 (DTS) IEEE 802.11a/n/ac: OFDM(64QAM, 16QAM, QPSK, BPSK) NFC: ASK Channel Number 11 Channels for 20MHz bandwidth(2412~2462MHz) 79 Channels for Bluetooth V5.0(BDR/EDR) 4 channels for 20MHz bandwidth(5180MHz-5240MHz) 2 channels for 40MHz bandwidth(5190MHz~5230MHz) 1 channels for 80MHz bandwidth(5210MHz) 5 channels for 20MHz bandwidth(5745MHz-5825MHz) 2 channels for 40MHz bandwidth(5755MHz~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) 1 channels for NFC Antenna Type PIFA Antenna Antenna Gain 1.99dBi(Max.) for BT and WIFI; 0dBi(Max.) for NFC Hardware version / Software version / Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device 2.Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g hed a or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 4. Conducted Power and Manufacturing Tolerance [BT Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) Peak Max. Tune Up Power (dBm) GFSK BT LE 0 2402 -4.933 -4.0±1.0 19 2440 -7.296 -7.0±1.0 39 2480 -4.246 -4.0±1.0 GFSK 0 2402 -4.165 -4.0±1.0 39 2441 -6.296 -6.0±1.0 78 2480 -3.541 -3.0±1.0 π/4DQPSK 0 2402 -4.941 -4.0±1.0 39 2441 -6.970 -6.0±1.0 78 2480 -4.221 -4.0±1.0 8DPSK 0 2402 -4.649 -4.0±1.0 39 2441 -7.403 -7.0±1.0 78 2480 -4.362 -4.0±1.0 [2.4GWLAN Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) Peak Max. Tune Up Power (dBm) IEEE 802.11b 1 2412 7.45 7.0±1.0 6 2437 7.13 7.0±1.0 11 2462 9.04 9.0±1.0 IEEE 802.11g 1 2412 10.49 10.0±1.0 6 2437 8.07 8.0±1.0 11 2462 7.9 7.0±1.0 IEEE 802.11n HT20 1 2412 10.43 10.0±1.0 6 2437 10.82 10.0±1.0 11 2462 10.1 10.0±1.0 [5.2GWLAN Max Conducted Power] Mode Channel Frequency(MHz) Max Conducted Power (dBm) Average Max. Tune Up Power …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 1 of 47 Appendix A Product Name: PANEL PC Trade Mark: Qbic Test Model: TD-1060 Slim Environmental Conditions Temperature: 22.7C Relative Humidity: 53.4% ATM Pressure: 100.0 kPa Test Engineer: Li Huan Supervised by: Tom.Liu A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH -4.165 30 PASS MCH -6.296 30 PASS HCH -3.541 30 PASS π/4DQPSK LCH -4.941 30 PASS MCH -6.970 30 PASS HCH -4.221 30 PASS 8DPSK LCH -4.649 30 PASS MCH -7.403 30 PASS HCH -4.362 30 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9659 Not Specified PASS MCH 1.024 Not Specified PASS HCH 1.035 Not Specified PASS π/4DQPSK LCH 1.290 Not Specified PASS MCH 1.308 Not Specified PASS HCH 1.310 Not Specified PASS 8DPSK LCH 1.296 Not Specified PASS MCH 1.303 Not Specified PASS HCH 1.297 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.157 0.690 PASS MCH 0.870 0.690 PASS HCH 1.158 0.690 PASS π/4DQPSK LCH 1.358 0.873 PASS MCH 1.010 0.873 PASS HCH 1.042 0.873 PASS 8DPSK LCH 0.918 0.869 PASS MCH 0.958 0.869 PASS HCH 1.044 0.869 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -4.489 -37.178 -24.489 PASS MCH -6.645 -37.791 -26.645 PASS HCH -3.899 -38.101 -23.899 PASS π/4DQPSK LCH -6.055 -38.033 -26.055 PASS MCH -7.826 -38.100 -27.826 PASS HCH -5.033 -37.200 -25.033 PASS 8DPSK LCH -6.574 -37.677 -26.574 PASS MCH -8.294 -37.020 -28.294 PASS HCH -6.091 -37.951 -26.091 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2A…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR Qbic Technology Co., Ltd. PANEL PC Test Model:TD-1060 Slim Additional Model No.: TD-1060XXXXXX（X = 0~9 , A~Z ,a~z） Prepared for : Qbic Technology Co., Ltd. Address : 26F.-12, No. 99, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22175, Taiwan Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : Jan 17, 2020 Number of tested samples : 1 Serial number : Prototype Date of Test : Jan 17, 2020~ Feb 25, 2020 Date of Report : Feb 27, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS200103018AEA Date of Issue ................................... : Feb 27, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Shajing Street, Baoan District, Shenzhen, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Qbic Technology Co., Ltd. Address ........................................... : 26F.-12, No. 99, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22175, Taiwan Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : PANEL PC Trade Mark ...................................... : Qbic Test Model ...................................... : TD-1060 Slim Ratings ............................................ : For Adapter:Input:100-240V~50/60Hz Max/0.7A Output:12V1.5A Result ........................................... : Positive Tested by: Compiled by: Approved by: Vera Deng / Administrators Jin Wang/ Technique principal Gavin Liang / Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200103018AEA Feb 27, 2020 Date of issue Test Model.............................. : TD-1060 Slim EUT......................................... : PANEL PC Applicant............................... : Qbic Technology Co., Ltd. Address................................... : 26F.-12, No. 99, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22175, Taiwan Telephone............................... : +886-2-26972000#130 Fax.......................................... : +886-2-326972868 Manufacturer......................... : Qbic Technology Co., Ltd. Address................................... : 26F.-12, No. 99, Sec. 1, Xintai 5th Rd., Xizhi Dist., New Taipei City 22175, Taiwan Telephone............................... : +886-2-26972000#130 Fax.......................................... : +886-2-326972868 Factory................................... : Lite-On Network Communication(Dongguan) Limited-G-PRO Address................................... : 30# Qingxi Keji Rd., Qingxi Town, Dongguan City, Guang Dong, P. R. China Telephone............................... : 0769-87318190#203 Fax.......................................... : 0769-87318155 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 Feb 27, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S Report No.: LCS200103018AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ............................................................................................................ 6 1.1 Description of Device (EUT) ................................................................................................................. 6 1.2 Support equipment List ......................................................................................................................... 7 1.3 External I/O Cable ........................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 2 Test Setup Photos of the EUT Test Setup Photo(s) of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AF82-TD1060S _______________________________________________________________________________________________ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 2 Test Setup Photo(s) of Conducted Emissions Measurement Fig. 3
