2AFGR-APS2530SZigBee Module

User Manual for APS2530S The model used ZigBee PRO protocol to send RF signals for device communication. The model can be used after pairing with a dedicated device which was installed with a receiver dongle. APS2530S was used as a dongle which need to be installed in customer’s device. It offers UART to communicate with customer’s device according predefined protocol. 1: product figure (APS2530S) 2: Technical specifications RF operating frequency: 2405MHz ~ 2480MHz Reference frequency: 2.400GHz Channel spacing: 5MHz Channel wide：2MHz Modulation method: OQPSK Communication rate: 250Kbps Output power: 6.85dBm Communication mechanism: applied ZigBee frequency hopping mechanism, passively frequency hopping. Average operating current：<10mA Operating voltage：2V-3.6V Max remitting current: 20mA Max rate：250Kbit/s Receiving sensitivity： -95dbm Receiving current：<24mA Normal operating receiving distance： 100M 3: Warning - Do not disassemble, repair, modify or replace the remote control Unit or any of its components. EF Radiation Exposure and Hazard Statement: - To ensure compliance with FCC RF exposure requirement, this device must be installed in a location such that antenna of the device will b greater than 20cm away from all persons. Using higher gain antennas and types of antennas not covered under the FCC certification of this product is not allowed. Installers of the radio and end users of the product must adhere to installation instructions provided in this manual. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. - Non-modification Statement: Use only the whip antenna supplied by the manufacturer when operating this device. Unauthorized antennas, modifications, or attachments, could damage the device and violate FCC regulations. Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. - Please comply with the national and international flight safety regulations when using device during your flight trip. - Operating for this product is between -40°C~65°C. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation - This radio transmitter (IC: 20481- APS2530S, Model: APS2530S) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - Cet émetteur radio a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous avec le gain maximal admissible indiqué Les types d'antennes ne figurent pas dans cette liste, ayant un gain supérieur au gain maximum indiqué pour ce type, sont strictement interdits pour une utilisation avec cet appareil - Antenna Type: Ipex connector with the whip antenna - Antenna Gain: 2.0dBi - Hardware Version: APS2530 V2.1 - Software Version: Inverter_V2.0.5 - User manual of the end product: In the user manual of the end product, the end user has to be informed that the equipment complies with FCC radio-frequency exposure guidelines set forth for an uncontrolled environment. The end user has to also be informed that any changes or modifications not expressly approved by the manufacturer could void the user's authority to operate this equipment. If the size of the end product is smaller than 8x10cm, then additional FCC part 15.19 statement is required to be available in the user manual: This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Important Note: In the event that these conditions cannot be met, such as the certain laptop configuration or co-location with another transmitter, and then this FCC authorization is no longer considered valid and the FCC ID cannot be used on the final product any more. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product and obtaining a separate FCC authorization End product labeling: The transmitter module is authorized only for use in device where the antenna may be installed such that 20cm may be maintained between the antenna and users. The final end product must be labeled in a visible area with the following: “Contains FCC ID: 2AFGR- APS2530S”. Manual information to the end user: The OEM integrator has to be aware not to provide information to the end user regarding how to install or remove this RF module in the user manual of the end product which integrates this module. The end user manual shall include all required regulatory information/warning statement as they are shown in this manual IC Radiation Exposure Statement: This module complies with the relevant IC radiation exposure limits set forth for an uncontrolled environment. This module should be installed and operated with the minimum distance 20cm between the radiator and the end user. Ce module est conforme aux limites IC d'exposition aux radiations pertinentes énoncées pour un envi incontrôlée. Ce module doit être installé et utilisé avec le 20cm de distance minimale entre le radiateur et l'utilisateur final Important Note: In the event that these conditions cannot be met, such as the certain laptop configuration or co-location with another transmitter, and then the IC authorization is no longer considered valid and the IC number cannot be used on the final product any more. In these circumstances, the OEM integrator will be responsible for re-evaluating the end product and obtaining a separa…

Text truncated - open the document above for the full version.

Altenergy Power System Inc. 2015-8-4 Federal Communications Commission Authorization and Evaluation Division FCC ID：2AFGR-APS2530S Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description 4. BOM The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Kevin Lu Signature Name/Title: Kevin Lu/ engineer Applicant: Altenergy Power System Inc. ADDRESS: No.1, Yatai Road, Jiaxing Zhejiang 314050 P.R. China TEL: 0573-83986309 FAX: 0573-83986966 Email: [email protected]

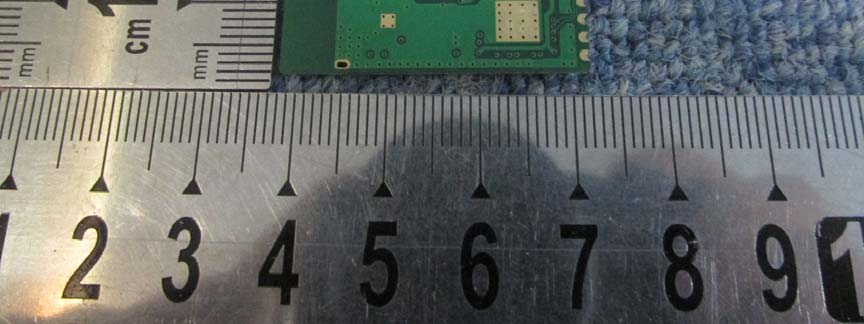

EUT Photo

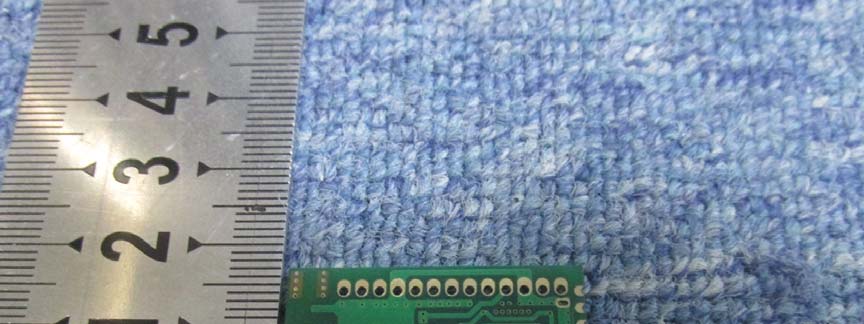

EUT Photo

Report No.: SET2015-11565 CCIC-SET/T（00） Page 1 of 34 RF TEST REPORT Report No.: SET2015-11565 Product Name: Zigbee Module FCC ID: 2AFGR-APS2530S IC: 20481-APS2530S Model No. : APS2530S Applicant: Altenergy Power System Inc. Address: No.1, Yatai Road, Jiaxing Zhejiang 314050 P.R. China Dates of Testing: 07/15/2015 — 07/24/2015 Issued by: CCIC-SET Lab Location: Electronic Testing Building, Shahe Road, Xili, Nanshan District, Shenzhen, 518055, P. R. China Tel: 86 755 26627338 Fax: 86 755 26627238 This test report consists of 34 pages in total. It may be duplicated completely for legal use with the approval of the applicant. It should not be reproduced except in full, without the written approval of our laboratory. The client should not use it to claim product endorsement by CCIC-SET. The test results in the report only apply to the tested sample. The test report shall be invalid without all the signatures of testing engineers, reviewer and approver. Any objections must be raised to CCIC-SET within 20 days since the date when the report is received. It will not be taken into consideration beyond this limit. Report No.: SET2015-11565 CCIC-SET/T（00） Page 2 of 34 Test Report Product Name ...................... : Zigbee Module Brand Name ......................... : APsystems Trade Name .......................... : N/A Applicant .............................. : Altenergy Power System Inc. Applicant Address ............... : No.1, Yatai Road, Jiaxing Zhejiang 314050 P.R. China Manufacturer ........................ : Altenergy Power System Inc. Manufacturer Address ........ : No.1, Yatai Road, Jiaxing Zhejiang 314050 P.R. China Test Standards ..................... : 47 CFR Part 15 Subpart C：Radio Frequency Devices RSS-247 Issue 1, May 2015 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices Test Result ........................... : PASS Tested by ............................ : 2015.07.24 Lu Lei， Test Engineer Reviewed by ......................... : 2015.07.24 Zhu Qi, Senior Egineer Approved by ........................ : 2015.07.24 Wu Li’an，Manager Report No.: SET2015-11565 CCIC-SET/T（00） Page 3 of 34 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................... 4 1.1. EUT Description ....................................................................................................................... 4 1.2. Test Standards and Results ........................................................................................................ 5 1.3. Description of test modes .......................................................................................................... 6 1.4. Test environment and mode ...................................................................................................... 6 1.5. Test Facilities ............................................................................................................................ 7 2. 47 CFR PART 15C REQUIREMENTS .................................................................................... 8 2.1. Antenna requirement ................................................................................................................. 8 2.2. Output Power ............................................................................................................................ 9 2.3. Bandwidth ............................................................................................................................... 10 2.3.7. Conducted Band Edges and Spurious Emissions .................................................................... 14 2.4. Power spectral density (PSD) ................................................................................................. 19 2.5. Conducted Emission ............................................................................................................... 22 2.6. Radiated Band Edge and Spurious Emission .......................................................................... 26 3. LIST OF MEASURING EQUIPMENT ................................................................................. 34 Change History Issue Date Reason for change 1.0 2015.07.24 First edition Report No.: SET2015-11565 Page 4 of 34 1. General Information 1.1. EUT Description EUT Type Zigbee Hardware Version APS2530 V2.1 Software Version Inverter_V2.0.5 Power Supply 3.3V Temperature operating range -40~85°C EUT supports Radios applicationZigbee Frequency Range 2405MHz~2480MHz Channel Number 16 Bit Rate of Transmitter 250 kbps Modulation Type O-QPSK Antenna Type whip Antenna Antenna Gain 2dBi Note 1: The EUT is a Zigbee Module, it contain Zigbee Module operating at 2.4GHz ISM band; the frequencies allocated for the zigbee is F(MHz)=2405+5*(n-11) (11<=n<=26). The lowest, middle, highest channel numbers of the Zigbee Module used and tested in this report are separately 11 (2405MHz), 18(2440MHz) and 26 (2480MHz). Note 2: For a more detailed description, please refer to Specification or User’s Manual supplied by the applicant and/or manufacturer. Report No.: SET2015-11565 Page 5 of 34 1.2. Test Standards and Results The objective of the report is to perform testing according to 47 CFR Part 15 Subpart C for the EUT FCC Certification: No. Identity Document Title 1 47 CFR Part 15 Subpart C 2013 Radio Frequency Devices 2 ANSI C63.10 2013 American National Standard for Testing Unlicensed Wireless Devices 3 RSS-GEN: Issue 4,November 2014 General Requirements and Information for the Certification of Radio Apparatus 4 RSS-247 Issue 1, May 2015 Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices Test detailed items/section required by FCC rules and results are as below: No. Standard(s) Section Description Result FCC IC 1 15.203 8.3 Antenna Requirement PA S S 2 15.247(b)(3) RSS-247 Issue1 - 5.…
