2AFP2-PQ-FC81Wireless Charging Power Bank

Preface ThankyouforpurchasingtheShenzhenPowerqiTechnologyCo.Ltdproducts. Foroptimumoperation,pleasereadthismanualcarefullybeforeuse. ProductDetails Specification .Model:FC81 .Dimensions:L158.3*W77*H17.5mm .INput:5V3A9V2A .Total:15WMax(Multipleoutput),18W(Single-portoutput)Max .WirelesschargingOutput:5W/7.5W/10W .USBAportoutput:5V3A9V2A12V1.5A .USBCportoutput:5V3A9V2A12V1.5A .Batterycapacity:10000maH3.7V(37W) .BatterchargingLimitedVoltage:4.25V .chargingtime:5hours(by5V3Apower .ServiceTemperature:0°C-43°C UserManual 1.PowerON .connectyourdevicetothisproductanditwilldetect yourdeviceandpoweronautomatically.pressthepower buttontoturnitonifthisproductdoesnotpoweron automatically .pressthepowerbuttontoturnonthisproductbefore youusethewirelesschargingpadforchargingyourQI- enableddevice 2.Poweroff .ifnodeviceisconnectedtothisproductwithin30 secondsorthisproductisundercontinuouslowoutput,it willautomaticallyturnoff .whentheproductisunderlowpowermode,itwill automaticallyturnoff .longpressthepowerbuttonfor3secondstoturnitoff 3.LEDindicatorlightstatus CLickgentlythepowerbuttontochecktheremaining batteryTheindicatorlightswillturnoff automaticallyaftersixseconds,TheLED1willturngreen whenthefastchargingmodeisdetected,whenthereisa greenwillflashquickly. 4XLEDSon:75%-100%remainingcapacity 3XLEDSon:50%-75%remainingcapacity 2XLEDSon:25%-50%remainingcapacity 1XLEDSon:5%-25%remainingcapacity 1XLEDSflash:lessthan5%remainingcapacity 4.Chargingthisproduct Usepoweradaptertothisproduct.meanwhile.this productcanworkwithmainstreamfastchargingcharger forfastcharging,whencharging,thestatusofthe indicatorlightisasfollows capacityLED1LED2LED3LED4 0-25%flashoffoffoff 25-50%onflashoffoff 50-75%ononflashflash 75-100%onononflash chargedonononon 5.Dischargingthisproduct .chargingQI-enabledphones placeyourQI-enabledphonesonthewirelesschargingpadandpressthepower buttonforwirelesscharging .chargingsmartphonesandtablets connectyourdigitalproductstothisproductwiththeoriginalchargingcables .Supportfastcharge TheUSBAportofthisproductcansupportfastchargewhenusedinisolation,butfor securitypurposes,thisproductwillturnoffthefastchargefunctionandonly supporttheordlinary5Voutputwhentwoormoredevicesarechargedatthe sametime capacityLED1LED2LED3LED4 0-25%flashoffoffoff 25-50%onoffoffoff 50-75%ononoffoff 75-100%onononoff chargedonononon 6.Lowpoweralarm whenthebatteryislessthan10%,theproductwillenterthelowvoltagealarmmode. theLED1begintoflashifcontinuetochargeotherdevices,LED1willblinkuntilshut down,Ifthereisonaccesstothechargingequipment,itwillbeoutafter30 seconds Safetynotes .Makesurethisproductisfullychargedpriortouse .Stopusingitimmediatelyifthebatteryisinflated,deformedorflooded .DOnotshort-circuitthepowerbank,donotexposethisproducttoextreme temperatures .Keepoutofreachofchildren .Donotplacemetalobjectsorotherforeignobjectsonthewirelesschargingpadin ordertoavoiddanger .Usetheoriginalcableandchargerforyourdevicewhenchargingitfromthis product .Itisrecommendedtodisconnectafully-chargeddevicetoavoidunnecessary batteryuse. Whenthisproductentersprotectionmode(LEDSturnoffandpowerbankwillnot charge)causedbyissuessuchasashortcircuit,useanexternalchargertoreplenish thechargeandreturnittonormaloperation .Topreventdamagetothedevices,donotusemulti-in-onecabletochargemultiple devicesatthesametime. .Built-inover-temperatureprotection,whentheenvironmenttemperature exceedsnormalusetemperaturerange,thisproductwillstartovertemperature protection,movetheproducttonormaltemperatureenvironmentandclickthe buttontorestoreoutput .Thebatteryshouldbechargedatleasteverythreemonthstoavoidshorteningthe batterylife. Warnings .Thisproductcontainsalithium-ionbattery,ITisstrictly forbiddentodisassembletheshelloftheproducttoavoidanydamagetothecoreor otherdanger .DOnotsqueezeorpuncturethemobilepowerbanksoastoavoidelectrolyte leakageoflithium-ionbattery,donotplacethisdeviceinafireorexposeitto temperaturesgreaterthan+60°C Packagecontents 1XPortablecharge 1XUSC-CCable 1XWarranty FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This device must operate with a minimum distance of 20 cm between the radiator and user body.

C5266091_X8_Ed.1 1/1 LetterofAuthorization Company:ShenzhenPowerqiTechnologyCo.,Ltd. Address:2ndFloor,A4Building,BlockA,FangxingScience&Tech.Park,Longgang District,Shenzhen,518116China ProductName: WirelessChargingPowerBank ModelNumber: FC81 FCCIdentifier:2AFP2-PQ-FC81 WeauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdelCarme,s/n, 08193Bellaterra,Spain,toactonourbehalfonallmattersconcerningthe abovenamedequipment. AnyindividualwithinLGAITechnologicalCenterS.A.isauthorizedtoactonour behalfandtakeactionontheapplication. WedeclarethatauthorizeLGAITechnologicalCenterS.A.,RondadelaFontdel Carme,s/n,08193Bellaterra,Spain,isallowedtoforwardallinformation relatedtotheapprovalprojecttotheFederalCommunicationCommissionand todiscussanyissuesconcerningtheapprovalapplication.Anyandallacts carriedoutbyLGAITechnologicalCenterS.A.onourbehalfshallhavethe sameeffectasactsofourown. Name:TinaQuDate:Nov.09,2020 Title:SalesManager Signatureofapplicant:

C5266091_X10_Ed.1 1/1 ShenzhenPowerqiTechnologyCo.,Ltd. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:Nov.09,2020 Subject:RequestforConfidentiality FCCID:2AFP2-PQ-FC81 ToWhomItMayConcern, PursuanttotheprovisionsofSections0.457and0.459ofCommission'srules (47CFR0.457,0.459),wearerequestingtheCommissiontowithholdthefollowing attachment(s)asconfidentialdocumentfrompublicdisclosure. ExhibitsLong-Term Confidentiality Short-Term Confidentiality IDLabel/LocationNoNo AttestationStatementNoNo ExternalPhotosNo BlockDiagram Schematics TestReportNoNo TestSetupPhotosNo User’sManual InternalPhotos PartsList/TuneUp RFExposureInfo OperationalDescription CoverLetter(s)NoNo SDRSoftware/SecurityInfoNo Abovementioneddocumentcontainsdetailedsystemandequipmentdescriptionare consideredasproprietaryinformationinoperationoftheequipment.Thepublic disclosureofabovedocumentsmightbeharmfultoourcompanyandwouldgive competitoranunfairadvantageinthemarket. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondentduringcertificationreviewprocesscannotbegrantedasconfidential documentsandthoseinformationwillbeavailableforpublicreviewoncethegrantof equipmentauthorizationisissued. Sincerely, Signature: Name:TinaQu Title:SalesManager

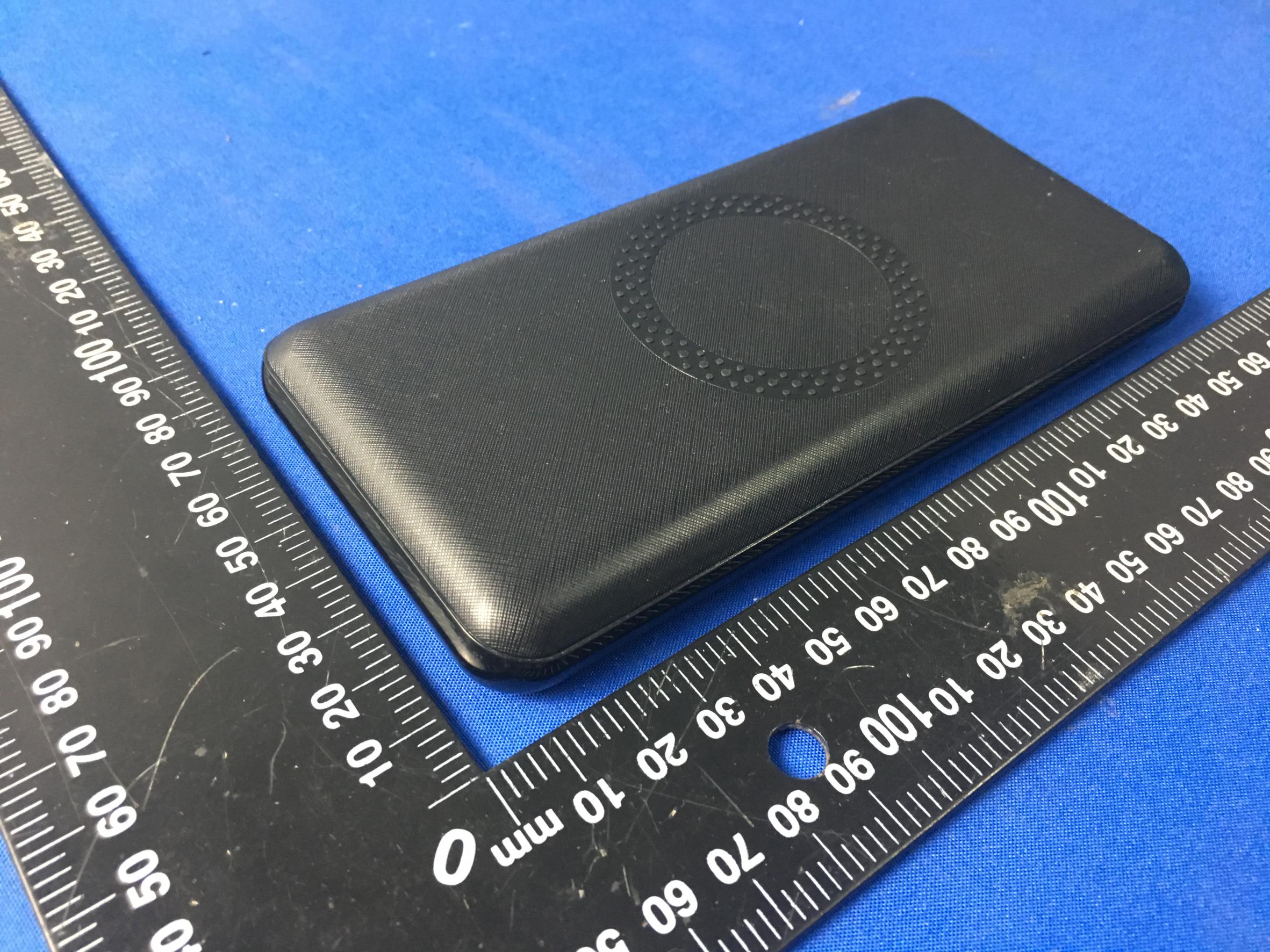

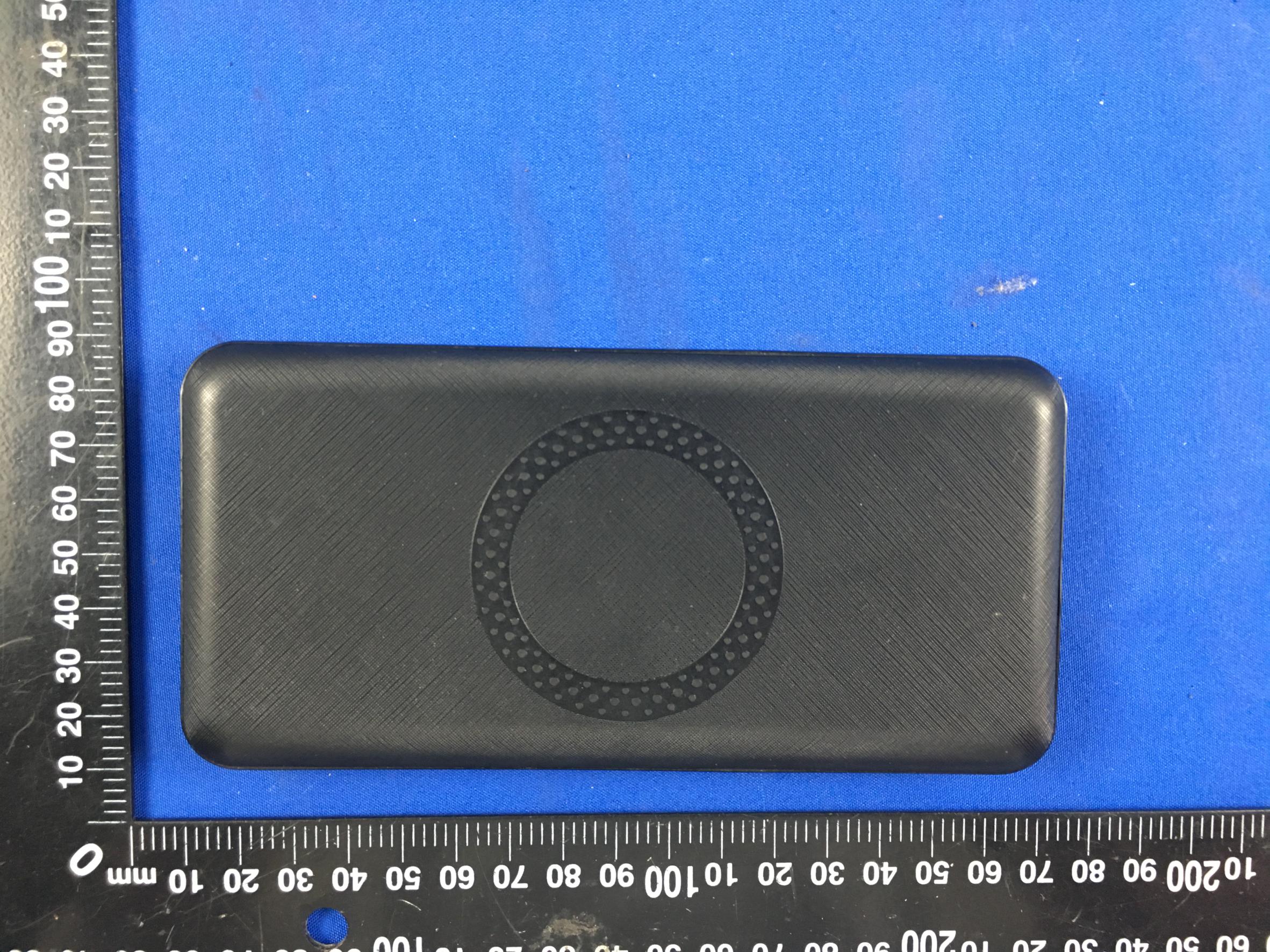

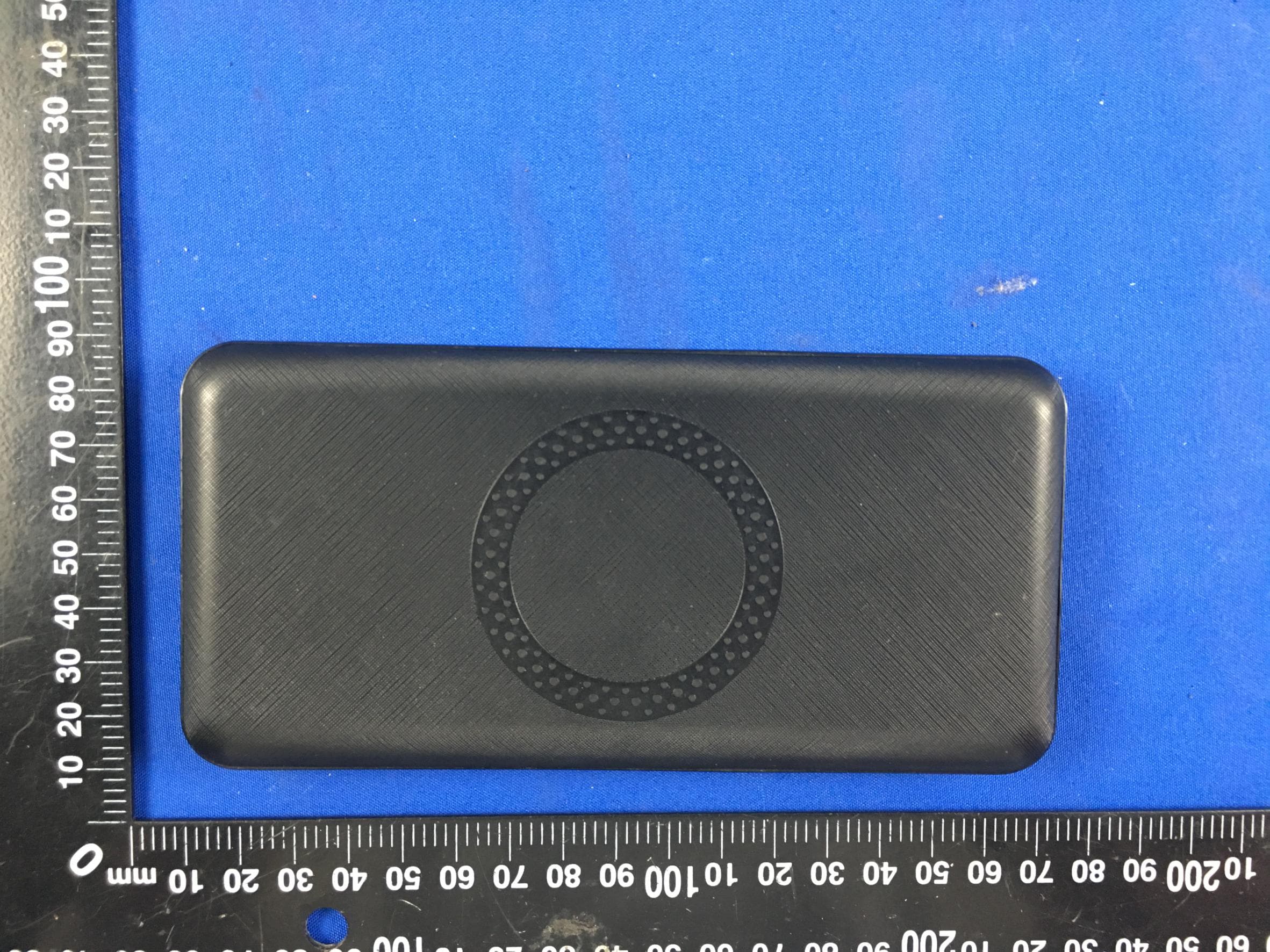

Externalphotos FCCID:2AFP2-PQ-FC81

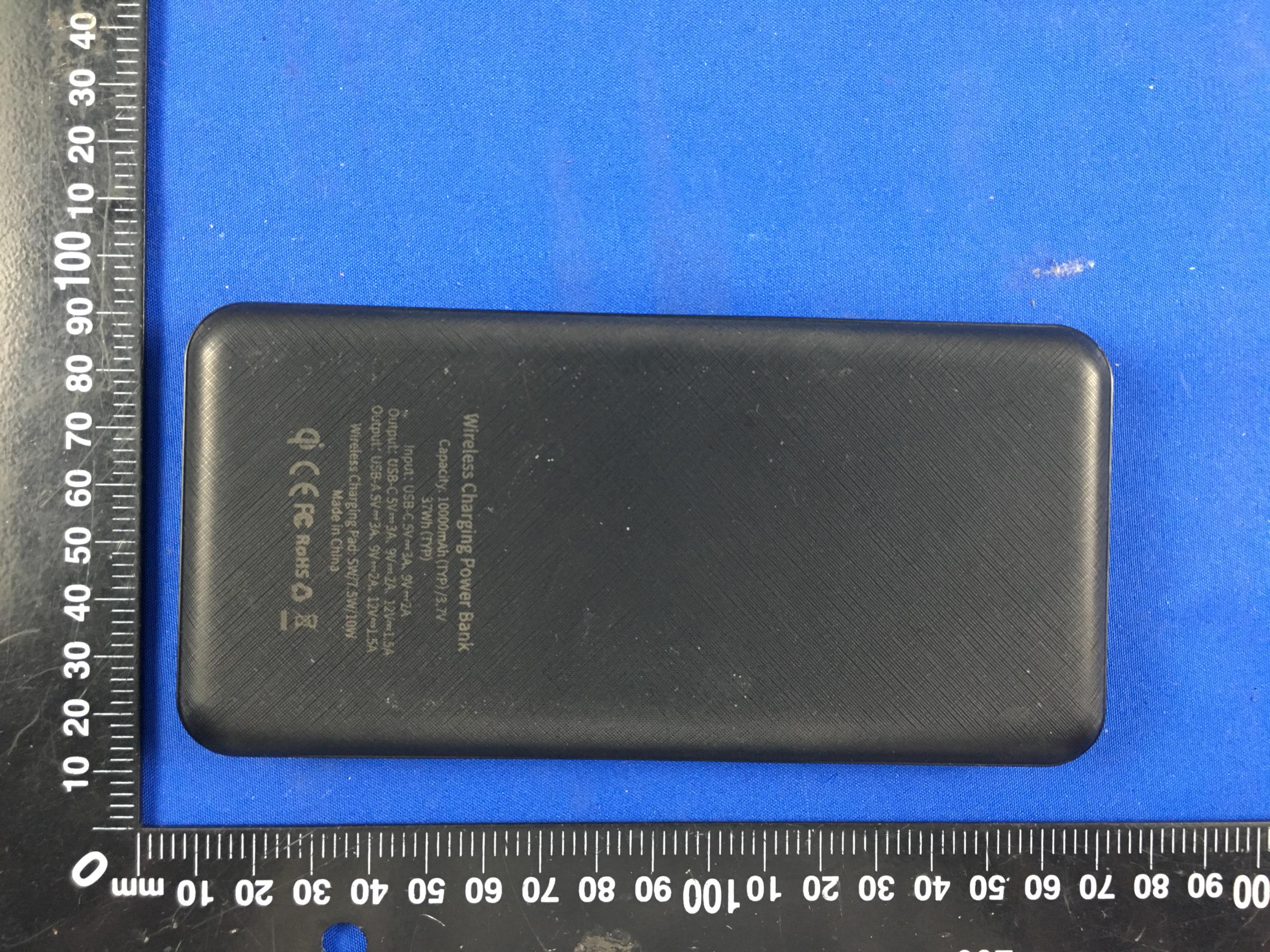

FCCIDLabelInformation 1.Labellocation: FCCID:2AFP2-PQ-FC81

Internal Photos of EUT FCC ID:2AFP2-PQ-FC81 Antenna SW6201

ShenzhenCTLTestingTechnologyCo.,Ltd. Tel:+86-755-89486194E-mail:[email protected] RFEXPOSUREREPORT ReportReferenceNo..................:CTL2004021081-MPE Compiledby (position+printednamesignature) HappyGuo (Fileadministrators) Supervisedby (position+printedname+signature) NiceNong (TestEngineer) Approvedby (position+printedname+signature) IvanXie (Manager) Applicant’sname.........................: ShenzhenPowerqiTechnologyCo.,Ltd. Address .......................................... : 2ndFloor,A4Building,BlockA,FangxingScience&Tech. Park,LonggangDistrict,Shenzhen,518116China TestFirm..........................................: ShenzhenCTLTestingTechnologyCo.,Ltd. AddressofTestFirm .................... : Floor1-A,BaishaTechnologyPark,No.3011,Shahexi Road,NanshanDistrict,Shenzhen,China518055 Testspecification ........................ : Standard..........................................: FCCCFR47part1,1.1307(b),1.1310 TRFOriginator................................:ShenzhenCTLTestingTechnologyCo.,Ltd. MasterTRF.....................................:Dated2011-01 Testitemdescription..................: WirelessChargingPowerBank FCCID.............................................: 2AFP2-PQ-FC81 TradeMark ...................................... : POWERQI Model/Typereference...................: FC81 TransmitFrequency ..................... : 115~205KHz Antennatype...................................: Loopantenna Dateofreceiptoftestitem .............. : Jun.24,2020 Dateofsampling..............................: Jun.25,2020 DateofTestDate.............................: Jun.25,2020–Jul.08,2020 DataofIssue ..................................... : Jul.16,2020 Result.................................................: Pass ShenzhenCTLTestingTechnologyCo.,Ltd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongas theShenzhenCTLTestingTechnologyCo.,Ltd.isacknowledgedascopyrightownerandsource ofthematerial.ShenzhenCTLTestingTechnologyCo.,Ltd.takesnoresponsibilityforandwill notassumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproduced materialduetoitsplacementandcontext. V1.0Page 2 of 9 ReportNo.:CTL2004021081-MPE TESTREPORT TestReportNo.: CTL2004021081-MPE Jul.16,2020 ________________________________________________________________________________________ Dateofissue Equipmentunder Test : WirelessChargingPowerBank Type/Model(s): FC81 Applicant: ShenzhenPowerqiTechnologyCo.,Ltd. Address: 2ndFloor,A4Building,BlockA,FangxingScience&Tech.Park, LonggangDistrict,Shenzhen,518116China Manufacturer1: ShenzhenPowerqiTechnologyCo.,Ltd. Address: 2ndFloor,A4Building,BlockA,FangxingScience&Tech.Park, LonggangDistrict,Shenzhen,518116China TestResultPASS Thetestresultspresentedinthisreportrelateonlytotheobjecttested. Thisreportshallnotbereproduced,exceptinfull,withoutthewrittenapprovaloftheissuing testinglaboratory. V1.0Page 3 of 9 ReportNo.:CTL2004021081-MPE Contents 1.SUMMARY .................................................................................................................................................... 4 1.1.EUTconfiguration4 2.TESTENVIRONMENT.........................................................................................................................4 2.1.Addressofthetestlaboratory4 2.2.TestFacility4 2.3.Environmentalconditions5 2.4.Statementofthemeasurementuncertainty5 3.METHODOFMEASUREMENT.....................................................................................................6 3.1.ApplicableStandard6 3.2.Limit6 4.TESTRESULT .......................................................................................................................................... 7 4.1.TestSetup7 4.2.TestEquipment7 HI3637..............................................................................................................................................................................7 4.3.MeasurementProcedure7 4.4.EquipmentApprovalConsiderations7 4.5.EandHfieldStrength8 V1.0Page 4 of 9 ReportNo.:CTL2004021081-MPE 1.SUMMARY 1.1.EUTconfiguration KindofProductWirelessChargingPowerBank ModelNameFC81 Powersupply DC3.7Vfrombattery DC5.0V3.0A/9.0V2.0Afromadapter FrequencyRange115-205KHz AntennaTypeLoopantenna FCCID2AFP2-PQ-FC81 2.TESTENVIRONMENT 2.1.Addressofthetestlaboratory ShenzhenCTLTestingTechnologyCo.,Ltd. Floor1-A,BaishaTechnologyPark,No.3011,ShahexiRoad,NanshanDistrict,Shenzhen,China 518055 ThesitesareconstructedinconformancewiththerequirementsofANSIC63.7,ANSIC63.10(2013) andCISPRPublication32. 2.2.TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: CNAS-LabCode:L7497 ShenzhenCTLTestingTechnologyCo.,Ltd.hasbeenassessedandprovedtobeincompliance withCNAS-CL01AccreditationCriteriaforTestingandCalibrationLaboratories(identicaltoISO/IEC 17025:2005GeneralRequirements)fortheCompetenceofTestingandCalibrationLaboratories. A2LA-LabCert.No.4343.01 ShenzhenCTLTestingTechnologyCo.,Ltd,EMCLaboratoryhasbeenaccreditedbyA2LAfor technicalcompetenceinthefieldofelectricaltesting,andprovedtobeincompliancewithISO/IEC 17025:2005GeneralRequirementsfortheCompetenceofTestingandCalibrationLaboratories andanyadditionalprogramrequirementsintheidentifiedfieldoftesting. ICRegistrationNo.:9618B CABidentifier:CN0041 The3malternatetestsiteofShenzhenCTLTestingTechnologyCo.,Ltd.EMCLaboratoryhas beenregisteredbyInnovation,ScienceandEconomicDevelopmentCanadatotesttoCanadian radioequipmentrequirementswithRegistrationNo.:9618BonJan.22,2019. FCC-RegistrationNo.:399832 DesignationNo.:CN1216 ShenzhenCTLTestingTechnologyCo.,Ltd.EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptance letterfromtheFCCismaintainedinourfiles.Registration399832,December08,2017. V1.0Page 5 of 9 ReportNo.:CTL2004021081-MPE 2.3.Environmentalconditions Duringthemeasurementtheenvironmentalconditionswerewithinthelistedranges: Temperature:15-35°C Humidity:30-60% Atmosphericpressure:950-1050mbar 2.4.Statement…

Text truncated - open the document above for the full version.

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15 SUBPART C Report Reference No. .............. : CTL2004021081-WF Compiled by ( position+printed name+signature) Happy Guo (File administrators) Supervised by ( position+printed name+signature) Nice Nong (Test Engineer) Approved by ( position+printed name+signature) Ivan Xie (Manager) Applicant’s name ..................... : Shenzhen Powerqi Technology Co., Ltd. Address of applicant ................ : 2nd Floor, A4 Building, Block A, Fangxing Science & Tech. Park, Longgang District, Shenzhen, 518116 China Test Firm ................................... : Shenzhen CTL Testing Technology Co., Ltd. Address ..................................... : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ........................ : Standard ..................................... : FCC Part 15C Master TRF ................................ : Dated 2011-01 Test item description ............... : Wireless Charging Power Bank FCC ID ....................................... : 2AFP2-PQ-FC81 Trade Mark ................................. : POWERQI Model/Type reference ................ : FC81 Transmit Frequency .................. : 115~205KHz Antenna type .............................. : Loop antenna Date of receipt of test item ......... : Jun. 24, 2020 Date of sampling ......................... : Jun. 25, 2020 Date of Test Date ......................... : Jun. 25, 2020–Jul. 05, 2020 Date of Issue ................................ : Jul. 16, 2020 Result ........................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 22 Report No.: CTL2004021081-WF T E S T R E P O R T Test Report No. : CTL2004021081-WF Jul. 16, 2020 Date of issue Equipment under Test : Wireless Charging Power Bank Type / Model(s) : FC81 Applicant : Shenzhen Powerqi Technology Co., Ltd. Address : 2nd Floor, A4 Building, Block A, Fangxing Science & Tech. Park, Longgang District, Shenzhen, 518116 China Manufacturer : Shenzhen Powerqi Technology Co., Ltd. Address : 2nd Floor, A4 Building, Block A, Fangxing Science & Tech. Park, Longgang District, Shenzhen, 518116 China Test result Pass * The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 22 Report No.: CTL2004021081-WF Contents 1. T E S T S T A N D A R D S .................................................................. 4 2. S U M M A R Y ............................................................................. 5 2.1. General Remarks 5 2.2. Equipment Under Test 5 2.3. Short description of the Equipment under Test (EUT) 5 2.4. EUT configuration 5 2.5. Related Submittal(s) / Grant (s) 6 2.6. Modifications 6 2.7. Summary of Test Results 6 3. T E S T E N V I R O N M E N T ............................................................... 7 3.1. Address of the test laboratory 7 3.2. Test Facility 7 3.3. Environmental conditions 7 3.4. Statement of the measurement uncertainty 8 3.5. Equipments Used during the Test 8 4. T E S T C O N D I T I O N S A N D R E S U L T S ............................................. 9 4.1. AC Power Conducted Emission 9 4.2. Radiated Emission 12 4.3. 20dB Bandwidth/99% Bandwidth 17 5. T E S T S E T U P P H O T O S O F T H E E U T .......................................... 18 E X T E R N A L A N D I N T E R N AL P H O T O S O F T H E E U T ................................ 19 V1.0 Page 4 of 22 Report No.: CTL2004021081-WF 1. T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.207,15.209, 15.215(c) ANSI C63.10-2013 V1.0 Page 5 of 22 Report No.: CTL2004021081-WF 2. S U M M A R Y 2.1. General Remarks Date of receipt of test sample : Jun. 25, 2020 Testing commenced on : Jun. 25, 2020 Testing concluded on : Jul. 16, 2020 2.2. Equipment Under Test Power supply system utilised Power supply voltage : ● 120V / 60 Hz ○ 115V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.7V/5V/9V 2.3. Short description of the Equipment under Test (EUT) Clock wireless charger work frequency range 115-205 KHz. For more details, refer to the user’s manual of the EUT. Serial number: FC81 EUT operation mode The EUT has been tested under typical operating condition. The Applicant provides communication tools software to control the EUT for staying in continuous transmitting mode for testing. Test Mode Note Mode 1 Powered by DC 3.7V from battery Mode 2 Powered by DC 5V 3A Mode 3 Powered by DC 9V 2A Note: We have tested all test mode, only recorded the worst case mode 1 in the report. 2.4. EUT configuration The following peripheral devices and interface cables were connected during the measurement: ○ - supplied by the manufacturer ● - supplied by the lab ○ load Manufacturer : Shenzhen Powerqi Technology Co.,Ltd. Model No. : N/A ● AC adapter Manufacturer : MEIZU Model No. : UP1220 V1.0 Page 6 of 22 Report No.: CTL2004021081-WF 2.5. Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for FCC ID:2AFP2-PQ-FC81 fileing to comply with FCC Part 15, Subpart C Rules. 2.6. Modifications No modifications were implemented to meet testing criteria. 2.7. Summary of Test Results The EUT is night light with wireless charger, The test summary of the EUT listed as below: Test Standards Test Result Electric Field Radiated Emissions FCC Pa…

Text truncated - open the document above for the full version.

TestSetupPhotosoftheEUT FCCID:2AFP2-PQ-FC81
