2AGBW9290024695XDigital Device

Signify Classified - Internal# Hue Engine 9290024695 Specification itemValueUnitCondition Description Hue Engine is second generation of a general purpose Zigbee& BLE certified building block for Hue connected lighting applications e.g. Hue White, Hue White Ambiance and Hue White and Color ambiance for lamps and luminaires. Logistical data 12NC929002469501 Minimum Order Quantity500PCE Electrical input data Vcc voltage3.0~3.6VoltRipple<50 mV Current (normal)18mA Electrical output data Average power consumption60mWWatt Standby power<100mW Wiring & ConnectionsI/O definition Ground1GND ADC2, e.g. for voltage sensing General purpose in/out 2 2ADC2 ADC1, e.g. for current sensing 3ADC1 to be used as ADC (e.g. NTC read-out), I2C, SPI or PWM 4Mixed_out_1 to be used as ADC, I2C, SPI or PWM PWM_CHN1 5Mixed_out_2 General purpose in/out 1: E.g. for button control 6GPIO1 General purpose in/out 2: E.g. for button controlPWM_CHN37GPIO2 i.e. for current source 8Enable PWM output 9PWM_CH0 PWM output 10PWM_CH1 PWM output 11PWM_CH2 PWM output 12PWM_CH3 PWM output 13PWM_CH4 Ground14GND 3V power in15VDD Used for SW programming, UART bus communication16TXD Used for SW programming, UART bus communication17RXD Used for SW debugging18Nreset Used for SW debugging19SWCLK Used for SW debugging 20SWDIO Features & Functions Hue White Color Ambienceyes Hue White Ambianceyes Hue Whiteyes Dimmingyes Device diversityyesby late state configuration Automatic color consistencyyes OTA upgradeyesOver the air upgradable when connected to the Hue Bridge Wireless specifications Wireless RF mode frequency band2400–2483.5 MHzMHz Wireless communications protocol IEEE 802.15.4 Bluetooth LE ZigBee protocol Bluetooth LE protocol Operating channel Zigbee 11 – 26 Bluetooth 0-39channels Range12meterindoor Frequency tolerances (Typical)+/-40ppmContinuous single tone Output power (Typical)9dBMMeasured at antenna feedpoint EVM (Typical)18%rms Receiver Sensitivity (Typical)-102dBMconducted sensitivity TRP6dBMwhen mounted on a motherboard of 30x40mm (i.e. Hue Connect) LED board requirements Hue White Color AmbienceUnified Gamutcovered by L1.5 specifications Tunable white CCT range: 2000-6500K Signify Classified - Internal# covered by L1.5 specifications Hue White AmbianceTunable white CCT range: 2000-6500K covered by L1.5 specifications Hue White2700K / 3000K / 4000K covered by L1.5 specifications Insulations Dimensions & Weight Length23.5mm±10% tolerance Width18mm±10% tolerance Height3.5mm±10% tolerance Fixing hole diameterNAmm Fixing hole distanceNAmm Weightgram Operational temperatures and humidity Ambient temperature-20 - 75°CCelcius Tcase-maxCelciusto be measured on Hue Engine shield Maximum housing temperature Relative humidityNon-condensing EnviromentDamp Storage temperature and humidity Ambient temperatureFor 6 months Relative humidityNon-condensing Lifetime lifetimehours Measured temperature at Tc-point is Tcase- max. Maximum failures = 10% Surge capability ESD rating+/-2KVContact +/-4KVAir Certificates and standards Approval marksCE, FCC, RED, ROHS & REACH, Zigbee, BLE Compliances and approvals Signify Classified - Internal# FCCFCC Labelling Requirements When integrating HUE Engine into a product it must be ensured that the FCC labelling requirements are met. This includes a clearly visible label on the outside of the finished product specifying the FCC identifier (FCC ID: 2AGBW9290024695X). This exterior label can use wording such as “Contains Transmitter Module FCC ID: 2AGBW9290024695X” although any similar wording that expresses the same meaning may be used. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The advance interface module complies with FCC radiation exposure limits set forth for an uncontrolled environment. The module and associated antenna must be installed to provide a separation distance of at least 20cm from all persons and must not transmit simultaneously with any other antenna or transmitter. and it needed for the host product manufacturer to provide to end users in their end-product manuals. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). FCC Approvals FCC statement: This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC notice: This device is only FCC authorized for the specific rule parts (i.e., FCC transmitter rules) listed on the grant, and that the host product manufacturer is responsible for compliance to any other FCC rules that apply to the host not covered by the modular transmitter grant of certification and the final host product still requires Part 15 Subpart B compliance testing with the modular. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna Increase the separation between the device and receiver Connect the device into an outlet on a circuit different from that to which the rece…

Text truncated - open the document above for the full version.

APPLICANT LETTERHEAD FCB013_02 //DEKRA Testing and Certification, S.A.U. // www.dekra-product-safety.com/wireless Date: 2021.1.22 DEKRA Testing and Certification, S.A.U. Parque Tecnológico de Andalucía C/ Severo Ochoa 2 & 6 29590 Campanillas Málaga, España Ref: FCC Modular approval letter for FCC ID: 2AGBW9290024695X To whom it may concern: The following attestation addresses the requirements to support modular approval pursuant to §15.212 of the Commission’s Rules: Modular approval requirement Yes No* (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. Y (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over-modulation. Y (iii) The modular transmitter must have its own power supply regulation. Y (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. Y (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). Y (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. Y (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. Y (viii) The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Y * Shall provide a detailed explanation if the answer is “No”. Sincerely, __________________________ By: Yefeng Zhang Title: Approbation Engineer Company: Signify (China) Investment Co., Ltd. Telephone: +86-21-24128779 e-mail: yefeng.zhang@ signify.com

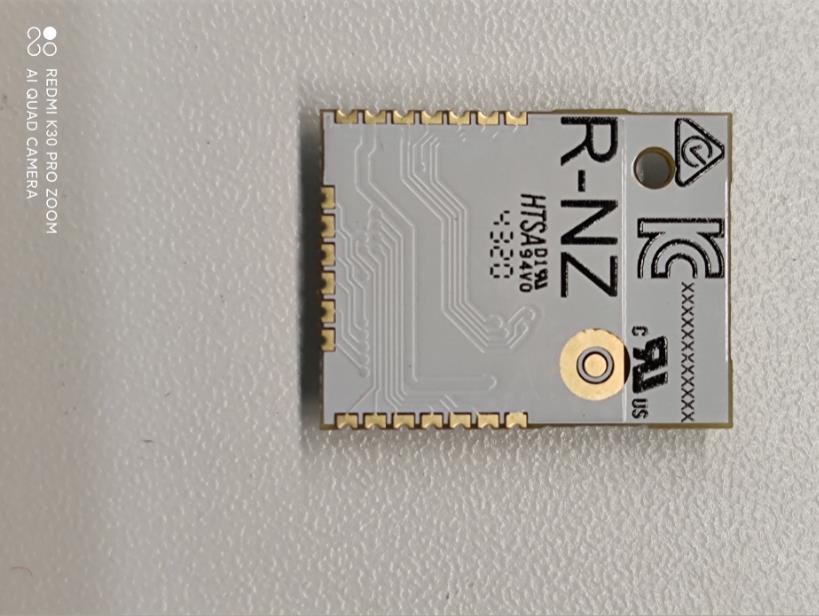

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-EUT Photo Page 1 / 2 EUT Photographs (1)EUT Photo (2)EUT Photo DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-EUT Photo Page 2 / 2 (3)EUT Photo

Signify Classified - Internal All letter is 1mm height FCC ID: 2AGBW9290024695X IC: 20812-24695X 9290024695X

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 20B0023R-RF-US-P20V01 FCC Exposure TEST REPORT Product Name Digital Device Trademark PHILIPS Model and /or type reference 9290024695 FCC ID 2AGBW9290024695X Applicant ́s name / address Signify (China) Investment Co., Ltd Building 9, Lane 888, Tian Lin Road, Min Hang District, Shanghai, P. R. C Test method requested, standard KDB 447498D01V06 FCC Part1.1310 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Kitty Li/Project Assistant Reviewed by (name / position & signature) Frank He/ Technical Supervisor Approved by (name / position & signature) Jack Zhang/ Supervisor Date of issue 2020-12-03 Report template No Template_FCC-MPE-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-CE-P20V01 Page 2 / 9 INDEX page Competences and Guarantees ................................................................................................................................... 3 General conditions ...................................................................................................................................................... 3 Environmental conditions............................................................................................................................................ 3 Possible test case verdicts ......................................................................................................................................... 4 Abbreviations .............................................................................................................................................................. 4 TEST FACILITY .......................................................................................................................................................... 4 Document History ....................................................................................................................................................... 5 Remarks and Comments ............................................................................................................................................ 5 1 General Information ........................................................................................................................................... 6 1.1 General Description of the Item(s) .......................................................................................................... 6 1.2 Antenna Information ................................................................................................................................ 7 2 RF Exposure Evaluation .................................................................................................................................... 8 2.1 Limits ....................................................................................................................................................... 8 2.2 Test Procedure ........................................................................................................................................ 8 2.3 Test Result of RF Exposure Evaluation .................................................................................................. 9 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-CE-P20V01 Page 3 / 9 COMPETENCES AND GUARANTEES DEKRA is a testing laboratory competent to carry out the tests described in this report. In order to assure the traceability to other national and international laboratories, DEKRA has a calibration and maintenance program for its measurement equipment. DEKRA guarantees the reliability of the data presented in this report, which is the result of the measurements and the tests performed to the item under test on the date and under the conditions stated in the report and it is based on the knowledge and technical facilities available at DEKRA at the time of performance of the test. DEKRA is liable to the client for the maintenance of the confidentiality of all information related to the item under test and the results of the test. The results presented in this Test Report apply only to the particular item under test established in this document. IMPORTANT: No parts of this report may be reproduced or quoted out of context, in any form or by any means, except in full, without the previous written permission of DEKRA. GENERAL CONDITIONS Test Location No. 99, Hongye Road, Suzhou Industrial Park Suzhou, 215006, P.R. China Date(receive sample) Nov. 02, 2020 Date (start test) Nov. 03, 2020 Date (finish test) Dec. 03, 2020 1. This report is only referred to the item that has undergone the test. 2. This report does not constitute or imply on its own an approval of the product by the Certification Bodies or Competent Authorities. 3. This document is only valid if complete; no partial reproduction can be made without previous written permission of DEKRA. 4. This test report cannot be used partially or in full for publicity and/or promotional purposes without previous written permission of DEKRA. ENVIRONMENTAL CONDITIONS The climatic conditions during the tests are within the limits specified by the manufacturer for the operation of the EUT and the test equipment. The climatic conditions during the tests were within the following limits: Ambient temperature 15 °C – 35 °C Relative Humidity air 30% - 60% If explicitly required in the basic standard or applied product / product family standard the climatic values are recorded and documented separately in this test report. DEKRA Testing and Certification (Suz…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 20B0023R-RF-US-P06V02 FCC & ISED TEST REPORT Product Name Digital Device Trademark PHILIPS Model and /or type reference 9290024695 FCC ID 2AGBW9290024695X IC 20812-24695X Applicant ́s name / address Signify (China) Investment Co., Ltd Building 9, Lane 888, Tian Lin Road, Min Hang District, Shanghai, P. R. C Test method requested, standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 KD558074 D01 15.247 Meas Guidance v05r02 RSS-Gen Issue 5 RSS-247 Issue 2 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Kitty Li/Project Assistant Reviewed by (name / position & signature) Frank He/ Technical Supervisor Approved by (name / position & signature) Jack Zhang/ Supervisor Date of issue 2021-02-05 Report template No Template_FCC 15.247-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-US-P06V02 Page 2 / 99 INDEX page General conditions ............................................................................................................................................................ 4 Environmental conditions .................................................................................................................................................. 4 Possible test case verdicts ................................................................................................................................................ 5 Abbreviations..................................................................................................................................................................... 5 Document History .............................................................................................................................................................. 6 Remarks and Comments .................................................................................................................................................. 6 Used Equipment ................................................................................................................................................................ 7 Uncertainty ........................................................................................................................................................................ 9 1 General Information ............................................................................................................................................... 10 1.1 General Description of the Item(s) ............................................................................................................... 10 1.2 Antenna Information .................................................................................................................................... 11 1.3 Channel List ................................................................................................................................................. 12 2 Description of Test Setup....................................................................................................................................... 13 2.1 Operating mode(s) used for tests ................................................................................................................ 13 2.2 Auxiliary equipment / Test software for the EUT ......................................................................................... 13 2.3 Test Configuration / Block diagram used for tests ....................................................................................... 14 2.4 Testing process ........................................................................................................................................... 15 3 Verdict summary section ........................................................................................................................................ 16 3.1 Standards .................................................................................................................................................... 16 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ............................................................................ 16 3.3 Overview of results ...................................................................................................................................... 17 3.4 Test Facility .................................................................................................................................................. 18 4 Test Results ........................................................................................................................................................... 19 4.1 AC Power Line Conducted Emission ........................................................................................................... 19 4.1.1 Limit ................................................................................................................................................... 19 4.1.2 Test Setup ......................................................................................................................................... 19 4.1.3 Test Procedure .................................................................................................................................. 19 4.1.4 Test Data ........................................................................................................................................... 20 4.2 Emissions in restricted frequency bands ..................................................................................................... 22 4.2.1 Limit ..............................…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Test report No: 20B0023R-RF-US-P06V01 FCC & ISED TEST REPORT Product Name Digital Device Trademark PHILIPS Model and /or type reference 9290024695 FCC ID 2AGBW9290024695X IC 20812-24695X Applicant ́s name / address Signify (China) Investment Co., Ltd Building 9, Lane 888, Tian Lin Road, Min Hang District, Shanghai, P. R. C Test method requested, standard FCC CFR Title 47 Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 KD558074 D01 15.247 Meas Guidance v05r02 RSS-Gen Issue 5 RSS-247 Issue 2 Verdict Summary IN COMPLIANCE Documented by (name / position & signature) Kitty Li/Project Assistant Reviewed by (name / position & signature) Frank He/ Technical Supervisor Approved by (name / position & signature) Jack Zhang/ Supervisor Date of issue 2021-02-05 Report template No Template_FCC 15.247-RF-V1.0 DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-US-P06V01 Page 2 / 54 INDEX page General conditions ............................................................................................................................................................ 4 Environmental conditions .................................................................................................................................................. 4 Possible test case verdicts ................................................................................................................................................ 5 Abbreviations..................................................................................................................................................................... 5 Document History .............................................................................................................................................................. 6 Remarks and Comments .................................................................................................................................................. 6 Used Equipment ................................................................................................................................................................ 7 Uncertainty ........................................................................................................................................................................ 9 1 General Information ............................................................................................................................................... 10 1.1 General Description of the Item(s) ............................................................................................................... 10 1.2 Antenna Information .................................................................................................................................... 11 1.3 Channel List ................................................................................................................................................. 12 2 Description of Test Setup....................................................................................................................................... 13 2.1 Operating mode(s) used for tests ................................................................................................................ 13 2.2 Auxiliary equipment / Test software for the EUT ......................................................................................... 13 2.3 Test Configuration / Block diagram used for tests ....................................................................................... 14 2.4 Testing process ........................................................................................................................................... 15 3 Verdict summary section ........................................................................................................................................ 16 3.1 Standards .................................................................................................................................................... 16 3.2 Deviation(s) from the Standard(s) / Test Specification(s) ............................................................................ 16 3.3 Overview of results ...................................................................................................................................... 17 3.4 Test Facility .................................................................................................................................................. 18 4 Test Results ........................................................................................................................................................... 19 4.1 AC Power Line Conducted Emission ........................................................................................................... 19 4.1.1 Limit ................................................................................................................................................... 19 4.1.2 Test Setup ......................................................................................................................................... 19 4.1.3 Test Procedure .................................................................................................................................. 19 4.1.4 Test Data ........................................................................................................................................... 20 4.2 Emissions in restricted frequency bands ..................................................................................................... 22 4.2.1 Limit ..............................…

Text truncated - open the document above for the full version.

DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-US-Test Photo Page 1 / 3 FCC Test Photographs Description: Radiated emission(Below 1G) Description: Radiated emission(1-18G) DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-US-Test Photo Page 2 / 3 Description: Radiated emission(Above 18G) Description: AC Power Line Conducted Emission DEKRA Testing and Certification (Suzhou) Co., Ltd. No.99 Hongye Rd., Suzhou Industrial Park, Suzhou, 215006, Jiangsu, China TEL: +86-512-6251-5088 / FAX: +86-512-6251-5098 Report no.: 20B0023R-RF-US-Test Photo Page 3 / 3 Description: Conducted Test Setup
