2AGBW9290030096XLED Lamp

QA-FR-170-B Signify (China) Investment Co., Ltd. Add: Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, China 200233 Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] Attestation Letter Date: 2021-0 4-20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 To whom it may concern: The chip ESP32-U4WDH installed in our product LED lamp ( FCC ID:2AGBW9290030096X), which sup ports BR/EDR, BLE and Wi-Fi functions. But for this product, it only activates BLE and Wi-Fi functions, the BR/EDR function is disabled by using the software. Please contact me should there be need for any additional clarification or information. Best Regards, Sincerely Yours, Signature: Print Name: Yefeng Zhang Title: Approbation Group Manager

Signify (China) Investment Co., Ltd. Add: Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, China 200233 Tel: +86-17701755062 Fax: +86-21-54452269 E-mail: [email protected] DECLARATION OF SIMILARITY Date: 2021-4- 20 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Signify (China) Investment Co., Ltd., hereby declare that the product: LED Lamp, FCC ID: 2AGBW9290030096X. model: 9290030096, 9290030098, 9290030097, 9290030090, 9290030095, 9290030092, 9290030091, 9290030094, 9290030093, 9290031182, 9290031183, and model: 9290030096, 9290030098, 9290030097, 9290030090, 9290030095, 9290030092, 9290030091, 9290030094, 9290030093, have been tested by BACL(kunshan). The differences of them are as follows: 1.Model name, appearance and PCB boards. 2.All these models have same RF module, so the radio parameters of them are the same. 3. 9290030091, 9290030092, 9290030093, 9290030094, 9290030095, The difference between these models is only the appearance. 4. 9290030097, 9290030098, The difference between these models is only the appearance. 5. 9290030096, 9290031182, The difference between these models is only the lamp cap. 6. 9290030097, 9290031183, The difference between these models is only the lamp cap. For more details please refer to EUT photos. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Printed Name: Yefeng Zhang Title: Approbation Group Manager

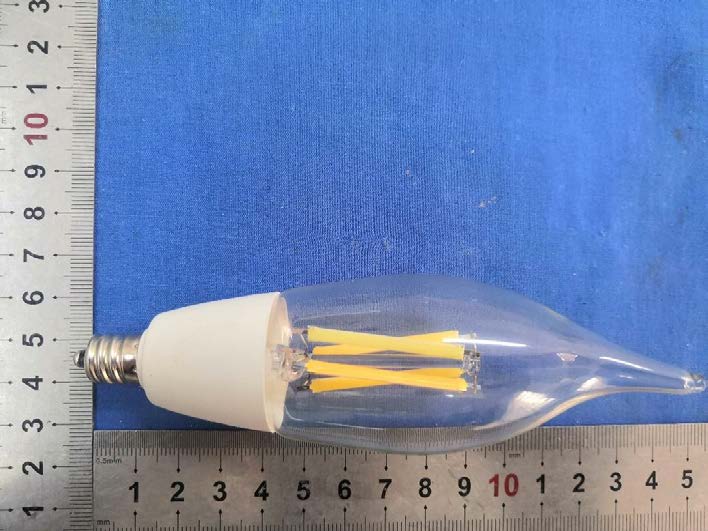

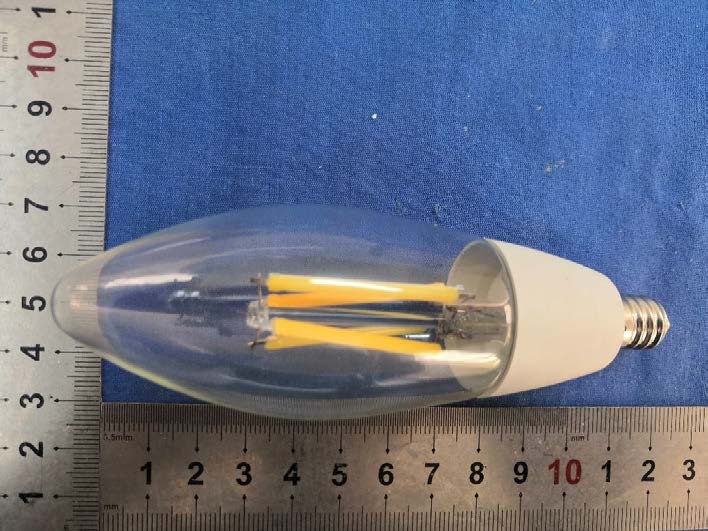

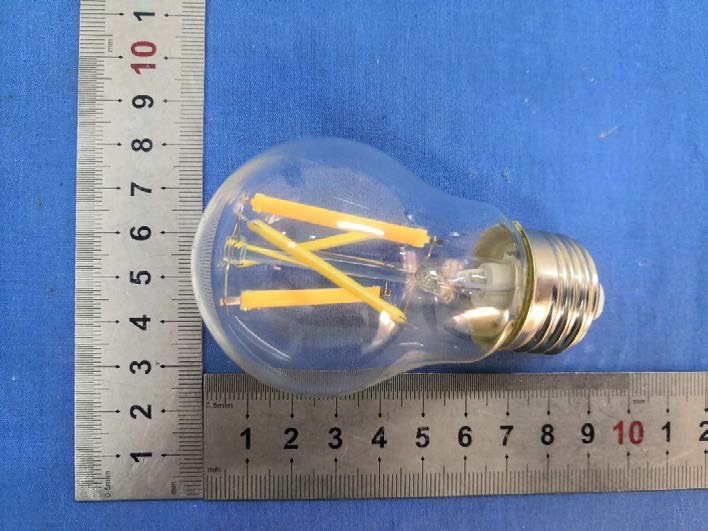

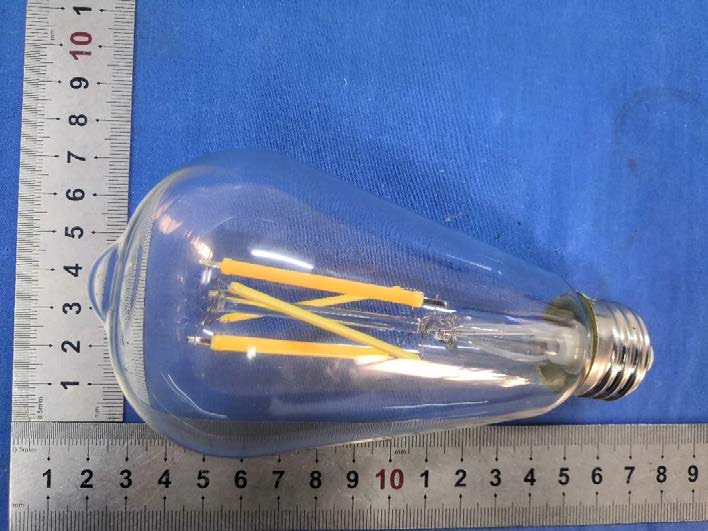

EXHIBIT A- EUT EXTERNAL PHOTOGRAPHS Tested Model:9290030096 Series Model:9290030090 Series Model:9290030091 Series Model:9290030092 Series Model:9290030093 Series Model:9290030094 Series Model:9290030095 Series Model:9290030097 Series Model:9290030098 Series Model: 9290031182 Series Model: 9290031183

EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Tested Model:9290030096 Monopole antenna Series Model:9290030090 Monopole antenna Series Model:9290030091 Monopole antenna Series Model:9290030092 Monopole antenna Series Model:9290030093 Monopole antenna Series Model:9290030094 Monopole antenna Series Model:9290030095 Monopole antenna Series Model:9290030097 Monopole antenna Series Model:9290030098 Monopole antenna RF module

Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RDG210420053-00B FCC Part 15.247 Page 13 of 194 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) 802.11b 2412~2462 -4.0 0.4 24.0 251.1920 0.0199 1.0 802.11g -4.0 0.4 22.5 177.83 20 0.0141 1.0 802.11n-HT20 -4.0 0.4 22.0 158.49 20 0.0126 1.0 802.11n-HT40 2422~2452 -4.0 0.4 22.5 177.83 20 0.0141 1.0 BLE(1Mbps) 2402~2480 -4.0 0.4 5.0 3.16 20 0.0003 1.0 Note: 1. The Tune-up output power was declared by the Manufacturer. 2. Wi-Fi and BLE can’t transmit simultaneously. Result: The device meets MPE at distance 20cm.

FCC PART 15.247 TEST REPORT For Signify (China) Investment Co., Ltd. Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China FCC ID: 2AGBW9290030096X Report Type: Original Report Product Type: LED lamp Project Engineer: Miller Xie Re port Number: RDG210420053-00B Re port Date: 2021-07-21 Reviewed B y: Oscar Ye EMC Manager Prepared By: Bay Area Compliance Laboratories Corp. (Kunshan) No.248 Chenghu Road, Kunshan, Jiangsu province, China Tel: +86-0512-86175000 Fax: +86-0512-88934268 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RDG210420053-00B FCC Part 15.247 Page 2 of 194 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 9 EXTERNAL I/O CABLE .................................................................................................................................................. 9 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 9 SUMMARY OF TEST RESULTS ............................................................................................................................. 11 TEST EQUIPMENT LIST ......................................................................................................................................... 12 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) ....................................................... 13 CALCULATED FORMULARY: ....................................................................................................................................... 13 FCC §15.203 - ANTENNA REQUIREMENT ........................................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 14 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 15 APPLICABLE STANDARD ............................................................................................................................................ 15 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP ....................................................................................................................................... 15 TEST PROCEDURE ...................................................................................................................................................... 16 FACTOR & OVER LIMIT CALCULATION ...................................................................................................................... 16 TEST RESULTS SUMMARY .......................................................................................................................................... 16 TEST DATA ................................................................................................................................................................ 16 FCC §15.209, §15.205 & §15.247(d) - SPURIOUS EMISSIONS ............................................................................. 35 APPLICABLE STANDARD ............................................................................................................................................ 35 EUT SETUP ................................................................................................................................................................ 35 EMI TEST RECEIVER SETUP ....................................................................................................................................... 36 TEST PROCEDURE .......................................................................................................…
