2AGBW9290030171XWall Switch Module

Please go to www.philips-hue.com to learn more about Hue and how to use it. This device complies with Part 15 of the FCC Rules and with RSS of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This Class B digital apparatus complies with Canadian ICES-003. This digital apparatus does not exceed the class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. NOTICE: Changes or modifications made to this device not expressly approved by Signify North America Corporation (“Signify”) may void the U.S. FCC and Canadian authorization to operate this device. The advanced interface module complies with FCC radiation exposure limits set forth for an uncontrolled environment. This device should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this device does cause harmful interference to radio or television reception, which can be determined by turning the device off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna - Increase the separation between the device and receiver - Connect the device into an outlet on a circuit different from that to which the receiver is connected - Consult the dealer or an experienced radio/television technician for help Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the product at least 20cm from nearby persons. SAFETY INSTRUCTIONS Electrical devices may only be mounted and connected by electrically skilled persons. Serious injuries, fire or property damage possible. Please read and follow manual fully. DANGER! Electrical shocks when live parts are touched can be fatal. DANGER! Risk of fire when wrongly installed. DANGER! Mortal danger of electric shock. Before working on the device or performing an installation, disconnect all the corresponding circuit breakers. Cover up live parts! Maintenance work, e.g. exchanging batteries, may only be carried out by an electrically skilled person.Even a lamp that is visibly switched off is permanently supplied with mains voltage. Switch off the circuit breaker before replacing the lamp, or battery. The lamp that is controlled by this product is still supplied with mains voltage. This product itself is not connected to mains voltage. Always check local legislation on use of the product as local regulations could forbid the use in certain setup situations. Installation in United States requires a minimum of one light switch in a room/lightpoint must be able to physically disconnect the power. During installation and cable routing, comply with the regulations and standards which apply for SELV circuits. Do NOT input mains voltage. This product is supplied with a battery. The supplied wire nut needs to connect the lamp to the mains power. The radio communication takes place via a non-exclusively available transmission path, and is therefore not suitable for safety-related applications, such as emergency stop and emergency call. These instructions are an integral part of the product, and must remain with the end customer. Ensure always to install the product according to the local electrical code. Perchlorate Material – special handling may apply WARNINGS AND CAUTIONS: Keep away from liquids and humidity. The product is for indoor use only. Do not use in wet locations, areas directly exposed to water or outdoors. This product is not a toy designed to be played with by children. Do not place on hot surfaces. For safety reasons and under the terms of the warranty, none of the enclosed devices should be opened. Risk of explosion if the battery is replaced by an incorrect replacement. Batteries should be installed by an adult. Different types of batteries and new and used batteries must not be mixed. Batteries are to be inserted with the correct polarity. The supply terminals must not be short-circuited. Do not use rechargeable batteries. Non-rechargeable batteries must not be charged. Exhausted batteries must be removed from the product. Remove batteries when product is not in use for some time. CAUTION: Do not ingest battery – Chemical burn hazard. This product contains a coin/button cell battery. If the coin/button cell battery is swallowed, it can cause severe internal burns in just two hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think that batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention. SPECIFICATIONS Rated voltage : DC3V Battery type: CR 2450 Temperature (operation): 32...104°F Temperature (Storage): -40..176°F Relative humidity(operation): 0-80% Relative humidity(storage): 0-90% Feat…

Text truncated - open the document above for the full version.

User manual Notice d'emploi Manual de usuario A wall switch module module d'interrupteur mural 105 mm 74 mm A A Incl. x2 x2 x2 Excl. B B 2 x4 105 mm 74 mm 3 EN The electrical circuit and attached light source will always be powered after installation, turn off the circuit breaker when replacing a light fixture / battery. Le circuit électrique et la source lumineuse raccordée seront toujours alimentés après l'installation. Par conséquent, mettez le circuit hors tension lors du remplacement d'un luminaire / pile. EN FR Tras la instalación, el circuito eléctrico y la fuente de luz conectada siempre tendrán alimentación eléctrica. Apaga el circuito cuando cambies una luminairia / batería. ES Work on Electrical installations is in some countries only allowed by a qualified electrician. For support contact a local electrician or authority to install the product in accordance with national and electrical codes. FR Dans certains pays, les travaux sur les installations électriques ne peuvent être effectués que par des électriciens qualifiés. Pour toute demande d'assistance, veuillez contacter un électricien ou votre autorité locale afin d'installer le produit conformément aux codes nationaux et de l'électricité. ES En algunos países, únicamente los electricistas cualificados pueden trabajar en instalaciones eléctricas. Si necesitas asistencia, ponte en contacto con la autoridad o con un electricista local para instalar el producto de acuerdo a las legislaciones nacionales. B B 105 mm 74 mm Wire Connectors Instructions: 1. Turn off power before installing or removing connectors. 2. Strip wires 5/16"(7.9mm). For #16 and smaller wires, strip 3/8"(9.5mm). 3. Pre-twisting unnecessary, hold stripped wires together with ends even. Lead stranded wires slightly. 4. Push wires into connector and screw on until two twists are visible in wires. For use with copper to copper conductor Temperature Rating: 105°C (221 °F) Max. Voltage Rating: 600V Max. building wiring; 1000V Max. in fixtures and signs Listed as a PRESSURE-TYPE wire connector on the following Solid wire combinations: For UL Listed, CSA Certified Max. wire size (AWG): 22 - 10 Splice capacity: 3+ ground EN 4 105 mm 74 mm Instructions de pose des connecteurs: 1. Coupez le courant avant d'installer ou d'enlever les connecteurs. 2. Dénudez les fils de 7,9 mm (5/16 po). Pour les fils de calibre 16 et plus petits, dénudez de 9,5 mm (3/8 po). 3. Il n'est pas nécessaire de pré-torsader, tenez les fils dénudés ensemble avec les extrémités à égalité. Torsadez légèrement les fils toronnés (en brins). 4. lnsérez les fils dans le connecteur et vissez jusqu'à ce que deux torsades soient visibles dans les fils. Pour utilisation avec fils conducteurs de cuivre à cuivre Température de service: 105 °C (221 °F) max. Tension de service: 600 V max. pour le câblage de bâtiment; 1000 V max. pour les appareils d'éclairage et les enseignes Homologué en tant que connecteur de type à pression pour les combinaisons de fils massifs suivantes: Pour fils homologués UL, CSA Max. taille du fil (AWG): 22 - 10 Capacité d'épissage : 3+ terre FR Instrucciones para los conectores para alambres: 1. Apague la alimentación eléctrica antes de instalar o quitar los conectores. 2. Pele 5/16"(7.9mm) de los alambres. Si los alambres son del #16 o más pequeños, pele 3/8"(9.5mm). 3. No es necesario torcerlos primero. Sostenga los alambres pelados juntos, con las puntas parejas. Enderece ligeramente los alambres torcidos. 4. Introduzca los alambres en el conector y atornille hasta que vea dos vueltas en los alambres. Para uso con conductores de cobre Temperatura maxima: 105°C (221 °F). Tensión nominal: 600V máx. cableado de edificios; 1000V máx. en aparatos eléctricos y letreros Clasificado como conector TIPOA PRESIÓN en las siguientes combinaciones de alambres sólidos: Para alambres con certificación UL Listed, CSA Max. tamaño del hilo (AWG): 22 - 10 Capacidad de empalme: 3+ tierra ES 5 105 mm 74 mm ! 6 1a 1c 1b 1a > 2 1b > 8 Three way switching* Commutation bidirectionnelle* Conmutación bidireccional* * Terminal screw positions may vary per manufacturer. * La position des vis-bornes peut varier selon le fabricant. * Las posicións de los tornillos conmutadores puede variar según el fabricante. 105 mm 74 mm 1 2 7 2 3a 1 2 3b 4a 4b ! Keep ground wire connected Gardez le fil de terre connecté Mantener conectado el cable de tierra 105 mm 74 mm 8 7 7 > 14 5 5 1 2 1 1 2 6a 6b 105 mm 74 mm 1 2 3 1 2 9b 9 8 9a 10b 10a ! Keep ground wire connected Gardez le fil de terre connecté Mantener conectado el cable de tierra 105 mm 74 mm 10 11 1 2 1 1 2 13 7 > 14 12a 12b 105 mm 74 mm 11 www.philips-hue.com www.philips-hue.com/wallswitchmodulesupport 15 14 ! ! ON Internet 105 mm 74 mm 12 32 ! ! 1 105 mm 74 mm ! 13 4 ON 5 105 mm 74 mm 14 105 mm 74 mm 15 105 mm 74 mm 3222 639 07221 Last update: 02/2021 www.philips-hue.com © 2021 Signify Holding All rights reserved Signify North America Corporation 200 Franklin Square Drive Somerset, NJ 08873, USA Signify Canada Ltd./Signify Canada Ltée. 281 Hillmount Road, Markham, ON, Canada L6C 2S3 Questions or Comments / Questions ou commentaires : 1-800-555-0050 Importardo y/o distribuido en México por: Signify Mexico S.A. de C.V. Av. La Palma N° 6-Col. San Fernando, La Herradura Huixquilucan Edo. De México, C.P. 52784 - R.F.C. PME-620620-E84 Centro de contacto: 01-800-508-9000 105 mm 74 mm

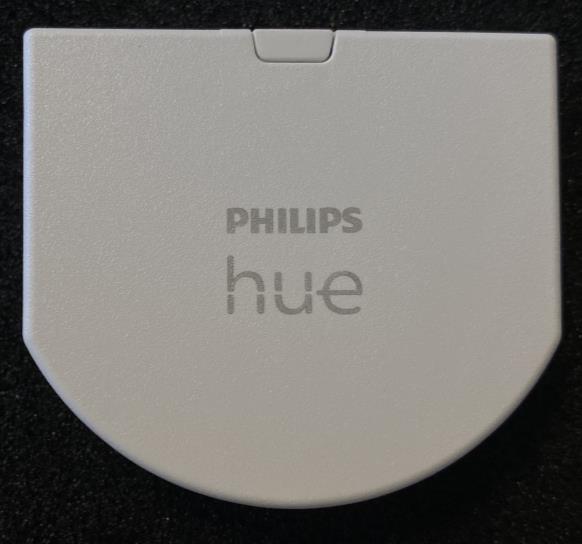

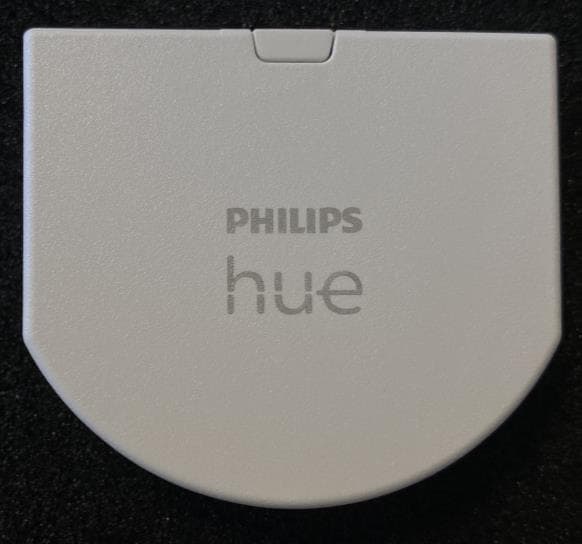

9290030171 Philips Hue Wall switch module External Photos 1/1 Front & Back Right & Left Side (Back side shown for reference) Top & Bottom

The label is on the back of the product. Model: 9290030171 FCC ID: 2AGBW9290030171X IC: 20812‐30171X

9290030171 Philips Hue Wall switch module Internal Photos 1/2 9290030171 Philips Hue Wall switch module Internal Photos 2/2

UL International (UK) Ltd Unit 1-3 Horizon, Kingsland Business Park, Wade Road, Basingstoke, Hampshire, RG24 8AH, UK Telephone: +44 (0)1256 312000 Facsimile: +44 (0)1256 312001 TEST REPORT Test Report No. : UL-RPT-RP13646664-316A Manufacturer : Signify (China) Investment Co. Ltd. Model No. / PMN : Wall Switch Module HVIN : 9290030171 FCC ID : 2AGBW9290030171X ISED Certification No. : 20812-30171X Technology : Zigbee (IEEE 802.15.4) Test Standard(s) : FCC Parts 15.209(a) & 15.247, Innovation, Science and Economic Development Canada RSS-247 Issue 2 February 2017 & RSS-Gen Issue 5 February 2021 Test Laboratory : UL International (UK) Ltd, Basingstoke, Hampshire, RG24 8AH, United Kingdom 1. This test report shall not be reproduced in full or partial, without the written approval of UL International (UK) Ltd. 2. The results in this report apply only to the sample(s) tested. 3. The sample tested is in compliance with the above standard(s). 4. The test results in this report are traceable to the national or international standards. 5. Version 4.0 supersedes all previous versions. Date of Issue: 27 April 2021 Checked by: Ben Mercer Lead Project Engineer, Radio Laboratory Company Signatory: Sarah Williams RF Operations Leader, Radio Laboratory TEST REPORT SERIAL NO: UL-RPT-RP13646664-316A VERSION 4.0 ISSUE DATE: 27 APRIL 2021 Page 2 of 29 Customer Information Company Name: Signify Netherlands B.V. Address: High Tech Campus 48 Eindhoven 5656 AE Netherland Manufacturer Information Company Name: Signify (China) Investment Co. Ltd. Address: Building 9 No. 888 Tianlin Road, 200233 Shanghai Report Revision History Version Number Issue Date Revision Details Revised By 1.0 19/04/2021 Initial Version Ben Mercer 2.0 26/04/2021 Customer details updated Ben Mercer 3.0 26/04/2021 Updated FCC site registration and corrected serial numbers in section 4.1 Ben Mercer 4.0 27/04/2021 Manufacturer details added Ben Mercer TEST REPORT SERIAL NO: UL-RPT-RP13646664-316A VERSION 4.0 ISSUE DATE: 27 APRIL 2021 Page 3 of 29 Table of Contents Customer Information ................................................................................................................... 2 Manufacturer Information ............................................................................................................. 2 Report Revision History ................................................................................................................ 2 1. Attestation of Test Results ....................................................................................................... 4 1.1. Description of EUT 4 1.2. General Information 4 1.3. Summary of Test Results 5 1.4. Deviations from the Test Specification 5 2. Summary of Testing .................................................................................................................. 6 2.1. Facilities and Accreditation 6 2.2. Methods and Procedures 6 2.3. Calibration and Uncertainty 7 2.4. Test and Measurement Equipment 8 3. Equipment Under Test (EUT) .................................................................................................. 10 3.1. Identification of Equipment Under Test (EUT) 10 3.2. Modifications Incorporated in the EUT 11 3.3. Additional Information Related to Testing 12 3.4. Description of Available Antenna 12 3.5. Description of Test Setup 13 4. Antenna Port Test Results ...................................................................................................... 15 4.1. Transmitter Minimum 6 dB Bandwidth 15 4.2. Transmitter 99% Occupied Bandwidth 17 4.3. Transmitter Maximum Peak Output Power 19 5. Radiated Test Results ............................................................................................................. 22 5.1. Transmitter Radiated Emissions <1 GHz 22 5.2. Transmitter Radiated Emissions >1 GHz 24 5.3. Transmitter Band Edge Radiated Emissions 27 TEST REPORT SERIAL NO: UL-RPT-RP13646664-316A VERSION 4.0 ISSUE DATE: 27 APRIL 2021 Page 4 of 29 1. Attestation of Test Results 1.1. Description of EUT The equipment under test was a lighting control unit, which contains Zigbee (802.15.4) technology. 1.2. General Information Specification Reference: 47CFR15.247 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.247 Specification Reference: 47CFR15.209 Specification Title: Code of Federal Regulations Volume 47 (Telecommunications): Part 15 Subpart C (Intentional Radiators) - Section 15.209 Specification Reference: RSS-Gen Issue 5 February 2021 Specification Title: General Requirements for Compliance of Radio Apparatus Specification Reference: RSS-247 Issue 2 February 2017 Specification Title: Digital Transmission Systems (DTSs), Frequency Hopping Systems (FHSs) and Licence-Exempt Local Area Network (LE-LAN) Devices FCC Site Registration: 685609 FCC Lab. Designation No.: UK2011 ISEDC Site Registration: 20903 ISEDC CABID: UK0001 Location of Testing: Unit 3 Horizon, Wade Road, Kingsland Business Park, Basingstoke, Hampshire, RG24 8AH, United Kingdom Test Dates: 09 February 2021 to 18 February 2021 TEST REPORT SERIAL NO: UL-RPT-RP13646664-316A VERSION 4.0 ISSUE DATE: 27 APRIL 2021 Page 5 of 29 1.3. Summary of Test Results FCC Reference (47CFR) ISED Canada Reference Measurement Result Part 15.247(a)(2) RSS-Gen 6.7 RSS-247 5.2(a) Transmitter Minimum 6 dB Bandwidth N/A RSS-Gen 6.7 Transmitter 99% Occupied Bandwidth Part 15.247(e) RSS-247 5.2(b) Transmitter Power Spectral Density Note 1 Part 15.247(b)(3) RSS-Gen 6.12 RSS-247 5.4(d) Transmitter Maximum Peak Output Power Part 15.247(d)/ 15.209(a) RSS-Gen 6.13 & 8.9 RSS-247 5.5 Transmitter Radiated Emissions Part 15.247(d)/ 15.209(a) RSS-Gen 6.13, 8.9 & 8.10 RSS-247 5.5 Transmitter Band Edge Radiated Emissions Key to Results = Complied = Did not comply Note(s): 1. In accordance with ANSI C63.10 Section 11.10.1, PSD measurements are not required if the maximum conducted output power is les…

Text truncated - open the document above for the full version.

Signify (China) Investment Co Ltd FCC ID: 2AGBW9290030171X UL-RPT-RP13646664-316A IC: 20812-30171X UL VS LTD 1 Test Setup Photographs for the 9290030171 1. Radiated Emissions 1.1. Configuration 1: <1GHz RSE Photo 1 Photo 2 Signify (China) Investment Co Ltd FCC ID: 2AGBW9290030171X UL-RPT-RP13646664-316A IC: 20812-30171X UL VS LTD 2 Radiated Emissions (continued) 1.2. Configuration 2: >1GHz RSE Photo 1 Photo 2 Signify (China) Investment Co Ltd FCC ID: 2AGBW9290030171X UL-RPT-RP13646664-316A IC: 20812-30171X UL VS LTD 3 Conducted Tests Photo 1
