2AGBW9290034985XLED Device

www.philips-hue.com !! 11 3 10 2 1 9 7 “x”= 4.5cm 7cm 24” 27” xx xx x x 8 “x”= 4.5cm 7cm 24” 27” xxx xx x x 32226 391 0182 Last update: 03/2022 www.philips-hue.com Signify I.B.R.S. / C.C.R.I. Numéro 10461 5600 VB Eindhoven, the Netherlands 00800-74454775 © 2022 Signify Holding All rights reserved 6 5 4 2 1 ! ! UK EU x6 x2 III 3m 2,25m Z G A A Incl. B B B B UKEU User manual Benutzerhandbuch Notice d’emploi Manual de usuario Manual do usuário Manuale d'uso Lightstrip 24"/27” monitor x3 A HUE serial number 100 mm 60 mm

Signify North America Corporation 200 Franklin Square Drive Somerset, NJ 08873, USA Signify Canada Ltd./Signify Canada Ltée. 281 Hillmount Road, Markham, ON, Canada L6C 2S3 Questions or comments / Questions ou commentaires : 1-800-555-0050 Importado y/o distribuido en México por: Signify Mexico S.A. de C.V. Av. La Palma N° 6-Col. San Fernando, La Herradura Huixquilucan Edo. De México, C.P. 52784 – R.F.C. PME-620620-E84 Centro de Contacto: 01-800-508-9000 www.philips-hue.com © 2021 Signify Holding Safety instructions Lightstrips EN - SAFETY INSTRUCTIONS Thank you for purchasing this Philips Hue product, we highly appreciate your choice for the Philips brand and wish you lots of pleasure using your product. Please go to www.philips-hue.com to learn more about HUE and how to use it. This manual B contains definitions of all potentially applicable parameters & specifications with icons, as per International norms and safety standards. However not all of them may be applicable for the product you purchased - please refer to the icons in the Manual A, for the ones which are particulary applicalble for this product. ATTENTION:Below you will find all the explanations with numeric reference to the icons respectively in front of these PART-B safety instructions. Applicable icons to your fixture are shown in PART-A safety instructions. 01)This product should only be installed indoors. 02)Only suitable for dry locations. 03)The product is suitable for outdoor usage. 04)This product is not suitable for children under 14 years 05)Minimum allowed bending is 20cm in diameter. 06)Suitable for under-cabinet mounting. This device complies with Part 15 of the FCC Rules and with RSS of Industry Canada. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions. may cause harmful interference to radio communications. This Class B digital apparatus complies with CAN ICES-005 (B) / NMB-005 (B). This digital apparatus does not exceed the class B limits for radio-noise emissions from digital apparatus as set out in the Radio Interference Regulations of the Canadian Department of Communications. NOTICE: Changes or modifications made to this device not expressly approved by Signify North America (USA) and Signify Canada Ltd./Signify Canada Ltée. (collectively “Signify”) may void the U.S. FCC and Canadian authorization to operate this device. This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This device generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - If applicable, connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/television technician for help This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still doe not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not alter the plug. TO PREVENT ELECTRIC SHOCK, MATCHWIDE BLADE OF PLUGTOWIDE SLOT WARNINGS AND CAUTIONS for Philips Hue indoor LightstripsRisk of electric shock – Do not use device where directly exposed to water. The device is for indoor use only. Dry location use only. WARNINGS AND CAUTIONS for Philips Hue outdoor Lightstrips WARNING: When using outdoor use portable luminaires, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following: a) Use only three-wire outdoor extension cords that have three-prong grounding plugs and grounding receptacles that accept the appliance’s plug. b) Ground Fault Circuit Interrupter (GFCI) protection is to beprovided on the circuit(s) or outlet(s) to be used for the wet location portable luminaire. Receptacles are available having built-inGFCI protection and are able to be used for this measure of safety. c) Use only with an extension cord for outdoor use, such as an extension cord of cord type SEW, SEOW, SEOOW, SOW, SOOW, STW, STOW, STOOW, SJEW, SJEOW, SJEOOW, SJW, SJOW, SJOOW, SJTW, SJTOW, or SJTOOW. SAVE THESE INSTRUCTIONS. WIRELESS SPECIFICATIONS for all Philips Hue products Wireless RF mode frequency band: 2,400-2,483.5 MHz Operating channels Zigbee if applicable: channels 11 – 26 Operating channels Bluetooth if applicable : channels 0-39 Maximum transmitted power <20 dBm Environmental specification Philips Hue indoor Lightstrips Temperature (Storage): -25 °C to 60 °C / -13 °F to 140 °F Temperature (operation): 0°C to 35 °C / 32°F to 86°F Relative humidity: 5 - 95% non condensing Environmental specification Philips Hue outdoor LightstripsTemperature (Storage): -25 °C to 60 °C / -13 °F to 140 °F Temperature …

Text truncated - open the document above for the full version.

Rev 11/20/07 Classified Signify (China) Investment Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AGBW9290034985X Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit T ype File Name Schematics Block Diagrams Theory of Operation Schematics.pdf Block Diagrams.pdf Theory of Operation.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Pursuant to DA04-1705 June 15, 2004 of the Commission’s public notice, we also request temporary confidential treatment of information accompanying this application as outlined below: Exhibit T ype File Name Internal Photos External Photos Test Set-up Photographs User manu al Internal Photos.pdf External Photos.pdf Test Set-up Photographs.pdf User manual.pdf Number of days: 180 days Sincerely, Printed Name: Yefeng Zhang Signature： Date: 2022.4.20

Signify (China) Investment Co., Ltd. DECLARATION OF IDENTITY We, Signify (China) Investment Co., Ltd. Building 9, Lane 888, Tianlin Road, Minhang district Shanghai,China declare under our responsibility that the following LED device are identical to electrical structure, mechanical structure. There are only differs on the size of the LED device. Basic software architecture remains unchanged. Product name: LED device Model name: 9290034985, 9290034986, 9290034987 Sincerely, __________________________ By: Tim Su Title: Approbation Engineer Company: Signify (China) Investment Co., Ltd. e-mail: [email protected] Date: 04 March 2022

https://docs.lighting.com/personal/tim_su_signify_com/Documents/project/PC Lightstrip/FCC app/╟⌐╫╓/FCC POA _Letter.docx Signify (China) Investment Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: Mar.17,2022 SUBJECT: FCC Application for FCC ID: 2AGBW9290034985X To Whom It May Concern: We, the undersigned, hereby authorize Yu Anlu at TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Printed Name: Yefeng Zhang Signature： Date: 2022.4.20

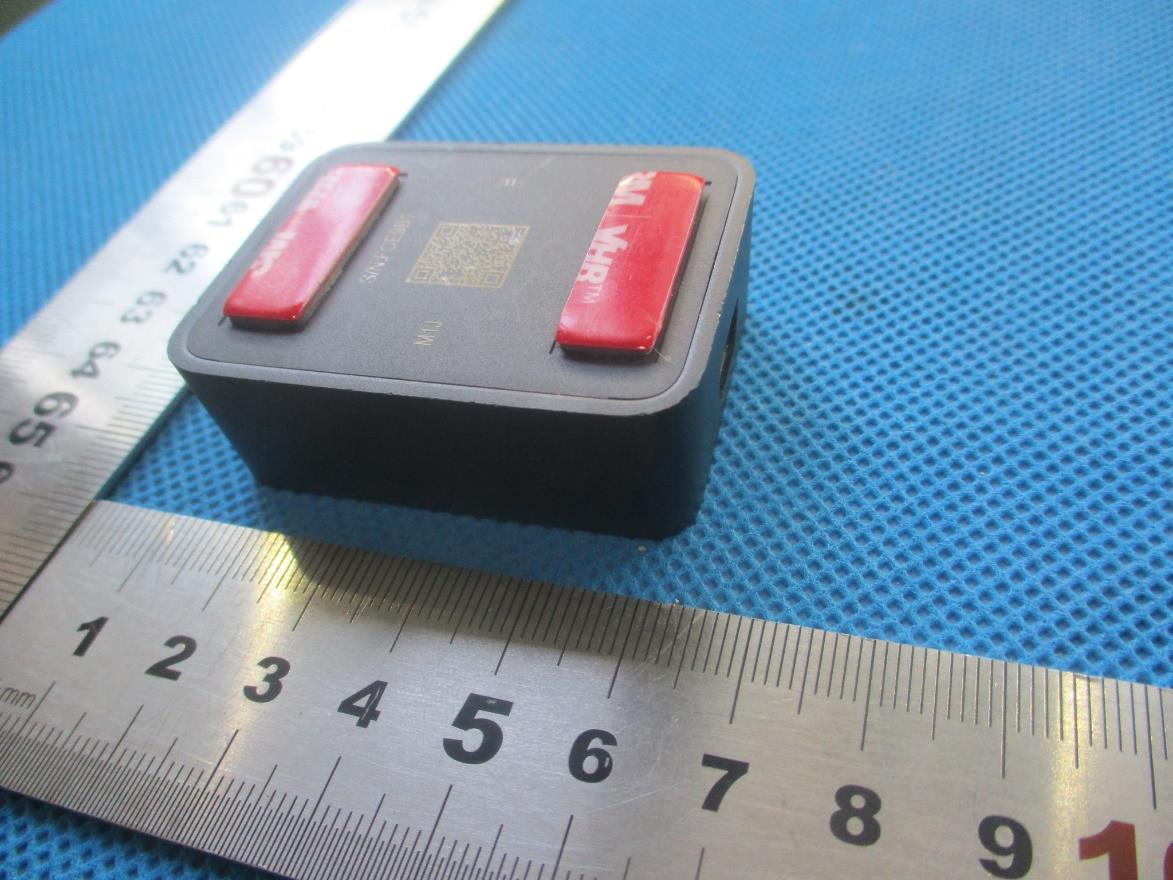

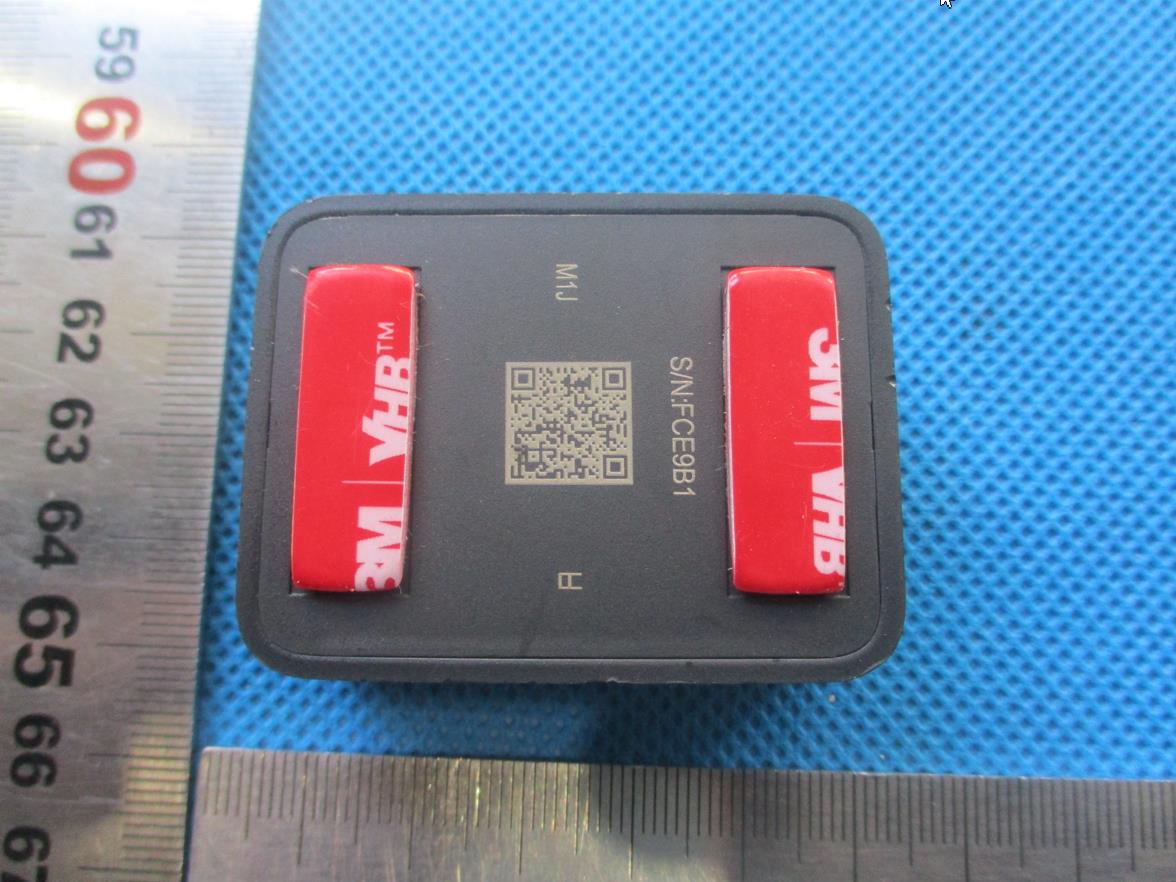

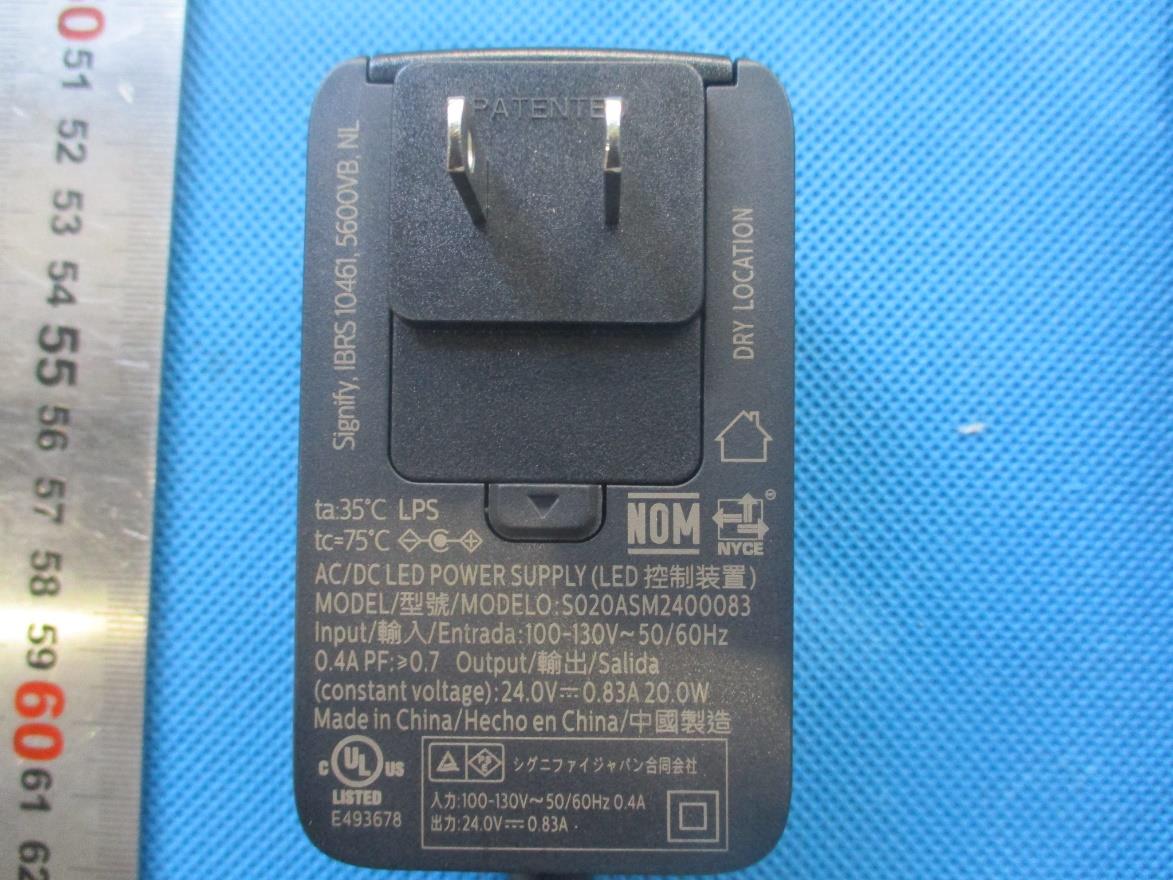

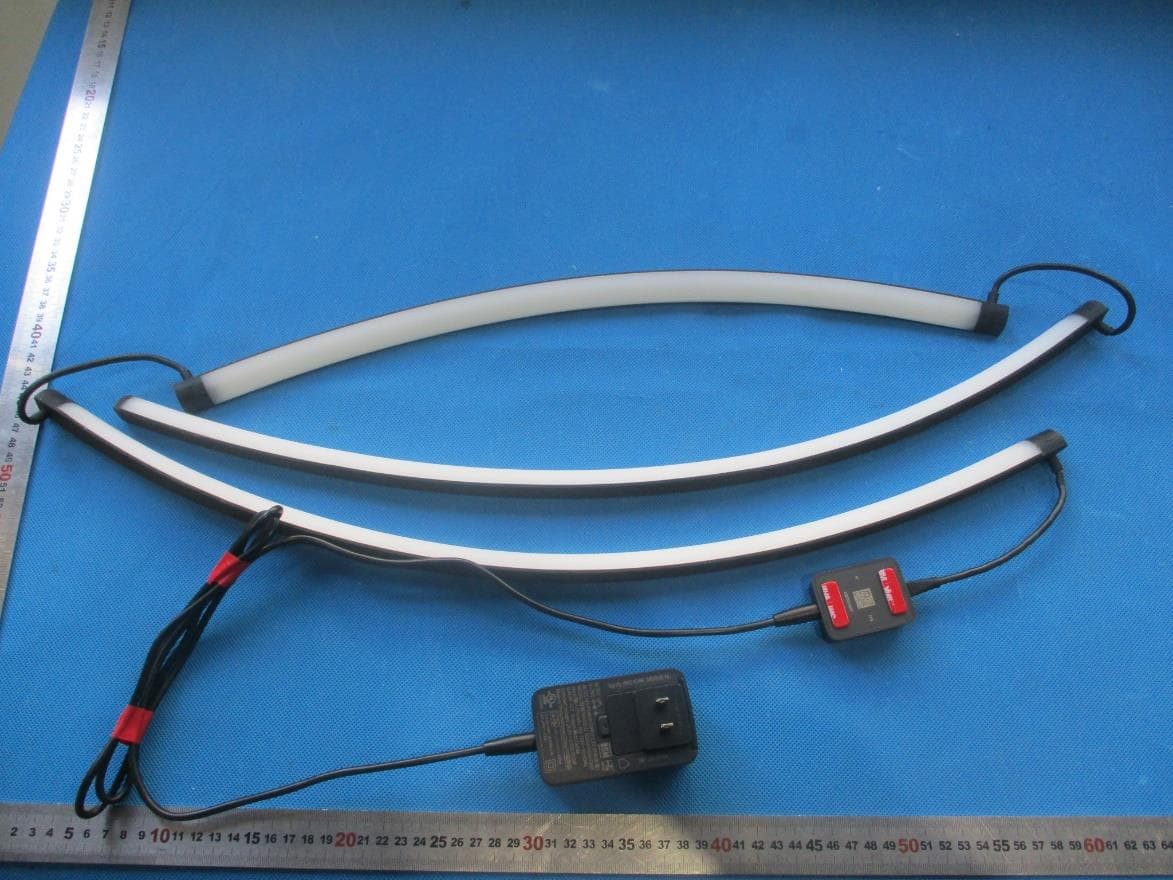

External Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 1 of 5 Product: Light strip for PC FCC ID: 2AGBW9290034985X IC: 20812-34985X Model: 9290034987 External Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 2 of 5 Product: Light strip for PC FCC ID: 2AGBW9290034985X IC: 20812-34985X External Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 3 of 5 Product: Light strip for PC FCC ID: 2AGBW9290034985X IC: 20812-34985X External Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 4 of 5 Product: Light strip for PC FCC ID: 2AGBW9290034985X IC: 20812-34985X External Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 5 of 5 Product: Light strip for PC FCC ID: 2AGBW9290034985X IC: 20812-34985X

Signify Classified - Internal Label position (the back of the product) Label The back of the product 34985 FCC ID: 2AGBW9290034985X IC: 20812-34985X

Internal Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 1 of 4 Product: LED Device FCC ID: 2AGBW9290034985X IC: 20812-34985X Antenna Internal Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 2 of 4 Product: LED Device FCC ID: 2AGBW9290034985X IC: 20812-34985X Internal Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 3 of 4 Product: LED Device FCC ID: 2AGBW9290034985X IC: 20812-34985X Internal Photos Documentation Applicant: Signify (China) Investment Co., Ltd. Page 4 of 4 Product: LED Device FCC ID: 2AGBW9290034985X IC: 20812-34985X

Report No: 709502203712-00D EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 2 Rev. 20.00 MPE Calculation Applicant: Signify (China) Investment Co., Ltd. Address: Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China Product: LED Device FCC ID: 2AGBW9290034985X Model No.: 9290034985,9290034986,9290034987 Reference RF report # 709502203712-00A, 709502203712-00B According to subpart 15.247(i)and subpart §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3–1.34 614 1.63 *(100) 30 1.34–30 824/f 2.19/f *(180/f²) 30 30–300 27.5 0.073 0.2 30 300–1,500 / / f/1500 30 1,500–100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary: Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Report No: 709502203712-00D EMC_SHA_F_R_02.06E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 2 Rev. 20.00 Calculated Data for BLE Maximum peak output power at antenna input terminal (dBm): 4.78 Maximum peak output power at antenna input terminal (mW): 3.01 tune-up conducted power(dBm): 5.00 tune-up conducted power(mW): 3.16 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.08 Maximum Antenna Gain (numeric): 1.61 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.00101 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.0 The max power density 0.00101 (mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant Calculated Data for Zigbee Maximum peak output power at antenna input terminal (dBm): 6.41 Maximum peak output power at antenna input terminal (mW): 4.38 tune-up conducted power(dBm): 7.00 tune-up conducted power(mW): 5.01 Prediction distance (cm): 20 Antenna Gain, typical (dBi): 2.08 Maximum Antenna Gain (numeric): 1.61 The worst case is power density at predication frequency at 20 cm (mW/cm 2 ): 0.0016 MPE limit for general population exposure at prediction frequency (mW/cm 2 ): 1.0 The max power density 0.0016 (mW/cm 2 ) < 1 (mW/cm 2 ) Result: Compliant - TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch Reviewed by: Prepared by: Tested by: ____________________ _____________________ ______________________ Hui TONG Jiaxi XU Wang Yiquan EMC Section Manager EMC Project Engineer EMC Test Engineer Date: 2022-03-09 Date: 2022-03-09 Date: 2022-03-09

EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 65 Rev. 171.00 FCC/ISED - TEST REPORT Report Number : 709502203712-00A Date of Issue: March 7, 2022 Model : 9290034985,9290034986,9290034987 Product Type : LED Device Applicant : Signify (China) Investment Co., Ltd. Address : Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China Manufacturer : Signify (China) Investment Co., Ltd. Address : Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China Test Result : ◼ Positive  Negative Total pages including Appendices : 65 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 65 Rev. 171.00 1 Table of Contents 1 Table of Contents......................................................................................................................................................... 2 2 Details about the Test Laboratory .............................................................................................................................. 3 3 Description of the Equipment under Test ................................................................................................................... 4 4 Summary of Test Standards ....................................................................................................................................... 6 5 Summary of Test Results ............................................................................................................................................ 7 6 General Remarks ......................................................................................................................................................... 8 7 Test Setups .................................................................................................................................................................. 9 8 Systems test configuration ........................................................................................................................................ 12 9 Technical Requirement.............................................................................................................................................. 13 9.1 Conducted Emission ......................................................................................................................................... 13 9.2 Conducted peak output power and e.i.r.p. ....................................................................................................... 16 9.3 6dB bandwidth and 99% Occupied Bandwidth ............................................................................................... 21 9.4 Power spectral density ...................................................................................................................................... 31 9.5 Spurious RF conducted emissions ................................................................................................................... 36 9.6 Band edge .......................................................................................................................................................... 49 9.7 Spurious radiated emissions for transmitter .................................................................................................... 54 10 Test Equipment List ............................................................................................................................................... 62 11 System Measurement Uncertainty ....................................................................................................................... 63 12 Photographs of Test Set-ups ................................................................................................................................ 64 13 Photographs of EUT .............................................................................................................................................. 65 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 3 of 65 Rev. 171.00 2 Details about the Test Laboratory Details about the Test Laboratory Test Site 1 Company name: TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch No.16 Lane, 1951 Du Hui Road, Shanghai 201108, P.R. China Designation Number: CN1183 Test Firm F…

Text truncated - open the document above for the full version.

Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 31 of 65 Rev. 171.00 9.4 Power spectral density Test Method This procedure shall be used if maximum peak conducted output power was used to demonstrate compliance: 1. Set analyzer center frequency to DTS channel center frequency. RBW=3kHz,VBW≥3RBW,Span=1.5 times DTS bandwidth, Detector=Peak, Sweep=auto, Trace= max hold. 2. Allow trace to fully stabilize, use the peak marker function to determine the maximum amplitude level within the RBW. 3. Repeat above procedures until other frequencies measured were completed. Limit Limit [dBm/3kHz] ≤8 Test result Test Mode Frequency MHz Power spectral density dBm/10kHz Result BLE_125K 2405MHz -0.76 Pass 2440MHz -1.35 Pass 2480MHz -1.88 Pass BLE_1M 2405MHz -5.39 Pass 2440MHz -5.92 Pass 2480MHz -6.38 Pass BLE_2M 2405MHz -8.87 Pass 2440MHz -9.41 Pass 2480MHz -9.87 Pass BLE_500K 2405MHz -6.18 Pass 2440MHz -6.76 Pass 2480MHz -7.23 Pass Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 32 of 65 Rev. 171.00 Power spectral density BLE_125K_Ant1_2402 BLE_125K_Ant1_2440 BLE_125K_Ant1_2480 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 33 of 65 Rev. 171.00 BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 34 of 65 Rev. 171.00 BLE_2M_Ant1_2402 BLE_2M_Ant1_2440 BLE_2M_Ant1_2480 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 35 of 65 Rev. 171.00 BLE_500K_Ant1_2402 BLE_500K_Ant1_2440 BLE_500K_Ant1_2480 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 36 of 65 Rev. 171.00 9.5 Spurious RF conducted emissions Test Method 1. Establish a reference level by using the following procedure: a. Set RBW=100 kHz. VBW≥3RBW. Detector =peak, Sweep time = auto couple, Trace mode = max hold. b. Allow trace to fully stabilize, use the peak marker function to determine the maximum PSD level. 2. Use the maximum PSD level to establish the reference level. a. Set the center frequency and span to encompass frequency range to be measured. b. Use the peak marker function to determine the maximum amplitude level. Ensure that the amplitude of all unwanted emissions outside of the authorized frequency band (excluding restricted frequency bands) are attenuated by at least the minimum requirements, report the three highest emissions relative to the limit. 3. Repeat above procedures until other frequencies measured were completed. Limit Frequency Range Limit (dBc) MHz 30-25000 -20 Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 37 of 65 Rev. 171.00 Spurious RF conducted emissions BLE_125K Out-of-Band Emissions Channel 0 (2402MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 38 of 65 Rev. 171.00 Out-of-Band Emissions Channel 19 (2440MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 39 of 65 Rev. 171.00 Out-of-Band Emissions Channel 39 (2480MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 40 of 65 Rev. 171.00 BLE_1M Out-of-Band Emissions Channel 0 (2402MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 41 of 65 Rev. 171.00 Out-of-Band Emissions Channel 19 (2440MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 42 of 65 Rev. 171.00 Out-of-Band Emissions Channel 39 (2480MHz) Reference point Spurious Emission (30MHz – 1GHz) Spurious Emission (1GHz –5GHz) Spurious Emission (5GHz –26.5GHz) Report Number: 709502203712-00A EMC_SHA_…

Text truncated - open the document above for the full version.

EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 1 of 38 Rev. 171.00 FCC/ISED - TEST REPORT Report Number : 709502203712-00B Date of Issue: March 9, 2022 Model : 9290034985,9290034986,9290034987 Product Type : LED Device Applicant : Signify (China) Investment Co., Ltd. Address : Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China Manufacturer : Signify (China) Investment Co., Ltd. Address : Building no.9, Lane 888, Tianlin Road, Minhang District Shanghai, 200233 China Test Result : ◼ Positive  Negative Total pages including Appendices : 37 TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch is a subcontractor to TÜV SÜD Product Service GmbH according to the principles outlined in ISO 17025. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch reports apply only to the specific samples tested under stated test conditions. Construction of the actual test samples has been documented. It is the manufacturer's responsibility to assure that additional production units of this model are manufactured with identical electrical and mechanical components. The manufacturer/importer is responsible to the Competent Authorities in Europe for any modifications made to the production units which result in non-compliance to the relevant regulations. TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch shall have no liability for any deductions, inferences or generalizations drawn by the client or others from TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch issued reports. This report is the confidential property of the client. As a mutual protection to our clients, the public and ourselves, extracts from the test report shall not be reproduced except in full without our written approval. Report Number: 709502203712-00B EMC_SHA_F_R_02.10E TÜV SÜD Certification and Testing (China) Co., Ltd. Shanghai Branch 3-13, No.151, Heng Tong Road, Shanghai, 200070, P.R. China Phone: +86 21 61410123, Fax:+86 21 61408600 Page 2 of 38 Rev. 171.00 1 Table of Contents 1 Table of Contents......................................................................................................................................................... 2 2 Details about the Test Laboratory .............................................................................................................................. 3 3 Description of the Equipment under Test ................................................................................................................... 4 4 Summary of Test Standards ....................................................................................................................................... 6 5 Summary of Test Results ............................................................................................................................................ 7 6 General Remarks ......................................................................................................................................................... 8 7 Test Setups ...................................................................................................…

Text truncated - open the document above for the full version.
